  1. Wireless LAN Overview Sunggeun Jin 2005-10-17

  2. Outline • IEEE802.16 MAC • IEEE802.11 MAC

  3. IEEE802.16 (a, e, Wibro) • Original goal • alternative to cabled access network • to provide network access to buildings • it came from DOCSIS spec. • Amendments • IEEE802.16a • for fixed service subscribers • IEEE802.16e • for movable service subscribers • Feature • FDD or TDD • TDD as to Wibro • TDM, TDMA, OFDM, OFDMA • OFDM/OFDMA for Wibro

  4. Protocol Layers of IEEE802.16 - Transformation of external network data into MAC SDUs ; - Payload header suppression - System Access - Bandwidth Allocation - Connection set - up - Connection maintenance - QoS - Authentication - Secure key exchange - Encryption

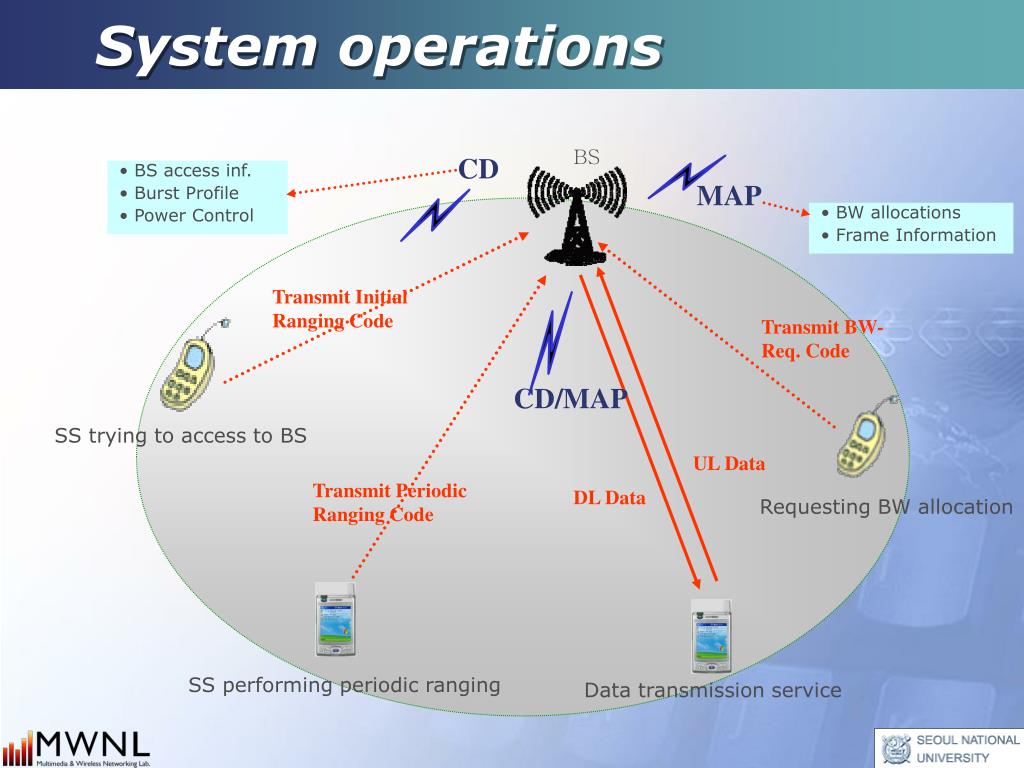

  5. System operations BS CD • BS access inf. • Burst Profile • Power Control MAP • BW allocations • Frame Information Transmit Initial Ranging Code Transmit BW-Req. Code CD/MAP SS trying to access to BS UL Data Transmit Periodic Ranging Code DL Data Requesting BW allocation SS performing periodic ranging Data transmission service

  6. Initial Ranging • timing and frequency offset adjustments • obtaining management CID

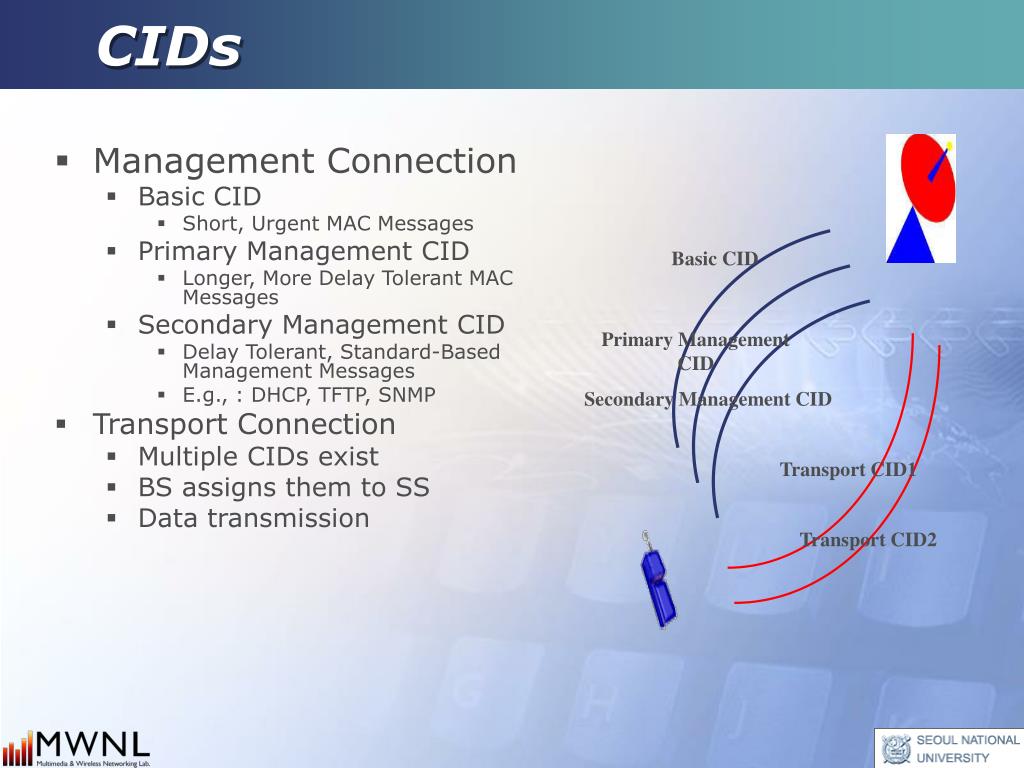

  7. CIDs Basic CID Primary Management CID Secondary Management CID Transport CID1 Transport CID2 • Management Connection • Basic CID • Short, Urgent MAC Messages • Primary Management CID • Longer, More Delay Tolerant MAC Messages • Secondary Management CID • Delay Tolerant, Standard-Based Management Messages • E.g., : DHCP, TFTP, SNMP • Transport Connection • Multiple CIDs exist • BS assigns them to SS • Data transmission

  8. MAP and frame structure Frame in case of TDD Frames in case of FDD

  9. IEEE802.11 • Application overview • Wireless Ethernet with compatible speed • Enable (indoor) wireless and mobile high-speed networking • Functional overview • Runs at unlicensed bands at 2.4GHz and 5GHz • Connectionless MAC and multiple PHYs • Supports up to 11 and/or 54 Mbps within >100 m range

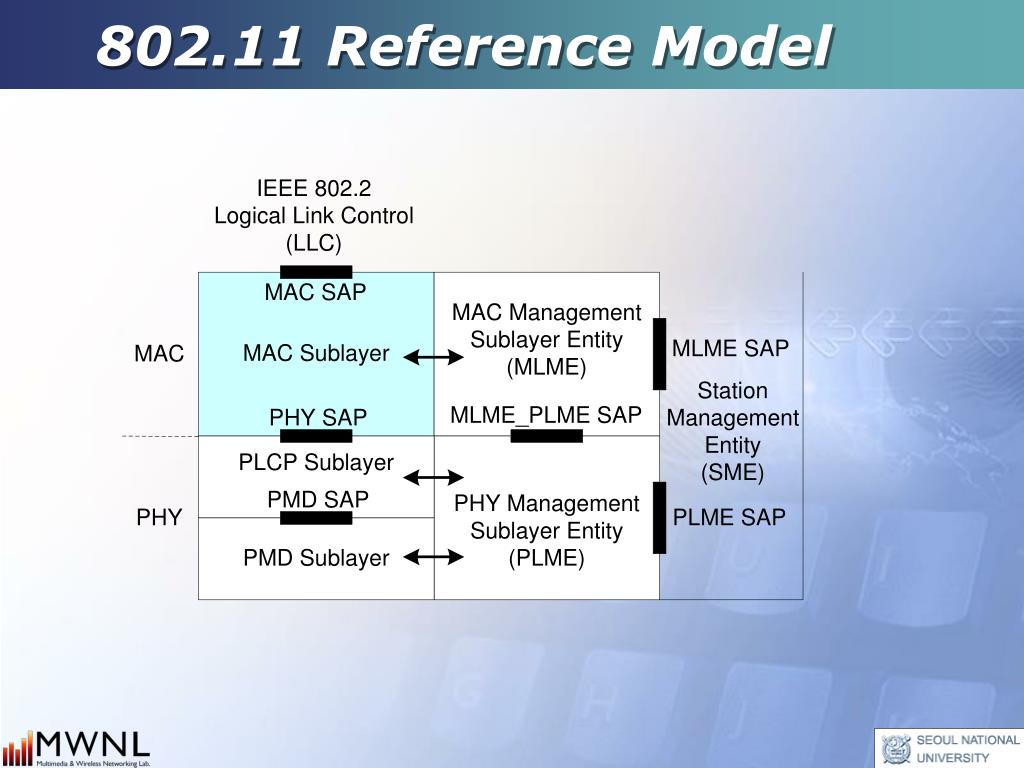

  10. 802.11 Reference Model

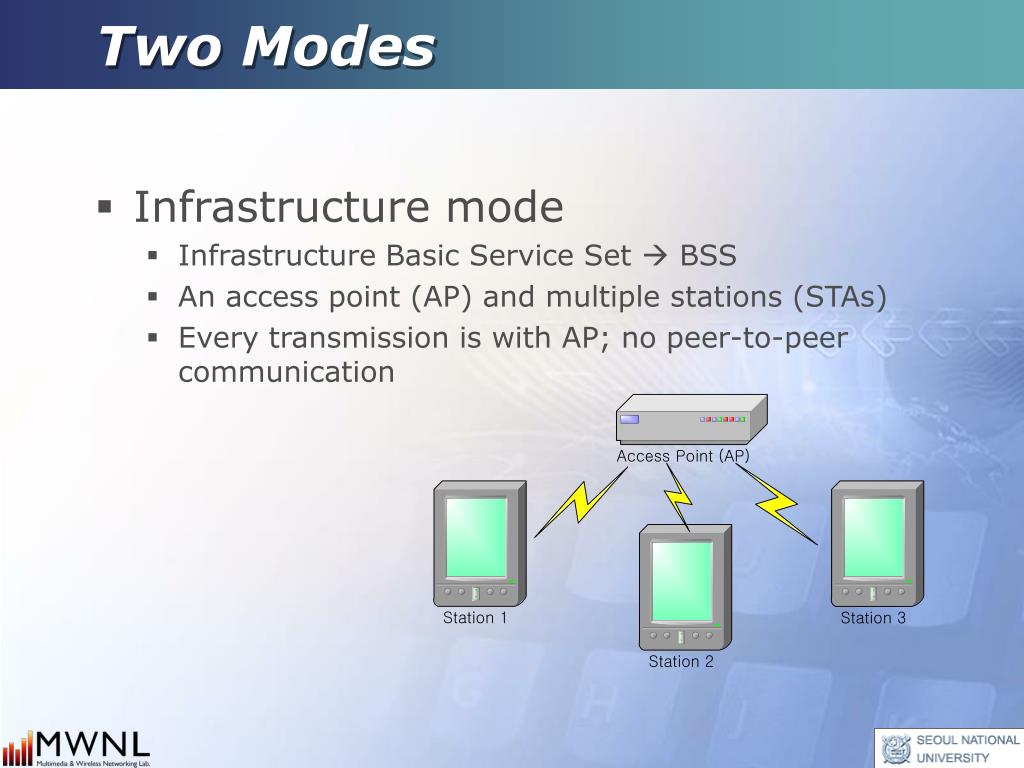

  11. Two Modes • Infrastructure mode • Infrastructure Basic Service Set  BSS • An access point (AP) and multiple stations (STAs) • Every transmission is with AP; no peer-to-peer communication

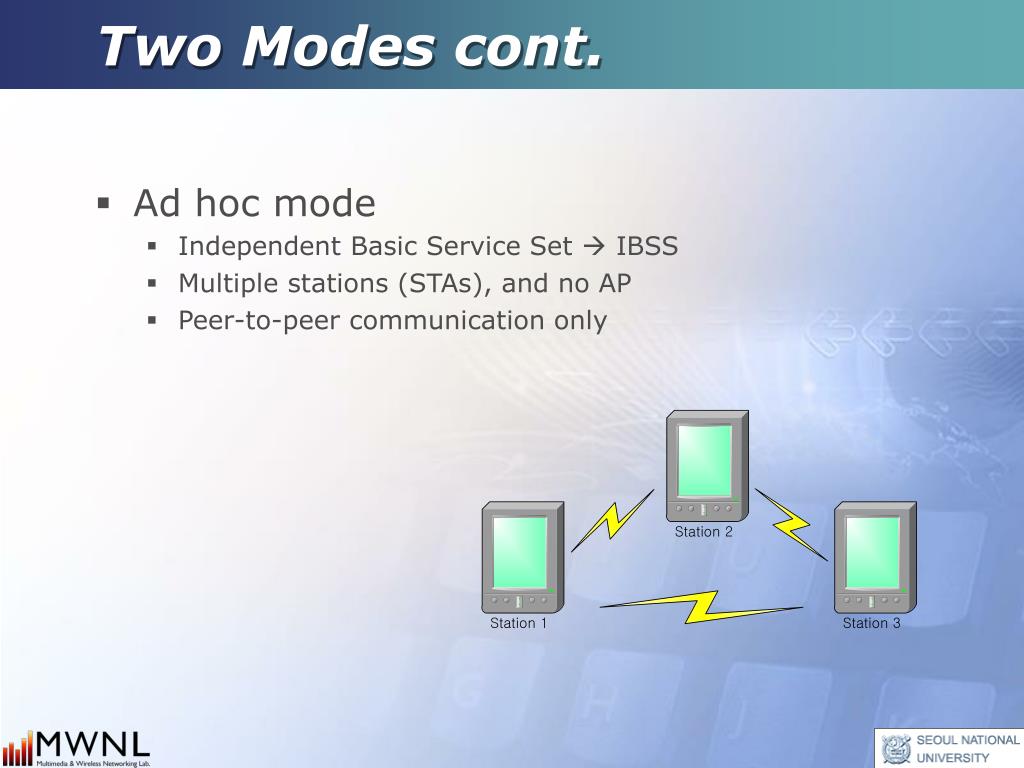

  12. Two Modes cont. • Ad hoc mode • Independent Basic Service Set  IBSS • Multiple stations (STAs), and no AP • Peer-to-peer communication only

  13. Two Coordination Functions • Mandatory Distributed Coordination Function (DCF) • For distributed contention-based channel access • Optional Point Coordination Function (PCF) • For centralized contention-free channel access

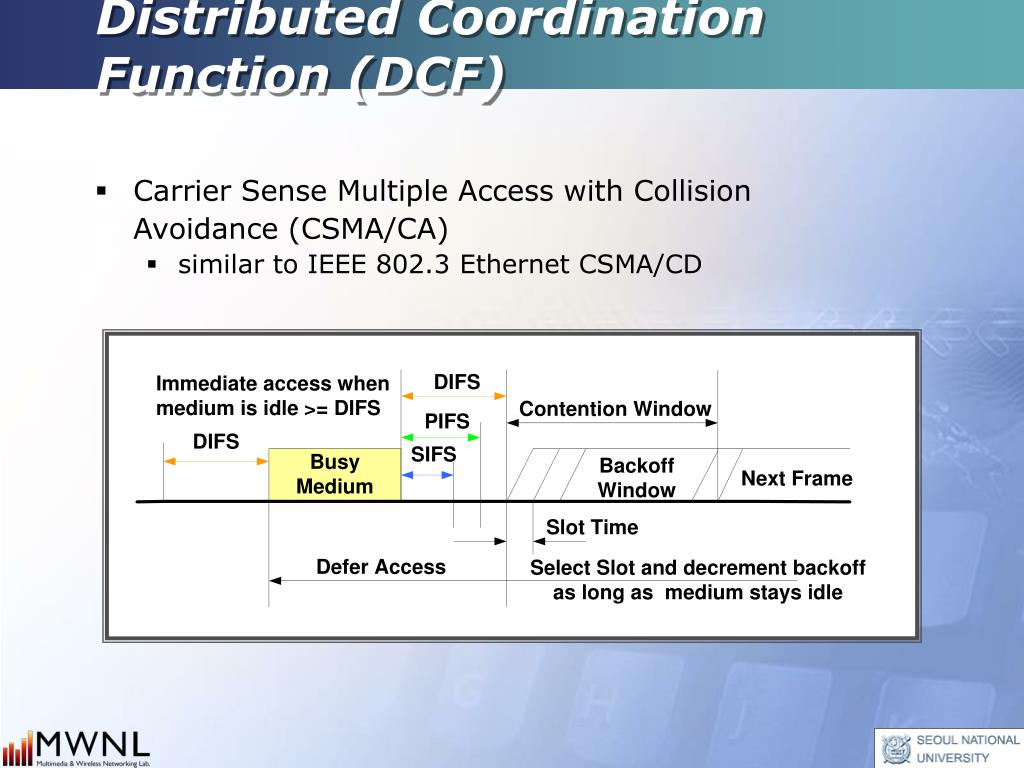

  14. Distributed Coordination Function (DCF) • Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) • similar to IEEE 802.3 Ethernet CSMA/CD

  15. Carrier-Sense Mechanisms • Physical carrier-sense • Provided by PHY, and depends on PHY • Clear Channel Assessment (CCA) by PHY • Virtual carrier-sense • Provided by MAC via Network Allocation Vector (NAV) counter • Each frame carries Duration value in the header • Any correctly received frame updates NAV if the new NAV is larger • Assumes busy channel if non-zero NAV irrespective of CCA!

  16. Stop-and-Wait ARQ • Receiver of a directed frame returns an ACK • If ACK not received, sender retransmits after another back-off

  17. References • Carl Eklund and et al, “IEEE Standard 802.16: A Technical Overview of the WirelessMAN Air Interface for Broadband Wireless Access,” IEEE Comm. Mag. Jun. 2002 • IEEE802.11 tutorial material presented by Sunghyun Choi, Seoul Natl. Univ. • IEEE802.16 tutorial material presented by Samsung • IEEE802.16 tutorial material presented by ETRI
