Presentation Transcript
slide1

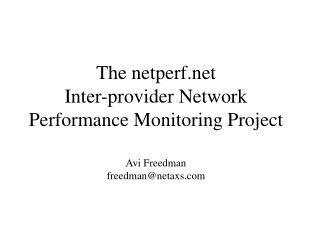

The netperf.net Inter-provider Network Performance Monitoring ProjectAvi Freedmanfreedman@netaxs.com

traditional performance tools
Traditional Performance Tools
  • ping
  • traceroute
  • Q: What should you ping/traceroute to?
  • Problem - routers de-prioritize responses to ping/traceroute; may even shape ICMP.
current ping based tools
Current ping-based Tools
  • MCI’s traffic.mci.com page
    • ping-monitoring of MCI routers
    • always all-green
  • “Internet weather” sites
    • ping-monitoring of name servers
then the keynote study
Then, the Keynote Study
  • Clearly, they understood that ping-monitoring to routers is not the way to go
  • So they said (presumably) let’s do HTTP - that’s what people on the ‘net do.
  • Attitude has been “don’t give us technical excuses; we know you’re just trying to hoodwink us”.
keynote study more
Keynote Study (more)
  • So, what are they doing?
  • The study consists of millions of HTTP queries from collocated machines, querying the web servers of each backbone.
  • Machines are collocated on sites that are often multi-homed.
  • Also, they do URL performance monitoring, not too badly, but negative data is not useful.
what the study shows
What the Study Shows
  • Wow, the Internet tends to be “worst” from certain cities. No, actually, from certain networks, we believe.
  • Their written analysis frequently says “the Internet was slow in Philadelphia”, or “the Internet was slow in Pittsburgh because of under-provisioning of fiber to Pittsburgh”.
issues with the keynote test
Issues with the Keynote Test
  • Little scientific method
    • Machines are not all similar, much less identical.
    • Questionable statistics handling.
    • Some people have special 10k files, some don’t
  • Claim is “network performance is a much bigger factor than web server performance”
  • No data about how no-responses are counted.
issues with keynote study ctd
Issues with Keynote Study, ctd.
  • “The Internet is slow in Pittsburgh” - not how the Internet is architected. The backbone that a site is on is much more important than what city...
  • MEASURING BACKWARDS!
  • The Keynote study may be able to show how good it is to be hosted on a given network, but not how good it is to be a browser.
issues with keynote ctd
Issues with Keynote, ctd.
  • Study always delayed 3-6 months - it’s a 3-month study released 3 months later. No real-time (i.e. useful) data.
  • Strange padding of numbers by multiplying by strange factors that are not well-defined so people can’t real-world correlate.
  • Unwillingness to release sampling code when validity challenged.
keynote study as sat
Keynote Study as SAT
  • With the SAT, a highly positive score is a good indicator of high potential <something>. A negative score isn’t a good indicator of anything in particular.
  • The Keynote study is the SAT of Internet measurement - a highly positive score is a good indicator but a negative score could mean many things.
beating keynote
Beating Keynote
  • Many providers spend lots of time trying to beat the Keynote test - dedicated server; special 10k file, replicated servers, special peering and announcing just a Keynote-only web server IP/route, with diff. connectivity.
  • We were going to deploy 15 optimized Sparc 1+s running Linux, with a specialized web server in the kernel that pre-computes the 10 response packets. So we said “since we have all of these machines...”
the netperf net study
The netperf.net Study
  • We assert that the main issue is what network one is on, not what city one is in.
  • Scientific method is important.
  • Plan - put 2 machines on every network, or on a SINGLE-homed customer of that network. All are 16mb/200mb Sparc 1+s.
  • Each Query machine queries all remote Responder machines.
the study s products
The Study’s Products
  • Our short-term goal is to have a 30-minute delayed NxN matrix set:
    • One of UDP packet loss (not pings)
    • One of TCP session establishment (10-byte HTTP request)
    • One of 1k-HTTP requests
    • One of 10k-HTTP requests
  • Longer-term, URL performance monitoring.
the study s products ctd
The Study’s Products (ctd)
  • Backbone measurement data will be semi-real time and free.
  • We may charge for URL performance monitoring. The raw data shows both “how good to be a server” and “how good to be a browser” on a network.
the study s products ctd15
The Study’s Products (ctd)
  • Main goal, though - to provide useful data to network operators.
current status
Current Status
  • 9 pairs of machines are deployed; data is coming in.
  • 10 more pairs will be sent out by the end of June.
  • Many backbones have welcomed such a study - concentric, savvis, epoch, ibm, ...
current status ctd
Current Status (ctd)
  • Still looking for PSI, ANS, AGIS, Digex.
  • Offering reciprocal collo to single-homed ISPs.
  • Still have software work (to subtract out congested sites).
