  1. 惠生项目经验概览 Confidential

  2. 目 录 第一节 乙烯及下游项目经验 炼油项目经验 第二节 第三节 煤化工项目经验 第四节 其它项目经验 Page 2

  3. 目 录 第一节 乙烯及下游项目经验 Page 3

  4. 在传统石油化工领域，惠生立足高起点 In the traditional petrochemical industry, Wison aims at a higher level • 惠生工程专注于石化行业中难度最大，复杂程度最高的领域-乙烯及乙烯下游产品生产装置，如：乙烯装置、聚乙烯装置、聚丙烯、丁苯橡胶装置、芳烃装置、乙二醇装置等 • Wison Engineering concentrates on the most difficult and complicated petrochemical field - ethylene and its downstream production plants including ethylene plants, polyethylene plants, polypropylene plants, butadiene styrene rubber plants, aromatics plants and ethylene glycol plants, etc.

  5. 项目经验：中国石化齐鲁石化E-BA-101裂解炉 Project: CNPC Qilu Petrochemical E-BA-101Cracking Furnace • 服务范围 Project Scope • E-BA-101裂解炉改造（年产乙烯由4.5万吨增至6.2万吨） • Revamping of the E-BA-101 ethylene cracking furnace from 45 kt/a to 62 kt/a • 承包模式 Contract Mode • EP + CM • 项目时间 Duration • 2000.04.18 - 2001.05.16 • 项目特点 Highlights • 第一个裂解炉改造项目 • The first cracking furnace revamping project • 原炉型：SRT-Ⅲ • The previous furnace type:SRT-Ⅲ • 改造后炉型：KTI GK-Ⅵ • The revamped furnace type: KTI GK-Ⅵ

  6. 项目经验：中国石油大庆石化分公司新建2台裂解炉项目经验：中国石油大庆石化分公司新建2台裂解炉 Project: CNPC Daqing Petrochemical Branch 2 Newly-built Cracking Furnaces • 服务范围 Project Scope • M、N裂解炉，年产乙烯10万吨 • Cracking furnaces M and N, 100kt/a ethylene • 承包模式 Contract Mode • PC • 项目时间 Duration • 2002.09.28 - 2004.08.14 • 项目特点 Highlights • 第一个裂解炉新建项目 • The first newly-built cracking furnace plant by Wison • 炉型：SCORE-Ⅰ • Furnace type: SCORE-Ⅰ

  7. 项目经验：中国石油辽阳石化乙烯裂解炉新改建项目项目经验：中国石油辽阳石化乙烯裂解炉新改建项目 Project: CNPC Liaoyang Petrochemical Ethylene Cracking Furnace Newly-built and Revamping Project • 服务范围 Project Scope • 新建2台年产6万吨乙烯裂解炉 • Newly-built two 60 kt/a ethylene cracking furnaces • 新建1台6万吨/年乙烯裂解炉(F103X) • Newly-built one 60 kt/a ethylene furnace ((F103X) • 承包模式 Contract Mode • EPC • 项目时间 Duration • 2004.04.28 - 2005.08 • 2005.10.31 - 2006.11.09 • 项目特点 Highlights • 第一次以EPC方式承接项目，炉型：GK-Ⅵ • 采用KTI 型裂解炉专利技术 • Wison’s first EPC contract • Furnace type: GK-VI • Using KTI cracking furnace patented technology

  8. 项目经验：中国石化茂名石化乙烯裂解炉新建项目项目经验：中国石化茂名石化乙烯裂解炉新建项目 Project : CNPC Maoming Petrochemical Ethylene Cracking Furnace Newly-built Project 服务范围 Project Scope 新建7台年产乙烯11万吨 Lummus裂解炉，由36万吨/年扩能到100万吨/年 Seven newly-built 110 kt/a ethylene Lummus cracking furnaces, capacity from 360 kt/a to 1,000 kt/a 承包模式 Contract Model PC 项目时间 Duration 2004.07 - 2006.08 项目特点 Highlights 该项目是中国石化推进南方基地建设的“十五”重点项目，也是广东省的“十大工程”之一 This project is one of CNPC’s “Tenth 5 Year Plan Critical Projects” for advancing the southern base, it is also one of Guangdong Province’s “Ten Big Projects” 新建7台裂解炉包括SL-1型炉1台、SL-2型炉4台、SL-1M型炉（基于国产CBL炉技术）2台；SL-1型炉用以裂解循环乙烷和循环丙烷，SL-2型炉用以裂解NAP或者NAP与LPG的混合物，SL-1M型炉用以裂解加氢尾油和石脑油 Seven newly-built cracking furnaces: SL-1 cracking furnace (cycled ethane and cycled propane) 4 SL-2 cracking furnaces (NAP or a mixture of NAP and LPG) 2 SL-1M cracking furnaces (hydrogenation tail oil and naphtha, based on domestic CBL technology).

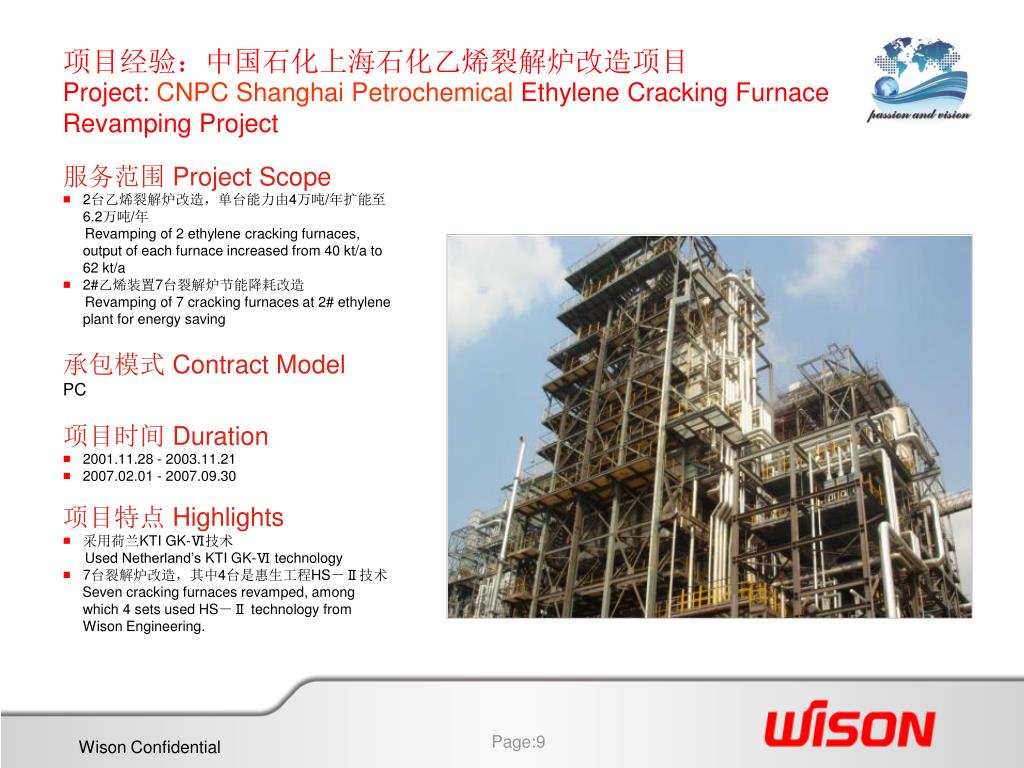

  9. 项目经验：中国石化上海石化乙烯裂解炉改造项目项目经验：中国石化上海石化乙烯裂解炉改造项目 Project: CNPC Shanghai Petrochemical Ethylene Cracking Furnace Revamping Project • 服务范围 Project Scope • 2台乙烯裂解炉改造，单台能力由4万吨/年扩能至6.2万吨/年 • Revamping of 2 ethylene cracking furnaces, output of each furnace increased from 40 kt/a to 62 kt/a • 2#乙烯装置7台裂解炉节能降耗改造 • Revamping of 7 cracking furnaces at 2# ethylene plant for energy saving • 承包模式 Contract Model • PC • 项目时间 Duration • 2001.11.28 - 2003.11.21 • 2007.02.01 - 2007.09.30 • 项目特点 Highlights • 采用荷兰KTI GK-Ⅵ技术 • Used Netherland’s KTI GK-Ⅵ technology • 7台裂解炉改造，其中4台是惠生工程HS－Ⅱ技术 • Seven cracking furnaces revamped, among which 4 sets used HS－Ⅱ technology from Wison Engineering.

  10. 项目经验：中国石化广州石化新建裂解炉项目 Project: CNPC Guangzhou Petrochemical Newly-built Cracking Furnace Project 服务范围 Project Scope 新建一台4万吨/年乙烯裂解炉 Newly-built 40 kt/a ethylene cracking furnace 承包模式 Contract Model EPC 项目时间 Duration 2006.06.28 - 2007.01.12 项目特点 Highlights 采用惠生工程HS-Ⅱ自有技术改造项目 Revamping project using Wison Engineering’s own HS-Ⅱ technology

  11. 项目经验：中国石化广州石化MTBE装置 Project : CNPC Guangzhou Petrochemical MTBE Plant • 服务范围 Project Scope • 共承接2套MTBE装置 • Undertook 2 whole MTBE Plants • 5.4万吨/年MTBE、1.82万吨/年丁烯－1装置扩能改造项目 • 54 kt/a MTBE and 18.2 kt/a butene-1 plant expansion and revamping project • 9万吨/年MTBE 90 kt/a MTBE • 承包模式 Contract Model • EPC • 项目时间 Duration • 2008.03.08－2008.06.15 • 2010.03.08－2010.08.15 • 项目特点 Highlights • 项目建成投产不仅满足了广石化生产高标号汽油对MTBE的用量需求和生产聚乙烯对丁烯1的用量需求，还合理利用现有碳四资源，提高碳四的综合利用率，对降低成本和提高企业的整体经济效益具有重要的意义 • The construction and operation of the project not only satisfied Guangzhou Petrochemical’s need for high quality MTBE and butene-1 suitable for premium gasoline and polyethylene production but also made better use of available C4 resources, increasing C4‘s overall consumption efficiency. The project greatly reduced costs and significantly benefitted the company’s overall economy.

  12. 项目经验：中国石化大庆石化乙烯裂解炉新改扩建项目项目经验：中国石化大庆石化乙烯裂解炉新改扩建项目 Project: CNPC Daqing Petrochemical Ethylene Cracking Furnace Newly-built, Revamping and Expansion Project • 服务范围 Project Scope • 新建2台10万吨/年忆烯裂解炉及炉前管廊 • Two new 100 kt/a ethylene cracking furnaces and associated pipe-racks. • 1台乙烯裂解炉改造，单台能力由4.5万吨/年扩能至9.48万吨/年 • Revamping of one ethylene cracking furnace, production capacity of the single furnace increased from 45 kt/a to 94.8 kt/a • 7台6万吨/年乙烯裂解炉及急冷区改造 • Revamping of seven 60 kt/a ethylene cracking furnaces and quenching zone • 承包模式 Contract Model • EPC • 项目时间 Duration • 2002.08.21－2004.06.28 • 2003.02.10－2004.09.30 • 2010.03.10－2010.10.30 • 项目特点 Highlights • 采用KBR SCORE-Ⅰ、KTI GK-Ⅵ技术；7台7万吨/年乙烯裂解炉属节能改造项目，采用惠生工程HS-Ⅰ、Ⅱ型技术，通过增加蒸气过热段，减去蒸气过热炉，降低装置能耗 • Using KBR SCORE-Ⅰ, KTI GK-Ⅵ technology; Seven 70 kt/a ethylene cracking furnaces were energy saving revamping projects, adopting Wison Engineering’s HS-ⅠandⅡ technology. After adding the superheating steam section and cutting out the superheated steam furnace, the plant’s energy consumption was significantly reduced.

  13. 项目经验：中石油兰州石化乙烯装置项目 Project: CNPC Lanzhou Petrochemical Ethylene Plant Project • 服务范围Project Scope • 70万吨/年乙烯改扩建、46万吨/年乙烯新建装置 • 700 kt/a ethylene revamping and expansion plant , new 460 kt/a ethylene plant • 承包模式 Contract Mode • EM+PC • 项目时间 Duration • 2005.03.10 - 2006.08.30 • 项目特点 Highlights • 施工周期仅19个月，比同类装置平均建设周期提前9个月开车，较行业平均水平缩短三分之一 • Construction period was only 19 months. Start-up was 9 months earlier than similar plants. Used 1/3 less time average. • 开创国内EM+PC总承包模式 • Initiated EM+PC contract mode in China

  14. 项目经验：中国石化兰州石化新建裂解炉新建项目项目经验：中国石化兰州石化新建裂解炉新建项目 Project: CNPC Lanzhou Petrochemical Newly-built Cracking FurnaceProject 服务范围 Project Scope 新建2台4万吨/年乙烯裂解炉 Newly built two 40 kt/a ethylene cracking furnaces 承包模式 Contract Model EPC 项目时间 Duration 2006.11.01－2007.08.30 项目特点 Highlights 采用惠生工程HS-Ⅱ型自有技术新建项目，降 低装置能耗 Used Wison Engineering’s own HS-Ⅱ technology and reduced energy consumption

  15. 项目经验：中国石油独山子石化项目 Project: CNPC Dushanzi Petrochemical Project • 服务范围Project Scope • 18万吨/年丁苯橡胶装置、60万吨/年全密度聚乙烯装置以及100万吨/年乙烯装置裂解炉区 180 kt/a styrene-butadiene rubber plant; 600 kt/a full density polyethylene plant;1,000 kt/a ethylenecracking furnace plant • 承包模式 Contract Mode • EM+PC • 项目时间 Duration • 2006.10 - 2009.06.15 • 项目特点Highlights • 项目为西北地区最大的石化项目,其中：乙烯装置为国内单套最大的装置 • Largest petrochemical project in northwest China, of which the ethylene plant is the largest single plant in China.

  16. 项目经验：中国石油抚顺新建乙烯装置项目 Project: CNPC Fushun Newly-built Ethylene Plant Project • 服务范围Project Scope • 80万吨/年乙烯装置（含40万吨/年裂解汽油加氢） • 800 kt/a Ethylene plant including a 400kt/a gasoline cracking and hydrogenation plant • 承包模式 Contract Mode • EM+PC • 项目时间 Duration • 2009.04.30 - 2012.07.20 • 项目特点Highlights • 乙烯装置采用美国SS&W公司的工艺包专利技术，分离采用SS&W最新开发的乙烯分离专利技术HRS（热集成精馏系统） • Ethylene plant used SS&W’s process package with patented technology; used SS&W’s latest HRS ethylene separation technology

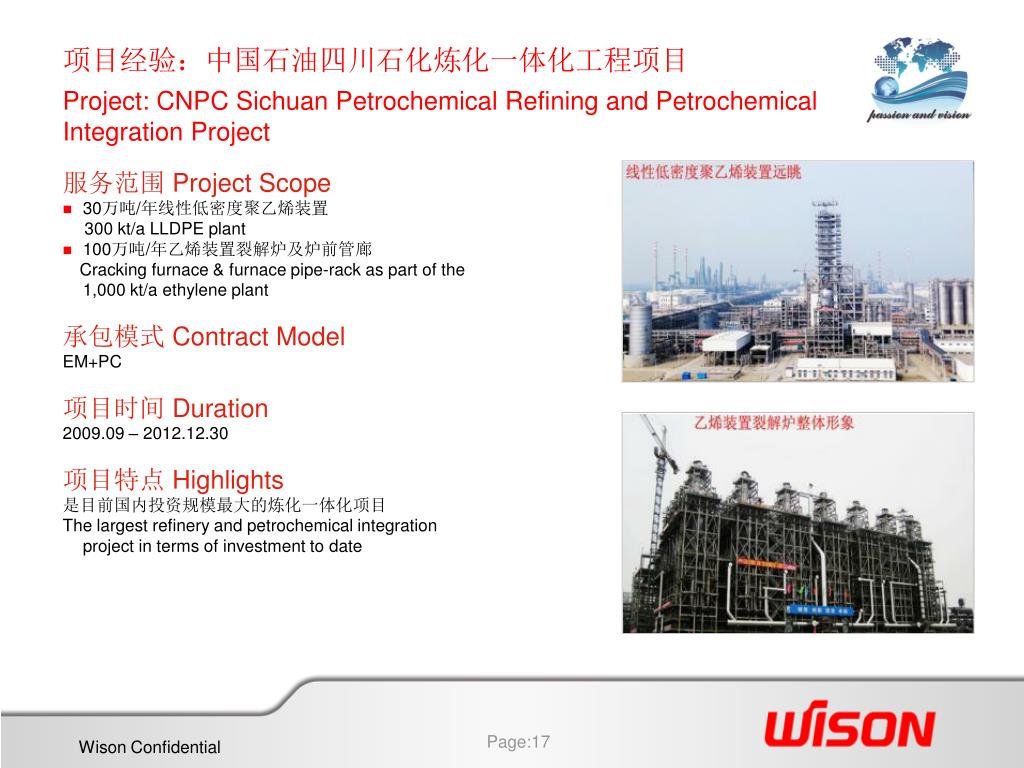

  17. 项目经验：中国石油四川石化炼化一体化工程项目项目经验：中国石油四川石化炼化一体化工程项目 Project: CNPC SichuanPetrochemical Refining and Petrochemical Integration Project • 服务范围 Project Scope • 30万吨/年线性低密度聚乙烯装置 • 300 kt/a LLDPE plant • 100万吨/年乙烯装置裂解炉及炉前管廊 • Cracking furnace & furnace pipe-rack as part of the 1,000 kt/a ethylene plant • 承包模式 Contract Model • EM+PC • 项目时间 Duration • 2009.09 – 2012.12.30 • 项目特点 Highlights • 是目前国内投资规模最大的炼化一体化项目 • The largest refinery and petrochemical integration project in terms of investment to date

  18. 项目经验：中海壳牌石化联合工厂(CSPC)80万吨/年乙烯装置扩能至95万吨/年项目项目项目经验：中海壳牌石化联合工厂(CSPC)80万吨/年乙烯装置扩能至95万吨/年项目项目 Project: CSPC Ethylene Plant Expansion Project (800 kt/a to 950 kt/a) • 服务范围Project Scope • 新建乙烯裂解炉12万吨/年，炉前管廊改造和工艺甩头项目 • Newly built 120 kt/a ethylene cracking furnace; furnace pipe-rack revamping and process tie-in project • 承包模式 Contract Mode • EPC • 项目时间 Duration • 2008.08.04 - 2010.03.31 • 项目特点Highlights • 采用SHAW SW专利技术；设计标准严格执行业主的DEP（工程设计惯例）、SP（技术规范）等 • Used SHAW SW patented technology; strict following of owners’ design standards such as DEP, SP and etc. • 在中海壳牌公司与福斯特•惠勒(FOSTER WHEELER)等组建的项目管理团队下严格按照国际惯例进行管理 • Managed by project management team consisting of CSPC and FOSTER WHEELER, strict compliance with international practices

  19. 项目经验：扬子石化-巴斯夫（BYC）新建、改扩建项目项目经验：扬子石化-巴斯夫（BYC）新建、改扩建项目 Project:BASF-YPC Newly-Built Project, Revamp & Expansion Project • 服务范围Project Scope • 新建19.2万吨/年乙烯裂解炉 • Newly-built 192 kt/a ethylene cracking furnace • 乙烯裂解炉技术改造累计10台 • revamping of 10 ethylene cracking furnaces • 承包模式 Contract Mode • EPC • 项目时间 Duration • 新建裂解炉 2008.07－2010.12 • Newly-built cracking furnace 2008.07 - 2010.12 • 裂解炉技术改造 2010年4月－2013年3月 • Cracking furnace revamp 2010.04 - 2013.03 • 项目特点Highlights • 采用行业领先的SS&W专利技术，是目前世界上产能最大的裂解炉 • Use advanced SS&W patented technology; world’s largest cracking furnace in terms of production capacity to date • 现有乙烯裂解炉采用惠生自有技术改造达到了国家节能减排，绿色环保的各项指标 • Applied Wison’s own technology and met national energy saving, emission reduction and environmental protection standards

  20. 项目经验：上海赛科石化（SECCO）工程项目 Project:SECCO Engineering Projects • 服务范围Project Scope • 赛科设计服务项目，乙烯装置裂解炉炉管更换项目、丁二烯扩能30%改造项目、PSA装置等，承接各类项目共209个 • SECCO design projects; ethylene plant cracking furnace tube replacement project; butadiene 30% expansion revamp project; PSA plant etc. Undertook a total of 209 projects • 承包模式 Contract Mode • EPC • 项目时间 Duration • 工程服务从2006.12.01至今Engineering services from 2006.12.1 to present • 裂解炉炉管更换项目Cracking furnace tube replacement project:2007.11.06 - 2009.03.31 • 丁二烯扩能改造项目Butadiene expansion revamping project: 2009.04.01 - 2009.06.30 • PSA装置项目PSA plant project: 2011.06.15 - 2012.04.04 • 项目特点Highlights • 为业主在节能降耗、装置性能、技术创新等方面提供服务，与业主建立了长期合作、相互信赖的关系 • Provided various services to the owner such as increasing energy saving and consumption reduction, plant performance and technological innovation etc.; built long-term cooperation based on mutual trust

  21. 项目经验：新疆蓝德5万吨/年顺丁橡胶装置 Project: Xinjiang Lande 50 kt/a Butadiene Rubber Plant 服务范围 Project Scope 5万吨/年顺丁橡胶装置 50 kt/a butadiene rubber plant 承包模式 Contract Model EPC 项目时间 Duration 2010.03.25－2011.08.08 项目特点 Highlights 惠生工程经过18个月的艰苦努力，按时顺利实现项目既定目标，装置采用齐鲁工程公司工艺包；创造了国内橡胶装置建设绝对工期的佳绩，目前装置满负荷正常运行 After 18 months of arduous efforts, Wison Engineering successfully achieved the scheduled completion time. Plant used Qilu Engineering Company’s process package; creating a National rubber plant which was successfully built completely within schedule. At present this plant is operating at normal full load.

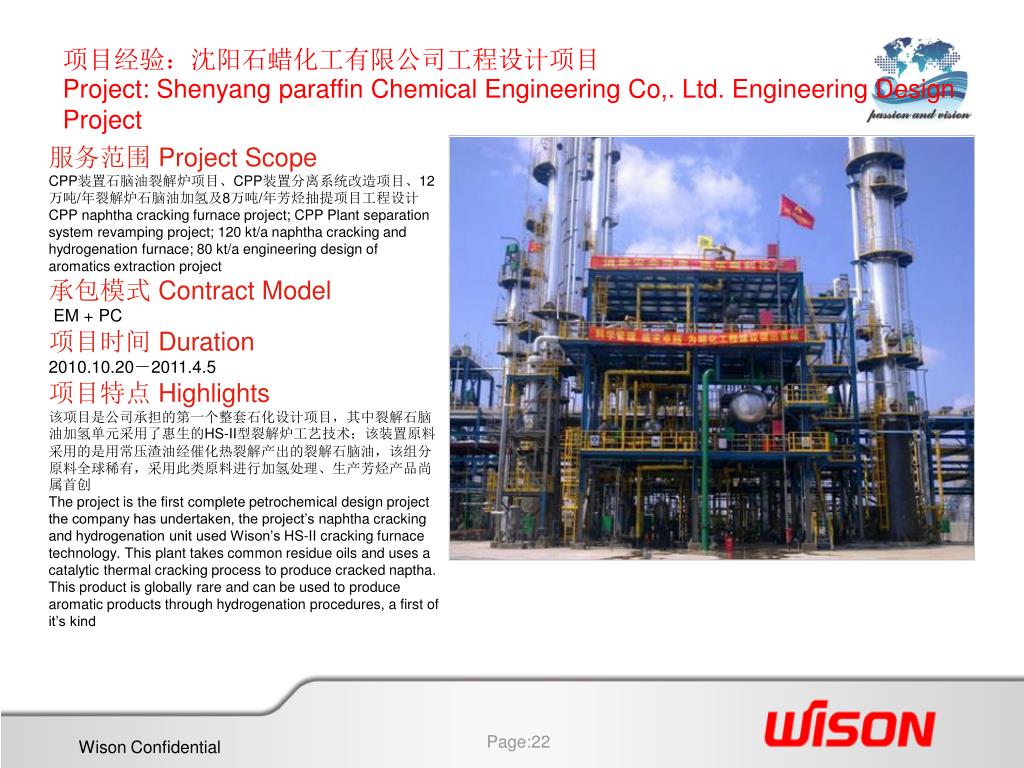

  22. 项目经验：沈阳石蜡化工有限公司工程设计项目项目经验：沈阳石蜡化工有限公司工程设计项目 Project: Shenyang paraffin Chemical Engineering Co,. Ltd. Engineering Design Project 服务范围 Project Scope CPP装置石脑油裂解炉项目、CPP装置分离系统改造项目、12万吨/年裂解炉石脑油加氢及8万吨/年芳烃抽提项目工程设计 CPP naphtha cracking furnace project; CPP Plant separation system revamping project; 120 kt/a naphtha cracking and hydrogenation furnace; 80 kt/a engineering design of aromatics extraction project 承包模式 Contract Model EM + PC 项目时间 Duration 2010.10.20－2011.4.5 项目特点 Highlights 该项目是公司承担的第一个整套石化设计项目，其中裂解石脑油加氢单元采用了惠生的HS-II型裂解炉工艺技术；该装置原料采用的是用常压渣油经催化热裂解产出的裂解石脑油，该组分原料全球稀有，采用此类原料进行加氢处理、生产芳烃产品尚属首创 The project is the first complete petrochemical design project the company has undertaken, the project’s naphtha cracking and hydrogenation unit used Wison’s HS-II cracking furnace technology. This plant takes common residue oils and uses a catalytic thermal cracking process to produce cracked naptha. This product is globally rare and can be used to produce aromatic products through hydrogenation procedures, a first of it’s kind

  23. 目 录 炼油项目经验 第二节

  24. 在炼油行业，惠生工程能够为客户提供装置工程建设和技术服务在炼油行业，惠生工程能够为客户提供装置工程建设和技术服务 In the refinery industry, Wison Engineering can supply customers with engineering, construction and technical services • 常减压、加氢裂化、制氢、连续重整、PX 、柴油及石脑油加氢、轻烃回收、硫磺回收、延迟焦化及催化裂化装置等 • ADU/VDU(即atmospheric distillation /vacuum distillation unit), HCU, HMU(M: manufacturing), CCR, PX, DHT/NHT, light hydrocarbon recovery unit , SRU, DCU, CCU, etc. (业内的回收指的都是recovery)

  25. 蜡油加氢裂化装置 芳烃联合装置 项目经验：中国石油四川石化炼化一体化工程项目 Project: CNPC SichuanPetrochemical Refining and Petrochemical Integration Project • 服务范围 Project Scope • 芳烃联合装置（含65万吨对二甲苯装置、200万吨/年连续重整（含PSA）装置） • Aromatic joint unit (including a 650 kt/a PX plant and 2,000 kt/a CCU (including PSA) plant) • 6万吨/年硫磺回收联合装置 • 60 kt/a SRU • 220万吨/年蜡油加氢裂化装置 • 2,200 kt/a Wax oil HCU • 炼化一体化项目化工区公用工程及辅助生产设施部分 • Utilities & auxiliary facilities in chemical area. • 承包模式 Contract Mode • EM+PC • 项目时间 Duration • 2009.9 - 2012.12.30 • 项目特点 Highlights • 是目前国内投资规模最大的炼化一体化项目 • The largest refining and petrochemical integration project in terms of investment to date

  26. 项目经验：中国石油大连石化炼油1000万吨加工俄罗斯含原油改扩建项目项目经验：中国石油大连石化炼油1000万吨加工俄罗斯含原油改扩建项目 Project: Wison (Nanjing) Clean Energy Co., Ltd Newly-built Coal to Chemicals Joint Plant Project • 服务范围Project Scope • 600万吨/年柴油加氢联合装置、220万吨/年连续重整联合装置、360万吨/年加氢裂化装置、20万Nm3/h制氢装置、300万吨/年渣油加氢脱硫装置及27万吨/年硫回收装置 • 6,000 kt/a DHDT • 2,200 kt/a CCU • 3,600 kt/a HCU • 200,000 Nm3/h HMU • 3,000 kt/a RHDS270 kt/a SRU • 承包模式 Contract Mode • PMC • 项目时间 Duration • 2006.03.10 - 2008.05.30 • 项目特点Highlights • 与业主组成IPMT（联合项目管理部），以PMC模式提供项目管理服务 • Established IPMT with owner, provided project management services in PMC mode

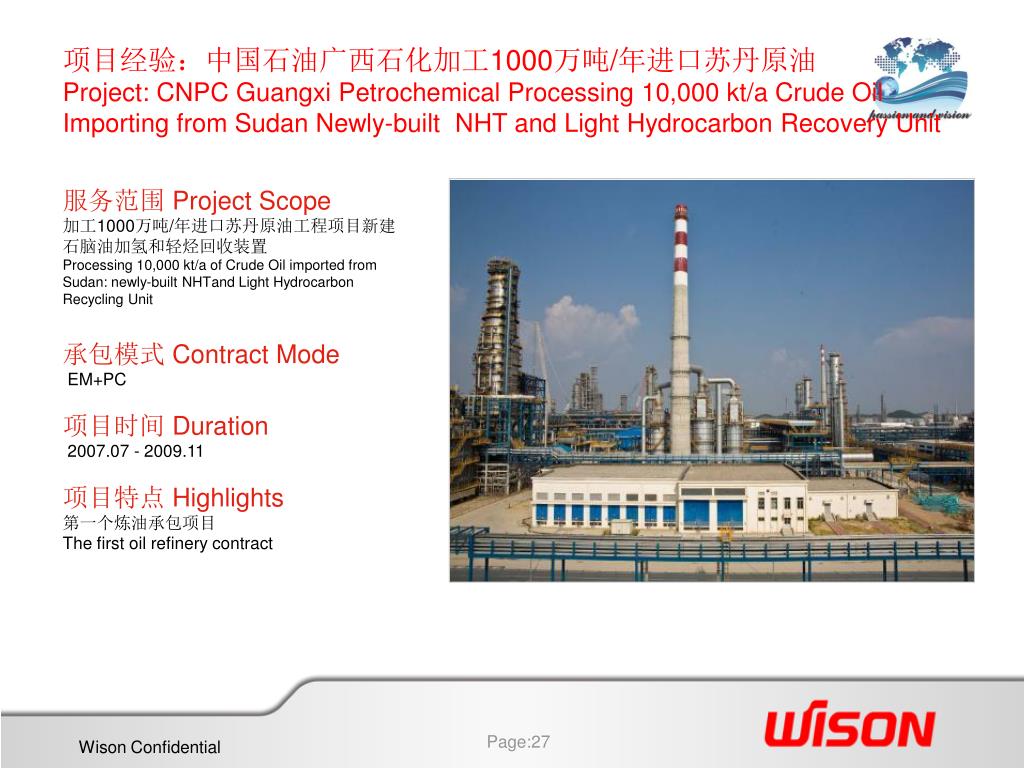

  27. 项目经验：中国石油广西石化加工1000万吨/年进口苏丹原油项目经验：中国石油广西石化加工1000万吨/年进口苏丹原油 Project: CNPC Guangxi Petrochemical Processing 10,000 kt/a Crude Oil Importing from Sudan Newly-built NHT and Light Hydrocarbon Recovery Unit • 服务范围 Project Scope • 加工1000万吨/年进口苏丹原油工程项目新建石脑油加氢和轻烃回收装置 • Processing 10,000 kt/a of Crude Oil imported from Sudan: newly-built NHTand Light Hydrocarbon Recycling Unit • 承包模式 Contract Mode • EM+PC • 项目时间 Duration • 2007.07 - 2009.11 • 项目特点 Highlights • 第一个炼油承包项目 • The first oil refinery contract

  28. 项目经验：委内瑞拉国家石油公司（PDVSA） 拉克鲁斯港（Puerto La Cruz）炼油项目 Project: PDVSA Puerto La Cruz Oil Refining Project • 服务范围Project Scope • 提供环保装置、公用工程和常、减压等装置的设计、采购、施工及开车支持服务; 包括汽油、柴油和航空煤油的扩能装置及其它新建装置;通过扩能、改造升级重质原油生产设施，升级后的加工能力达210,000桶/天 • Provide EPC and start-up support services for the environmental protection unit, utilities, and CDU/VDU including expansion plants and other new plants for gasoline, diesel oil and jet fuel production. After expansion and revamping to heavy crude oil production facilities, capacity will reach 210,000 bpsd. • 承包模式 Contract Mode • EPC • 项目时间 Duration • 2012.06.27 - 2016.12.30 • 项目特点Highlights • 与韩国现代工程（HDEC）、现代设计（HEC）联合总承包该项目 EPC contract with HDEC and HEC as a consortium • 中国工程公司在拉美国家承接的第一个大型炼油建设项目 • First ever large-scale oil refinery construction project undertaken by a Chinese engineering company for a Latin American country

  29. 目 录 第三节 煤化工项目经验 Page 29

  30. 在煤化工领域，惠生发展迅速，已经形成了从研发、设计、建设、培训、开车的全过程服务能力在煤化工领域，惠生发展迅速，已经形成了从研发、设计、建设、培训、开车的全过程服务能力 In the coal to chemicals industry, Wison has made rapid progress and is capable of offering services in R&D, E&C, training and start-up • 煤制烯烃专利技术及装置、煤制丙烯装置等 • MTO patented technology, MTO patented technology plant, coal to propylene plant etc. • 甲醇、二甲醚及合成气装置等 • Methanol, dimethyl ether and syngas plants, etc

  31. 项目经验：惠生（南京）清洁能源公司新建煤化工联合装置项目项目经验：惠生（南京）清洁能源公司新建煤化工联合装置项目 Project: Wison (Nanjing) Clean Energy Co., Ltd Newly-built Coal to Chemicals Joint Plant • 服务范围Project Scope • 一期CO 30万吨/年，甲醇20万吨/年 • Phase 1: CO 300 kt/a, methanol 200 kt/a • 二期CO 30万吨/年，氢气21000Nm3/h，合成气11000Nm3/h,甲醇10万吨/年 • Phase 2: CO 300 kt/a, 21,000Nm3/h hydrogen, 11,000Nm3/h synthesis gas, 100kt/a methanol • 三期Shell新型MTO/丁辛醇联合装置、25万吨/年丁辛醇装置，EO、H2装置、煤气化示范装置 • Phase 3:Shell new-type MTO/butyl alcohol joint plant, 250 kt/a MTO/butyl alcohol plant, EO & H2 plant and coal gasification demonstration plant • 承包模式 Contract Mode • EPC • 项目时间 Duration • 一期Phase 1: 2005.08.11 - 2007.03.15 • 二期Phase 2: 2007.08.31 - 2009.04.28 • 三期Phase 3: 2011.08.11 开工 Commenced • 项目特点 Highlights • 工程周期短、质量优异、一次性化工投料成功满负荷商业化运行，成为煤化工项目的业界标杆 • Short project cycle; high quality; successful from start-up with full load commercial operation.

  32. 项目经验：金诚泰60万吨/年甲醇项目 Project: Jinchengtai 600 kt/a Methanol Project • 服务范围 Project Scope • 60万吨/年甲醇项目 • 600 kt/a Methanol project • 承包模式 Contract Mode • EPCm • 项目时间 Duration • 2007.07 - 2012.12 • 项目特点Highlights • 煤气化装置采用清华大学、北京达立科和山西丰喜肥业共同开发的具有自主知识产权的非熔渣-熔渣氧气分级气化工艺 。以水煤浆和氧气为原料，采用气流床反应器，在高温高压非催化条件下进行部分氧化反应，生成一氧化碳和氢气为有效气的粗合成气 • 项目建成投产后的主要产品是：高发热量、低硫、低灰优质精煤和以精煤为原料的甲醇及下游产品 • Gasifier plant used exclusive technology jointly developed with Qinghua University, Beijing Dalike and Shanxi Fengxi Fertilizer Industry Company known as non-slag-slag oxygen classification gasification technology. Using Coal Water Slurry and oxygen as feedstock, reactants are passed through a fluid bed reactor under high pressure and temperature and with no catalyst resulting in oxidation reactions producing CO and H2. The product is crude syngas . •  main products after completion: high-calorific, low sulfur, low ash high quality clean coal and clean coal chemicals such as methanol and other downstream products.

  33. 项目经验：徐矿宝鸡150万吨/年甲醇项目 Project: Xukuang Baoji 1,500 kt/a Methanol Project • 服务范围 Project Scope • 首期60万吨/年甲醇工程项目 • Initial the 600 kt/a methanol engineering project • 承包模式 Contract Mode • EM+PC+开车服务 • EM+PC+ Start-up Service • 项目时间 Duration • 2011.02 - 2012.12 • 项目特点 Highlights • 在陕西省第一个总承包项目，并为业主提供EM+PC+开车的一站式承包服务 • Wsion’s first EPC （总承包就是EPC)project with one-stop service • EM+PC+Start-up service. • 首期项目采用宝鸡市麟北煤田低灰低硫煤做原料，主要生产工艺均引进国外技术，如气化、合成与精馏、低温甲醇洗和硫回收工艺分别采用GE公司、瑞士卡萨利公司、德国林德公司和荷兰荷丰公司等的先进技术 • The first project used low-ash and low-sulfur coal from the Linbei coal field in Baoji as feedstock. The main production technologies were introduced from foreign countries, such as gasification, synthesis and rectification, rectisol and sulfur recycling technology are introduced from GE Company, Swiss CASALE Company, Linde Group, Hofung Technology respectively. • 生产符合GB338-2004优等品甲醇产品，日生产能力2000吨、年运行时间8000小时，同时副产硫磺、甲醇油、硫酸铵等 • Producing GB338-2004 high-quality methanol products with a capability of 2,000 tons per day, operating at 8,000 hours/year. Valuable byproducts are also produced such as sulfur, carbinol-oil, ammonium sulfate, etc.

  34. 项目经验：国泰40万吨/年煤制甲醇项目 Project: Guotai 40 kt/a Coal to Methanol Project • 服务范围Project Scope • 40万吨/年煤制甲醇项目 • 400kt/a coal to methanol project • 承包模式 Contract Mode • EPC • 项目时间 Duration • 2011.12.15－2014.04.30 • 项目特点Highlights • 本项目气化、合成、精馏装置采用华东理工大学的先进工艺，低温甲醇洗采用惠生自主研发的工艺技术，空分装置采用杭氧成熟可靠的空气分离技术 • Gasification, synthesis and rectification plant of this project used advanced technology developed by East China University of Science and Technology; rectisol unit used Wison’s own R&D developed technology; Air separation equipment used Hangyang’s （应该是杭州某个氧气公司吧？）mature and reliable air separation technology. • 项目采用综合能耗指标较低的工艺技术的同时，依靠污染小、成本低、安全措施完善的“三废”处理技术实现零排放标准。项目建成后成为国内煤气化生产甲醇的示范装置之一 • Whilst the Project processing technology used an integrated complete consumption index, low pollution, low costs and safety measures improved disposal of the ‘three wastes’ resulting in setting a zero emission standard. • The project shall become domestic demonstration plant for coal to methanol production after completion.

  35. 项目经验：陕西蒲城煤化工项目 Project: Shaanxi Pucheng Coal Chemical Project • 服务范围Project Scope • 70万吨/年MTO设计项目 • 700 kt/a MTO Design Project • 30万吨/年聚乙烯装置以及PE/PP包装仓库 • 300 kt/a polyethylene plant and PE/PP packaging warehouse • 承包模式 Contract Mode • E, EPC+开车服务 • E, EPC+ Start-up service • 项目时间 Duration • 2010.8.1－2013.12.15 • 项目特点Highlights • 采用惠生工程自有技术MTO烯烃分离技术许可、工艺包编制 • Used Wison Engineering’s own MTO Olefin separation technology and process package information. • PE装置采用美国UNIVATION公司的Unipol 技术，生产能力达到30万吨/年聚乙烯颗粒，45.5吨/小时；操作时数7200小时/年；操作50%～110% • PE plant used Unipol technology from American UNIVATION Company with a production capacity of 300 kt/a polyethylene pellets at 45.5 ton/hour; Operating 7,200 hours/year and at 50%-110% capacity.

  36. 项目经验：江苏斯尔邦石化有限公司醇基多联产一期项目项目经验：江苏斯尔邦石化有限公司醇基多联产一期项目 Project:Jiangsu Sierbang Petrochemical Co., Ltd. Alcohol-Based Polygeneration Project (Phase I) • 服务范围Project Scope • 一期项目包括：总体设计，60万吨MTO装置(包括MTO反应单元、烯烃转化单元、烯烃分离单元、丁二烯单元) ，一期工程配套公用工程及辅助设施，35万吨EVA装置(一条25万吨/年管式法生产线，一条10万吨/年釜式法生产线)，26万吨丙烯腈装置，8万吨MMA装置（包括废硫酸回收单元） • Overall design; 600kt MTO plant (including MTO reaction unit, olefin conversion unit, olefin separation unit and butadiene unit); supporting utility and auxiliary facilities; 350kt EVA plant (one 250 kt/a pipe production line; one 100 kt/a kettle type production line); 260kt acrylonitrile plant; 80kt MMA plant (including waste sulfuric acid recycling unit) • 承包模式 Contract Mode • EPC • 项目时间 Duration • 2012.05.17 - 2014.12.30 • 项目特点Highlights • 该项目采用惠生自主研发的MTO烯烃分离技术生产60万吨/年乙烯丙烯 • Used Wison’s own MTO olefin separation technology to produce 600 kt/a of ethylene propylene

  37. 目 录 第三节 其它项目经验 Page 37

  38. 项目经验：巴斯夫重庆MDI一体化项目 Project: BASF Chongqing MDI Integration Project • 服务范围Project Scope • 40万吨/年二苯基甲烷二异氰酸脂项目 • 400 kt/a MDI integration project • 承包模式 Contract Mode • EPsCM • 项目时间 Duration • 2011.06.01 - 2014.05.30 • 项目特点Highlights • 惠生与韩国大林公司合作承建，与客户和合作方形成一个团队 • Wison undertook the project with South Korea’s DAELIM in a team partnered by both Owner and contractors. • 该项目是全球最大的MDI项目，总投资约10-12亿美元 • With a total investment of approx. $1-1.2 billion, it is the world’s largest MDI project to date • 英语作为工作语言English as working language • 使用国际标准规范Following international standards &practices

  39. 项目经验：沙特SABIC钢厂脱瓶颈工程和延布污水脱苯项目项目经验：沙特SABIC钢厂脱瓶颈工程和延布污水脱苯项目 Project: HADEED DR Module D DBN Project & YANPET Benzene Mitigation Project • 服务范围Project Scope • SABIC钢厂脱瓶颈工程120吨/h扩建到155吨/h • HADEED DR Module D DBN project expansion (120 t/h to 155 t/h) • YANPET污水脱苯治理废水中的苯含量，排出废水中的苯浓度小于57PPb • Reduce benzene content in YANPET’s waste water; benzene concentration of discharged waste water to be lower than 57PPb • 承包模式 Contract Mode • EPC • 项目时间 Duration • 2012.04.01 - 2013.09.03 • 2012.04.10 - 2013.12.10 • 项目特点Highlights • 执行国际标准及SABIC项目管理程序 • Follow international standards and SABIC project management procedures • 业主管理监测项目执行各环节 • Implementation of the various aspects in owner management and project supervision

  40. Thank you 惠生工程（中国）有限公司 Wison Engineering (China) Engineering Ltd. 中国上海浦东张江张衡路1399号 1399 Zhangheng Road, Zhangjiang Pudong, Shanghai, P.R. China 电话：+86 21 2030 6789 Tel: +86 21 2030 6789 传真：+86 21 5855 7211 Fax: +86 21 5855 7211 www.wison.com
