Abc s environmental aspects of renovation

ABC’s

ENVIRONMENTAL ASPECTS OF

RENOVATION/DEMOLITION/REDELOPMENT

Asbestos

Beneficial Reuse of Demolition Materials

and Industrial Byproducts

Brownfields Redevelopment

Concrete Recycling


Abc s environmental aspects of renovation

  • Introduction

  • A focus exists

  • Don’t fail to plan

  • Manage Risk

  • Approach same as conventional construction


Abc s environmental aspects of renovation

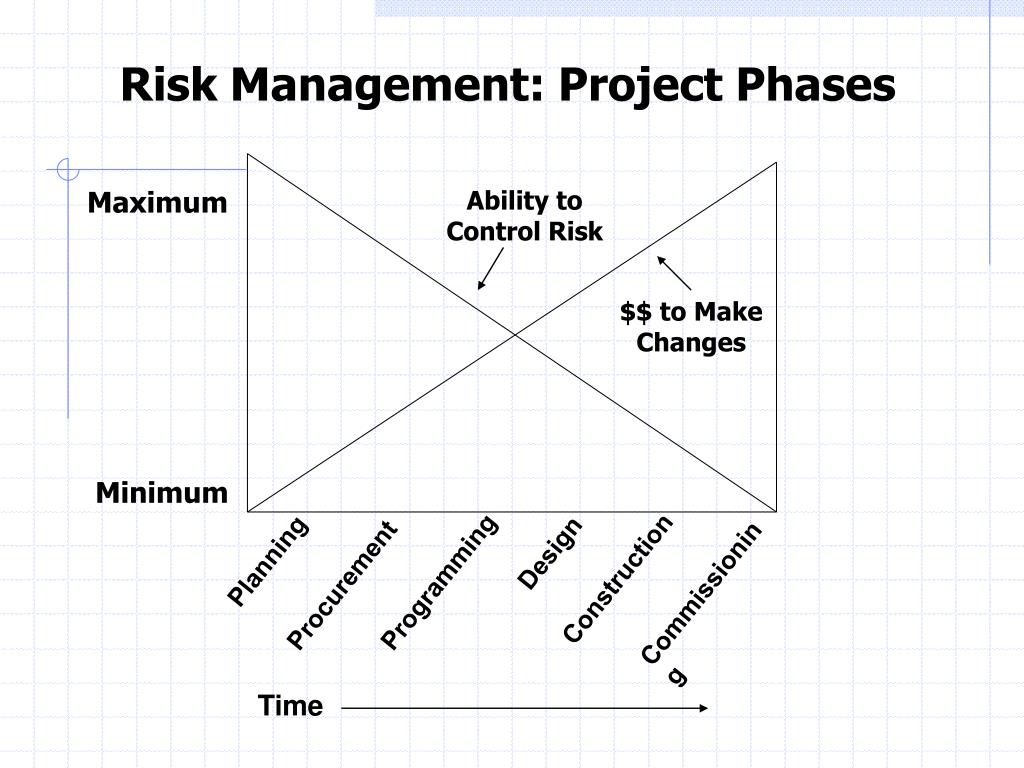

RiskManagement: Project Phases

Maximum

Ability to Control Risk

$$ to Make Changes

Minimum

Design

Planning

Construction

Procurement

Programming

Commissioning

Time


Abc s environmental aspects of renovation


Abc s environmental aspects of renovation

  • Managing Environmental Conditions

    • Minimize release to environment

    • Maintain safe work place and surroundings

    • Ensure proper handling and disposal

    • Avoid contamination through spreading

    • Focus on what will be disturbed


Abc s environmental aspects of renovation


Abc s environmental aspects of renovation

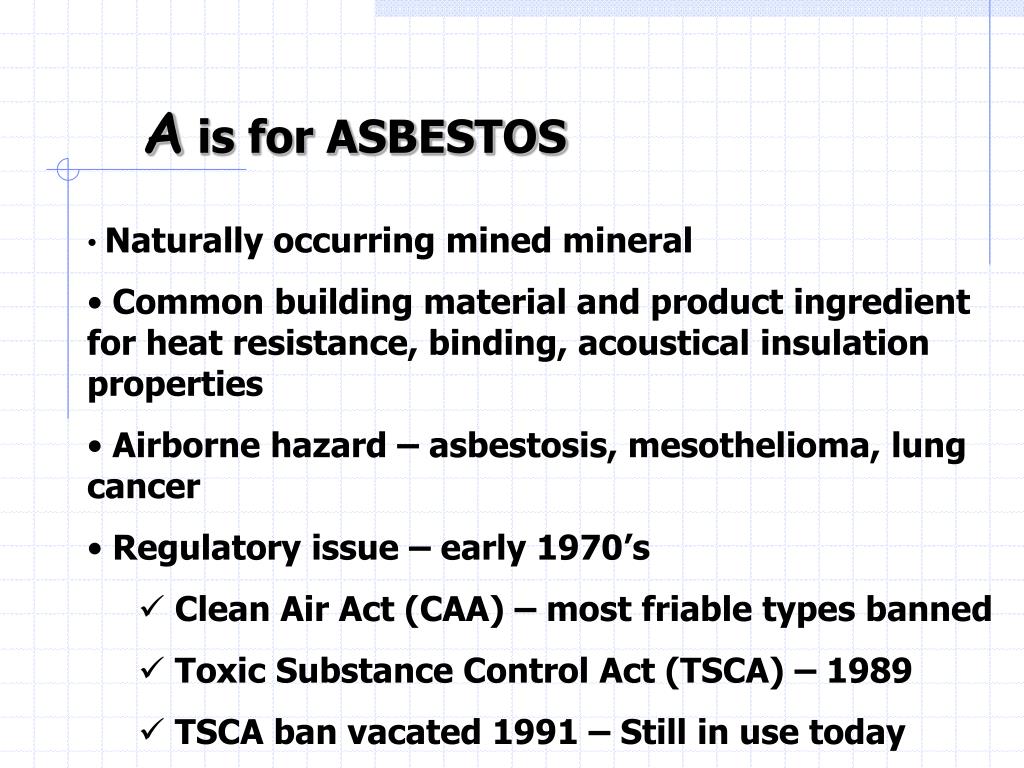

  • A is for ASBESTOS

    • Naturally occurring mined mineral

    • Common building material and product ingredient for heat resistance, binding, acoustical insulation properties

    • Airborne hazard – asbestosis, mesothelioma, lung cancer

    • Regulatory issue – early 1970’s

      • Clean Air Act (CAA) – most friable types banned

      • Toxic Substance Control Act (TSCA) – 1989

      • TSCA ban vacated 1991 – Still in use today


Abc s environmental aspects of renovation

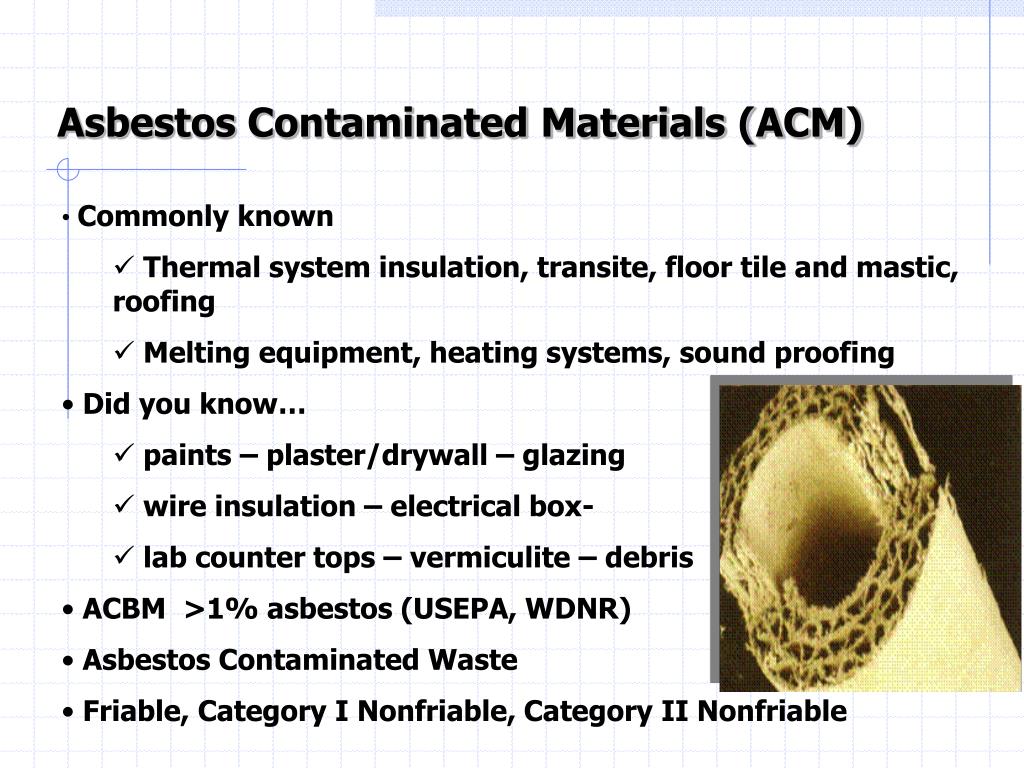

  • Asbestos Contaminated Materials (ACM)

    • Commonly known

      • Thermal system insulation, transite, floor tile and mastic, roofing

      • Melting equipment, heating systems, sound proofing

    • Did you know…

      • paints – plaster/drywall – glazing

      • wire insulation – electrical box-

      • lab counter tops – vermiculite – debris

    • ACBM >1% asbestos (USEPA, WDNR)

    • Asbestos Contaminated Waste

    • Friable, Category I Nonfriable, Category II Nonfriable


Abc s environmental aspects of renovation

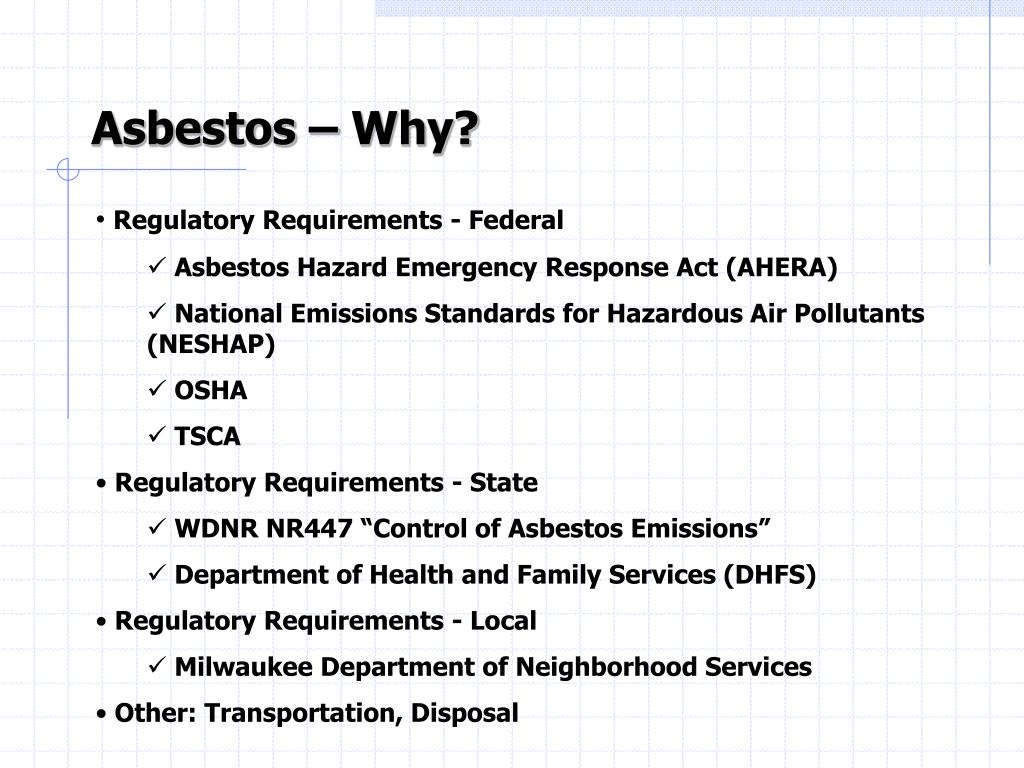

  • Asbestos – Why?

    • Regulatory Requirements - Federal

      • Asbestos Hazard Emergency Response Act (AHERA)

      • National Emissions Standards for Hazardous Air Pollutants (NESHAP)

      • OSHA

      • TSCA

    • Regulatory Requirements - State

      • WDNR NR447 “Control of Asbestos Emissions”

      • Department of Health and Family Services (DHFS)

    • Regulatory Requirements - Local

      • Milwaukee Department of Neighborhood Services

    • Other: Transportation, Disposal


Abc s environmental aspects of renovation

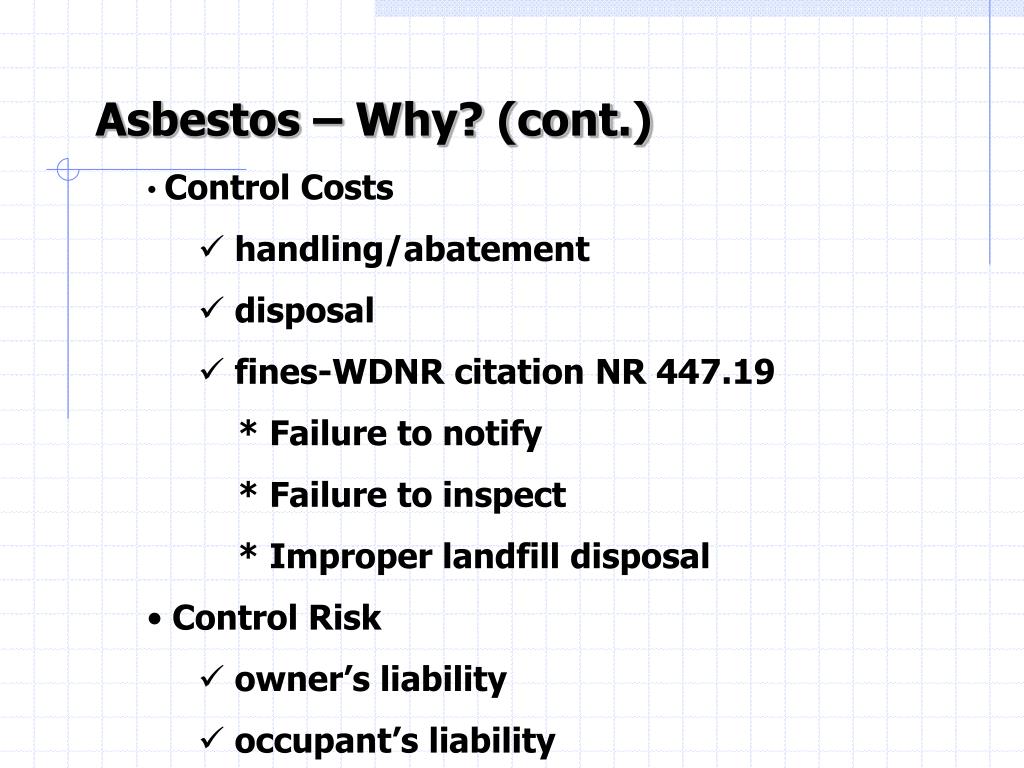

  • Asbestos – Why? (cont.)

    • Control Costs

      • handling/abatement

      • disposal

      • fines-WDNR citation NR 447.19

        * Failure to notify

        * Failure to inspect

        * Improper landfill disposal

    • Control Risk

      • owner’s liability

      • occupant’s liability


Abc s environmental aspects of renovation

  • Asbestos – Gathering Information

    • NESHAP & NR447 Require “Thorough Inspection”

      • Industry standards based on AHERA

      • By certified inspector

      • Sampling of homogeneous materials

      • Can assume

    • Pre-Renovation/Demolition Inspection Report

      • Homogeneous material types

      • Sampling location/ floor plans

      • Classification

      • Conditions

      • Quantification

      • Analytical testing results


Abc s environmental aspects of renovation

  • Asbestos – Applying the Information

    • Project Planning

      • when and what to abate

      • material handling

      • budget costing

    • Project Design/Contracting

      • type, quantity, location

      • schedule/sequence

      • by quantity/ type

      • unit costs to control discovery

      • contractor qualifications, experience and reputation


Abc s environmental aspects of renovation

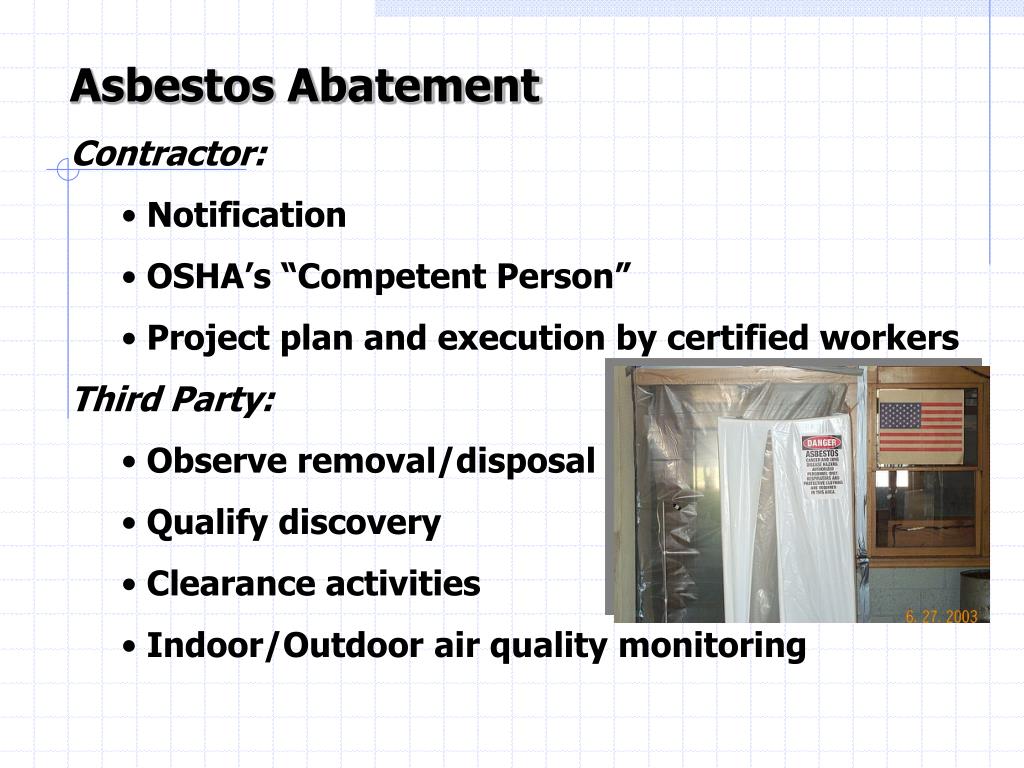

  • Asbestos Abatement

  • Contractor:

    • Notification

    • OSHA’s “Competent Person”

    • Project plan and execution by certified workers

  • Third Party:

    • Observe removal/disposal

    • Qualify discovery

    • Clearance activities

    • Indoor/Outdoor air quality monitoring


Abc s environmental aspects of renovation

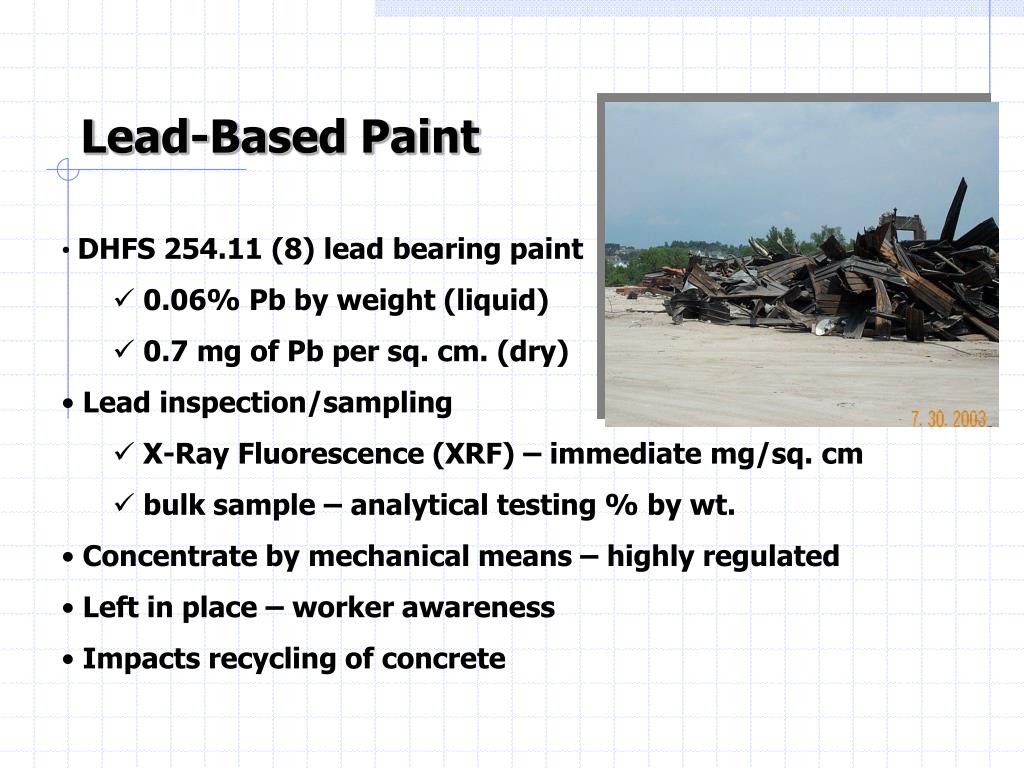

  • Lead-Based Paint

    • DHFS 254.11 (8) lead bearing paint

      • 0.06% Pb by weight (liquid)

      • 0.7 mg of Pb per sq. cm. (dry)

    • Lead inspection/sampling

      • X-Ray Fluorescence (XRF) – immediate mg/sq. cm

      • bulk sample – analytical testing % by wt.

    • Concentrate by mechanical means – highly regulated

    • Left in place – worker awareness

    • Impacts recycling of concrete


Abc s environmental aspects of renovation

  • Building Systems

    • Refrigerants/ CFC’s

    • Light bulbs/ ballasts

    • PCB oils/ impacts

    • Mercury devices

    • Halon

    • Lead shielding

    • Radioactive equipment/ devices

    • Plumbing/sewers/sumps/trenches


Abc s environmental aspects of renovation

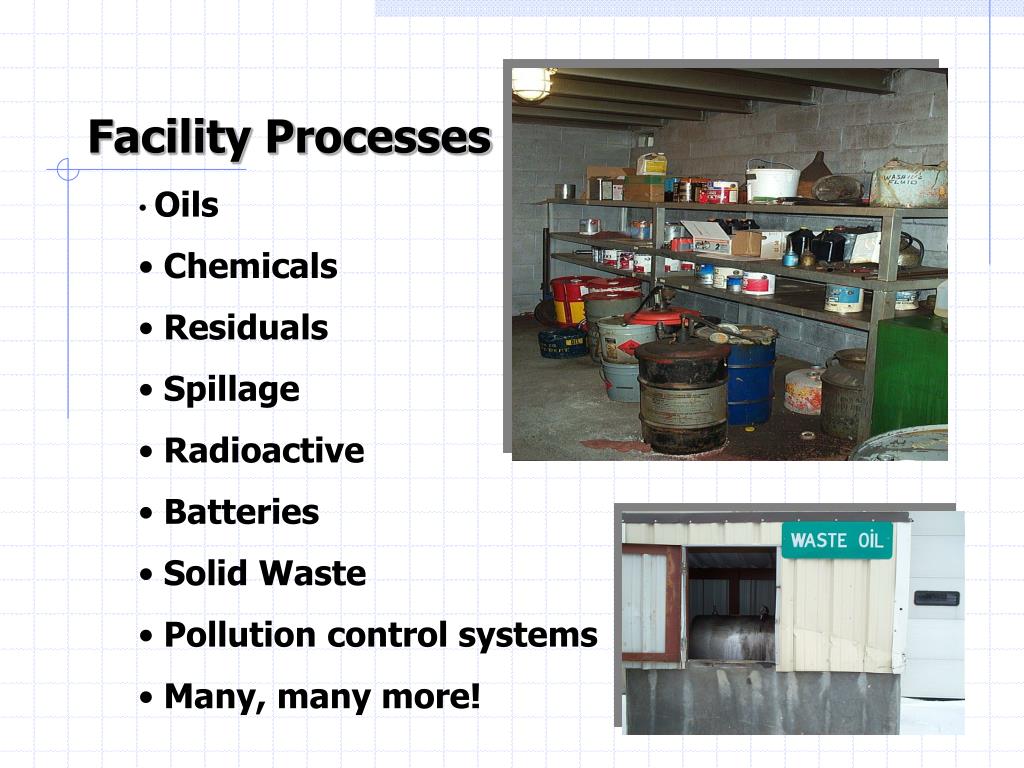

  • Facility Processes

    • Oils

    • Chemicals

    • Residuals

    • Spillage

    • Radioactive

    • Batteries

    • Solid Waste

    • Pollution control systems

    • Many, many more!


Abc s environmental aspects of renovation

  • Building /Site Features

  • Structure/ Materials of Construction

  • Building Systems – HVAC to Elevators

  • Foundation

  • Special Areas/ Operations

  • Occupant Use

  • Storage

  • Utilities – disconnect, re-route

  • Grade

  • Temporary Service – water, power, sanitary

  • Easements

  • Features/ Conditions


Abc s environmental aspects of renovation

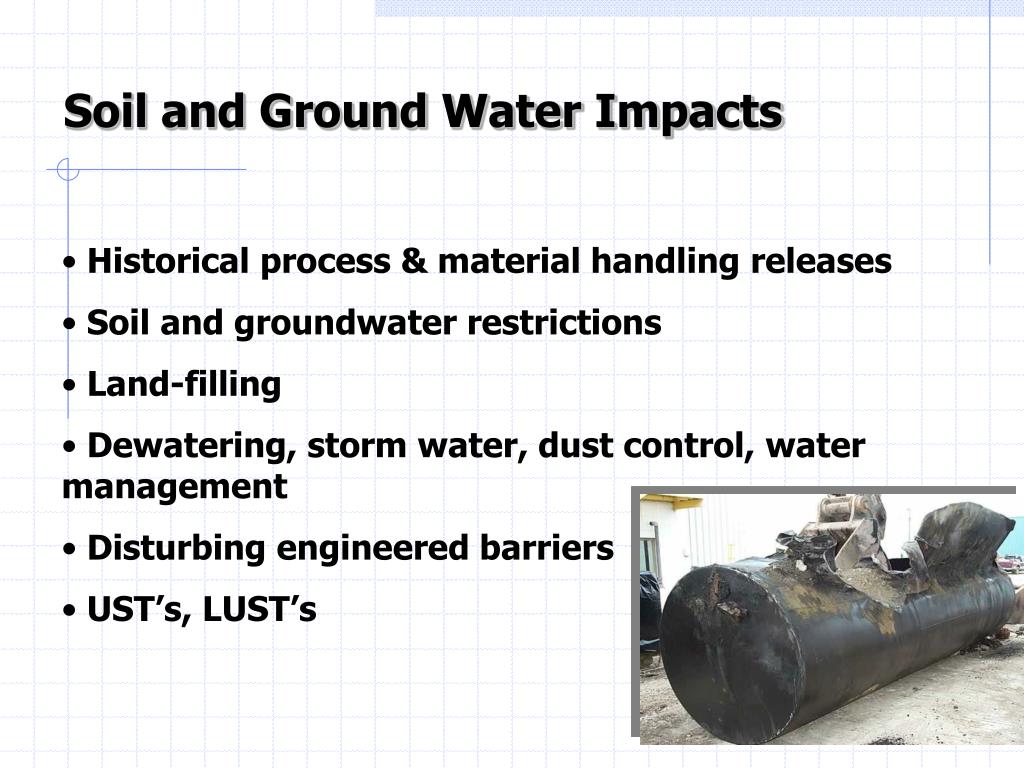

  • Soil and Ground Water Impacts

    • Historical process & material handling releases

    • Soil and groundwater restrictions

    • Land-filling

    • Dewatering, storm water, dust control, water management

    • Disturbing engineered barriers

    • UST’s, LUST’s


Abc s environmental aspects of renovation

  • Neighborhood

  • Disruption

  • Haul Routes

  • Conditions/ Protection of

  • Adjacent Areas

  • Receptors

  • Traffic

  • Safety

  • Noise

  • Dust

  • Special Concerns

  • Proactive Approach


Abc s environmental aspects of renovation

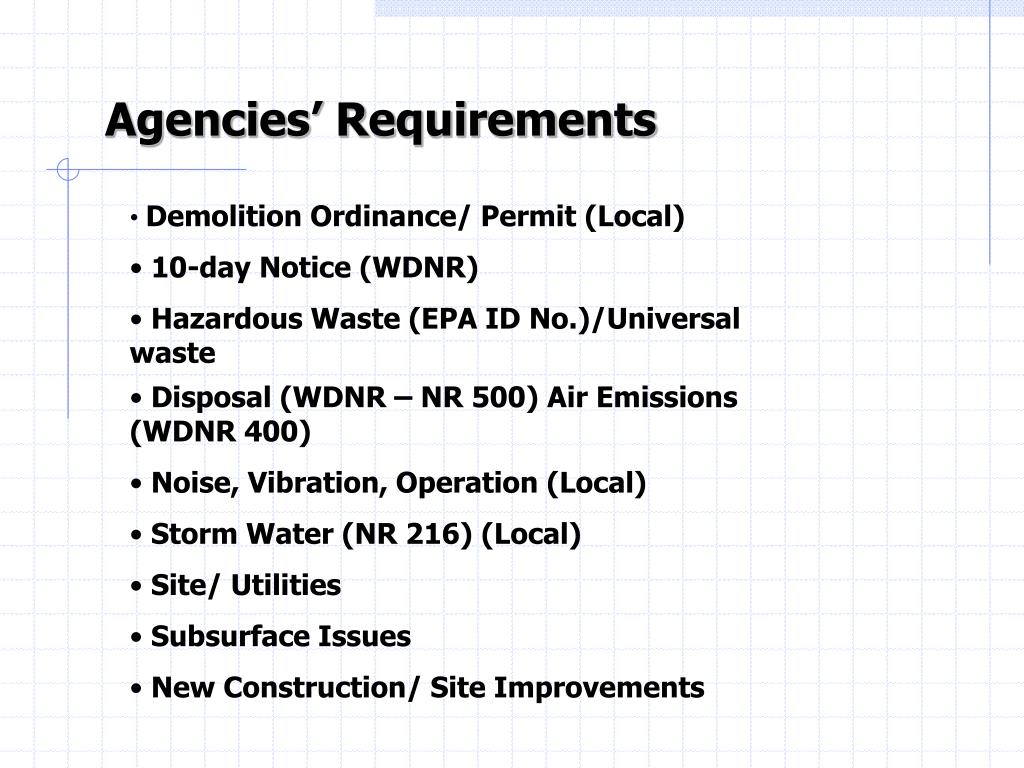

  • Agencies’ Requirements

    • Demolition Ordinance/ Permit (Local)

    • 10-day Notice (WDNR)

    • Hazardous Waste (EPA ID No.)/Universal waste

    • Disposal (WDNR – NR 500) Air Emissions (WDNR 400)

    • Noise, Vibration, Operation (Local)

    • Storm Water (NR 216) (Local)

    • Site/ Utilities

    • Subsurface Issues

    • New Construction/ Site Improvements


Abc s environmental aspects of renovation

  • Vacating/ Asset Liquidation

    • Revenue to Project?

    • Reduce Landfill Costs

    • Good-Will to Employees/ Public

    • Auctions

    • Changed Conditions/ Safety/ Security


Abc s environmental aspects of renovation

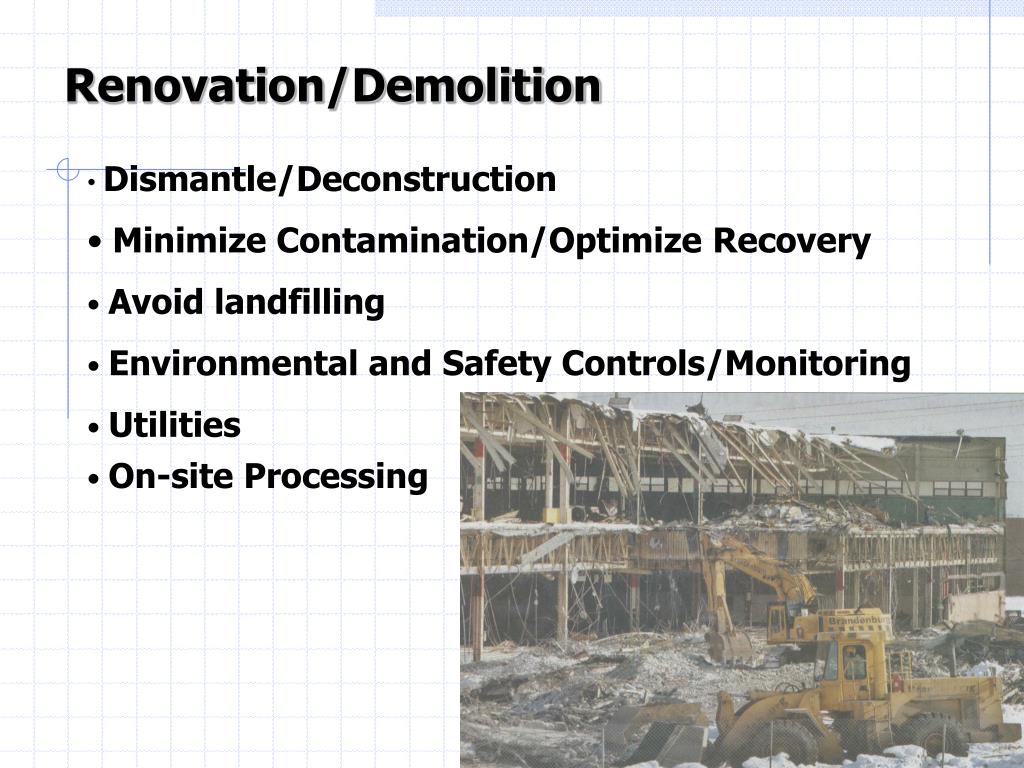

  • Renovation/Demolition

    • Dismantle/Deconstruction

    • Minimize Contamination/Optimize Recovery

    • Avoid landfilling

    • Environmental and Safety Controls/Monitoring

    • Utilities

    • On-site Processing


Abc s environmental aspects of renovation

COMPETENT PERSON

OSHA – 29 CFR 1926.32

“ During demolition, a potential exists for encountering asbestos and other hazardous materials, and for asbestos and other hazardous materials previously hidden to become exposed. Maintain a minimum of one individual on site during demolition to be designated as a “Competent Person”. This individual shall be familiar with applicable asbestos and hazardous materials related regulations, have the experience to recognize potential work crew and environmental exposures, institute proper personal protective equipment and personnel monitoring as necessary, and have the authority to stop work. All discoveries of suspect asbestos or other hazardous materials shall be reported immediately to the Owner so that the appropriate measures can take place.”


Abc s environmental aspects of renovation

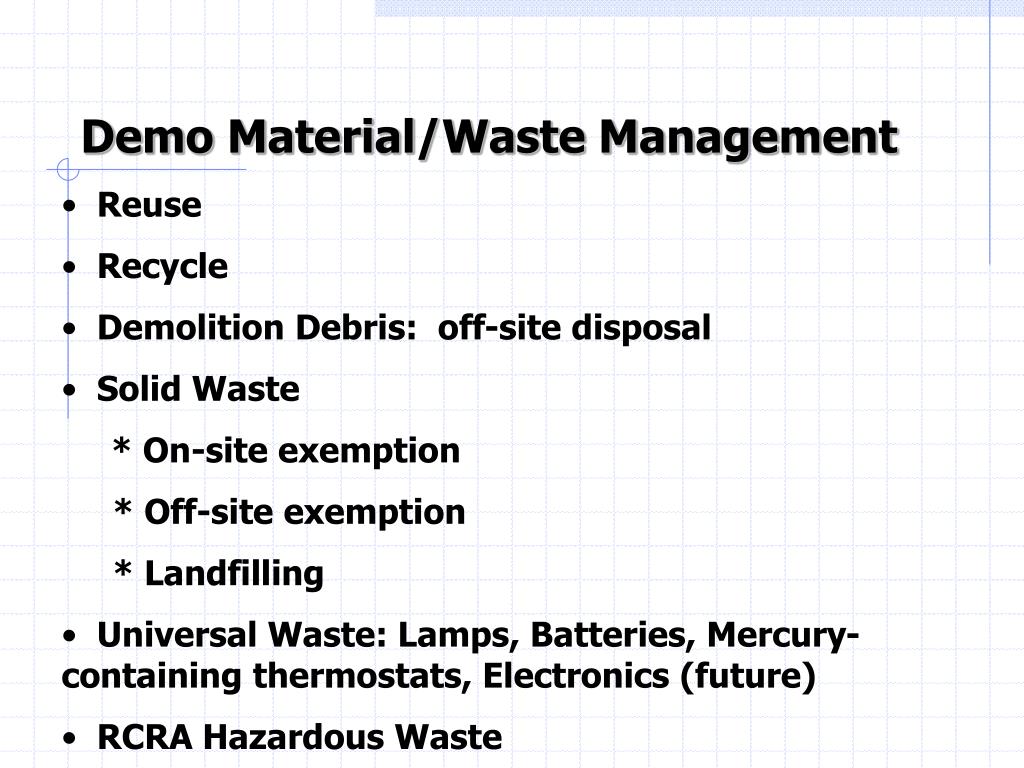

  • Demo Material/Waste Management

    • Reuse

    • Recycle

    • Demolition Debris: off-site disposal

    • Solid Waste

    • * On-site exemption

    • * Off-site exemption

    • * Landfilling

    • Universal Waste: Lamps, Batteries, Mercury-containing thermostats, Electronics (future)

    • RCRA Hazardous Waste


Abc s environmental aspects of renovation

B is for Beneficial Reuse of

Demolition Materials

90% + recovered and recycled

Avoid landfill costs

NR 500 defines SOLID WASTE- “Clean”

Metal and Masonry

Existing and expanding markets for demolition and construction waste recycling

* Brick * Wood *Drywall * Roofing * Rubble

* Carpeting * Architectural Features

Support: WasteCap Wisconsin * BMEX


Abc s environmental aspects of renovation

  • Beneficial Reuse of Metals

    • Structural

    • Segregate ferrous/non ferrous

    • WDNR exemption for LBP

    • OSHA rules for processing

    • Price of scrap-huge impact


Abc s environmental aspects of renovation

  • Beneficial Use of Industrial Byproducts

    • NR 538, Wis. Adm. Code

    • Voluntary self-implementing program

    • Encourages resource preservation, energy conservation, the need to landfill, and reducing the need for expanding quarries and borrow pits

    • 5 categories of industrial byproduct including foundry sand and slag

    • First Step-Characterization

    • Pre-approved beneficial reuses/review by the WDNR of larger proposed projects

    • Generator/end-user partnership

    • Support: FIRST-www.foundryrecycling.org


Abc s environmental aspects of renovation

  • C is for CONCRETE RECYCLING

  • Economics- hauling and disposal

  • Excellent engineered fill

  • “Clean” concrete is exempt from WDNR-includes latex paint

  • LBP concrete-change is in the wind

  • * Landfill

  • * Low hazard waste exemption

  • * Solid waste/SW processing

  • Crushing operations air permits

  • Other contaminants-oils, PCB’s


B is for brownfields
B is for Brownfields

  • “Properties that are abandoned, blighted, idle or

  • under-utilized”

  • Actual or perceived environmental contamination

  • Expansion or redevelopment is challenged


How do brownfield programs work

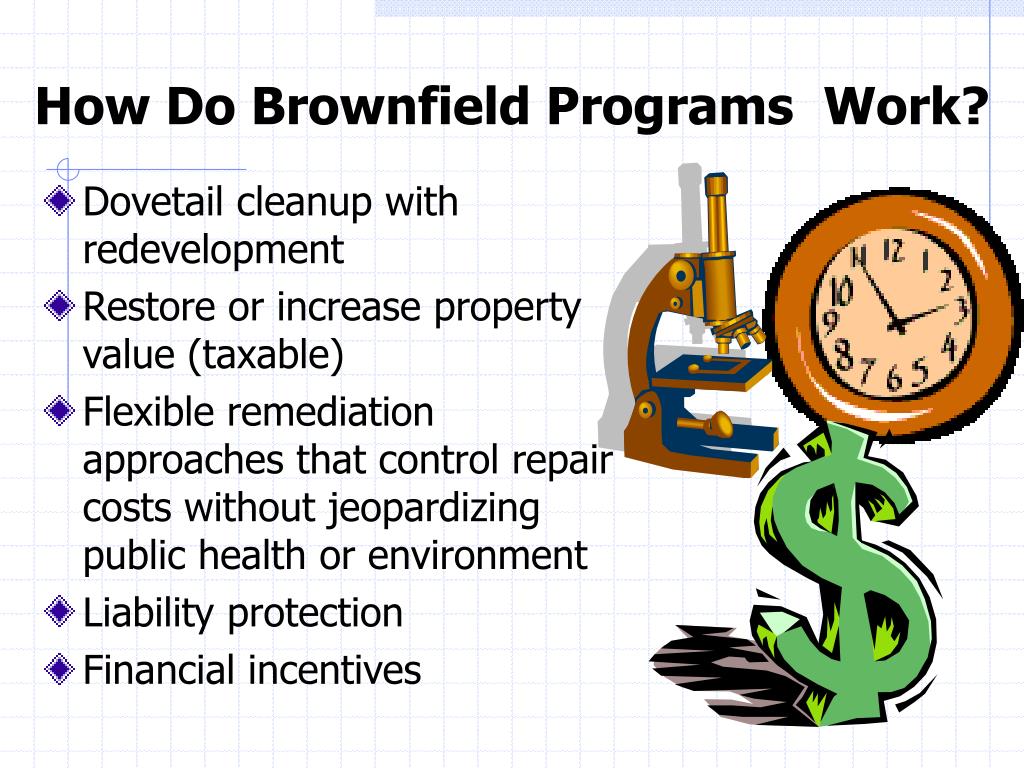

How Do Brownfield Programs Work?

  • Dovetail cleanup with redevelopment

  • Restore or increase property value (taxable)

  • Flexible remediation approaches that control repair costs without jeopardizing public health or environment

  • Liability protection

  • Financial incentives


Grants
Grants

  • Federal Brownfield

  • State of WI Brownfield

  • County Brownfield

  • Block

  • Site Assessment

  • ACCP

  • PECFA

  • Many More


Loans
Loans

  • Interest Free

  • Low interest MEDC

  • Revenue Bonds


Tax incentives
Tax Incentives

  • Development Zones

  • Remediation

  • Increase section 179 Tax Benefit

  • Solar Energy Tax Incentive

  • Many more


Tax incremental financing tif

Traditional TIF

Infrastructure

Environmental Remediation TIF

Investigations

Remediation

Asbestos abatement

Demotion

Property Acquisition

Tax Incremental Financing (TIF)

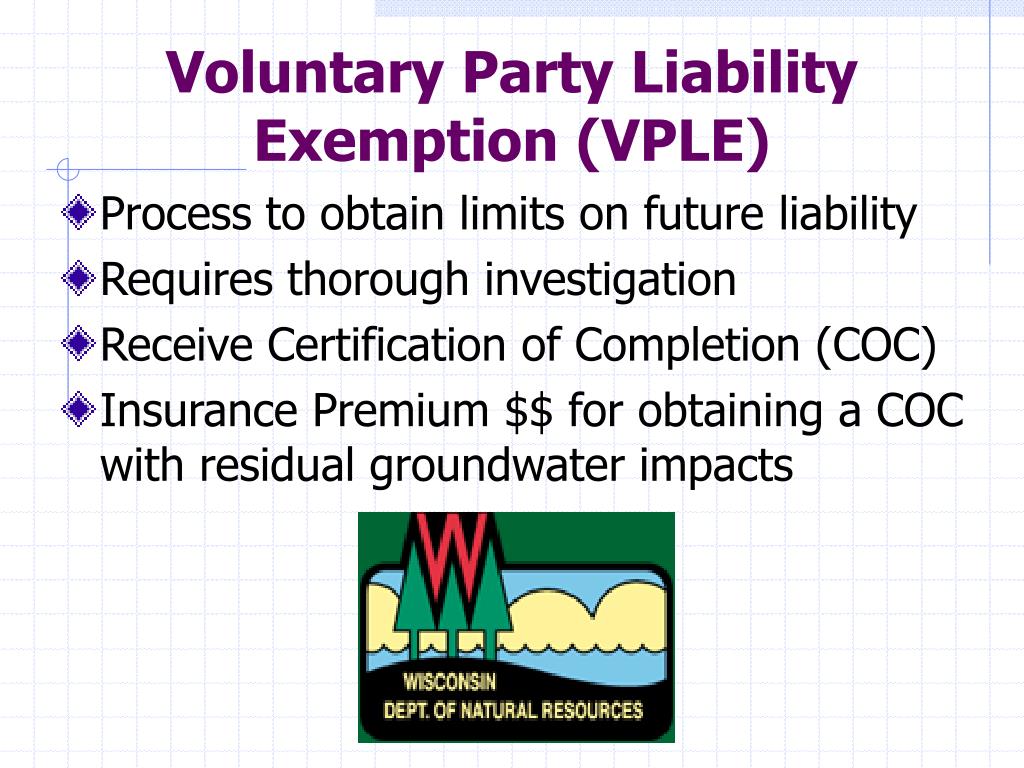

Voluntary party liability exemption vple

Process to obtain limits on future liability

Requires thorough investigation

Receive Certification of Completion (COC)

Insurance Premium $$ for obtaining a COC with residual groundwater impacts

Voluntary Party Liability Exemption (VPLE)
