  1. Уплотнение и оптимизация речевого трафика.VMUX

  2. VmuxAbis Optimization

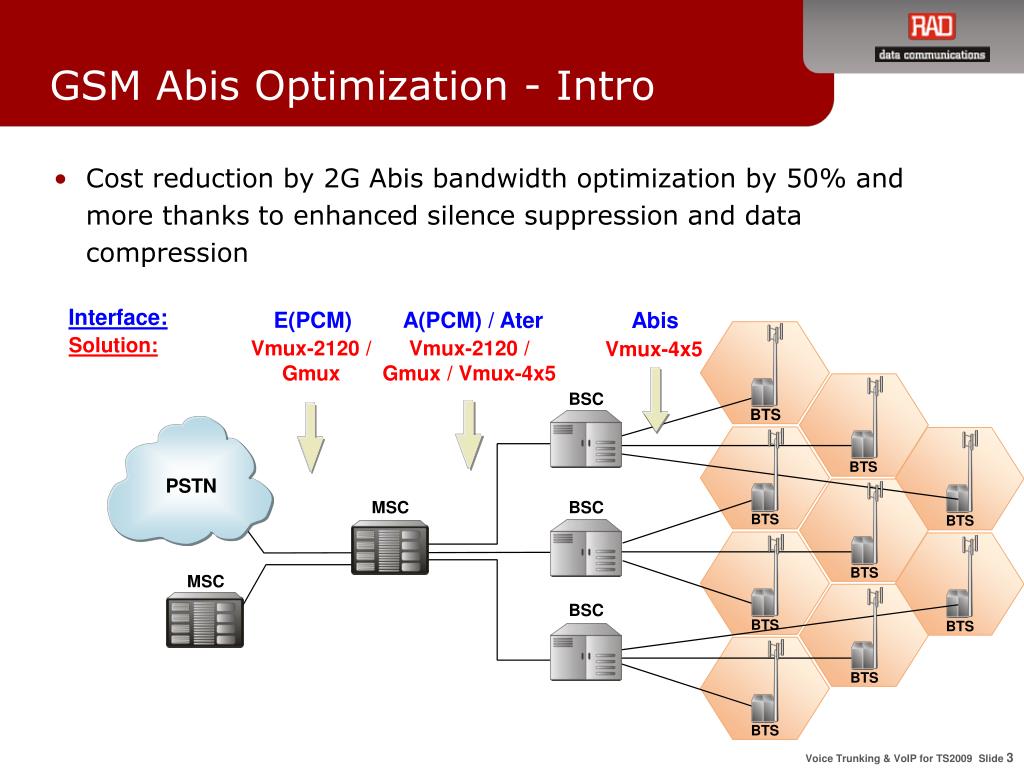

  3. BTS BTS BTS BTS BTS BTS BTS BTS GSM Abis Optimization - Intro • Cost reduction by 2G Abis bandwidth optimization by 50% and more thanks to enhanced silence suppression and data compression Interface: E(PCM) A(PCM) / Ater Abis Solution: Vmux-2120 / Gmux Vmux-2120 / Gmux / Vmux-4x5 Vmux-4x5 BSC BTS PSTN MSC BSC MSC BSC

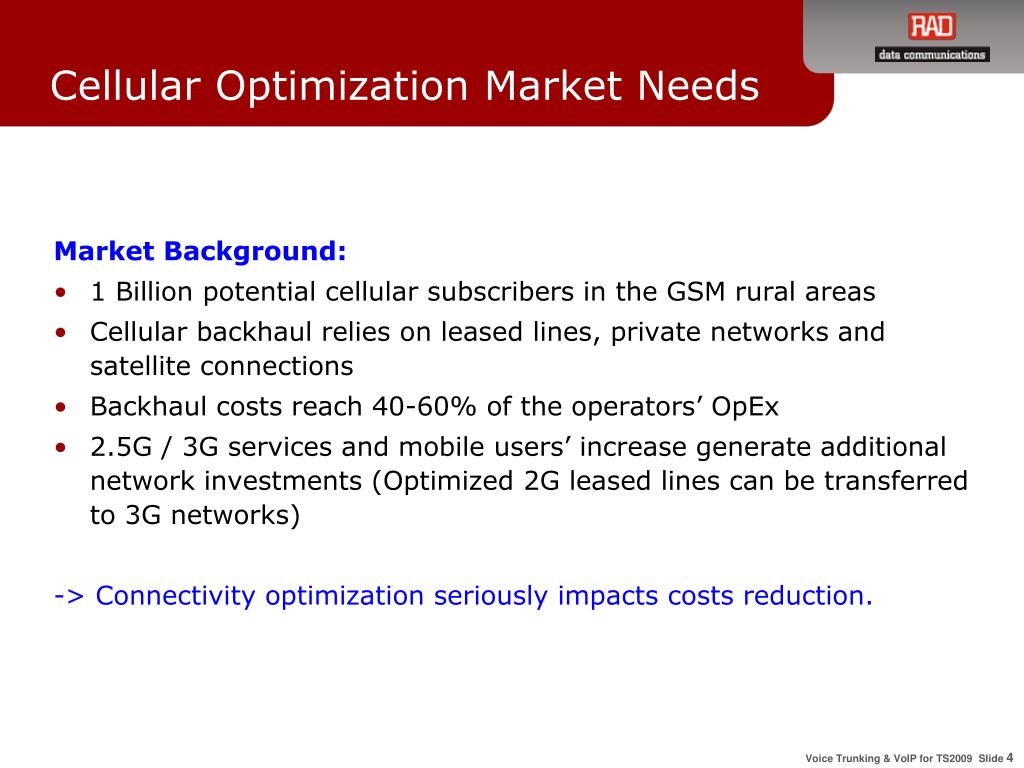

  4. Cellular Optimization Market Needs Market Background: • 1 Billion potential cellular subscribers in the GSM rural areas • Cellular backhaul relies on leased lines, private networks and satellite connections • Backhaul costs reach 40-60% of the operators’ OpEx • 2.5G / 3G services and mobile users’ increase generate additional network investments (Optimized 2G leased lines can be transferred to 3G networks) -> Connectivity optimization seriously impacts costs reduction.

  5. GSM Abis Optimization Where Does it Apply ? • GSM operators with expensive leased lines / satellite lines(> $500 / month / E1) • GSM operators with a lack of bandwidth • Due to lack of GSM infrastructure or • Due to 3G service penetration

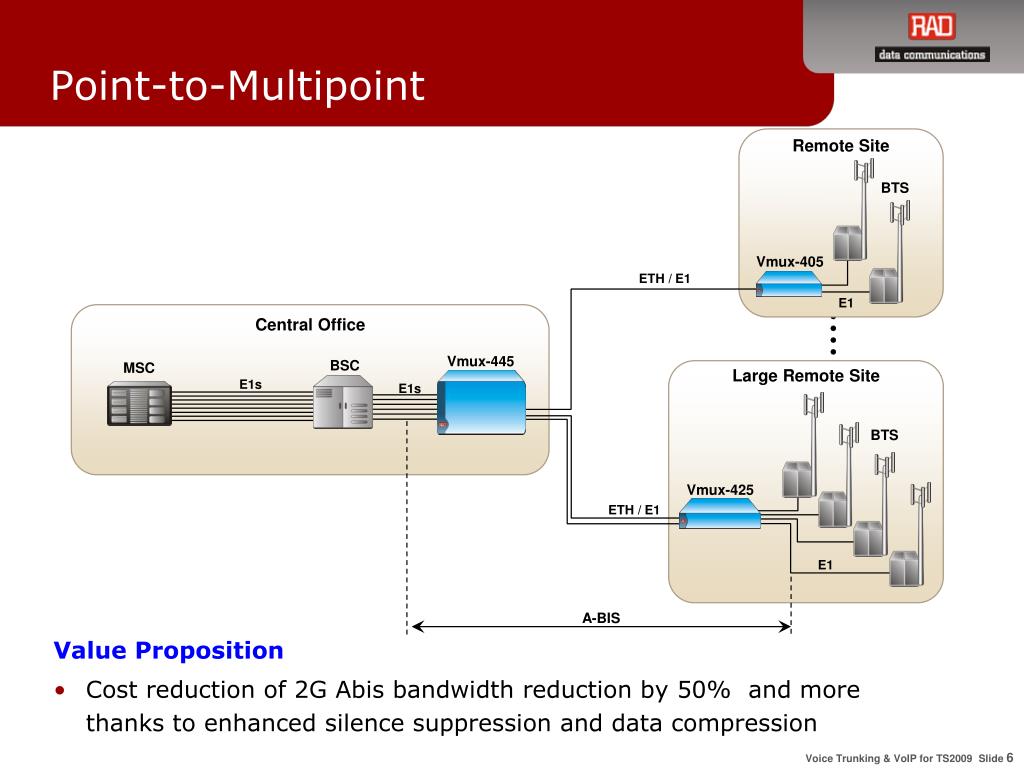

  6. Point-to-Multipoint Remote Site BTS Value Proposition • Cost reduction of 2G Abis bandwidth reduction by 50% and more thanks to enhanced silence suppression and data compression Vmux-405 ETH / E1 E1 Central Office Vmux-445 BSC MSC Large Remote Site E1s E1s BTS Vmux-425 ETH / E1 E1 A-BIS

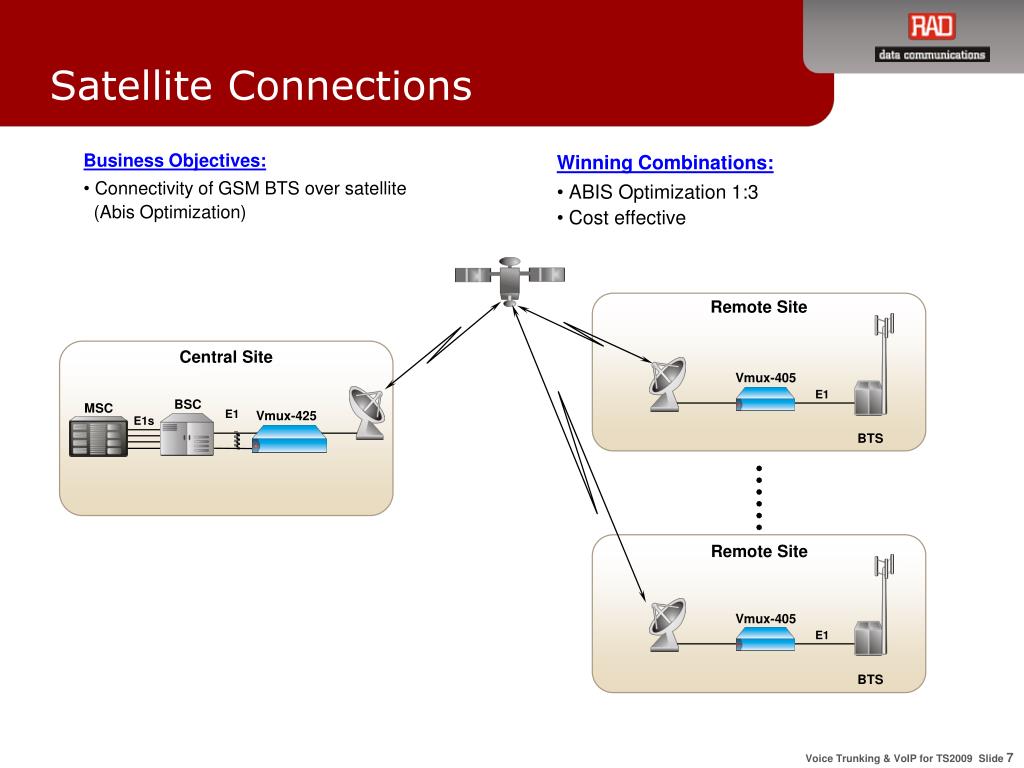

  7. Satellite Connections • Business Objectives: • Connectivity of GSM BTS over satellite (Abis Optimization) • Winning Combinations: • ABIS Optimization 1:3 • Cost effective Remote Site CentralSite Vmux-405 BSC E1 MSC E1 Vmux-425 E1s BTS RemoteSite Vmux-405 E1 BTS

  8. * To supply optimized GSM services in cruise ships MSC BSC Vmux-405 E1s IP E1 Vmux-405 E1 IP BTS Mobile Platforms

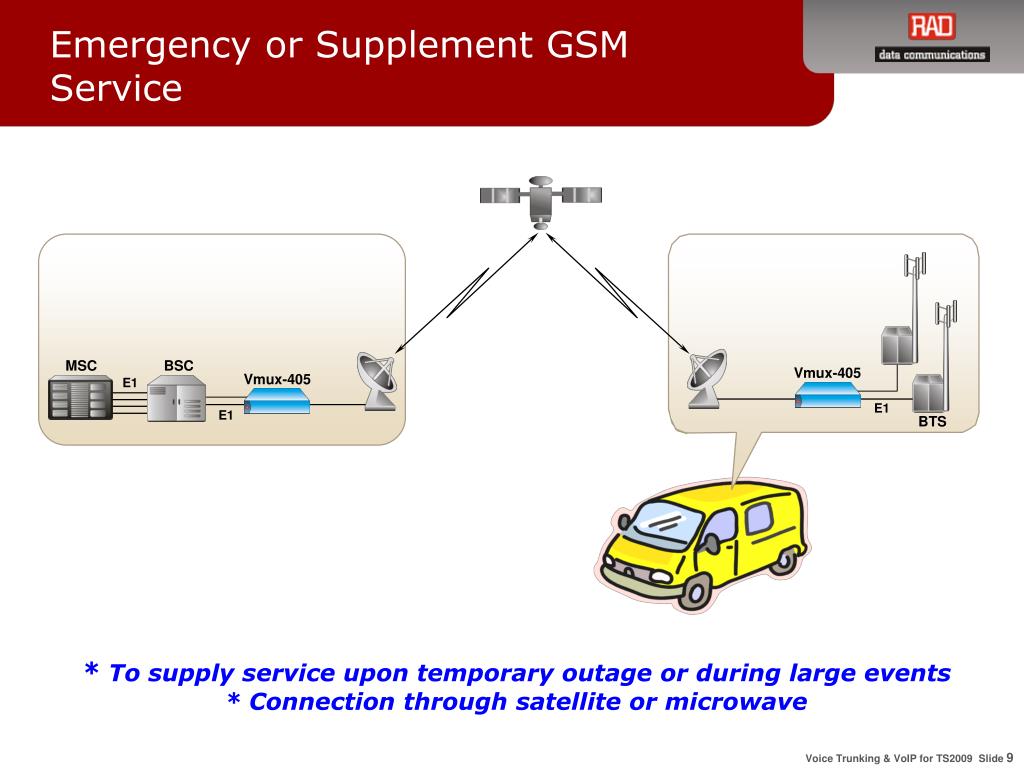

  9. MSC BSC Vmux-405 Vmux-405 E1 E1 E1 BTS Emergency or Supplement GSM Service * To supply service upon temporary outage or during large events * Connection through satellite or microwave

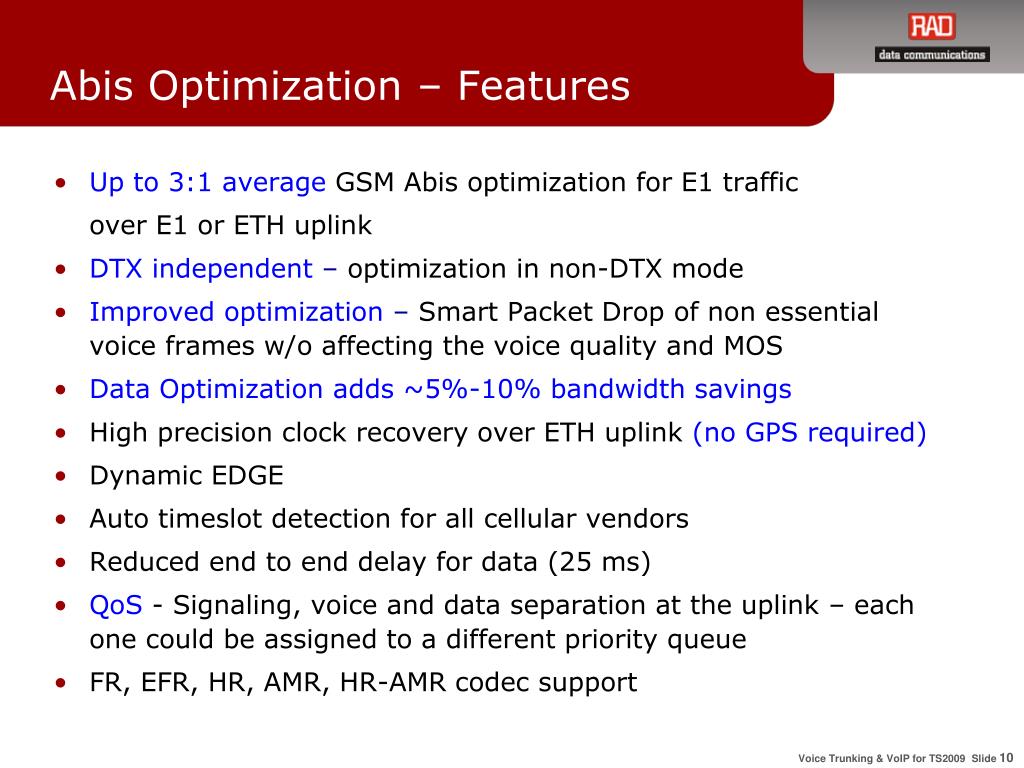

  10. Abis Optimization – Features • Up to 3:1 average GSM Abis optimization for E1 traffic over E1 or ETH uplink • DTX independent –optimization in non-DTX mode • Improved optimization –Smart Packet Drop of non essential voice frames w/o affecting the voice quality and MOS • Data Optimization adds ~5%-10% bandwidth savings • High precision clock recovery over ETH uplink (no GPS required) • Dynamic EDGE • Auto timeslot detection for all cellular vendors • Reduced end to end delay for data (25 ms) • QoS- Signaling, voice and data separation at the uplink – each one could be assigned to a different priority queue • FR, EFR, HR, AMR, HR-AMR codec support

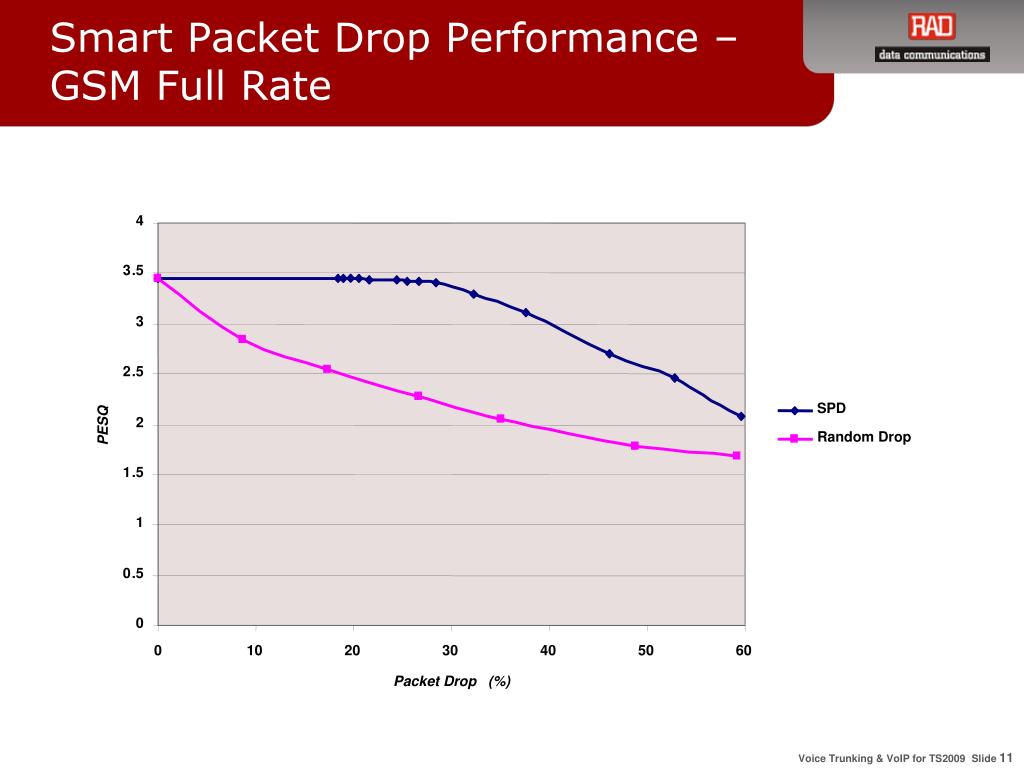

  11. 4 3 . 5 3 2 . 5 SPD 2 PESQ Random Drop 1 . 5 1 0 . 5 0 0 10 20 30 40 50 60 Packet Drop (%) Smart Packet Drop Performance – GSM Full Rate

  12. VmuxTrunking

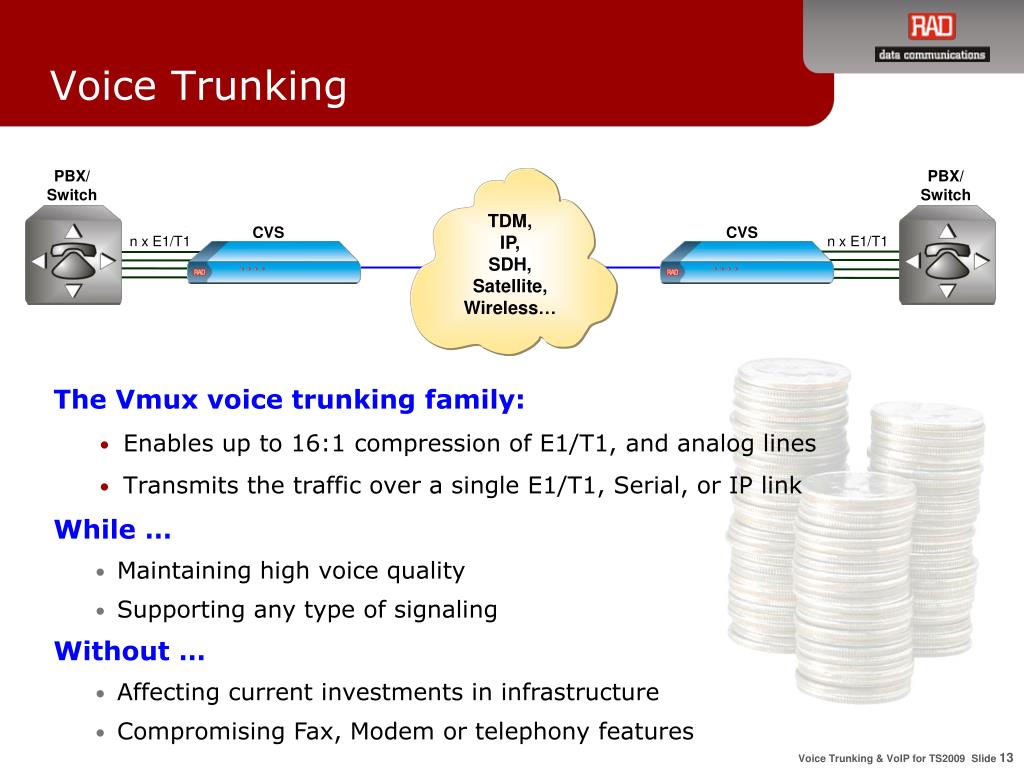

  13. TDM, IP, SDH, Satellite, Wireless… CVS CVS Voice Trunking PBX/ Switch PBX/ Switch The Vmux voice trunking family: • Enables up to 16:1 compression of E1/T1, and analog lines • Transmits the traffic over a single E1/T1, Serial, or IP link n x E1/T1 n xE1/T1 • While … • Maintaining high voice quality • Supporting any type of signaling • Without … • Affecting current investments in infrastructure • Compromising Fax, Modem or telephony features

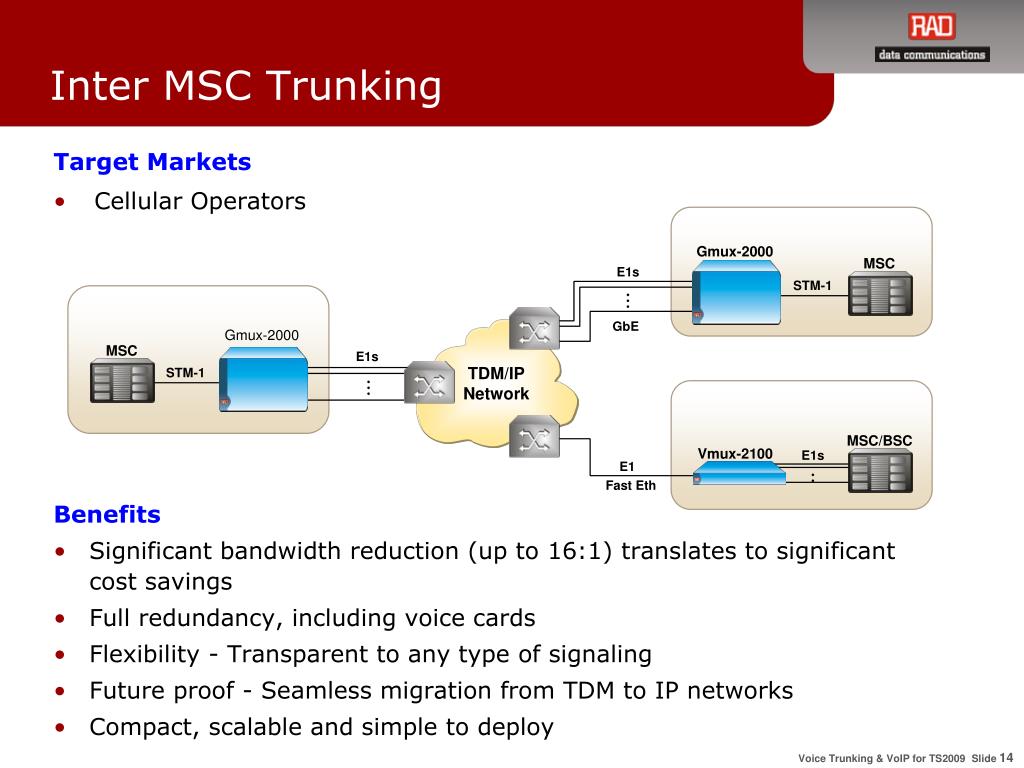

  14. Gmux-2000 MSC E1s STM-1 GbE Gmux-2000 MSC E1s TDM/IP Network STM-1 MSC/BSC Vmux-2100 E1s E1 Fast Eth Inter MSC Trunking Target Markets • Cellular Operators Benefits • Significant bandwidth reduction (up to 16:1) translates to significant cost savings • Full redundancy, including voice cards • Flexibility - Transparent to any type of signaling • Future proof - Seamless migration from TDM to IP networks • Compact, scalable and simple to deploy

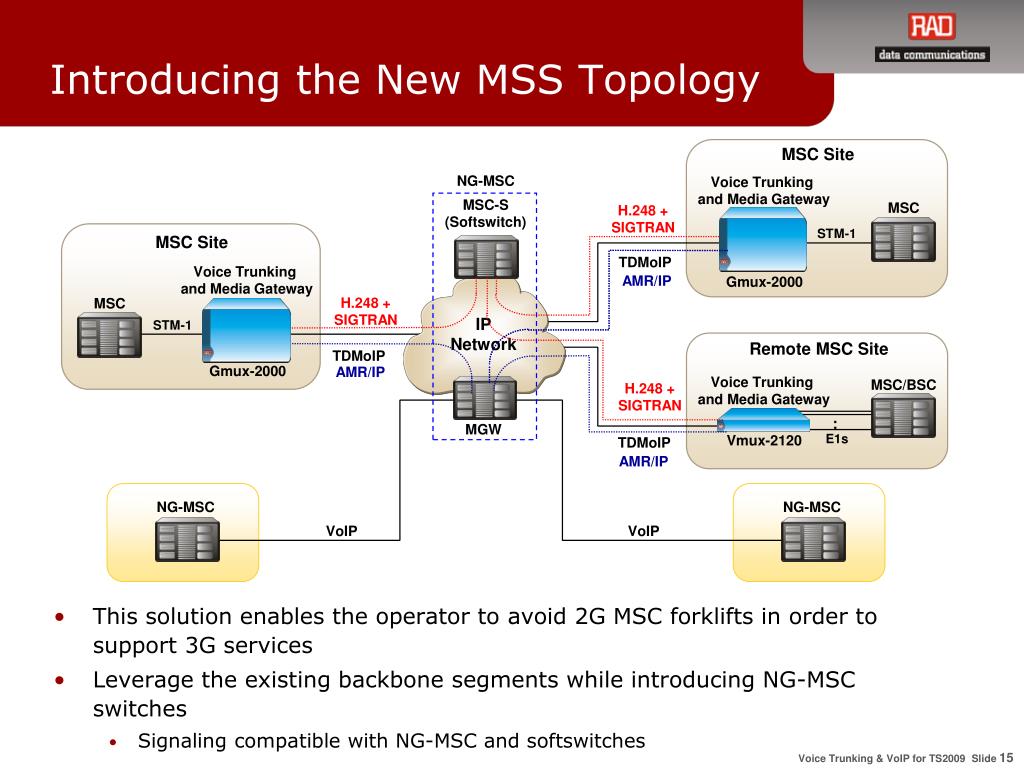

  15. NG-MSC MSC-S (Softswitch) H.248 + SIGTRAN TDMoIP AMR/IP H.248 + SIGTRAN IP Network TDM Network TDMoIP AMR/IP H.248 + SIGTRAN MGW TDMoIP AMR/IP NG-MSC NG-MSC VoIP VoIP Introducing the New MSS Topology MSC Site Voice Trunking and Media Gateway MSC • This solution enables the operator to avoid 2G MSC forklifts in order to support 3G services • Leverage the existing backbone segments while introducing NG-MSC switches • Signaling compatible with NG-MSC and softswitches STM-1 MSC Site Voice Trunking and Media Gateway Gmux-2000 MSC STM-1 Remote MSC Site Gmux-2000 Voice Trunking and Media Gateway MSC/BSC E1s Vmux-2120

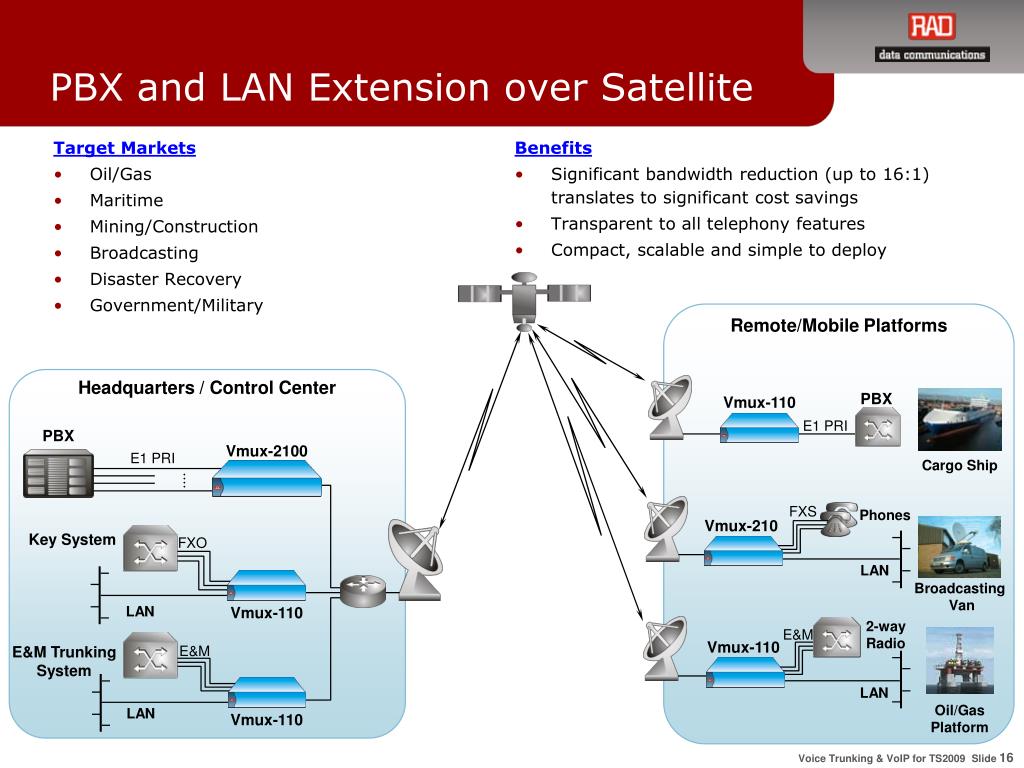

  16. PBX and LAN Extension over Satellite Target Markets • Oil/Gas • Maritime • Mining/Construction • Broadcasting • Disaster Recovery • Government/Military Benefits • Significant bandwidth reduction (up to 16:1) translates to significant cost savings • Transparent to all telephony features • Compact, scalable and simple to deploy Remote/Mobile Platforms Headquarters / Control Center PBX Vmux-110 E1 PRI PBX Vmux-2100 E1 PRI Cargo Ship FXS Phones Vmux-210 Key System FXO LAN Broadcasting Van LAN Vmux-110 2-way Radio E&M Vmux-110 E&M Trunking System E&M LAN Oil/Gas Platform LAN Vmux-110

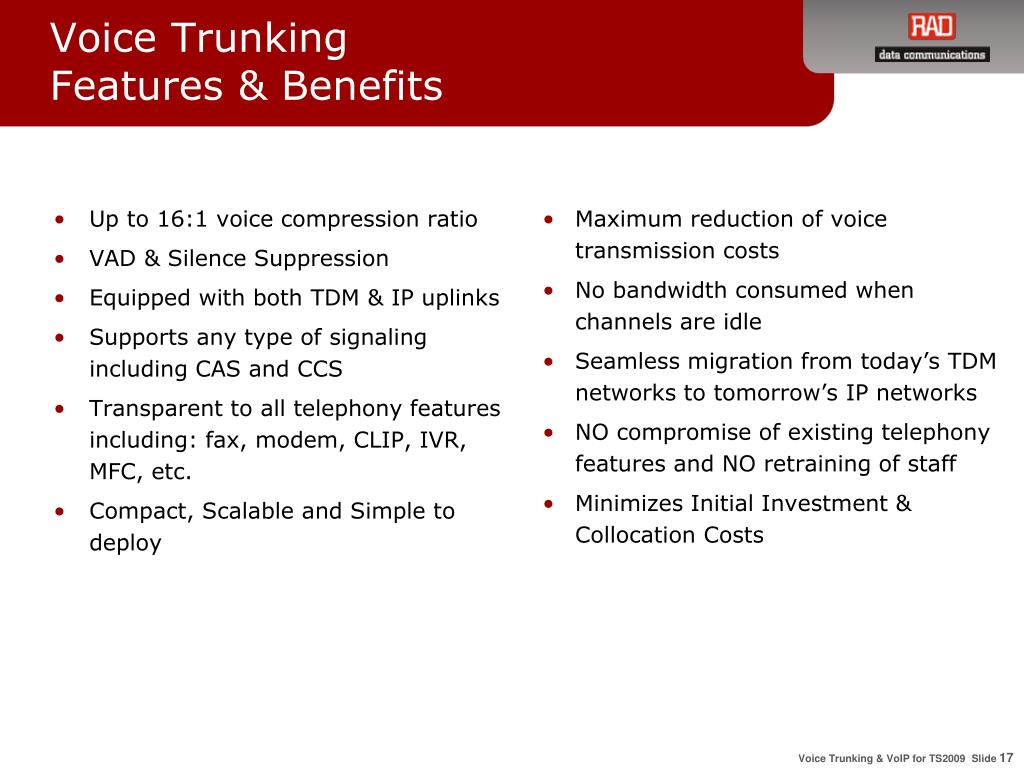

  17. Voice TrunkingFeatures & Benefits • Up to 16:1 voice compression ratio • VAD & Silence Suppression • Equipped with both TDM & IP uplinks • Supports any type of signaling including CAS and CCS • Transparent to all telephony features including: fax, modem, CLIP, IVR, MFC, etc. • Compact, Scalable and Simple to deploy • Maximum reduction of voice transmission costs • No bandwidth consumed when channels are idle • Seamless migration from today’s TDM networks to tomorrow’s IP networks • NO compromise of existing telephony features and NO retraining of staff • Minimizes Initial Investment & Collocation Costs
