介面設計專題實務Object Teaching of Interface Design實驗五 CPU計時器實驗授課教師：任才俊

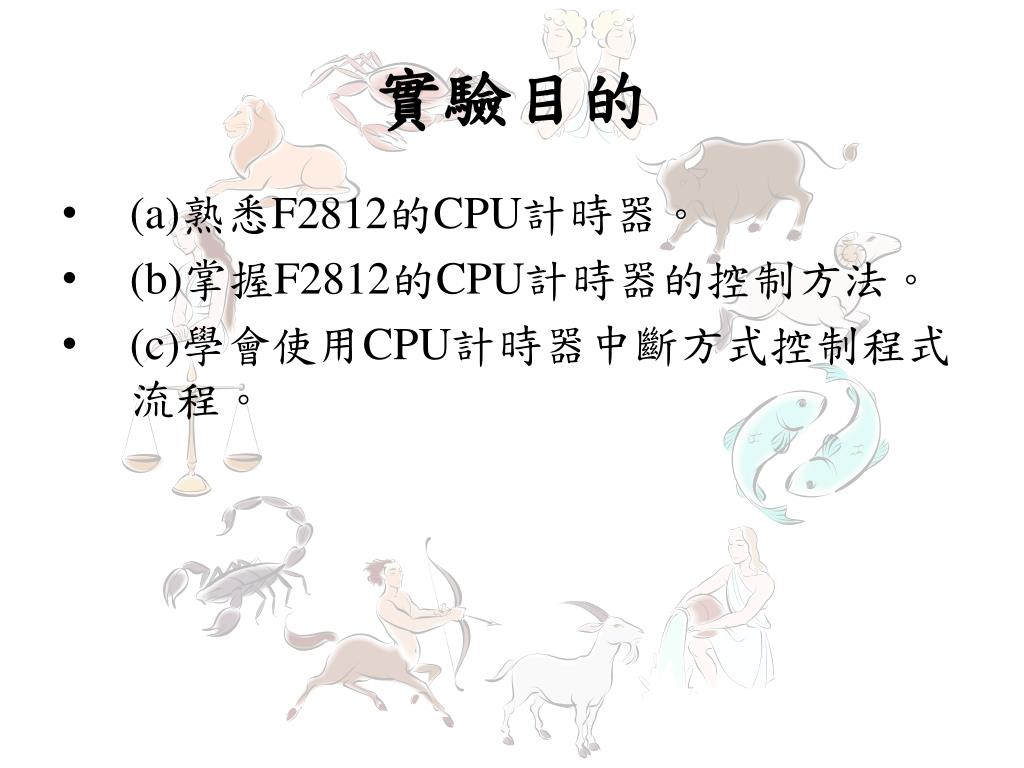

實驗目的 • (a)熟悉F2812的CPU計時器。 • (b)掌握F2812的CPU計時器的控制方法。 • (c)學會使用CPU計時器中斷方式控制程式流程。

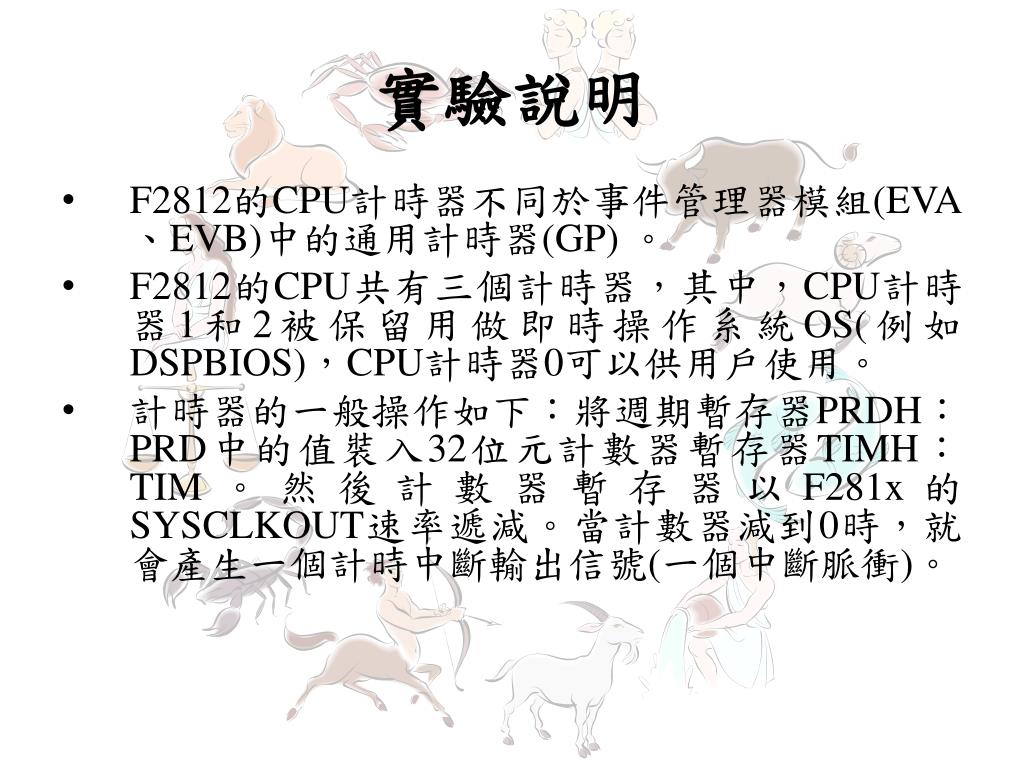

實驗說明 • F2812的CPU計時器不同於事件管理器模組(EVA、EVB)中的通用計時器(GP) 。 • F2812的CPU共有三個計時器，其中，CPU計時器1和2被保留用做即時操作系統OS(例如DSPBIOS)，CPU計時器0可以供用戶使用。 • 計時器的一般操作如下：將週期暫存器PRDH：PRD中的值裝入32位元計數器暫存器TIMH：TIM。然後計數器暫存器以F281x的SYSCLKOUT速率遞減。當計數器減到0時，就會產生一個計時中斷輸出信號(一個中斷脈衝)。

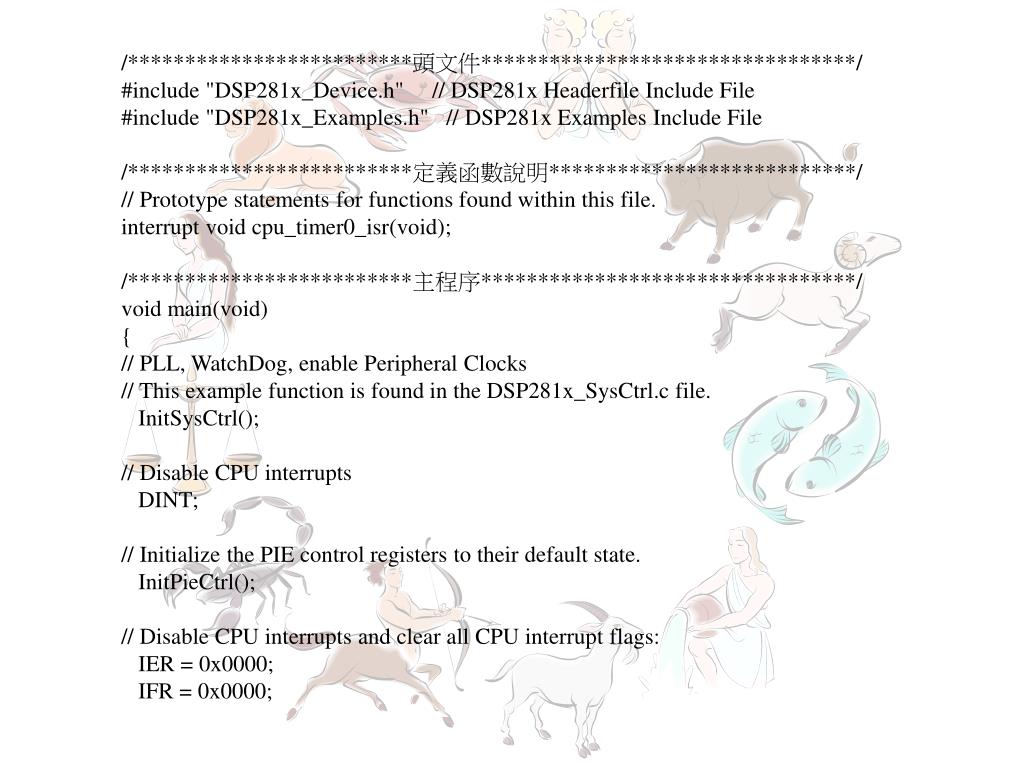

/*************************頭文件*********************************//*************************頭文件*********************************/ #include "DSP281x_Device.h" // DSP281x Headerfile Include File #include "DSP281x_Examples.h" // DSP281x Examples Include File /*************************定義函數說明***************************/ // Prototype statements for functions found within this file. interrupt void cpu_timer0_isr(void); /*************************主程序*********************************/ void main(void) { // PLL, WatchDog, enable Peripheral Clocks // This example function is found in the DSP281x_SysCtrl.c file. InitSysCtrl(); // Disable CPU interrupts DINT; // Initialize the PIE control registers to their default state. InitPieCtrl(); // Disable CPU interrupts and clear all CPU interrupt flags: IER = 0x0000; IFR = 0x0000;

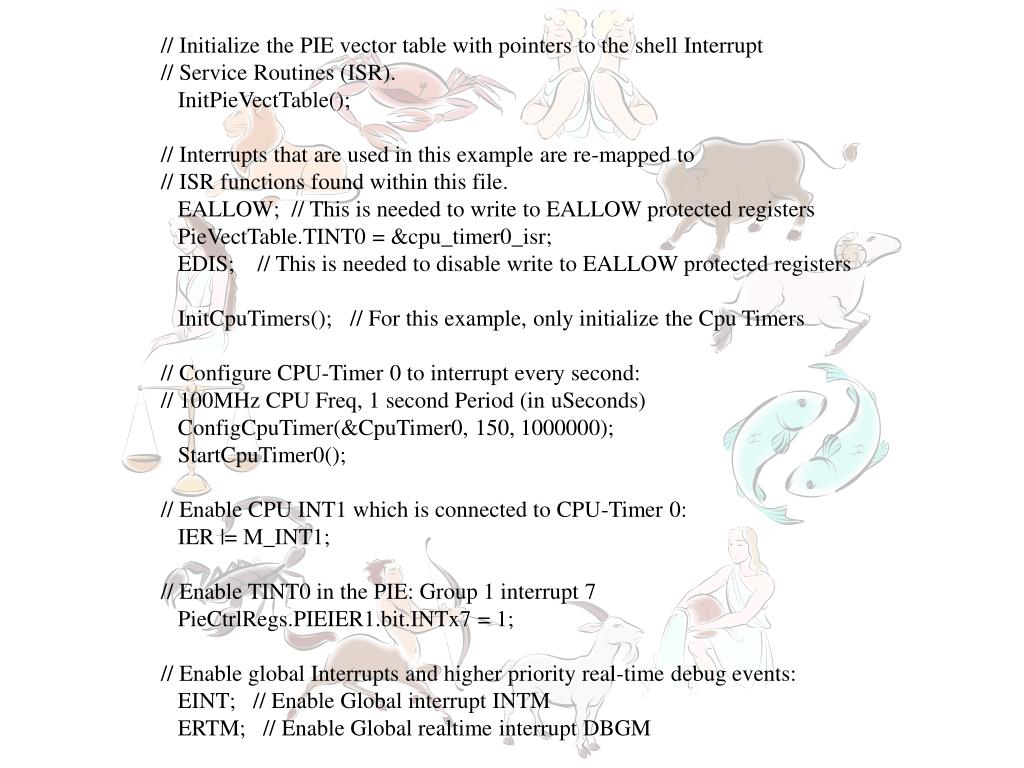

// Initialize the PIE vector table with pointers to the shell Interrupt // Service Routines (ISR). InitPieVectTable(); // Interrupts that are used in this example are re-mapped to // ISR functions found within this file. EALLOW; // This is needed to write to EALLOW protected registers PieVectTable.TINT0 = &cpu_timer0_isr; EDIS; // This is needed to disable write to EALLOW protected registers InitCpuTimers(); // For this example, only initialize the Cpu Timers // Configure CPU-Timer 0 to interrupt every second: // 100MHz CPU Freq, 1 second Period (in uSeconds) ConfigCpuTimer(&CpuTimer0, 150, 1000000); StartCpuTimer0(); // Enable CPU INT1 which is connected to CPU-Timer 0: IER |= M_INT1; // Enable TINT0 in the PIE: Group 1 interrupt 7 PieCtrlRegs.PIEIER1.bit.INTx7 = 1; // Enable global Interrupts and higher priority real-time debug events: EINT; // Enable Global interrupt INTM ERTM; // Enable Global realtime interrupt DBGM

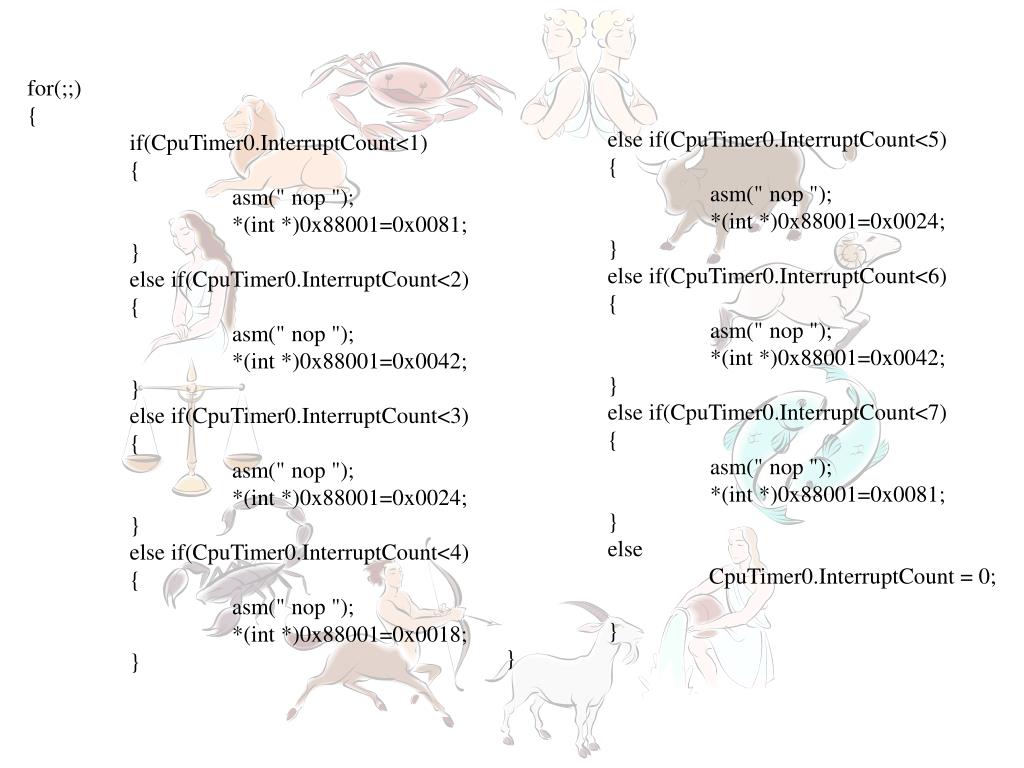

for(;;) { if(CpuTimer0.InterruptCount<1) { asm(" nop "); *(int *)0x88001=0x0081; } else if(CpuTimer0.InterruptCount<2) { asm(" nop "); *(int *)0x88001=0x0042; } else if(CpuTimer0.InterruptCount<3) { asm(" nop "); *(int *)0x88001=0x0024; } else if(CpuTimer0.InterruptCount<4) { asm(" nop "); *(int *)0x88001=0x0018; } else if(CpuTimer0.InterruptCount<5) { asm(" nop "); *(int *)0x88001=0x0024; } else if(CpuTimer0.InterruptCount<6) { asm(" nop "); *(int *)0x88001=0x0042; } else if(CpuTimer0.InterruptCount<7) { asm(" nop "); *(int *)0x88001=0x0081; } else CpuTimer0.InterruptCount = 0; } }

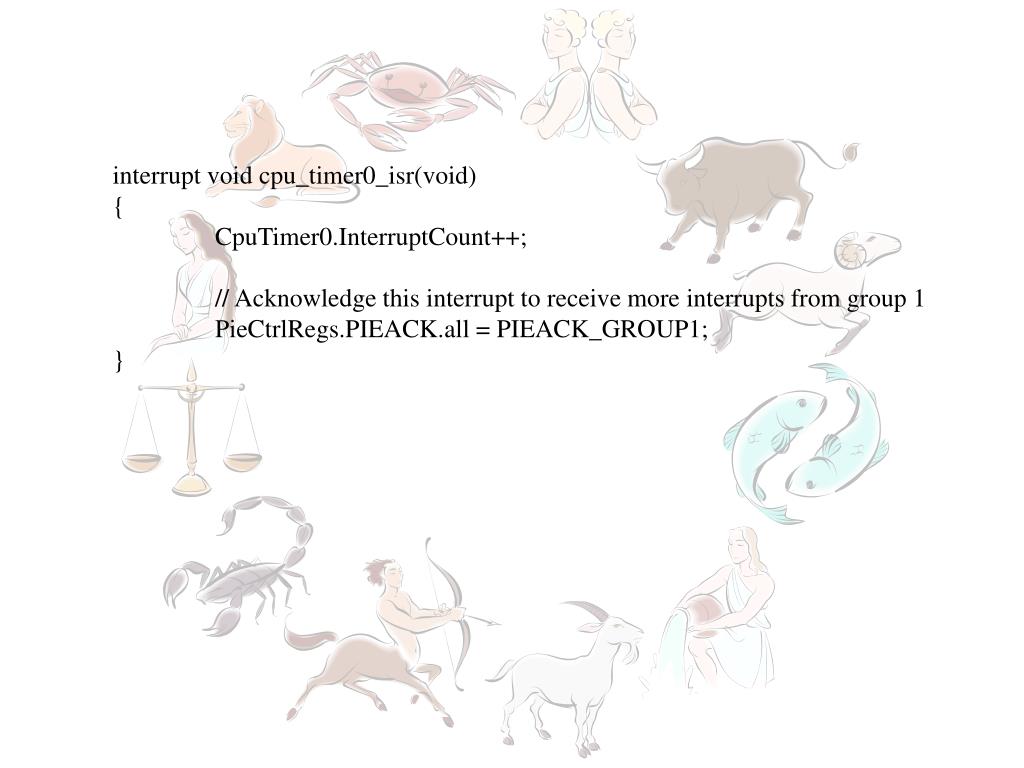

interrupt void cpu_timer0_isr(void) { CpuTimer0.InterruptCount++; // Acknowledge this interrupt to receive more interrupts from group 1 PieCtrlRegs.PIEACK.all = PIEACK_GROUP1; }

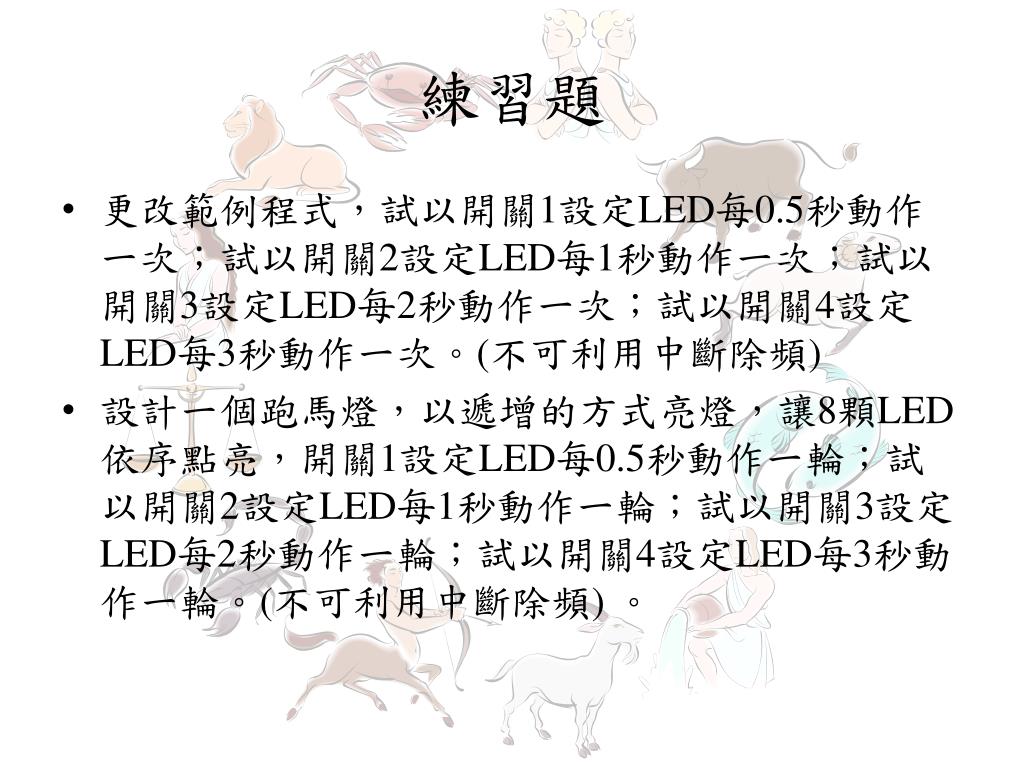

練習題 • 更改範例程式，試以開關1設定LED每0.5秒動作一次；試以開關2設定LED每1秒動作一次；試以開關3設定LED每2秒動作一次；試以開關4設定LED每3秒動作一次。(不可利用中斷除頻) • 設計一個跑馬燈，以遞增的方式亮燈，讓8顆LED依序點亮，開關1設定LED每0.5秒動作一輪；試以開關2設定LED每1秒動作一輪；試以開關3設定LED每2秒動作一輪；試以開關4設定LED每3秒動作一輪。(不可利用中斷除頻) 。
