  1. Custom Scripts and Ad Customization Michael Denton | Publisher Formats Engineer Tia Koehler | Tier 2 EngineerNovember 2011

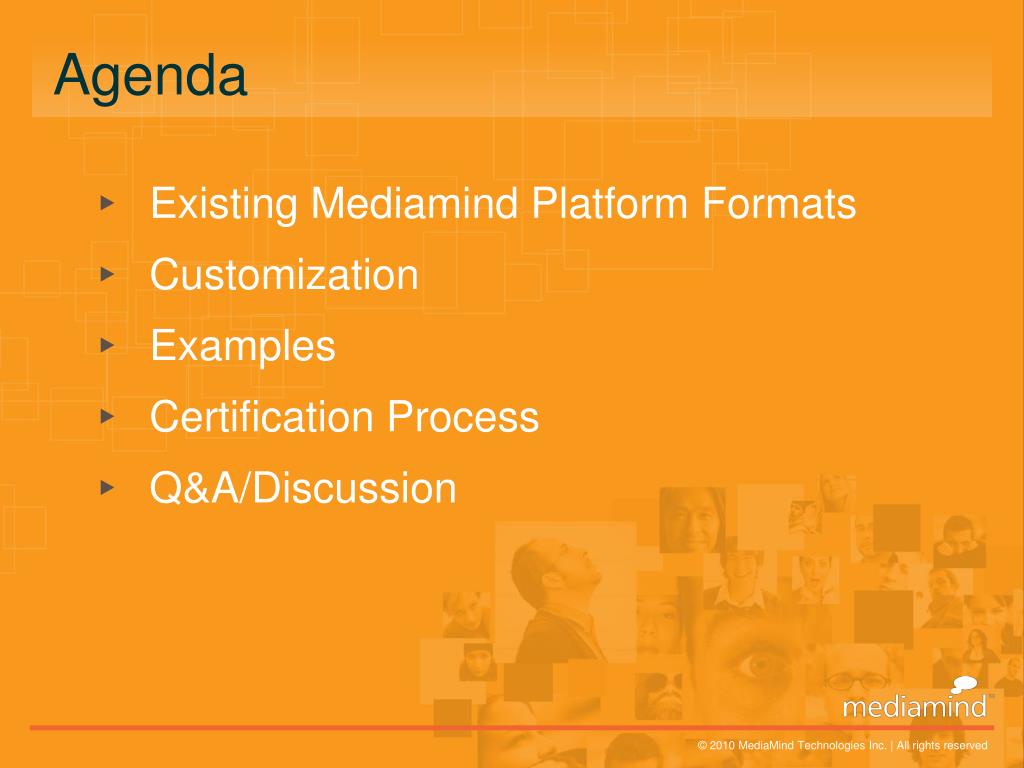

  2. Agenda • Existing Mediamind Platform Formats • Customization • Examples • Certification Process • Q&A/Discussion

  3. Existing Mediamind Platform Formats

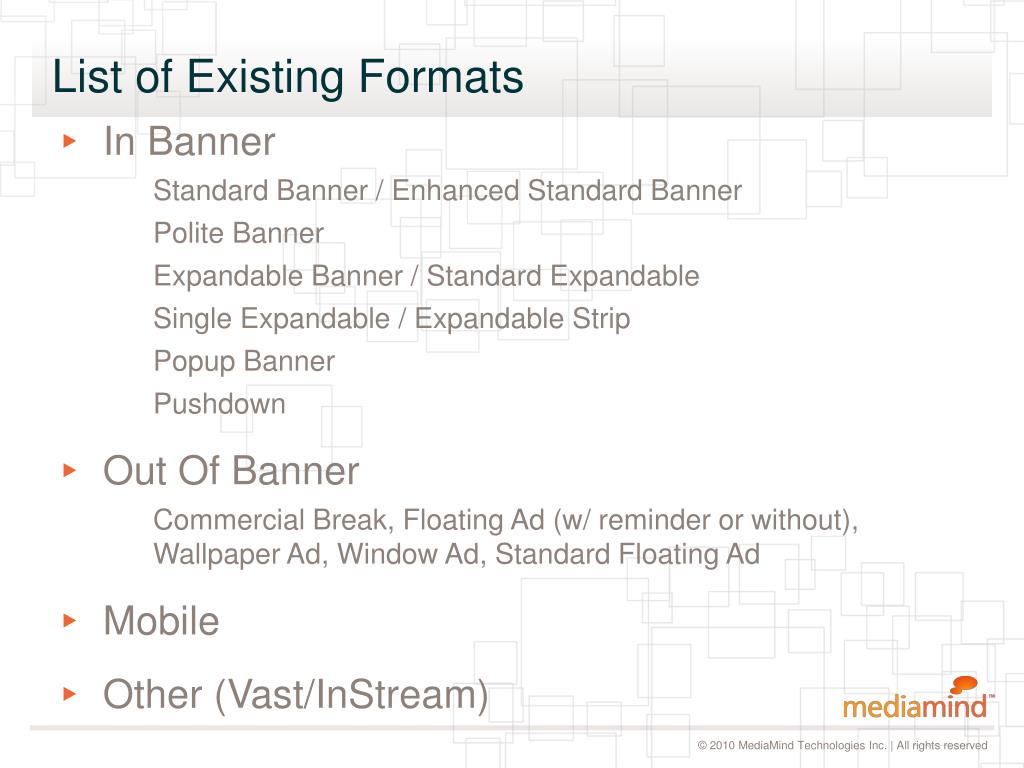

  4. List of Existing Formats • In Banner • Standard Banner / Enhanced Standard Banner • Polite Banner • Expandable Banner / Standard Expandable • Single Expandable / Expandable Strip • Popup Banner • Pushdown • Out Of Banner • Commercial Break, Floating Ad (w/ reminder or without), Wallpaper Ad, Window Ad, Standard Floating Ad • Mobile • Other (Vast/InStream)

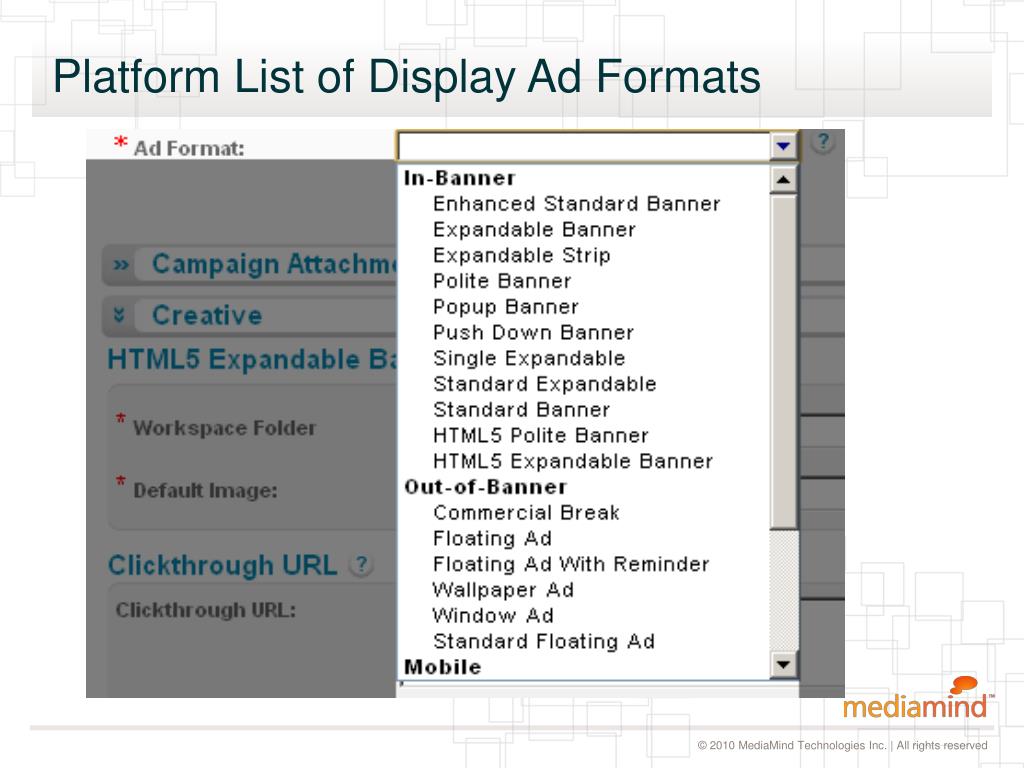

  5. Platform List of Display Ad Formats

  6. Customization

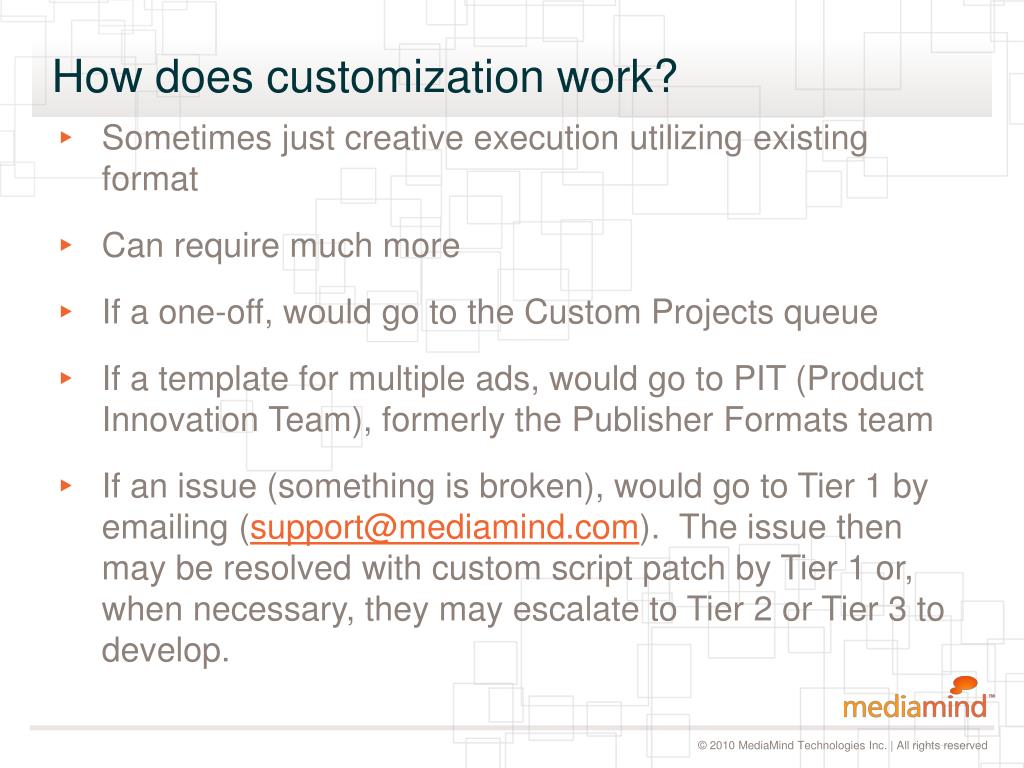

  7. How does customization work? • Sometimes just creative execution utilizing existing format • Can require much more • If a one-off, would go to the Custom Projects queue • If a template for multiple ads, would go to PIT (Product Innovation Team), formerly the Publisher Formats team • If an issue (something is broken), would go to Tier 1 by emailing (support@mediamind.com). The issue then may be resolved with custom script patch by Tier 1 or, when necessary, they may escalate to Tier 2 or Tier 3 to develop.

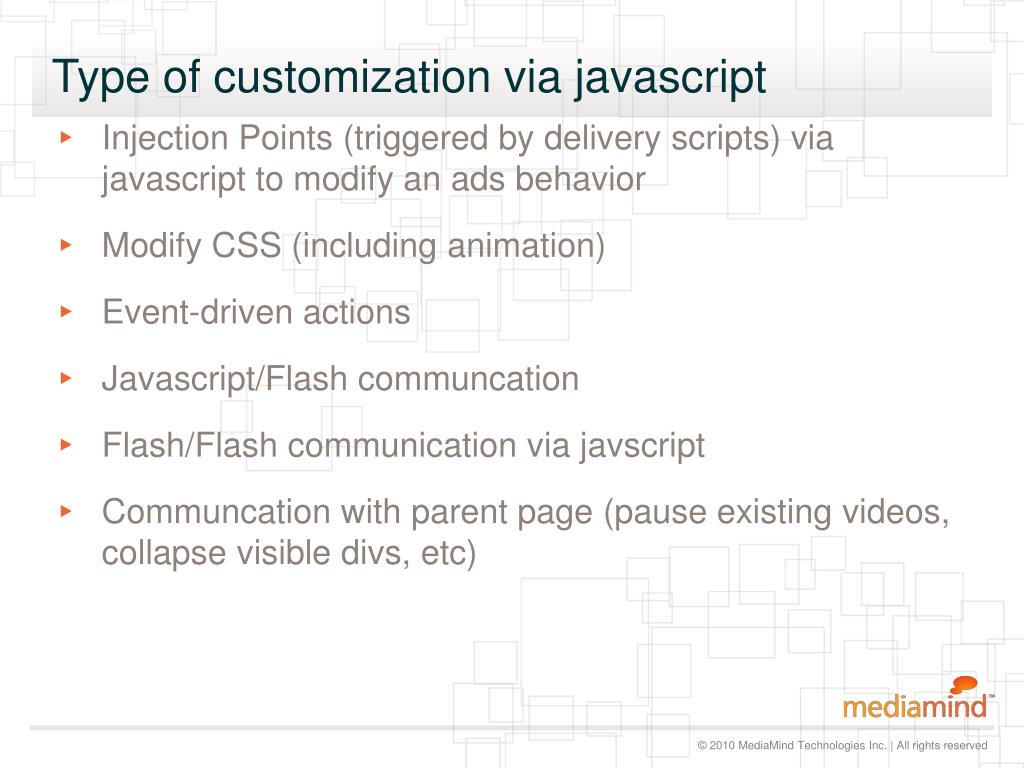

  8. Type of customization via javascript • Injection Points (triggered by delivery scripts) via javascript to modify an ads behavior • Modify CSS (including animation) • Event-driven actions • Javascript/Flash communcation • Flash/Flash communication via javscript • Communcation with parent page (pause existing videos, collapse visible divs, etc)

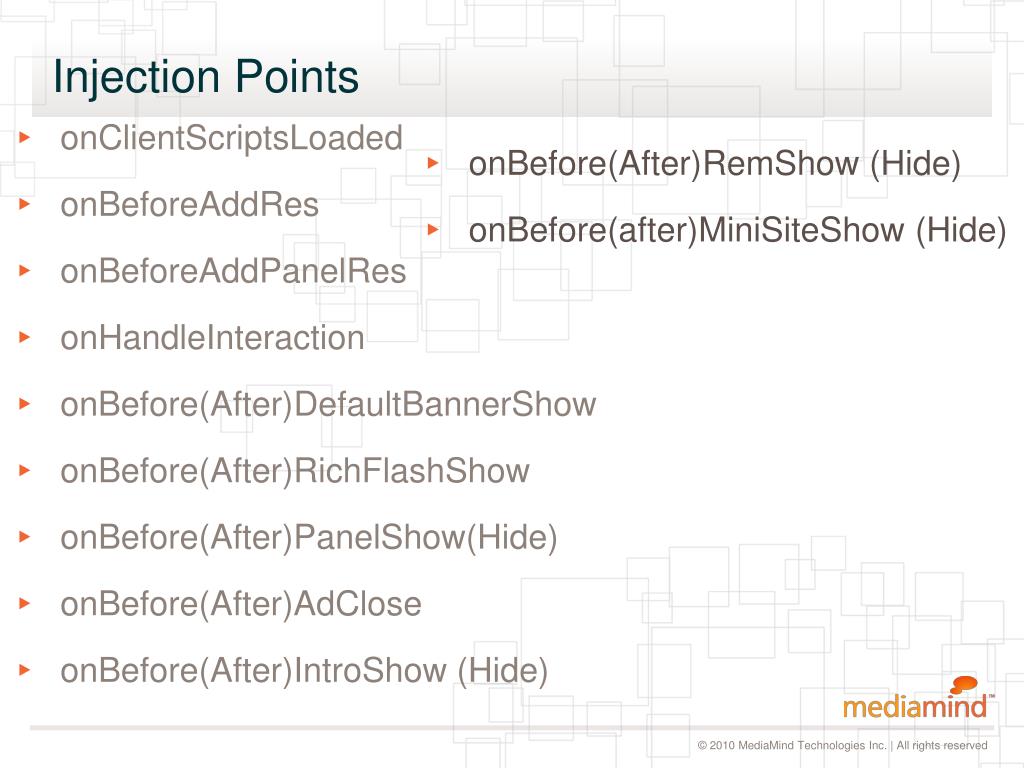

  9. Injection Points • onClientScriptsLoaded • onBeforeAddRes • onBeforeAddPanelRes • onHandleInteraction • onBefore(After)DefaultBannerShow • onBefore(After)RichFlashShow • onBefore(After)PanelShow(Hide) • onBefore(After)AdClose • onBefore(After)IntroShow (Hide) • onBefore(After)RemShow (Hide) • onBefore(after)MiniSiteShow (Hide)

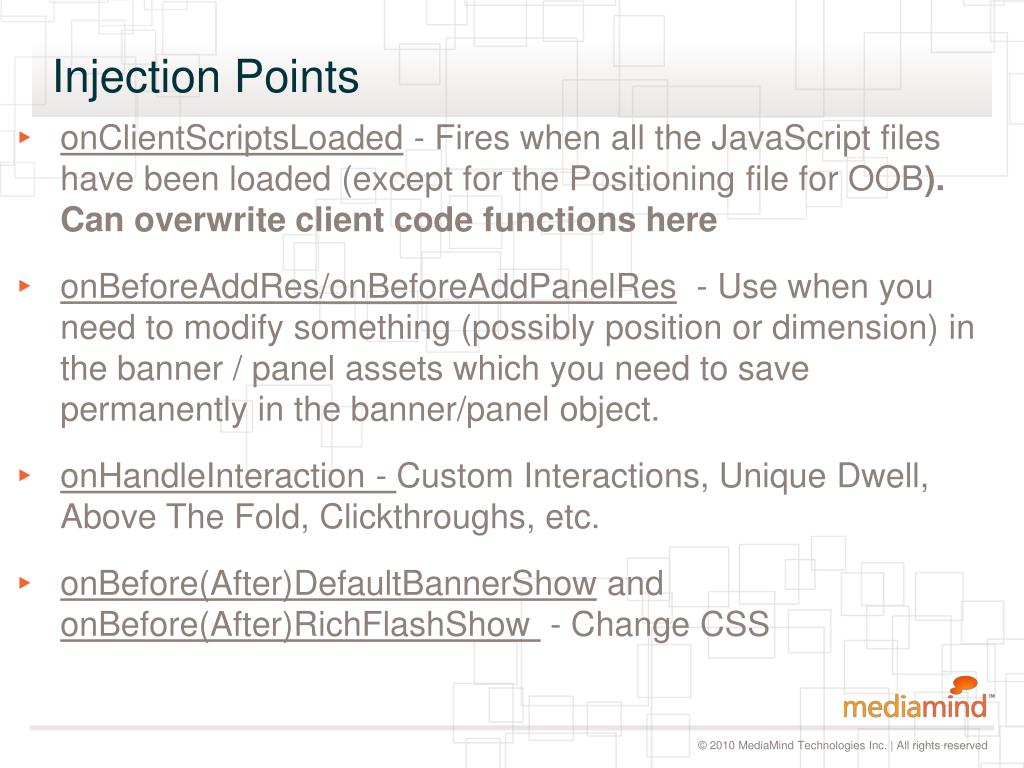

  10. Injection Points • onClientScriptsLoaded - Fires when all the JavaScript files have been loaded (except for the Positioning file for OOB). Can overwrite client code functions here • onBeforeAddRes/onBeforeAddPanelRes - Use when you need to modify something (possibly position or dimension) in the banner / panel assets which you need to save permanently in the banner/panel object. • onHandleInteraction - Custom Interactions, Unique Dwell, Above The Fold, Clickthroughs, etc. • onBefore(After)DefaultBannerShow and onBefore(After)RichFlashShow - Change CSS

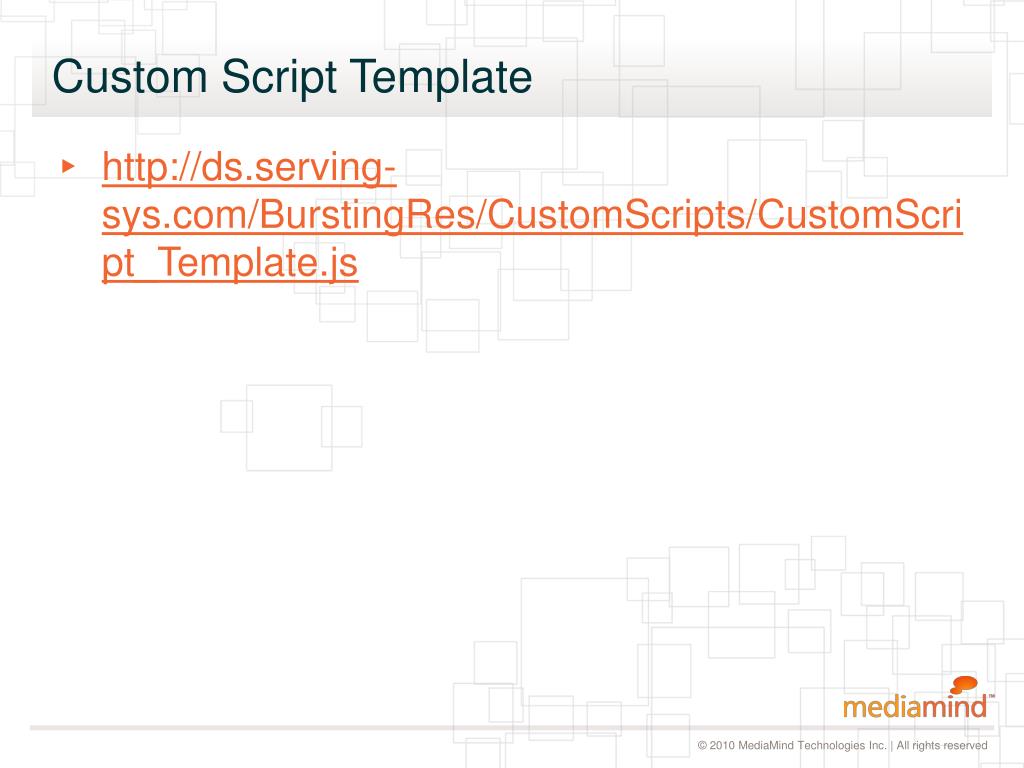

  11. Custom Script Template • http://ds.serving-sys.com/BurstingRes/CustomScripts/CustomScript_Template.js

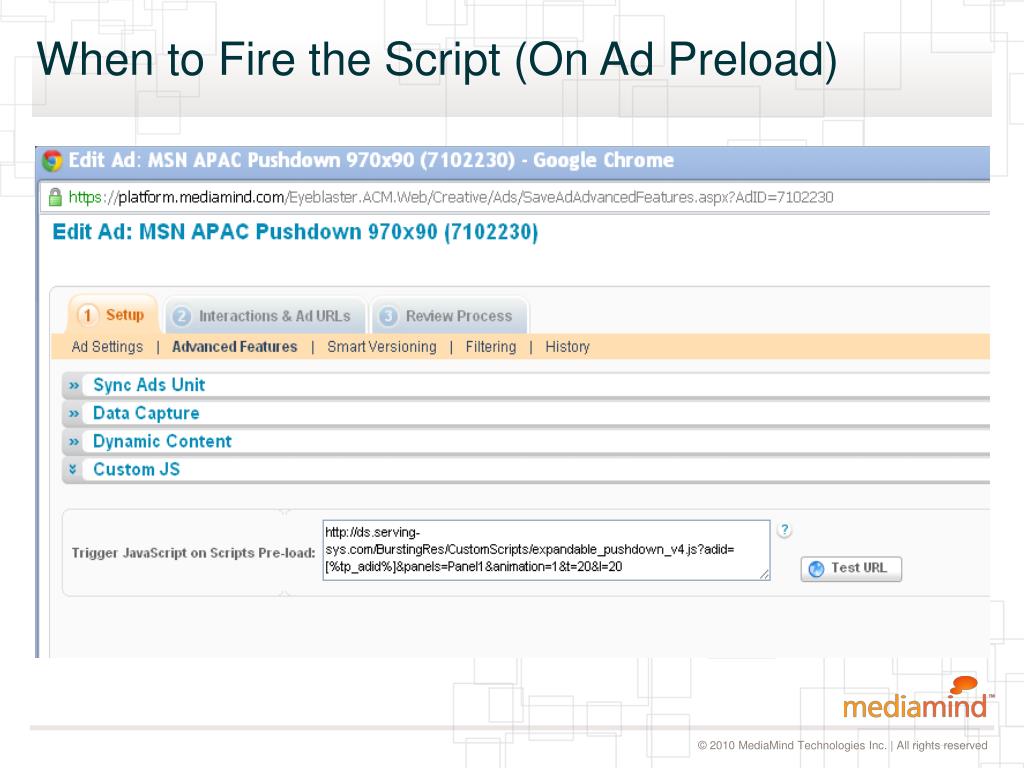

  12. When to Fire the Script (On Ad Preload)

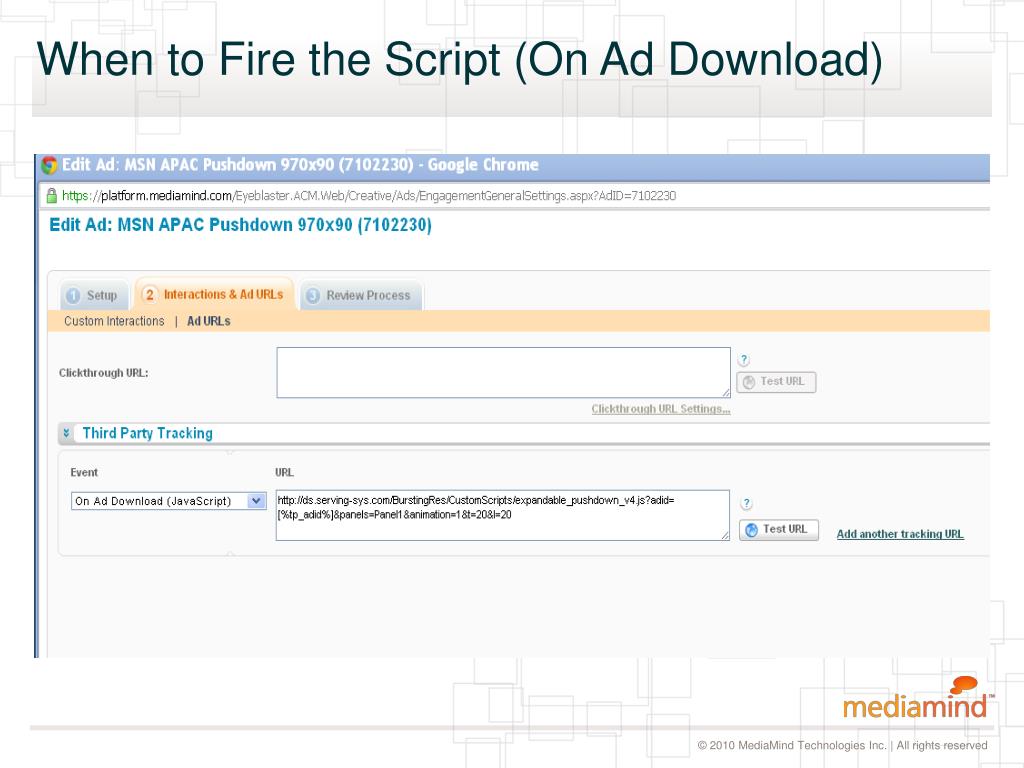

  13. When to Fire the Script (On Ad Download)

  14. When to Fire the Script (On Ad Play)

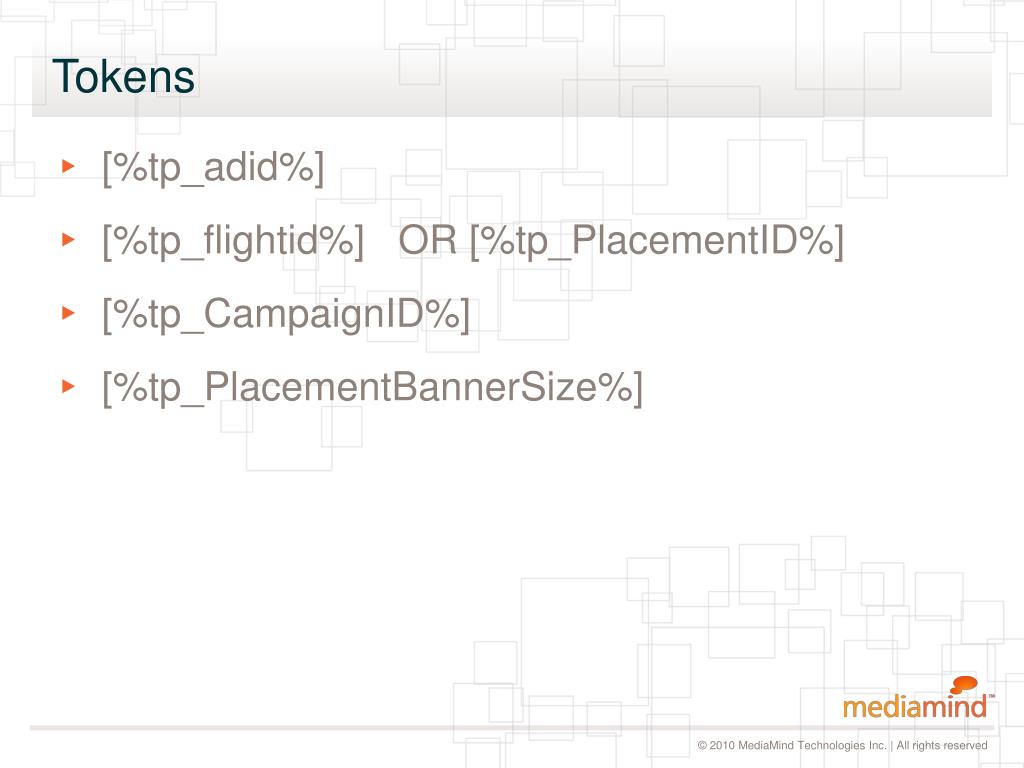

  15. Tokens • [%tp_adid%] • [%tp_flightid%] OR [%tp_PlacementID%] • [%tp_CampaignID%] • [%tp_PlacementBannerSize%]

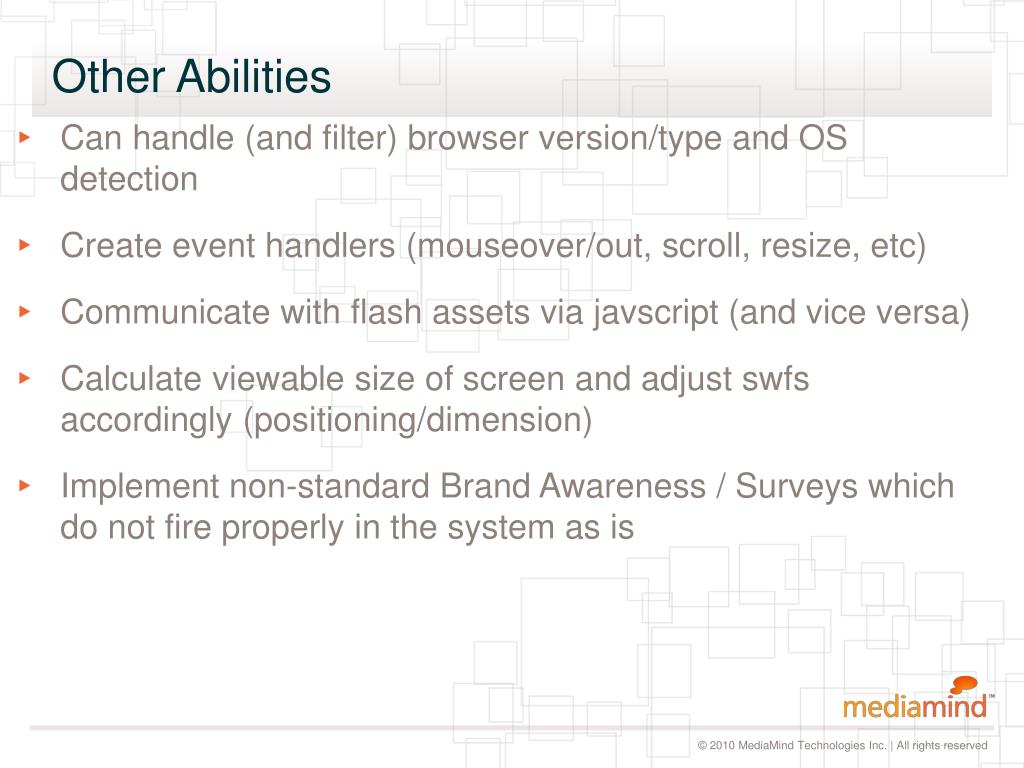

  16. Other Abilities • Can handle (and filter) browser version/type and OS detection • Create event handlers (mouseover/out, scroll, resize, etc) • Communicate with flash assets via javscript (and vice versa) • Calculate viewable size of screen and adjust swfs accordingly (positioning/dimension) • Implement non-standard Brand Awareness / Surveys which do not fire properly in the system as is

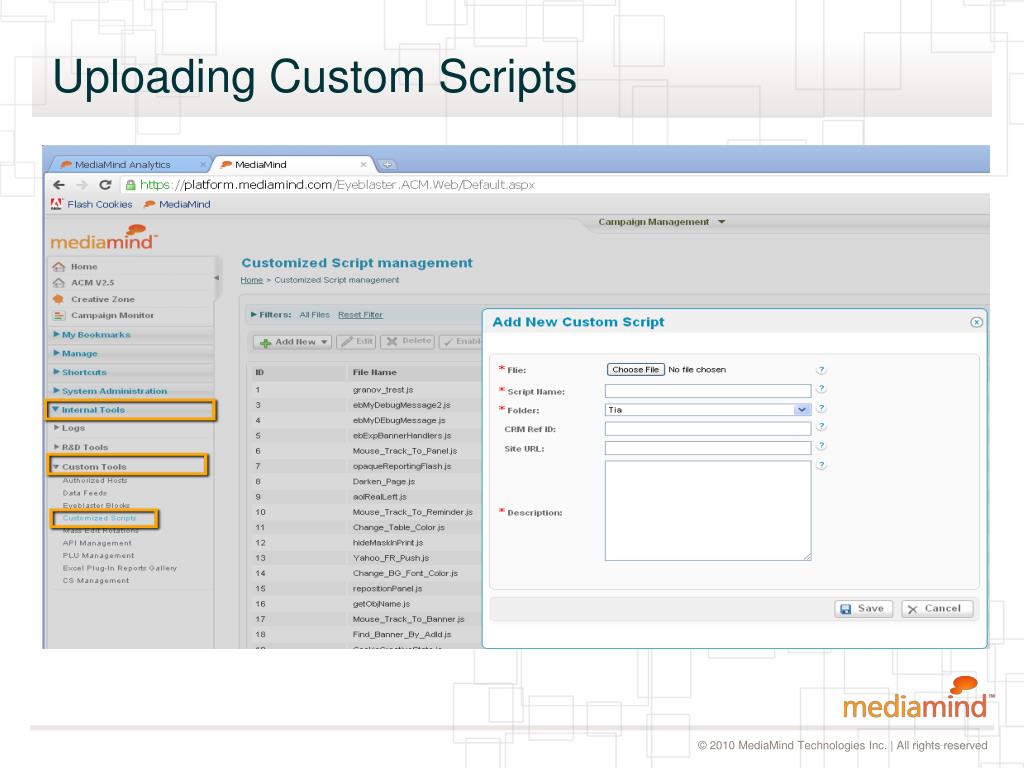

  17. Uploading Custom Scripts

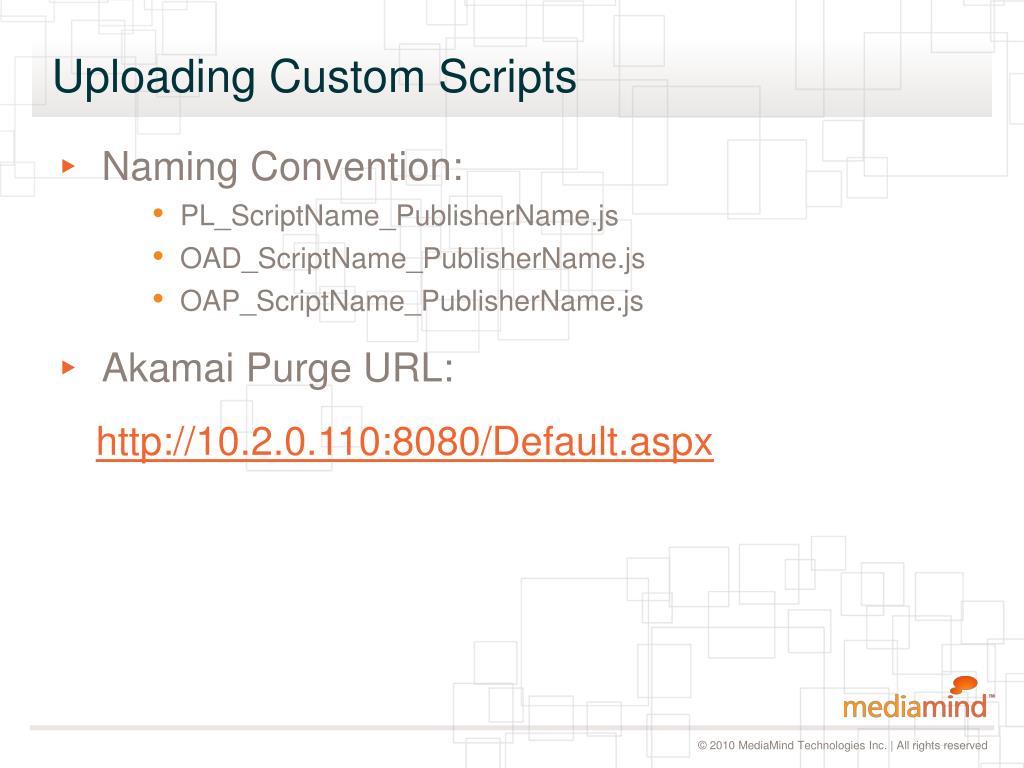

  18. Uploading Custom Scripts • Naming Convention: • PL_ScriptName_PublisherName.js • OAD_ScriptName_PublisherName.js • OAP_ScriptName_PublisherName.js • Akamai Purge URL: http://10.2.0.110:8080/Default.aspx

  19. Examples

  20. Windows Live Click to Share • http://demo.mediamind.com/PublisherFormats/MS/WL_ClickToShare_300x250_Expandable_Demo.html • Using OnAfterPanelShow • Constantly checks for loss of focus of the panel swf, upon loss of focus, collapse panel

  21. MSN Filmstrip • http://demo.mediamind.com/PublisherFormats/MS/WL_Filmstrip_300x600_Demo.html • Only using injection points to get a reference to the SWF and attach an onScroll event • Listening for scroll of page, then sends message to SWF notifying SWF to advance the scene to the next

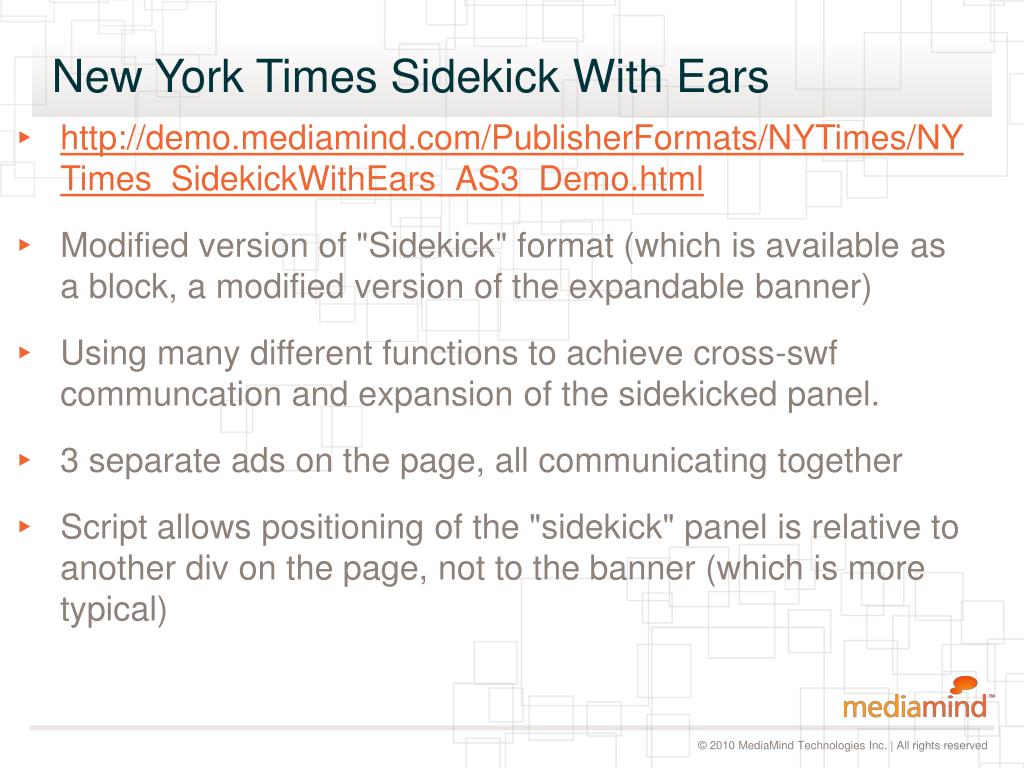

  22. New York Times Sidekick With Ears • http://demo.mediamind.com/PublisherFormats/NYTimes/NYTimes_SidekickWithEars_AS3_Demo.html • Modified version of "Sidekick" format (which is available as a block, a modified version of the expandable banner) • Using many different functions to achieve cross-swf communcation and expansion of the sidekicked panel. • 3 separate ads on the page, all communicating together • Script allows positioning of the "sidekick" panel is relative to another div on the page, not to the banner (which is more typical)

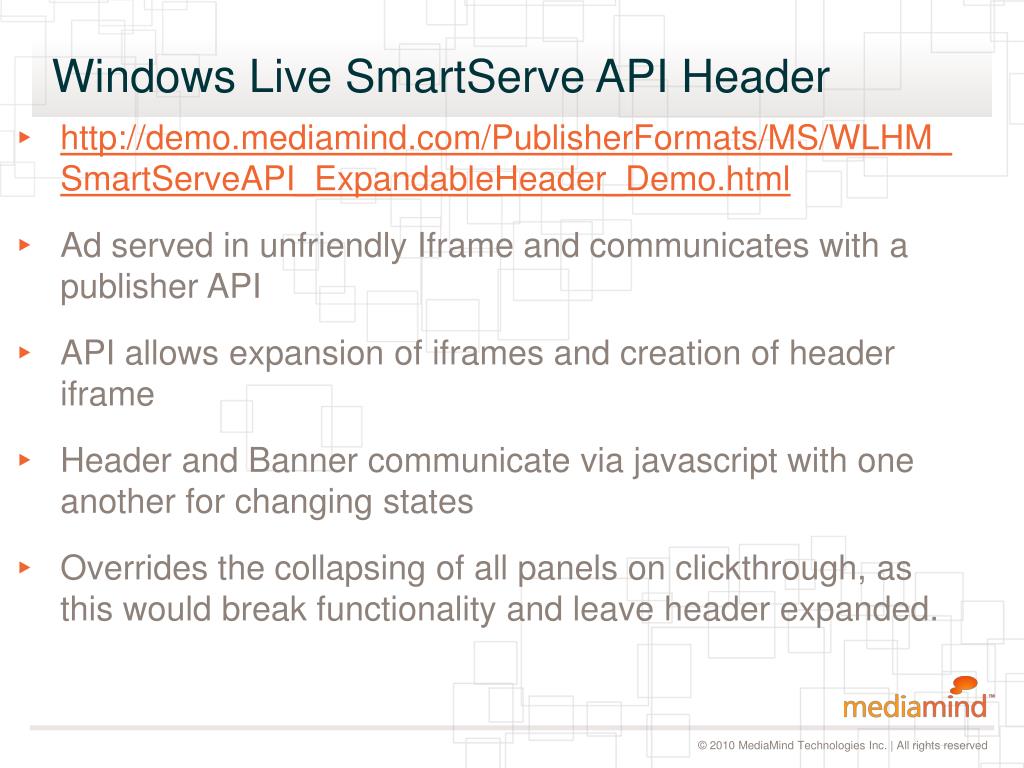

  23. Windows Live SmartServe API Header • http://demo.mediamind.com/PublisherFormats/MS/WLHM_SmartServeAPI_ExpandableHeader_Demo.html • Ad served in unfriendly Iframe and communicates with a publisher API • API allows expansion of iframes and creation of header iframe • Header and Banner communicate via javascript with one another for changing states • Overrides the collapsing of all panels on clickthrough, as this would break functionality and leave header expanded.

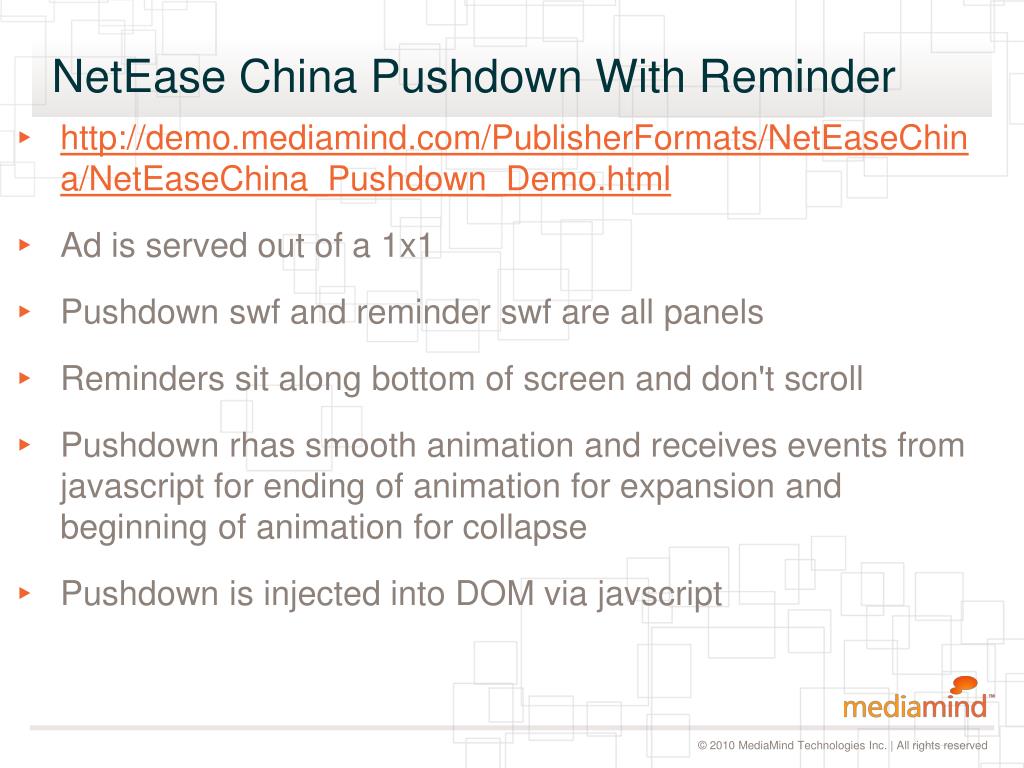

  24. NetEase China Pushdown With Reminder • http://demo.mediamind.com/PublisherFormats/NetEaseChina/NetEaseChina_Pushdown_Demo.html • Ad is served out of a 1x1 • Pushdown swf and reminder swf are all panels • Reminders sit along bottom of screen and don't scroll • Pushdown rhas smooth animation and receives events from javascript for ending of animation for expansion and beginning of animation for collapse • Pushdown is injected into DOM via javscript

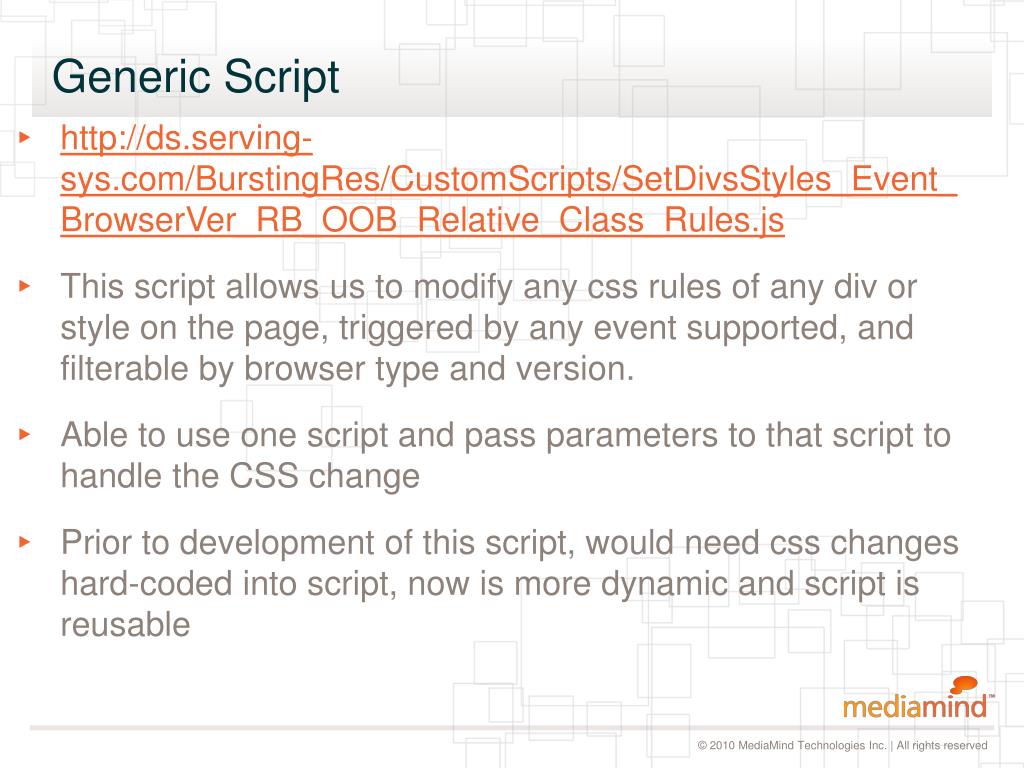

  25. Generic Script • http://ds.serving-sys.com/BurstingRes/CustomScripts/SetDivsStyles_Event_BrowserVer_RB_OOB_Relative_Class_Rules.js • This script allows us to modify any css rules of any div or style on the page, triggered by any event supported, and filterable by browser type and version. • Able to use one script and pass parameters to that script to handle the CSS change • Prior to development of this script, would need css changes hard-coded into script, now is more dynamic and script is reusable

  26. Certification Process

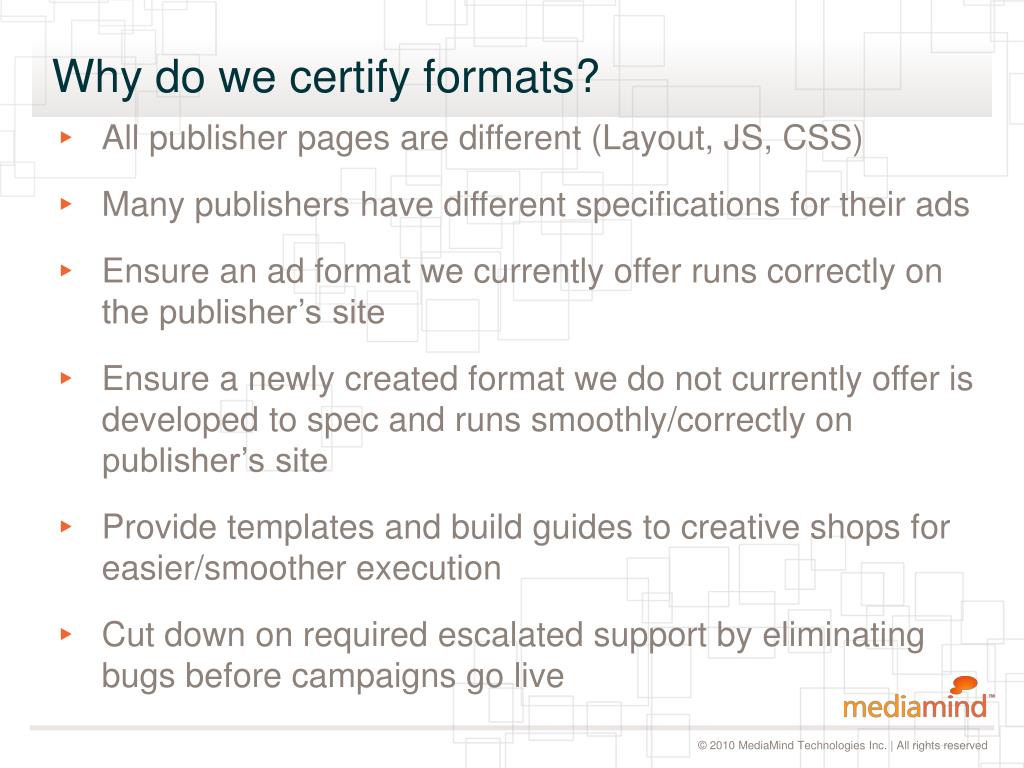

  27. Why do we certify formats? • All publisher pages are different (Layout, JS, CSS) • Many publishers have different specifications for their ads • Ensure an ad format we currently offer runs correctly on the publisher’s site • Ensure a newly created format we do not currently offer is developed to spec and runs smoothly/correctly on publisher’s site • Provide templates and build guides to creative shops for easier/smoother execution • Cut down on required escalated support by eliminating bugs before campaigns go live

  28. Q&A / Discussion

  29. Thank you!
