Annotation of 311 Admission Summaries of the ICU Corpus

1. Annotation of 311 Admission Summaries of the ICU Corpus Yefeng Wang

2. Aim • Create evaluation data for SNOMED CT concept matching performance. • Create training data for machine learning systems. • Rule-based systems has low recall • Difficult to tune parameter, building the rules • Machine learning system is the state of art • No such annotated data available yet.

3. Existing Corpora • Most of the existing corpora are in biomedical domain • GENIA (2000 abstracts from MEDLINE) • PennBioIE (2300 MEDLINE abstracts) • Only a few are from clinical domain • Ogren et al., (clinical condition only) • Chapman et al., (clinical condition only) • CLEF, (semantically annotation, formal report)

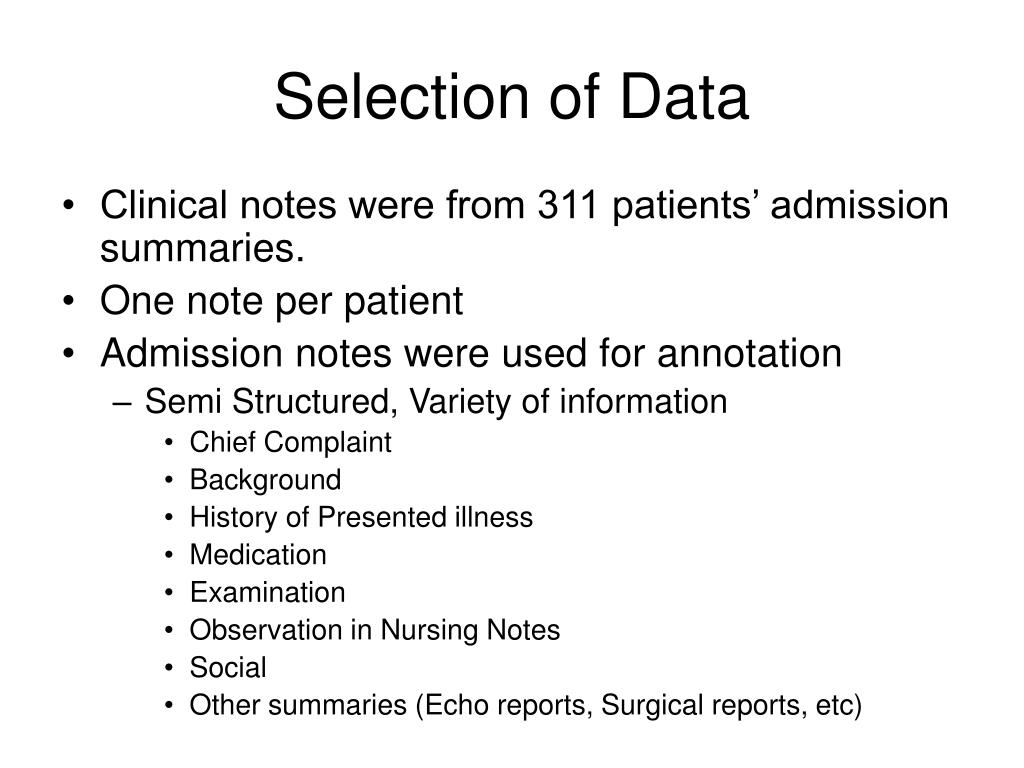

4. Selection of Data • Clinical notes were from 311 patients’ admission summaries. • One note per patient • Admission notes were used for annotation • Semi Structured, Variety of information • Chief Complaint • Background • History of Presented illness • Medication • Examination • Observation in Nursing Notes • Social • Other summaries (Echo reports, Surgical reports, etc)

5. The Annotation Task • Concept Annotation • Annotate semantic category of medical concepts • Categories were based on SNOMED CT • Relation Annotation • Relationships between concepts. • Inter-term relation • Relationship between two separate concepts • Intra-term relation • Relationship between atomic concepts within a composite concept (Post-coordination).

6. An Example Note

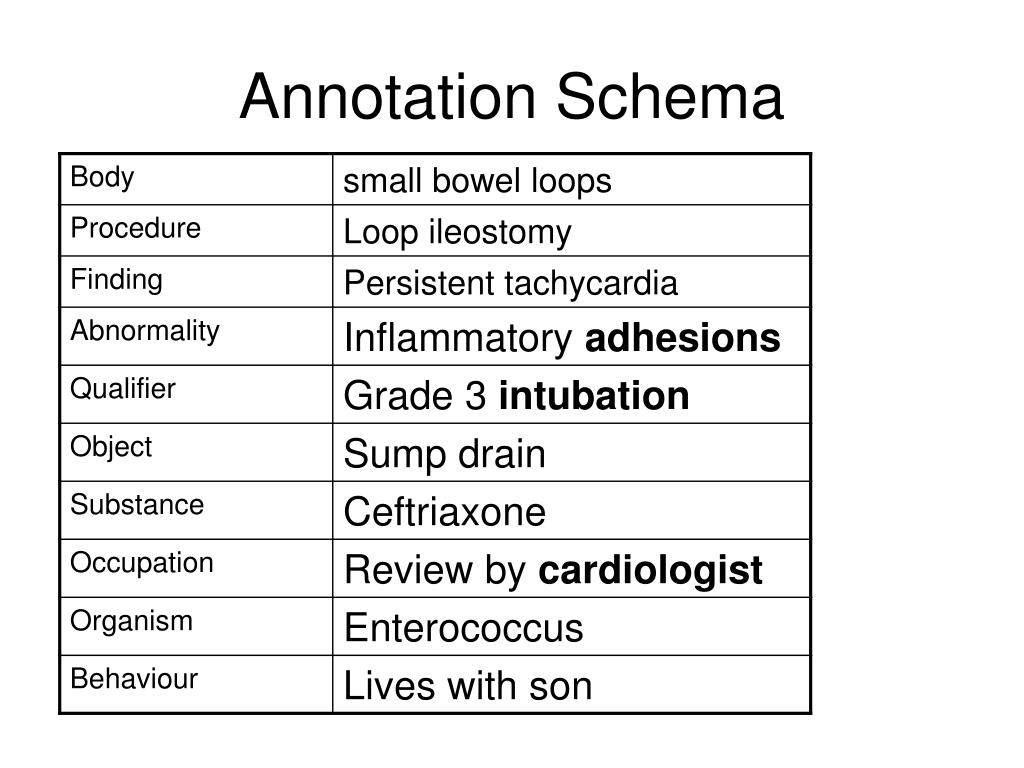

7. Annotation Schema

8. Development of Guidelines • Iterative Approach • 10 reports were annotated jointly by two annotators. • Discussion, • Development of initial guidelines • 25 reports were used for iterative refinement of guidelines • Annotate separately • 5 documents for each iteration • New examples, rules were added into annotation guidelines if necessary

9. Annotation Agreement • Inter-Annotator Agreement were calculated during each development cycle. • F1- is used for calculation • Harmonic mean of recall and precision • Precision = # correct annotation / # annotation • Recall = # correct annotation / # existing concepts • Repeat development process until the annotator agreement reach a threshold of 90%. • The guidelines then are finalised, no more new rules will be added into the guidelines. • Differences resolved by a third annotator to make a gold standard corpus.

10. IAA for the development cycle

11. IAA for the whole corpus (311)

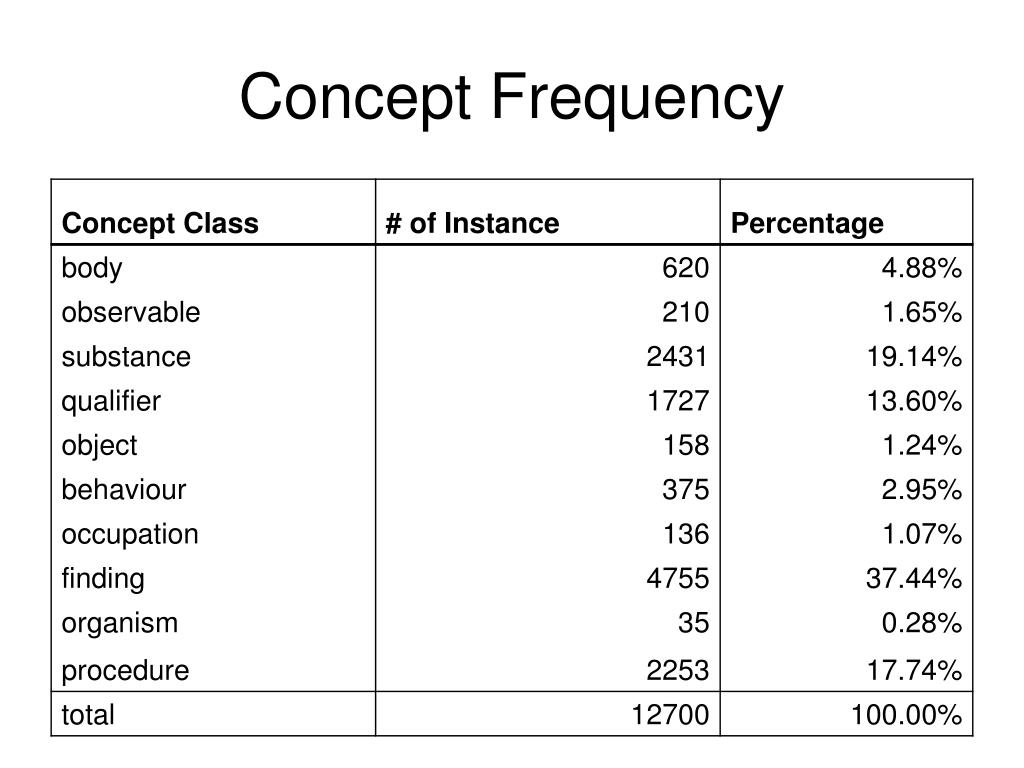

12. Concept Frequency

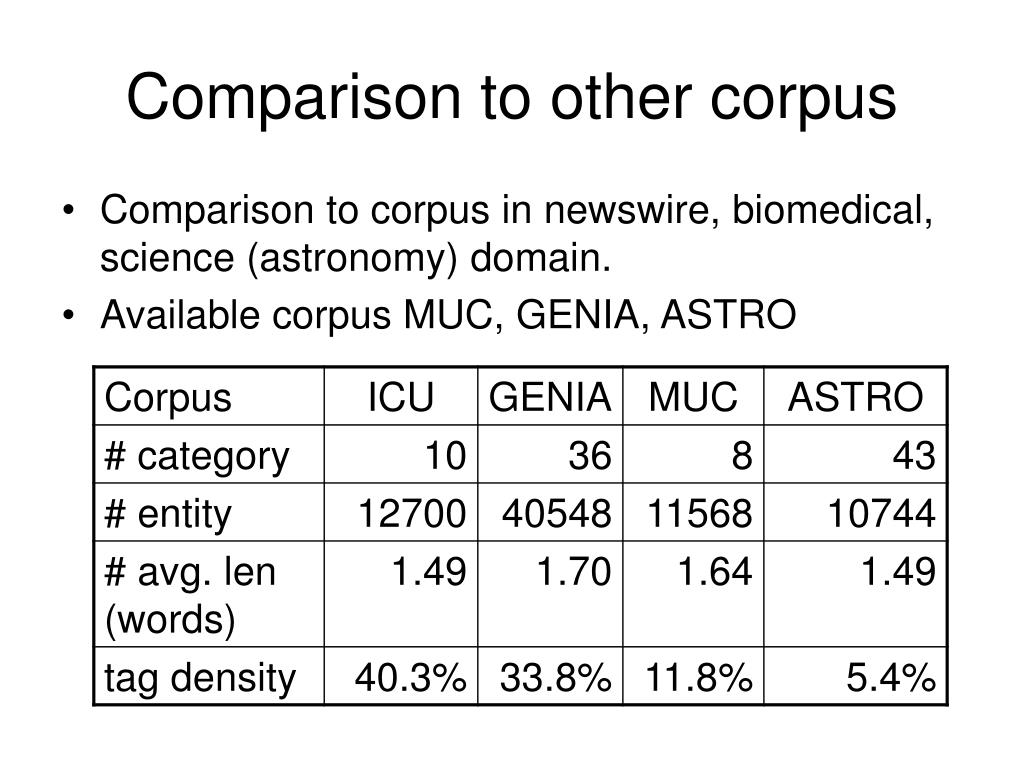

13. Comparison to other corpus • Comparison to corpus in newswire, biomedical, science (astronomy) domain. • Available corpus MUC, GENIA, ASTRO

14. Concept Identification Result • 279 documents for training • 32 documents for testing • 4656 tokens, 1218 concepts • Rule-based system (TTSCT) • Use Conditional Random Fields CRF++ as the learner. • Evaluate using CONLL 2000 evaluation script.

15. Concept Matcher Performance

16. Machine Learning Results

17. Inter Relation Annotation • Annotate relationship between concepts • Inter-concept relations • Relationship between two outermost concepts • CXR in ED bilateralmid- lower zoneopacification

18. Intra-Concept Relations • Relations between inner concepts and outermost concepts • Term decomposition • Rgroinabscess

19. Relation Types

20. Inter + Intra Concept Relationships • Hemicolectomy and formation of ileostomy for bowel obstruction

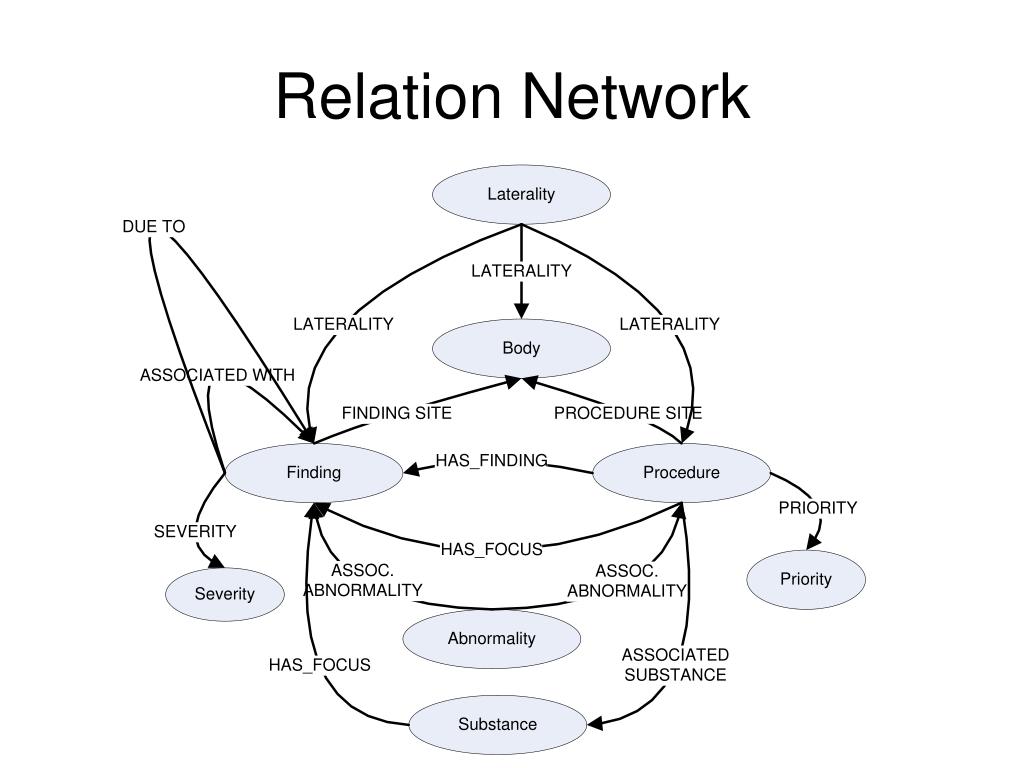

21. Relation Network
