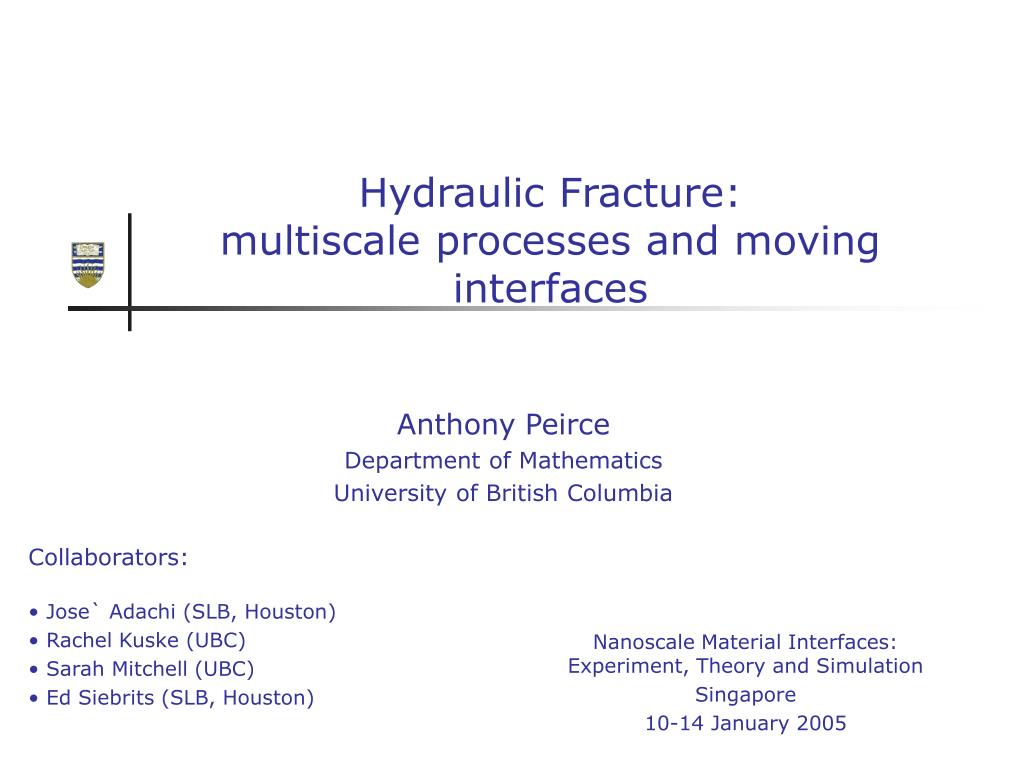

  1. Hydraulic Fracture: multiscale processes and moving interfaces Anthony Peirce Department of Mathematics University of British Columbia • Collaborators: • Jose` Adachi (SLB, Houston) • Rachel Kuske (UBC) • Sarah Mitchell (UBC) • Ed Siebrits (SLB, Houston) Nanoscale Material Interfaces:Experiment, Theory and Simulation Singapore 10-14 January 2005

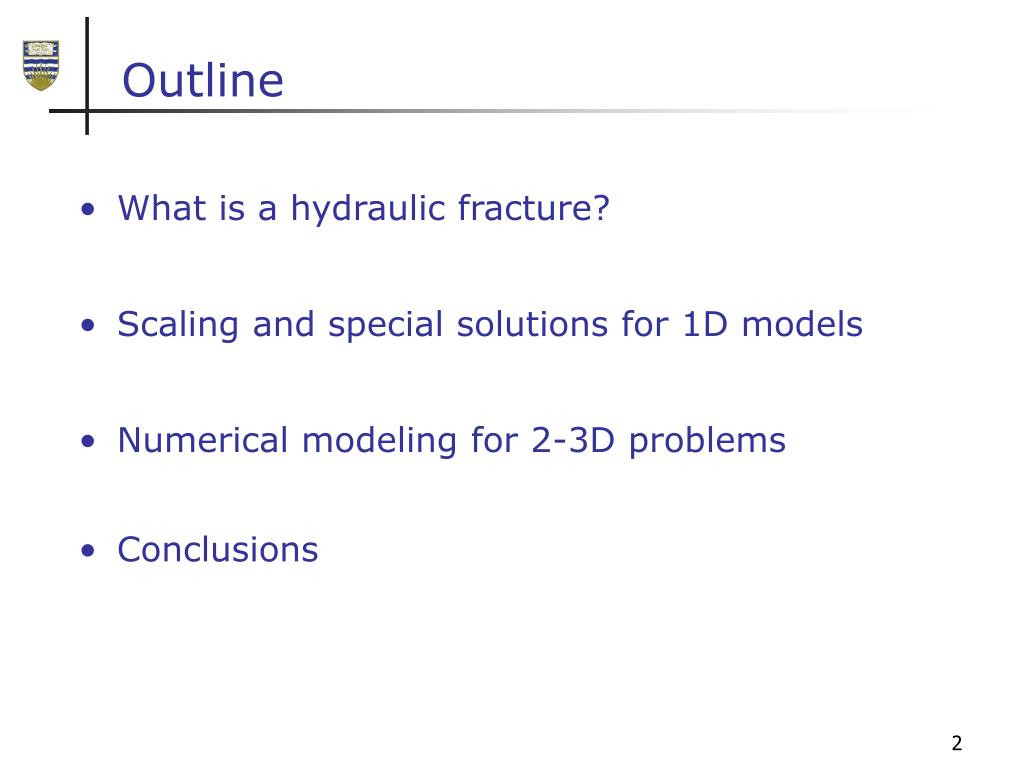

  2. Outline • What is a hydraulic fracture? • Scaling and special solutions for 1D models • Numerical modeling for 2-3D problems • Conclusions

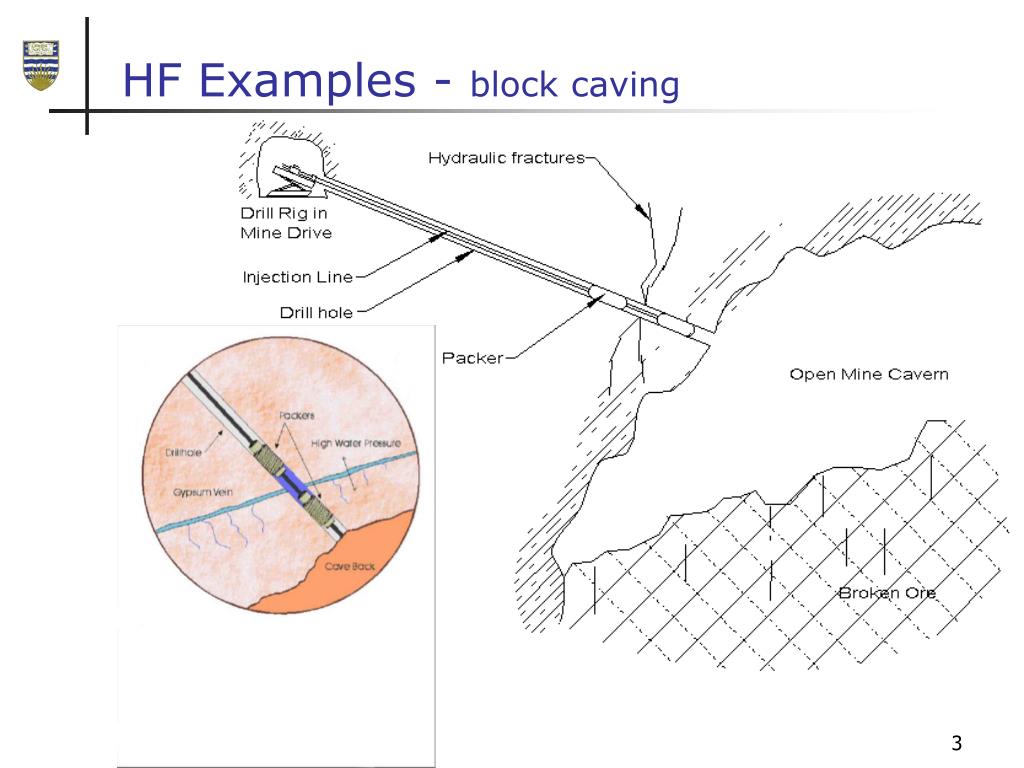

  3. HF Examples - block caving

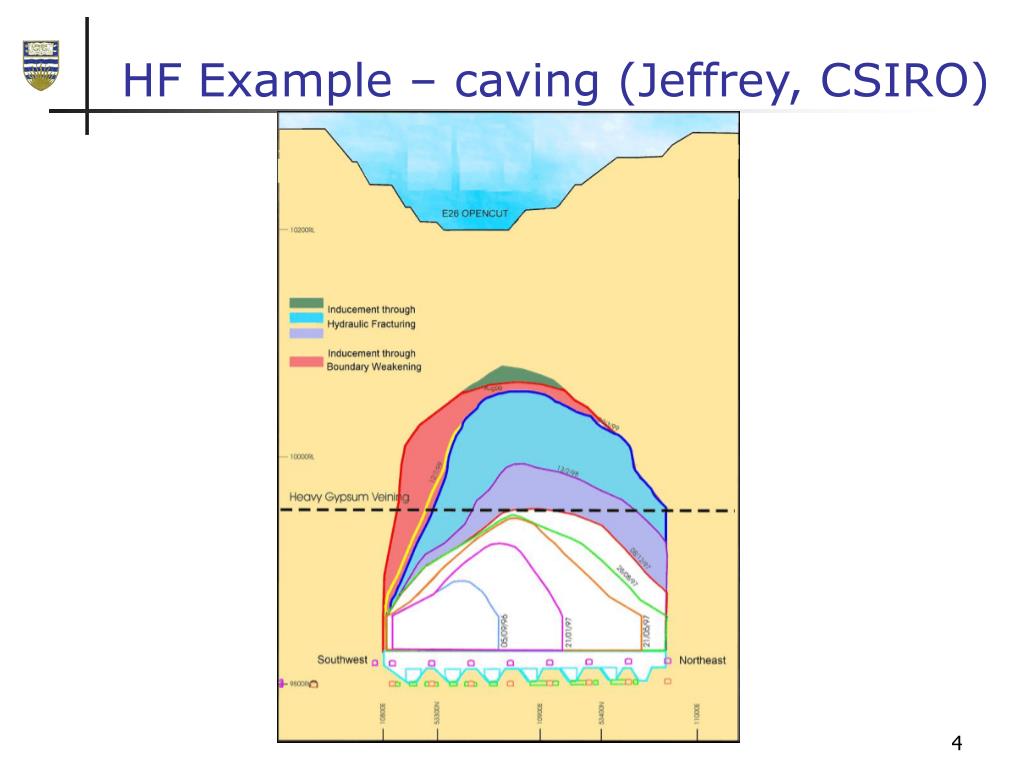

  4. HF Example – caving (Jeffrey, CSIRO)

  5. HF Examples – well stimulation

  6. An actual hydraulic fracture

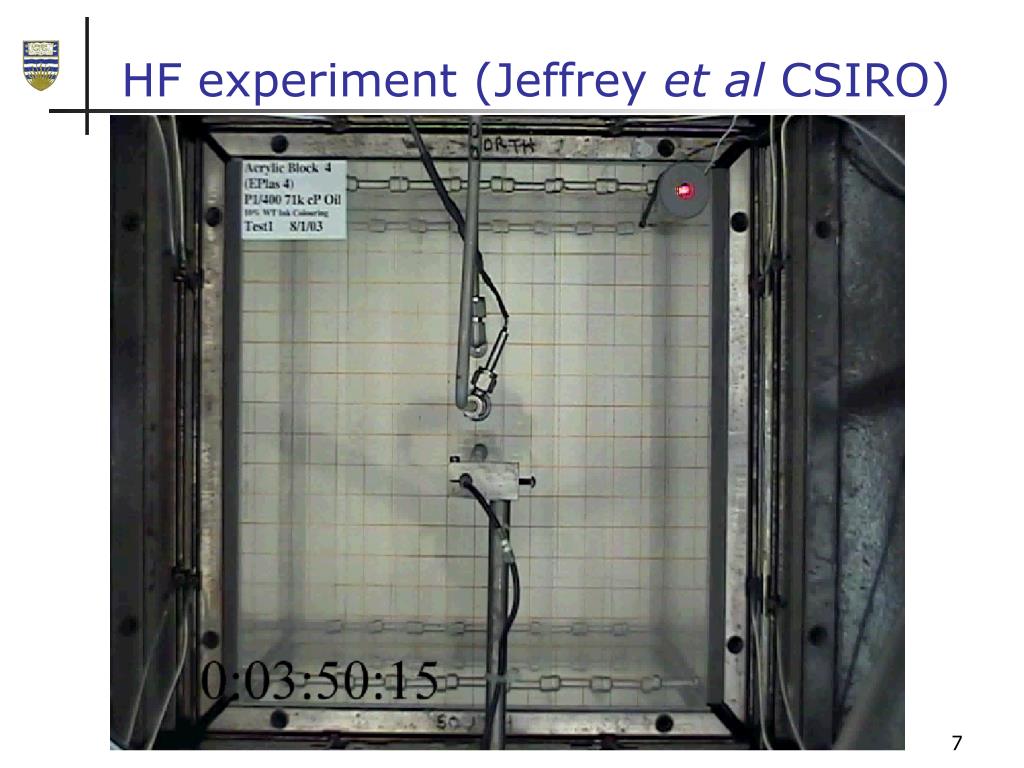

  7. HF experiment (Jeffrey et al CSIRO)

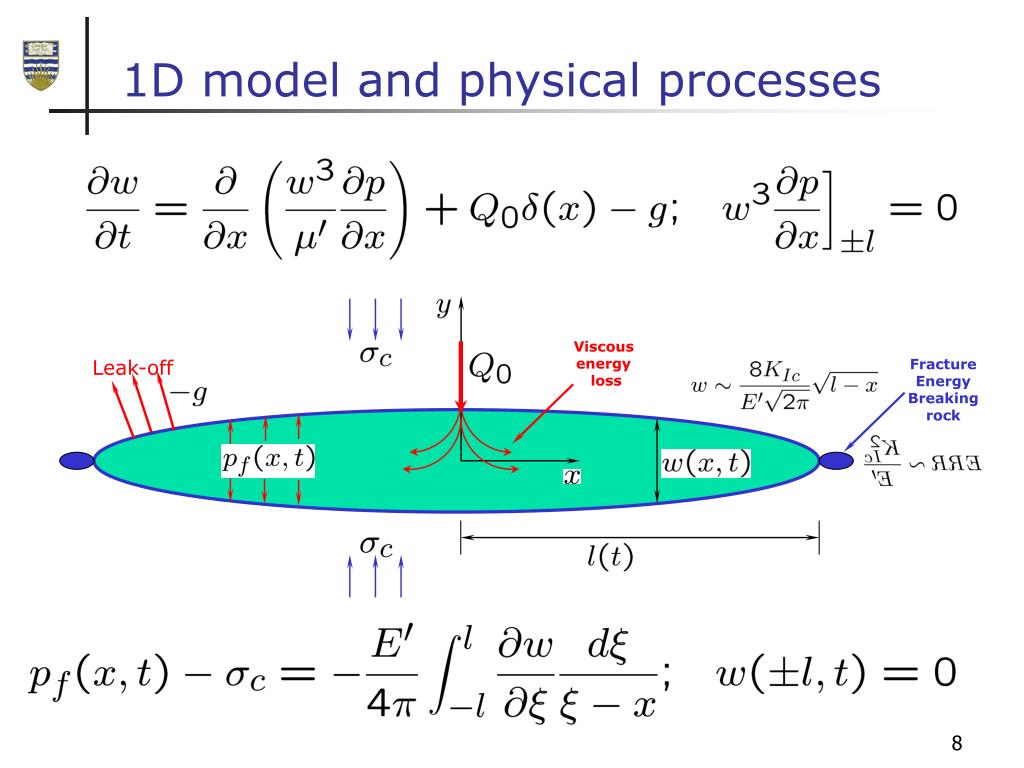

  8. 1D model and physical processes Viscous energy loss Leak-off Fracture Energy Breaking rock

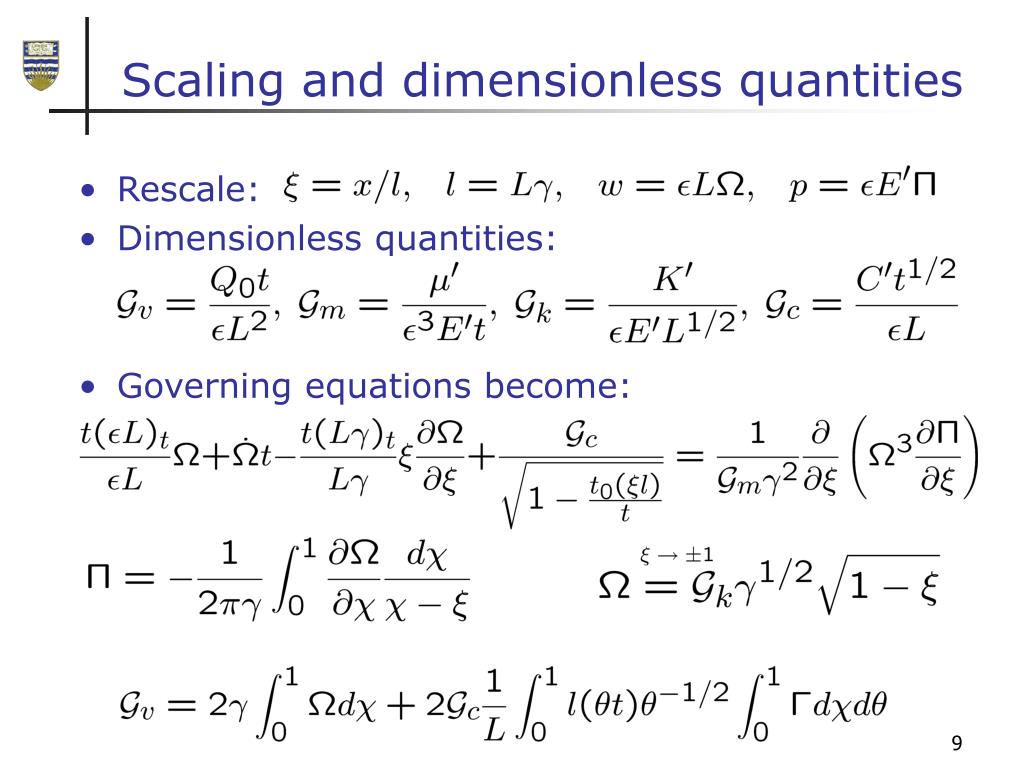

  9. Scaling and dimensionless quantities • Rescale: • Dimensionless quantities: • Governing equations become:

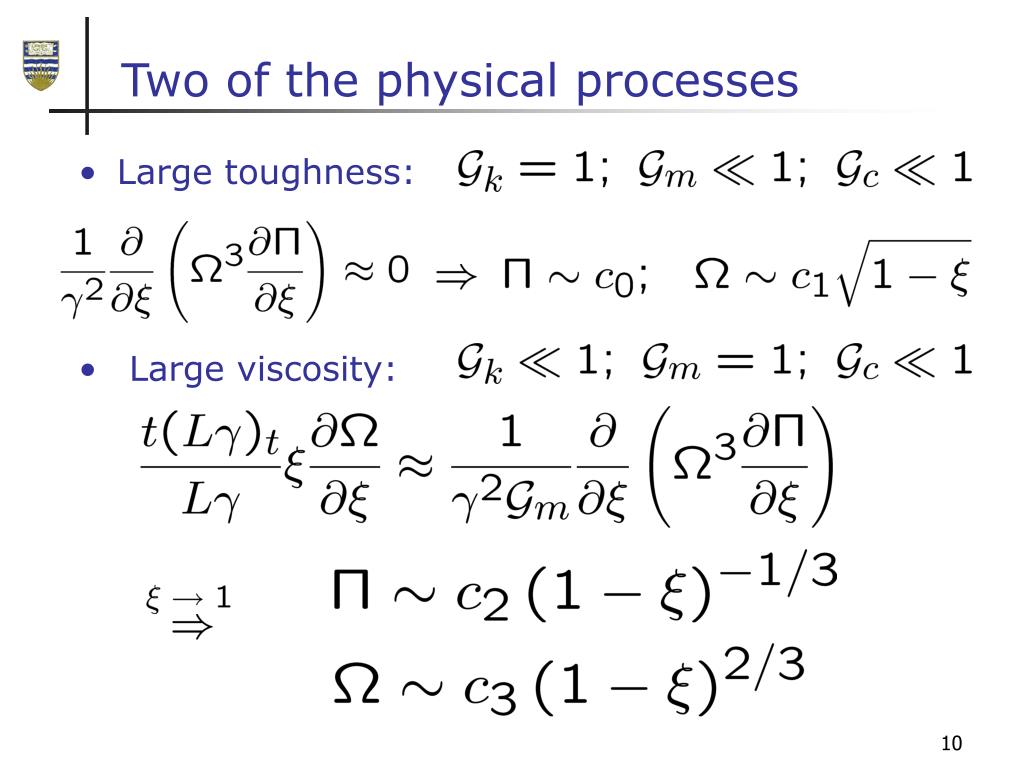

  10. Two of the physical processes • Large toughness: • Large viscosity:

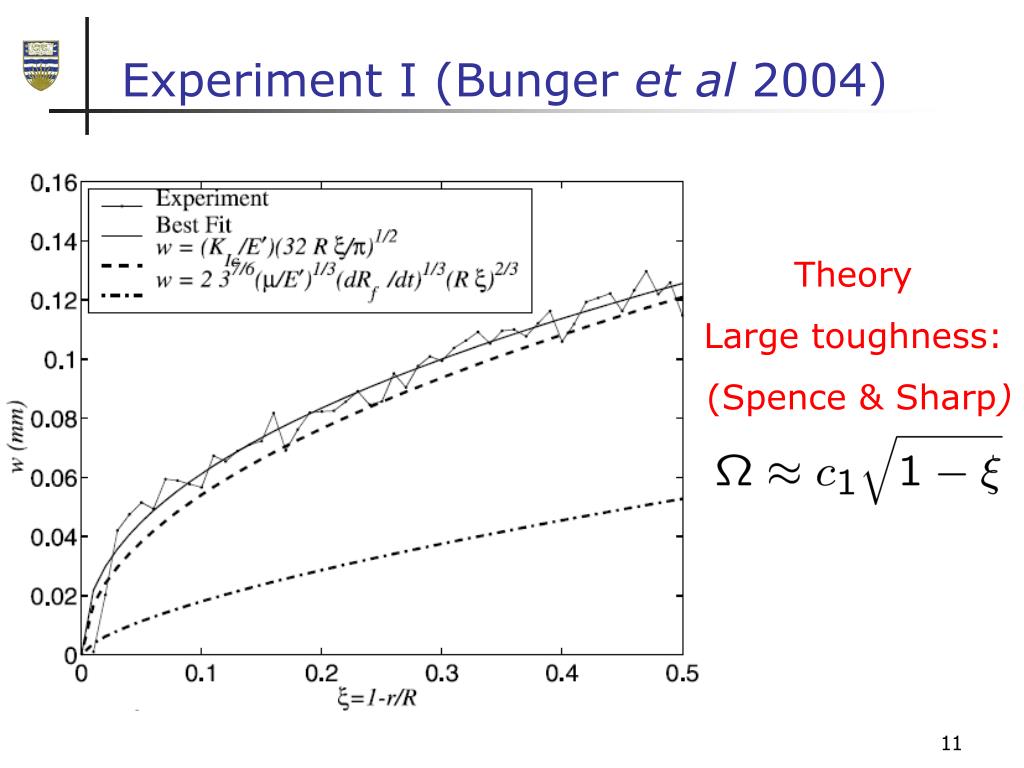

  11. Experiment I (Bunger et al 2004) Theory Large toughness: (Spence & Sharp)

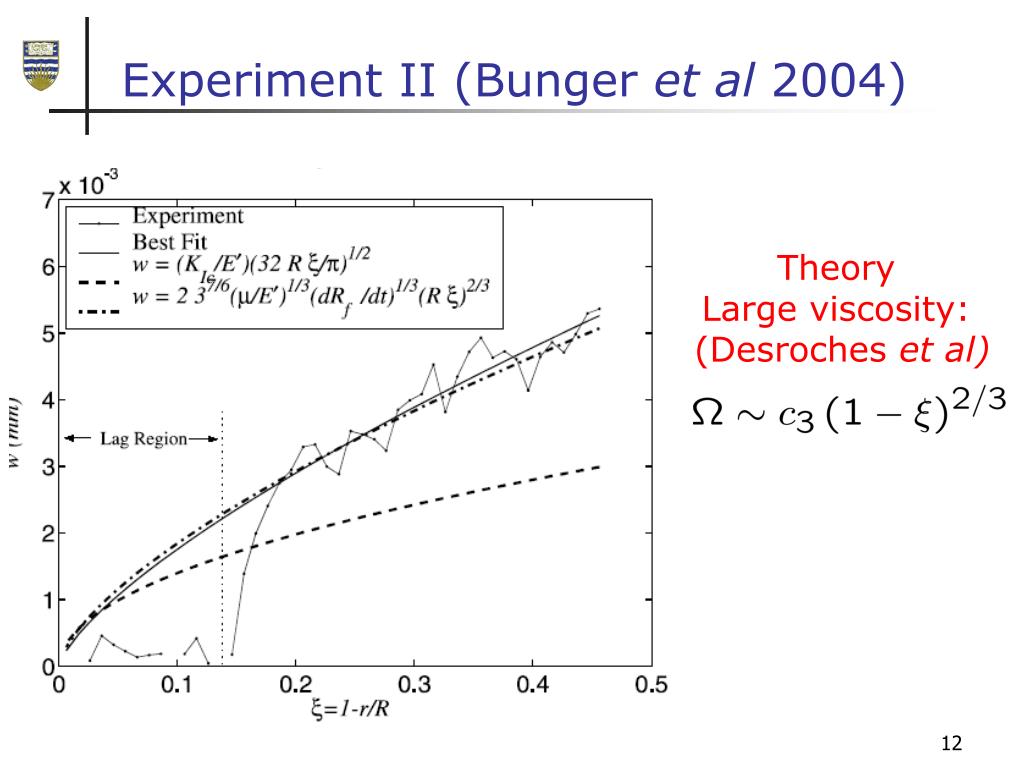

  12. Experiment II (Bunger et al 2004) Theory Large viscosity: (Desroches et al)

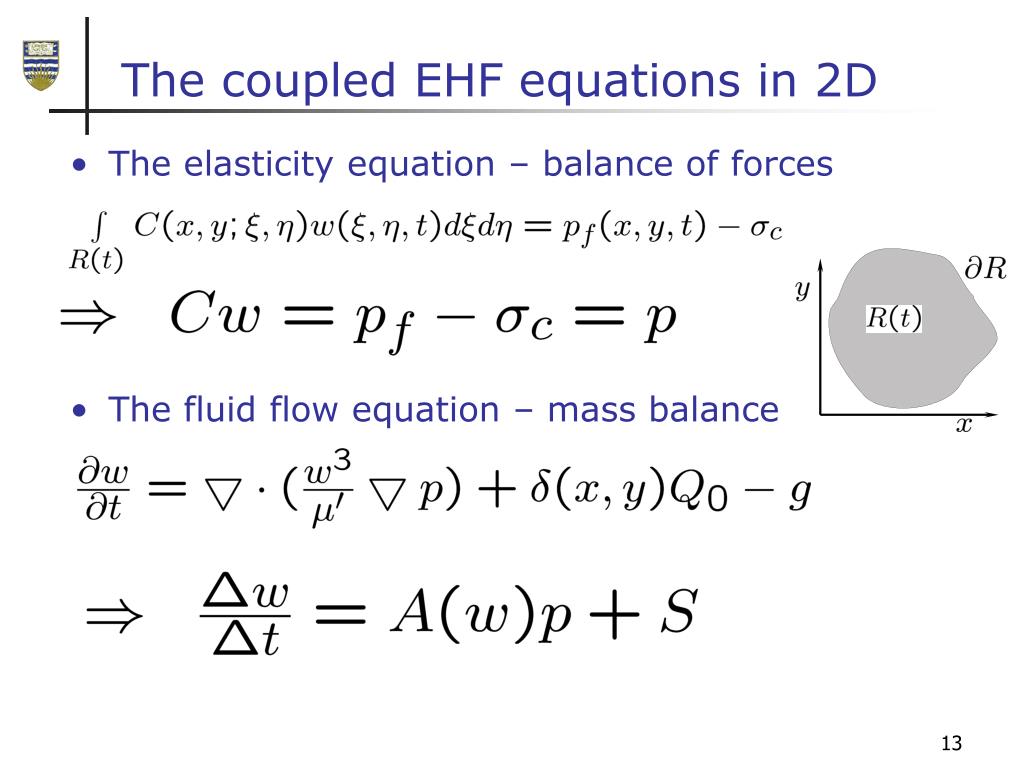

  13. The coupled EHF equations in 2D • The elasticity equation – balance of forces • The fluid flow equation – mass balance

  14. Boundary & propagation conditions • Boundary conditions • Propagation condition

  15. The elasticity equation

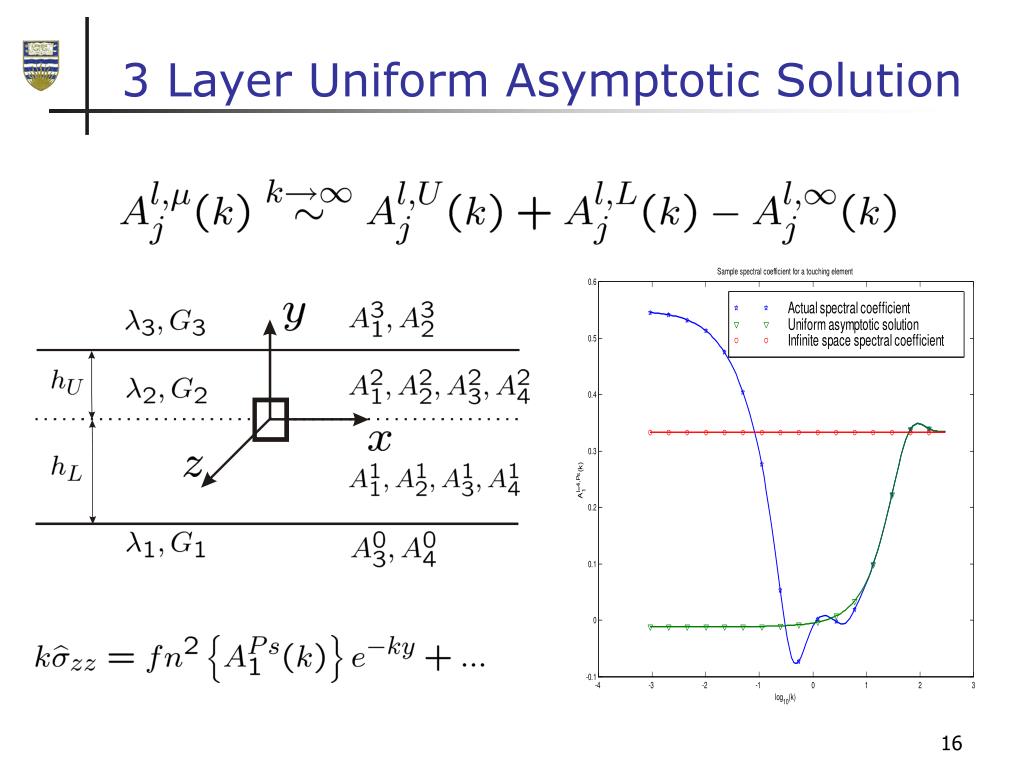

  16. 3 Layer Uniform Asymptotic Solution

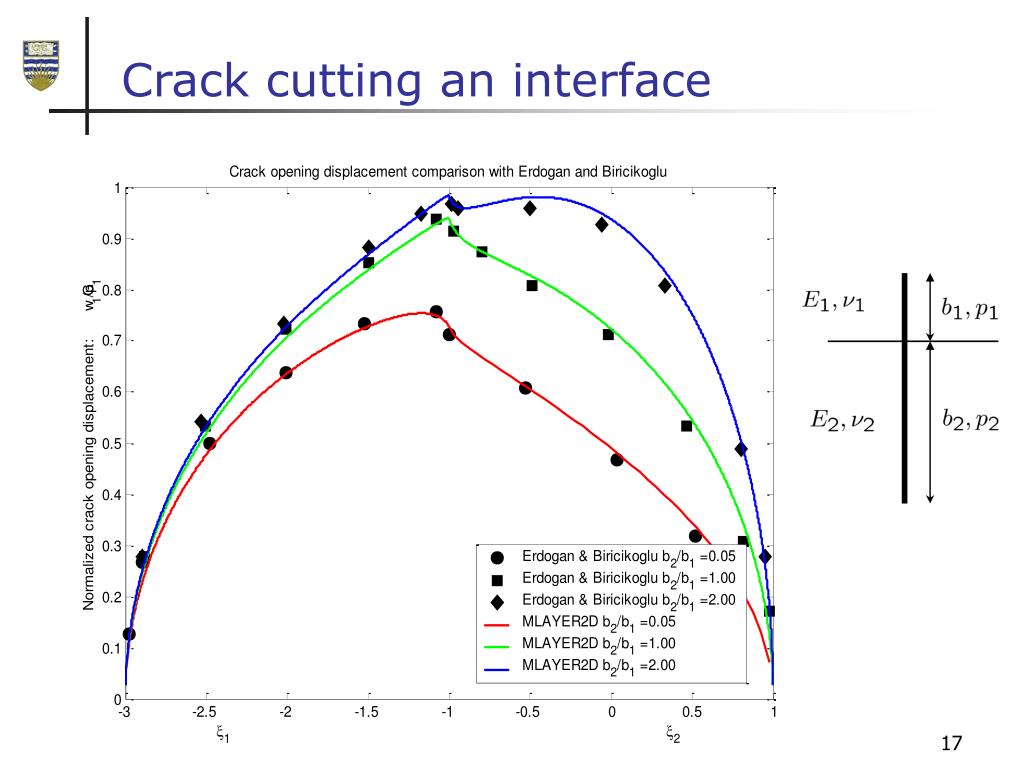

  17. Crack cutting an interface

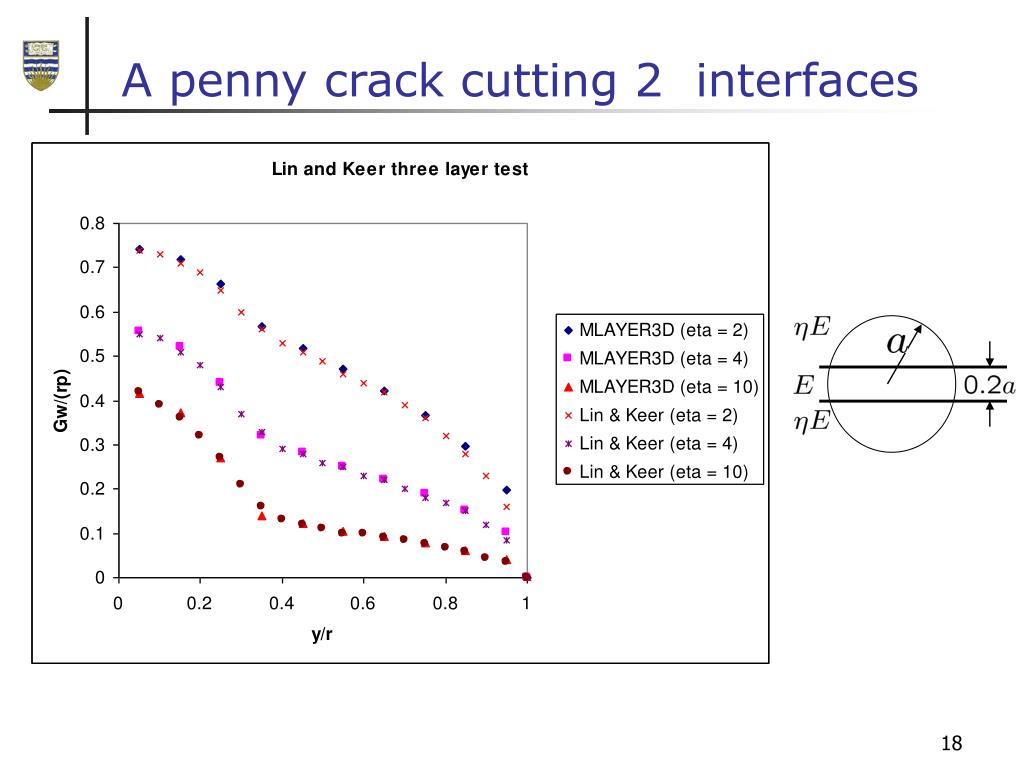

  18. A penny crack cutting 2 interfaces

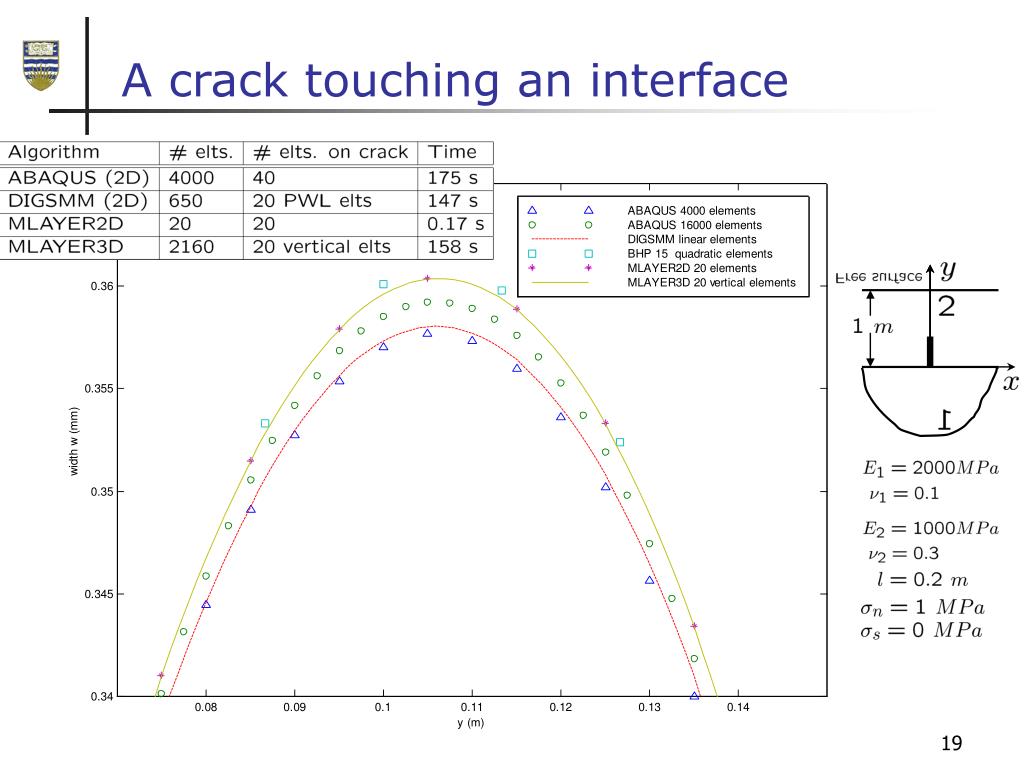

  19. A crack touching an interface

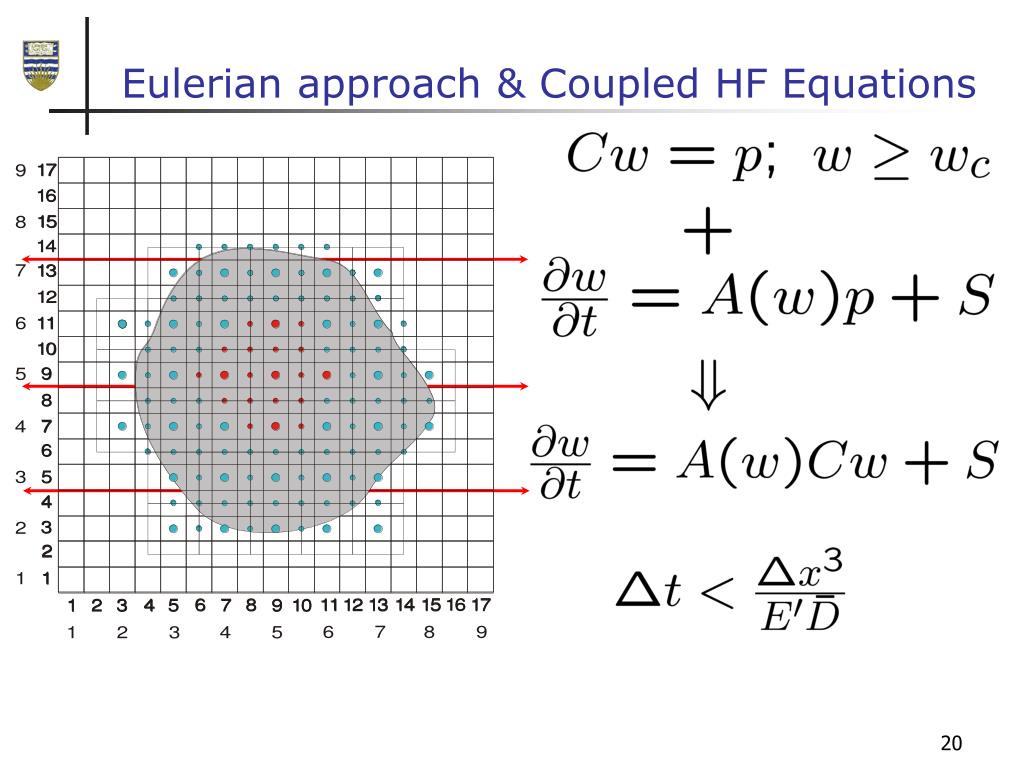

  20. Eulerian approach & Coupled HF Equations

  21. MG preconditioning of • C coarsening using dual mesh • Localized GS smoother

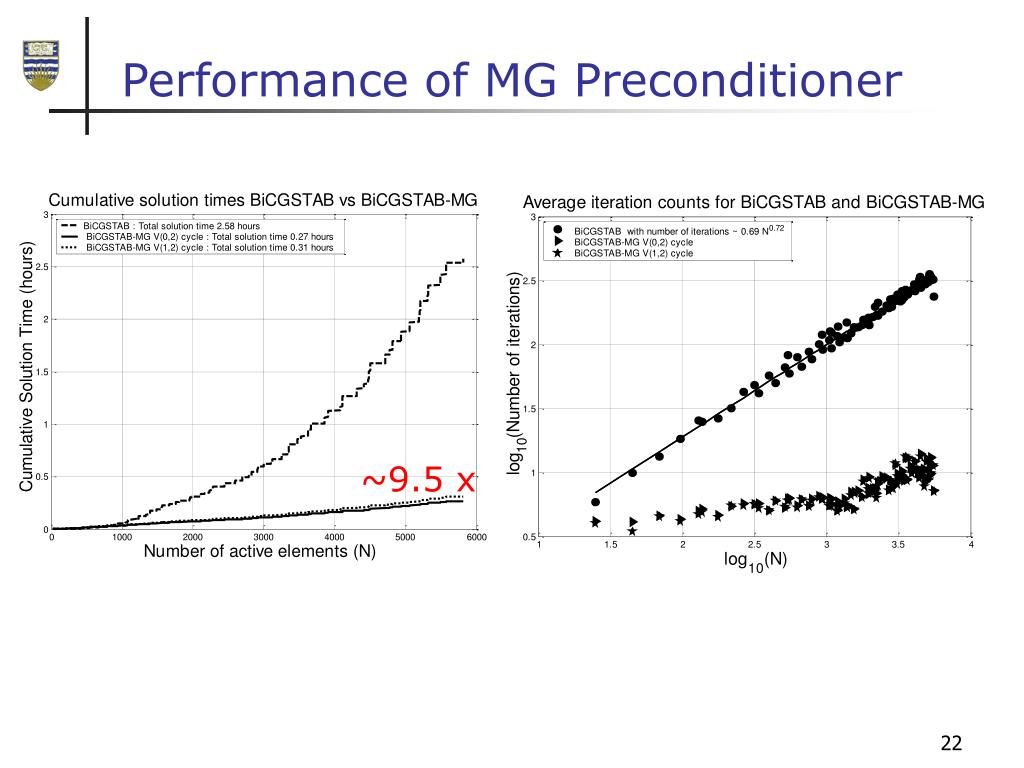

  22. Performance of MG Preconditioner ~9.5 x

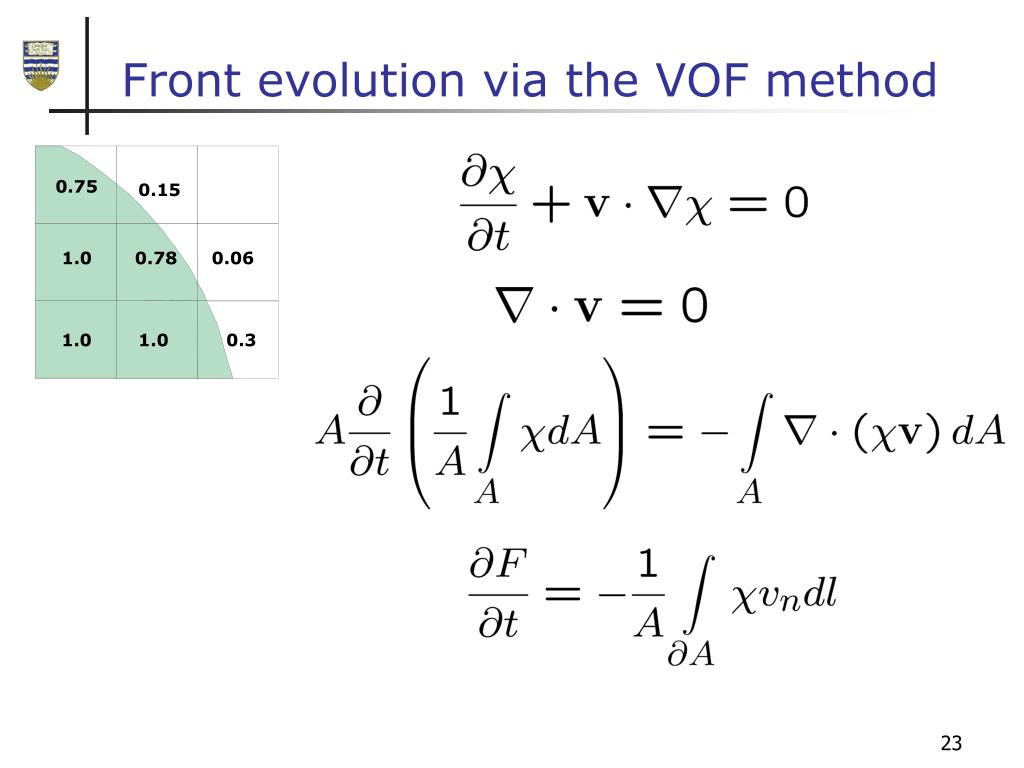

  23. Front evolution via the VOF method 0.75 0.15 1.0 0.78 0.06 1.0 1.0 0.3

  24. Time stepping and front evolution Time step loop: VOF loop: Coupled Solution end next VOF iteration next time step

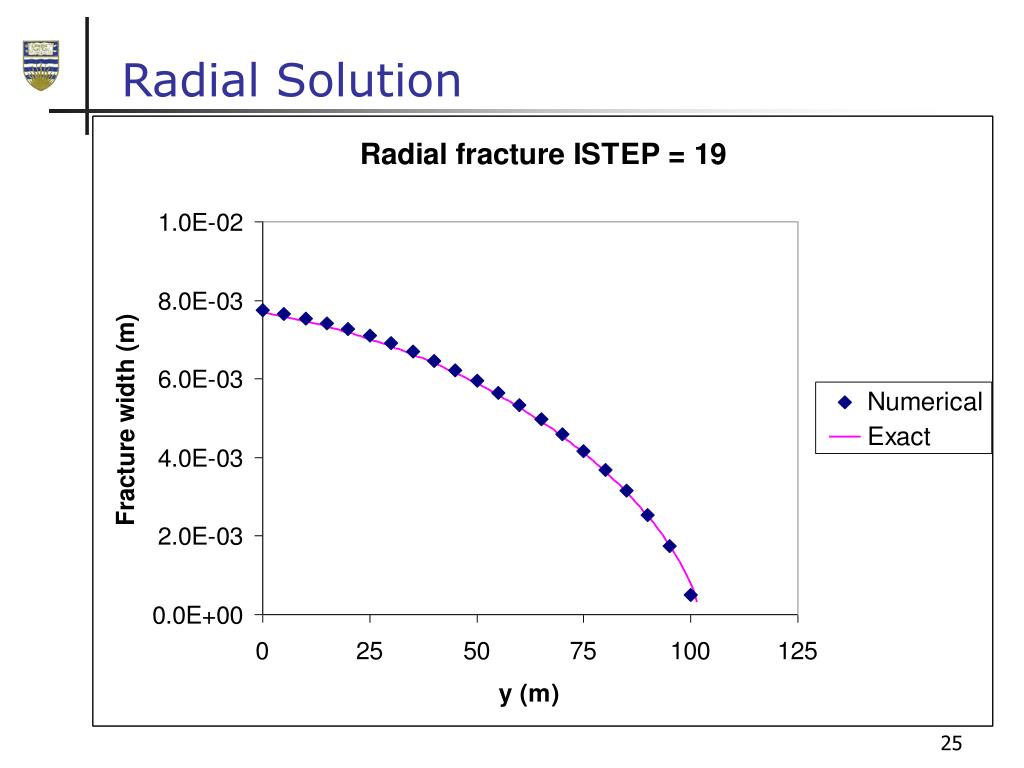

  25. Radial Solution

  26. Fracture width for modulus contrast Modulus Changes Source

  27. Fracture width for stress jump

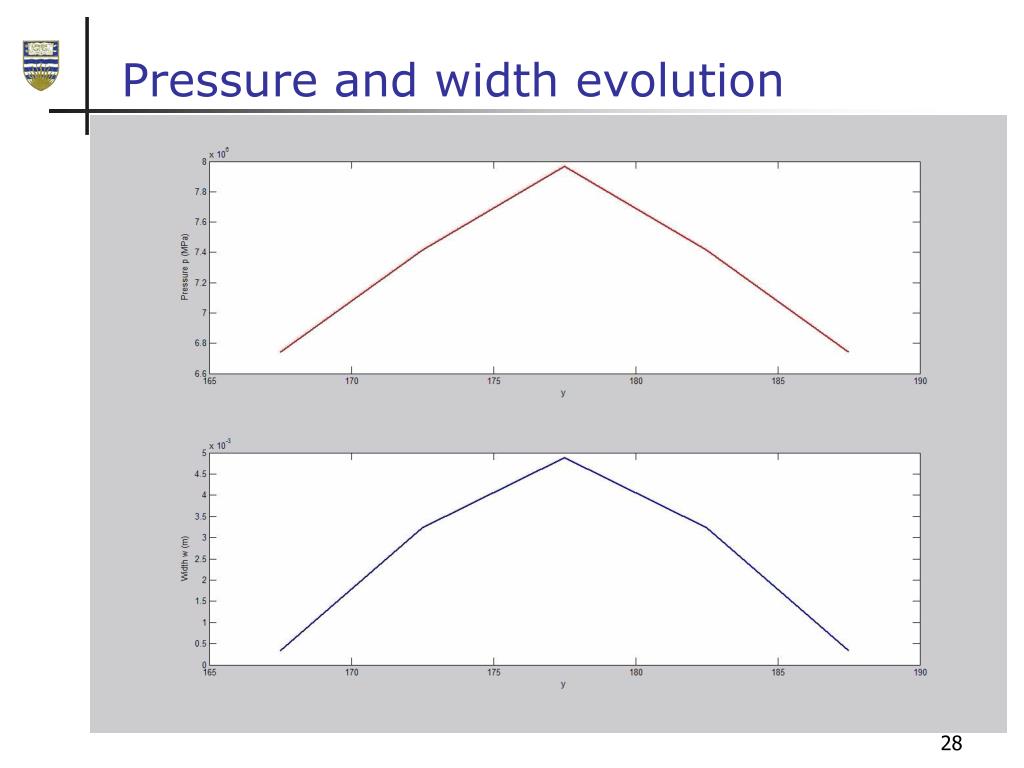

  28. Pressure and width evolution

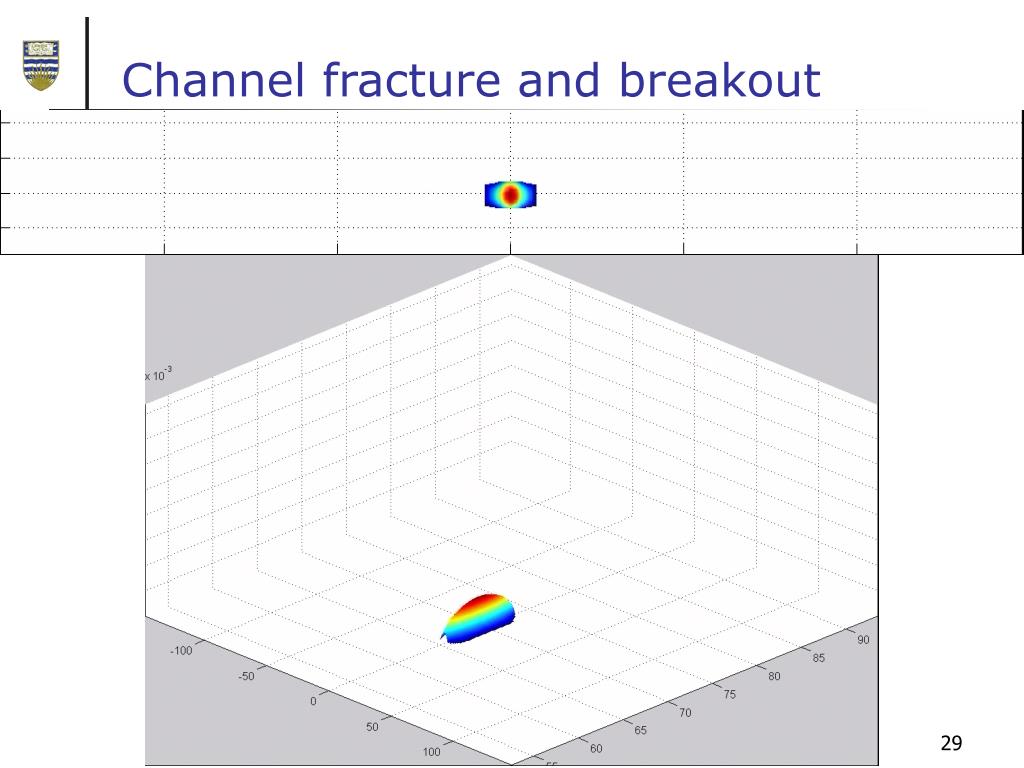

  29. Channel fracture and breakout

  30. Hourglass HF with leakoff

  31. Concluding remarks • Examples of hydraulic fractures • Scaling and physical processes in 1D models • Tip asymptotics: & • Experimental verification • Numerical models of 2-3D hydraulic fractures • The non-local elasticity equation • An Eulerian approach and the coupled equations • FT construction of the elasticity influence matrices • A multigrid algorithm for the coupled problem • Front evolution via the VOF method • Numerical results
