776 Computer Vision

1. 776 Computer Vision Jan-Michael Frahm, Enrique Dunn Spring 2013

2. Dolly Zoom www.cs.unc.edu/~jmf/teaching/spring2014/2Assignment776-Spring2014.pdf

3. Dolly Zoom

4. Sample Dolly Zoom Video

5. Radial Distortion

6. Radial Distortion (xu, yu) undistorted image point as in ideal pinhole camera (xd,yd) distorted image point of camera with radial distortion (xc,yc) distortion center Kn n-th radial distortion coefficient Pn n-th tangential distortion coefficient • Brown’s distortion model • accounts for radial distortion • accounts for tangential distortion (distortion caused by lens placement errors) • typically K1 is used or K1, K2, K3, P1, P2

8. Last Class • There are two principled ways for finding correspondences: • Matching • Independent detection of features in each frame • Correspondence search over detected features • Extends to large transformations between images • High error rate for correspondences • Tracking • Detect features in one frame • Retrieve same features in the next frame by searching for equivalent feature (tracking) • Very precise correspondences • High percentage of correct correspondences • Only works for small changes in between frames

9. RANSAC • Robust fitting can deal with a few outliers – what if we have very many? • Random sample consensus (RANSAC): Very general framework for model fitting in the presence of outliers • Outline • Choose a small subset of points uniformly at random • Fit a model to that subset • Find all remaining points that are “close” to the model and reject the rest as outliers • Do this many times and choose the best model M. A. Fischler, R. C. Bolles. Random Sample Consensus: A Paradigm for Model Fitting with Applications to Image Analysis and Automated Cartography. Comm. of the ACM, Vol 24, pp 381-395, 1981.

10. RANSAC for line fitting example

11. RANSAC for line fitting example Least-squares fit

12. RANSAC for line fitting example • Randomly select minimal subset of points

13. RANSAC for line fitting example • Randomly select minimal subset of points • Hypothesize a model

14. RANSAC for line fitting example • Randomly select minimal subset of points • Hypothesize a model • Compute error function Source: R. Raguram

15. RANSAC for line fitting example • Randomly select minimal subset of points • Hypothesize a model • Compute error function • Select points consistent with model

16. RANSAC for line fitting example • Randomly select minimal subset of points • Hypothesize a model • Compute error function • Select points consistent with model • Repeat hypothesize-and-verify loop

17. RANSAC for line fitting example • Randomly select minimal subset of points • Hypothesize a model • Compute error function • Select points consistent with model • Repeat hypothesize-and-verify loop

18. RANSAC for line fitting example Uncontaminated sample • Randomly select minimal subset of points • Hypothesize a model • Compute error function • Select points consistent with model • Repeat hypothesize-and-verify loop

19. RANSAC for line fitting example • Randomly select minimal subset of points • Hypothesize a model • Compute error function • Select points consistent with model • Repeat hypothesize-and-verify loop

20. RANSAC for line fitting • Repeat N times: • Draw s points uniformly at random • Fit line to these s points • Find inliers to this line among the remaining points (i.e., points whose distance from the line is less than t) • If there are d or more inliers, accept the line and refit using all inliers

21. Choosing the parameters • Initial number of points s • Typically minimum number needed to fit the model • Distance threshold t • Choose t so probability for inlier is p (e.g. 0.95) • Zero-mean Gaussian noise with std. dev. σ: t2=3.84σ2 • Number of samples N • Choose N so that, with probability p, at least one random sample is free from outliers (e.g. p=0.99) (outlier ratio: e)

22. Choosing the parameters • Initial number of points s • Typically minimum number needed to fit the model • Distance threshold t • Choose t so probability for inlier is p (e.g. 0.95) • Zero-mean Gaussian noise with std. dev. σ: t2=3.84σ2 • Number of samples N • Choose N so that, with probability p, at least one random sample is free from outliers (e.g. p=0.99) (outlier ratio: e)

23. Choosing the parameters • Initial number of points s • Typically minimum number needed to fit the model • Distance threshold t • Choose t so probability for inlier is p (e.g. 0.95) • Zero-mean Gaussian noise with std. dev. σ: t2=3.84σ2 • Number of samples N • Choose N so that, with probability p, at least one random sample is free from outliers (e.g. p=0.99) (outlier ratio: e)

24. Choosing the parameters • Initial number of points s • Typically minimum number needed to fit the model • Distance threshold t • Choose t so probability for inlier is p (e.g. 0.95) • Zero-mean Gaussian noise with std. dev. σ: t2=3.84σ2 • Number of samples N • Choose N so that, with probability p, at least one random sample is free from outliers (e.g. p=0.99) (outlier ratio: e) • Consensus set size d • Should match expected inlier ratio

25. Adaptively determining the number of samples • Inlier ratio e is often unknown a priori, so pick worst case, e.g. 10%, and adapt if more inliers are found, e.g. 80% would yield e=0.2 • Adaptive procedure: • N=∞, sample_count=0 • While N >sample_count • Choose a sample and count the number of inliers • Set e = 1 – (number of inliers)/(total number of points) • RecomputeN from e: • Increment the sample_count by 1

26. RANSAC pros and cons • Pros • Simple and general • Applicable to many different problems • Often works well in practice • Cons • Lots of parameters to tune • Doesn’t work well for low inlier ratios (too many iterations, or can fail completely) • Can’t always get a good initialization of the model based on the minimum number of samples

27. Universal Framework Random Sample Consenus Raguram et al. PAMI 2013

28. Threshold free Robust Estimation Homography • Match points • Run RANSAC, threshold ≈ 1 - 2 pixels Common approach: • Problem: Robust Estimation • Estimation of model parameters in the presence of noise and outliers

29. Motivation 3D similarity • Match points • Run RANSAC , threshold = ?

30. Motivation t = 0.001 t = 0.01 t = 0.5 t = 5.0 • Robust estimation algorithms often require data and/or model specific threshold settings • Performance degrades when parameter settings deviate from the “true” values (Torr and Zisserman 2000, Choi and Medioni 2009)

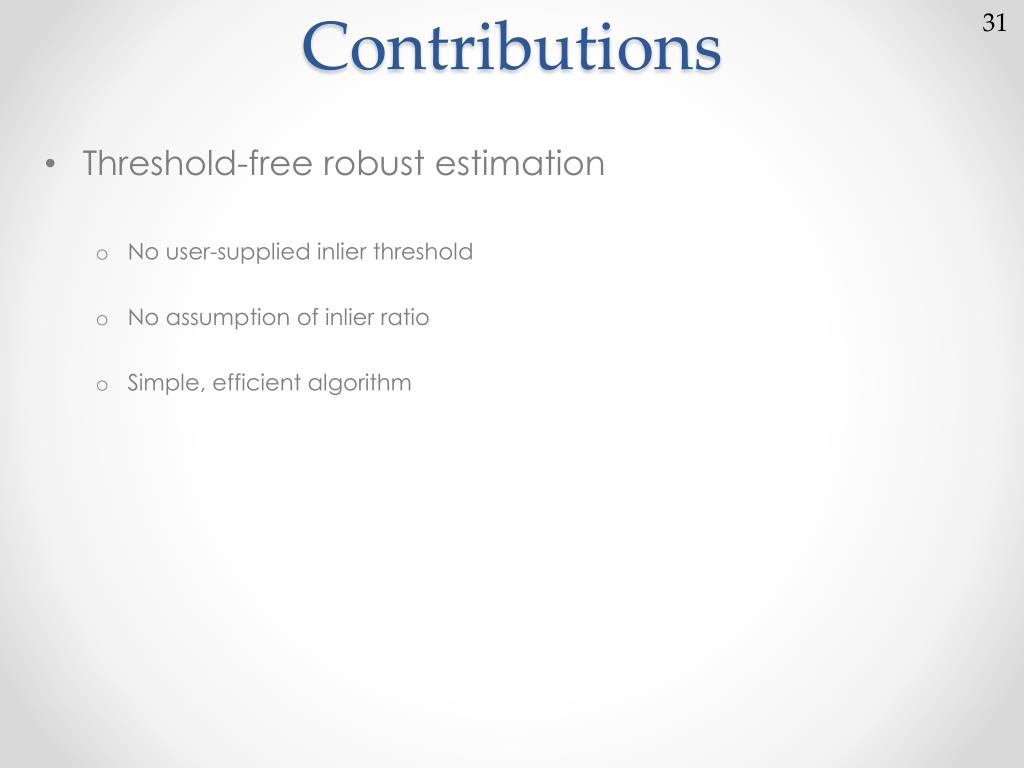

31. Contributions • Threshold-free robust estimation • No user-supplied inlier threshold • No assumption of inlier ratio • Simple, efficient algorithm

32. RECON Sort points by distance to model Inlier Outlier “Inlier” models • Instead ofper-model or point-based residual analysis • We inspect pairs of models

33. RECON Sort points by distance to model Inlier Outlier “Outlier” models • Instead of per-model or point-based residual analysis • We inspect pairs of models

34. RECON Inlier models Outlier models “Consistent” behaviour Random permutations of data points • Instead of per-model or point-based residual analysis • We inspect pairs of models

35. RECON Outlier models Inlier models “Consistent” behaviour Random permutations of data points • “Happy families are all alike; every unhappy family is unhappy in its own way” • - Leo Tolstoy, Anna Karenina • Instead of per-model or point-based residual analysis • We inspect pairs of models

36. RECON Inlier models Outlier models “Consistent” behaviour Random permutations of data points • “Happy families are all alike; every unhappy family is unhappy in its own way” • - Leo Tolstoy, Anna Karenina • Instead of per-model or point-based residual analysis • We inspect pairs of models

37. RECON Inlier models Outlier models “Consistent” behaviour Random permutations of data points • “Happy families are all alike; every unhappy family is unhappy in its own way” • - Leo Tolstoy, Anna Karenina • Instead of per-model or point-based residual analysis • We inspect pairs of models

38. RECON Inlier residuals are distributed If σ is known, can compute threshold t that finds some fraction α of all inliers Typically set to 0.95 or 0.99 αI t Large overlap • At the “true” threshold, inlier models capture a stable set of points How can we characterize this behaviour? • Assuming that measurement error is Gaussian

39. RECON t = ? ... t1 t2 t3 t4 tT How can we characterize this behaviour? • What if σ is unknown? • Hypothesize values of noise scale σ

40. RECON θt: fraction of common points θt t t How can we characterize this behaviour? • What if σ is unknown? • Hypothesize values of noise scale σ

41. RECON θt θt θt θt θt θt θt θt θt θt θt θt θt t How can we characterize this behaviour? • What if σ is unknown? • Hypothesize values of noise scale σ

42. RECON α2 θt θt θt θt θt θt θt θt θt θt θt θt θt t At the “true” value of the threshold 1. A fraction ≈ α2 of the inliers will be common to inlier models

43. RECON θt θt θt θt θt θt θt θt θt θt θt θt θt t At the “true” value of the threshold 1. A fraction ≈ α2 of the inliers will be common to inlier models 2. The inlier residuals correspond to the same underlying distribution

44. RECON Outlier models θt • Overlap is low at the true threshold • Overlap can be high for a large overestimate of the noise scale • Residuals are unlikely to correspond to the same underlying distribution t At the “true” value of the threshold 1. A fraction ≈ α2 of the inliers will be common to inlier models 2. The inlier residuals correspond to the same underlying distribution

45. RECON -consistency At the “true” value of the threshold 1. A fraction ≈ α2 of the inliers will be common to inlier models 2. The inlier residuals correspond to the same underlying distribution

46. Residual Consensus: Algorithm Similar to RANSAC 1. Hypothesis generation - Generate model Mi from random minimal sample 2. Model evaluation - Compute and store residuals of Mi to all data points 3. Test α – consistency - For a pair of models Miand Mj • Check if overlap ≈ α2 for some t • Check if residuals come from the same distribution

47. Residual Consensus: Algorithm Find consistent pairs of models Efficient implementation: use residual ordering Single pass over sorted residuals 1. Hypothesis generation - Generate model Mi from random minimal sample 2. Model evaluation - Compute and store residuals of Mi to all data points 3. Test α – consistency - For a pair of models Miand Mj • Check if overlap ≈ α2 for some t • Check if residuals come from the same distribution

48. Residual Consensus: Algorithm Find consistent pairs of models Two-sample Kolmogorov-Smirnov test Reject null hypothesis at level β if 1. Hypothesis generation - Generate model Mi from random minimal sample 2. Model evaluation - Compute and store residuals of Mi to all data points 3. Test α – consistency - For a pair of models Miand Mj • Check if overlap ≈ α2 for some t • Check if residuals come from the same distribution

49. Residual Consensus: Algorithm Repeat until K pairwise-consistent models are found 1. Hypothesis generation - Generate model Mi from random minimal sample 2. Model evaluation - Compute and store residuals of Mi to all data points 3. Test α – consistency - For a pair of models Miand Mj • Check if overlap ≈ α2 for some t • Check if residuals come from the same distribution

50. Residual Consensus: Algorithm Repeat until K pairwise-consistent models are found 1. Hypothesis generation - Generate model Mi from random minimal sample 2. Model evaluation - Compute and store residuals of Mi to all data points 3. Test α – consistency - For a pair of models Miand Mj • Check if overlap ≈ α2 for some t • Check if residuals come from the same distribution 4. Refine solution - Recompute final model and inliers
