math tools math review l.
Download
Skip this Video
Loading SlideShow in 5 Seconds..
Math Tools / Math Review PowerPoint Presentation
Download Presentation

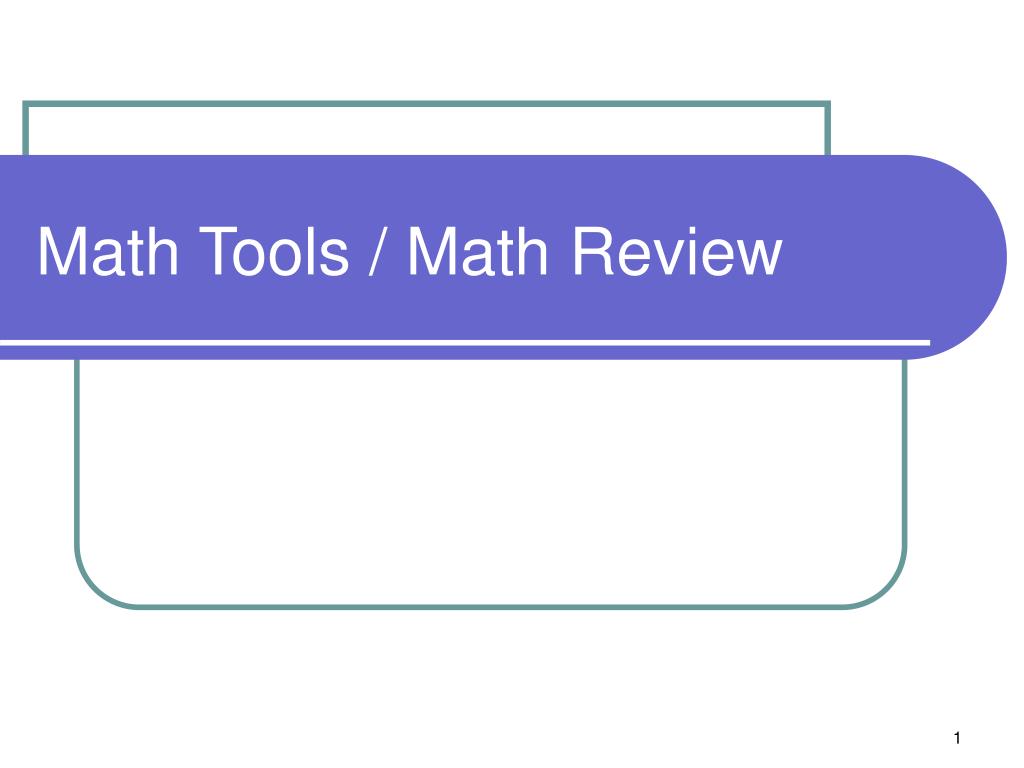

Math Tools / Math Review

Loading in 2 Seconds...

play fullscreen
1 / 20

Math Tools / Math Review - PowerPoint PPT Presentation


  • 136 Views
  • Uploaded on

Math Tools / Math Review. A. A + B. q. B. Resultant Vector. Problem: We wish to find the vector sum of vectors A and B Pictorially, this is shown in the figure on the right. Mathematically, we want to break the vector into x, y, and maybe z components and find the resultant vector.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Math Tools / Math Review


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
resultant vector

A

A + B

q

B

Resultant Vector

Problem: We wish to find the vector sum of vectors A and B

Pictorially, this is shown in the figure on the right.

Mathematically, we want to break the vector into x, y, and maybe z components and find the resultant vector

system of equations
System of equations
  • Let 6x+7y=15
  • And 4x-3y=9
  • Now find x and y which satisfy these equations
  • I use “method of minors”
system of equations cont d
System of Equations cont’d

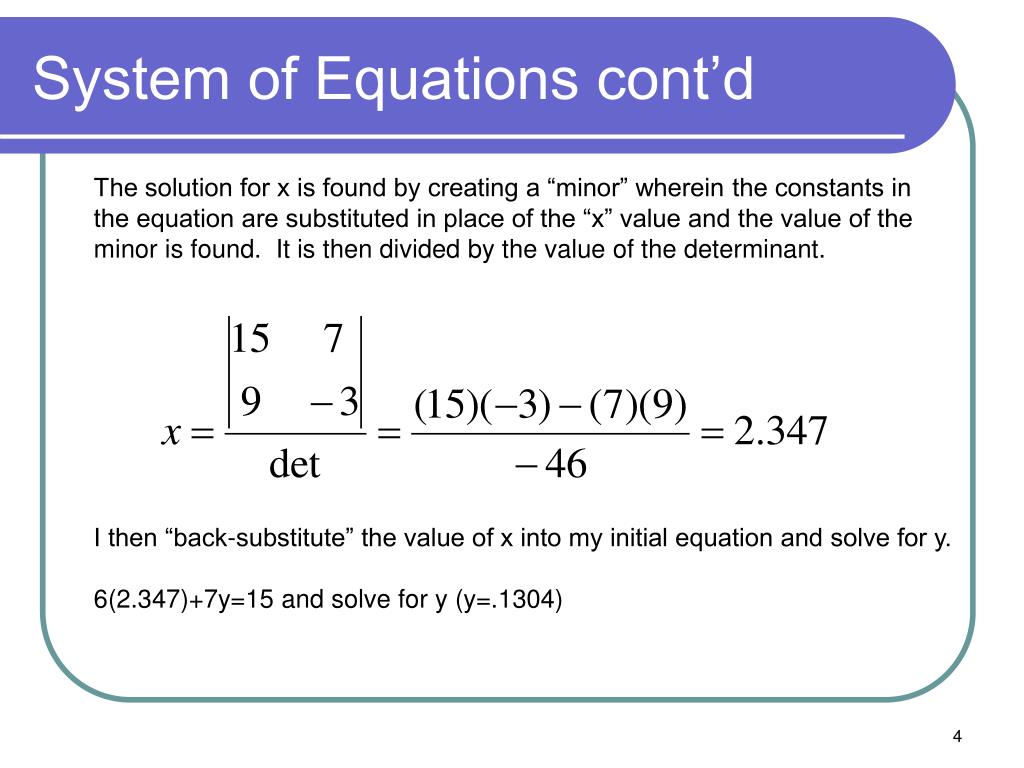

The solution for x is found by creating a “minor” wherein the constants in the equation are substituted in place of the “x” value and the value of the minor is found. It is then divided by the value of the determinant.

I then “back-substitute” the value of x into my initial equation and solve for y.

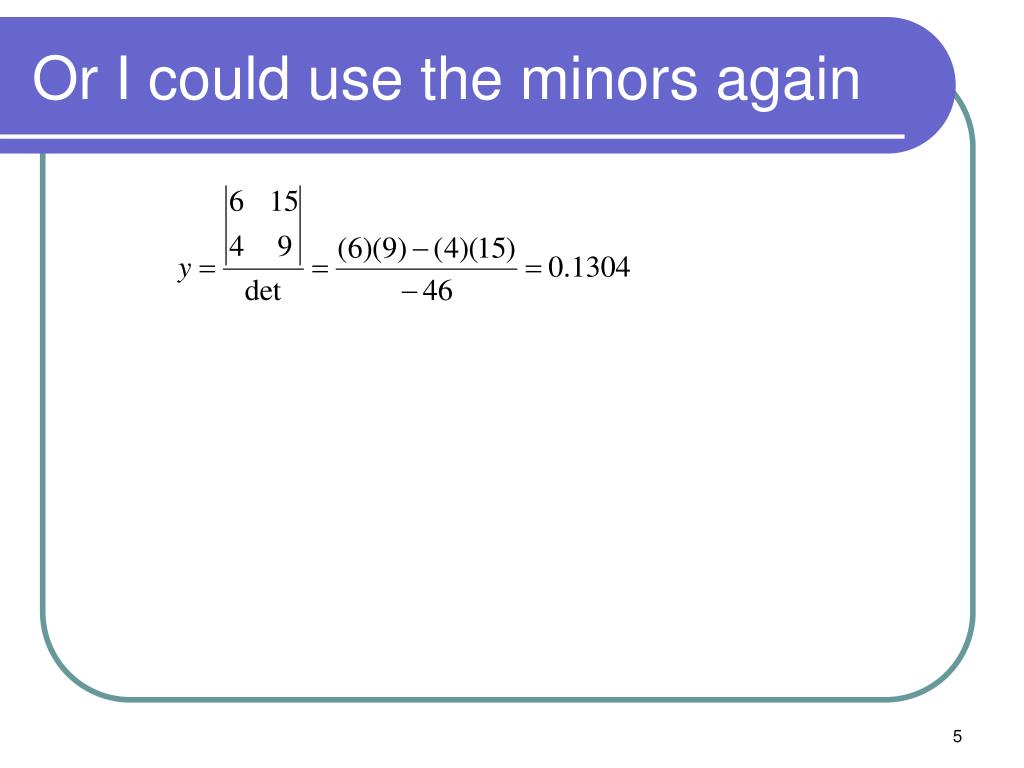

6(2.347)+7y=15 and solve for y (y=.1304)

larger systems
Larger Systems

Larger systems are broken down into their resultant minors.

For example:

6x + 7y +10z =12

-9x+15y+2z=60

5x +12y-10z=15

spherical coordinates
Spherical Coordinates

Cartesian coordinates: x, y, z

Spherical coordinates: r, q, f

Math Majors NOTE Theta!

cylindrical coordinates
Cylindrical Coordinates

Cartesian coordinates: x, y, z

Spherical coordinates: r, f, z

Math Majors NOTE Phi!

showing my age
Showing my age
  • In the old days, I would tell you to use your integral tables
  • Now, I say use your calculators to integrate

IF YOU DARE!*

* I only say this since I have seen some integrals which are easily found in the tables being integrated incorrectly by the calculator.

partial derivatives

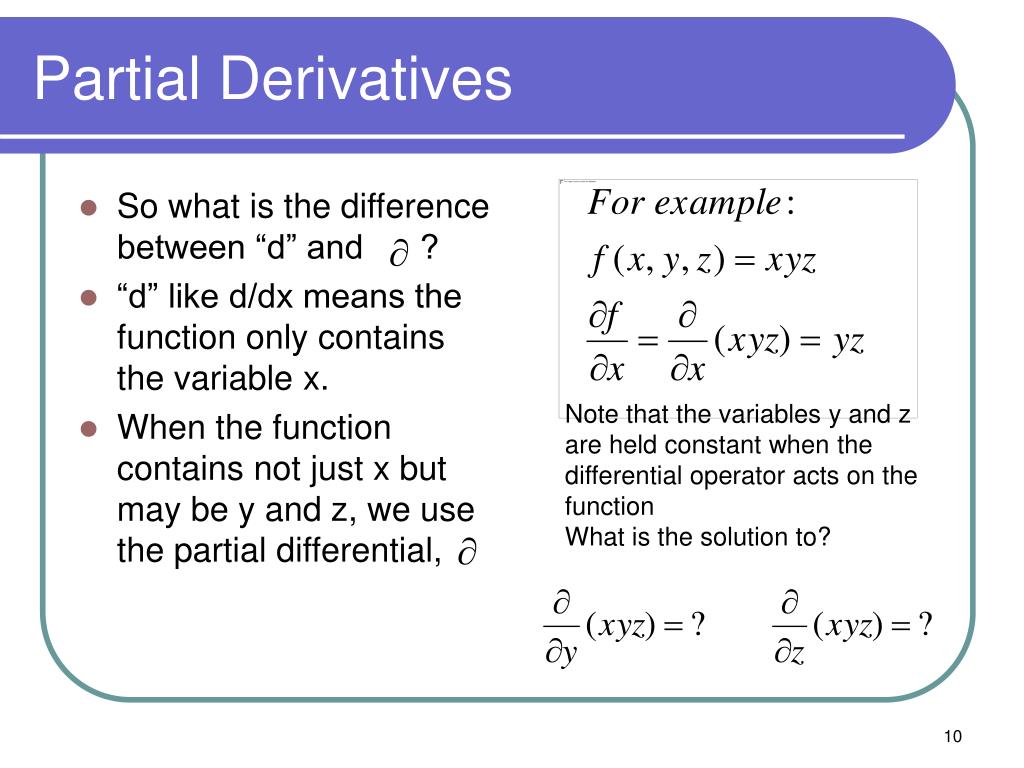

Partial Derivatives
  • So what is the difference between “d” and ?
  • “d” like d/dx means the function only contains the variable x.
  • When the function contains not just x but may be y and z, we use the partial differential,

Note that the variables y and z are held constant when the differential operator acts on the function

What is the solution to?

introduction to del
Introduction to “Del”
  • We can now make a special differential operator called “del”. Del is defined as
  • We treat “del” as a vector and thus, we can apply the “dot” and “cross” products to them.
  • But first, let’s recall the “dot” and “cross” product
the dot or scalar product

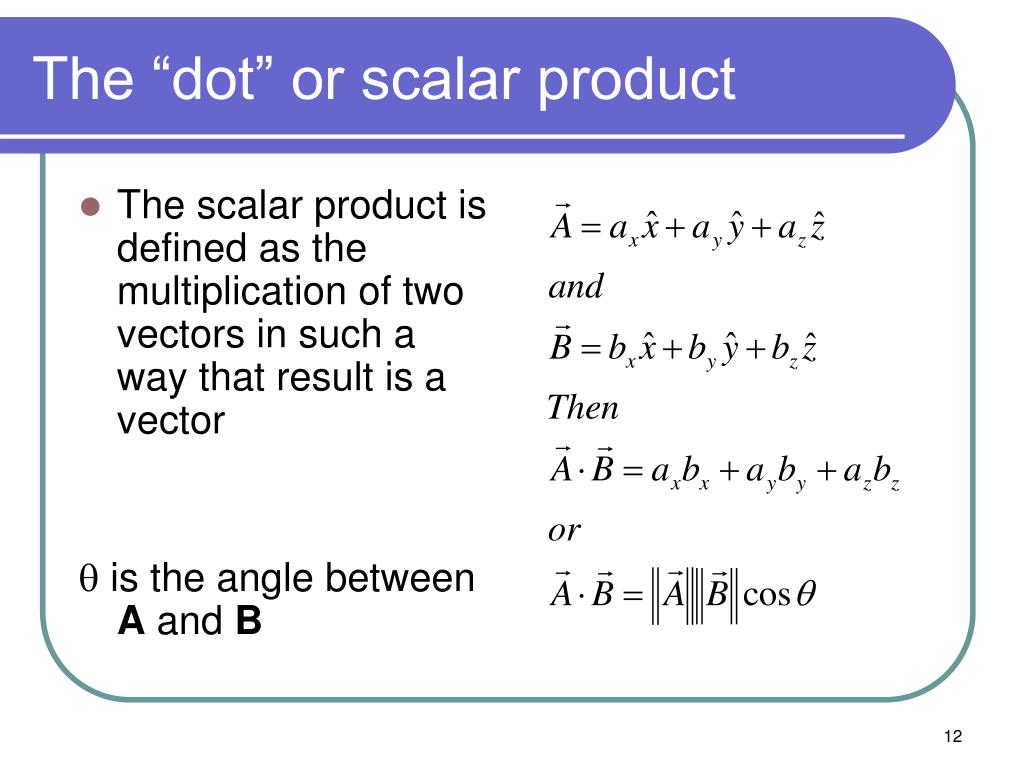

The “dot” or scalar product
  • The scalar product is defined as the multiplication of two vectors in such a way that result is a vector

q is the angle between A and B

cross or vector product

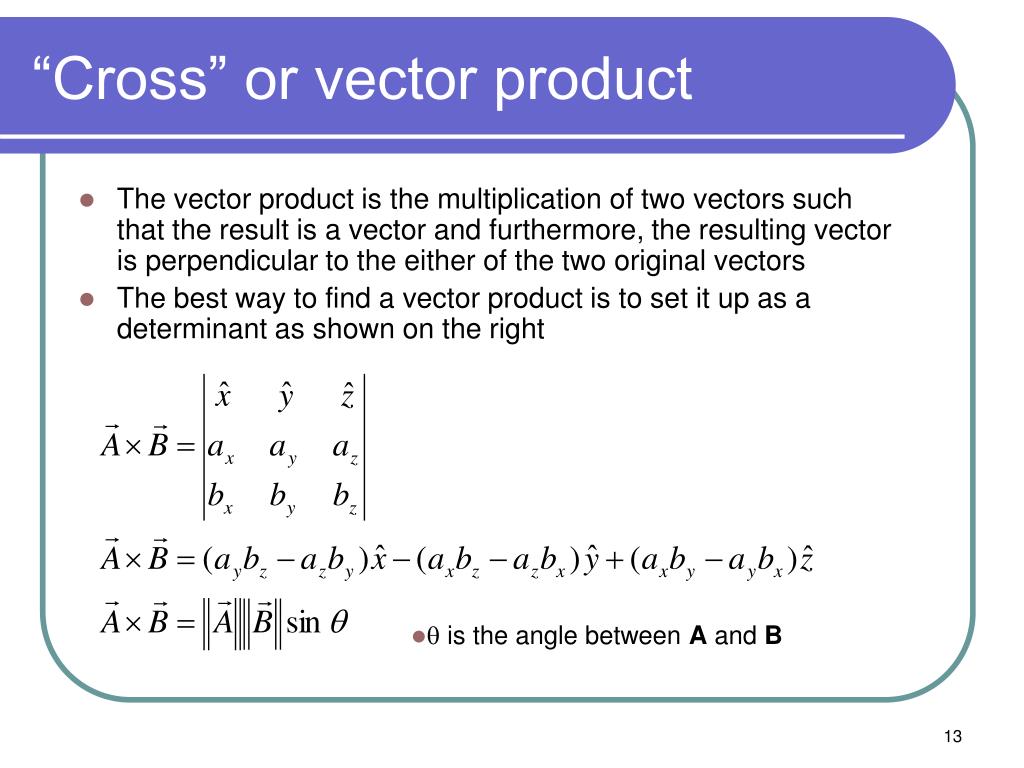

“Cross” or vector product
  • The vector product is the multiplication of two vectors such that the result is a vector and furthermore, the resulting vector is perpendicular to the either of the two original vectors
  • The best way to find a vector product is to set it up as a determinant as shown on the right
  • q is the angle between A and B
first application of del gradient

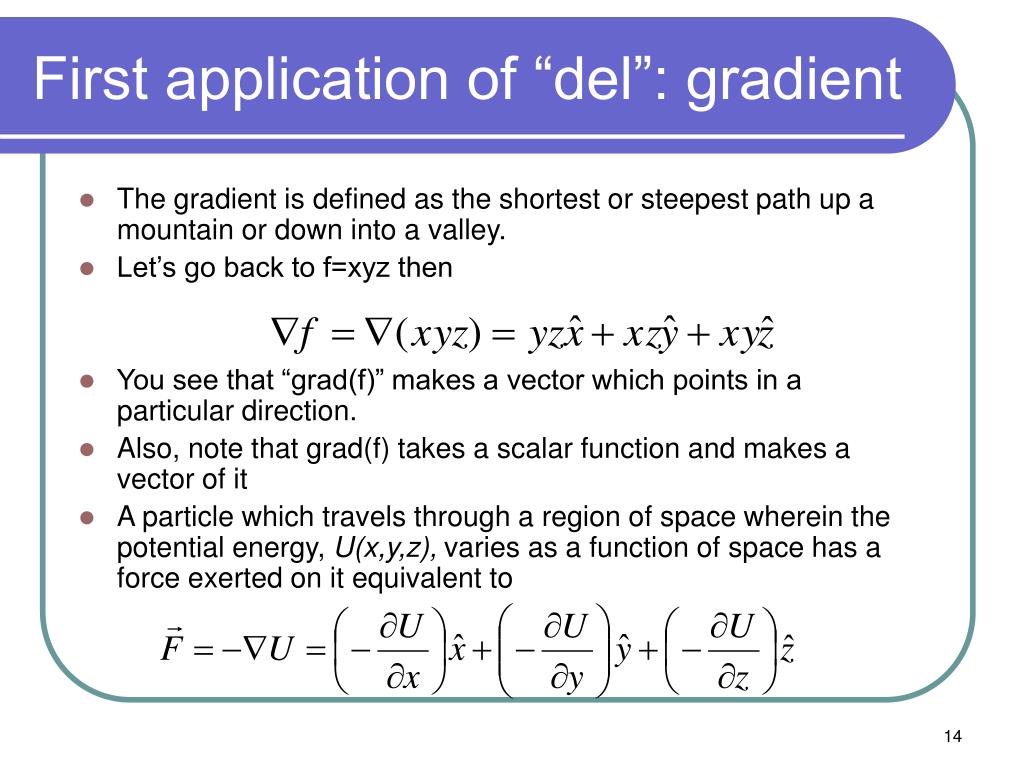

First application of “del”: gradient
  • The gradient is defined as the shortest or steepest path up a mountain or down into a valley.
  • Let’s go back to f=xyz then
  • You see that “grad(f)” makes a vector which points in a particular direction.
  • Also, note that grad(f) takes a scalar function and makes a vector of it
  • A particle which travels through a region of space wherein the potential energy, U(x,y,z), varies as a function of space has a force exerted on it equivalent to
the scalar product and

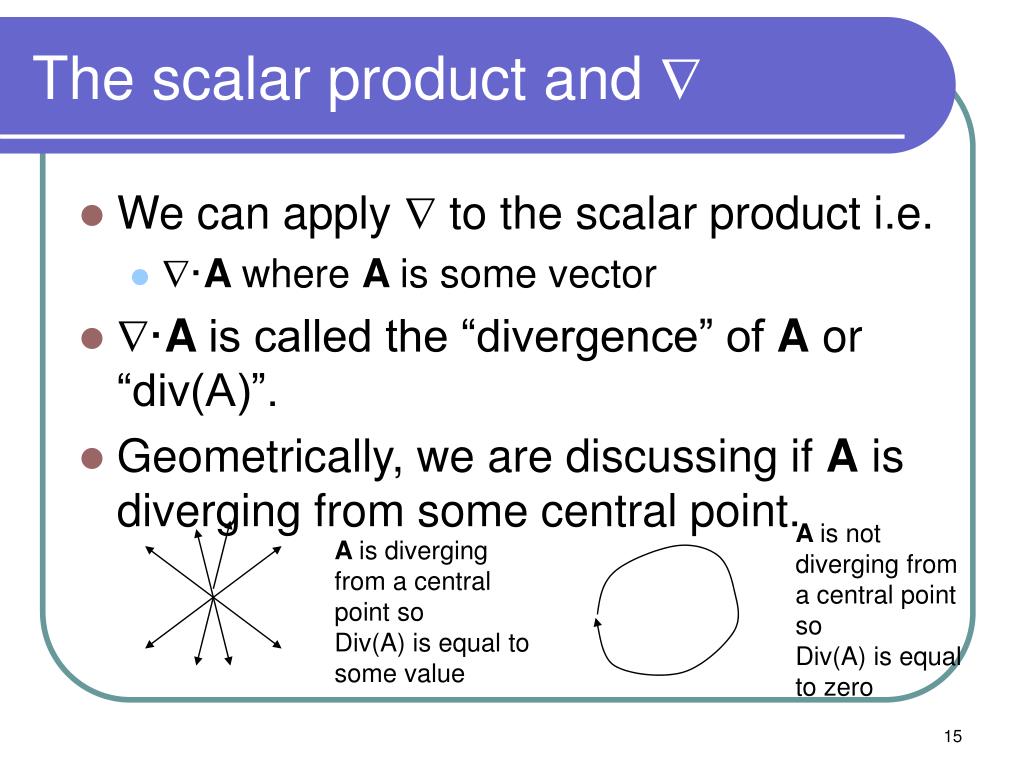

The scalar product and 
  • We can apply  to the scalar product i.e.
    • ·A where A is some vector
  • ·A is called the “divergence” of A or “div(A)”.
  • Geometrically, we are discussing if A is diverging from some central point.

A is not diverging from a central point so

Div(A) is equal to zero

A is diverging from a central point so

Div(A) is equal to some value

the vector product and

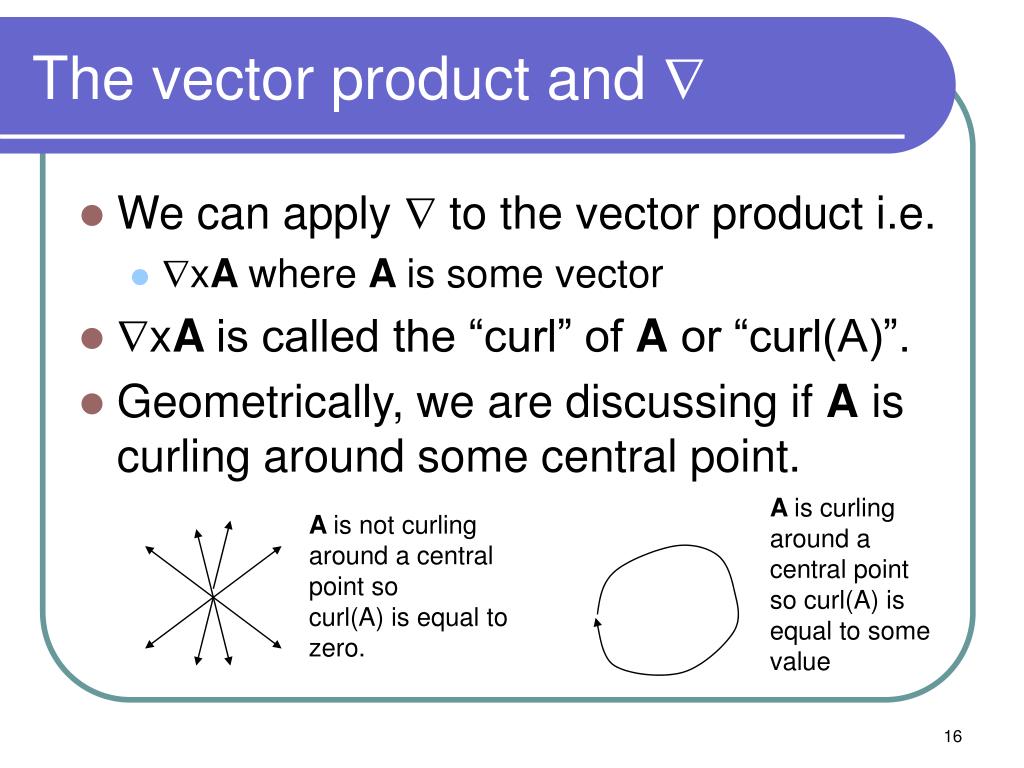

The vector product and 
  • We can apply  to the vector product i.e.
    • xA where A is some vector
  • xA is called the “curl” of A or “curl(A)”.
  • Geometrically, we are discussing if A is curling around some central point.

A is curling around a central point so curl(A) is equal to some value

A is not curling around a central point so

curl(A) is equal to zero.

what about a and a x

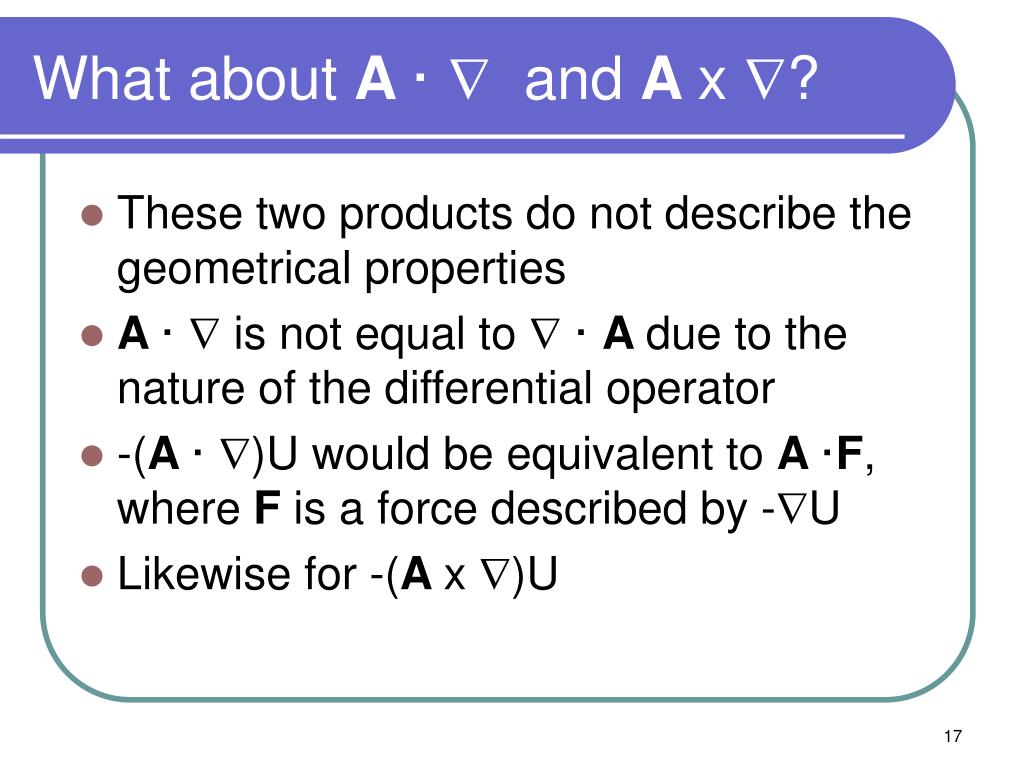

What about A · and A x?
  • These two products do not describe the geometrical properties
  • A · is not equal to  ·A due to the nature of the differential operator
  • -(A ·)U would be equivalent to A ·F, where F is a force described by -U
  • Likewise for -(A x)U
two special integrals

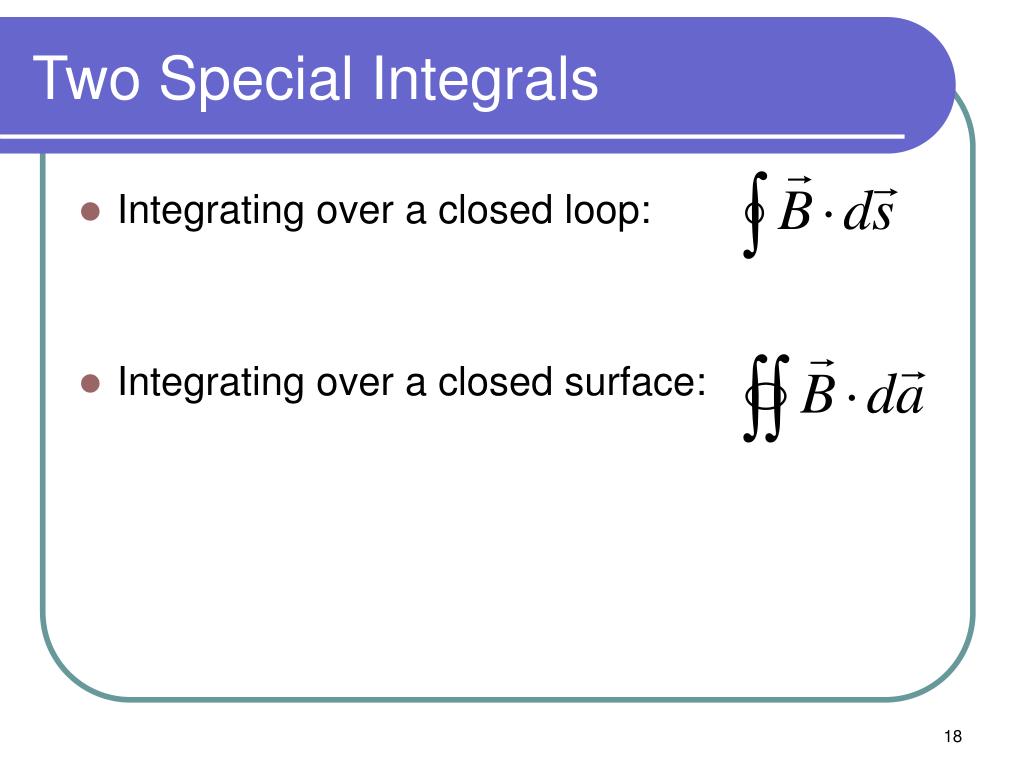

Two Special Integrals
  • Integrating over a closed loop:
  • Integrating over a closed surface:
integrating over a closed loop

A

B

D

C

Integrating over a closed loop
  • The loop can be circular or rectangular.

From 0 to 2p

Looping from Point A to Point D using straight line segments

closed surface integral

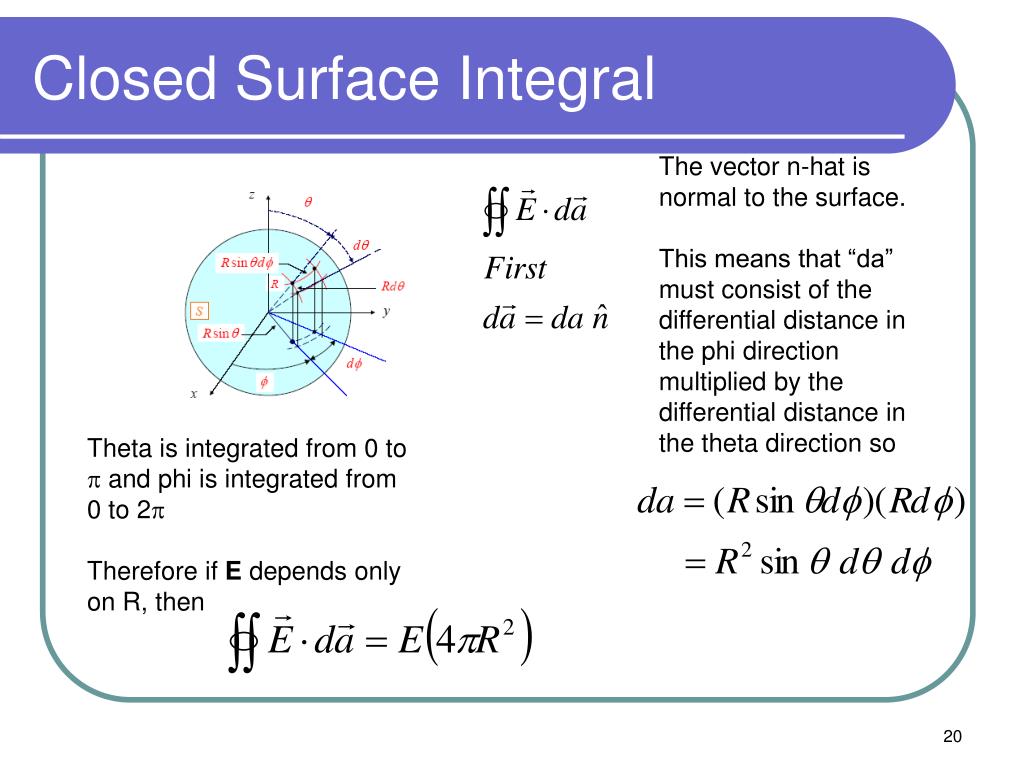

Closed Surface Integral

The vector n-hat is normal to the surface.

This means that “da” must consist of the differential distance in the phi direction multiplied by the differential distance in the theta direction so

Theta is integrated from 0 to p and phi is integrated from 0 to 2p

Therefore if E depends only on R, then
