isabella weger head computer division ecmwf isabella weger@ecmwf int
Isabella Weger

Head, Computer Division

ECMWF

isabella.weger@ecmwf.int

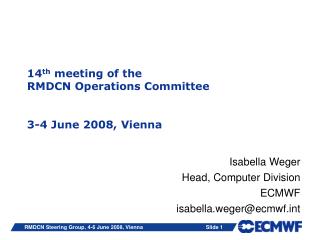

14th meeting of the RMDCN Operations Committee3-4 June 2008, Vienna

RMDCN Steering Group, 4-6 June 2008, Vienna

14 th meeting of the rmdcn operations committee
14th Meeting of the RMDCN Operations Committee
  • RMDCN Status Report
    • RMDCN configuration
    • Network Reliability and Performance
    • Service Level Agreement
  • Status of the WIS
  • Report on Tests
    • IPSEC VPN
    • IPv6
  • Price Review for 2008

RMDCN Steering Group, 4-6 June 2008, Vienna

migration to mpls ipvpn technology
Migration to MPLS IPVPN technology
  • RMDCN was migrated from Frame Relay to MPLS (Multi-Protocol Label Switching) technology
    • Any-to-any connectivity
    • Class of Service concept
    • Doubling of bandwidth for the basic configuration
    • ISDN backup
    • Improved SLA
  • Migration to MPLS completed on 18 June 2007

RMDCN Steering Group, 4-6 June 2008, Vienna

rmdcn configuration
RMDCN configuration

RMDCN Steering Group, 4-6 June 2008, Vienna

rmdcn configuration1
RMDCN Configuration
  • 11 Mission Critical Sites (dual access lines)
  • 1 extra enhanced (dual access lines; single router)
  • 29 ISDN NAS Backup
  • 1 site no Backup (Saudi Arabia)
  • Doubling IP throughput
  • Better Backup
  • Better SLA

RMDCN Steering Group, 4-6 June 2008, Vienna

rmdcn availability
RMDCN – Availability
  • Service metrics
    • Site Availability (used to be PVC availability in Frame Relay network)
    • SLA 99.9% (100% for Mission Critical sites)

RMDCN Steering Group, 4-6 June 2008, Vienna

service problems
Service Problems
  • Audits carried out by OBS
    • Diversity access circuits
    • Diversity of ISDN NAS Backup
    • Ownership of ISDN connection
  • Support issues
    • 24*7 local PTT support
    • Service Desk contact

RMDCN Steering Group, 4-6 June 2008, Vienna

14 th meeting of the rmdcn operations committee1
14th Meeting of the RMDCN Operations Committee
  • RMDCN Status Report
    • RMDCN configuration
    • Network Reliability and Performance
    • Service Level Agreement
  • Status of the WIS
  • Report on Tests
    • IPSEC VPN
    • IPv6
  • Price Review for 2008

RMDCN Steering Group, 4-6 June 2008, Vienna

ipsec vpn tests
IPSec VPN Tests
  • 2002: IPSec feasibility study
    • guidelines and recommendations for building secure connections over the Internet
  • 2005: IPSec-based VPN as a backup for the RMDCN study
    • Provides a framework for an operational RMDCN backup solution using an Internet-based IPSec VPN
    • Only “static” rerouting considered
  • 2007-2008: IPSec VPN Backup for the RMDCN project
    • Using and IPSec-based VPN infrastructure to transport operational RMDCN traffic between RMDCN sites as an alternative to the RMDCN network itself
    • Phase #1: Building the IPSec-based infrastructure
    • Phase #2: Using the IPSec-based VPN infrastructure as a backup for the RMDCN in an operational context

RMDCN Steering Group, 4-6 June 2008, Vienna

test configuration
Test configuration
  • Mimic the NAS ISDN backup implementation within the RMDCN: ECMWF acts as an IPSec centralising site, which guarantees the any-to-any connectivity of the RMDCN IPVPN cloud

RMDCN Steering Group, 4-6 June 2008, Vienna

manual vs automatic re routing
Manual vs. automatic re-routing

RMDCN Steering Group, 4-6 June 2008, Vienna

other technical solutions checkpoint
Other Technical Solutions - Checkpoint
  • All Checkpoint – 2 Topologies
    • “hub-and-spoke” topology (“Star VPN Community")
    • “any-to-any” topology ("Meshed VPN Community")
      • if all the gateways are centrally managed, this is easy to implement as the conf would be "pushed" to all the gateways
    • Solution is more suitable for a centralised "Corporate" deployment

RMDCN Steering Group, 4-6 June 2008, Vienna

other technical solutions dmvpn
Other Technical Solutions - DMVPN
  • Cisco IOS solution for building IPsec+GRE VPNs
    • Relies on two proven Cisco technologies Next Hop Resolution Protocol (NHRP) and Multipoint GRE Tunnel Interface
  • Hub-and-spoke
    • All VPN traffic must go via hub; Hub bandwidth and CPU utilization limit VPN
  • Dynamic-Mesh – Dynamic spoke-spoke tunnels
    • Control traffic — Hub to Hub and Hub and spoke
    • Data traffic — Dynamic mesh
  • Does not alter the standards-based IPsec VPN tunnels, but it changes their configuration
  • Very scalable and easy to configure
other technical solutions
Other Technical Solutions
  • NHRP Resolution – Process Switching

?

= Dynamic permanent IPsec tunnels

192.168.0.1/24

?

10.0.0.11  172.16.1.1

10.0.0.12  172.16.2.1

NHRP mapping (*NHS)

Physical: 172.17.0.1

Tunnel0: 10.0.0.1

192.168.0.0/24  Conn.

Routing Table

192.168.1.0/24  10.0.0.11

192.168.2.0/24  10.0.0.12

Physical: (dynamic)

Tunnel0: 10.0.0.12

172.16.2.1

Physical: (dynamic)

Tunnel0: 10.0.0.11

172.16.1.1

Web

Spoke B

Spoke A

.1

.37

192.168.2.0/24

.1

192.168.1.0/24

.25

10.0.0.1  172.17.0.1 (*)

10.0.0.1  172.17.0.1 (*)

PC

10.0.0.11  172.16.1.1

10.0.0.12  172.16.2.1

192.168.1.0/24  172.16.1.1

192.168.1.25/32  ???

192.168.1.0/24  172.16.1.1 (l)

192.168.2.0/24  172.16.2.1 (l)

192.168.2.37/32  ???

192.168.2.0/24  172.16.2.1

192.168.0.0/24  10.0.0.1

192.168.1.0/24  Conn.

192.168.0.0/24  10.0.0.1

192.168.2.0/24  Conn.

192.168.1.0/24  10.0.0.11

192.168.2.0/24  10.0.0.12

RMDCN Steering Group, 4-6 June 2008, Vienna

conclusion from the tests recommendations
Conclusion from the tests & recommendations
  • The use of shared devices between the RMDCN operational traffic exchange and the IPSec-based backup infrastructure created additional constraints
    • Using dedicated IPSec box should to be considered in an operational environment
  • The use of IPSec devices from different vendors proved to be challenging
    • Consider using one device type or at least one device brand for an operational deployment
  • “manual” re-routing is time-consuming and prone to mistakes
    • The traffic re-routing has to be fast, automatic and reliable. Only dynamic routing processes can ensure this in an operational environment

RMDCN Steering Group, 4-6 June 2008, Vienna

14 th roc agreement on internet backup
14th ROC: Agreement on Internet backup
  • Backup solution must maintain any-to-any connections
  • Dedicated IPSec equipment needed for RMDCN backup
  • Same type of equipment will be used by all sites
  • Equipment will be managed locally by the sites
  • Portfolio of backup solutions will be
    • RMDCN mission critical sites
    • ISDN NAS backup within the managed network (to be phased out in the future)
    • Backup over the Internet
    • ECMWF will continue to provide a gateway function, so that connectivity between sites using different backup solutions will be maintained

RMDCN Steering Group, 4-6 June 2008, Vienna

next steps for internet backup tests
Next steps for Internet backup tests
  • Preferred solution is Cisco DMVPN
    • Setup of a test environment for DMVPN including 6 or 7 routers internally at ECMWF
    • If successful, Q4-2008 3 or 4 routers will be sent to volunteers sites to try DMVPN over the Internet. DMVPN will then be used to create the IPSEC VPN solution to backup the RMDCN
    • Q1-2009 results of these tests.
    • If successful, consider recommendation of Cisco Routers using DMVPN for the backup of the RMDCN
    • Otherwise, market survey to find the correct solution
  • Agree on future solution and equipment in ROC-15 (spring 2009)

RMDCN Steering Group, 4-6 June 2008, Vienna

ipv6 testing status update
IPv6 Testing Status Update
  • Objectives of IPv6 tests
    • To assess potential benefits and/or problems of deploying IPv6 in an operational environment.
    • To assess IPv6 performance over existing infrastructure.
  • Partners involved
    • CMA (China)
    • CNR (Italy)
    • DWD (Germany)
    • JMA (Japan)
    • KNMI (The Netherlands)
    • SMHI (Sweden)
    • ECMWF

RMDCN Steering Group, 4-6 June 2008, Vienna

topology for external ipv6 tests
Topology for external IPv6 tests

RMDCN Steering Group, 4-6 June 2008, Vienna

initial results
Initial results
  • Only a few tests have been completed.
  • Sites did not have any major IPv6 basic connectivity problems with ISPs.
  • Firewalls are ready.
  • Not all applications are IPv6 ready yet, but for the main services such as DNS, web and ftp there is no problem.
  • Plug and play is nice … but requires support staff to really understand IPv6 to solve problems.
  • Performance to/from European sites similar to IPv4, but to/from Asian countries seems a lot better
    • New IPv6 infrastructure is in place but not fully used yet.
    • IPv6 routes may be more efficient than IPv4

RMDCN Steering Group, 4-6 June 2008, Vienna

situation with the providers and authorities
Situation with the providers and authorities
  • Most of the Internet provider are now IPv6 ready
  • RMDCN Market Survey shown that MPLS Network Operator are IPv6 ready. The use seems quite minimal though
  • EU has recently announced the funding of initiatives in order for IPv6 to represent 25% of the overall traffic exchanged in Europe
  • OECD in a recent report:

http://www.oecd.org/dataoecd/7/1/40605942.pdf

Is also urging towards IPv6 adoption.

RMDCN Steering Group, 4-6 June 2008, Vienna

what happens next at ecmwf
What happens next at ECMWF
  • Enable IPv6 operationally on some DMZ subnets.
  • Enable IPv6 operationally on the main Firewalls.
  • Modify ECMWF Dissemination transmission software (ECPDS) to be IPv6 capable (over the Internet).
  • Modify ECACCESS to be IPv6 capable.

What will not happen … yet

  • Not planning to deploy on the LAN
  • Not planning to migrate from IPv4 but rather to complement it with additional IPv6 services.

RMDCN Steering Group, 4-6 June 2008, Vienna

14 th meeting of the rmdcn operations committee2
14th Meeting of the RMDCN Operations Committee
  • RMDCN Status Report
    • RMDCN configuration
    • Network Reliability and Performance
    • Service Level Agreement
  • Status of the WIS
  • Report on Tests
    • IPSEC VPN
    • IPv6
  • Price Review for 2008

RMDCN Steering Group, 4-6 June 2008, Vienna

mpls migration
MPLS Migration
  • 18th June 2008 Migration completed
  • Liquidated Damages due to the late delivery of the new Network
    • Failure to meet milestone dates
    • 0.1 % of annual charges per day delay; max. 7% (= 70 days)
    • LDs are a percentage of the first 12 months of Service Charges, so OBS will act on this after 18 June 2008

RMDCN Steering Group, 4-6 June 2008, Vienna

price reviews for mpls network
Price Reviews for MPLS network
  • Price Review 2007
    • First MPLS Price Review was scheduled for 1 April 2007
    • Offer was 10% on IP Bandwidth Charges only (No reduction on Access Line, Router and Management charges)
    • Overall reduction 5.52% (per site this varied between 0 and 10%)
    • Total Redistribution Charges reduced from ~£14.5K to £9.25K
  • Price Review 2008
    • Market survey by The Network Collective (a consultancy company) indicated that there should be a significant reduction
    • OBS’s first offer is an overall reduction of the charges of 28% (per site this varies between 0% and 58%)
    • No change in Access Line Charges; this is still being addressed with OBS.

RMDCN Steering Group, 4-6 June 2008, Vienna
