  1. Postgres and the Genome Jeff Pennington Director, Translational Informatics Center for Biomedical Informatics And Department of Pathology The Children’s Hospital Of Philadelphia

  2. Outline • Background • Genome analysis in the clinic • Application • Database • DB Tuning

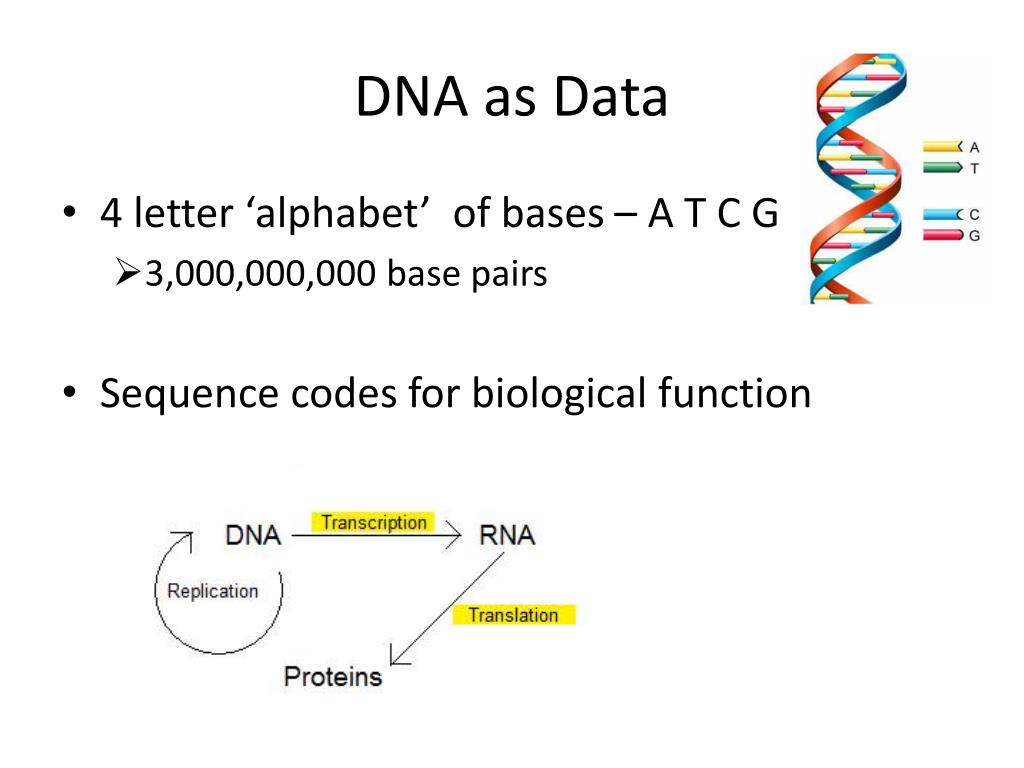

  3. DNA as Data • 4 letter ‘alphabet’ of bases – A T C G • 3,000,000,000 base pairs • Sequence codes for biological function

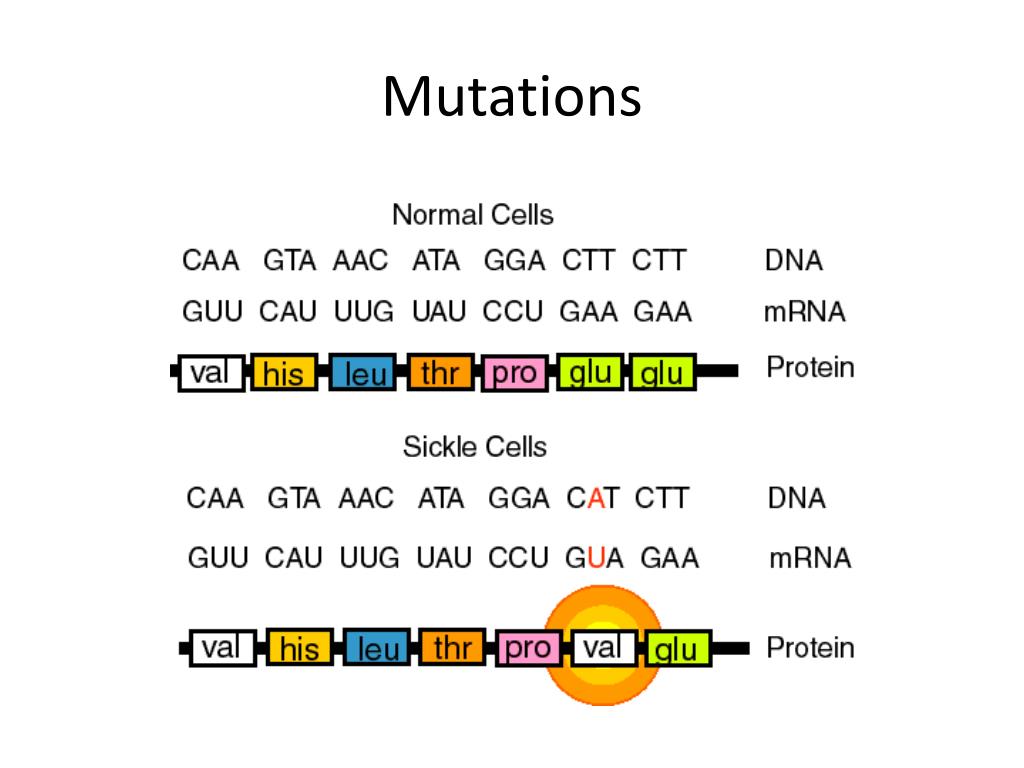

  4. Mutations

  5. Clinical Mutation = ‘Variant’

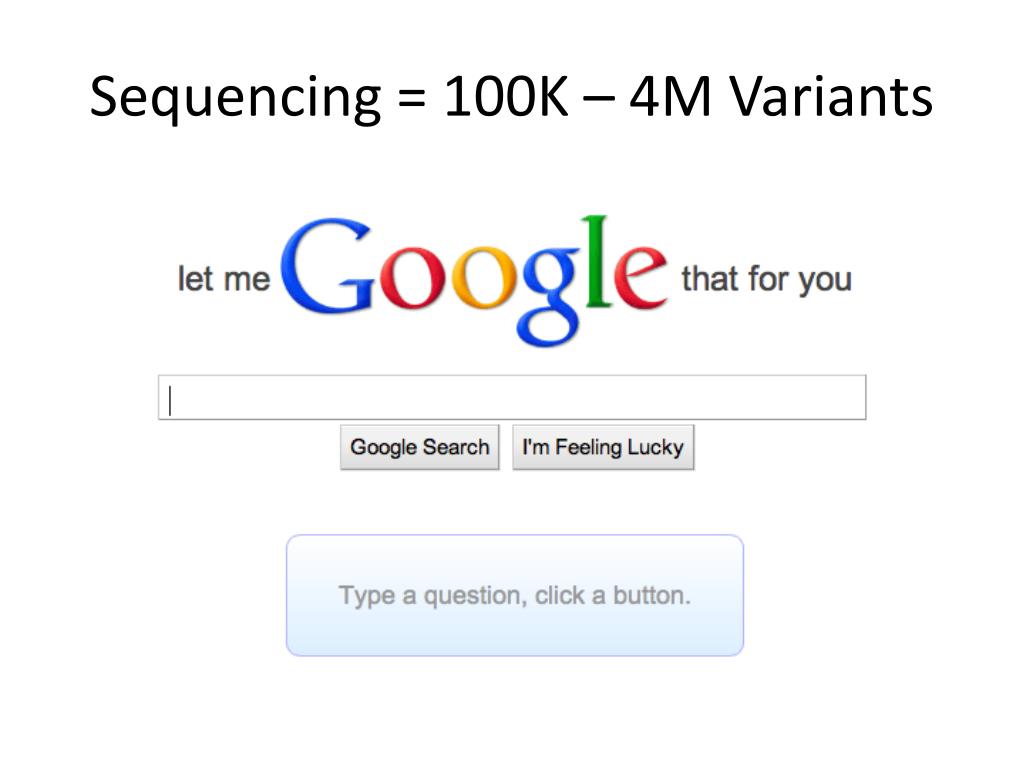

  6. Sequencing = 100K – 4M Variants

  7. VARIFY

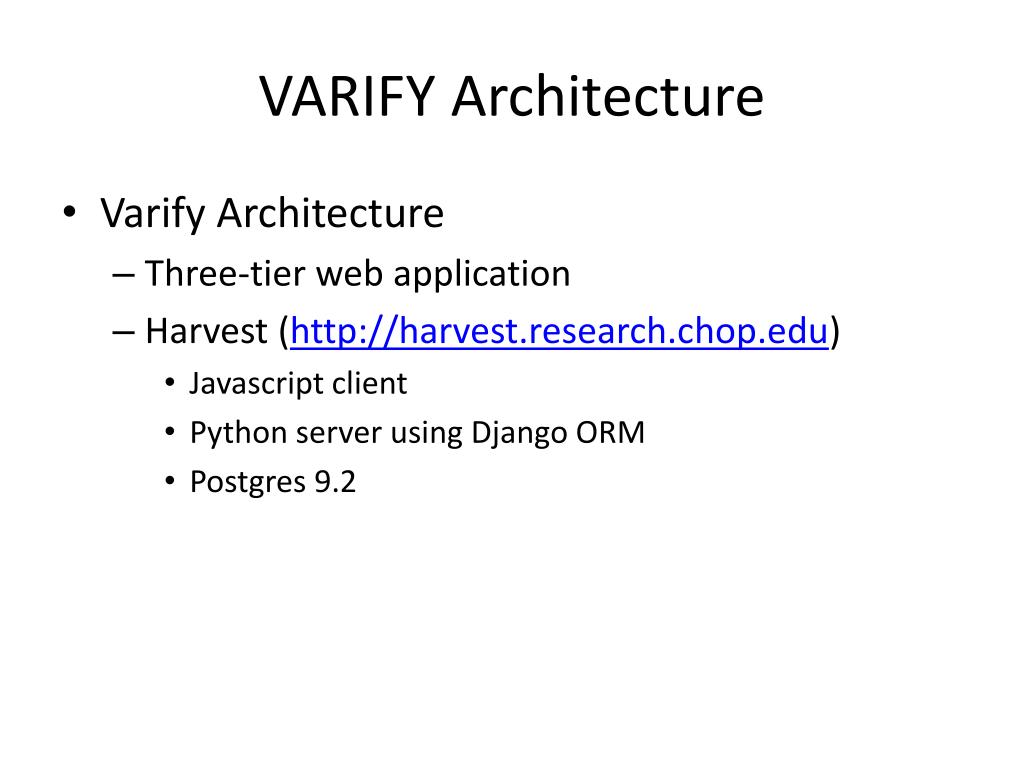

  8. VARIFY Architecture • Varify Architecture • Three-tier web application • Harvest (http://harvest.research.chop.edu) • Javascript client • Python server using Django ORM • Postgres 9.2

  9. Database • Physical – 9.2, RHEL VM, VMWarew/ storage on host • Round 1 – 4G RAM, 80G disk • Round 2 – 32 G RAM, 250G disk

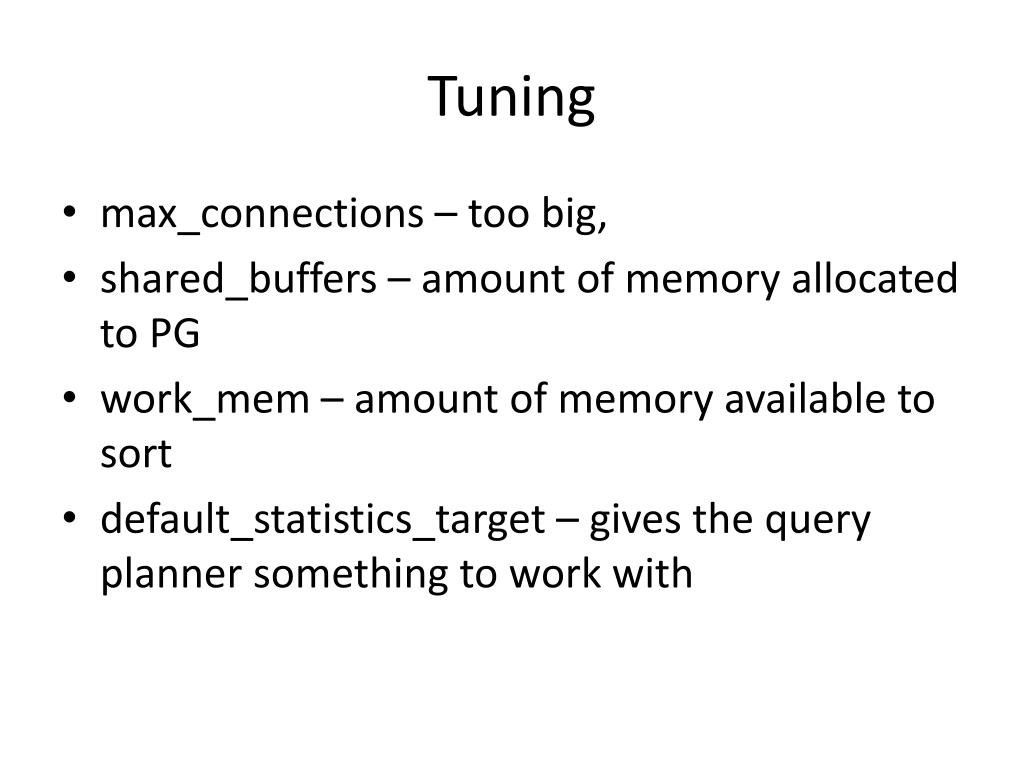

  10. Tuning • max_connections – too big, • shared_buffers – amount of memory allocated to PG • work_mem – amount of memory available to sort • default_statistics_target – gives the query planner something to work with

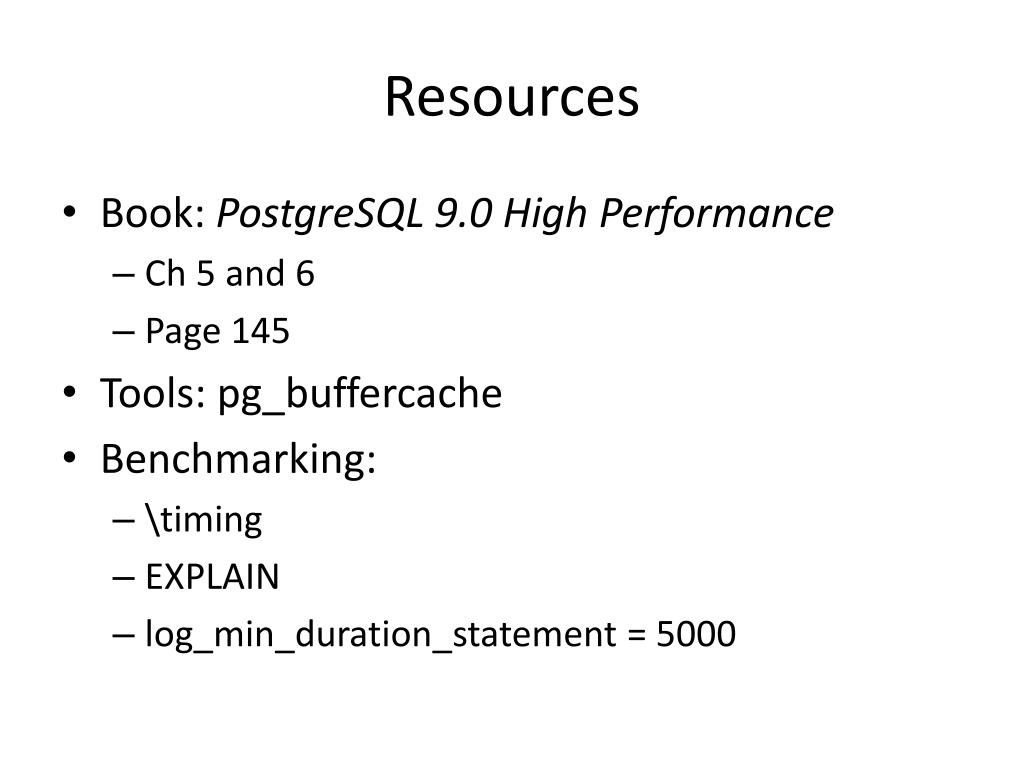

  11. Resources • Book: PostgreSQL9.0 High Performance • Ch 5 and 6 • Page 145 • Tools: pg_buffercache • Benchmarking: • \timing • EXPLAIN • log_min_duration_statement = 5000

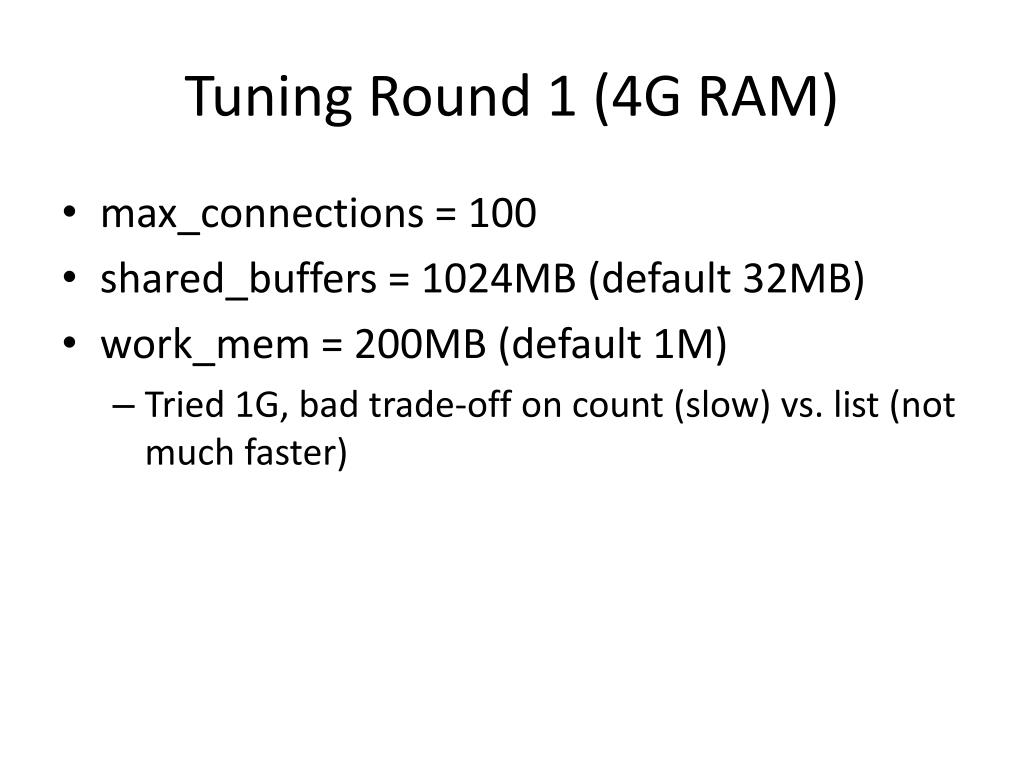

  12. Tuning Round 1 (4G RAM) • max_connections = 100 • shared_buffers = 1024MB (default 32MB) • work_mem = 200MB (default 1M) • Tried 1G, bad trade-off on count (slow) vs. list (not much faster)

  13. Tuning Round 2 (32G RAM) • max_connections = 100 • shared_buffers = 24576MB (Increased from 1024MB) • work_mem = 150MB (Decreased from 200MB)

  14. Tuning Round 3 • Everything in Round 2 • default_statistics_target = 1000 (default 100)
