CENG 450 Computer Systems and Architecture Lecture 16

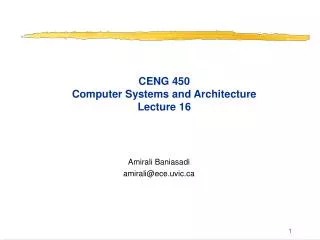

1. CENG 450Computer Systems and ArchitectureLecture 16 Amirali Baniasadi amirali@ece.uvic.ca

2. The Motivation for Caches Memory System Processor DRAM Cache • Motivation: • Large memories (DRAM) are slow • Small memories (SRAM) are fast • Make the average access time small by: • Servicing most accesses from a small, fast memory. • Reduce the bandwidth required of the large memory

3. The Principle of Locality Probability of reference 0 Address Space 2 • The Principle of Locality: • Program access a relatively small portion of the address space at any instant of time. • Example: 90% of time in 10% of the code • Two Different Types of Locality: • Temporal Locality (Locality in Time): If an item is referenced, it will tend to be referenced again soon. • Spatial Locality (Locality in Space): If an item is referenced, items whose addresses are close by tend to be referenced soon.

4. The Simplest Cache: Direct Mapped Cache Memory Address Memory 0 4 Byte Direct Mapped Cache 1 Cache Index • Cache index=(Block Address) MOD (# of blocks in cache) • Location 0 can be occupied by data from: • Memory location 0, 4, 8, ... etc. • In general: any memory locationwhose 2 LSBs of the address are 0s • Address<1:0> => cache index • Which one should we place in the cache? • How can we tell which one is in the cache? 2 0 3 1 4 2 5 3 6 7 8 9 A B C D E F

5. Cache Tag and Cache Index N 2 - 1 • Assume a 32-bit memory (byte ) address: • A 2**N bytes direct mapped cache: • Cache Index: The lower N bits of the memory address • Cache Tag: The upper (32 - N) bits of the memory address 31 N 0 Cache Tag Example: 0x50 Cache Index Ex: 0x03 Stored as part of the cache “state” N 2 Bytes Valid Bit Direct Mapped Cache Byte 0 0 Byte 1 1 Byte 2 2 0x50 Byte 3 3 : : : Byte 2**N -1

6. Example: 1 KB Direct Mapped Cache with 32 B Blocks • For a 2 ** N byte cache: • The uppermost (32 - N) bits are always the Cache Tag • The lowest M bits are the Byte Select (Block Size = 2 ** M) 31 9 4 0 Cache Tag Example: 0x50 Cache Index Byte Select Ex: 0x01 Ex: 0x00 Stored as part of the cache “state” Valid Bit Cache Tag Cache Data : Byte 31 Byte 1 Byte 0 0 : 0x50 Byte 63 Byte 33 Byte 32 1 2 3 : : : : Byte 1023 Byte 992 31

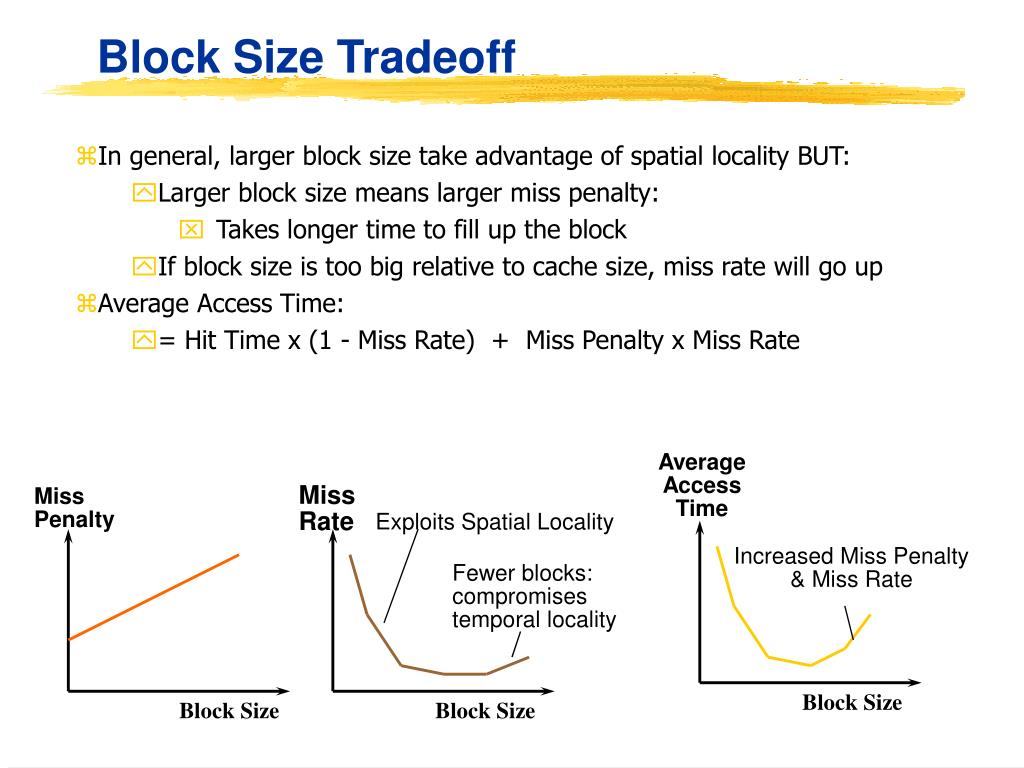

7. Block Size Tradeoff • In general, larger block size take advantage of spatial locality BUT: • Larger block size means larger miss penalty: • Takes longer time to fill up the block • If block size is too big relative to cache size, miss rate will go up • Average Access Time: • = Hit Time x (1 - Miss Rate) + Miss Penalty x Miss Rate Average Access Time Miss Rate Miss Penalty Exploits Spatial Locality Increased Miss Penalty & Miss Rate Fewer blocks: compromises temporal locality Block Size Block Size Block Size

8. A Summary on Sources of Cache Misses • Compulsory (cold start, first reference): first access to a block • “Cold” fact of life: not a whole lot you can do about it • Conflict (collision): • Multiple memory locations mappedto the same cache location • Solution 1: increase cache size • Solution 2: increase associativity • Capacity: • Cache cannot contain all blocks access by the program • Solution: increase cache size • Invalidation: other process (e.g., I/O) updates memory

9. Conflict Misses • True: If an item is accessed, likely that it will be accessed again soon • But it is unlikely that it will be accessed again immediately!!! • The next access will likely to be a miss again • Continually loading data into the cache butdiscard (force out) them before they are used again • Worst nightmare of a cache designer: Ping Pong Effect • Conflict Misses are misses caused by: • Different memory locations mapped to the same cache index • Solution 1: make the cache size bigger • Solution 2: Multiple entries for the same Cache Index

10. A Two-way Set Associative Cache Cache Data Cache Tag Valid Cache Block 0 : : : Compare • N-way set associative: N entries for each Cache Index • N direct mapped caches operates in parallel • Example: Two-way set associative cache • Cache Index selects a “set” from the cache • The two tags in the set are compared in parallel • Data is selected based on the tag result Cache Index Valid Cache Tag Cache Data Cache Block 0 : : : Adr Tag Compare 1 0 Mux Sel1 Sel0 OR Cache Block Hit

11. Disadvantage of Set Associative Cache Cache Index Valid Cache Tag Cache Data Cache Data Cache Tag Valid Cache Block 0 Cache Block 0 : : : : : : Adr Tag Compare Compare 1 0 Mux Sel1 Sel0 OR Cache Block Hit • N-way Set Associative Cache versus Direct Mapped Cache: • N comparators vs. 1 • Extra MUX delay for the data • Data comes AFTER Hit/Miss • In a direct mapped cache, Cache Block is available BEFORE Hit/Miss: • Possible to assume a hit and continue. Recover later if miss.

12. And yet Another Extreme Example: Fully Associative • Fully Associative Cache -- push the set associative idea to its limit! • Forget about the Cache Index • Compare the Cache Tags of all cache entries in parallel • Example: Block Size = 32 B blocks, we need N 27-bit comparators • By definition: Conflict Miss = 0 for a fully associative cache 31 4 0 Cache Tag (27 bits long) Byte Select Ex: 0x01 Cache Tag Valid Bit Cache Data : X Byte 31 Byte 1 Byte 0 : X Byte 63 Byte 33 Byte 32 X X : : : X

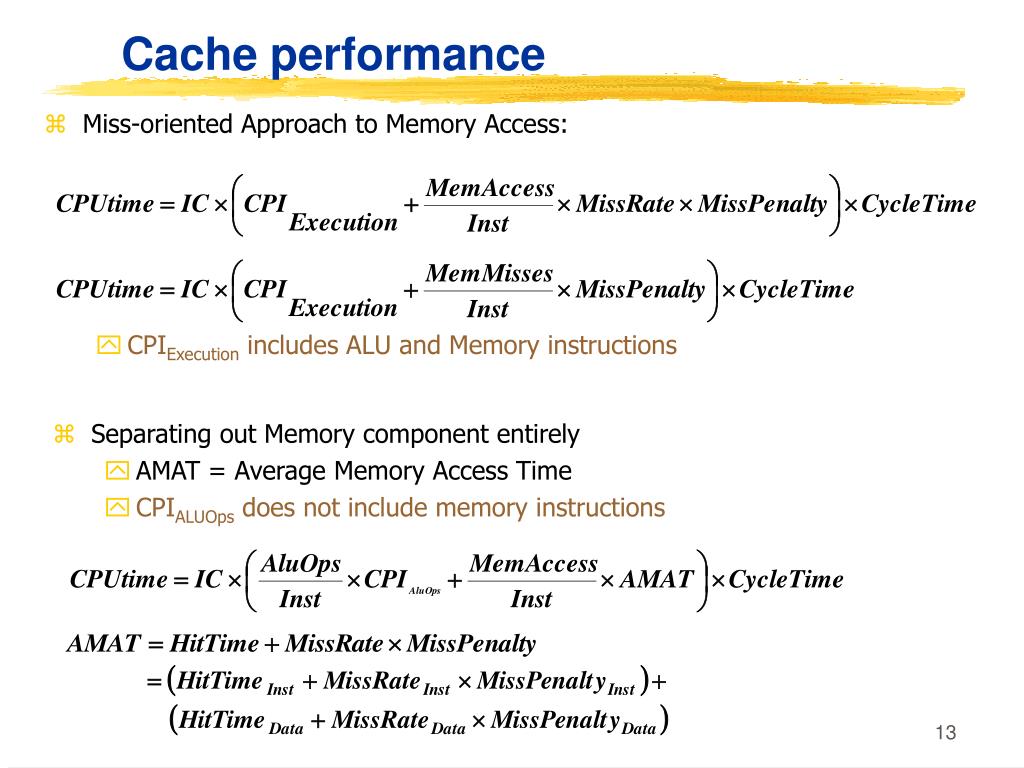

13. Cache performance • Miss-oriented Approach to Memory Access: • CPIExecution includes ALU and Memory instructions • Separating out Memory component entirely • AMAT = Average Memory Access Time • CPIALUOps does not include memory instructions

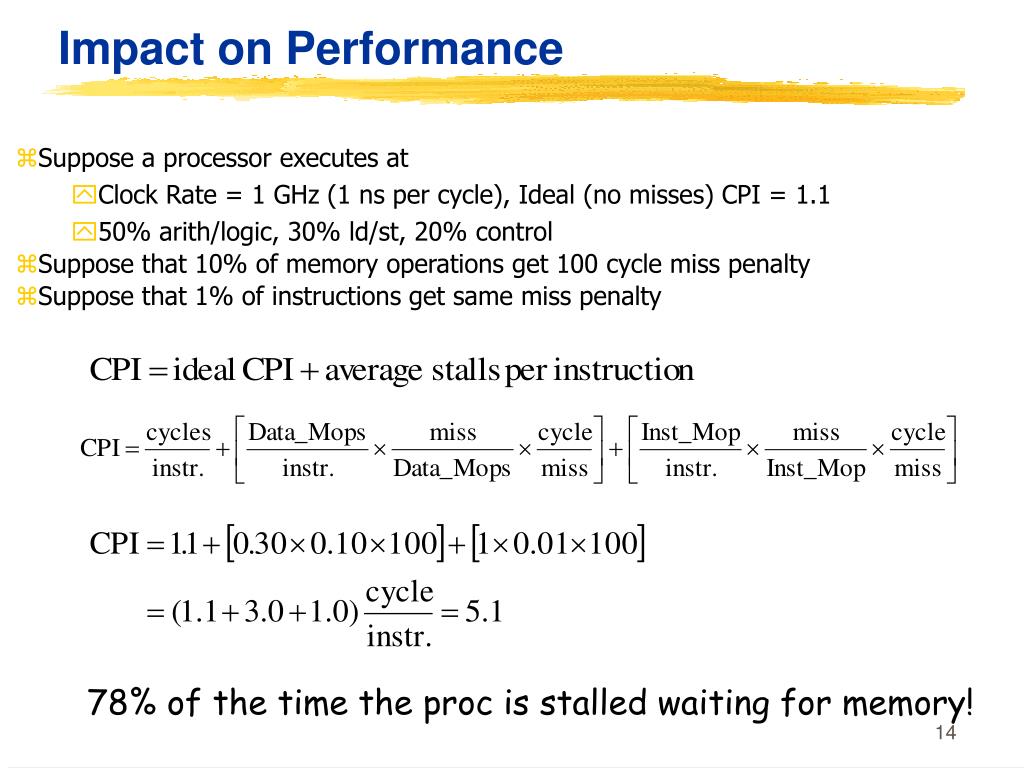

14. Impact on Performance • Suppose a processor executes at • Clock Rate = 1 GHz (1 ns per cycle), Ideal (no misses) CPI = 1.1 • 50% arith/logic, 30% ld/st, 20% control • Suppose that 10% of memory operations get 100 cycle miss penalty • Suppose that 1% of instructions get same miss penalty 78% of the time the proc is stalled waiting for memory!

15. Example: Harvard Architecture Proc Proc I-Cache-1 Proc D-Cache-1 Unified Cache-1 Unified Cache-2 Unified Cache-2 • Unified vs. Separate I&D (Harvard) • 16KB I&D: Inst miss rate=0.64%, Data miss rate=6.47% • 32KB unified: Aggregate miss rate=1.99% • Which is better (ignore L2 cache)? • Assume 33% data ops  75% accesses from instructions (1.0/1.33) • hit time=1, miss time=50 • Note that data hit has 1 stall for unified cache (only one port) AMATHarvard=75%x(1+0.64%x50)+25%x(1+6.47%x50) = 2.05 AMATUnified=75%x(1+1.99%x50)+25%x(1+1+1.99%x50)= 2.24

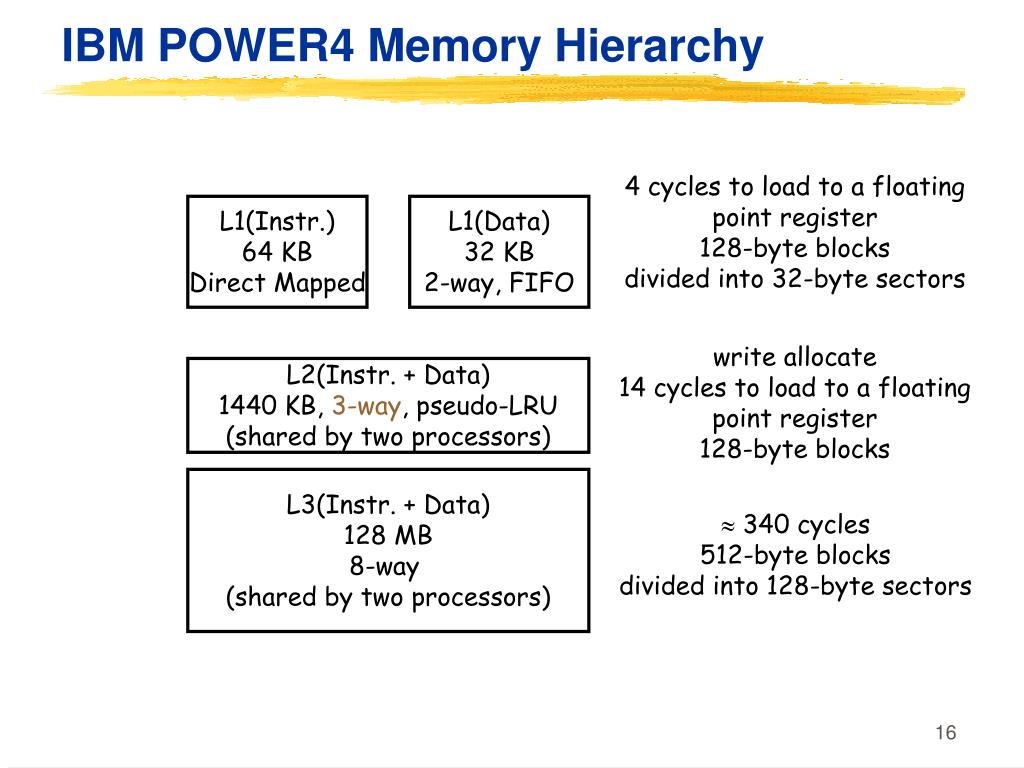

16. IBM POWER4 Memory Hierarchy 4 cycles to load to a floating point register 128-byte blocks divided into 32-byte sectors L1(Instr.) 64 KB Direct Mapped L1(Data) 32 KB 2-way, FIFO write allocate 14 cycles to load to a floating point register 128-byte blocks L2(Instr. + Data) 1440 KB, 3-way, pseudo-LRU (shared by two processors) L3(Instr. + Data) 128 MB 8-way (shared by two processors)  340 cycles 512-byte blocks divided into 128-byte sectors

17. Intel Itanium Processor L1(Data) 16 KB, 4-way dual-ported write through L1(Instr.) 16 KB 4-way 32-byte blocks 2 cycles 64-byte blocks write allocate 12 cycles L2 (Instr. + Data) 96 KB, 6-way 4 MB (on package, off chip) 64-byte blocks 128 bits bus at 800 MHz (12.8 GB/s) 20 cycles

18. 3rd Generation Itanium • 1.5 GHz • 410 million transistors • 6MB 24-way set associative L3 cache • 6-level copper interconnect, 0.13 micron • 130W (i.e. lasts 17s on an AA NiCd)

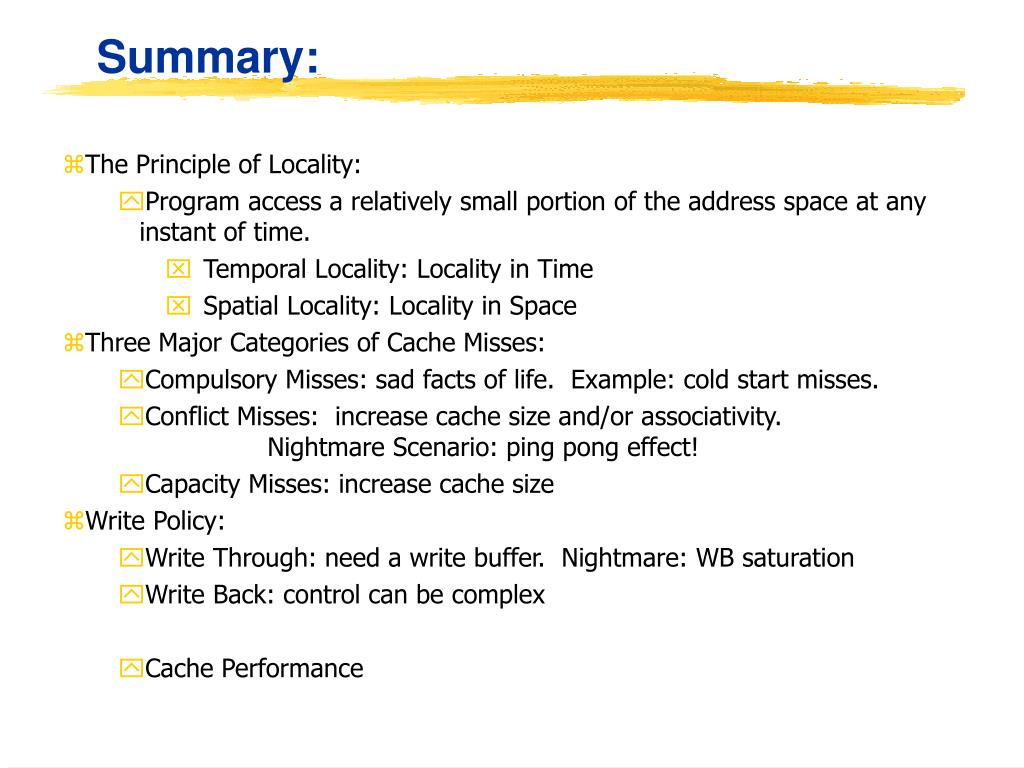

19. Summary: • The Principle of Locality: • Program access a relatively small portion of the address space at any instant of time. • Temporal Locality: Locality in Time • Spatial Locality: Locality in Space • Three Major Categories of Cache Misses: • Compulsory Misses: sad facts of life. Example: cold start misses. • Conflict Misses: increase cache size and/or associativity. Nightmare Scenario: ping pong effect! • Capacity Misses: increase cache size • Write Policy: • Write Through: need a write buffer. Nightmare: WB saturation • Write Back: control can be complex • Cache Performance
