slide1

TweaXML

A Language to manipulate & extract data from XML files

Kaushal Kumar (kk2457)

Srinivasa Valluripalli (sv2232)

contents
Contents
  • Overview and motivation
  • Language features
  • XML handling functionalities
  • Architectural Design
  • Tutorial (with example)
  • Lessons learned
  • Summary
overview and motivation
Overview and Motivation
  • TweaXML is a language to parse and extract data from XML files and create new csv/txt files in user defined data-formats.
  • XML is a universal language and is used to pass data around between heterogeneous systems.
  • (But) Parsing an XML file programmatically is not straightforward.
  • To parse an XML file:
    • First you need to learn Java (for example)
    • Then learn APIs like DOM-Parser and SAX-Parser.
    • These API-usage can be too complicated.
  • TweaXML provides a much simpler language to parse XML files. Moreover, it provides a way to create output files containing this data in user-defined formats.
language features
Language Features
  • Carefully chosen set of keywords
  • Multiple Types (int, string, node, file, array)
  • Several Operators
    • Unary Operators (~, !)
    • Arithmetic Operators (+, -, *, /)
    • Comparison (<, <=, >, >=, ==, !=)
    • Logical Operators (&&, ||)
    • node operators (getchild, getvalue)
    • file operators (open, create, print, close)
    • inbuilt functions (add, subtract, multiply, divide, length)
language features cont
Language Features (cont)
  • various types of statements
    • Conditional statements (if … else)
    • Iterative statements (while)
    • jump statements (return, continue, break)
    • I/O statements (open, create, print, close)
    • inbuilt function calls (add, subtract, multiply, divide, length)
xml handling functionalities
XML Handling functionalities
  • Open an XML file to read (open)
    • returns the root node of the xml file
  • Get the child nodes of a node, using the xpath of the child-nodes (getchild)
    • returns an array of child-nodes
  • Get the length of the child nodes array (length)
  • Get the value of a node (getvalue)
    • returns the value of the node in string format
  • add the values of two nodes (add)
    • implicit checks of data types
  • subtract the values of two nodes (subtract)
  • multiply the values of two nodes (multiply)
  • divide the values of two nodes (divide)
file handling functionalities
File Handling functionalities
  • Create an output file to write (create)
    • returns the file type
  • Write in the file (print)
  • close the output file once you are done (close)
architectural design
Architectural Design

Front end

(TweaXMLLexer & TweaXMLParser)

Tree Walker

(TweaXmlWalker & TweaXmlCodeGen)

Back End

(CodeGen.java)

Run time Libraries

(Apache’s DOM Parser)

tutorial example
Tutorial - Example

(A tweaxml program to extract student’s performance data and create a csv file with the average marks of each student)

Input XML file: (marks_data.xml)

<students>

<student>

<name>kaushal</name>

<homework1>85</homework1>

<homework2>85</homework2>

<midterm>70</midterm>

<final>90</final>

</student>

<student>

<name>Srini</name>

<homework1>80</homework1>

<homework2>85</homework2>

<midterm>87</midterm>

<final>95</final>

</student>

</students>

slide10

Tweaxml program:

start(){

file output;

node rootNode;

output = create "AvgMarks.csv";

rootNode = open "marks_data.xml";

node studentNodes[];

studentNodes = getchild rootNode "student";

int len;

len = length studentNodes;

if(len > 0)

{

int j;

j=0;

while(j < len)

{

node nameNode[], homework1Node[], homework2Node[], midtermNode[], finalNode[];

string name, homework1Marks, homework2Marks, midtermMarks, finalMarks;

nameNode = getchild studentNodes[j] "name";

homework1Node = getchild studentNodes[j] "homework1";

homework2Node = getchild studentNodes[j] "homework2";

midtermNode = getchild studentNodes[j] "midterm";

finalNode = getchild studentNodes[j] "final";

slide11

name = getvalue nameNode[0];

homework1Marks = getvalue homework1Node[0];

homework2Marks = getvalue homework2Node[0];

midtermMarks = getvalue midtermNode[0];

finalMarks = getvalue finalNode[0];

string totalMarks;

totalMarks = add homework1Marks homework2Marks;

totalMarks = add totalMarks midtermMarks;

totalMarks = add totalMarks finalMarks;

string avgMarks;

avgMarks = divide totalMarks "4";

print output name;

print output "\t";

print output avgMarks;

print output "\n";

j = j + 1;

}

}

close output;

}

output
Output

Output file: (AvgMarks.csv)

kaushal 82.5

Srini 86.75

lessons learned

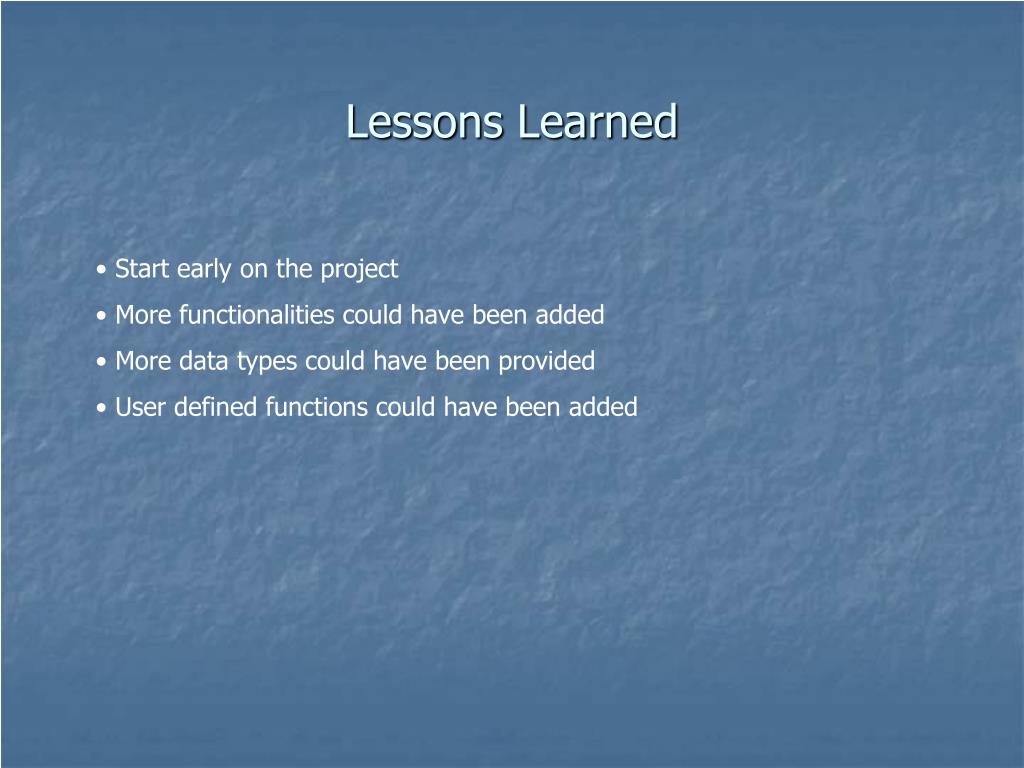

Lessons Learned
  • Start early on the project
  • More functionalities could have been added
  • More data types could have been provided
  • User defined functions could have been added
summary
Summary
  • TweaXML provides an easier way to deal with xml files.
  • Data can be extracted and written out in user-defined formats.
  • No need to learn APIs like DOMParser and SAXParser
  • It’s not perfect, but it’s highly useful.
  • More functionalities could have been provided if given more time.
