formal methods of systems specification logical specification of hard and software

Formal Methods of Systems SpecificationLogical Specification of Hard- and Software

Prof. Dr. Holger Schlingloff

Institut für Informatik der Humboldt Universität

and

Fraunhofer Institut für Rechnerarchitektur und Softwaretechnik

specification based testing
Specification Based Testing
  • Last week: assertion languages
    • Anna for Ada
    • OCL for UML
    • Java Modeling Language (JML) for Java
    • Spec# for C#
    • PSL for VHDL
    • ACSL for C (see Frama-C)
  • No huge success (yet)
    • verification burdon upon programmer
    • increases time & cost of programming
  • Use of specifications for testing?
    • Specifications are written by testers for testing
    • Implementation (IUT) is a black box - only executable
systems development process
Systems Development Process
  • Test spec: „Spec# model program“
  • Test model: „FSM model exploration“
  • Test case: „scenario“

Requirements

System Spec

Test Spec

Test Model

System Model

System Impl.

Test Cases

test specification

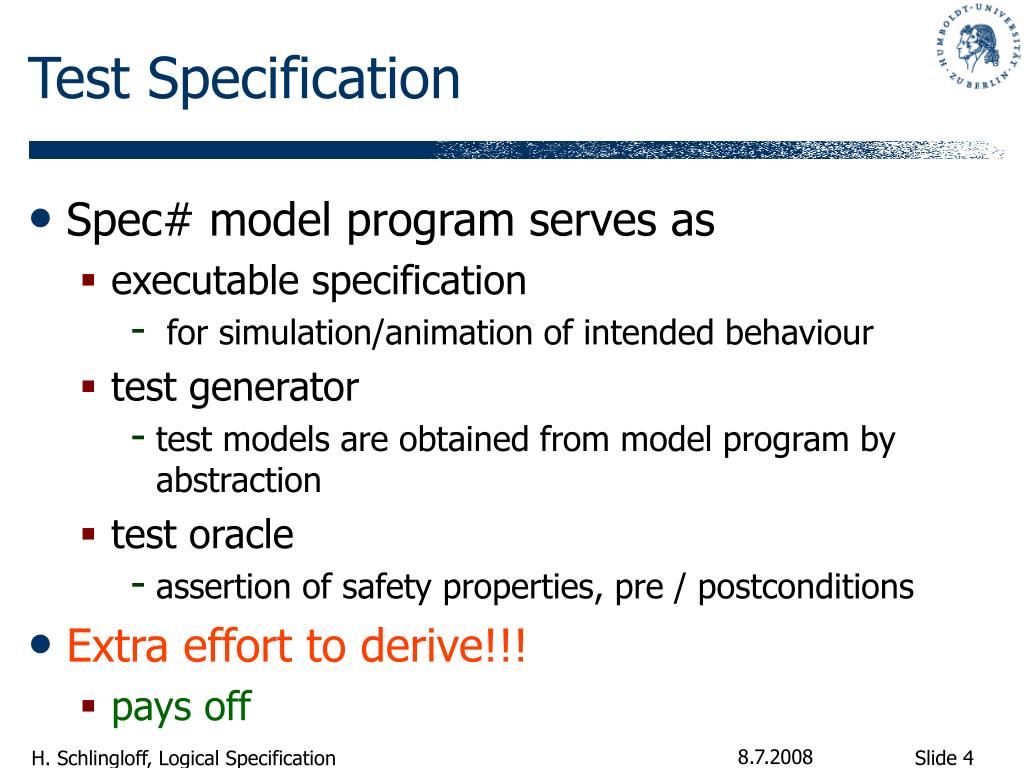

Test Specification
  • Spec# model program serves as
    • executable specification
      • for simulation/animation of intended behaviour
    • test generator
      • test models are obtained from model program by abstraction
    • test oracle
      • assertion of safety properties, pre / postconditions
  • Extra effort to derive!!!
    • pays off

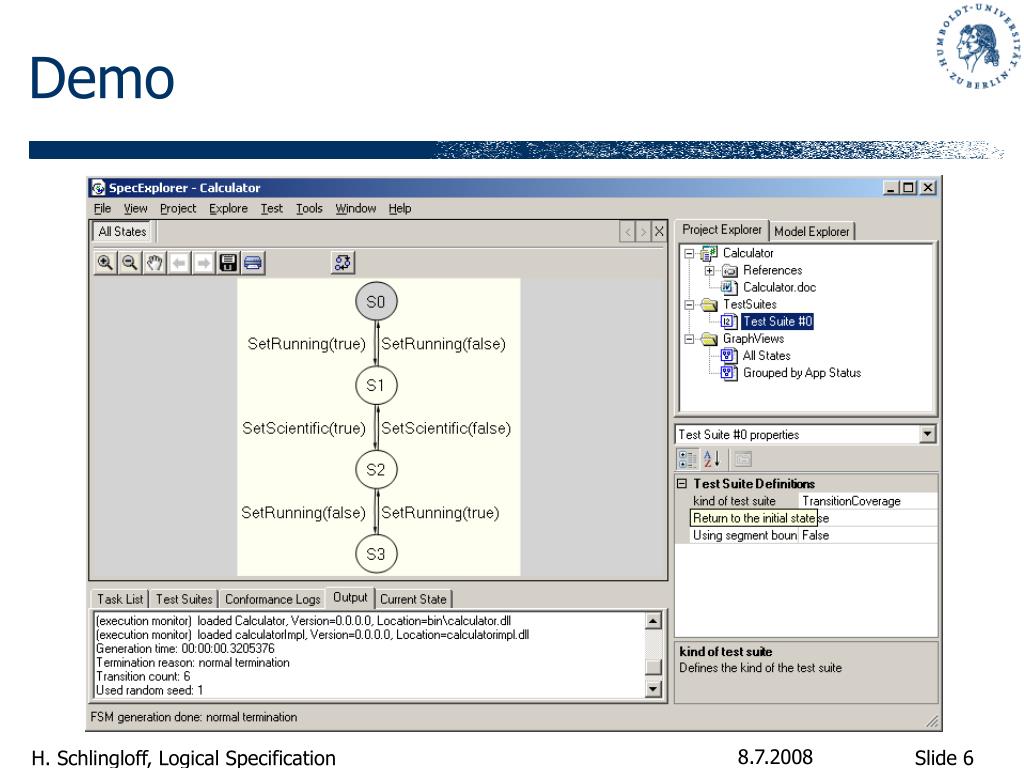

example calculator

SR(Τ)

¬R

¬S

R

¬S

SR()

SS(Τ)

SS()

¬R

S

R

S

SR(Τ)

SR()

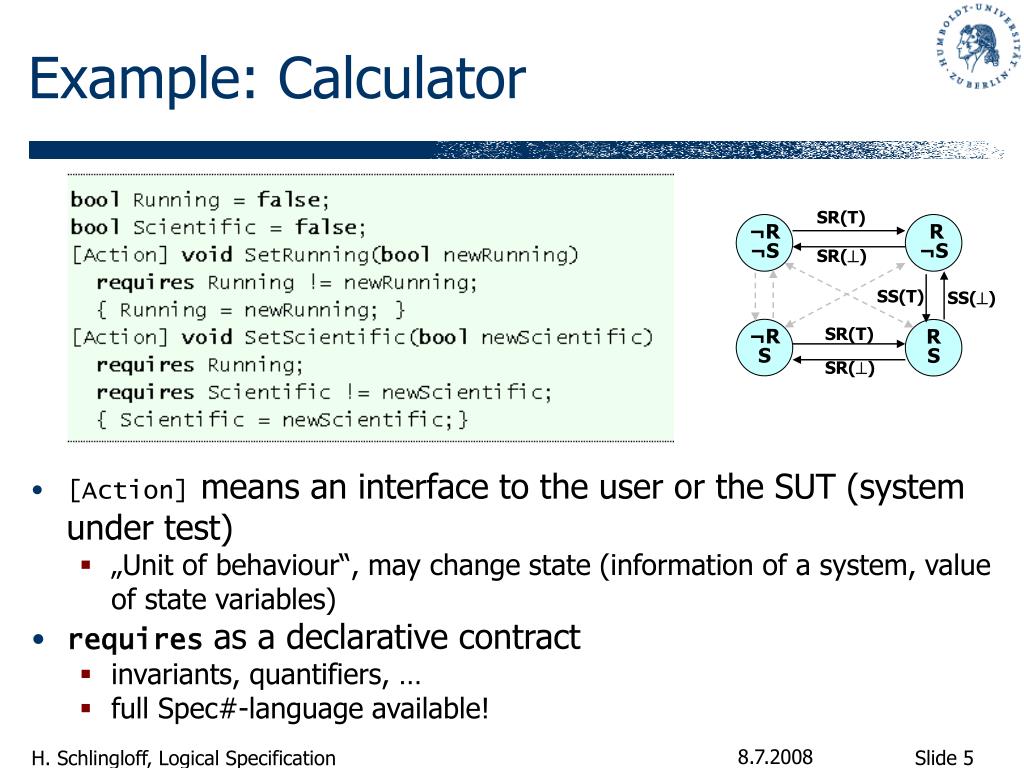

Example: Calculator
  • [Action] means an interface to the user or the SUT (system under test)
    • „Unit of behaviour“, may change state (information of a system, value of state variables)
  • requires as a declarative contract
    • invariants, quantifiers, …
    • full Spec#-language available!
spec explorer tool

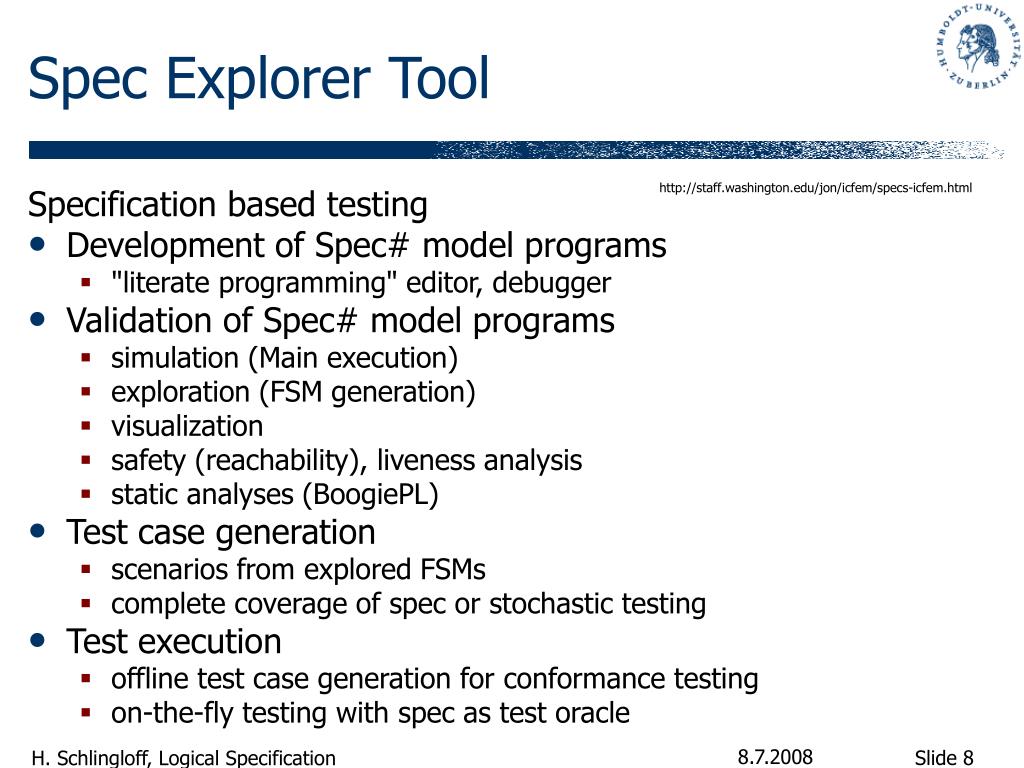

Spec Explorer Tool

http://staff.washington.edu/jon/icfem/specs-icfem.html

Specification based testing

  • Development of Spec# model programs
    • "literate programming" editor, debugger
  • Validation of Spec# model programs
    • simulation (Main execution)
    • exploration (FSM generation)
    • visualization
    • safety (reachability), liveness analysis
    • static analyses (BoogiePL)
  • Test case generation
    • scenarios from explored FSMs
    • complete coverage of spec or stochastic testing
  • Test execution
    • offline test case generation for conformance testing
    • on-the-fly testing with spec as test oracle
spec explorer artefacts

1) Model

program

Provides expected results for

(behavior

al

7) Log of

specification)

c

onformance

-

checking

Explored

by Spec Explorer

test run

2)

Explored

s

scenarios

4) Test

Generate

(possible runs as

suites

finite state machine)

Provides

actual

Are run by

Visualized by

results for

5) User

-

written

3) Graph views

wrapper

6) Implementation

Invokes

(API driver)

under test

Spec Explorer Artefacts

…\Spec Explorer\doc\SpecExplorerReference.doc

test spec vs system spec

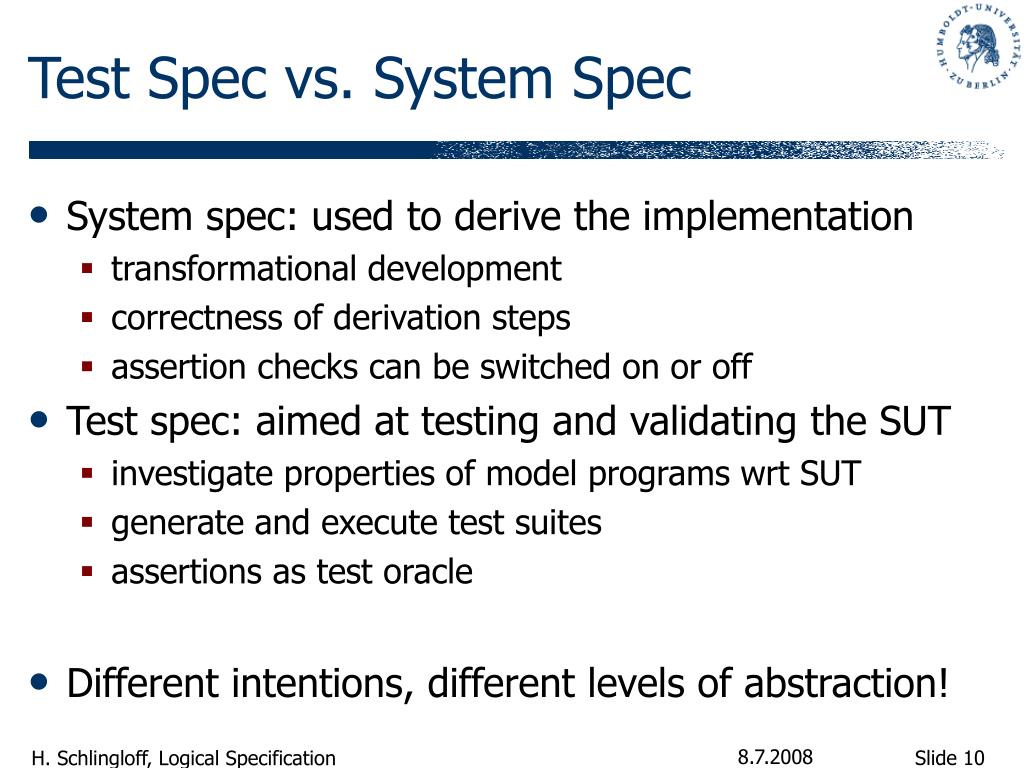

Test Spec vs. System Spec
  • System spec: used to derive the implementation
    • transformational development
    • correctness of derivation steps
    • assertion checks can be switched on or off
  • Test spec: aimed at testing and validating the SUT
    • investigate properties of model programs wrt SUT
    • generate and execute test suites
    • assertions as test oracle
  • Different intentions, different levels of abstraction!
modeling abstraction
Modeling: Abstraction
  • Minimum code needed to generate scenarios of interest –no need to be comprehensive
  • Adequate level of abstraction (state variables, actions in SUT to test):
    • Global point of view, each agent can see each other agents' state
    • All state information (files, messages, …) in model variables
    • Each action (at chosen level of abstraction) is coded as a method in the model (need not correspond 1:1 to methods in IUT)
    • Model program has a single thread, interleaving actions can represent concurrency
    • Actions are atomic, no interleaving within action bodies
    • Multiple assignments within an action can represent parallelism
  • Model introduces new state space, reconcile with SUT
modeling coding
Modeling: Coding
  • To code each action
    • When is it enabled? (requires ...)
      • multiple actions enabled in the same state models nondeterminism
      • allows for interleaving concurrency
    • What (if anything) does it return? (return ...)
    • What is next state? Is it different? (assignments, ... = ... )
  • Distinguish top level [Action] methods from helper methods
  • Possibly write Main method(s) to simulate scenario(s)
example s

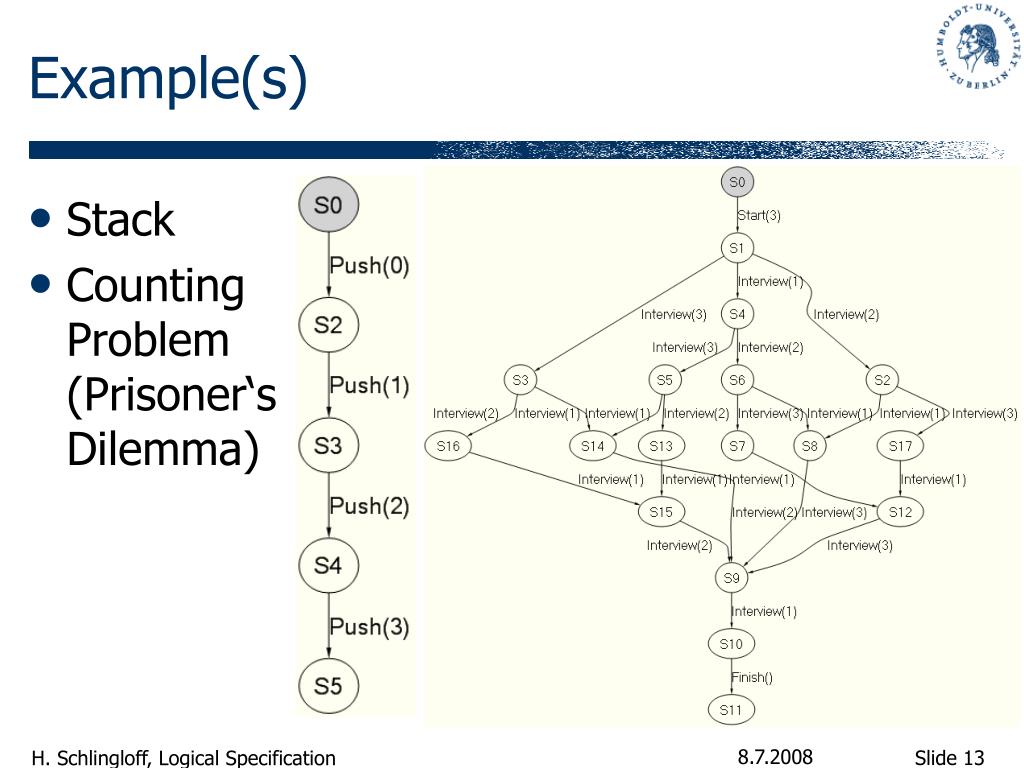

Example(s)
  • Stack
  • Counting Problem (Prisoner‘s Dilemma)
test design

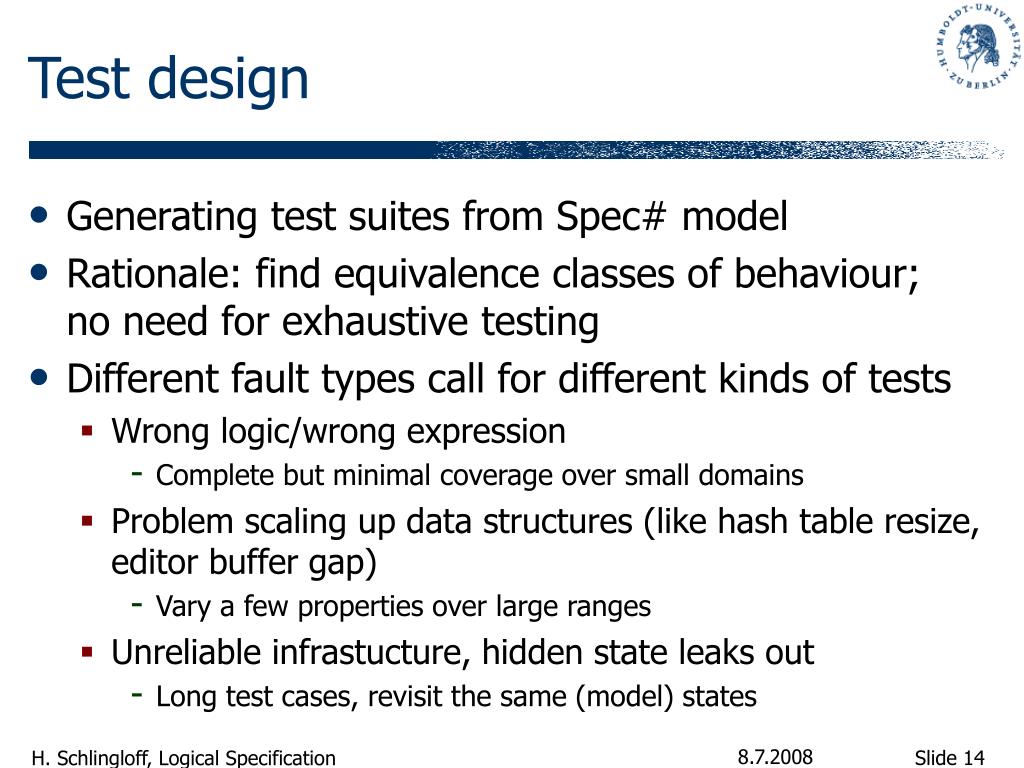

Test design
  • Generating test suites from Spec# model
  • Rationale: find equivalence classes of behaviour;no need for exhaustive testing
  • Different fault types call for different kinds of tests
    • Wrong logic/wrong expression
      • Complete but minimal coverage over small domains
    • Problem scaling up data structures (like hash table resize, editor buffer gap)
      • Vary a few properties over large ranges
    • Unreliable infrastucture, hidden state leaks out
      • Long test cases, revisit the same (model) states
exploration
Exploration
  • Exploration generates a finite state machine (FSM) from the model program for
    • validation (visualization, check safety and liveness), and
    • offline test case generation
  • Exploration executes the model program in a special environment, building the FSM as it goes.
    • each invocation (method call including args) is a transition in the FSM
    • execute all enabled invocations from a state (backtracking, in effect)
    • execute each method with all combinations of arguments from given finite domain (can simulate internal nondeterminism with additional arguments).
  • Generated FSM is an underapproximation of the model program
    • can be nondeterministic
exploration algorithm
Exploration algorithm
  • Exploration treats model program state as first class.
    • Spec# compiler generates code with storage management hooks
    • explorer creates set of hyperstates as approximation of sets of states
    • executes the actions of the given spec on concrete states of that spec and building up the hyperstates
    • end state of a new transition is added to the frontier if the transition is relevant (is an improvement towards goal)
  • Abstraction vs. Exploration
    • abstraction (e.g., hiding of variables) yields over-approximation (more transitions than „really“)
    • model exploration yields under-approximation
test case generation
Test case generation
  • Offline test case generation: traverse FSM generated by exploration
    • Different traversal algorithms achieve different coverage
      • Postman tour gives minimal transition coverage (not path coverage)
    • Identify "accepting states" where test run may terminate
    • Identify "cleanup actions" that make progress toward accepting state
    • Tool ensures each test case reaches accepting state (via cleanup actions)
  • Tool can store test suite internally for subsequent conformance testOR tool can write out test suite as C# program
conformance testing
Conformance testing
  • Tool can act as test harness for conformance testing
  • Tool can reference and execute IUT (binary, DLL)
  • Model and IUT can be at different levels of abstraction, must reconcile model state space with IUT state space
    • Write wrapper or test driver around IUT
    • Wrapper can translate IUT values to model values
    • [Probe] actions can return (translated) IUT state variables
  • Action bindings, type bindings defined in configuration
  • Object bindings made dynamically
  • Lockstep execution, model with IUT, check:
    • actions are enabled
    • correct return values
