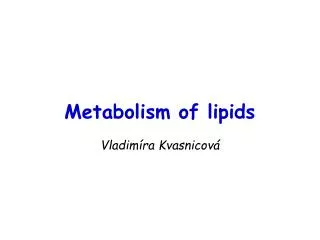

  1. Metabolism of lipids Vladimíra Kvasnicová

  2. Lipids= group of biological molecules that are insoluble in aqueous solutionsand soluble in organic solvents • structural components of biological membranes • energy reserves, predominantly in the form of triacylglycerols (TAG) • excellent mechanical and thermal insulators • biologically active compounds(vitamins, hormones, bile acids, visual pigment)

  3. The figure was adopted from: J.Koolman, K.H.Röhm / Color Atlas of Biochemistry, 2nd edition, Thieme 2005

  4. Structural components of lipids • alcohols • glycerol (a) • sfingosine (b) • cholesterol (c) • inositol (d) • long chain carboxylic acids(= fatty acids) a) b) c) d) The figures are adopted from http://en.wikipedia.org (April 2007)

  5. Free Fatty Acids(FFA) The figure is found at http://www.tvdsb.on.ca/saunders/courses/online/SBI3C/Cells/Lipids.htm (Jan 2007)

  6. The figure was adopted from: J.Koolman, K.H.Röhm / Color Atlas of Biochemistry, 2nd edition, Thieme 2005

  7. Structure of lipids The figure is found at http://courses.cm.utexas.edu/archive/Spring2002/CH339K/Robertus/overheads-2/ch11_lipid-struct.jpg(Jan 2007)

  8. The figure is found athttp://courses.cm.utexas.edu/archive/Spring2002/CH339K/Robertus/overheads-2/ch11_cholesterol.jpg (Jan 2007)

  9. The figure was adopted from: J.Koolman, K.H.Röhm / Color Atlas of Biochemistry, 2nd edition, Thieme 2005

  10. Structure of phospholipid The figure is found at http://www.mie.utoronto.ca/labs/lcdlab/biopic/fig/3.21.jpg (Jan 2007)

  11. sphingosine ceramide = amide formed from sphingosine and fatty acid The figure is found at http://web.indstate.edu/thcme/mwking/lipid-synthesis.html#phospholipids (Jan 2007)

  12. Choose compounds counting among lipids • glycerol • triacylglycerols • ketone bodies • cholesterol

  13. Choose compounds counting among lipids • glycerol • triacylglycerols • ketone bodies • cholesterol Aceton The fiugure is from the book: Devlin, T. M. (editor): Textbook of Biochemistry with Clinical Correlations, 4th ed. Wiley‑Liss, Inc., New York, 1997. ISBN 0‑471‑15451‑2

  14. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  15. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  16. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  17. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  18. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  19. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  20. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  21. The figure was accepted from the book: Grundy, S.M.: Atlas of lipid disorders, unit 1. Gower Medical Publishing, New York, 1990.

  22. Lipoproteins

  23. Choose correct statements about a transport of lipids in blood • triacylglycerols are transfered mainly by chylomicrons and VLDL • free fatty acids are bound to albumin • cholesterol is transfered mainly by HDL and LDL • ketone bodies do not need a transport protein

  24. Choose correct statements about a transport of lipids in blood • triacylglycerols are transfered mainly by chylomicrons and VLDL • free fatty acids are bound to albumin • cholesterol is transfered mainly by HDL and LDL • ketone bodies do not need a transport protein

  25. Releasing of freefatty acids from TAGof fatty tissue and their followed transportto target cells The figure is found at http://courses.cm.utexas.edu/archive/Spring2002/CH339K/Robertus/overheads-3/ch17_lipid-adipocytes.jpg (Jan 2007)

  26. Lipases

  27. Degradation of phospholipids (hydrolysis) The figure is found at http://web.indstate.edu/thcme/mwking/lipid-synthesis.html#phospholipids (Jan 2007)

  28. Regulation of lipolysis

  29. -oxidation of fatty acids (1 cycle) dehydrogenation The figure is found at http://www.biocarta.com/pathfiles/betaoxidationPathway.asp (Jan 2007)

  30. cytoplasm Transport of fatty acids into a mitochondrion CARNITIN TRANSPORTER The figure was accepted from the book: Devlin, T. M. (editor): Textbook of Biochemistry with Clinical Correlations, 4th ed. Wiley‑Liss, Inc., New York, 1997. ISBN 0‑471‑15451‑2

  31. Carnitine acyltransferaseregulates -oxidation

  32. Omega-oxidation of fatty acids (endoplasmic reticulum; minority pathway for long chain FA) The figure was found at http://www.biocarta.com/pathfiles/omegaoxidationPathway.asp (January 2007)

  33. -oxidation of fatty acids • proceeds only in the liver • produces NADPH+H+ • is localized in mitochondria • is activated by malonyl-CoA

  34. -oxidation of fatty acids • proceeds only in the liver • produces NADPH+H+ • is localized in mitochondria • is activated by malonyl-CoA

  35. Ketone bodies synthesis(= ketogenesis) • proceeds if -oxidation is  • ounly in the liver: mitochondria Acetyl-CoA OH The figure is found at http://en.wikipedia.org/wiki/Image:Ketogenesis.png (Jan 2007)

  36. Ketone bodies synthesis(= ketogenesis) • proceeds if -oxidation is  • ounly in the liver: mitochondria HMG-CoA is formed also in a cytoplasm during cholesterol synthesis ! Acetyl-CoA OH The figure is found at http://en.wikipedia.org/wiki/Image:Ketogenesis.png (Jan 2007)

  37. Regulation of ketogenesis

  38. Ketone bodies degradation(oxidation) proceeds during starvation in extrahepatic tissuesas an alternative energy source (in a brain as well) Citratecycle The figure is found at http://www.richmond.edu/~jbell2/19F18.JPG (Jan 2007)

  39. Ketone bodies • are synthesized from acetyl-CoA • are produced by muscle tissue as a consequence of increased fatty acid oxidation • serve as an energy substrate for erythrocytes • can be excreted with urine

  40. Ketone bodies • are synthesized from acetyl-CoA • are produced by muscle tissue as a consequence of increased fatty acid oxidation • serve as an energy substrate for erythrocytes • can be excreted with urine

  41. Fatty acid synthesis (1 cycle) The figure is found at http://herkules.oulu.fi/isbn9514270312/html/graphic22.png (Jan 2007)

  42. „activated carbon“

  43. Transport of acetyl-CoA from a mitochondrion to the cytoplasm FA synthesis NADPHfrom pentose cycle The figure is found at http://web.indstate.edu/thcme/mwking/lipid-synthesis.html#synthesis (Jan 2007)

  44. Regulation of fatty acid synthesis

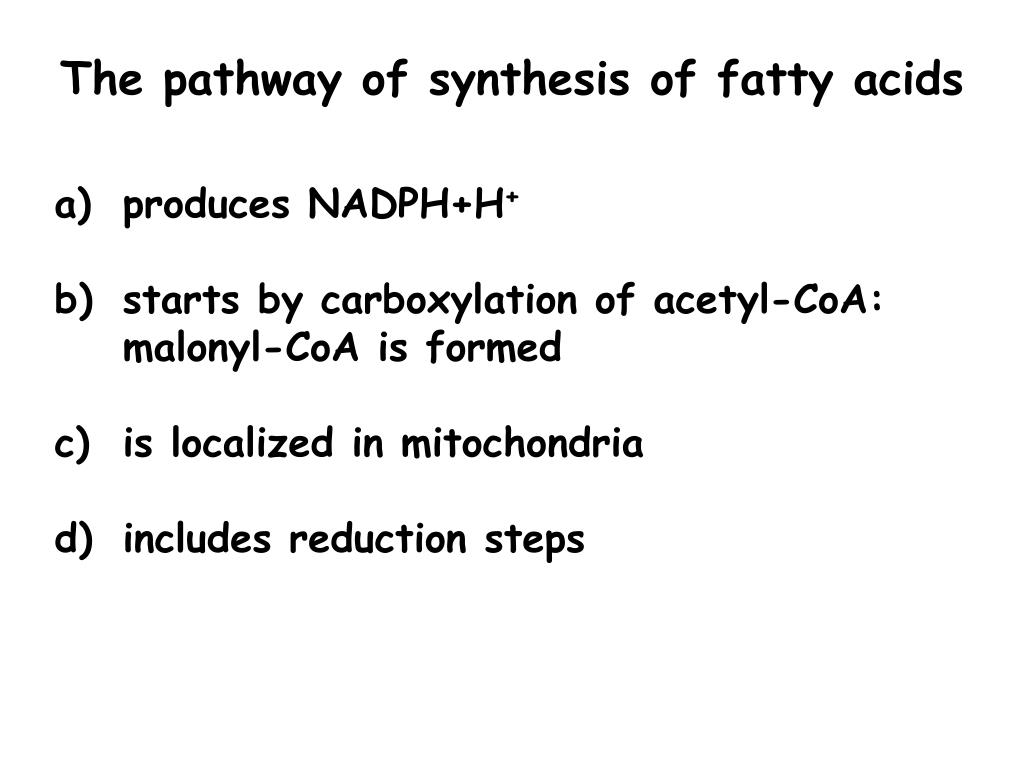

  45. The pathway of synthesis of fatty acids • produces NADPH+H+ • starts by carboxylation of acetyl-CoA: malonyl-CoA is formed • is localized in mitochondria • includes reduction steps

  46. The pathway of synthesis of fatty acids • produces NADPH+H+ • starts by carboxylation of acetyl-CoA: malonyl-CoA is formed • is localized in mitochondria • includes reduction steps

  47. Comparision of fatty acid synthesis and degradation

  48. Biosynthesis of triacylglycerols The figure is found at http://web.indstate.edu/thcme/mwking/lipid-synthesis.html#phospholipids (Jan 2007)

  49. Regulation of TAG metabolism

  50. Biosynthesis of cholesterol regulatory enzyme The figure is found at http://web.indstate.edu/thcme/mwking/cholesterol.html (Jan 2007)
