Presentation Transcript
metrics monitoring understanding of workflows dq2 traces file read fractions

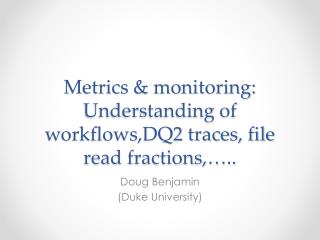

Metrics & monitoring:Understanding of workflows,DQ2 traces, file read fractions,…..

Doug Benjamin

(Duke University)

understanding analysis workflows
Understanding Analysis workflows
  • User analysis is an interactive activity
    • Some steps are very repetitive
    • Much of the repetition is done
  • Understanding the work flows requires getting information from users
    • Long term goal understand pattern all the way down to local analysis cluster
  • User analysis workflow is evolving
    • Data volume in 2011 allowed for certain behavior
    • Data volume in 2012 requires changes from some users
    • Analyses are migrating from simple cut and count to more sophisticated ones (Multivariate analyses)
      • Implies an increase in computing resources
    • Input data products evolve
      • AOD to D3PD mix changes with time
user analysis interviews
User analysis interviews
  • Recently conducted in depth interviews with over 20 people
    • Goal understand how people actually work
    • Develop series of questions that can be put into US ATLAS analysis survey and ATLAS wide distributed Analysis survey (both will go out before Software and computing week mid-Oct)
  • General themes are immerging but there are many different solutions
    • Solutions vary person to person
    • Task to task
      • Some efforts require AOD’s and other group D3PD’s
  • Most users work both on the grid and off of it.
    • ~ 10% of user datasets are used as inputs to further processing steps on the grid
some basic work flows
Some basic work flows
  • On grid process AOD’s to produce private ntuples. Private ntuples fetched to local computing (usually with dq2-get)
  • On grid process AOD’s to produce histograms – histograms fetch to local computing
  • On grid use group Produced D3PD to skim events by simple cuts, bring skimmed D3PD to local computing
    • Data volume in 2012 makes this almost impossible
  • On grid use group Produced D3PD to skim events and slim D3PD by dropping branches. Pull results to local computing for further analysis
  • On grid input histogram files – run pseudo experiments – output histogram files for further review
work flows at cern
Work flows at CERN
  • EOS system highly successful. – Popular with users
  • On Sept 8th almost 700 users with EOS space – close 50% of the people using Panda on the grid.
  • During past to months – almost 900 TB of data read from user space within EOS
  • EOS can deliver files over the WAN
  • Interesting work flow at CERN: dq2-get from lxbatch nodes.
    • Talked with one user doing to understand why he/she is doing it.
    • Doing trigger studies – code only at CERN and data elsewhere – faster to fetch the data to a batch node than to transfer data via DATRI to scratch disk
work flow conclusions
Work flow conclusions
  • Physicists are intelligent and creative people
    • They have a job do to so they will use creative ways to get the job done
  • There is no one way to work – any system must be adaptable
  • Increasing data volumes will provide challenges this year and in the future
  • Wide area access and caching of the data could and should be part for the solution
dq2 trace analysis
DQ2 trace analysis
  • DQ2 trace data dumps – provided by Thomas Beerman – vital for results presented here
    • Have dumps for past two weeks, April 2012, May ’12, June ‘12 and July ‘12

Analysis from last 2 weeks of activity

  • At CERN
    • 6 users use dq2-get on lxbatch
      • Datasets not at CERN, 20418 dq2-get requests, 666 unique datasets
    • 457 users dq2-get on lxplus or other machines at CERN ( 90 US people stationed at CERN – 19.7% of users)
      • 161 TB transferred – (11.5 TB US users)
      • 24559 requests ( 925 – US users) 20500 unique DS mostly user datasets
  • Activity away from CERN
    • 25210 requests , ~ 70 TB, 428 users, 355 nodes (US #’s , 15.7 TB, 72 nodes, 101 users)
    • Single site with most activity – Univ. of Chicago Tier 3 (they have a Tier 2 there also)
  • In July 168 sites (away from CERN) received data via dq2-get
how much data do users read in d3pd s
How much data do users read in D3PD’s?
  • Centrally produced D3PD’s very important part of the most users analysis activities
  • Group D3PD’s the or of all possible variables
    • Many thousand branches and users only use a few hundred.
    • Activity started in many different fronts to determine what branches are really being used.
  • Using the information collected by Sarah Williams (Indiana University – MWT2) and published on the web.
  • Can see from the storage system (due to direct read over LAN) point of view what is happening, extremely helpful – incomplete though
  • EOS team at CERN collected similar information –
    • Effort between ATLAS – CERN IT to understand the information
integral removing peak 100 read file transfer
Integral (removing peak 100% read – file transfer)
  • 85% of all reads of group D3PD’s read less than 20% of file
  • 76% of all reads of user files read less than 20% of file
  • Files full of a lot of unread data
efforts to understand what users are doing
Efforts to understand what Users are doing.
  • Users are productive ( proof – Higgs result, paper output of ATLAS – impressive)
  • Use of prun while very effective missing critical monitoring features
    • Can not determine what users are actually reading
  • Simple changes to existing user code can result in significant speed increases
    • Important to start from the User code vs telling them from on high how to change what they are doing.
    • Want evolutionary change
    • Do not want to cause users to be unproductive
  • In US started activity to review user code and work to speed it up.
    • Helps the users with faster code and we see what variables they are using
d3pd analysis wiki
D3PD analysis wiki
  • Helped at least 5 users see 3-4 times increase in processing speed
  • Tool for others to read and speed up there own code
  • As part of message from Panda – plan to tell users of their processing speed (Hz) and compare it to other jobs using same data set.

https://twiki.cern.ch/twiki/bin/view/Atlas/D3PDanalysisOptimizations

conclusions
Conclusions
  • Users are creative and adaptive – goal oriented – primary goal is to get the science out
  • Increasing data volumes present a challenge (including this year)
  • WAN access could be a good tool for the users - needs to be trivial to use and have good performance
  • Can not expect radical changes in user code – must evolutionary to really happen
  • Can partial event caching and block IO help us?
  • Need better monitoring to increase the information density of the files being used – want them to contain the data that users really want and little else.
