oslo customizing and extending the visual design experience

TL18

"Oslo”: Customizing and Extending the Visual Design Experience

DON BOX

DISTINGUISHED ENGINEER

MICROSOFT CORPORATION

FLORIAN VOSS

LEAD PROGRAM MANAGER

MICROSOFT CORPORATION

what is oslo
THE PLATFORM FOR MODEL-DRIVEN APPLICATIONSWhat is "Oslo"?

“M”

Modeling language

“Quadrant”

Modeling tool

Repository

Model store

why quadrant
Why "Quadrant"?
  • As more software becomes more model-driven, the volume of data in the system grows
  • We need a tool that lets people query, update, and visualize that data in ways that make sense for the task at hand
what is quadrant
What is "Quadrant"?
  • “Quadrant” is a tool for interacting with data
    • Flexible, focused design surfaces
    • Default experiences over arbitrary data
    • Rich declarative customization
slide5
Demo

Using Quadrant

using quadrant takeaways

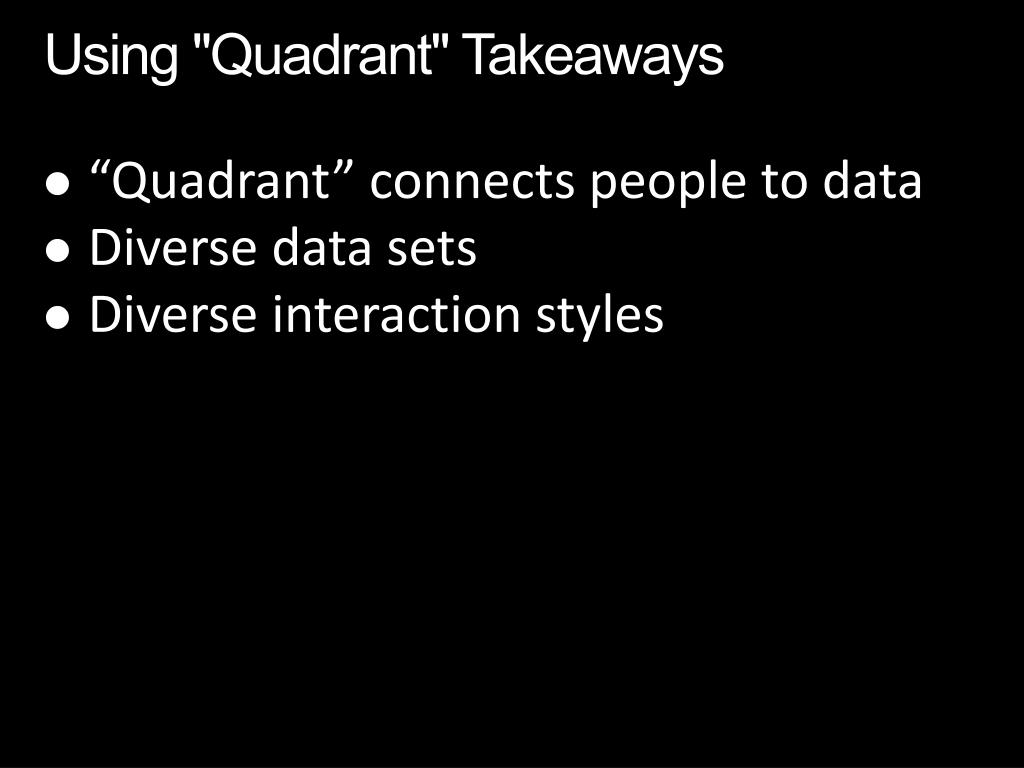

Using "Quadrant" Takeaways
  • “Quadrant” connects people to data
  • Diverse data sets
  • Diverse interaction styles
quadrant and the repository
Quadrant and the Repository

[Your Domains]

Extensibility Scenarios

  • Create new or extend existing models
  • Create new or extend existing editing experiences

TARGET

DOMAINS

People

Storage

Processes

Deployment

Management

Operations

Services

Applications

EDITOR AND

LANGUAGE

FRAMEWORK

DOMAINS

Visual and Textual DSL Configuration

M Model Definition

Shell and Shell Service Configuration

slide8
Demo

Driving "Quadrant" from data

customizing quadrant takeaways
Customizing "Quadrant" Takeaways
  • Quadrant is a model-driven application
  • Customization via data stored in repository
  • View specification based on query/functional evaluation
quadrant architecture
"Quadrant" Architecture

SERVICES

SHELL AND SURFACE

COMPOSITION

ENGINE

Nesting

Sizing

Layout

Snapping

Core Services

Undo/Redo

Commands

Drag/Drop

Selection

Activation

Error Handling

General Services

Search

Validation

Annotations

Relationship Highlighting

DATAFLOW ENGINE

Caching,

Virtualization,

Change tracking, and

Notification

Target Data

View State

Configuration

REPOSITORY

slide11
Demo

"Quadrant" and State

where are we
Where are we?
  • “Quadrant” is a flexible tool for interacting with diverse data
  • “Quadrant” uses the repository for both specification and state
call to action
Call to Action
  • SEE THE OTHER TALKS
  • “Oslo”: The Language
  • “Oslo”: Repository & Models
  • “Oslo”: Building Textual DSLs

USE THE BITS

http://msdn.microsoft.com/oslo

GIVE US FEEDBACK

flovo@microsoft.com

dbox@microsoft.com

evals recordings
Evals & Recordings

Please fill out your evaluation for this session at:

This session will be available as a recording at:

www.microsoftpdc.com

slide16
