configuration issues from the 23 october 2011 van ercis turkey m w 7 1 usgs eq

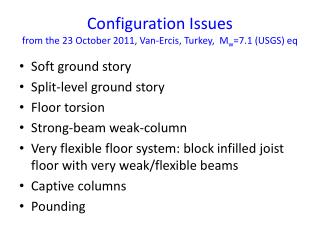

Configuration Issuesfrom the 23 October 2011, Van-Ercis, Turkey, Mw=7.1 (USGS) eq
  • Soft ground story
  • Split-level ground story
  • Floor torsion
  • Strong-beam weak-column
  • Very flexible floor system: block infilled joist floor with very weak/flexible beams
  • Captive columns
  • Pounding
split level ground story1
Split-level Ground Story

Elevator core RC wall seen from inside

floor torsion
Floor Torsion

Column built as a Structural Wall

Structural Wall

in the back

floor torsion1
Floor Torsion

All columns at ground level and along the front and side of the building (away from the center of resistance) developed hinges at their bases.

floor torsion3
Floor Torsion

Structural Wall in the back (no damage)

Column built as a Structural Wall

very flexible floor system
Very Flexible Floor System

Column hinging at the base

bayram hotel in van main city collapsed during the m5 6 eq on 11 9 2011
Bayram Hotel in Van (main city)(collapsed during the M5.6 eq on 11/9/2011)

Photo taken on Nov. 1, 2011

bayram hotel
Bayram Hotel

Photo taken on Nov. 10, 2011

source: milliyet.com.tr
