Automated solid phase extraction system ..

Labotronics Automated Solid Phase Extraction System efficiently processes 24 large water samples. It features 15-10% RH working humidity, a ceramic spool valve to prevent leakage/corrosion, access to 8 solvents, and ensures versatility and convenience.

mariahconner
Download Presentation

Automated solid phase extraction system ..

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

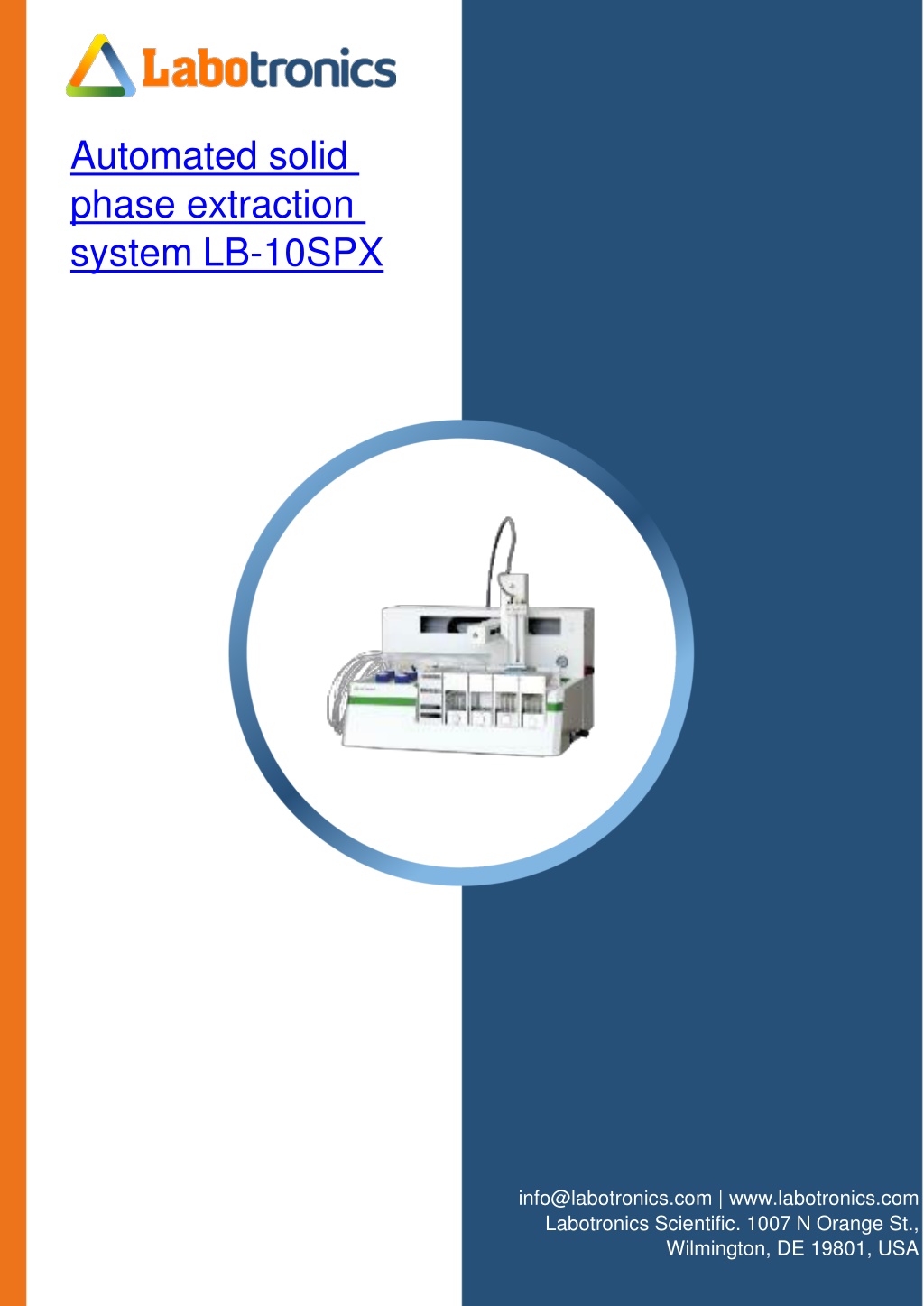

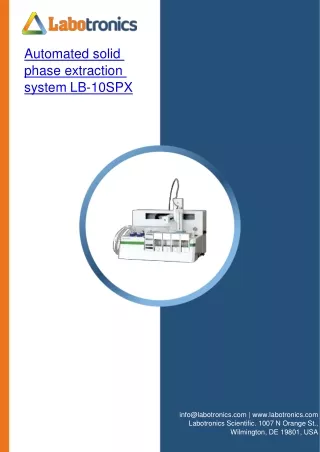

  1. Automated solid phase extraction system LB-10SPX info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

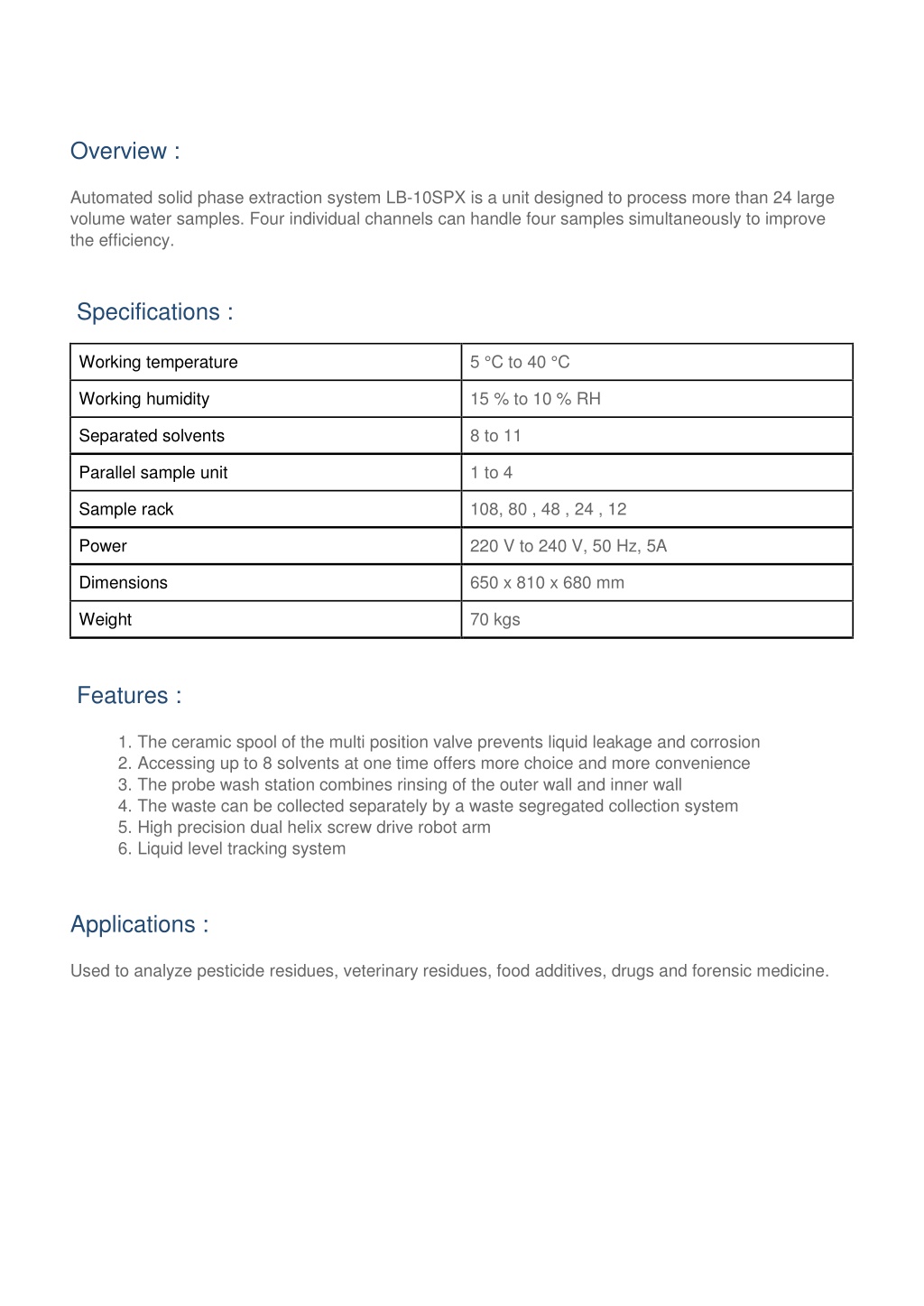

  2. Overview : Automated solid phase extraction system LB-10SPX is a unit designed to process more than 24 large volume water samples. Four individual channels can handle four samples simultaneously to improve the efficiency. Specifications : Working temperature 5 °C to 40 °C Working humidity 15 % to 10 % RH Separated solvents 8 to 11 Parallel sample unit 1 to 4 Sample rack 108, 80 , 48 , 24 , 12 Power 220 V to 240 V, 50 Hz, 5A Dimensions 650 x 810 x 680 mm Weight 70 kgs Features : 1. The ceramic spool of the multi position valve prevents liquid leakage and corrosion 2. Accessing up to 8 solvents at one time offers more choice and more convenience 3. The probe wash station combines rinsing of the outer wall and inner wall 4. The waste can be collected separately by a waste segregated collection system 5. High precision dual helix screw drive robot arm 6. Liquid level tracking system Applications : Used to analyze pesticide residues, veterinary residues, food additives, drugs and forensic medicine.
