Anemometer

Labotrinics Anemomete is a portable meter with a microcontroller system. Features include a dual display, low battery indication, high accuracy NTC resistance, and a wide temperature range (-30 u00b0C ~ 60 u00b0C). It measures air velocity from 0.6 to 100.6 mph and air flow up to 9999 x 100 CMM.

mariahconner
Download Presentation

Anemometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

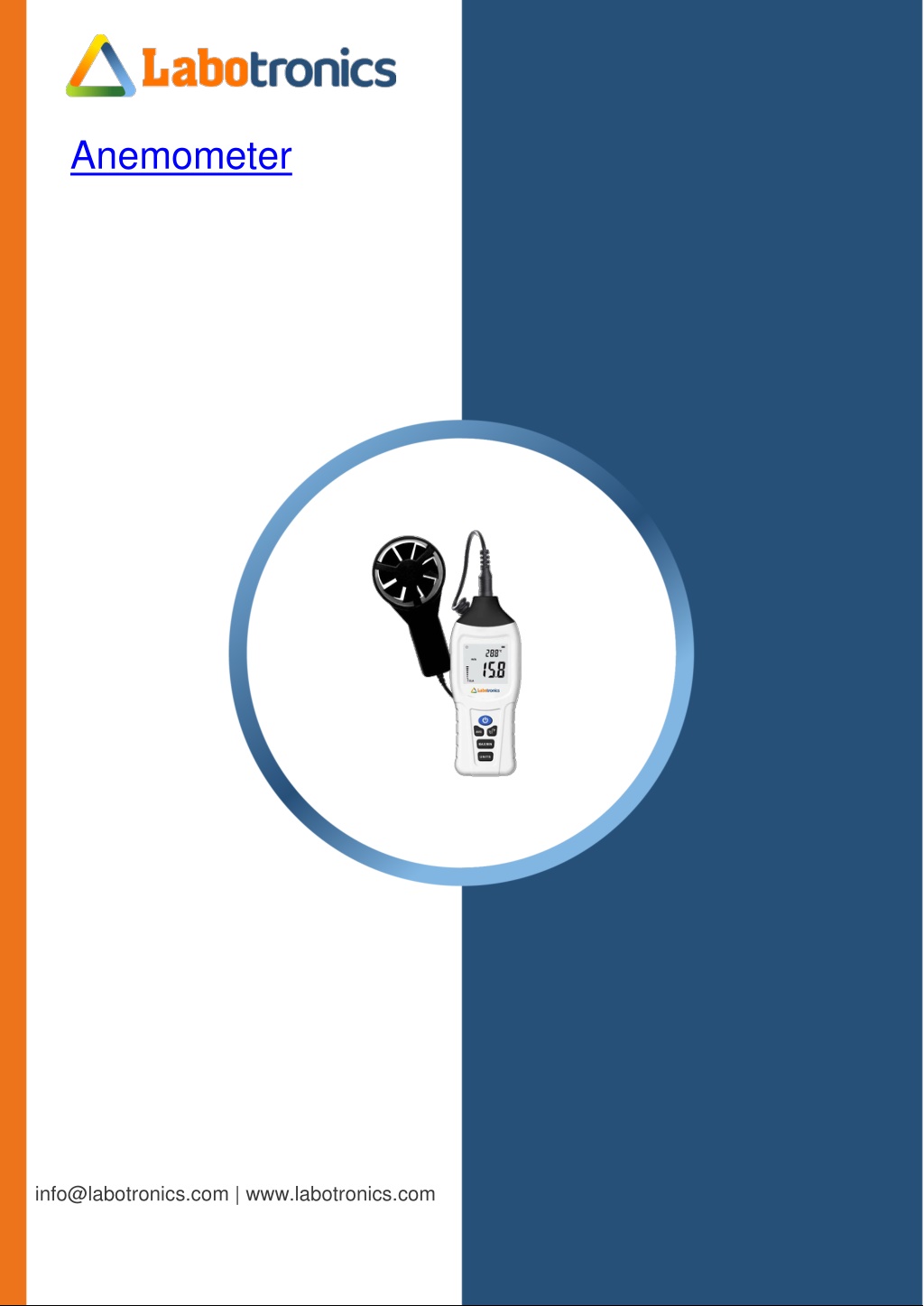

  1. Anemometer info@labotronics.com | www.labotronics.com

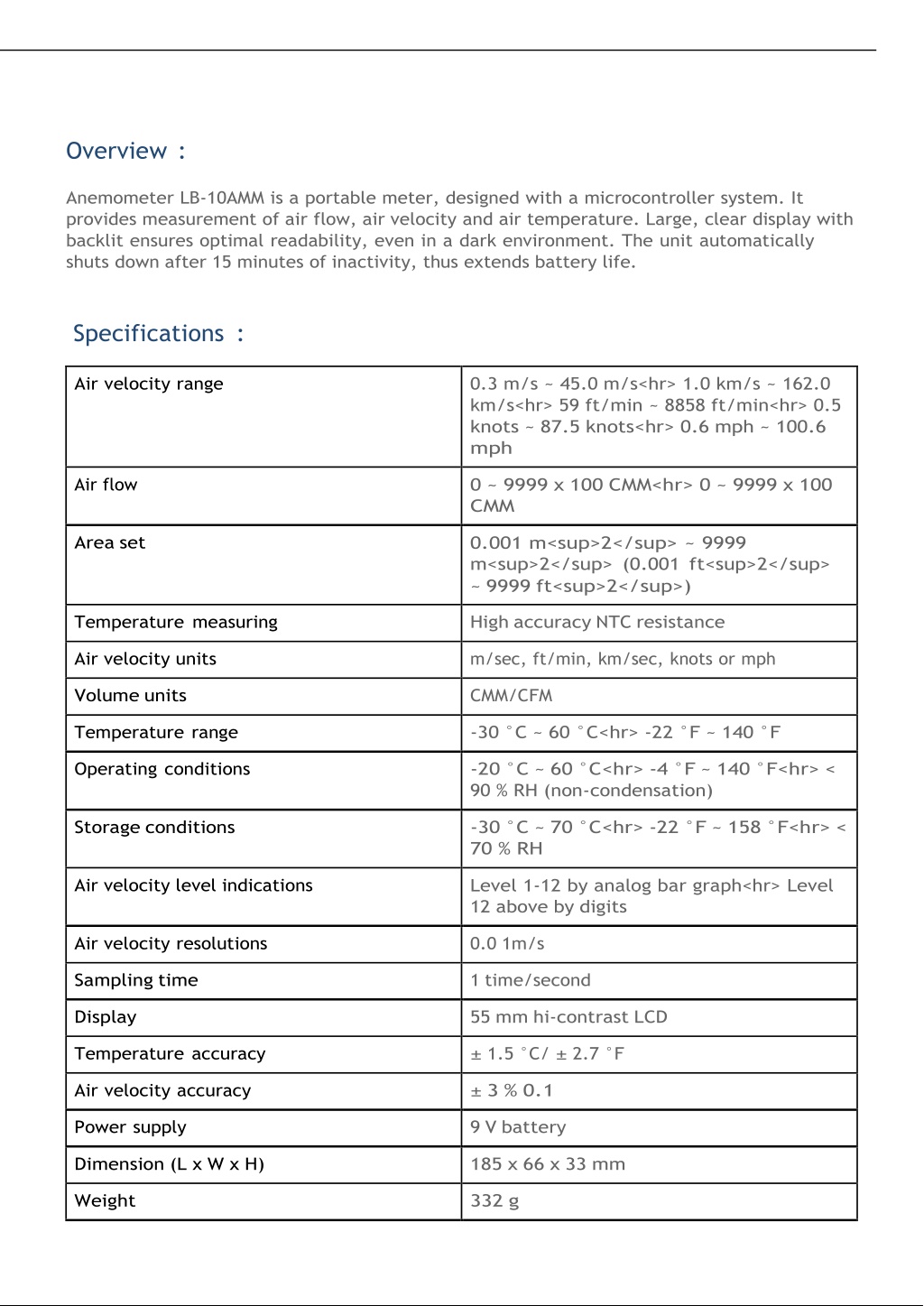

  2. Overview : Anemometer LB-10AMM is a portable meter, designed with a microcontroller system. It provides measurement of air flow, air velocity and air temperature. Large, clear display with backlit ensures optimal readability, even in a dark environment. The unit automatically shuts down after 15 minutes of inactivity, thus extends battery life. Specifications : Air velocity range 0.3 m/s ~ 45.0 m/s<hr> 1.0 km/s ~ 162.0 km/s<hr> 59 ft/min ~ 8858 ft/min<hr> 0.5 knots ~ 87.5 knots<hr> 0.6 mph ~ 100.6 mph Air flow 0 ~ 9999 x 100 CMM<hr> 0 ~ 9999 x 100 CMM Area set 0.001 m<sup>2</sup> ~ 9999 m<sup>2</sup> (0.001 ft<sup>2</sup> ~ 9999 ft<sup>2</sup>) Temperature measuring High accuracy NTC resistance Air velocity units m/sec, ft/min, km/sec, knots or mph Volume units CMM/CFM Temperature range -30 °C ~ 60 °C<hr> -22 °F ~ 140 °F Operating conditions -20 °C ~ 60 °C<hr> -4 °F ~ 140 °F<hr> < 90 % RH (non-condensation) Storage conditions -30 °C ~ 70 °C<hr> -22 °F ~ 158 °F<hr> < 70 % RH Air velocity level indications Level 1-12 by analog bar graph<hr> Level 12 above by digits Air velocity resolutions 0.0 1m/s Sampling time 1 time/second Display 55 mm hi-contrast LCD Temperature accuracy ± 1.5 °C/ ± 2.7 °F Air velocity accuracy ± 3 % 0.1 Power supply 9 V battery Dimension (L x W x H) 185 x 66 x 33 mm Weight 332 g

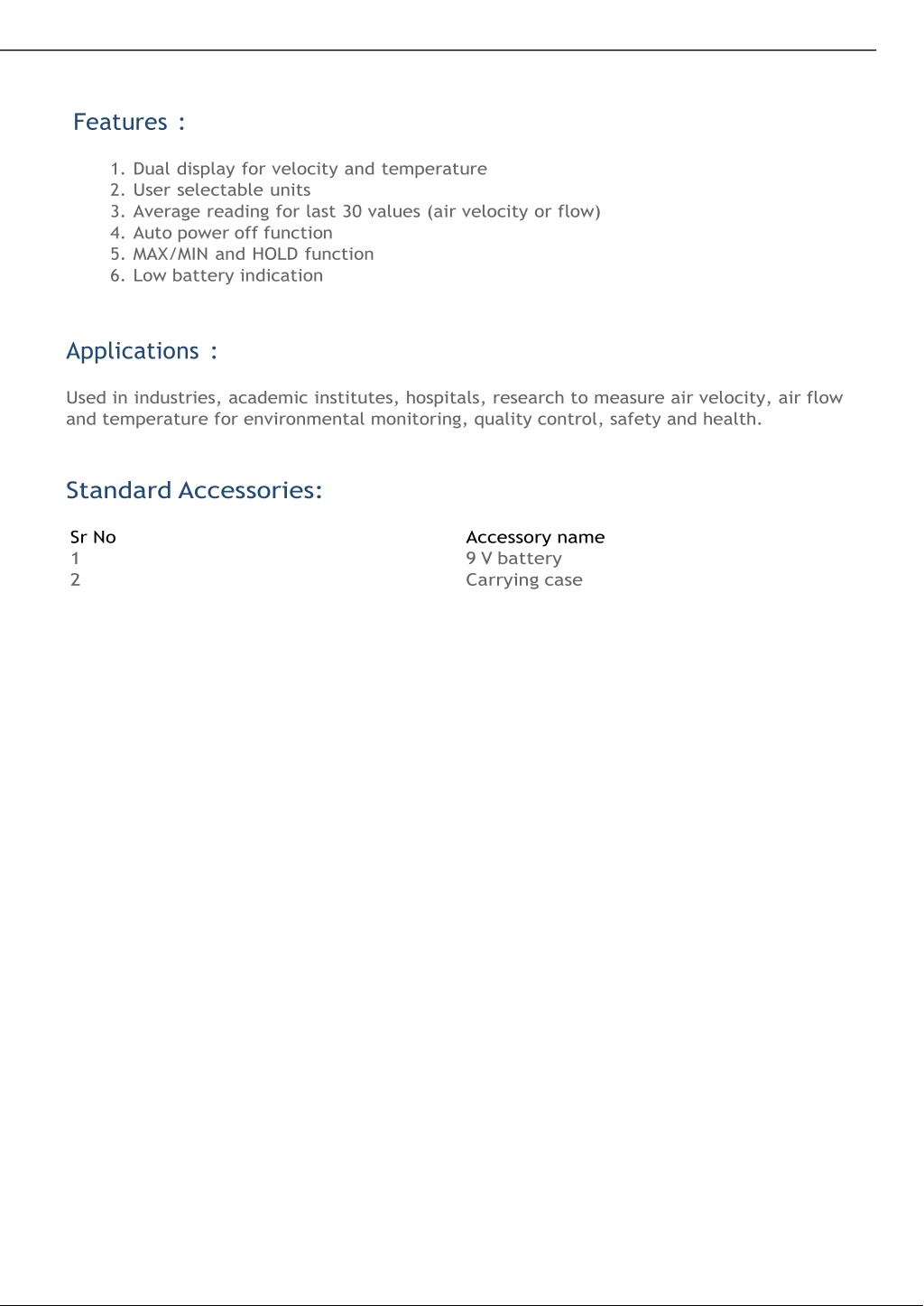

  3. Features : 1.Dual display for velocity and temperature 2.User selectable units 3.Average reading for last 30 values (air velocity or flow) 4.Auto power off function 5.MAX/MIN and HOLD function 6.Low battery indication Applications : Used in industries, academic institutes, hospitals, research to measure air velocity, air flow and temperature for environmental monitoring, quality control, safety and health. Standard Accessories: Sr No 1 2 Accessory name 9 V battery Carrying case

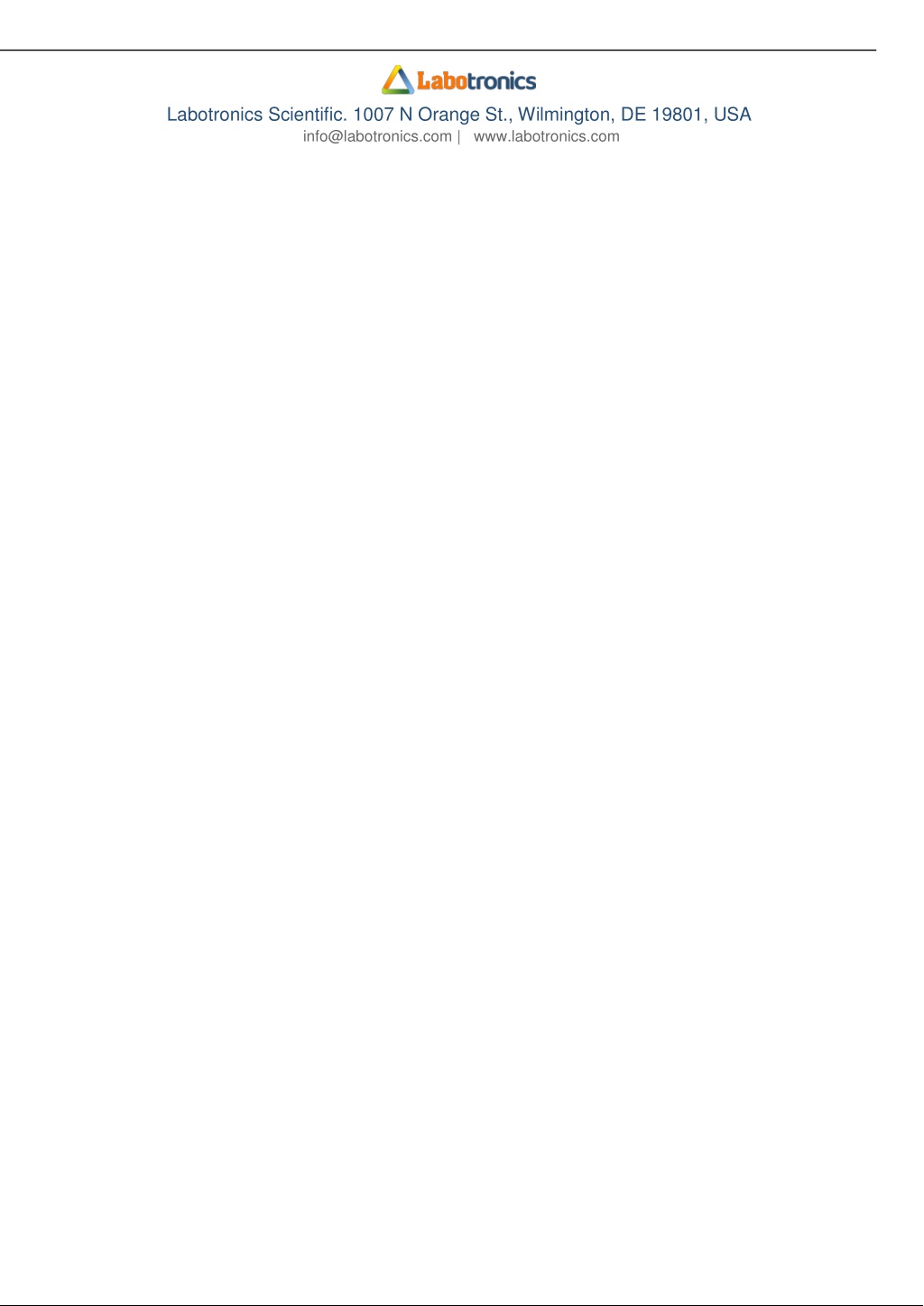

  4. Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA info@labotronics.com | www.labotronics.com
