cs687 information systems security

CS687Information Systems Security

Authentication

By Solomon

text book

Text Book

William Stallings & Lawrie Brown, “Computer Security: Principles and Practice”, Pearson, 2008

By Solomon

references

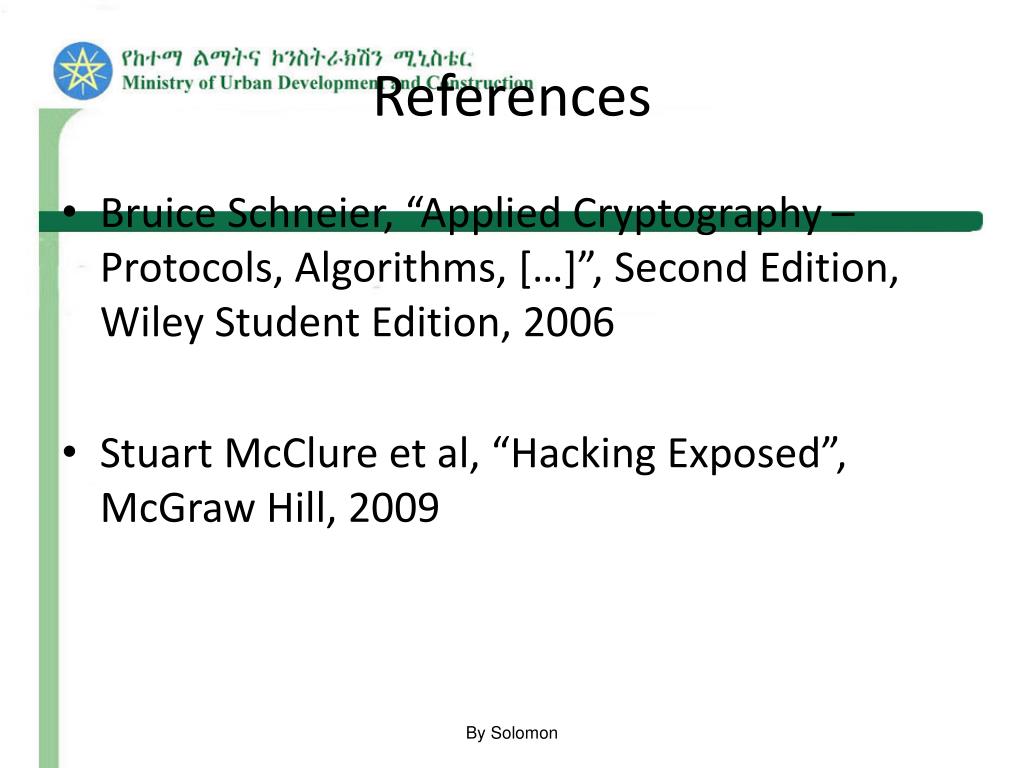

References
  • Bruice Schneier, “Applied Cryptography – Protocols, Algorithms, […]”, Second Edition, Wiley Student Edition, 2006
  • Stuart McClure et al, “Hacking Exposed”, McGraw Hill, 2009

By Solomon

topics in this chapter
Topics in this chapter
  • Password based
  • Token based
  • Dongle
  • Biometric
  • Authentication protocol design
  • Real examples
  • Password cracking
  • Cryptographic authentication
  • Certificate Authority: X.509, VeriSign, Microsoft, peer to peer (see Phil Zimmeman – Cacert.org)
  • Single sign on
  • Kerberos, Sesame
  • Smart card
  • Certification
  • Mutual Authentication
  • Authentication in Windows and in UNIX

By Solomon

entity

Entity

An entity can be a human user, a machine, a server or a process in “whose” name an activity is performed and logged.

By Solomon

identity

Identity

A piece of information that describes an entity. That piece of information can be a name, a fingerprint, a voice signature, an iris image, etc or a combination.

By Solomon

authentication identification

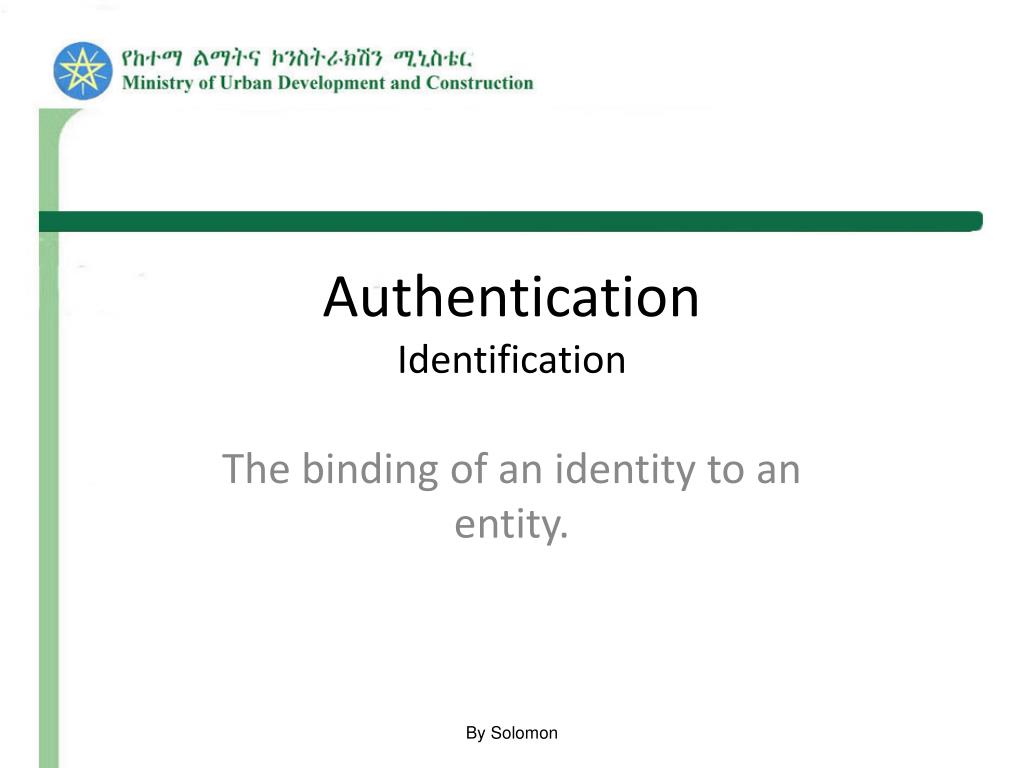

AuthenticationIdentification

The binding of an identity to an entity.

By Solomon

authentication
Authentication
  • What the entity knows (passwords or passphrases)
  • What the entity has (a badge or smartcard)
  • What the entity is (such as fingerprints or retinal characteristics)
  • How the entity behaves (key strokes)
  • [Where the entity is (such as in front of a particular terminal) – no matter who sits there!]

By Solomon

authentication process

Authentication Process

Enrolment

Verification

By Solomon

enrolment

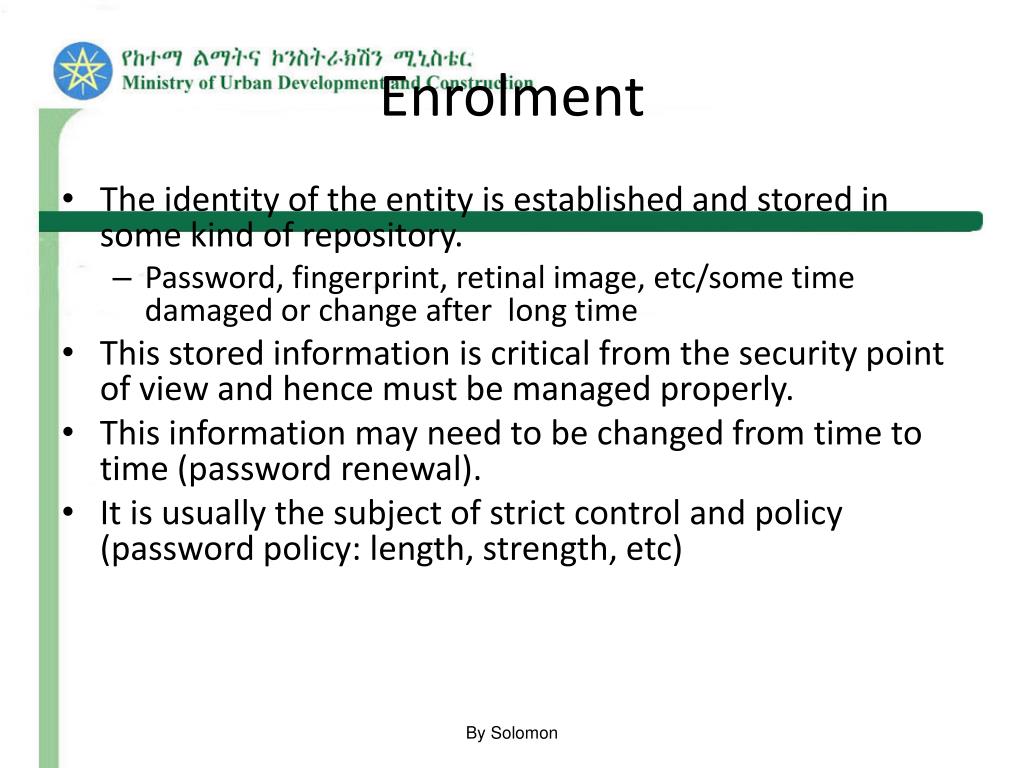

Enrolment
  • The identity of the entity is established and stored in some kind of repository.
    • Password, fingerprint, retinal image, etc/some time damaged or change after long time
  • This stored information is critical from the security point of view and hence must be managed properly.
  • This information may need to be changed from time to time (password renewal).
  • It is usually the subject of strict control and policy (password policy: length, strength, etc)

By Solomon

verification

Verification

This is a process of establishing the identity of a person’s claimed identity from its previously enrolled information.

By Solomon

authentication types

Authentication Types

Simple password

Challenge-response

Token-based

Biometric

By Solomon

simple password

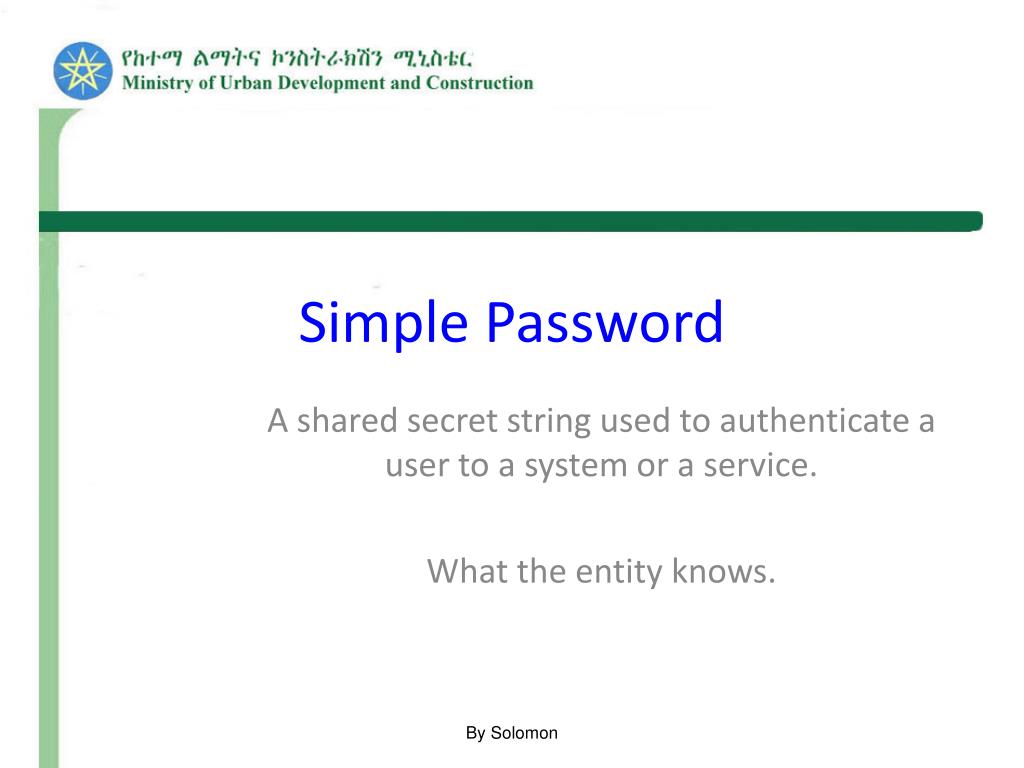

Simple Password

A shared secret string used to authenticate a user to a system or a service.

What the entity knows.

By Solomon

password authentication protocol pap ms windows

Password Authentication Protocol (PAP – MS Windows)

Password Authentication Protocol (PAP) is a simple authentication protocol in which the user name and password is sent to the (remote access) server in a plaintext form.

By Solomon

attack against passwords
Attack against passwords
  • Dictionary
  • Brute-force
  • Compromise the authentication process (eg. The login program, su, and the like).
    • This attack is even more dangerous because it can not even be logged

By Solomon

countering the attacks

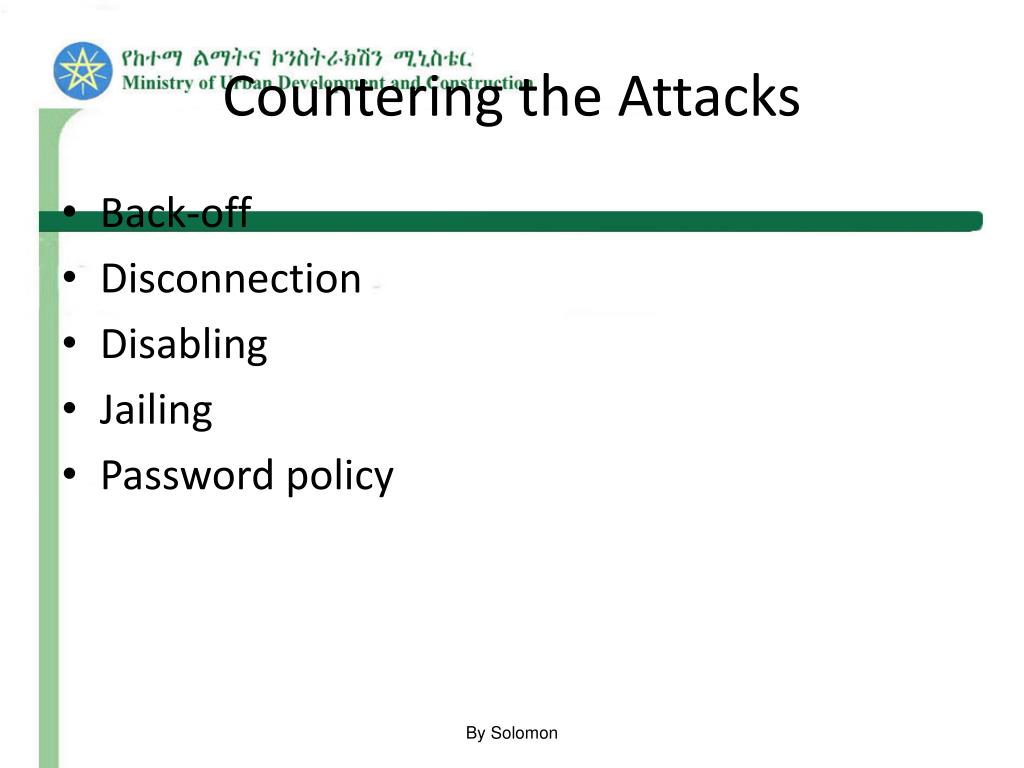

Countering the Attacks
  • Back-off
  • Disconnection
  • Disabling
  • Jailing
  • Password policy

By Solomon

back off technique

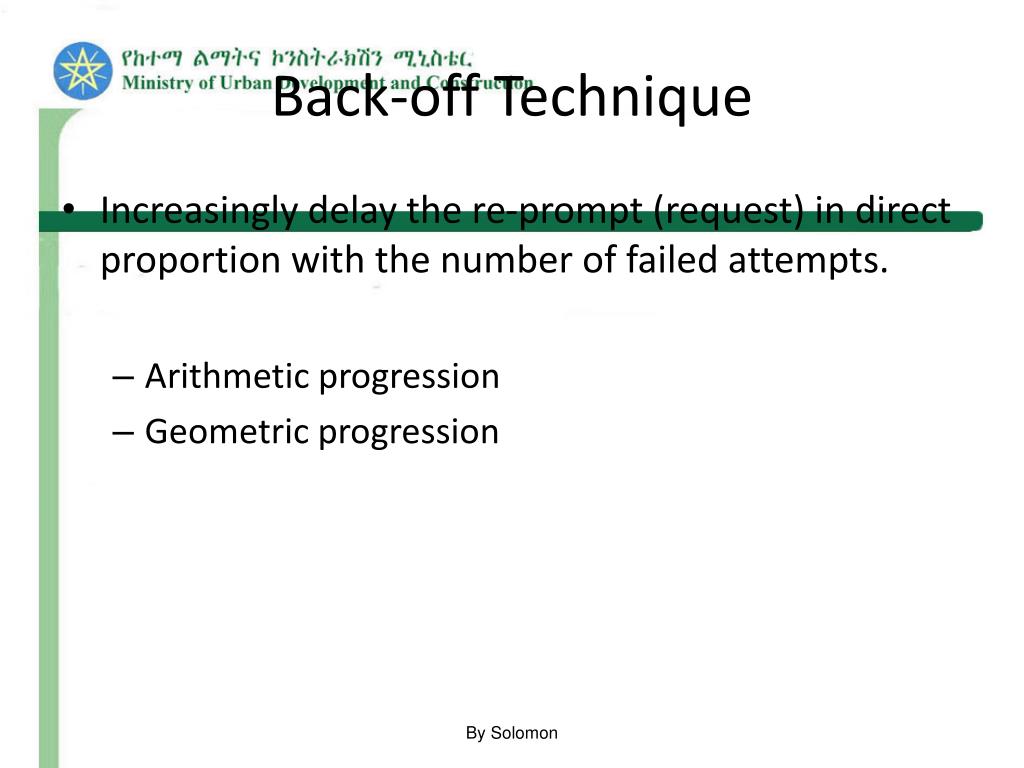

Back-off Technique
  • Increasingly delay the re-prompt (request) in direct proportion with the number of failed attempts.
    • Arithmetic progression
    • Geometric progression

By Solomon

disconnection

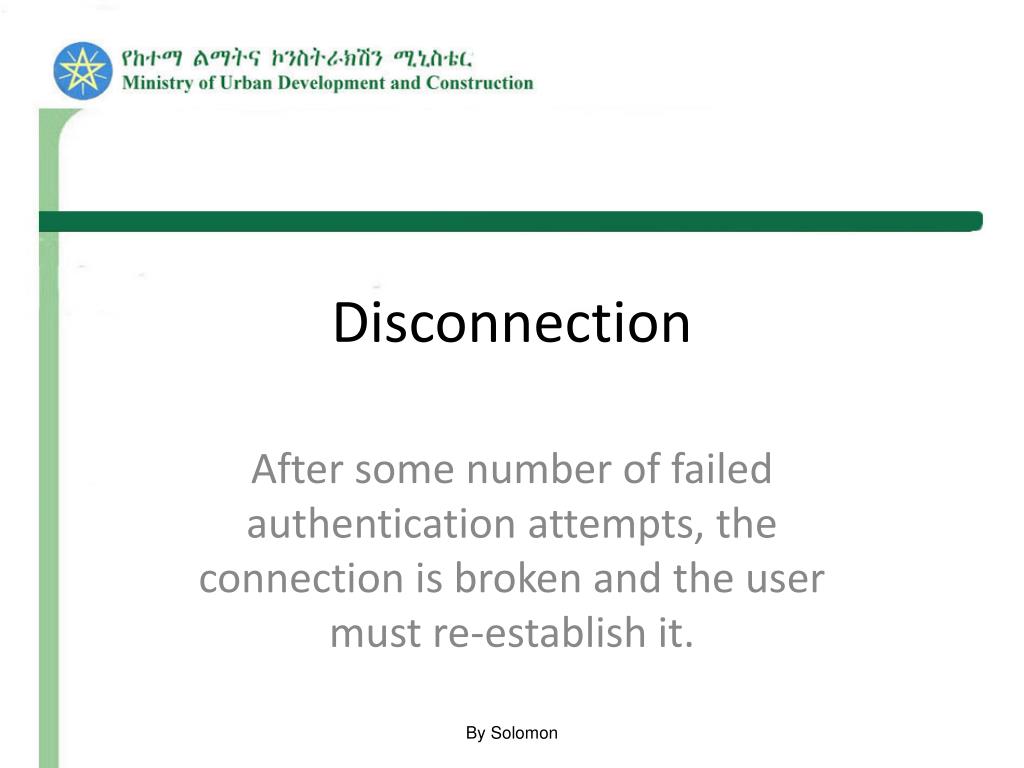

Disconnection

After some number of failed authentication attempts, the connection is broken and the user must re-establish it.

By Solomon

disconnection1

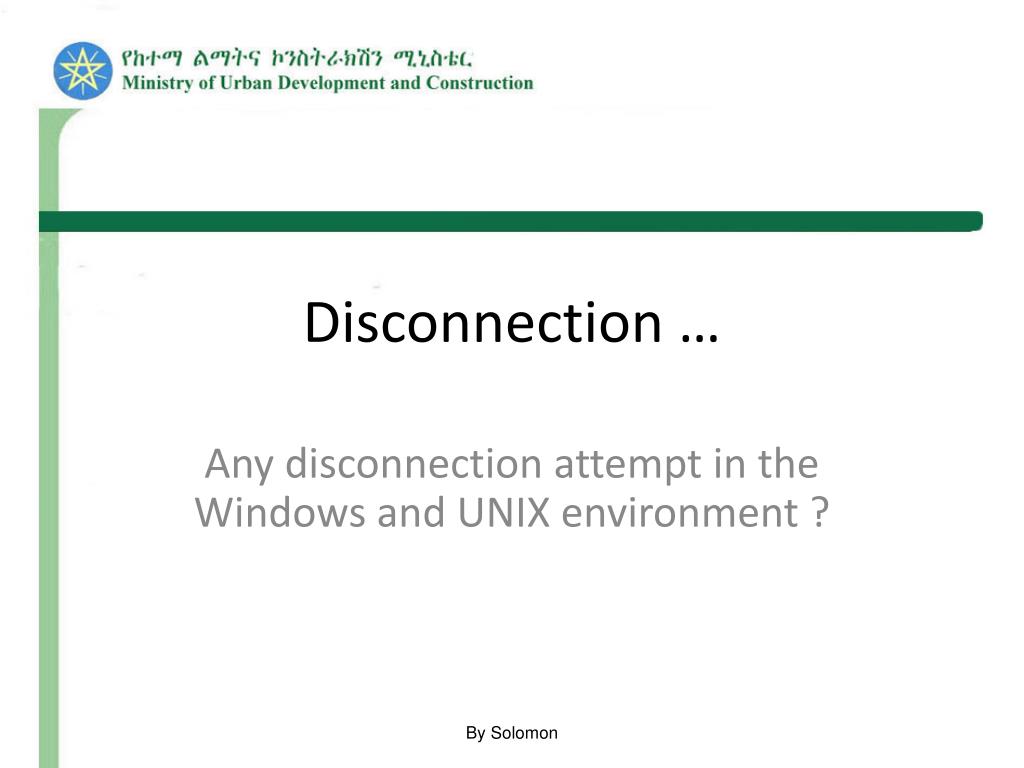

Disconnection …

Any disconnection attempt in the Windows and UNIX environment ?

By Solomon

disabling

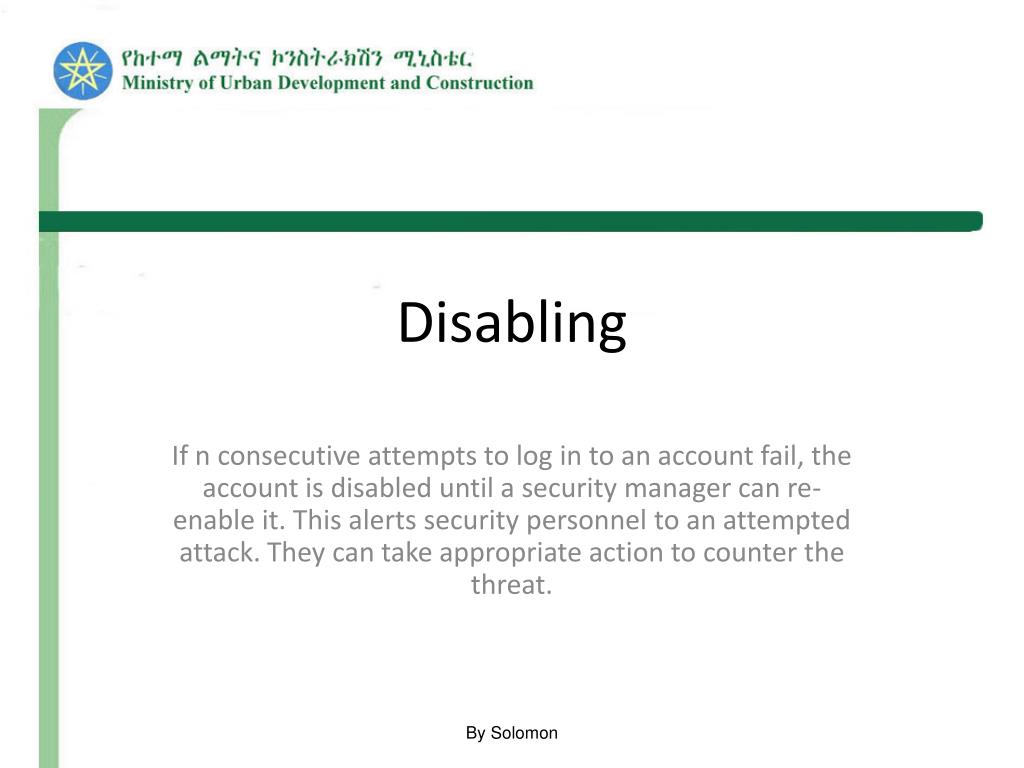

Disabling

If n consecutive attempts to log in to an account fail, the account is disabled until a security manager can re-enable it. This alerts security personnel to an attempted attack. They can take appropriate action to counter the threat.

By Solomon

jailing

Jailing

The unauthenticated user is given access to a limited part of the system and is made to believe that he or she has full access. The jail then records the attacker's actions. This technique is used to determine what the attacker wants or simply to waste the attacker's time.

By Solomon

password policy

Password Policy

Provide and enforce enterprise wide password policy that regiments the selection, renewal and disposal of passwords. The policy may also dictate actions to be taken in case of attempts to crack passwords.

By Solomon

simple password auth problems
Simple Password Auth: Problems
  • Passwords are reusable and hence are exposed to different attacks as seen above (such as replay, dictionary, etc).
  • Not appropriate for network environments. The clear passwords could easily be sniffed while in transit.

By Solomon

challenge response authentication

Challenge Response Authentication

Simple password authentication is a “simple” form of challenge-response whereby an entity is challenged to provide a previously shared password and the entity responds with same. But this challenge-response mechanism can be made more and more complex. A family of such authentication mechanisms are called Challenge Response Authentication.

By Solomon

cr improvements

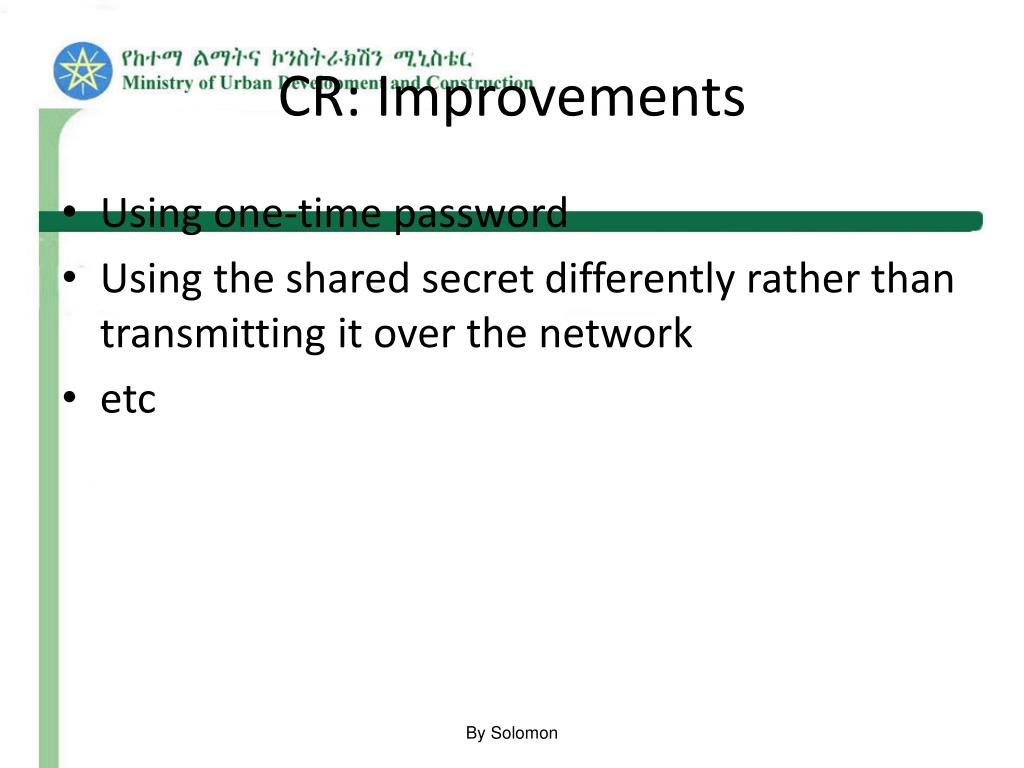

CR: Improvements
  • Using one-time password
  • Using the shared secret differently rather than transmitting it over the network
  • etc

By Solomon

cr multiple passwords
CR: Multiple passwords
  • The user registers a list of passwords in the system.
  • Whenever the user connects to the system, the user is prompted for the password number where upon the user chooses from his list and supplies it.//server send me ex. password number 5

By Solomon

cr multiple passwords1

CR: Multiple passwords

Do you see any drawbacks?

By Solomon

captcha

CAPTCHA

Captcha is a means to determine whether a viewer of a Web application is a real person. The challenge sent to the viewer is a distorted image of some text, and the viewer responds by typing in that text. The distortion is designed to make automated optical character recognition (OCR) difficult and preventing a computer program from passing as human.

By Solomon

cr the password as encryption key
CR: The password as Encryption Key
  • System challenges the client by sending a randomly generated text (could be a number)
  • Client responds by returning the “text” encrypted with the shared secret key.
  • Take care of replay attacks.

By Solomon

cr digested password
CR: Digested Password
  • System challenges by sending a random text.
  • Client responds by returning a hashed value of the shared password and the random text.

By Solomon

chap in ms windows

CHAP in MS Windows

In Challenge Handshake Authentication Protocol (CHAP), the remote access server sends a challenge to the remote client. The remote client computes a digest (using MD5) based on the challenge and the user's password. The server also computes its side of the text and compares the result to the one sent by the client. If the results match, the credentials of the remote access client are considered authentic.

By Solomon

one time password otp

One-time Password (OTP)

A One-time password is a password that expires as soon as it is used.

By Solomon

one time password otp1

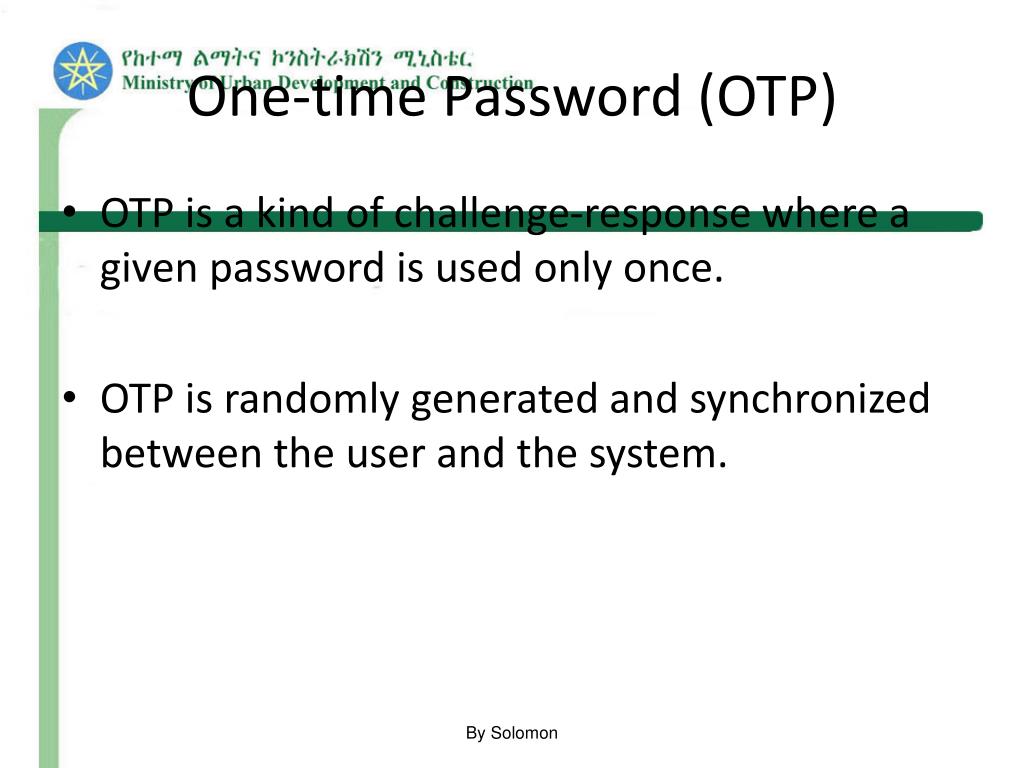

One-time Password (OTP)
  • OTP is a kind of challenge-response where a given password is used only once.
  • OTP is randomly generated and synchronized between the user and the system.

By Solomon

generation and synchronization
Generation and Synchronization
  • Using a mathematical algorithm to generate a new password based on the previous password. //change the first password based o the prevoius password
  • Counter-synchronized where the new password is based on a counting of the number of passwords already generated.
  • Time-synchronization between the clients and the system (per client).//each system same as client machin time sync

By Solomon

how the user generates the otps
How the user generates the OTPs
  • Key generation tools that is synchronized with the server.
  • Special electronic tokens that the user carries and that generate OTPs. A good example is RSA SecureID token (dongle).//the dongle and server both of them generate the same password
  • Software that runs on the user's mobile phone.
  • Server generates them and then send it to the user using a pre-agreed out-of-band channel such as SMS messaging!!

By Solomon

time and counter synchronization

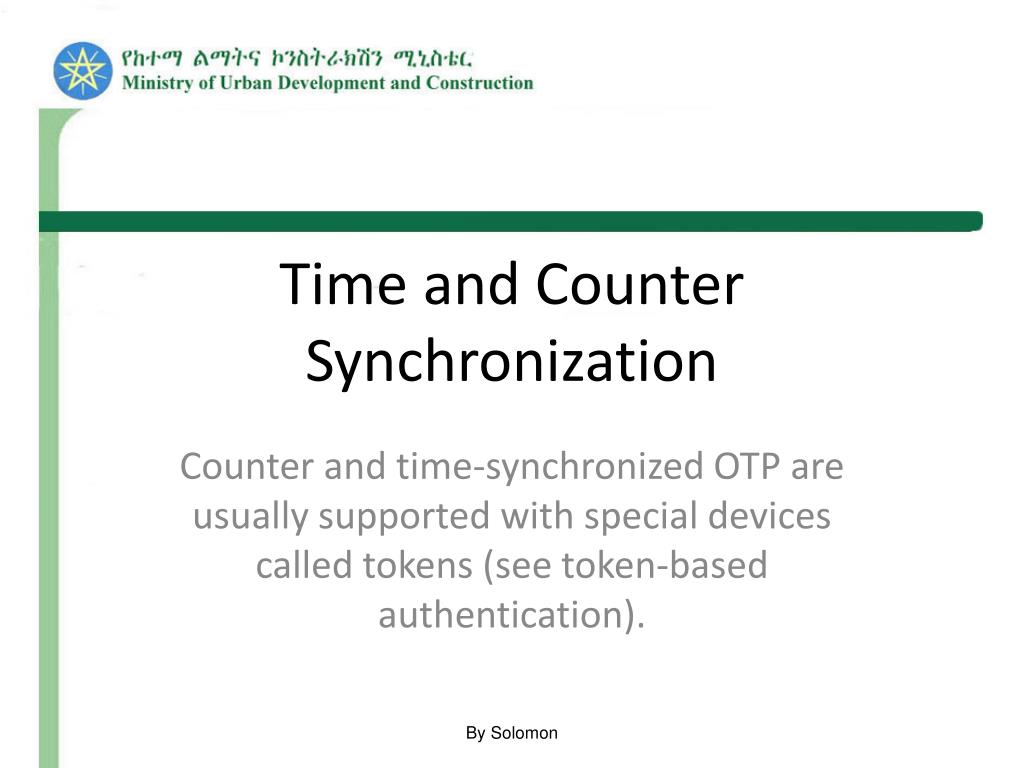

Time and Counter Synchronization

Counter and time-synchronized OTP are usually supported with special devices called tokens (see token-based authentication).

By Solomon

time synchronized challenge

Time-synchronizedChallenge

Problems caused by clock skew. That is, if the authentication server and the user’s “environment” don't keep the same time, then the expected OTP value won't be match.

By Solomon

generation of otp s key as example
Generation of OTPS/Key as Example
  • Let h be a one-way hash function (S/Key uses MD4 or MD5, depending on the version).
  • Then the user chooses an initial seed k, and the key generator calculates:
  • h(k) = k1, h(k1) = k2, ..., h(kn-1) = kn
  • The passwords are p1 = kn, p2 = kn-1, ..., pn-1 = k2, pn = k1//the user and system have the same sequency of password then //the can generate the same hash function
  • Both the user and the system could generate same sequence of passwords if they start from the same seed value k.

By Solomon

synchronization of otp secure key as example

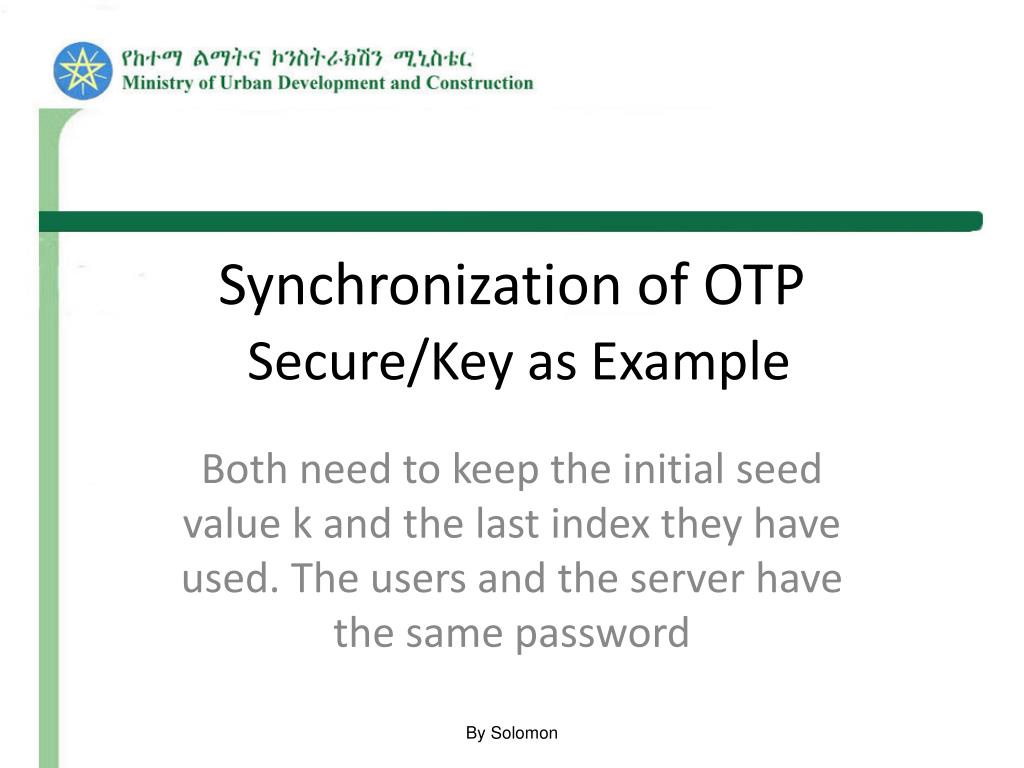

Synchronization of OTPSecure/Key as Example

Both need to keep the initial seed value k and the last index they have used. The users and the server have the same password

By Solomon

token based authentication

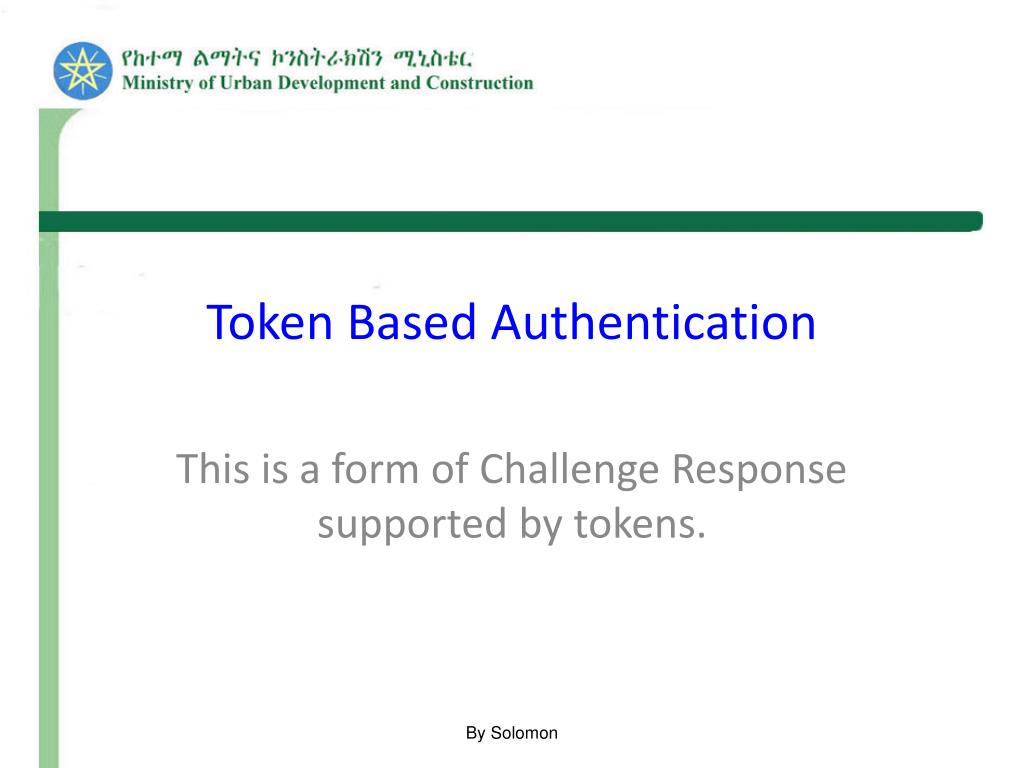

Token Based Authentication

This is a form of Challenge Response supported by tokens.

By Solomon

token

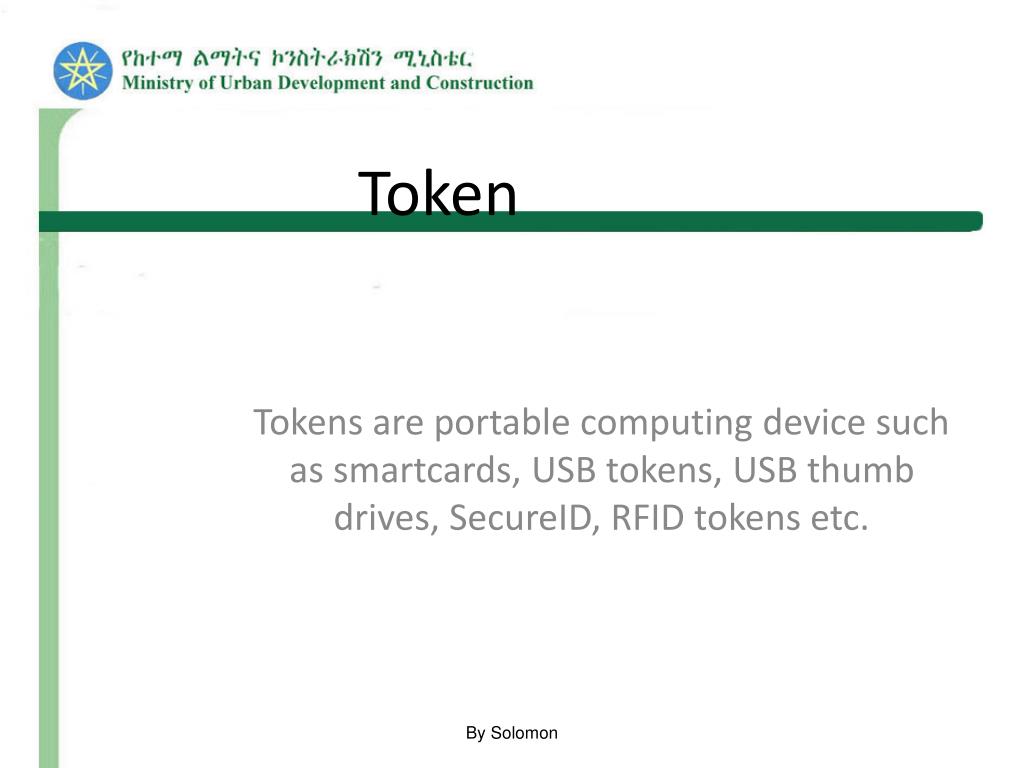

Token

Tokens are portable computing device such as smartcards, USB tokens, USB thumb drives, SecureID, RFID tokens etc.

By Solomon

token technologies
“Token” Technologies
  • Memory Cards: keeps information but cannot process information.
  • Smartcards: Keeps and process information.

By Solomon

hardware supported cr token based authentication
Hardware Supported CRToken-based authentication
  • Provides mechanisms for hashing or enciphering information. With this type of device, the system sends a challenge. The user enters it into the device. The device returns the appropriate response. Some devices require the user to enter a personal identification number or password.
  • The RSA SecureID card uses a system based on time. In addition to the features described above, the password is invalidated once a login succeeds.

By Solomon

smartcards
Smartcards
  • Smart cards are small, tamper-resistant devices providing users with convenient storage and processing capability.
  • Suitable for cryptographic implementations because they contain many security features that enable the protection of sensitive cryptographic data and provide for a secure processing environment. //use encrypt and hash also
  • Private keys can be made to be generated in a smartcard and can be processed without the need to ever leave the card.
  • A PIN is usually needed to access the smartcard. Or else a fingerprint of the owner maybe used to access the data.

By Solomon

biometrics

Biometrics

Biometrics are automated methods of identifying a person or verifying the identity of a person based on a physiological or behavioural characteristic.//oldest form authontication

By Solomon

biometrics1
Biometrics …
  • Fingerprint
  • Palm Scan
  • Hand Geometry
  • Iris
  • Retina
  • Facial Scan
  • Hand Topography
  • Voice Print // has tow part
  • Signature Dynamics
  • Keyboard Dynamics//system analysis tic tic

By Solomon

the process

The Process

Acquisition (at enrolment)

Verification (at authentication)

By Solomon

acquisition
Acquisition
  • This is the first contact of the user with the biometric system.
  • The user’s biometric sample is obtained using an input device.
  • Quality of the first biometric sample is crucial for further authentications.
  • Take care of the ‘fail to enrol’ (FTE) group first

By Solomon

verification1
Verification
  • The user’s biometric sample is taken.
  • It is compared with the previously stored biometric template of the user.

By Solomon

requirements to biometrics
Requirements to biometrics
  • Universality: everyone should have it (what about the visually impaired, the “handicapped”, etc
  • Uniqueness: small probability that two persons are the same in terms of their biometrics
  • Permanence: invariance with the time
  • Collectability: can be measured quantitatively
  • Performance: Processing speed //example in Germany airways use irsh check it is vry fast to verify without showing pasport just use that
  • Acceptability: acceptance by people
  • Security: how easy to fool the system by fraudulent technique

By Solomon

advantages
Advantages
  • Users cannot pass their biometric characteristics to other users as easily as they do with their cards or passwords.
  • Biometric characteristics are not secret and therefore the availability of a user’s fingerprint or iris pattern does not break security the same way as availability of the user’s password.

By Solomon

disadvantage
Disadvantage
  • The performance of biometric systems is not ideal.
  • … and not accurate yet. “True rejection error rate”// the correct person not accepted (Type 1 Error) and “False acceptance error rate” //accespt wrong person(Type 2 Error) are still high contrary to what many manufacturers claim.
  • Not all users can use any given biometric system. People without hands cannot use fingerprint or hand-based systems. Visually impaired people have difficulties using iris or retina based techniques.
  • The biometric input devices (across the Internet) must be trusted:
    • For providing live data (not a previous one)
    • For making sure that the person is alive
  • Management and security of input devices presents a huge overhead.

By Solomon

disadvantage1
Disadvantage …
  • Use of biometric systems may also imply loss of anonymity. While one can have multiple identities when authentication methods are based on something the user knows or has, biometric systems can sometimes link all user actions to a single identity.
  • … privacy violation

By Solomon

disadvantage2
Disadvantage …
  • Biometrics cannot be used to authenticate computers or messages.//we canot use for digital signeture
  • Biometric characteristics are not secret and therefore they cannot be used to sign messages or encrypt documents. //not used for email
  • Remote biometric authentication is not trivial at all. Because it requires a trusted biometric sensor.

By Solomon

fingerprints
Fingerprints
  • The patterns of friction ridges and valleys on an individual's fingertips are unique to that individual, including identical twins.
  • Fingerprint systems can also be used in identification mode. Several states check fingerprints for new applicants to social services benefits to ensure recipients do not fraudulently obtain benefits under fake names. New York State has over 900,000 people enrolled in such a system.
  • The fingerprint project at the Federal Inland Revenue Authority has none other than aggregation of revenues per tax payer as objective.

By Solomon

fingerprint
Fingerprint …
  • Fingerprint authentication is essentially a pattern recognition system that distinguishes a person by determining the authenticity of specific physiological characteristics of the fingerprint
  • The distinctiveness and permanence of a fingerprint pattern make it an attractive biometric trait.

By Solomon

verification approaches
Verification Approaches
  • fingerprint verification approaches have been developed, which can be coarsely classified into three categories:
    • correlation-based,
    • minutia-based and
    • ridge feature-based

By Solomon

authentication1
Authentication
  • Biometric systems can be hard to compare.
  • Type I Error: False rejection rate.
  • Type II Error: False acceptance rate.
    • This is an important error to avoid.
  • Crossover Error Rate

By Solomon

single sign on
Single Sign On
  • Single Sign On Capabilities
    • Allow user credentials to be entered one time and the user is then able to access all resources in primary and secondary network domains
  • SSO technologies include:
    • Kerberos
    • Sesame
    • Security Domains
    • Directory Services
    • Dumb Terminals

By Solomon

slide60
SSO
  • To protect the valuable corporate data contained in their broadening computer
  • and network environments, organizations incorporated strict security measures centered on the use of passwords. However, the complex procedures
  • involved proved to be difficult for end-users to navigate, as they have to remember multiple passwords (as many as 8-10) and follow repetitive logon authentication prompts to access applications — all in an attempt to get their
  • work done. To add to end-users’ distress, IT security teams generally require
  • that passwords are changed every 30 – 60 days, and place restrictions on
  • setting new passwords that resemble previous ones.

By Solomon

sso defined
SSO Defined
  • A specialized form of software authentication that enables a user to authenticate once and gain access to the resources of multiple software systems
  • A simplification of the security and logon process by consolidating multiple security schemes under a single authentication process. In other words, a user can sign on once to a computer and have secure, protected access to multiple applications

By Solomon

slide62

A consolidation of identities and passwords into a single repository that can be accessed by operating systems and applications. The key benefit to SSO is that users only need one set of credentials to access a particular line of business systems, which brings convenience to the user while reducing Help Desk calls regarding user-access issues.

By Solomon

slide63

Single sign-on allows users to enter security credentials once (typically by logging into a workstation or a Web application) and have those credentials propagated to each local and network application the user accesses during his or her session. Local applications exchange authentication information directly, while remote network applications exchange authentication information across the network via encrypted security tokens.

By Solomon

sso benefits
SSO Benefits
  • End users
  • IT Admin
  • Help desk
  • Training of new employees
  • Overall enterprise security

By Solomon

sso challenges
SSO Challenges
  • Integration and management of SSO technology with the multitude of applications and platforms in an enterprise.
  • Use of different authentication technologies and protocols in different applications: Simple password, challenge-response, token-based, biometrics, etc

By Solomon

sso proponents
SSO Proponents
  • Hacking is facilitated and hence overall security is in danger.

By Solomon

kerberos how it all started
Kerberos: how it all started
  • MIT Athena Project, Early 1990s
  • Free distribution (with the source code)
  • Uses strong cryptology
  • After a client gets authenticated by Kerberos, it is given a (tempo) session key to be shared with the (application) server it wishes to communicate to assure privacy and data integrity as they go about their business.

By Solomon

kerberos assumptions
Kerberos: Assumptions

Kerberos is an authentication protocol for

trusted hosts on

un-trusted networks

By Solomon

components of kerberos
Components of Kerberos
  • The Database
  • The Authentication Server
  • The Ticket Granting Server

By Solomon

1 the database
1. The Database
  • Each entry contains the following information:
    • The principal; (ie. clients and servers)
    • The principal’s secret key and its version no;
    • Validity duration;
    • The maximum renewal time;
    • Attributes (flags);
    • Password expiration date; //for the client
    • The expiration date of the principal, after which no tickets will be issued.
    • The DB is encrypted using the Master Key of Kerberos

By Solomon

2 the authentication server
2. The Authentication Server
  • Typically contacted at login session or
  • Initiated when a client wishes to obtain ‘authentication credential’ for a given server
  • The client’s secret key is used for encryption/decryption (only during this initial phase)
  • Result:
    • Obtain a ticket (authentication credential - TGT) allowing a client to contact the TGS for yet another authentication credential to contact a server

By Solomon

the as exchange contd
The AS Exchange (contd…)

Client --- KRB_AS_REQ ---> Kerberos

Client <-- KRB_AS_REP ---- Kerberos

By Solomon

krb as req
KRB_AS_REQ
  • Client’s identity
  • TGS’ identity
  • A randomly generated nonce
    • To detect replay attacks
    • To match replies with requests (in case of multiple successive requests)

 all in clear text

By Solomon

krb as rep
KRB_AS_REP
  • TGT:
    • Client’s identity;
    • TGS’ identity;
    • Session key (newly generated)
    • Lifetime and timestamp

 encrypted with the TGS’ secret key

  • [TGS’ identity];
  • Session key (newly generated);
  • Lifetime and timestamp
  • The (same) nonce

 encrypted with client’s secret key

By Solomon

3 the ticket granting server
3. The Ticket Granting Server
  • Typically initiated when a client wants to securely communicate with an application server
  • The client has already obtained TGT (authenticator) allowing it to authenticate itself to the TGS
  • The session key is used for encryption/decryption of exchanges with the TGS
  • Result: Service ticket/Session key allowing a client to securely communicate with the application server

By Solomon

tgs exchange
TGS Exchange
  • Client contacts the TGS to obtain an ‘authentication credential’ to talk to an application server ( TGT is already secured )

Client ---- KRB_TGS_REQ -- TGS

Client <--- KRB_TGS_REP --- TGS

By Solomon

krb tgs req
KRB_TGS_REQ
  • Authenticator:
    • Client’s identity
    • Timestamp

 encrypted with the session key shared with the TGS

  • Request packet:
    • (Application) Server’s identity;
    • the Ticket Granting Ticket (which is already encrypted with the secret key of the TGS)

By Solomon

krb tgs rep
KRB_TGS_REP
  • Server’s identity;
  • Timestamp;
  • Session Key (newly generated)

 Encrypted with the session key shared b/n the client and the TGS

  • Service ticket:
    • Client’s identity;
    • Server’s identity;
    • Session key (newly generated)
    • Timestamp
      • encrypted with the secret key of the (application) Server

By Solomon

the client server authentication exchange
The Client/Server Authentication Exchange
  • [ by now, the client has the authentication credential (ie. Service ticket) to present to the server ]

Client --- KRB_AP_REQ --> (Application) Server

Eg: Telnet, remote login, ftp, IIS, Flight reservation, Bank transaction, etc

Client <-- KRB_AP_REP --- Server [Optional]

This is only if the client wants to authenticate the server - mutual authentication

By Solomon

krb ap req
KRB_AP_REQ
  • Authenticator:
    • Client’s identity;
    • Timestamp
      • Encrypted with the Session key
  • Service ticket (already encrypted with the secret key of the Server)

By Solomon

krb ap rep
KRB_AP_REP
  • This is used only if the client requires to authenticate the server (ie. bidirectional or mutual authentication)
  • Authenticator:
    • Server’s identity;
    • Timestamp
      • Encrypted with the (shared) session key

By Solomon

application logic
Application Logic
  • Client – Server: Confidentiality
  • Client – Server: Data Integrity

By Solomon

interoperability
Interoperability
  • For the sake of interoperability, Kerberos recommends and “formalizes” how clients and servers may apply confidentiality and integrity. The following two messages are formalized and recommended:

KRB_PRIV: for confidentiality

KRB_SAFE: for integrity

By Solomon

encryptions supported
Encryptions supported
  • For the sake of interoperability
    • DES
    • 3DES
    • AES128 and AES256
    • RC4-HMAC (Enc-Checksum)
      • introduced in Windows 2000 to avoid export restriction of DES and 3DES at the time of windows 2000 release
      • Stronger than DES
      • Longer keys – 128 bits
      • To use single encryption algo both for US and outside of US
  • But it is also open to support any current or future algorithms

By Solomon

passwords use
Passwords use
  • Passwords are not usually suitable as enc/dec keys
  • Different application might want to use different enc/dec algo having different key types and lengths
  • It is not possible for the user (esp. human) to keep different passwords for different applications
  • string2Key function (irreversible hash functions)
  • Salt is used to compute the key

By Solomon

some recommended values
Some recommended values
  • Minimum lifetime 5 minutes
  • Maximum renewable lifetime 1 week
  • Maximum ticket lifetime 1 day
  • Acceptable clock skew 5 minutes

By Solomon

threats not addressed by kerberos
Threats not addressed by Kerberos
  • Password guessing attack
  • Denial of service (say during auth)
  • Clock sync protocol is not protected by Kerberos; it should be protected on its own part
  • Authorizations systems (ACL) that uses Kerberos for authentication should always sync their list of principal with Kerberos in terms of using the same name, deleting old ones, adding new ones

By Solomon

questions
Questions
  • Could Kerberos be used as an AS on a LAN replacing any previous services (such as OS auth)? Ie. Right from the log in, Kerberos could take over!
  • Is Kerberos defends against password sniffing on the network?
  • Do Kerberos and SSL (or SSH) complement or what?

By Solomon

questions cont d
Questions (cont’d …)
  • If for some security reason, the client & server do not want to use the session key because the 3rd party shared it too, devise a mechanism how they can choose a key of their own by using the session key at only the first time. Do you find your solution sound?
  • Do you think that the long-time keys of principals be public keys? Is Kerberos state less or not?

By Solomon

assignment
Assignment
  • Check the MS Windows APIs for the implementation of Kerberos and use it to write a small web application that exchanges information securely. Important issues to consider:
    • Session key timing
    • Web proper logic/decisions: what to do when session key expires, when violations occur
    • Generation of scenarios to test the system

By Solomon

reading assignment

Reading Assignment

The PKCS#11 interface. Also known as Cryptoki, was defined by RSA and is a generic cryptographic token interface.

By Solomon

assignment1

Assignment

Present your experiment on Microsoft Crypto APIs (CAPI).

By Solomon
