Hexadecimal

Hexadecimal. Data Representation. Objectives. Know how the Hexadecimal counting system works Be able to convert between denary, binary & hexadecimal counting systems. What is hexadecimal?. Its short hand binary It makes binary easier to remember It represents 4 bits – what’s 4 bits called?.

marcos
Download Presentation

Hexadecimal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Hexadecimal Data Representation

  2. Objectives • Know how the Hexadecimal counting system works • Be able to convert between denary, binary & hexadecimal counting systems

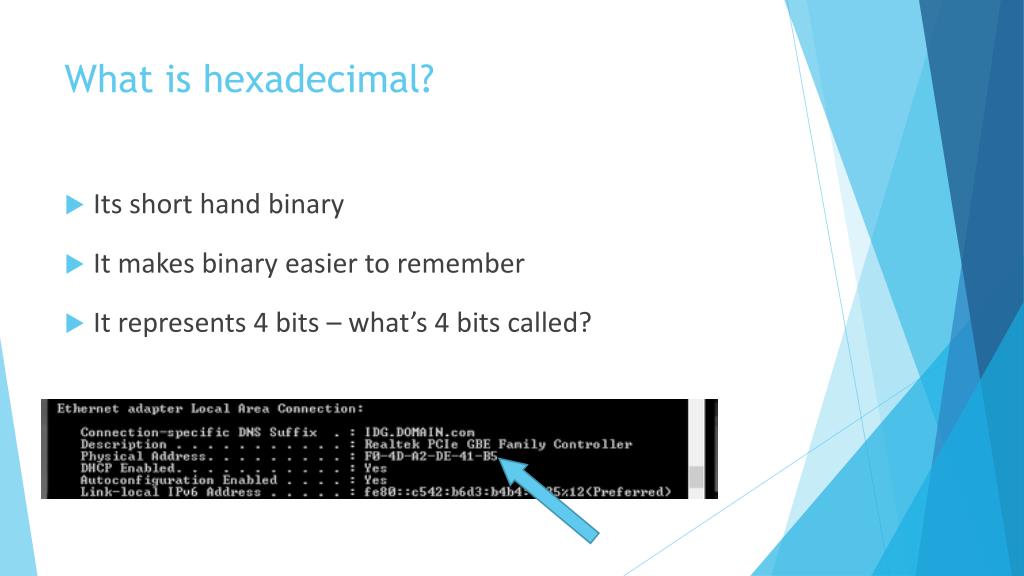

  3. What is hexadecimal? • Its short hand binary • It makes binary easier to remember • It represents 4 bits – what’s 4 bits called?

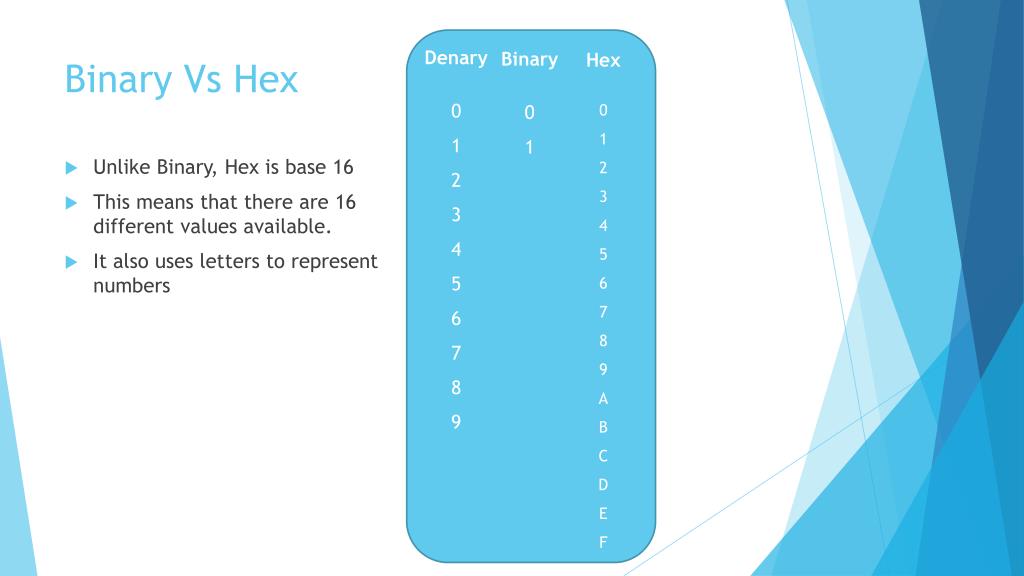

  4. Denary 0 1 2 3 4 5 6 7 8 9 Binary 0 1 Hex 0 1 2 3 4 5 6 7 8 9 A B C D E F Binary Vs Hex • Unlike Binary, Hex is base 16 • This means that there are 16 different values available. • It also uses letters to represent numbers

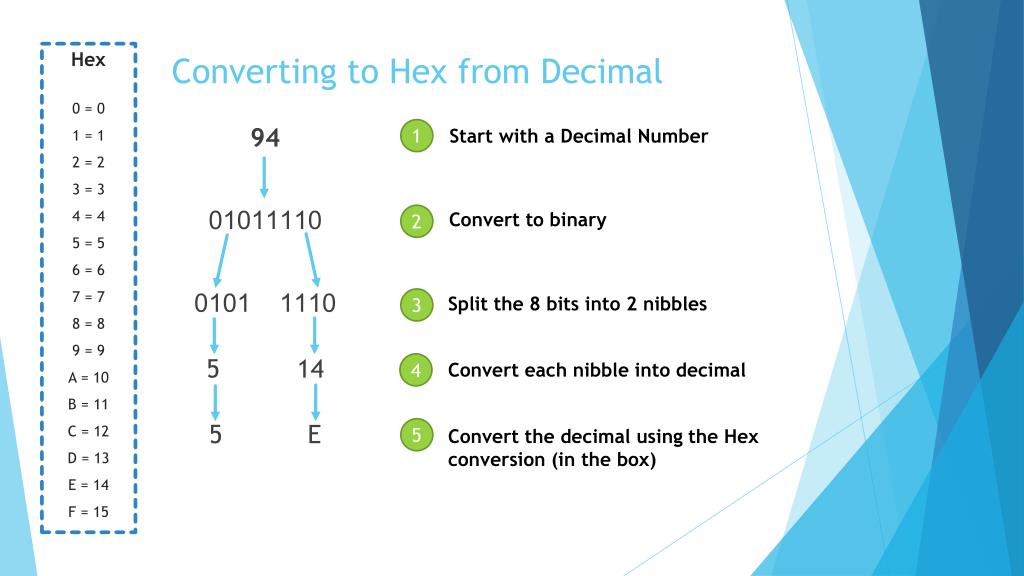

  5. Hex 0 = 0 1 = 1 2 = 2 3 = 3 4 = 4 5 = 5 6 = 6 7 = 7 8 = 8 9 = 9 A = 10 B = 11 C = 12 D = 13 E = 14 F = 15 Converting to Hex from Decimal 1 Start with a Decimal Number 94 01011110 0101 1110 5 14 5 E Convert to binary 2 Split the 8 bits into 2 nibbles 3 4 Convert each nibble into decimal 5 Convert the decimal using the Hex conversion (in the box)
