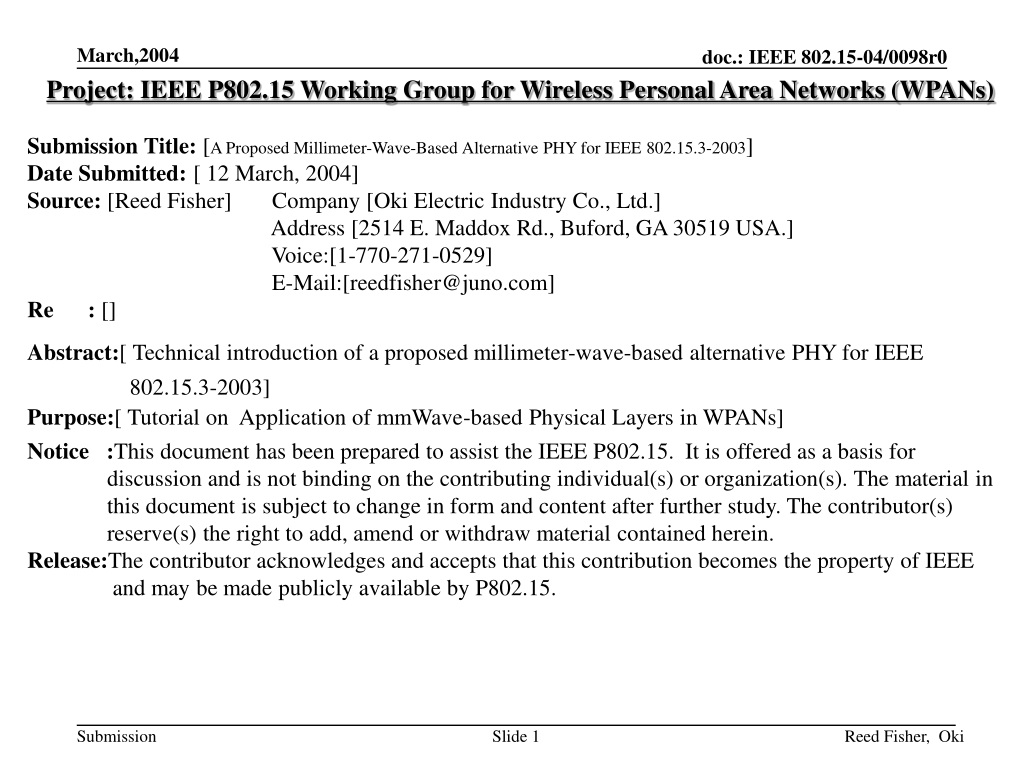

  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [A Proposed Millimeter-Wave-Based Alternative PHY for IEEE 802.15.3-2003] Date Submitted: [ 12 March, 2004] Source: [Reed Fisher] Company [Oki Electric Industry Co., Ltd.] Address [2514 E. Maddox Rd., Buford, GA 30519 USA.] Voice:[1-770-271-0529] E-Mail:[reedfisher@juno.com] Re : [] Abstract:[ Technical introduction of a proposed millimeter-wave-based alternative PHY for IEEE 802.15.3-2003] Purpose:[ Tutorial on Application of mmWave-based Physical Layers in WPANs] Notice :This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Reed Fisher, Oki

  2. A Proposed Millimeter-Wave-Based Alternative PHY for IEEE 802.15.3-2003 Reed Fisher Chair of 802.15 millimeter-wave Interest Group Oki Electric Industry Co.,Ltd Reed Fisher, Oki

  3. Wireless Personal Area Network (WPAN) Characteristics • Wireless transmission • Short range < 10 meters • High rate data > 10Mbps • Multimedia capability Reed Fisher, Oki

  4. Standard IEEE 802.15.3-2003 “Part15:Wireless Medium Access Control (MAC) and Physical Layer (PHY) for High Rate Personal Area Networks (WPAN)” (www.ieee802.org/15/) PHY Characteristics • 2.5GHz • TDMA/TDD based • ≦54 Mbps Reed Fisher, Oki

  5. 15.3 15.3a DS-CDMA (Motorola, etc.) Multiband OFDM (TI etc.) Millimeter-Wave PHY （OKI/CRL） UWB PHY mmWIG Proposed Alternative PHYs for IEEE802.15.3-2003 Reed Fisher, Oki

  6. Relationship between Application and Data-Rate ■Home Theater(<10m) 　・Monitor/Projector 　：19Mbps 　・Speaker ：14Mbps-28Mbps ・Internet (Streaming) ：10Mbps ■Interactive Application 　・Monitor/Projector ：63Mbps-1Gbps 　・Speaker ：14Mbps-28Mbps ■Video Conference(<4m) 　・Video Camera ：75Mbps-150Mbps 　・ Monitor ：63Mbps-1Gbps ■Content Download 　・Audio(MP3,CD) ：60-90Mbps(10sec-60sec) 　・Video ：90Mbps(10sec) Reed Fisher, Oki

  7. Oki/CRL mm-Wave WPAN System PHY Requirements (1) TG3a Alt-PHY Technical Requirements (IEEEP802.15-02/371) mm-Wave WPAN System • 110Mbps@10m • 200Mbps@4m • 480Mbps or more (range not specified) • More than 1Gbps@10m Bit Rate and Range Transmission EIRP • Less than Regulatory emission level • Less than Regulatory emission level • Uncomplicated coexistence with other 802 systems including TG3a , Bluetooth,etc • Coexistence among mm-Wave System • Simple spectrum mask • Robustness in multipath (indoor) Coexistence and Interference Resistance • Coexistence with other 802, Bluetooth,etc • Robustness in multipath (indoor) Channel model • Specified by IEEE P802.15-02/368 • To be specified after experimental • investigations Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  8. Oki/CRL mm-Wave WPAN SystemPHY Requirements (2) TG3a Alt-PHY Technical Requirements (IEEEP802.15-02/371) mm-Wave WPAN System • 100mW or less @100Mbps • 250mW or less @200Mbps • Power save function • To be specified Power consumption • Capable of fitting into a form factor • consistent with a camera,PDA,etc • Capable of fitting into a form factor • consistent with a camera,PDA,etc Form factor Complexity • Minimal to enable mass commercial • adaptation for cost sensitive products • Minimal to enable mass commercial • adaptation for cost sensitive products • Poorer frequency stability: • within +/-500ppm • Simple signal processing • Alt-PHY operates with the 802.15.3 MAC • without fundamental changes. • (Supplements can be added which • expand the capability of the system.) Supplements to 802.15.3 functionality • Alt-PHY operates with the 802.15.3 MAC • without fundamental changes. Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  9. Oki/CRL mm-Wave WPAN System PHY Requirements (3) TG3a Alt-PHY Technical Requirements (IEEEP802.15-02/371) mm-Wave WPAN System • Comply with necessary geopolitical or • regional regulations • Comply with necessary geopolitical or • regional regulations Regulatory Directionality of antenna • Assumption of Omni-directional antenna • No exclusion of directional antenna • if needed to mitigate specific user problems Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  10. System Features • Utilization of unlicensed millimeter-wave band - Small, line of sight, coverage area but high data rate (～622Mbps) - High coexistence with the existing microwave band wireless systems • Countermeasure in use of millimeter-wave band Complete cancellation of phase noise and frequency-offset by self-heterodyne transmission and detection technique Ref:IEEE802.15-03/119r4 Reed Fisher, Oki

  11. Advantages of mmW system compared to UWB - Coexistence - • No interference to other systems in microwave band because of large frequency difference • Good coexistence among mmW systems because of both larger path-loss and attenuation for diffraction waves, compared to microwave band systems Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  12. Advantages of mmW system compared to UWB - System Design - • Exploitation of antenna directivity to obtain longer transmission distance and higher interference immunity (UWB may be not allowed the use of high gain antennas) • Simple modulation/demodulation (Spread spectrum schemes are essential for UWB) • Simple signal processing (For UWB, complex technologies such as rake-receiver, or high frequency A/D, D/A converter and DSP will be needed for signal processing) Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  13. Advantages of mmW system compared to UWB - System Design - • Poorer transmitter frequency stability allowed • ( +/-500ppm ) • Low cost “self heterodyne” receiver Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  14. Advantages of mmW system compared to UWB - Other items - • Higher speed transmission; i.e., more than 1Gbps • Simple spectrum mask. UWB must fit into severe FCC spectrum mask • Effective usage of frequency bandwidth which depends on the demand of transmission rate Ref:IEEE802.15-03/371r2 Reed Fisher, Oki

  15. Oki/CRL WPAN information distribution system APT = Access Point Terminal MT = Mobile Terminal • Basic Oki/CRL system based on 802.15.3a requirements IP network Contents Server APT1 APT2 APT3 Spot-type ad hoc Information Distribution system MT MT MT MT MT(out of service) Ref:IEEE802.15-03/119r4 Reed Fisher, Oki

  16. Demonstration System RF Unit of AP RF Unit of AP AP-AP Link AP-MT Link AP-MT Link AP-MT Link RF Unit of MT TSMMW2004 Reed Fisher, Oki

  17. Frequency allocation of IF band BB & IF processing BB IF f1 f4 f2 f3 Input data Packet distribute MAC control Tx Channel code/decode Modulator /Demodulator BPF BPF 1266MHz f1 Channel #1 Σ Σ Modulator /Demodulator Channel code/decode BPF 156 MHz BPF 1422MHz RF f2 Channel #2 Channel code/decode Modulator /Demodulator BPF Rx BPF 1768MHz f4 Channel #4 Base Band (BB) & IF processing Ref:IEEE802.15-03/119r4 Reed Fisher, Oki

  18. ( )2 IF input Pt Pr Local leak DSB mixer Transmitter Receiver SSB B 2B IF output LNA T fc fc+fi fi DSB fc B B B IM2 f fc-fi fc fc+fi B fi RF processing • Transmission • Single RF carrier is used. • Available Transmission method : • -Single Side band (SSB) :Basic proposal • -Double Side band (DSB):Optional proposal • Reception of side band transmission • Complete cancellation of phase-noise and frequency -offset by self-heterodyne • (square law) detection Ref:IEEE802.15-03/119r4 Reed Fisher, Oki

  19. Organization of 802.15 mmWIG • Chairman : Reed Fisher, OKI • Vice Chair : Hiroyo Ogawa, CRL • Secretary : Yuichi Shiraki, OKI • Technical Editor : TBD Reed Fisher, Oki

  20. Summary of mmWIG meetings Date Location Attendees Contributions Companies Sept.2003 Singapore 26 5 14 Nov.2003 Albuquerque 34 8 18 Jan.2004 Vancouver 24 7 13 Reed Fisher, Oki
