  1. Pediatric Orthopedics in the ED • Common presentations, common fractures, and common sense treatments. • James Thorburn

  2. Overview • Housekeeping - terms and unique physiology of children • General Approach • Upper body (limbs) injuries - FOOSH • Lower body - Approach to limping child

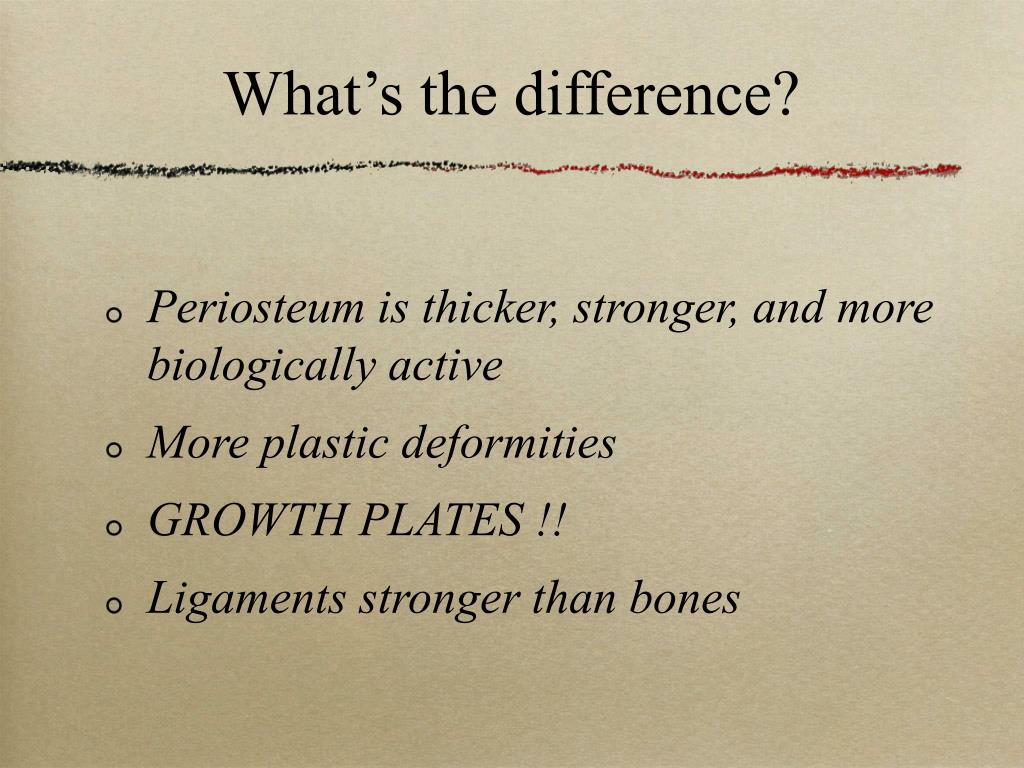

  3. What’s the difference? • Periosteum is thicker, stronger, and more biologically active • More plastic deformities • GROWTH PLATES !! • Ligaments stronger than bones

  4. Ortho talk

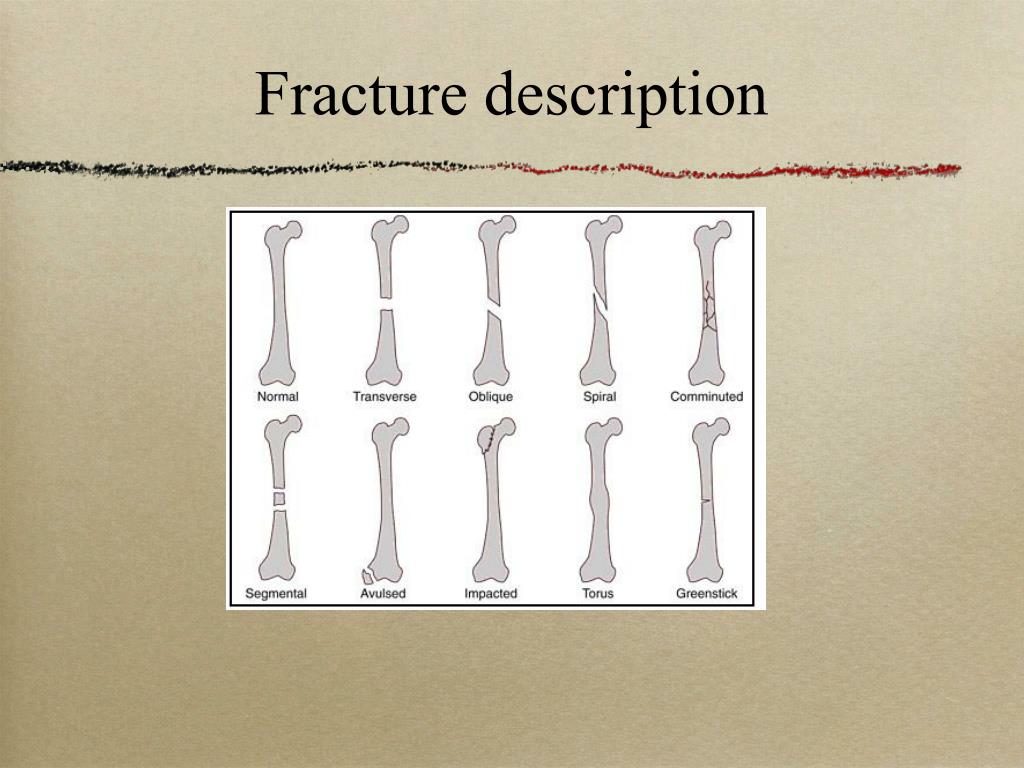

  5. Fracture description

  6. Buckle Fracture (#)

  7. Greenstick #

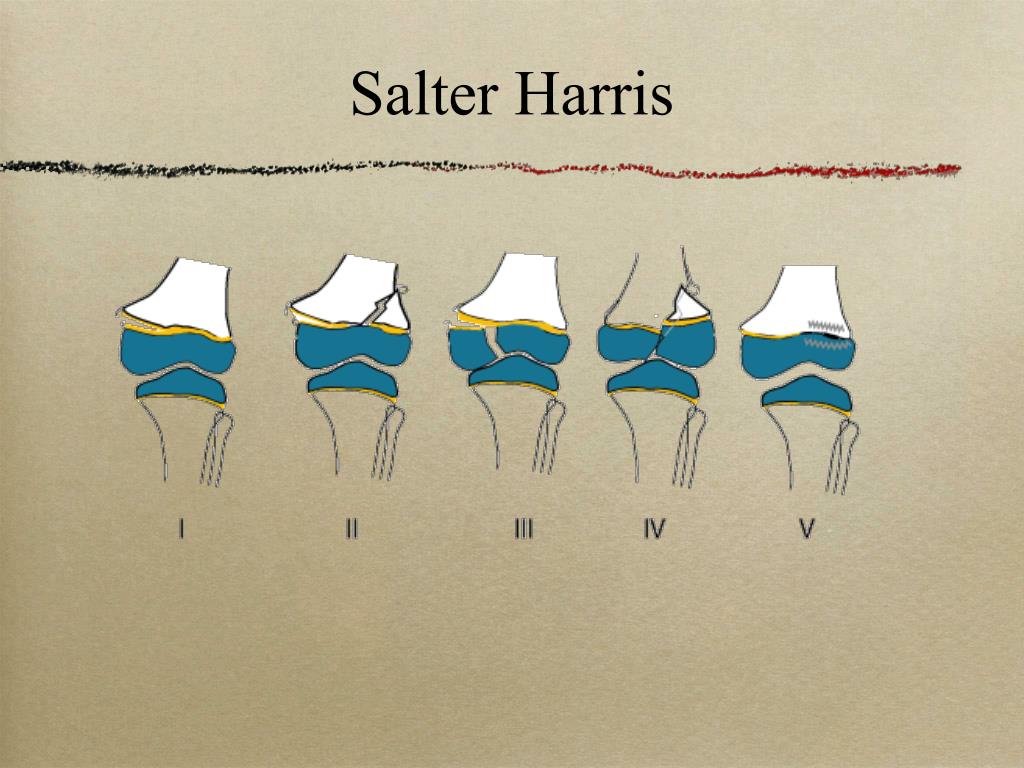

  8. Salter Harris

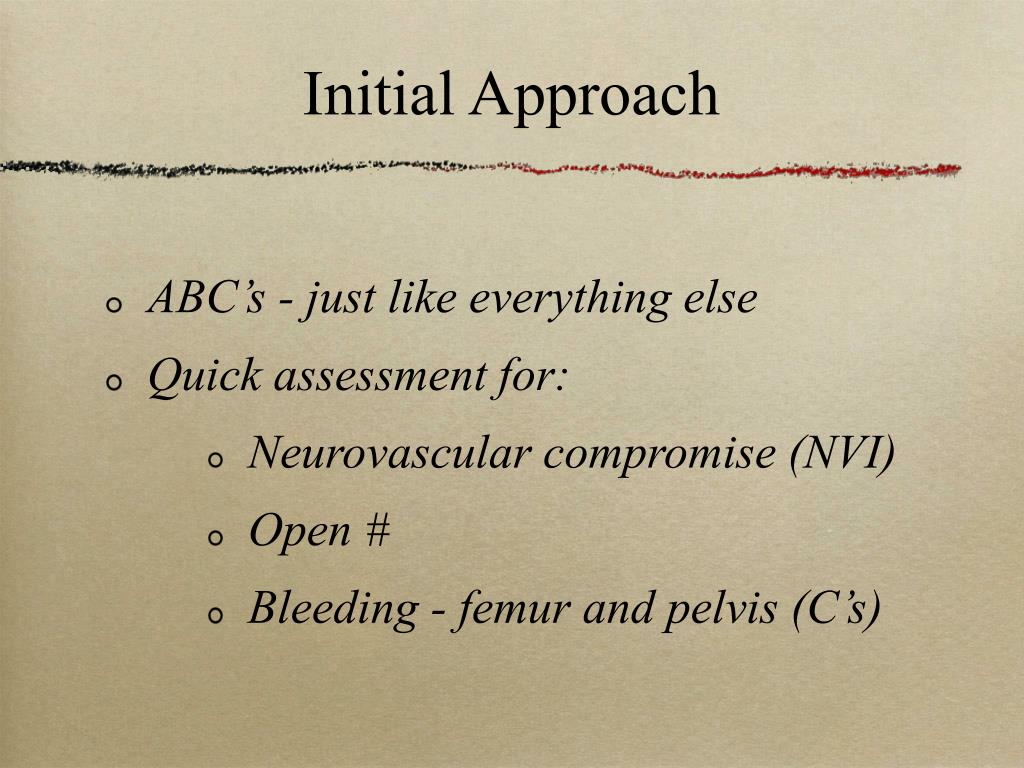

  9. Initial Approach • ABC’s - just like everything else • Quick assessment for: • Neurovascular compromise (NVI) • Open # • Bleeding - femur and pelvis (C’s)

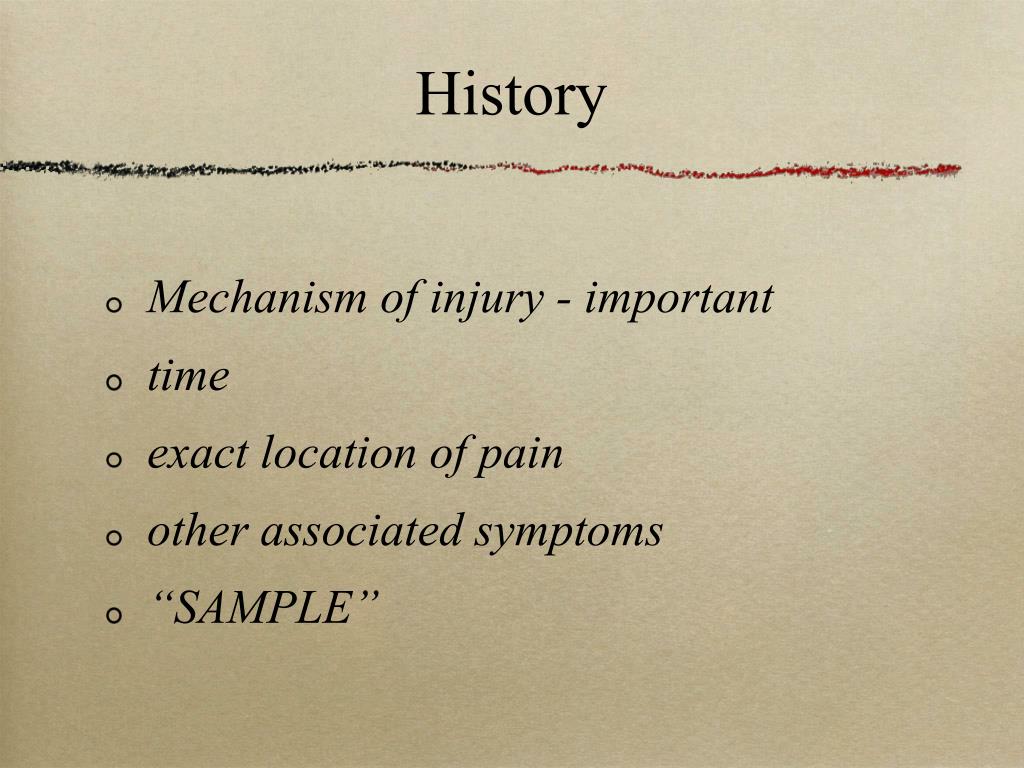

  10. History • Mechanism of injury - important • time • exact location of pain • other associated symptoms • “SAMPLE”

  11. Pain Control! • May be nervous about “medicating” kids. DON’T BE! • Pain in kids can be difficult to interpret • Pain scales • Mechanism of injury • Clinical exam

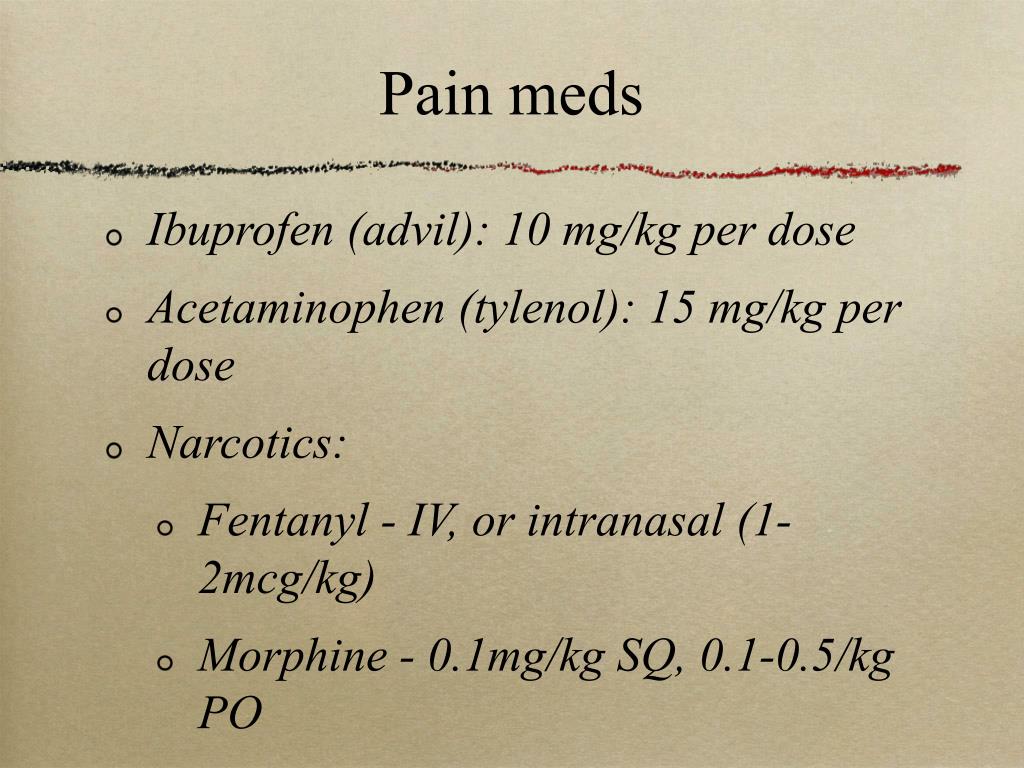

  12. Pain meds • Ibuprofen (advil): 10 mg/kg per dose • Acetaminophen (tylenol): 15 mg/kg per dose • Narcotics: • Fentanyl - IV, or intranasal (1-2mcg/kg) • Morphine - 0.1mg/kg SQ, 0.1-0.5/kg PO

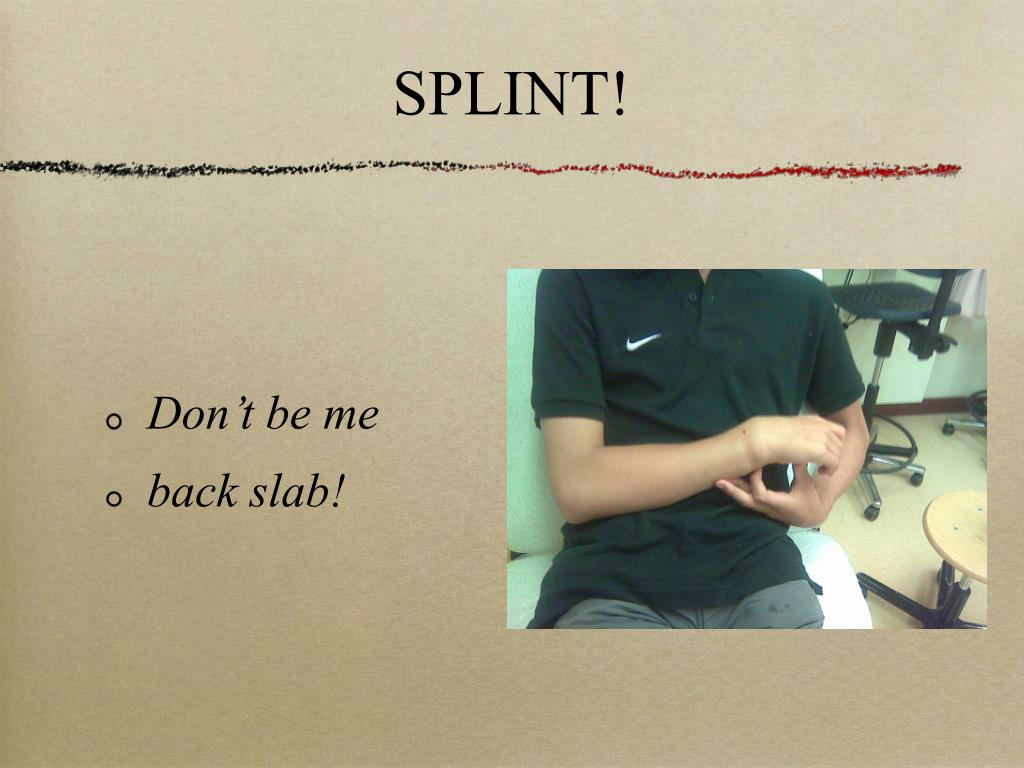

  13. SPLINT! • Don’t be me • back slab!

  14. FOOSH • Examine clavicle to wrist! • Clavicle # • Elbow # • Forearm #

  15. Quick and Dirty NV exam • Colour, cap refill, pulses, swelling. • Nerves (3) motor and sensory • Radial - Thumbs up, 1st dorsal web space • Median - Fist, pinch, palmar distal 2/3 digits • Ulnar - Peace, distal pinky (palmar)

  16. Case • 13 year old, fall off scooter • SAMPLE hx • Quick physical • Fentanyl 1.5mcg/kg x 40kg = 60 mcg intranasal • Place backslab • X-rays.

  17. Clavicle # • Majority in the middle 1/3 • Sling for support (if old enough)

  18. Elbow # • No one likes elbows • ROM important • NV exam quite important • supracondylar # most common

  19. Possible #s • Supracondylar • Medial/lateral condylar • Radial head # (older kids) • Olecranon #

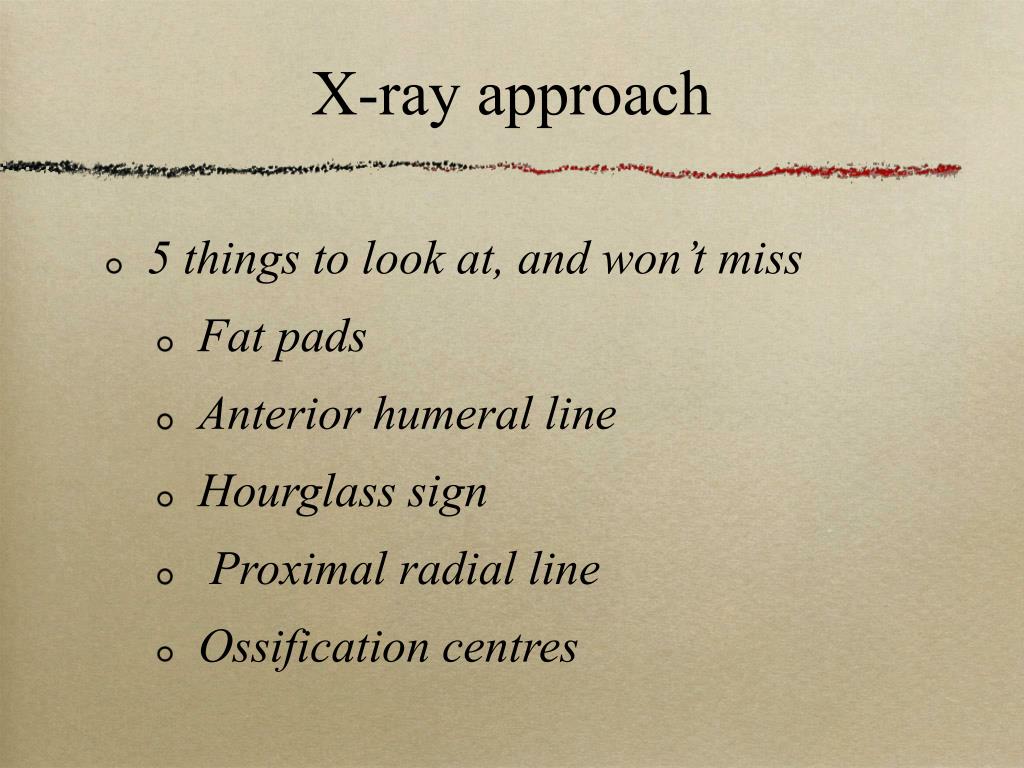

  20. X-ray approach • 5 things to look at, and won’t miss • Fat pads • Anterior humeral line • Hourglass sign • Proximal radial line • Ossification centres

  21. Fat Pads

  22. Capitellum is key

  23. Hourglass

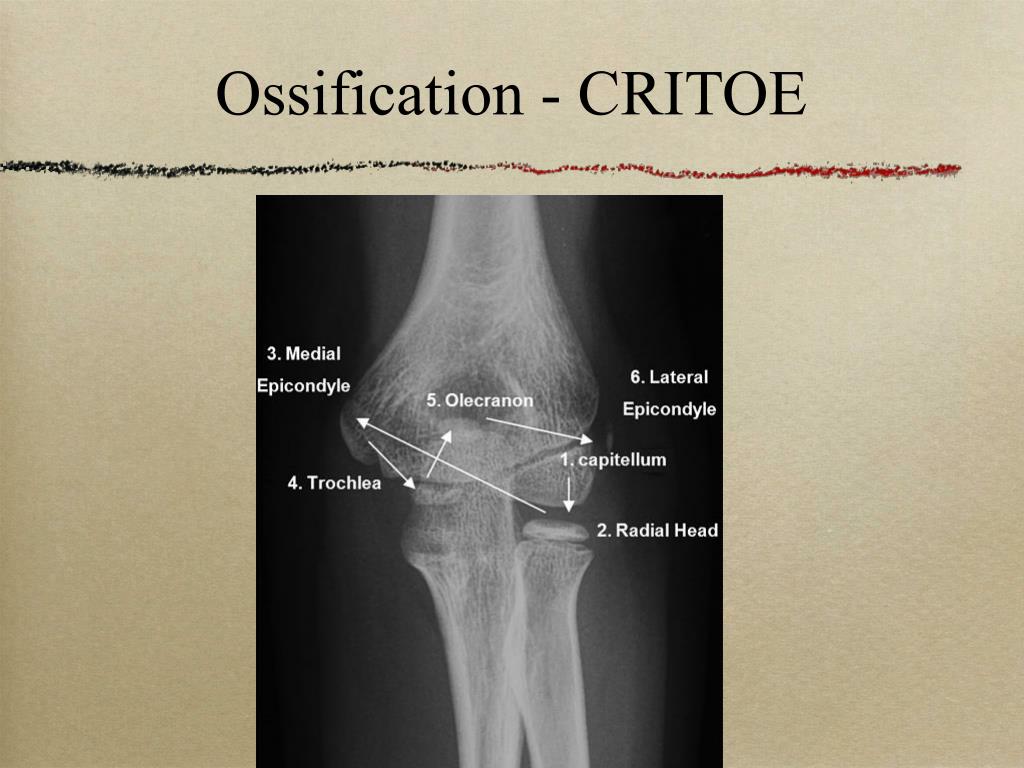

  24. Ossification - CRITOE

  25. Supracondylar # management • Pain management • Non-displaced - back slab and “U” slab and follow up with ortho • displaced - consult ortho from department • compartment syndrome!

  26. Not Sure? No prob! • ++ pain • Posterior fat pad/ anterior sail sign • Back slab and follow up for R/A!!

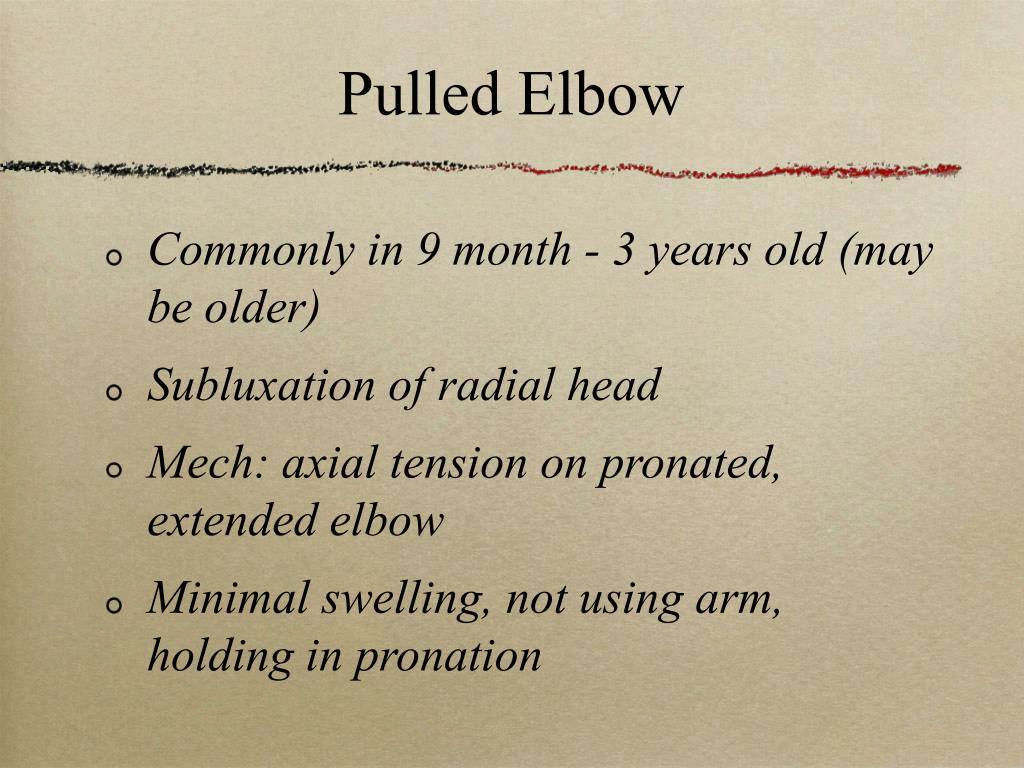

  27. Pulled Elbow • Commonly in 9 month - 3 years old (may be older) • Subluxation of radial head • Mech: axial tension on pronated, extended elbow • Minimal swelling, not using arm, holding in pronation

  28. Management • X-ray? not usually necessary • Reduction • Hyperpronation • Supination and flexion

  29. Can’t reduce? • Consider x-ray • try both techniques • immobilize? sling? • Arrange follow up

  30. Monteggia

  31. Galeazzi #

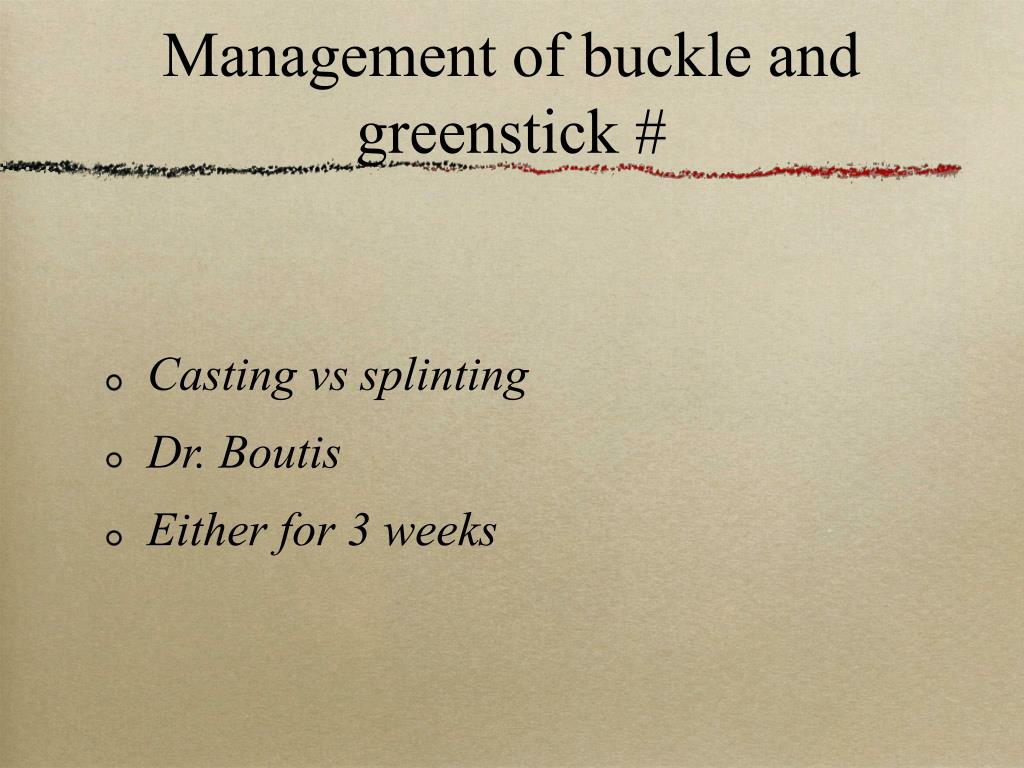

  32. Management of buckle and greenstick # • Casting vs splinting • Dr. Boutis • Either for 3 weeks

  33. Approach to the limping child • Differential is huge!! • History is important • Don’t ignore caregiver • Estimate of 25% no diagnosis

  34. Differential - categories • Traumatic vs non-traumatic

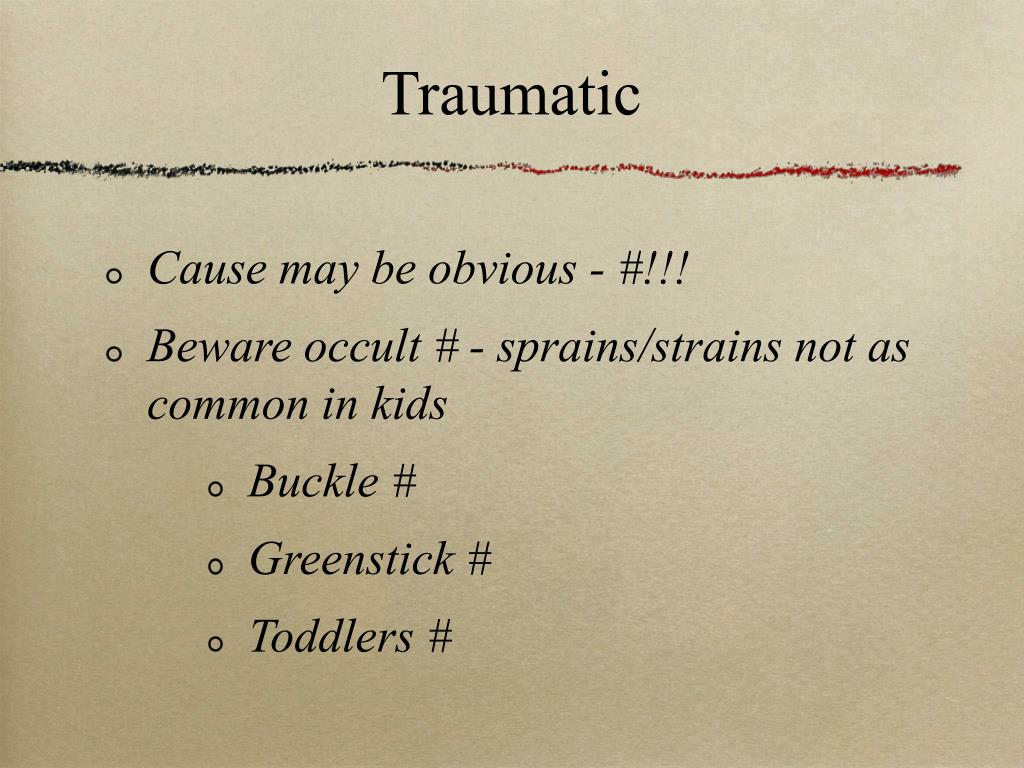

  35. Traumatic • Cause may be obvious - #!!! • Beware occult # - sprains/strains not as common in kids • Buckle # • Greenstick # • Toddlers #

  36. Toddlers # • May have a history of fall/trauma, but may not • 9 months - 3 years • Range of sx - subtle to obvious • high index of suspicion needed.

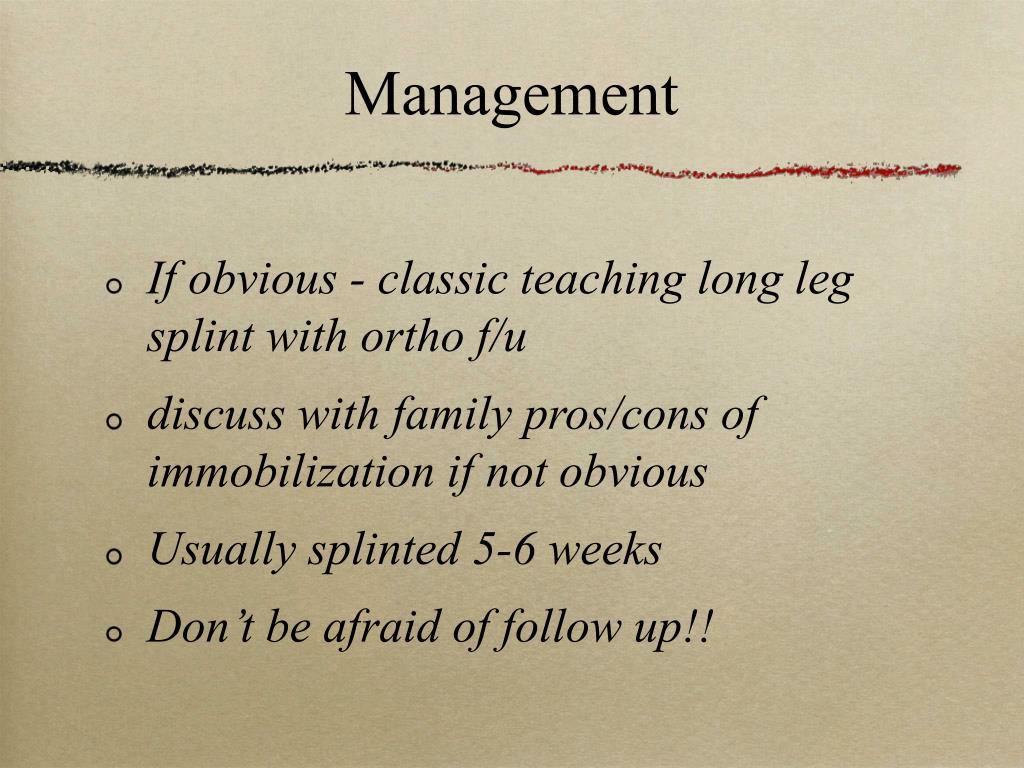

  37. Management • If obvious - classic teaching long leg splint with ortho f/u • discuss with family pros/cons of immobilization if not obvious • Usually splinted 5-6 weeks • Don’t be afraid of follow up!!

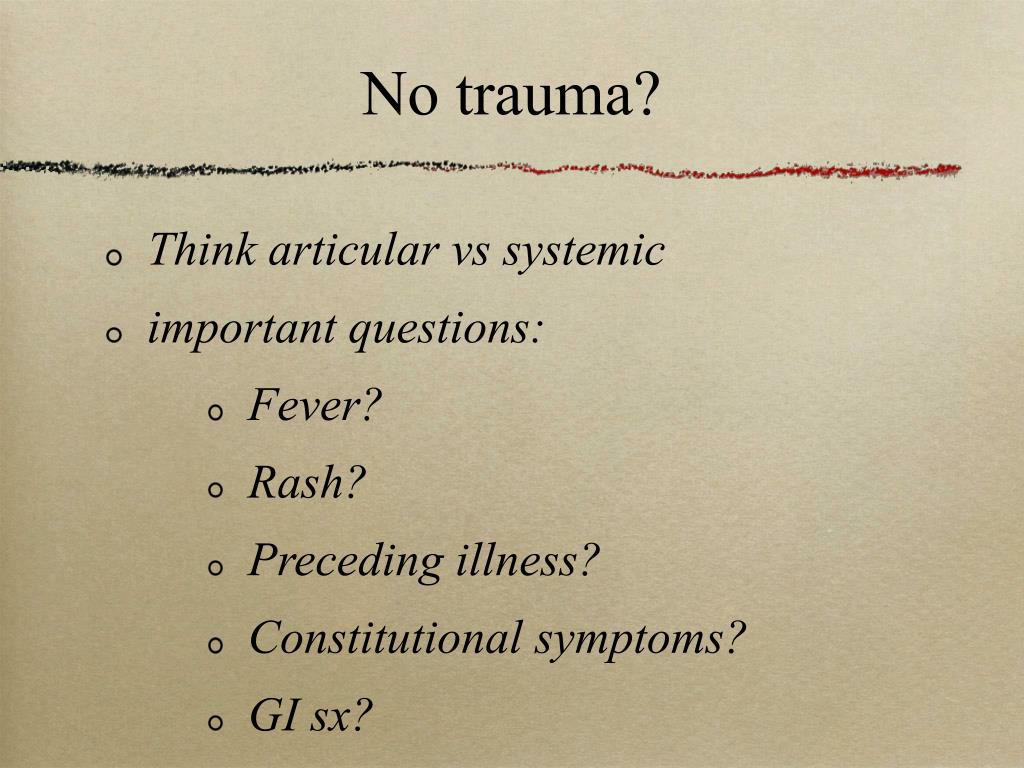

  38. No trauma? • Think articular vs systemic • important questions: • Fever? • Rash? • Preceding illness? • Constitutional symptoms? • GI sx?

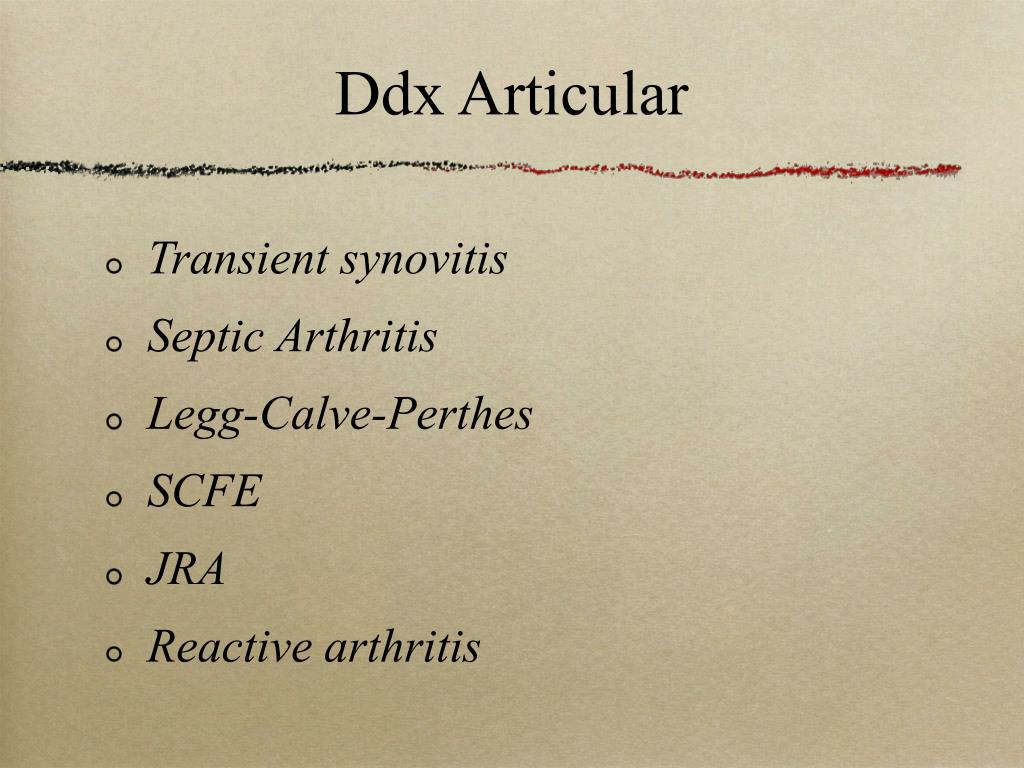

  39. Ddx Articular • Transient synovitis • Septic Arthritis • Legg-Calve-Perthes • SCFE • JRA • Reactive arthritis

  40. Ddx Extraarticular • Malignancy • Testicular torsion • Sickle cell crisis • Rheum / vasculitis

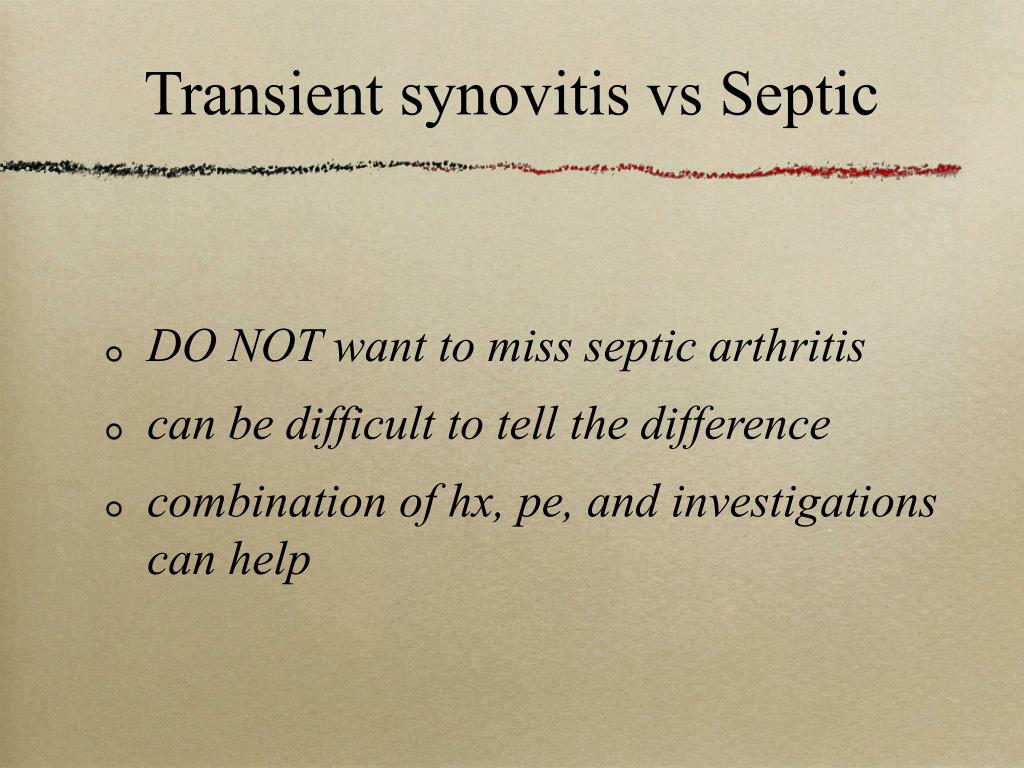

  41. Transient synovitis vs Septic • DO NOT want to miss septic arthritis • can be difficult to tell the difference • combination of hx, pe, and investigations can help

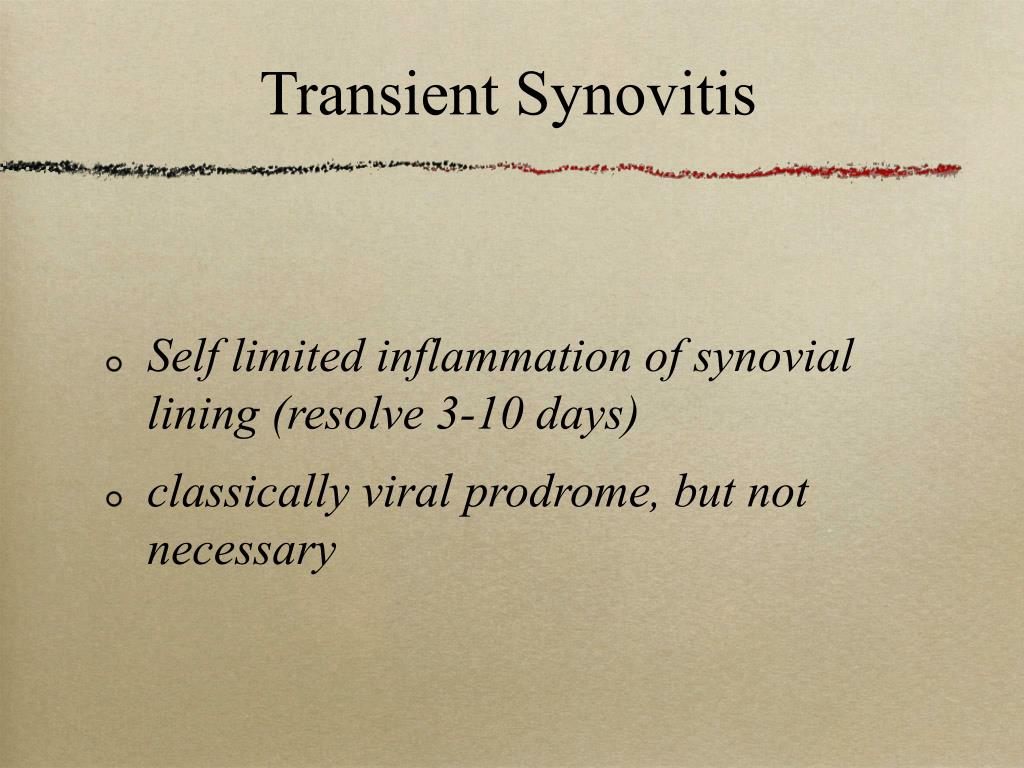

  42. Transient Synovitis • Self limited inflammation of synovial lining (resolve 3-10 days) • classically viral prodrome, but not necessary

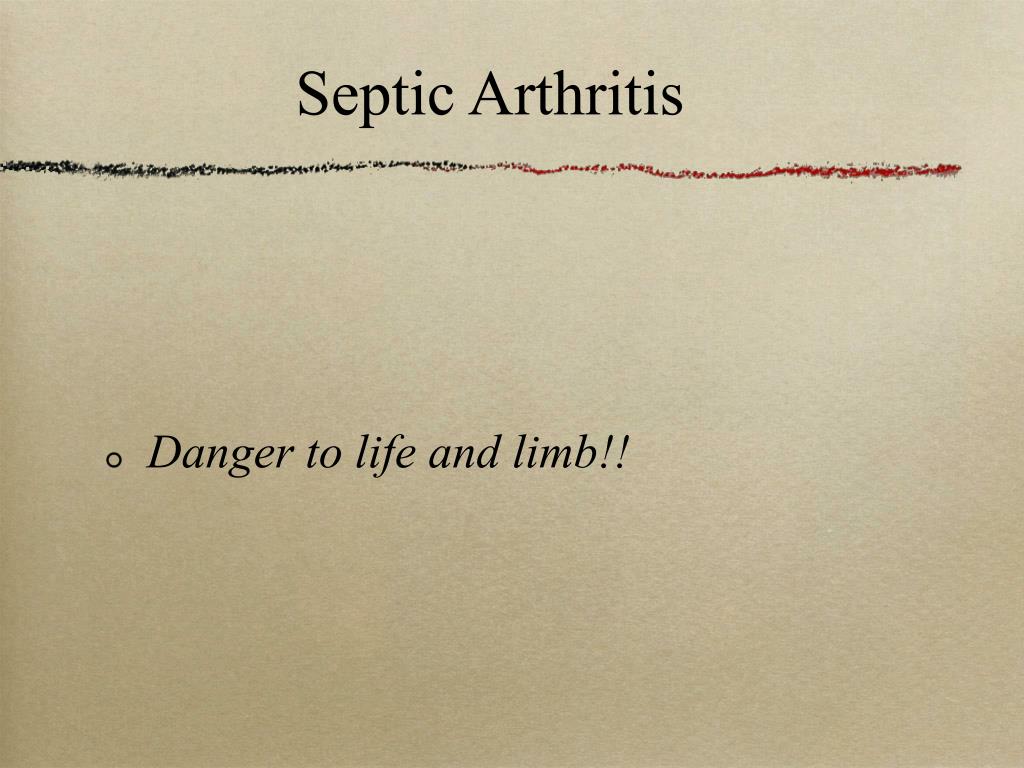

  43. Septic Arthritis • Danger to life and limb!!

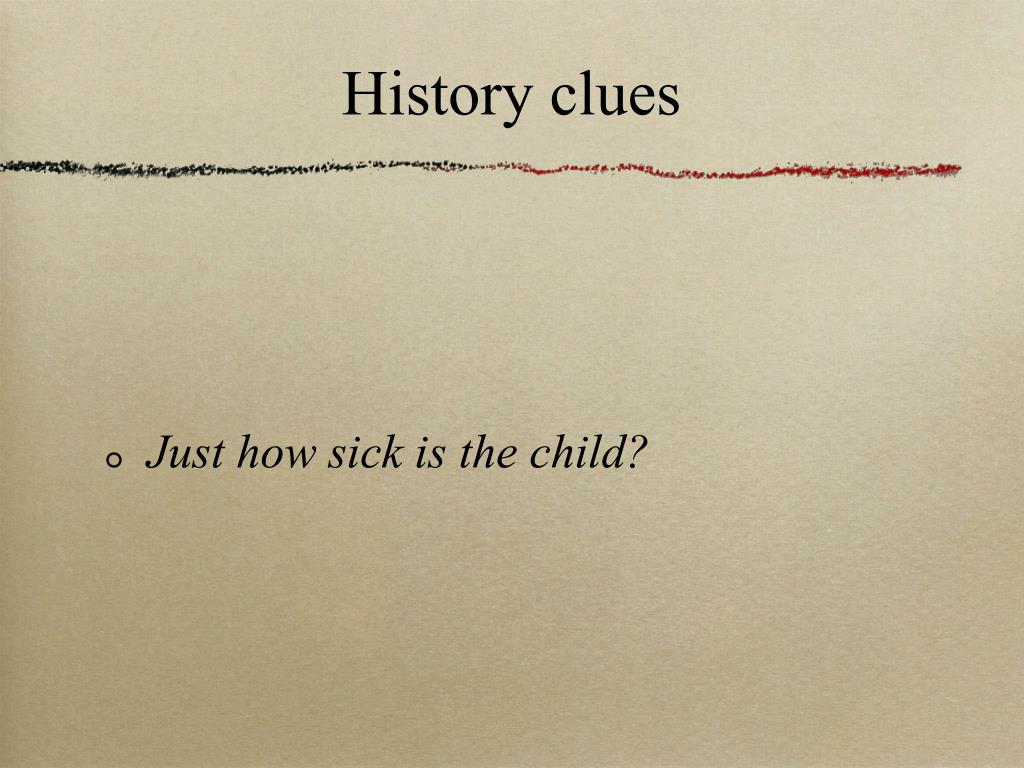

  44. History clues • Just how sick is the child?

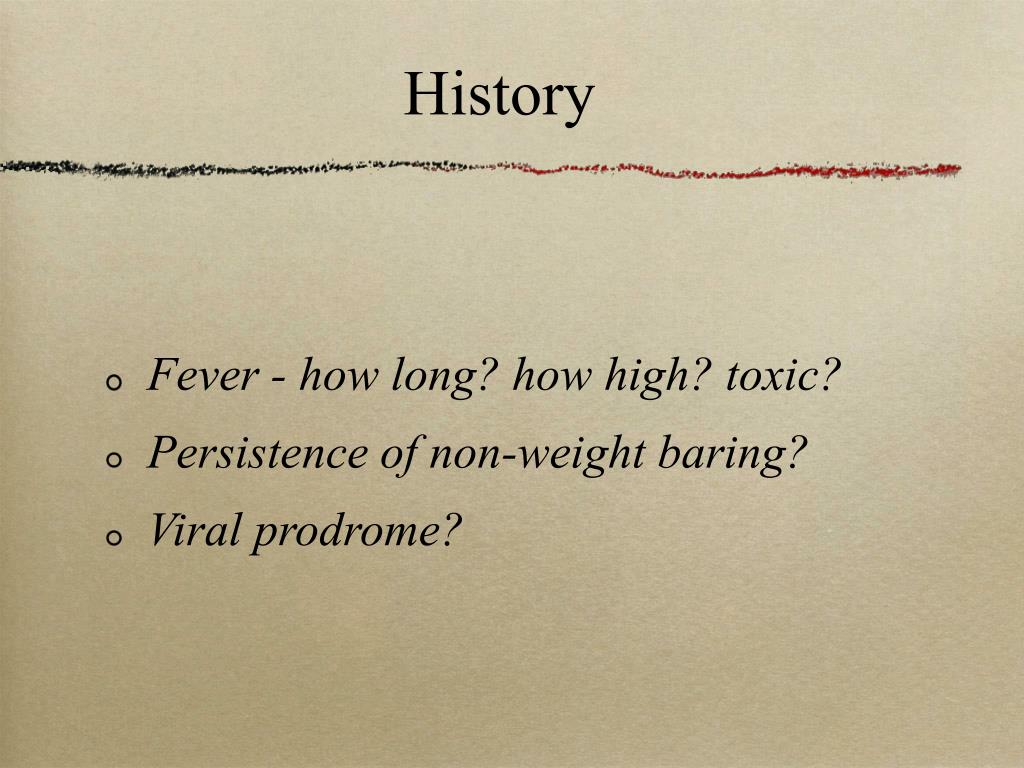

  45. History • Fever - how long? how high? toxic? • Persistence of non-weight baring? • Viral prodrome?

  46. Physical • Consider early NSAID - may help exam • Vitals and Appearance • gentle log roll - may be tolerated in T.S. but not S.A. • Importance of serial examination
