  1. HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg

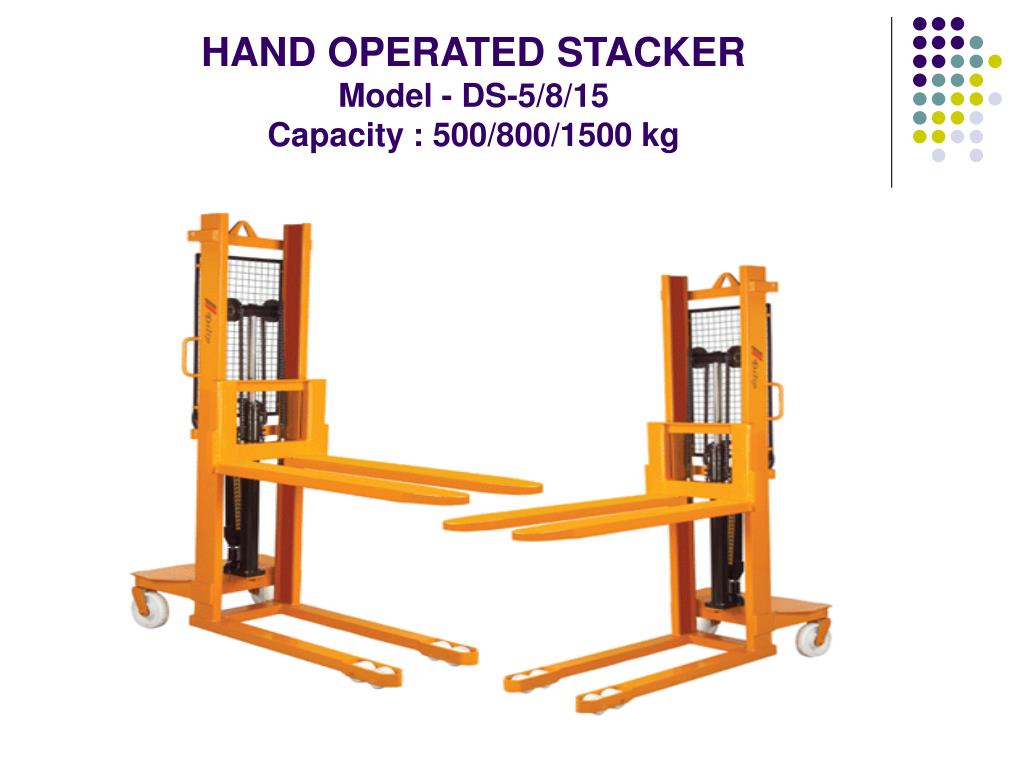

  2. HAND OPERATED STACKERModel - DS-5/8/15 Capacity:500/800/1500 kg

  3. HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg • Silent in operation • Easy to operate • Light and maneuverable • Minimum maintenance • Economical • Compact • Versatile

  4. HAND OPERATED STACKER Model-DS-5/8/15 Capacity:500/800/1500 kg Wheels Steering and support wheels : 2 Nylon wheels Ø 180 x 50mm Load wheels: 4 Nylon wheels Ø 80 x 70mm And of course..... DILIP also offers tailor-made versions for specific requirements

  5. HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg DILIP Stackers - an indispensable auxiliary for all types of enterprises. DS - 5/8/15 are extremely versatile manually operated stackers. They are very useful for loading, Unloading and Stacking operations. With a detachable platform on the fork they can also be used as an adjustable worktable. The quality and reliability of these stackers are very high because...

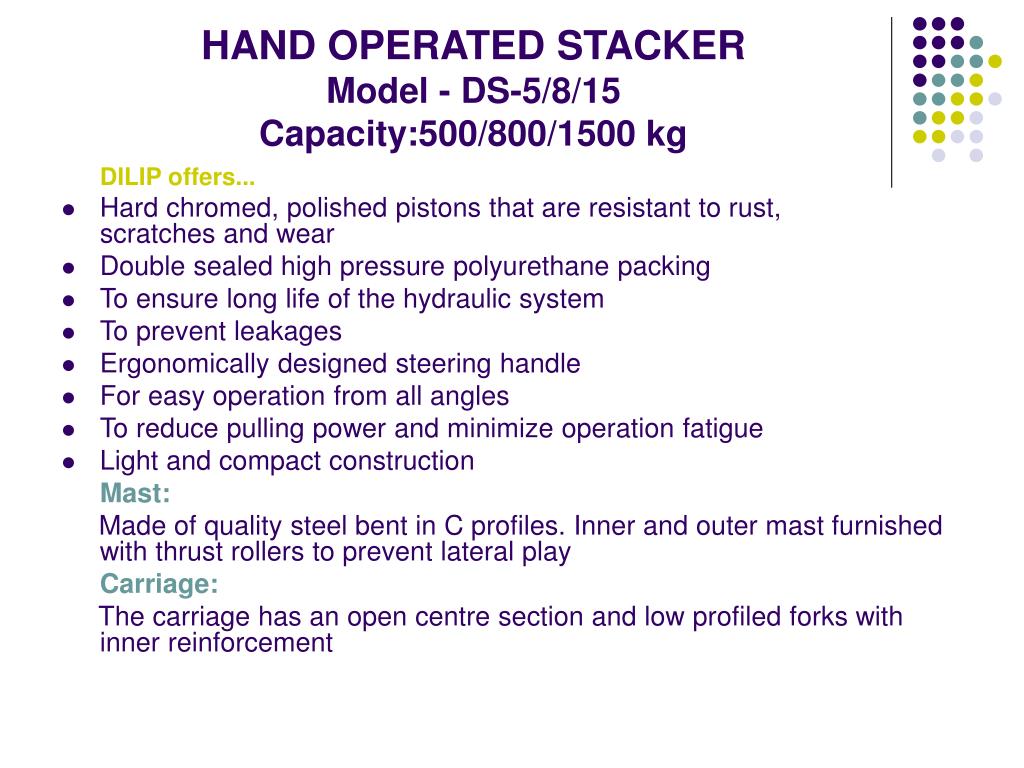

  6. HAND OPERATED STACKERModel - DS-5/8/15 Capacity:500/800/1500 kg DILIP offers... • Hard chromed, polished pistons that are resistant to rust,scratches and wear • Double sealed high pressure polyurethane packing • To ensure long life of the hydraulic system • To prevent leakages • Ergonomically designed steering handle • For easy operation from all angles • To reduce pulling power and minimize operation fatigue • Light and compact construction Mast: Made of quality steel bent in C profiles. Inner and outer mast furnished with thrust rollers to prevent lateral play Carriage: The carriage has an open centre section and low profiled forks with inner reinforcement

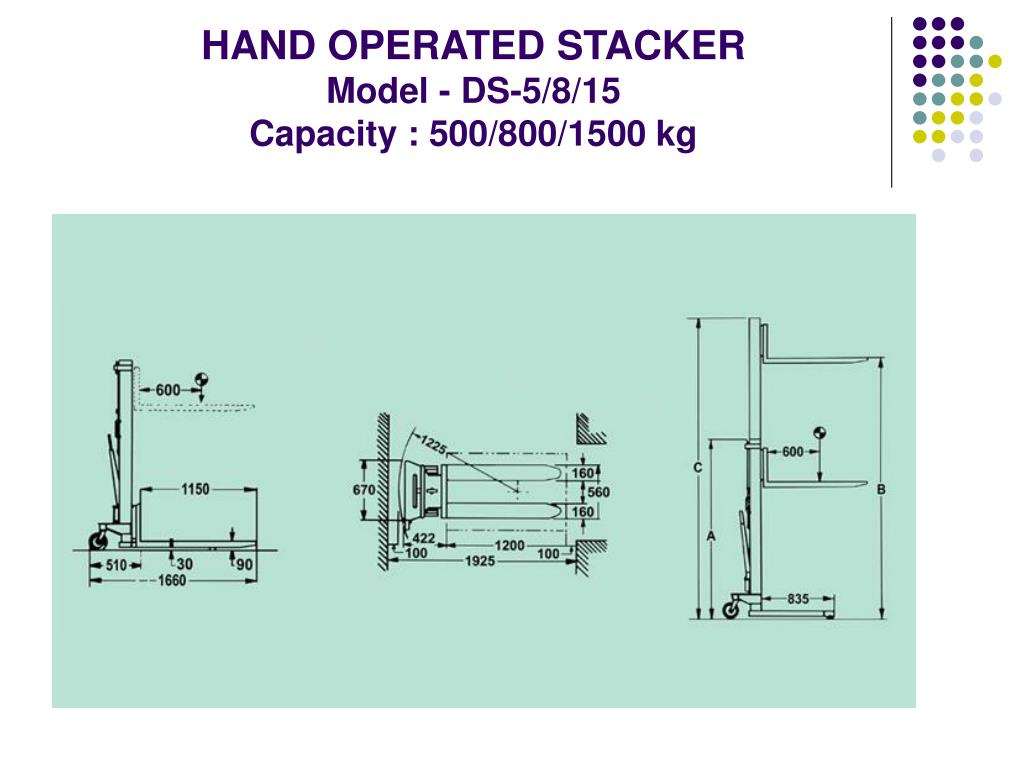

  7. HAND OPERATED STACKER - Model - DS-5/8/15 Capacity:500/800/1500 kg

  8. HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg

  9. Contact Us: DILIP MATERIAL HANDLING EQUIPMENT Regd.Office: # 83/A, 3rd Cross,8 th Main, 4th Phase, K.I.A.D.B, Bommasandra Industrial Area, Bangalore-560 099. Tel: +91-80-2783 1026 / 27, 2783 3688 Fax:  +91-80-2783 5777 Mob: +91-98867 00094, 98440 65651 E-mail: info@diliplifttruck.com dilip.materials@vsnl.net Url: www.diliplifttruck.com Chennai Office: # 255/3, New Tiny Sector, Old Park, South Phase, Ambattur Industrial Estate, Chennai - 58. Tel: 044 - 42083557 / 667 E-mail: chennai@diliplifttruck.com Contact Person: Mr. T. Sundareson. Mob: 98409 34694 Powered by channelsoftech.com +9845662183
