  1. IT-100Integration Module

  2. IT-100 - Overview The IT-100 features a bi-directional RS-232 interface that accepts commands and sends event-driven or state-change commands to third-party applications, for example home automation or HVACS system.

  3. IT-100 – Specifications Current Draw: 65mA Compatibility: All PowerSeries Mounting: Inside control panel cabinet or PC5003 cabinet

  4. Compatible with all PowerSeries control panels Bi-directional RS-232 interface Real-time zone status Fully programmable 4-wire hook-up to KEYBUS Enables third parties to perform virtual keypad functions Enables third parties to perform thermostat control functionality via the DSC Escort module IT-100 – Features

  5. IT-100 – Sample Configuration

  6. IT-100 – Module Overview RED, BLK, YEL, GRN: These terminals are used to connect the IT-100 to the Keybus of the control panel.

  7. IT-100 – Module Overview LED: This LED is used to indicate the current status of the IT-100.

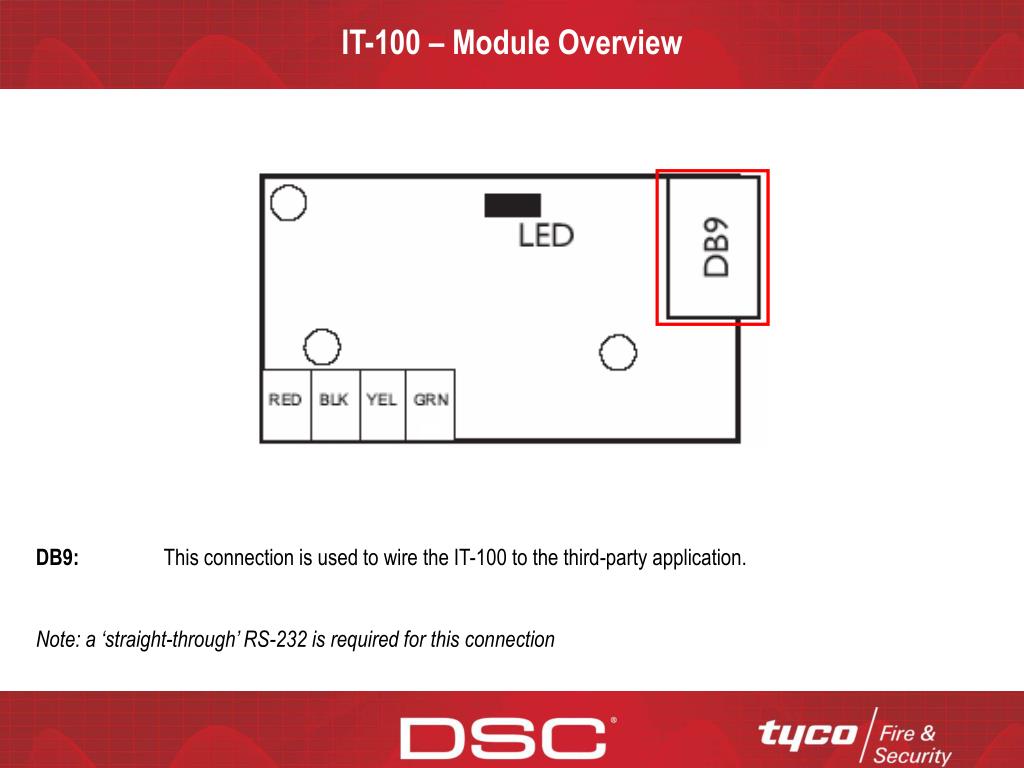

  8. IT-100 – Module Overview DB9: This connection is used to wire the IT-100 to the third-party application. Note: a ‘straight-through’ RS-232 is required for this connection

  9. IT-100 – Additional Wiring Information The IT-100 includes a ferrite. Ensure that it is looped through the keybus (twice) and placed as close to the IT-100 as possible.

  10. IT-100 – LED Information

  11. IT-100 – Baud Rate Selection Baud Rate Selection: The baud rate of the IT-100 is selectable using a third party applications (default = 9600 baud).

  12. Q&A IT-100
