Implementing the new ada and doj regulations

Implementing the “New” ADA and DOJ Regulations

A Policy Tele-Institute for Higher Education


Implementing the new ada and doj regulations

Session 2: Exploring the 2010 Standards for Accessible Design: Facilities and the Physical Environment

Presenters

John A. Catlin, FAIA, LCM Architects

Irene Bowen, ADA One, LLCL. Scott Lissner, The Ohio State University

November 2, 2010

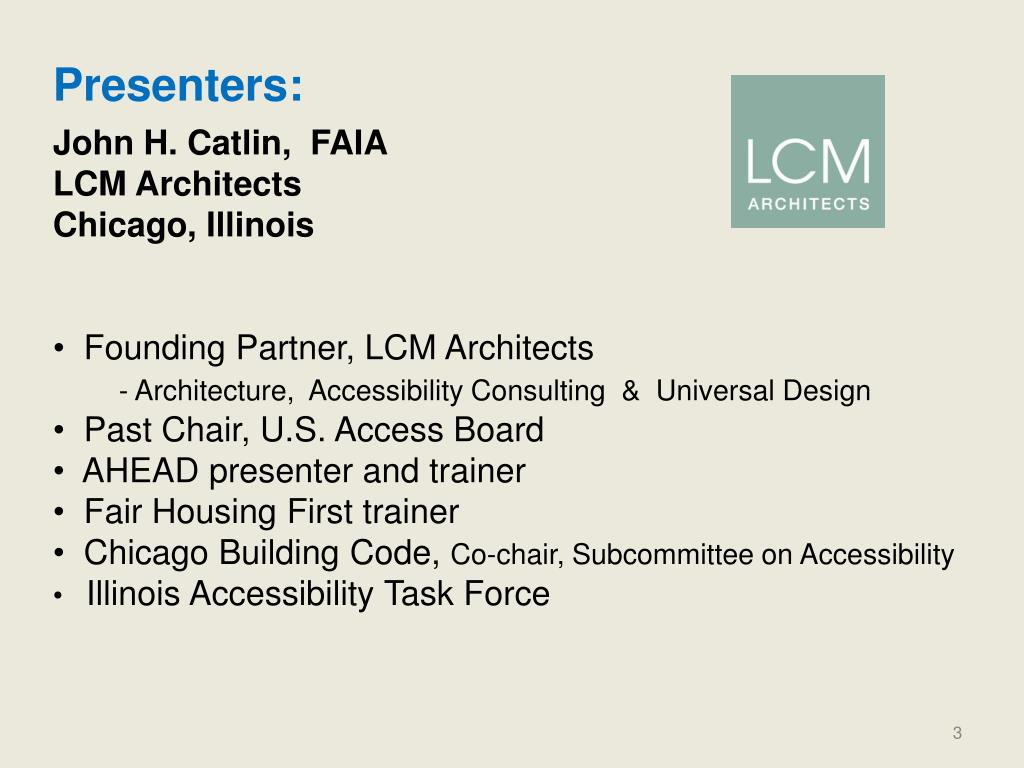

Implementing the new ada and doj regulations

  • Presenters: Design: Facilities and the Physical Environment

  • John H. Catlin, FAIA

  • LCM Architects

  • Chicago, Illinois

  • Founding Partner, LCM Architects

  • - Architecture, Accessibility Consulting & Universal Design

  • Past Chair, U.S. Access Board

  • AHEAD presenter and trainer

  • Fair Housing First trainer

    • Chicago Building Code, Co-chair, Subcommittee on Accessibility

  • Illinois Accessibility Task Force

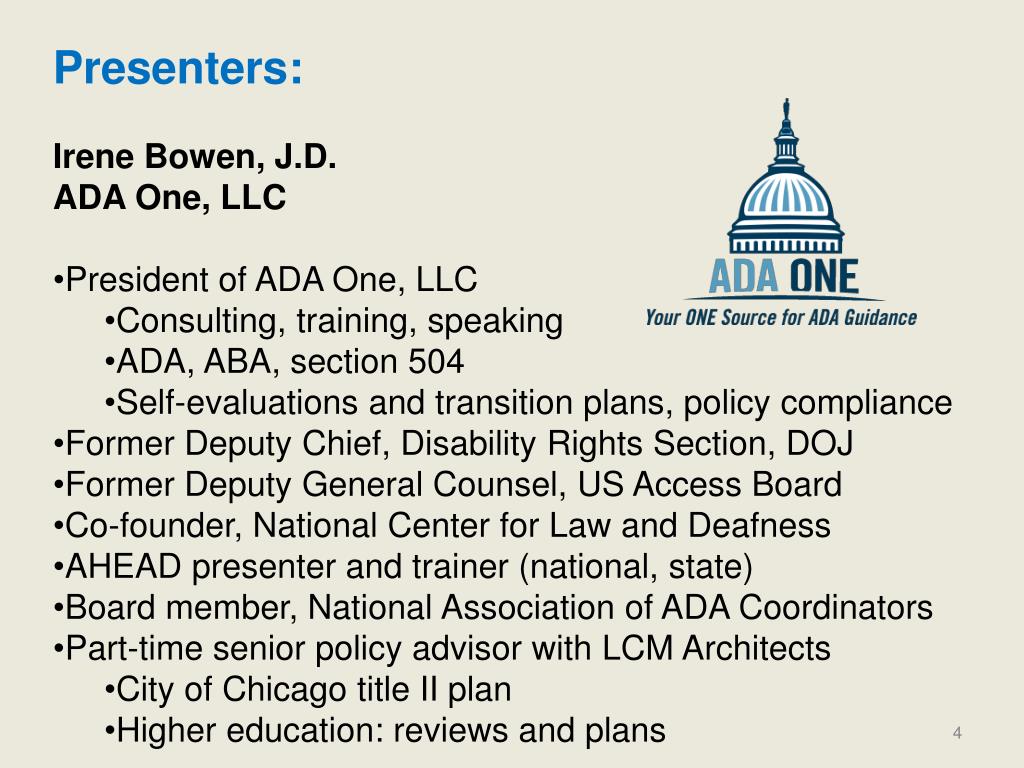

Implementing the new ada and doj regulations

  • Presenters: Design: Facilities and the Physical Environment

  • Irene Bowen, J.D.

  • ADA One, LLC

  • President of ADA One, LLC

    • Consulting, training, speaking

    • ADA, ABA, section 504

    • Self-evaluations and transition plans, policy compliance

  • Former Deputy Chief, Disability Rights Section, DOJ

  • Former Deputy General Counsel, US Access Board

  • Co-founder, National Center for Law and Deafness

  • AHEAD presenter and trainer (national, state)

  • Board member, National Association of ADA Coordinators

  • Part-time senior policy advisor with LCM Architects

    • City of Chicago title II plan

    • Higher education: reviews and plans


Implementing the new ada and doj regulations

  • Presenters: Design: Facilities and the Physical Environment

  • L. Scott Lissner

  • The Ohio State University

  • University ADA Coordinator & 504 Compliance Officer

    • - Associate, John Glenn School of Public Policy

    • - Lecturer at the Knowlton School of Architecture,

    • Moritz College of Law & Disability Studies

  • AHEAD

  • President Elect

  • Co-Chair, Public Policy & Government Relations Committee

  • OTHER

  • Appointed, Ohio Governor's Council For People With Disabilities

  • Chair, ADA-OHIO

  • Appointed, State HAVA Committee

  • Appointed, Columbus Advisory Council on Disability


Revisions to ada regulations published september 15 2010
Revisions to ADA regulations published Design: Facilities and the Physical EnvironmentSeptember 15, 2010

  • President announced, and DOJ posted, final ADA regulations on July 26, 2010

  • Published in Federal Register September 15, 2010

  • First major updates/revisions in 19 years

  • Two regulations

    • Title II: State and local governments (title II), 28 CFR Part 35

    • Title III: Public accommodations and commercial facilities, 28 CFR Part 36

  • Regulations, appendices, standards are at DOJ’s ADA web site (www.ada.gov).

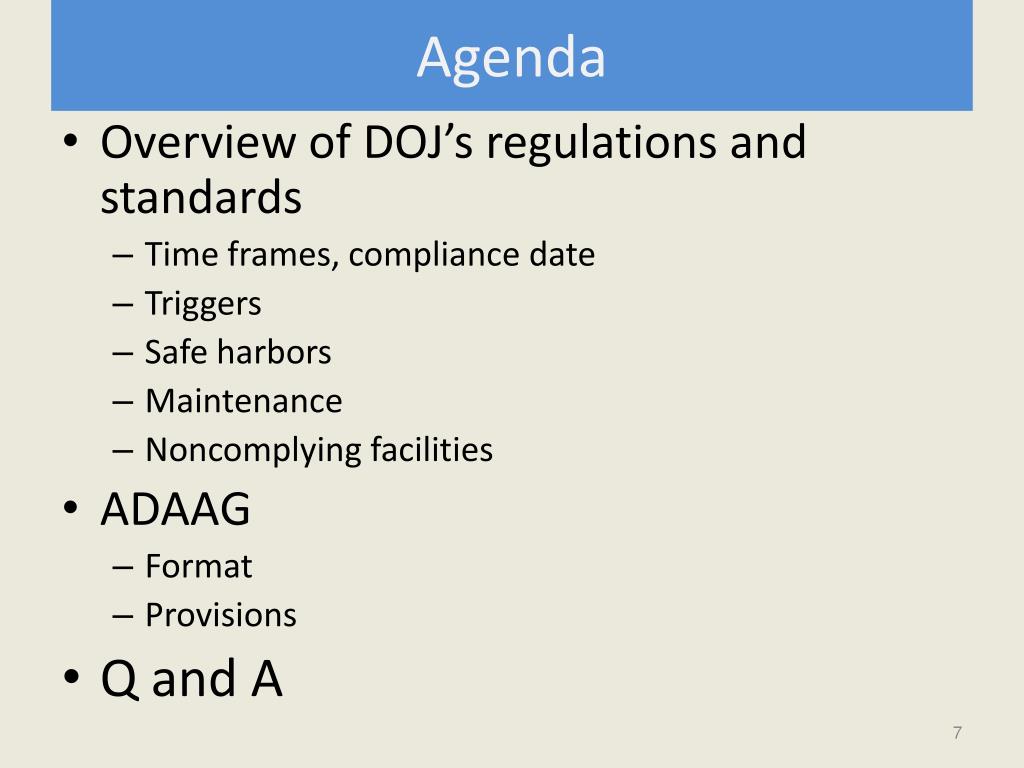

Agenda
Agenda Design: Facilities and the Physical Environment

  • Overview of DOJ’s regulations and standards

    • Time frames, compliance date

    • Triggers

    • Safe harbors

    • Maintenance

    • Noncomplying facilities

  • ADAAG

    • Format

    • Provisions

  • Q and A


New accessibility standards
New accessibility standards Design: Facilities and the Physical Environment

“2010 Standards”

  • Wholesale adoption of 2004 ADAAG (Access Board’s ADA Accessibility Guidelines) PLUS

    DOJ additions to 2004 ADAAG

  • Will be published in “one book” version


Beyond buildings other changes
Beyond buildings: other changes Design: Facilities and the Physical Environment

  • Service animals

  • Mobility devices

  • Communication

  • Hotel reservations

  • Event ticketing

  • Certification process (state/local codes)

  • Complaint investigation

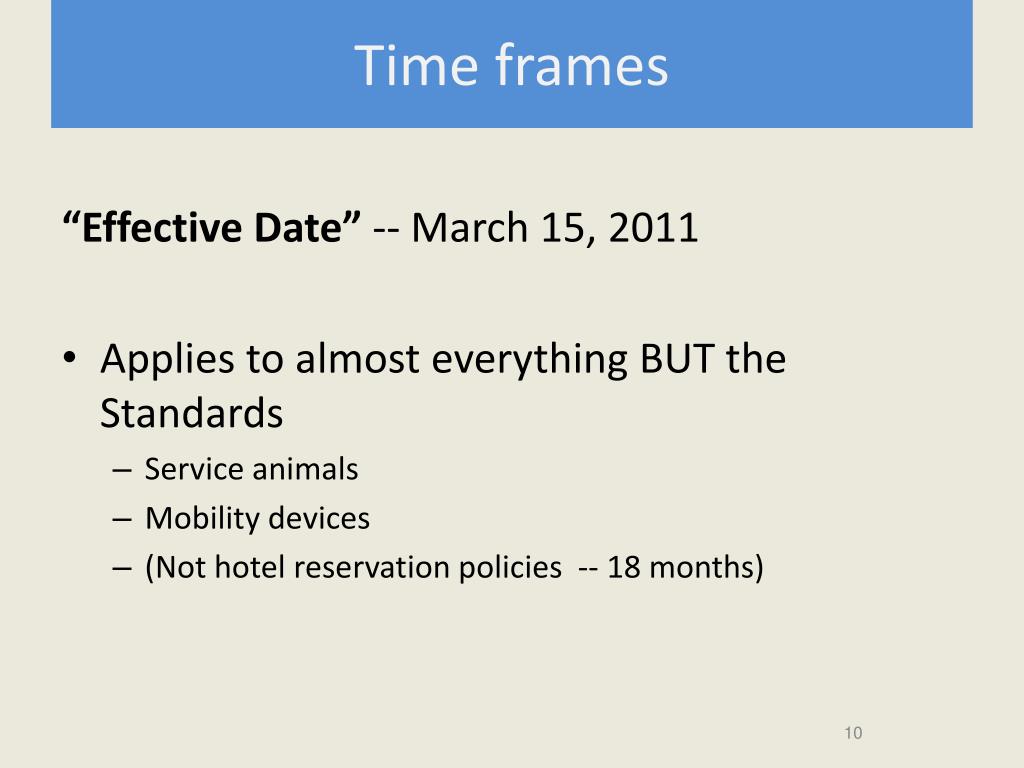

Time frames
Time frames Design: Facilities and the Physical Environment

“Effective Date” -- March 15, 2011

  • Applies to almost everything BUT the Standards

    • Service animals

    • Mobility devices

    • (Not hotel reservation policies -- 18 months)

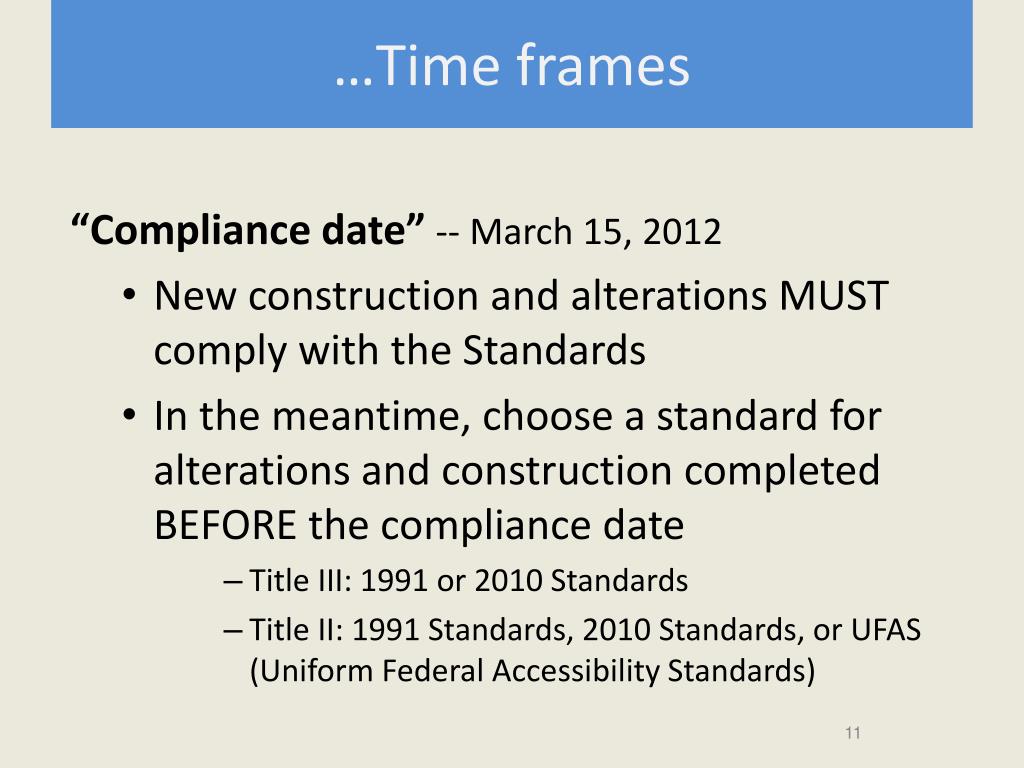

Time frames1
…Time frames Design: Facilities and the Physical Environment

“Compliance date” -- March 15, 2012

  • New construction and alterations MUST comply with the Standards

  • In the meantime, choose a standard for alterations and construction completed BEFORE the compliance date

    • Title III: 1991 or 2010 Standards

    • Title II: 1991 Standards, 2010 Standards, or UFAS (Uniform Federal Accessibility Standards)

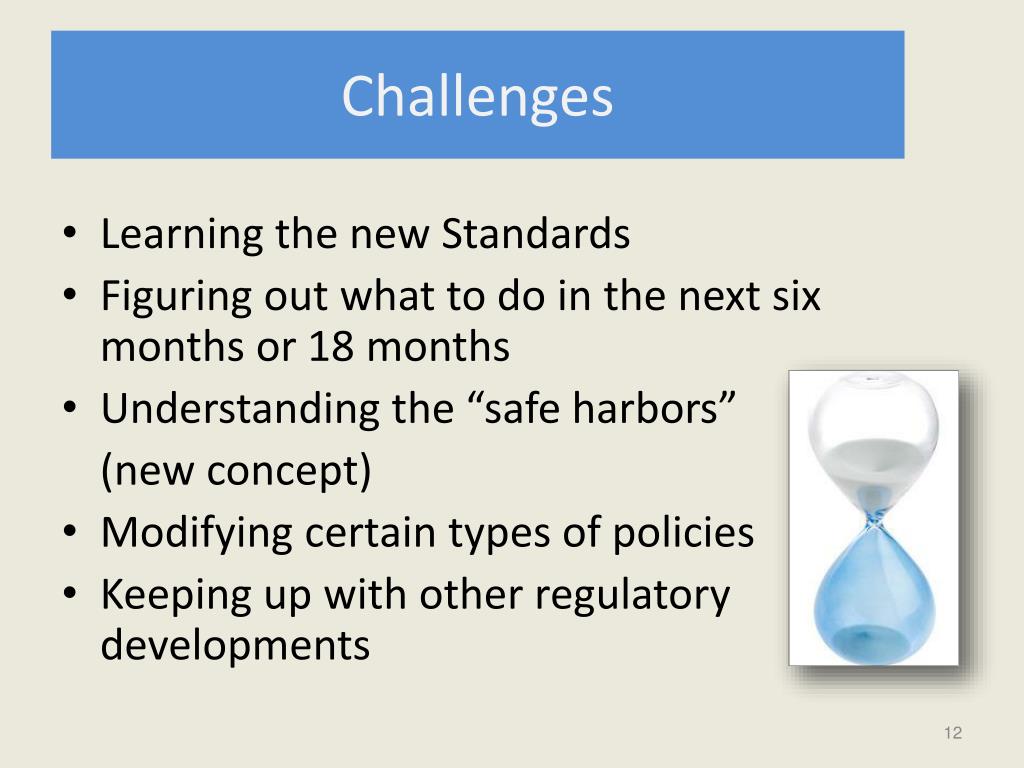

Challenges
Challenges Design: Facilities and the Physical Environment

  • Learning the new Standards

  • Figuring out what to do in the next six months or 18 months

  • Understanding the “safe harbors”

    (new concept)

  • Modifying certain types of policies

  • Keeping up with other regulatory developments

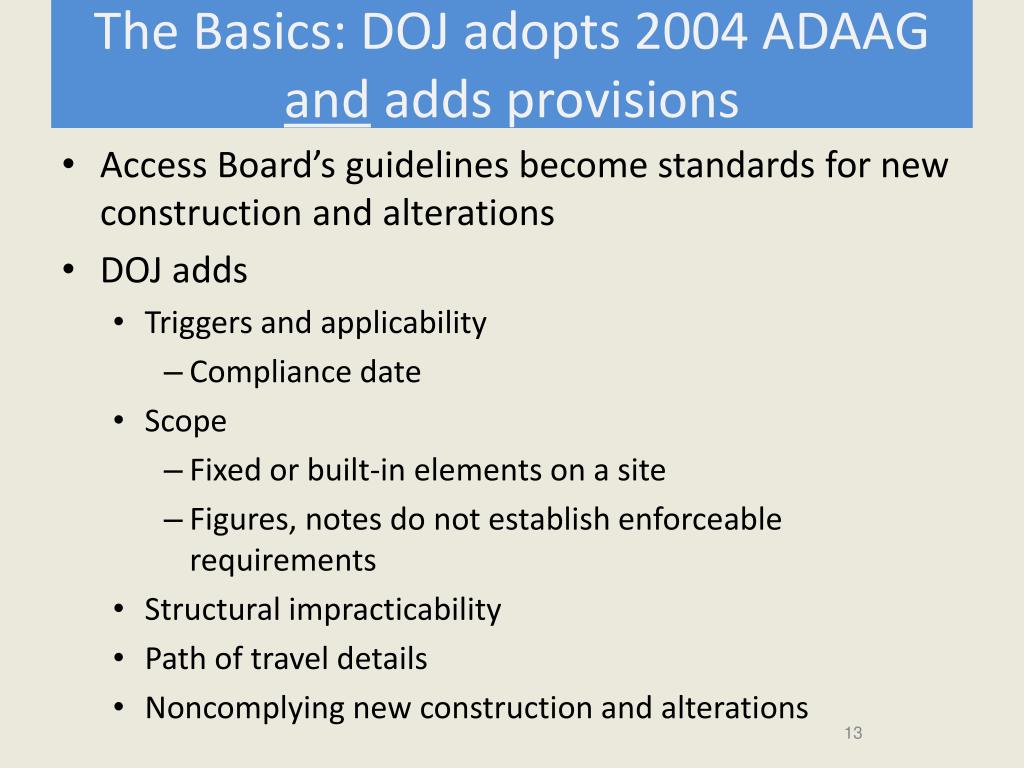

The basics doj adopts 2004 adaag and adds provisions
The Basics: DOJ adopts 2004 ADAAG Design: Facilities and the Physical Environmentand adds provisions

  • Access Board’s guidelines become standards for new construction and alterations

  • DOJ adds

    • Triggers and applicability

      • Compliance date

    • Scope

      • Fixed or built-in elements on a site

      • Figures, notes do not establish enforceable requirements

    • Structural impracticability

    • Path of travel details

    • Noncomplying new construction and alterations


The basics doj includes provisions that are not in adaag
…The Basics: DOJ includes provisions Design: Facilities and the Physical Environmentthat are not in ADAAG

  • Assembly areas

  • Medical care facilities

  • Housing at a place of higher education

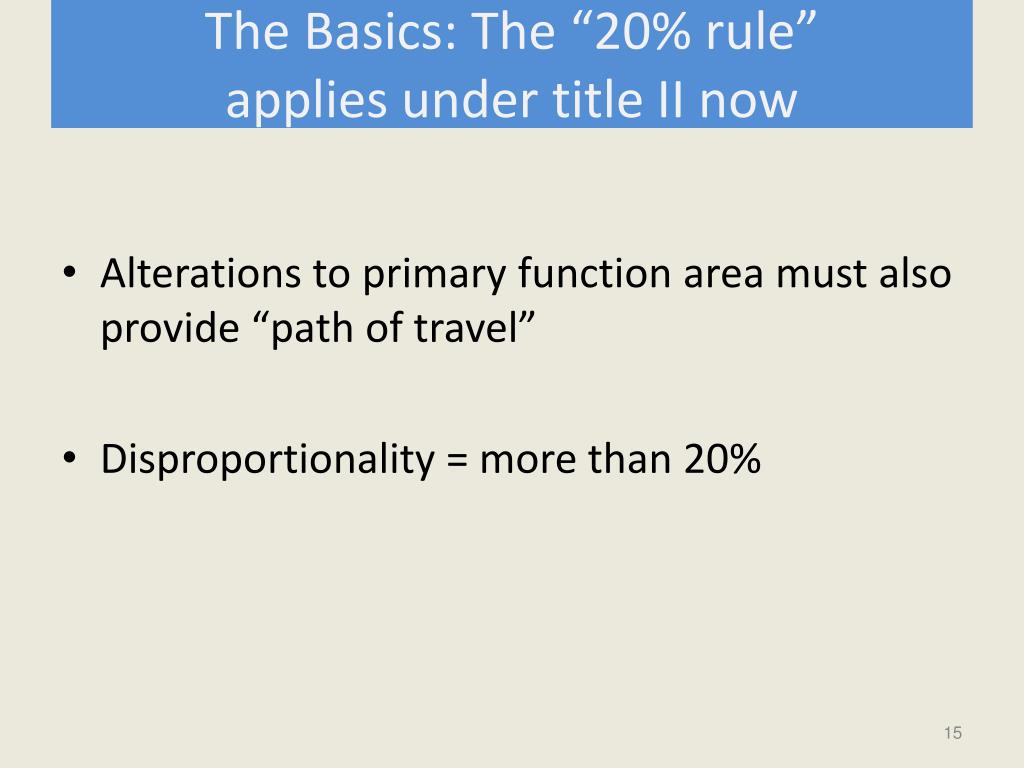

The basics the 20 rule applies under title ii now
The Basics: The “20% rule” Design: Facilities and the Physical Environmentapplies under title II now

  • Alterations to primary function area must also provide “path of travel”

  • Disproportionality = more than 20%


Triggering events
Triggering events Design: Facilities and the Physical Environment

  • Title II

    • Start of physical construction or alterations, 35.151(c)

  • Title III tied to permits, if granted, 46.406(a)

    • If state/local/county government requires permits, date that last application for building permit or permit extension certified complete

      • If government doesn’t certify completion of applications, then date of last application for permit or extension

    • If government doesn’t require permits, start of physical construction or alterations


Start of physical construction or alterations
“Start of physical construction or alterations” Design: Facilities and the Physical Environment

Does not include

  • Ceremonial groundbreaking

  • Razing structures prior to site preparation

NOT

NOT


Alterations title ii
Alterations: title II Design: Facilities and the Physical Environment

  • “Path of travel” requirement now applies under title II too. 35.151(b)(2) and (4).

    • AKA 20% Rule: if you alter a “primary function area,” you have to comply with alterations standards for that space, plus spend up to 20%

      on path of travel accessibility

      (route to space, restrooms,

      drinking fountains, phones)

  • Structural impracticability

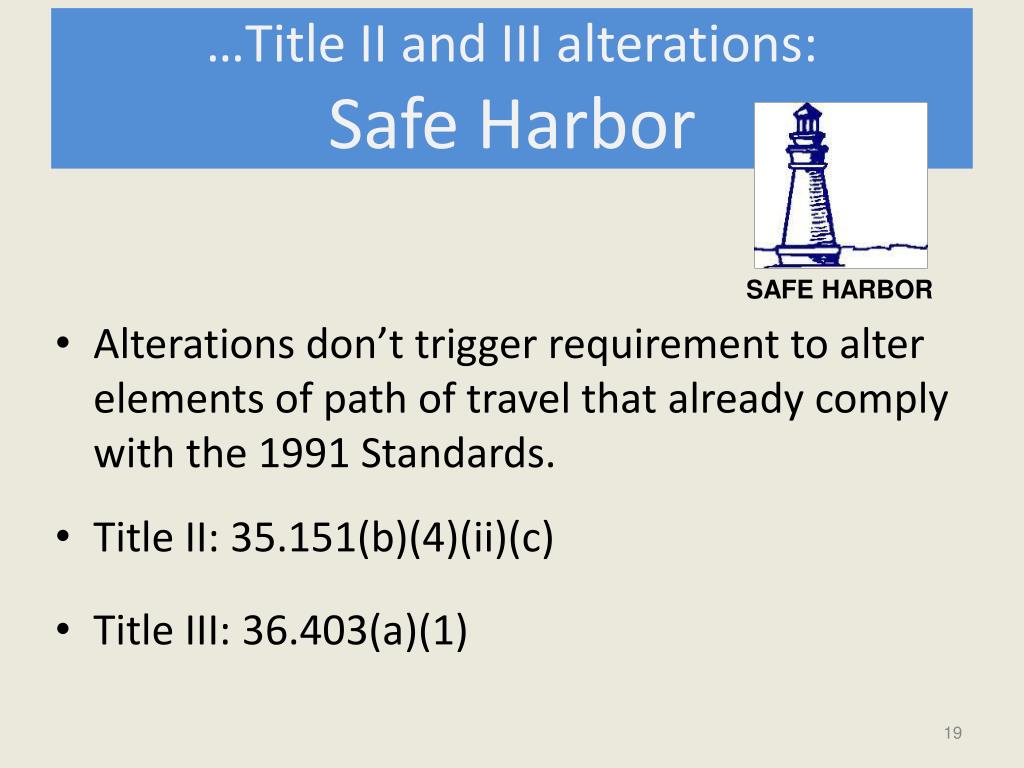

Title ii and iii alterations safe harbor
…Title II and III alterations: Design: Facilities and the Physical EnvironmentSafe Harbor

SAFE HARBOR

  • Alterations don’t trigger requirement to alter elements of path of travel that already comply with the 1991 Standards.

  • Title II: 35.151(b)(4)(ii)(c)

  • Title III: 36.403(a)(1)

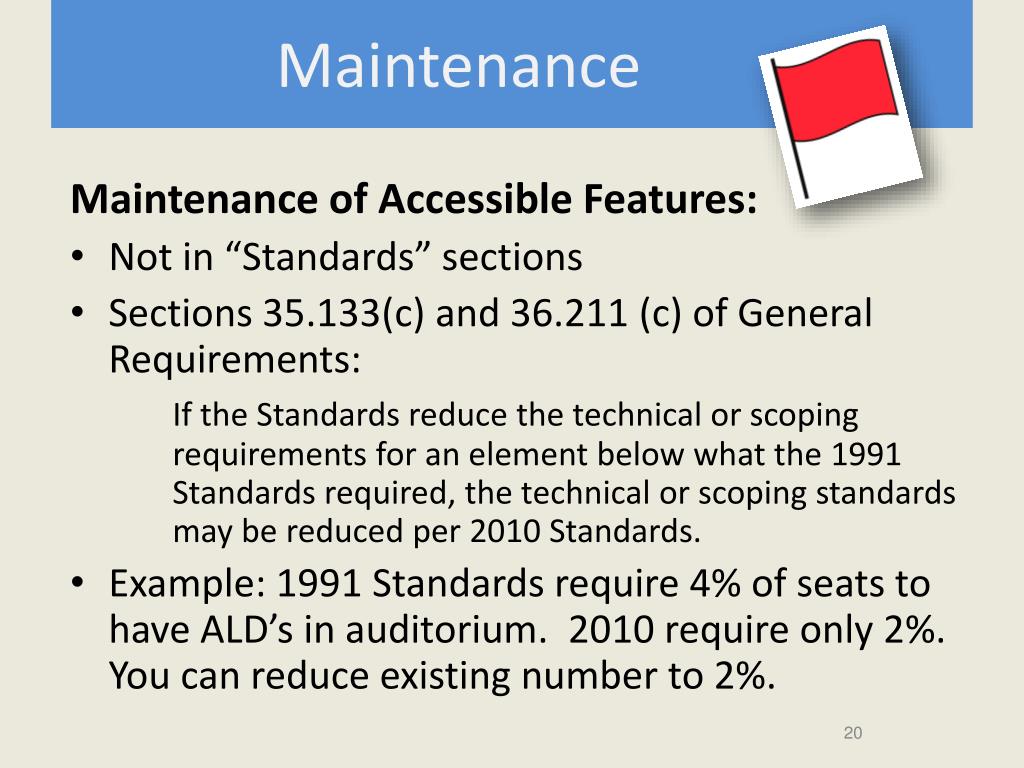

Maintenance
Maintenance Design: Facilities and the Physical Environment

Maintenance of Accessible Features:

  • Not in “Standards” sections

  • Sections 35.133(c) and 36.211 (c) of General Requirements:

    If the Standards reduce the technical or scoping requirements for an element below what the 1991 Standards required, the technical or scoping standards may be reduced per 2010 Standards.

  • Example: 1991 Standards require 4% of seats to have ALD’s in auditorium. 2010 require only 2%. You can reduce existing number to 2%.


Existing facilities safe harbor
Existing facilities: safe harbor Design: Facilities and the Physical Environment

Program accessibility (title II)

  • Basic requirement stays:

    • Every program must be accessible when viewed in its entirety

    • Whether something is “accessible” is measured by reference to Standards

  • The “measure”/reference point changes (1991, 2010)


Existing facilities safe harbor1
…Existing facilities: safe harbor Design: Facilities and the Physical Environment

  • New “safe harbor”: elements complying with UFAS or 1991 Standards don’t have to be altered just for sake of program access even after March 2012

    • Areas not addressed in 1991 but addressed in 2010 are not subject to safe harbor: recreation, play areas, etc.

  • Barrier removal (title III): similar safe harbor


Using the safe harbor
Using the safe harbor Design: Facilities and the Physical Environment

  • Document existing elements complying with 1991 Standards (or UFAS if title II)

  • If changes are required, remove barriers to program access (or title III barriers) under 1991 or 2010 Standard considering safe harbor

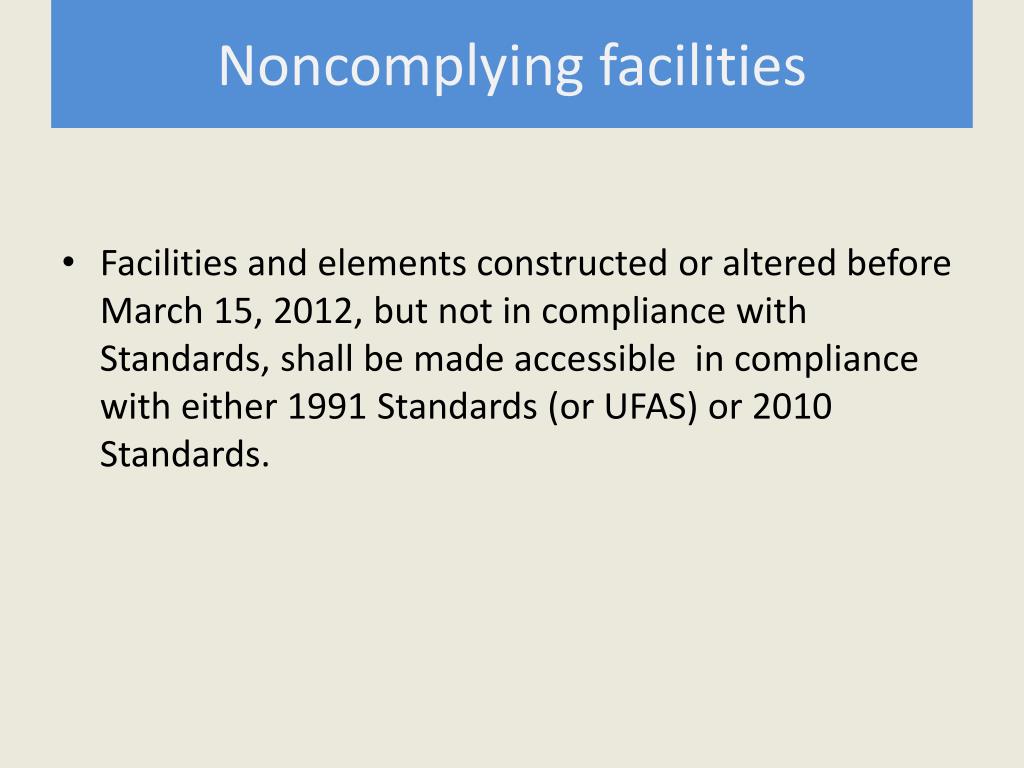

Noncomplying facilities
Noncomplying Design: Facilities and the Physical Environment facilities

  • Facilities and elements constructed or altered before March 15, 2012, but not in compliance with Standards, shall be made accessible in compliance with either 1991 Standards (or UFAS) or 2010 Standards.


At last

New ADA Standards Design: Facilities and the Physical Environment

At Last!

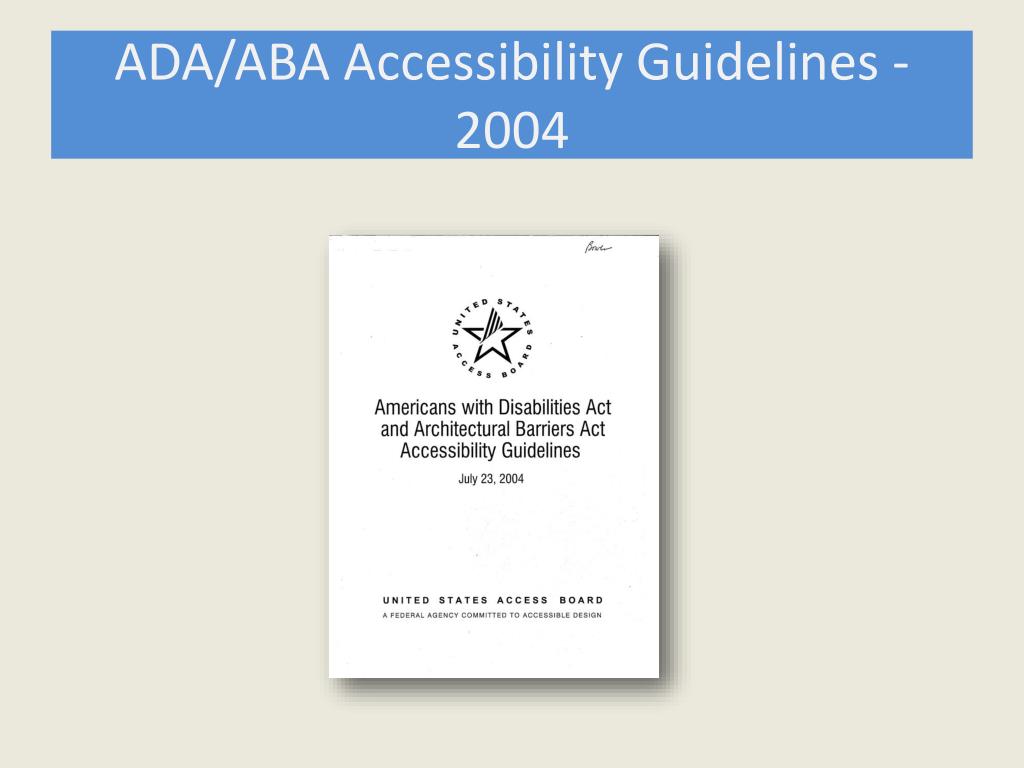

Ada aba accessibility guidelines 2004
ADA/ABA Accessibility Guidelines - 2004 Design: Facilities and the Physical Environment


Harmonization
Harmonization Design: Facilities and the Physical Environment

ICC/ANSI A117.1-2003 IBC 2003


A rule in 3 parts
A Rule in 3 Parts Design: Facilities and the Physical Environment


Contents
Contents Design: Facilities and the Physical Environment

  • Chapter 1: Application

  • Chapter 2: Scoping

  • Chapters 3 – 10: Technical


New format
New Format Design: Facilities and the Physical Environment

  • Numbering system

  • New figures (informational only)

  • All dimensions in text

    (not just figures)

  • New advisory notes follow provision


2010 ada standards
2010 ADA Standards Design: Facilities and the Physical Environment

  • 104 Conventions

    104.1 Dimensions

    Dimensions that are not stated as a

    maximum or minimum are absolute.

    104.1.1 Construction and Manufacturing Tolerances

    All dimensions are subject to conventional industry tolerances except where the requirement is stated as a range with specific minimum and maximum end points.

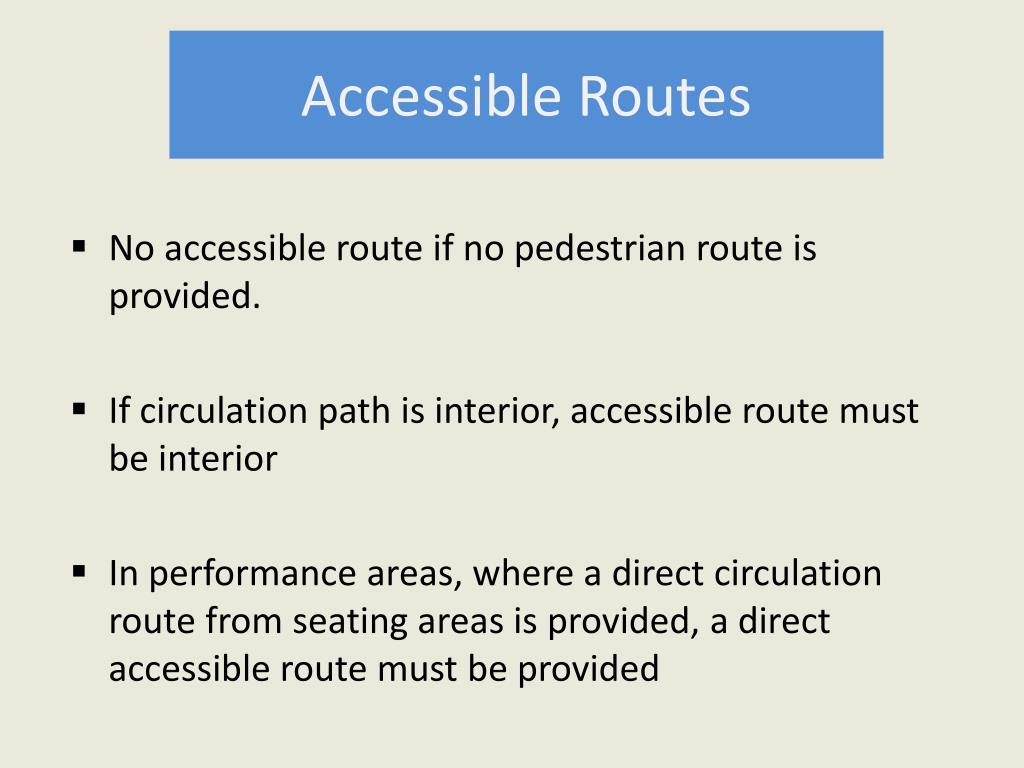

Accessible routes
Accessible Routes Design: Facilities and the Physical Environment

  • No accessible route if no pedestrian route is provided.

  • If circulation path is interior, accessible route must be interior

  • In performance areas, where a direct circulation route from seating areas is provided, a direct accessible route must be provided

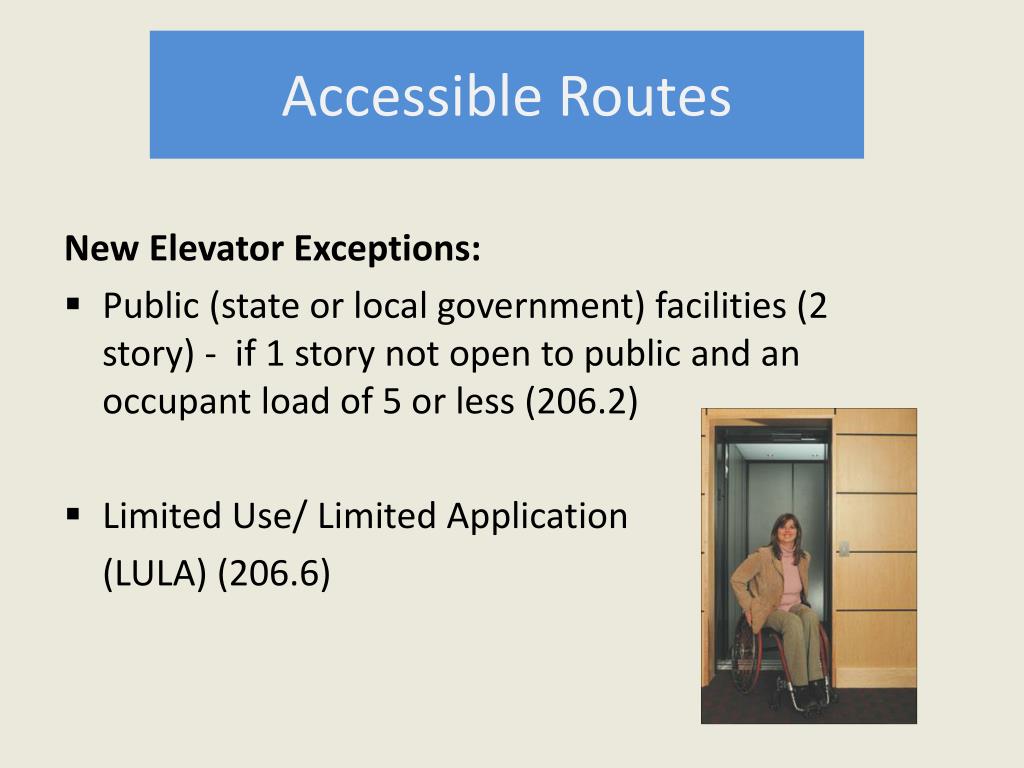

Accessible routes1
Accessible Routes Design: Facilities and the Physical Environment

New Elevator Exceptions:

  • Public (state or local government) facilities (2 story) - if 1 story not open to public and an occupant load of 5 or less (206.2)

  • Limited Use/ Limited Application

    (LULA) (206.6)

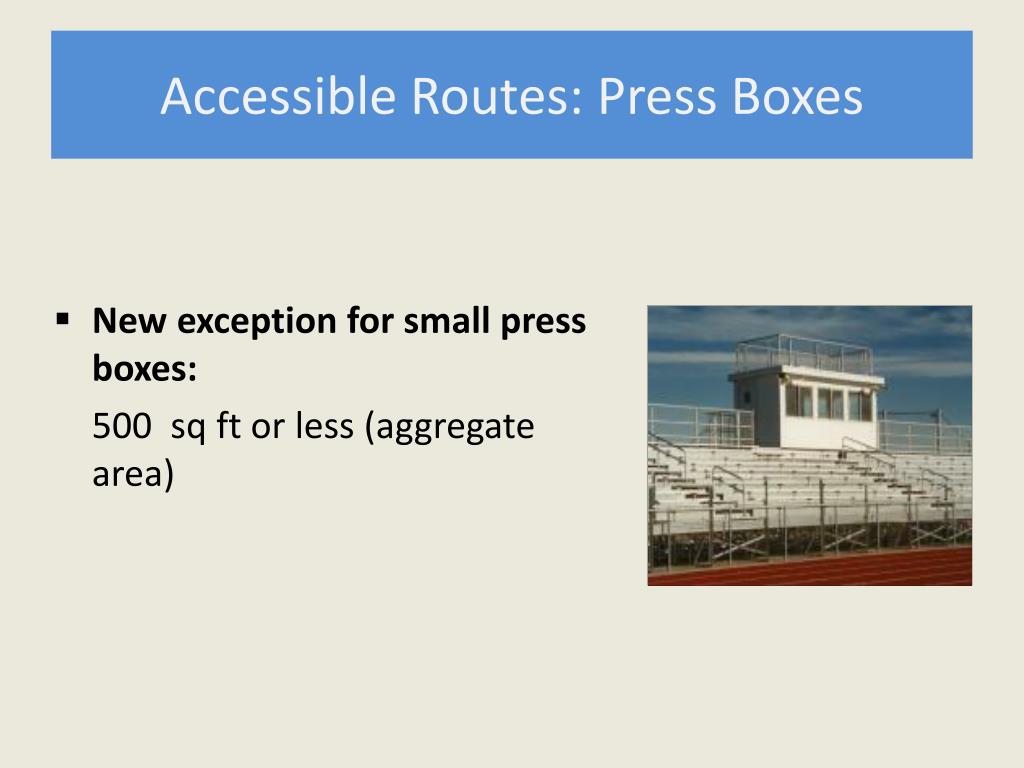

Accessible routes press boxes
Accessible Routes: Press Boxes Design: Facilities and the Physical Environment

  • New exception for small press boxes:

    500 sq ft or less (aggregate area)


Ada work areas
ADA Work Areas Design: Facilities and the Physical Environment

ADA Work Areas

  • Current Standard

  • Accessible route so an employee can approach, enter and exit employee area

  • New Standard

  • Common use accessible circulation path required through the work area if space is > 1000 sf.


Ada work areas1
ADA Work Areas Design: Facilities and the Physical Environment

General Exception:

  • Work areas less than 300 sq ft and elevated at least 7 in. AFF

    and

  • where the elevation is

    essential to the

    function of the space


Curb ramps 406
Curb Ramps (406) Design: Facilities and the Physical Environment

Detectable Warnings – no requirement

[ A future rulemaking on public

rights-of-way to revisit issue.]


Parking 208
Parking (208) Design: Facilities and the Physical Environment

Van Spaces - 1 of 6 accessible spaces


Side reach range 308 3
Side Reach Range (308.3) Design: Facilities and the Physical Environment

New Maximum Side Reach Range – 48” AFF

New Minimum Side Reach Range – 15” AFF

  • Current Standard 54” max to 9” min

  • New Standard

  • 48” max to 15” min


Toilet and bathing facilities 213
Toilet and Bathing Facilities (213) Design: Facilities and the Physical Environment

  • 50% of clustered toilet rooms

  • Urinals - access where > 1 provided

  • Exception for hospital critical and intensive care


Toilet and bathing rooms 603
Toilet and Bathing Rooms (603) Design: Facilities and the Physical Environment

Door can swing into clearances at fixtures if 30 in. by 48 in. clear floor space is beyond arc of the door

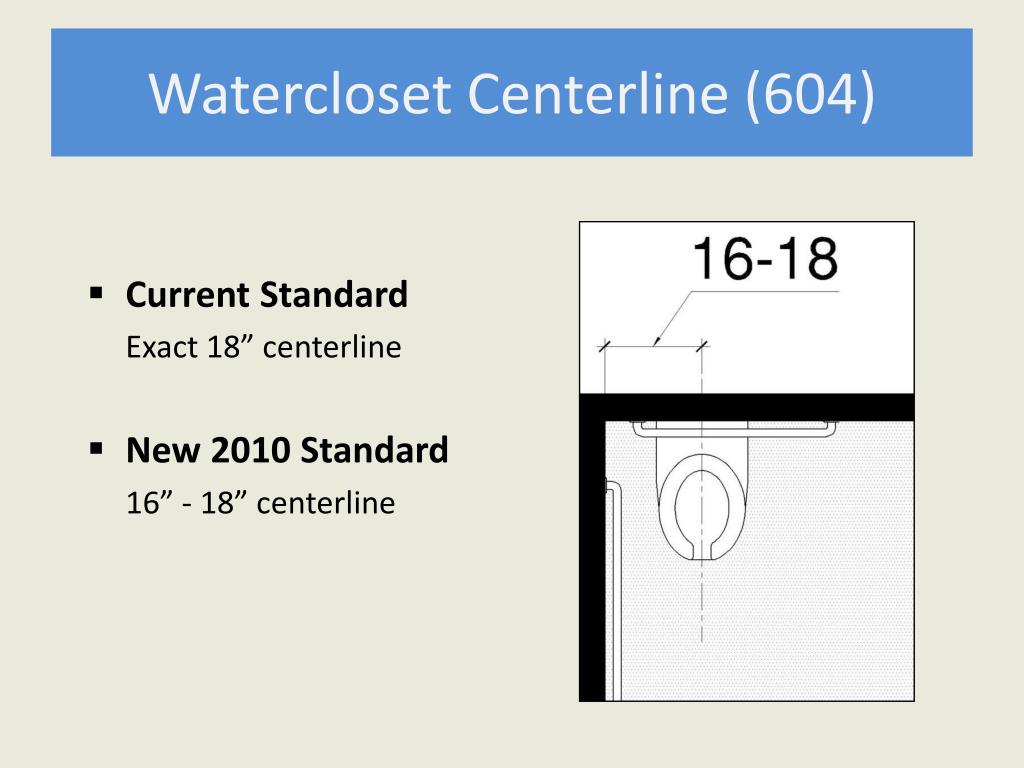

Watercloset centerline 604
Watercloset Centerline (604) Design: Facilities and the Physical Environment

  • Current Standard

  • Exact 18” centerline

  • New 2010 Standard

  • 16” - 18” centerline

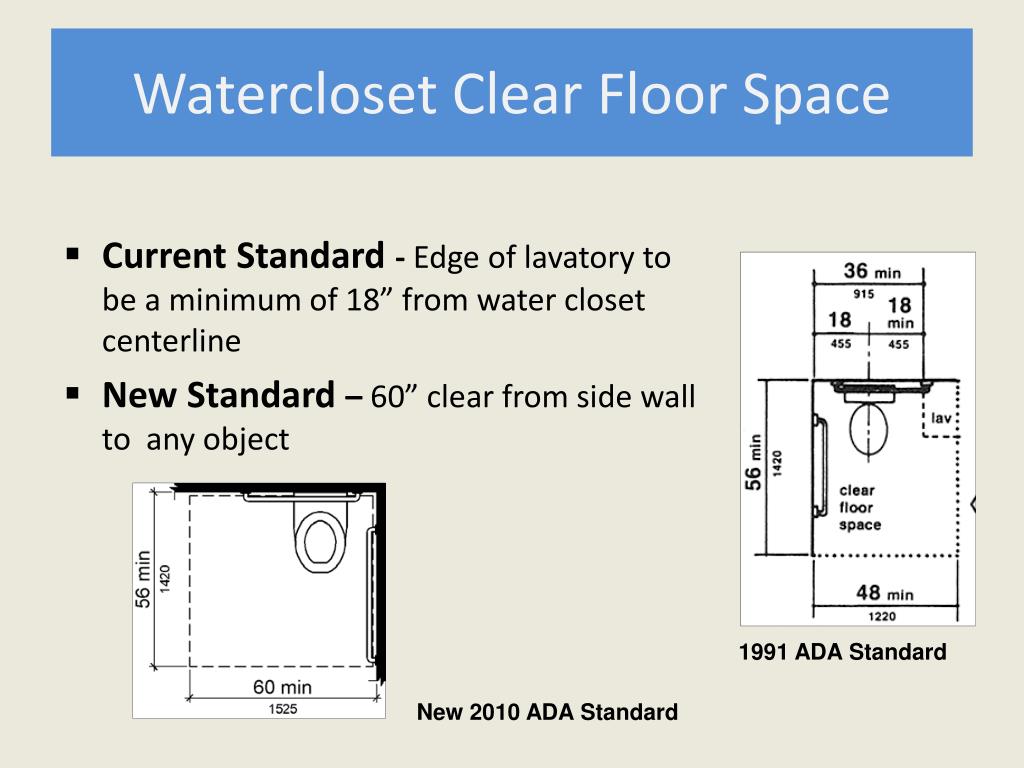

Watercloset clear floor space
Watercloset Clear Floor Space Design: Facilities and the Physical Environment

  • Current Standard - Edge of lavatory to be a minimum of 18” from water closet centerline

  • New Standard – 60” clear from side wall to any object

1991 ADA Standard

New 2010 ADA Standard

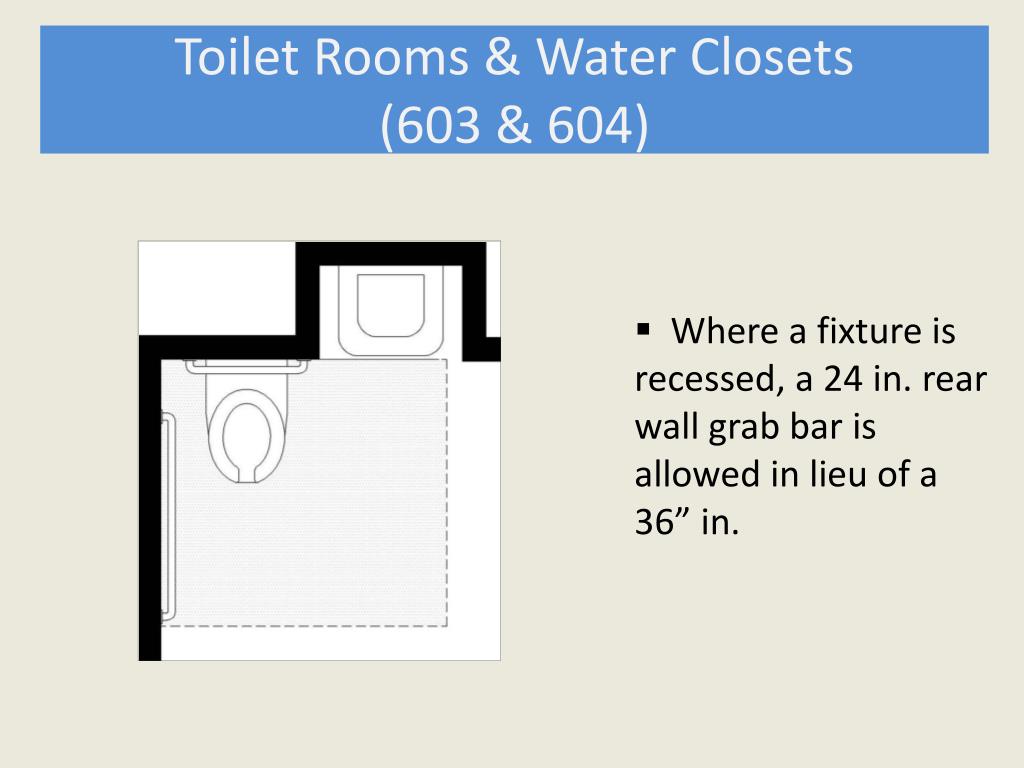

Toilet rooms water closets 603 604
Toilet Rooms & Water Design: Facilities and the Physical EnvironmentClosets (603 & 604)

  • Where a fixture is recessed, a 24 in. rear wall grab bar is allowed in lieu of a 36” in.

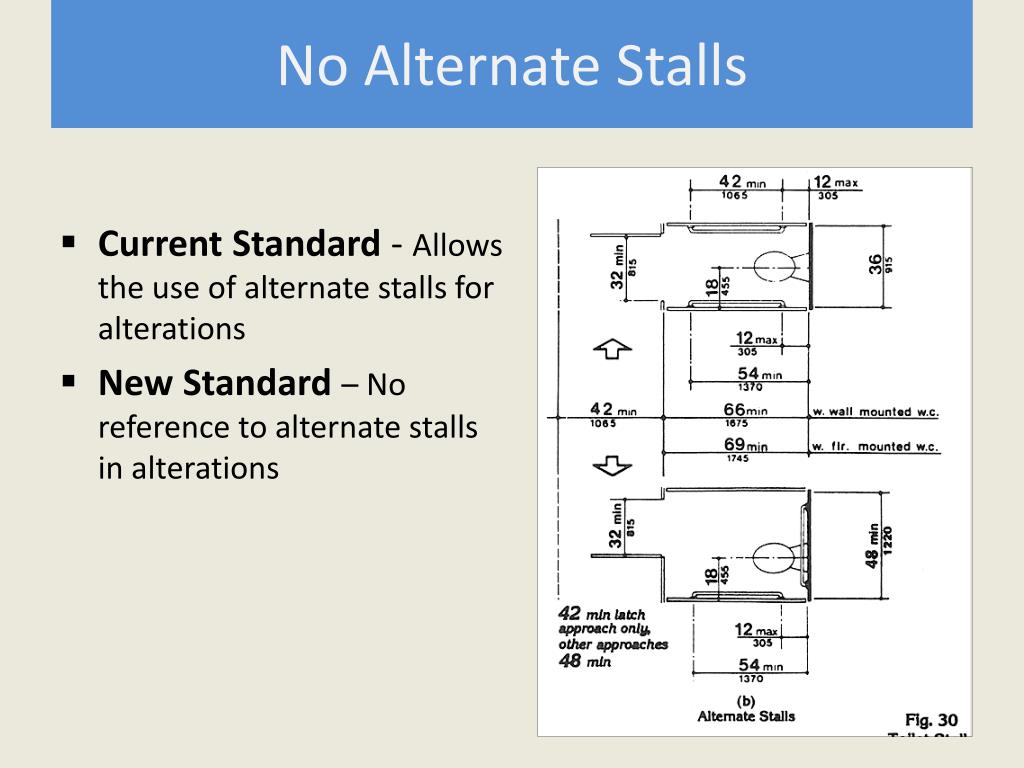

No alternate stalls
No Alternate Stalls Design: Facilities and the Physical Environment

  • Current Standard - Allows the use of alternate stalls for alterations

  • New Standard – No reference to alternate stalls in alterations


Ambulatory accessible compartments
Ambulatory Accessible Compartments Design: Facilities and the Physical Environment

Width: - 35”- 37” (not 36” absolute)

Depth: - 60” min.


Lavatories and sinks 606
Lavatories and Sinks (606) Design: Facilities and the Physical Environment

  • Current Standard – Apron clearance (29” min.) required

  • New Standard

    Apron clearance removed. Only 27” knee clearance required


Grab bars
Grab Bars Design: Facilities and the Physical Environment

  • 12” min. clearance

  • above grab bar

  • 1 ½” min. below grab bar

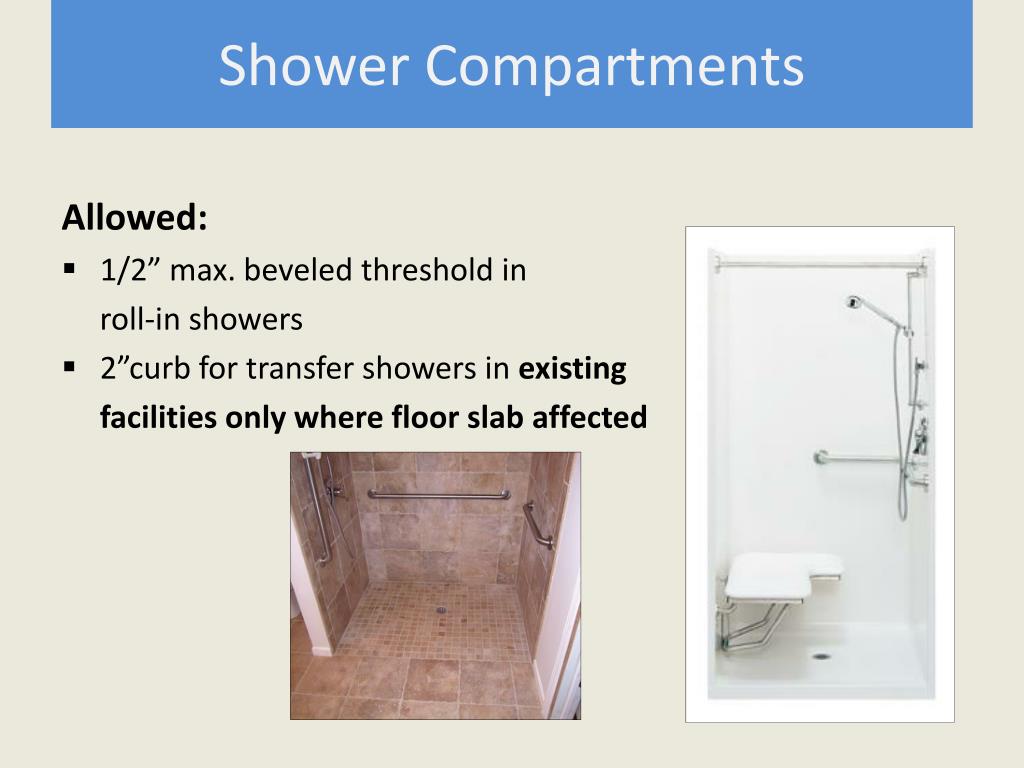

Shower compartments
Shower Compartments Design: Facilities and the Physical Environment

Allowed:

  • 1/2” max. beveled threshold in

    roll-in showers

  • 2”curb for transfer showers in existing

    facilitiesonlywhere floor slab affected


Assembly areas
Assembly Areas Design: Facilities and the Physical Environment

  • Fewer wheelchair spaces for assembly areas with

    > 500 seats

  • 501 – 5,000 seats: 1 space/ every 150 seats (instead of 1%)

  • > 5,000: 0.5%


Assembly areas1
Assembly Areas Design: Facilities and the Physical Environment

  • Other Changes:

  • One companion seat per wheelchair space

  • Companion seat can be movable

  • Fewer designated aisle seats

  • (5% of aisle seats provided, instead

  • of 1% of total seats)

  • Lawn seating – provide accessible route

  • In performance areas, where a direct circulation route from

  • seating areas is provided, a direct accessible route must be

  • provided.


Accessible seating locations
Accessible Seating Locations Design: Facilities and the Physical Environment

Lines of sight over seated/ standing spectators


Additional doj provisions
Additional DOJ provisions Design: Facilities and the Physical Environment

  • Stadiums, arenas, and grandstands: dispersed to all levels served by accessible routs

  • Encircling field of play or performance area: dispersed

  • No temporary platforms; exception: entire section (removable seats)

  • Specific line of sight provisions for stadium-style movie theaters

    Sections 35.151(g) and 36.406 (f)


Housing at places of education
Housing at places of education Design: Facilities and the Physical Environment

  • New definition of housing at a place of education in 35.104, 36.104 includes dormitories, suites, apartments, etc. at all levels of education

  • Two categories, 36.406(e)

    • Generally, comply with transient lodging requirements (residence halls and similar), 224 and 806

    • Apartments or townhouses leased year-round to graduate students or faculty (if no areas for educational programming) must comply with residential facility standards, 223 and 809


Housing at places of education1
Housing at places of education Design: Facilities and the Physical Environment

DOJ:

  • When mobility-accessible unit or floor with such units has a kitchen, kitchen shall have turning spaces and accessible work surfaces that comply with 809.2.2 and 804.3

  • Multi-bedroom units with mobility-accessible sleeping rooms shall have accessible route throughout units per 809.2

  • Sections 36.406(e), 35.151(f)


Housing
Housing Design: Facilities and the Physical Environment

  • Residence Halls (224 Scoping) (806 Technical)

    Meet new requirements for Transient Lodging

    - 2%-4% Mobility & 4% - 9% Communication

    - Living & dining areas

    - Common kitchens - turning space and accessible counters

    - Accessible route to connect all spaces & elements

    - At least one bathroom per unit/all common bathrooms

    - All passage doors in all rooms (not just the accessible Rms.)

    - Visual alarms (if required)

    Meet Fair Housing Act

    Meet Sect. 504 (Title II)


Housing1
Housing Design: Facilities and the Physical Environment

  • Apartments & Townhouses (233 Scoping) (809 Technical)

    Meet new requirements for Residential Facilities

    - 5% Mobility & 2% Communication

    - Accessible route to connect all spaces & elements

    - Turning space in all rooms served by accessible route

    - Kitchen

    - At least one bathroom

    - Visual alarms (if required)

    Meet Fair Housing Act

    Meet Sect. 504 (Title II)


Recreation facilities
Recreation Facilities Design: Facilities and the Physical Environment

  • amusement rides (234)

  • recreational boating facilities (235)

  • exercise machines (236)

  • fishing piers and platforms (237)

  • golf facilities (238)

  • miniature golf facilities (239)

  • play areas (240)

  • saunas and steam rooms (241)

  • swimming pools, wading pools, and spas (242)

  • shooting facilities with firing positions (243)


Recreation facilities1
Recreation Facilities Design: Facilities and the Physical Environment

  • amusement rides (234)

  • recreational boating facilities (235)

  • exercise machines (236)

  • fishing piers and platforms (237)

  • golf facilities (238)

  • miniature golf facilities (239)

  • play areas (240)

  • saunas and steam rooms (241)

  • swimming pools, wading pools, and spas (242)

  • shooting facilities with firing positions (243)


Recreation facilities2
Recreation Facilities Design: Facilities and the Physical Environment

  • Exercise Machines & Equipment (236)

  • At least one of each type of Exercise Machines & Equipment

  • Shall comply with 1004.


Recreation facilities3
Recreation Facilities Design: Facilities and the Physical Environment

  • Play Areas (240)

    Play areas for children 2 and over shall comply.

    - Percentage of play components (ground or elevated)

    - Ground surfaces


Recreation facilities4
Recreation Facilities Design: Facilities and the Physical Environment

  • Swimming Pools, Wading Pools, and Spas (242)

    Swimming pools, wading pools, and spas shall comply with 242

    - Accessible means of entry


Resources and handouts
Resources and handouts Design: Facilities and the Physical Environment

  • DOJ web site www.ada.gov

    • Final regulations

    • Fact sheets:

      • Title II rule: http://www.ada.gov/regs2010/factsheets/title2_factsheet.html

      • Title III rule: http://www.ada.gov/regs2010/factsheets/title3_factsheet.html

      • 2010 Standards: http://www.ada.gov/regs2010/factsheets/2010_Standards_factsheet.html


Resources and handouts1
…Resources and handouts Design: Facilities and the Physical Environment

  • Access Board web site: http://www.access-board.gov/ada/index.htm

  • Tips for the Transition to 2012, from ADA One, LLC


Questions and answers

? Design: Facilities and the Physical Environment

Questions and answers


Contact
CONTACT Design: Facilities and the Physical Environment

John H. Catlin, FAIA

LCM Architects

509 South Wabash Ave.

Suite 509

Chicago, Illinois 60605

Web site: www.lcmarchitects.com

Email: jcatlin@lcmarchitects.com

312.913.1717 x230 (O)

312.913.1727 (F)


Contact1
CONTACT Design: Facilities and the Physical Environment

Irene Bowen, J.D.

President, ADA One, LLC

9 Montvale Court

Silver Spring, MD 20904

Web site: http://ADA-One.com

Email: IreneBowen@ADA-One.com

301 879 4542 (O)

301 236 0754 (F)


Contact2
CONTACT Design: Facilities and the Physical Environment

L. Scott Lissner,

ADA Coordinator,

The Ohio State University

1849 Cannon Drive

Columbus, OH 43210-1266

Lissner.2@OSU.EDUHttp://ada.osu.edu

(614) 292-6207(v);

(614) 688-8605(tty)

(614) 688-3665(fax);


Other opportunities
Other opportunities Design: Facilities and the Physical Environment

NAADAC webinars

  • November 3: ADA Standards - Admin. Provisions, Accessible Routes, & Building Blocks

  • November 10:  ADA Standards - Common Space & Element Types and Communications

  • November 17:  ADA Standards - Toilets, Bathing, Kitchens, & Plumbing Elements

  • December 1:  ADA Standards - Specialized Rooms, Spaces & Elements Incl. Residential & Rec.

    To register and for more information: http://www.krm.com/NAADAC (direct registration) or http://askjan.org/naadac/ (NAADAC website)


Next session
Next session Design: Facilities and the Physical Environment

  • Session 3 - Program Access and Changes in the ADA’s Title II and III Regulations

    Tuesday, November 16, 2010
