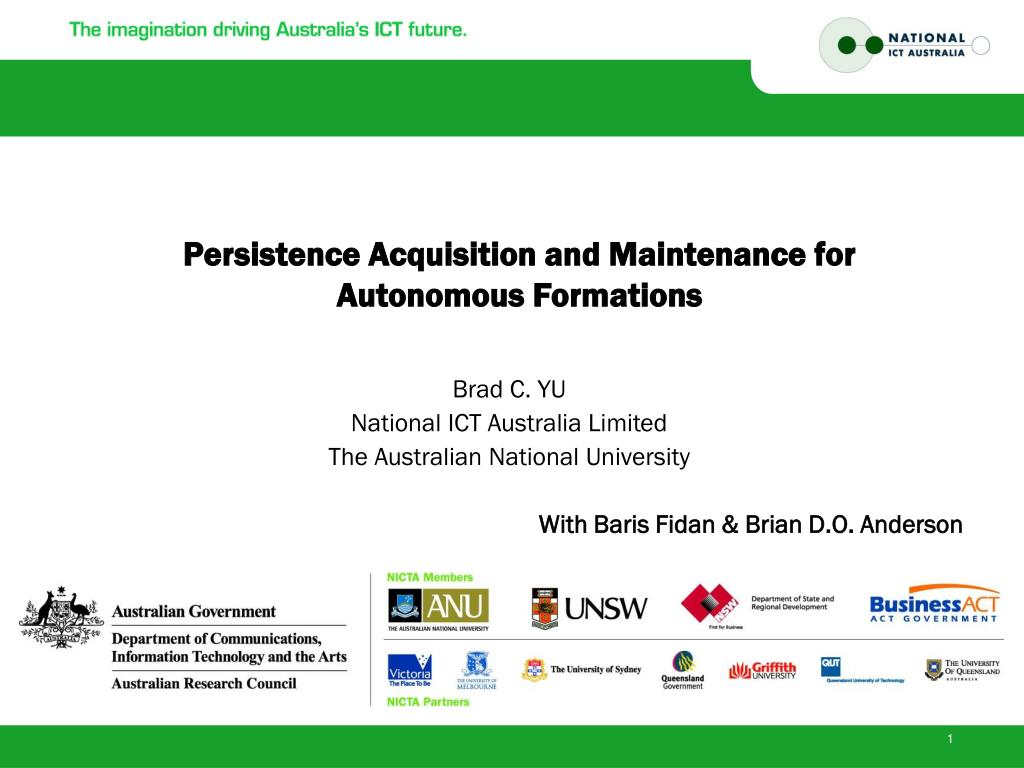

  1. Persistence Acquisition and Maintenance forAutonomous Formations Brad C. YU National ICT Australia Limited The Australian National University With Baris Fidan & Brian D.O. Anderson

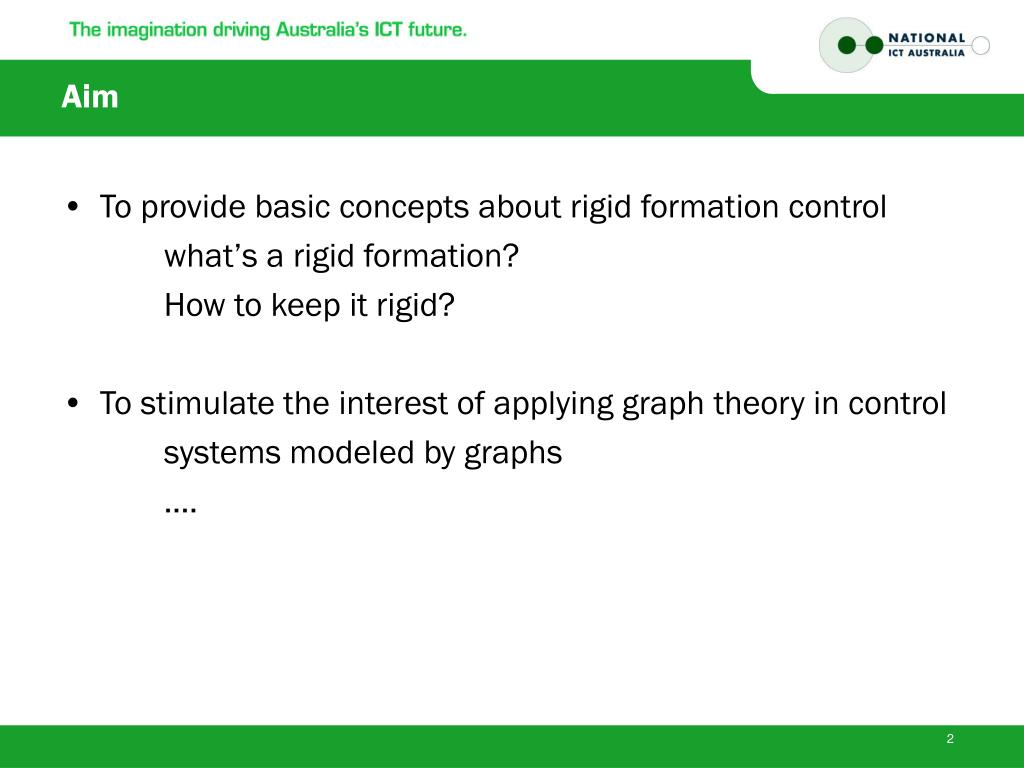

  2. Aim • To provide basic concepts about rigid formation control what’s a rigid formation? How to keep it rigid? • To stimulate the interest of applying graph theory in control systems modeled by graphs ….

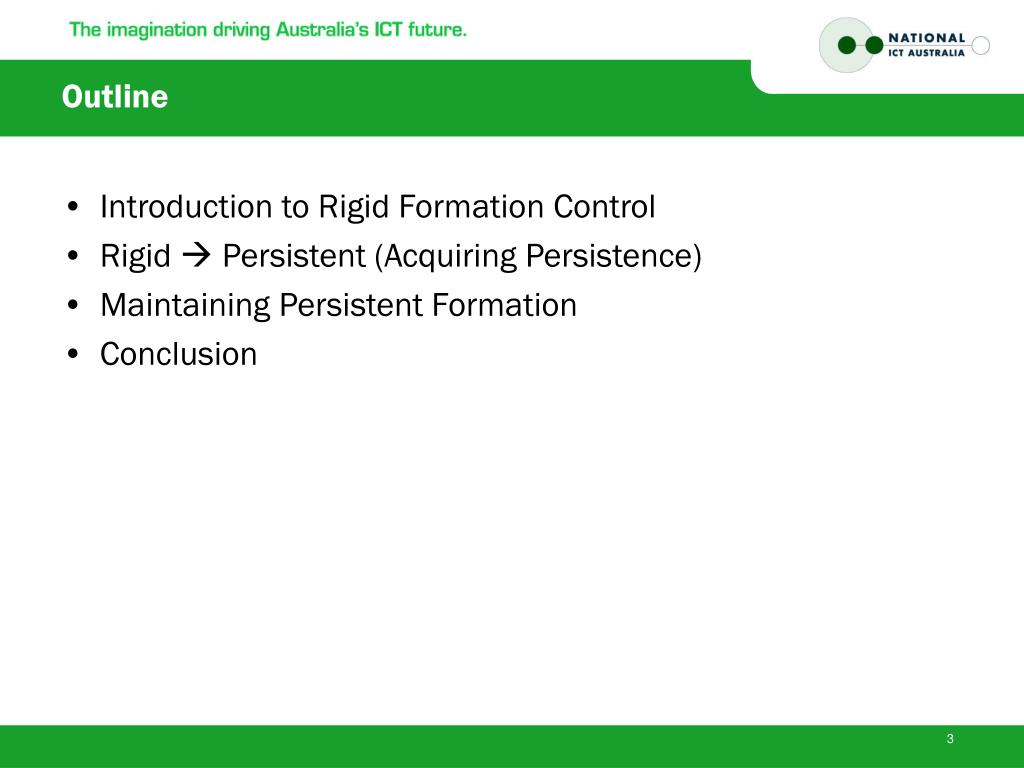

  3. Outline • Introduction to Rigid Formation Control • Rigid  Persistent (Acquiring Persistence) • Maintaining Persistent Formation • Conclusion

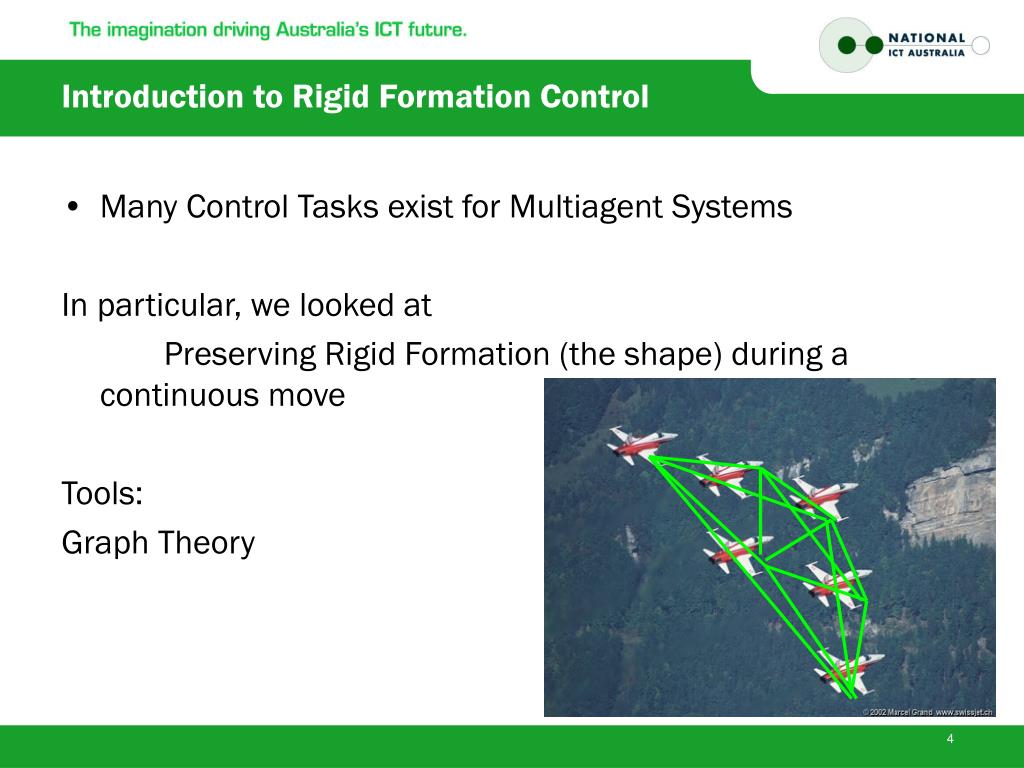

  4. Introduction to Rigid Formation Control • Many Control Tasks exist for Multiagent Systems In particular, we looked at Preserving Rigid Formation (the shape) during a continuous move Tools: Graph Theory

  5. Control Scenarios • Goal: To maintain a formation shape during a continuous move (i.e. To preserve all the inter-agent distances) • Method: maintaining certain inter-agent distances • Distance between agent X and Y may be maintained • Jointly by X and Y: modelled by undirected graphs, rigid graph theory applicable. • Unilaterally by X : modelled by directed graphs. Need to validate or modify all rigidity type questions and theories.  Motivated us to develop Persistence Framework

  6. Rigidity and Minimal Rigidity Fully connected, Rigid remove 3 edges Not rigid Minimally rigid = Keep formation rigid with minimal number of edges remove 3 edges There are ways of checking 2D rigidity graphically or using linear algebra Rigid

  7. 1 1 1 2 2 2 3 3 3 4 4 4 Rigidity notion is insufficient in directed case B is rigid. But, if 3 moves, 4 is unable to react  Rigidity insufficient because A NOT RIGID • Essentially undirected notion B X ?? So, need to take direction constraints into account in addition to distance constraints C Directed distance constraints

  8. 2 2 2 4 4 4 1 1 1 3 3 3 Persistence • Rigidity:“All constraints satisfied  structure preserved” • Constraint Consistence: “Every agent tries to satisfy all its constraints  all the constraints are satisfied” • Persistence:“Every agent tries to satisfy all its constraints  structure preserved” Rig. NO C.C. YES A Rig. YES C.C. NO B Persistence || Rigidity + C. Consistence Rig. YES C.C. YES C

  9. Characterization of persistence A persistent graph in D dimensions (D = 2 or 3) remains persistent after deletion of an edge leaving a vertex with out-degree > D Obtained graph not rigid  not persistent Examples (D=2) : Graph remains persistent Initial graph was not persistent Persistence Test: A graph is persistent iff all subgraphs obtained by removing edges leaving vertices with d+ > D until all vertices have d+ <= D are rigid

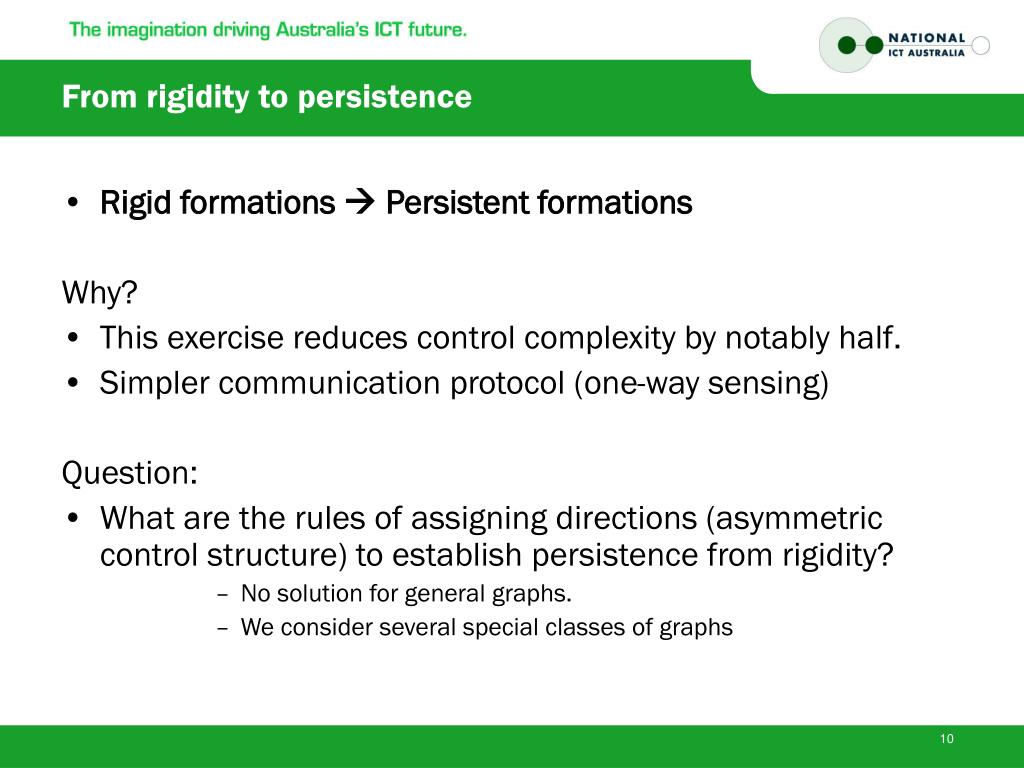

  10. From rigidity to persistence • Rigid formations  Persistent formations Why? • This exercise reduces control complexity by notably half. • Simpler communication protocol (one-way sensing) Question: • What are the rules of assigning directions (asymmetric control structure) to establish persistence from rigidity? • No solution for general graphs. • We consider several special classes of graphs

  11. Acquiring Persistence for Wheel Formations NOT Persistent Persistent The red agents are overloaded with 3 constraints, apply persistence test by removing edges, resulting in a non-rigid graph

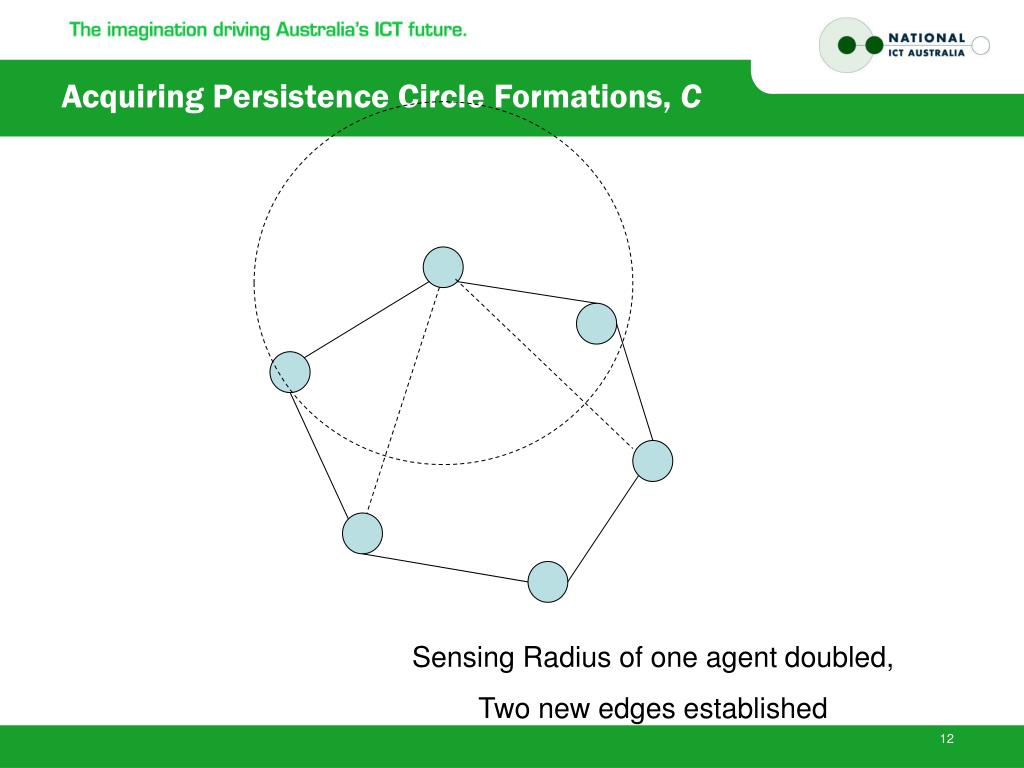

  12. Acquiring Persistence Circle Formations, C Sensing Radius of one agent doubled, Two new edges established

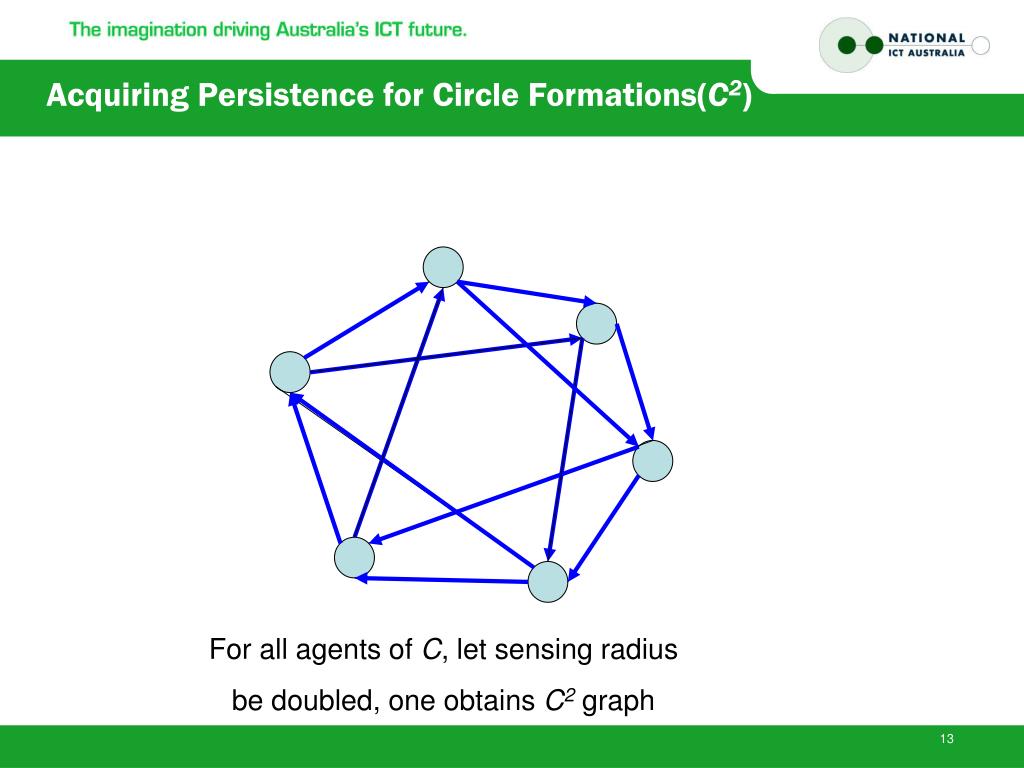

  13. Acquiring Persistence for Circle Formations(C2) For all agents of C, let sensing radius be doubled, one obtains C2 graph

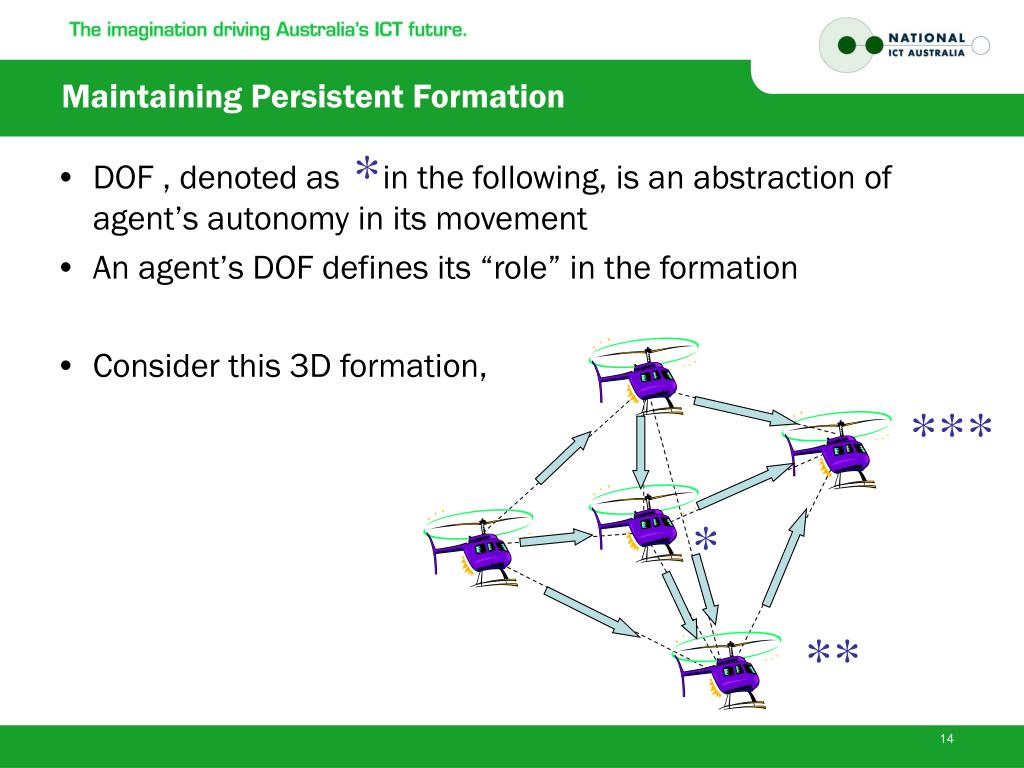

  14. Maintaining Persistent Formation * • DOF , denoted as in the following, is an abstraction of agent’s autonomy in its movement • An agent’s DOF defines its “role” in the formation • Consider this 3D formation, *** * **

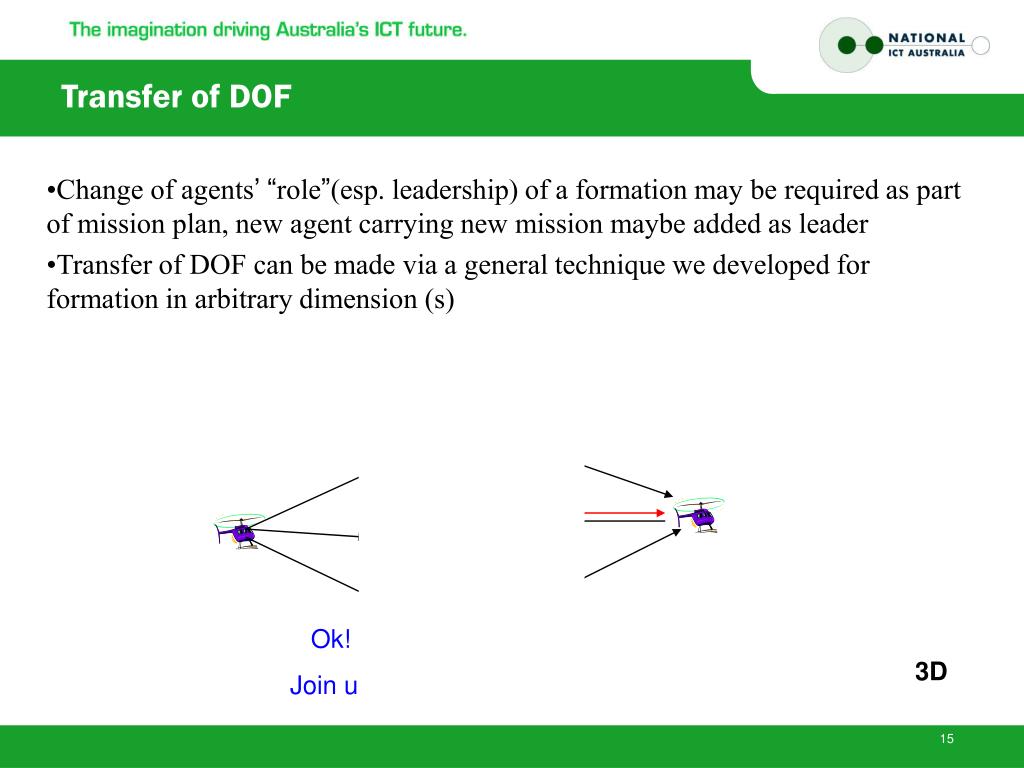

  15. 1 5 4 Transfer of DOF • Change of agents’“role”(esp. leadership) of a formation may be required as part of mission plan, new agent carrying new mission maybe added as leader • Transfer of DOF can be made via a general technique we developed for formation in arbitrary dimension (s) * * * 3 Ok! Join us 2 * * * 3D

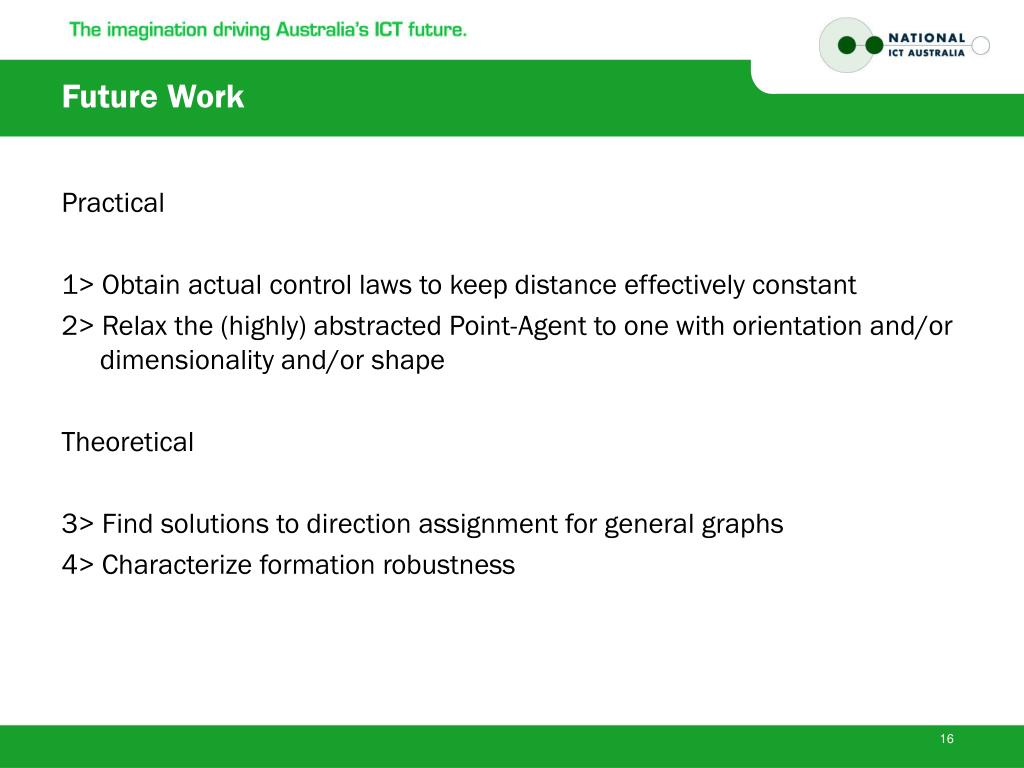

  16. Future Work Practical 1> Obtain actual control laws to keep distance effectively constant 2> Relax the (highly) abstracted Point-Agent to one with orientation and/or dimensionality and/or shape Theoretical 3> Find solutions to direction assignment for general graphs 4> Characterize formation robustness

  17. Link Loss and/or Agent Loss

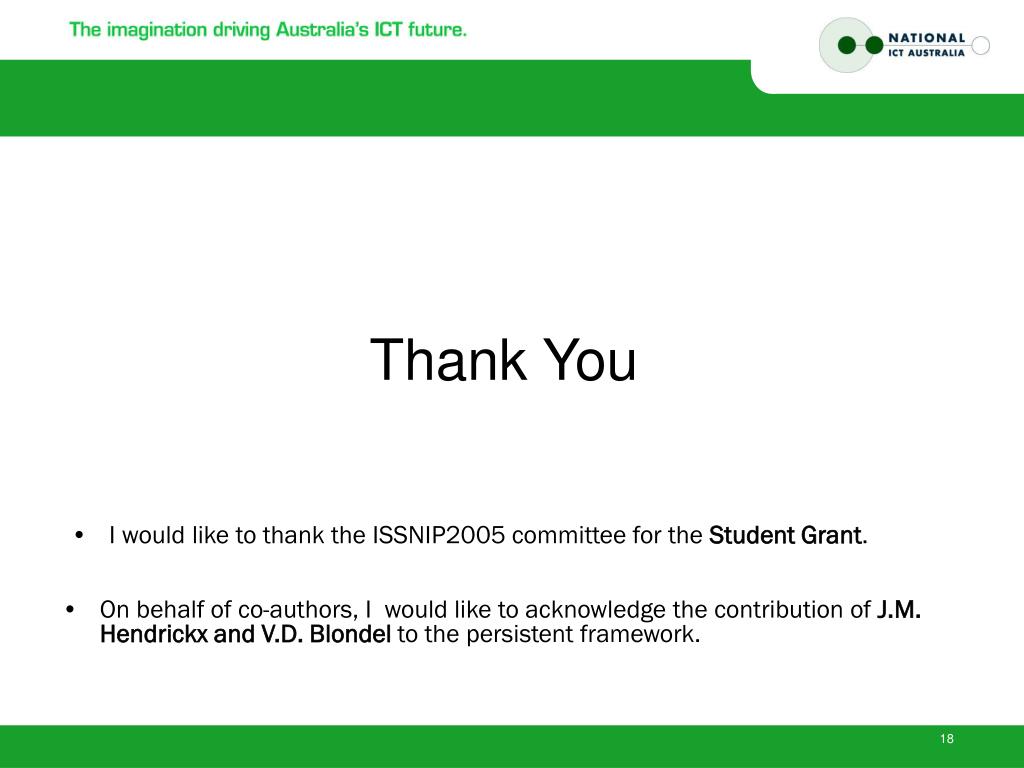

  18. On behalf of co-authors, I would like to acknowledge the contribution of J.M. Hendrickx and V.D. Blondel to the persistent framework. Thank You • I would like to thank the ISSNIP2005 committee for the Student Grant.
