SMT 客戶品質 - PCBA Return PPM-1 月

SMT 客戶品質 - PCBA Return PPM-1 月. 主要為三大類: 1.焊錫問題(空焊,錫短路),204台, 占 53% 2.作業問題(缺件,反向),130台,占34% 3.點膠問題(溢膠)40台,占10% FSA011-031G-3 空焊21:M308*9,M305*6,,M306*3,M304*2,Q305*1; R339缺件*1;M304錫短路*2 SG7008-710G-1 空焊15: D6*5, M301 M37各2,M15 M23 M24 Q37 R86各1台

malha
Download Presentation

SMT 客戶品質 - PCBA Return PPM-1 月

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

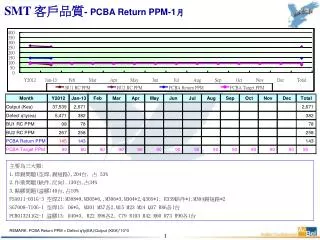

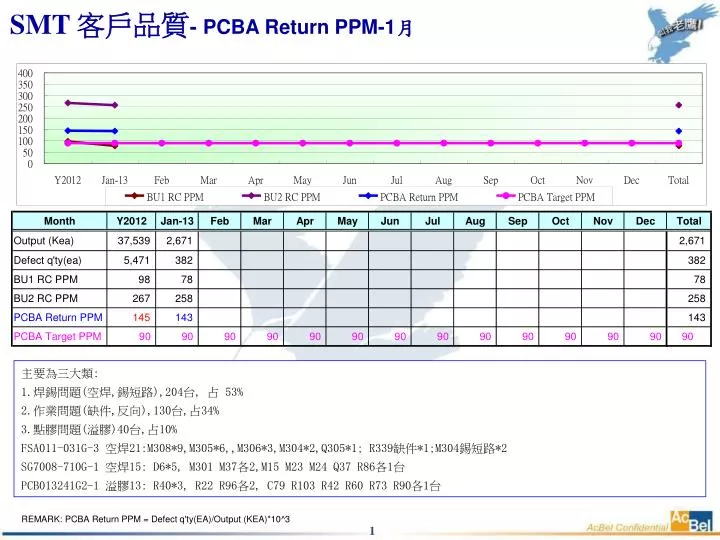

  1. SMT 客戶品質- PCBA Return PPM-1月 主要為三大類: 1.焊錫問題(空焊,錫短路),204台, 占 53% 2.作業問題(缺件,反向),130台,占34% 3.點膠問題(溢膠)40台,占10% FSA011-031G-3 空焊21:M308*9,M305*6,,M306*3,M304*2,Q305*1; R339缺件*1;M304錫短路*2 SG7008-710G-1 空焊15: D6*5, M301 M37各2,M15 M23 M24 Q37 R86各1台 PCB013241G2-1 溢膠13: R40*3, R22 R96各2, C79 R103 R42 R60 R73 R90各1台 REMARK: PCBA Return PPM = Defect q'ty(EA)/Output (KEA)*10^3

  2. SMT 客戶品質- PCBA Return PPM-1月 REMARK: PCBA Return PPM = Defect q'ty(EA)/Output (KEA)*10^3

  3. SMT 客戶品質- PCBA Return PPM-1月 PCB013241G2-1溢膠為S01線刷膠機種.調整印刷速度後OK. REMARK: PCBA Return PPM = Defect q'ty(EA)/Output (KEA)*10^3
