  1. Reversible data hiding for high quality images using interpolation and reference pixel distribution mechanism • Source: Journal of Visual Communication & Image Representation • Authors: Wien Hong, Tung-Shou Chen • Presenter: Nguyen Thai Son • Date: December, 20th 2010

  2. OUTLINE • INTRODUCTION • PROPOSED SCHEME • EXPERIMENTAL RESULTS • CONCLUSIONS 2

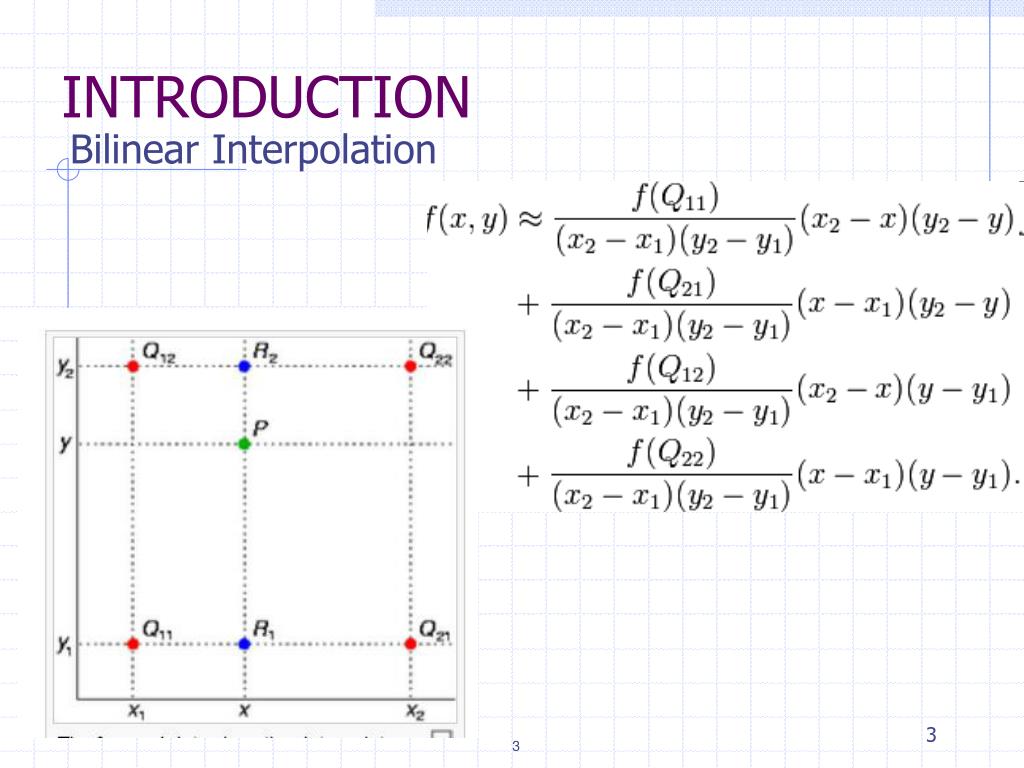

  3. INTRODUCTION Bilinear Interpolation 3

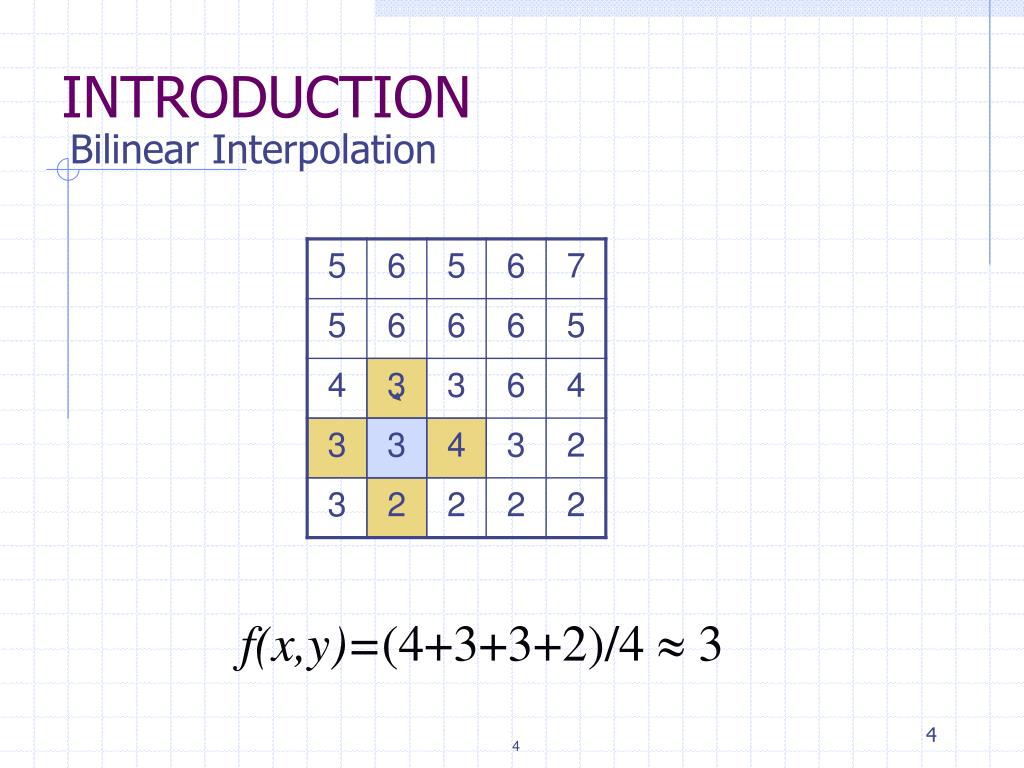

  4. INTRODUCTION Bilinear Interpolation f(x,y)=(4+3+3+2)/4 3 4

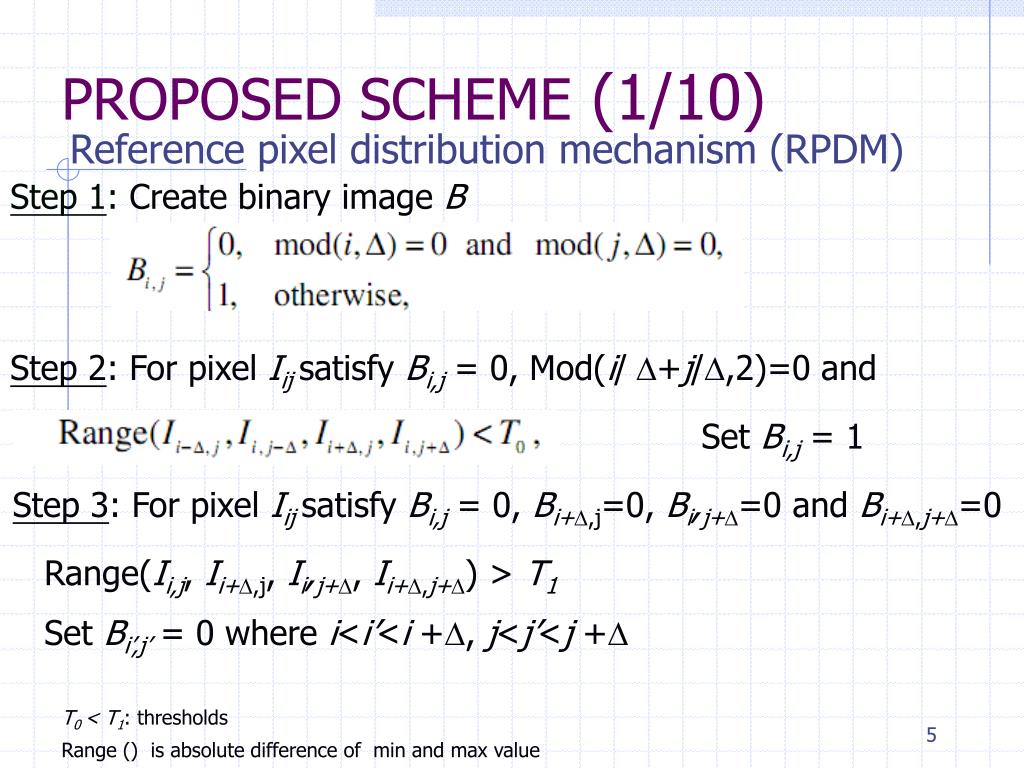

  5. PROPOSED SCHEME (1/10) Reference pixel distribution mechanism (RPDM) Step 1: Create binary image B Step 2: For pixel Iij satisfy Bi,j = 0, Mod(i/+j/,2)=0 and Set Bi,j = 1 Step 3: For pixel Iij satisfy Bi,j = 0, Bi+,j=0, Bi,j+=0 and Bi+,j+=0 Range(Ii,j, Ii+,j, Ii,j+, Ii+,j+) > T1 Set Bi’,j’ = 0 where i<i’<i +, j<j’<j + T0 < T1: thresholds Range () is absolute difference of min and max value

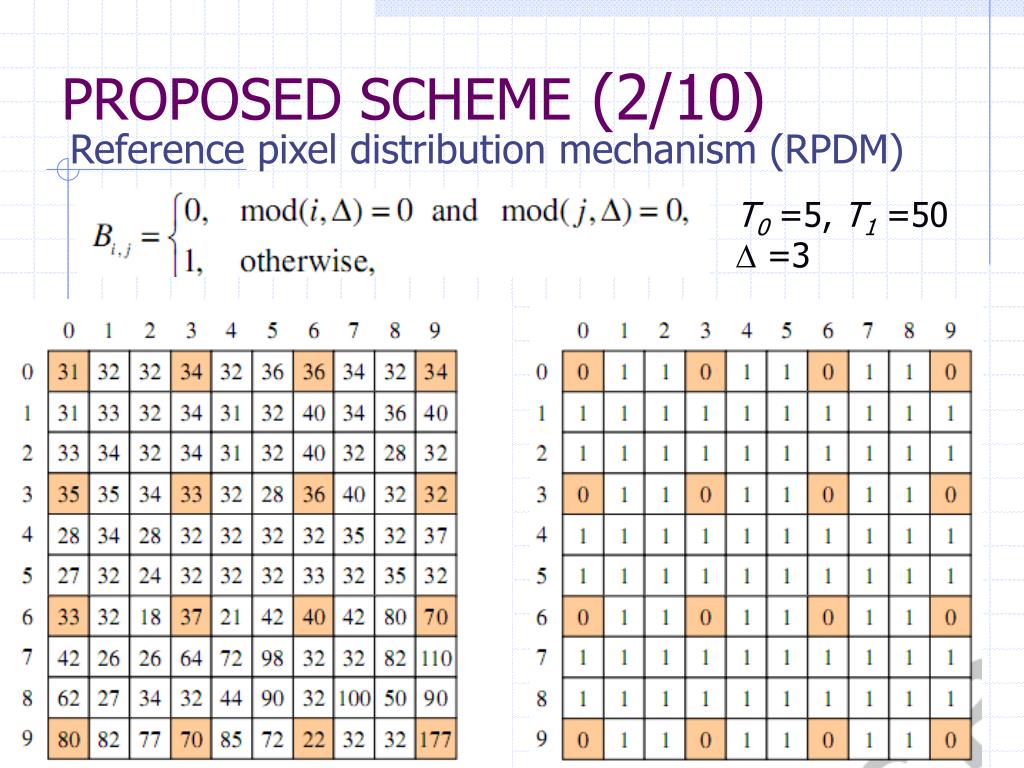

  6. PROPOSED SCHEME (2/10) Reference pixel distribution mechanism (RPDM) T0=5, T1 =50  =3

  7. PROPOSED SCHEME (3/10) Reference pixel distribution mechanism (RPDM) Step 2: For pixel Iij satisfy Bi,j = 0, Mod(i/+j/,2)=0 and Rang (34,35,36,37) = |34-37| = 3 < T0 = 5 1

  8. PROPOSED SCHEME (4/10) Reference pixel distribution mechanism (RPDM) Step 3: For pixel Iij satisfy Bi,j = 0, Bi+,j=0, Bi,j+=0, Bi+,j+=0 Range(40,70,22,177) = |22-177| = 155 > T1 =50 1

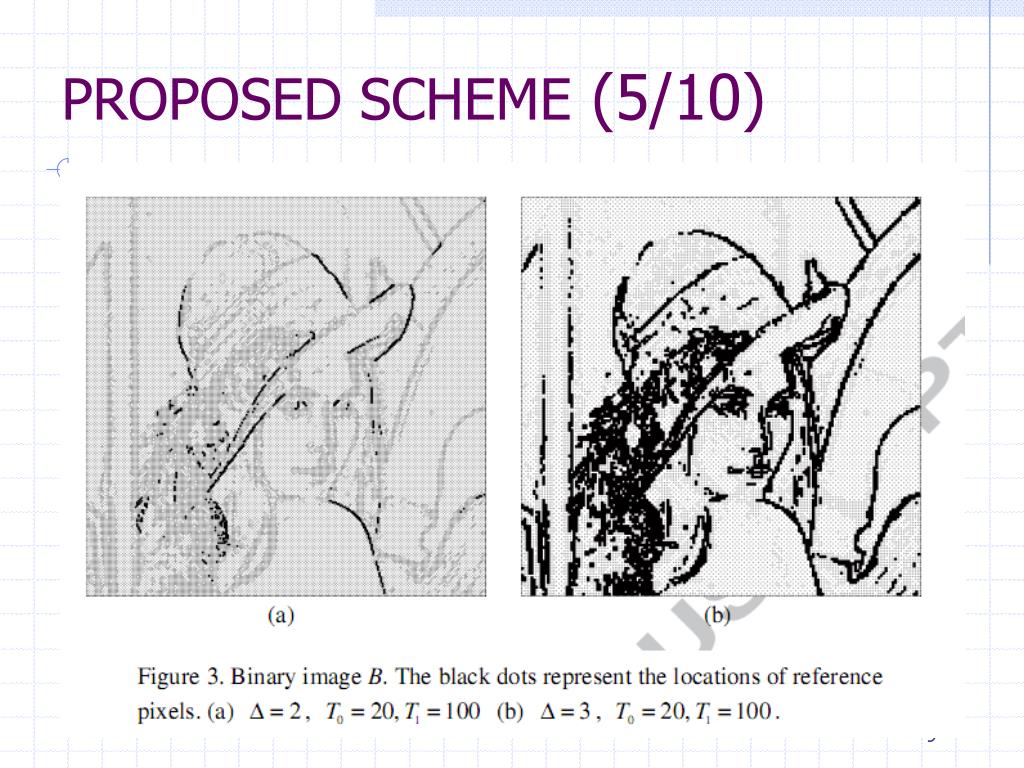

  9. PROPOSED SCHEME (5/10)

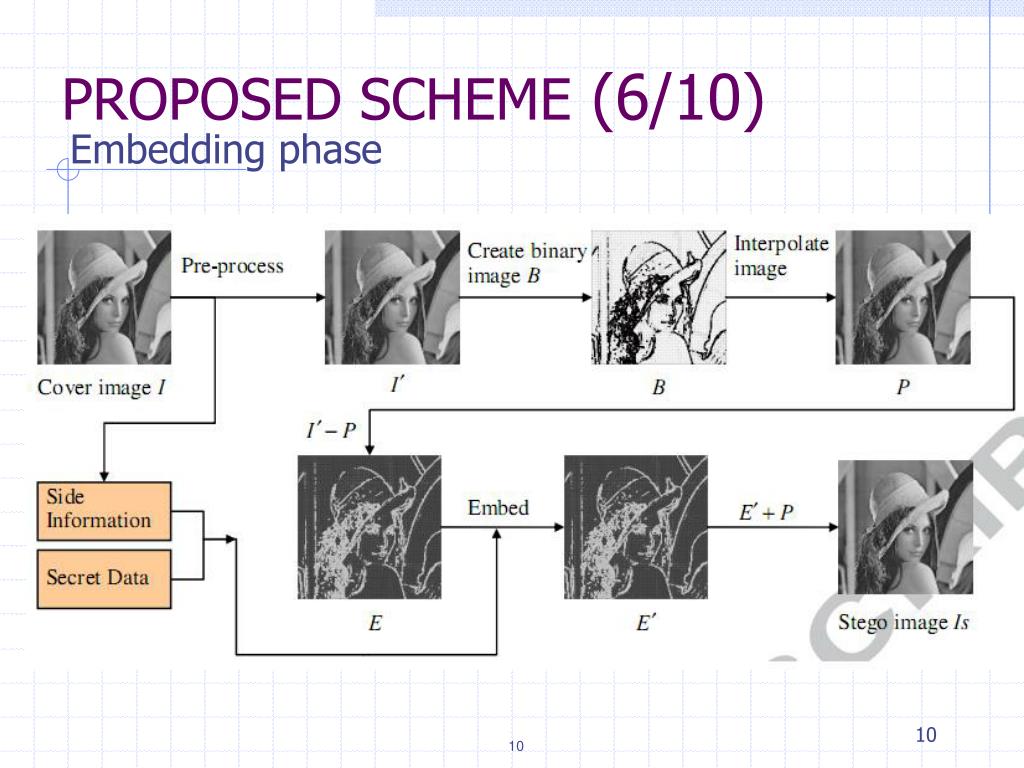

  10. PROPOSED SCHEME (6/10) Embedding phase 10

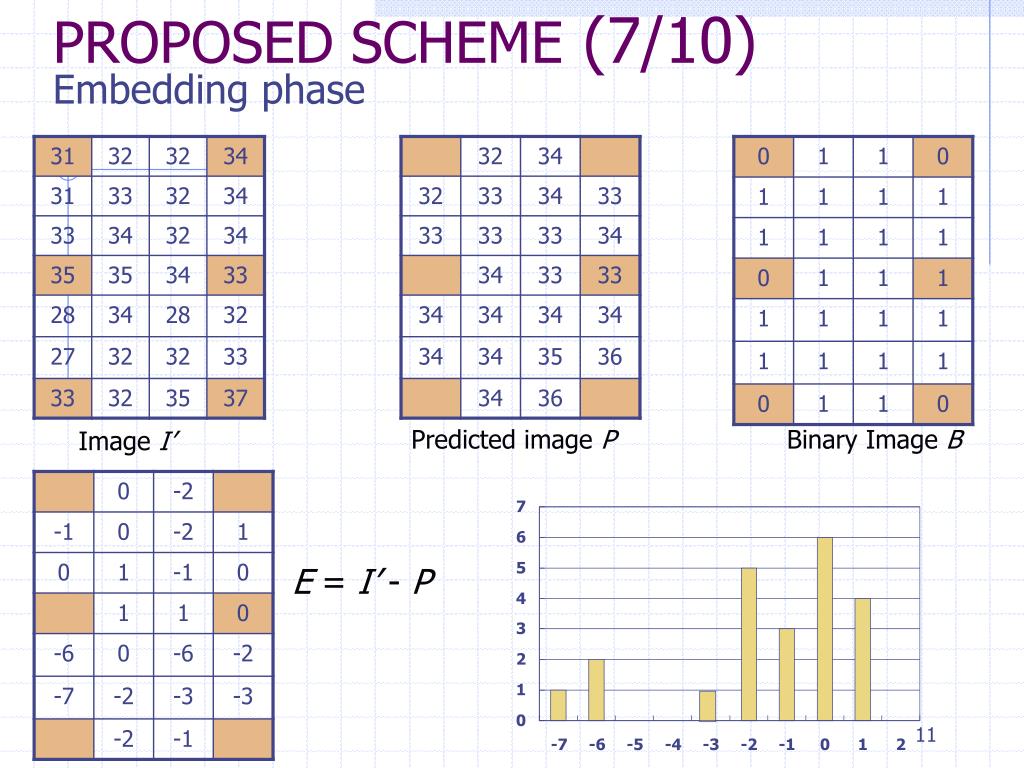

  11. PROPOSED SCHEME (7/10) 7 6 5 4 3 2 1 0 -7 -6 -5 -4 -3 -2 -1 0 1 2 Embedding phase Predicted image P Binary Image B Image I’ E = I’ - P

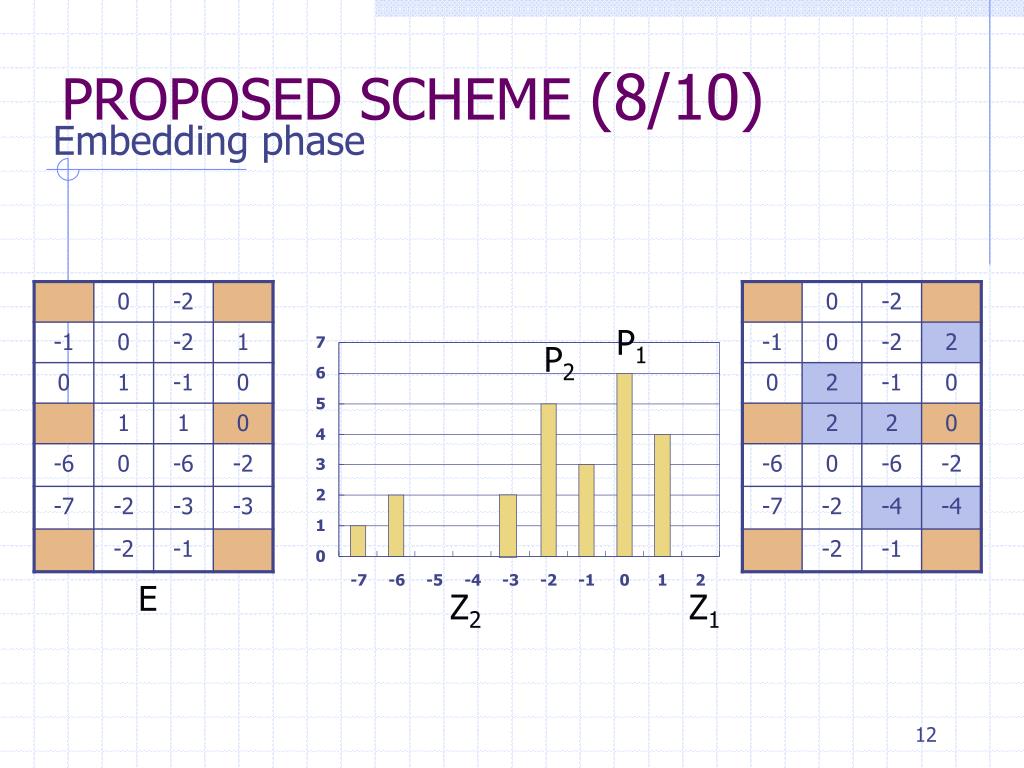

  12. PROPOSED SCHEME (8/10) Embedding phase P1 7 P2 6 5 4 3 2 1 0 -7 -6 -5 -4 -3 -2 -1 0 1 2 E Z2 Z1

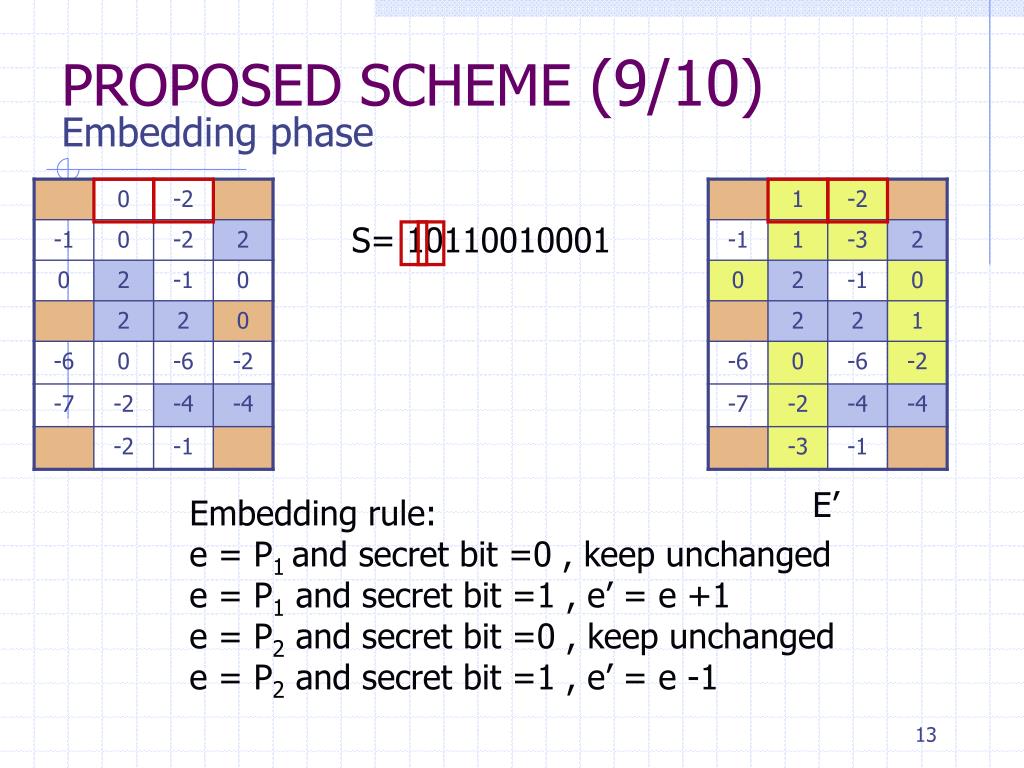

  13. PROPOSED SCHEME (9/10) Embedding phase S= 10110010001 E’ Embedding rule: e = P1 and secret bit =0 , keep unchanged e = P1 and secret bit =1 , e’ = e +1 e = P2 and secret bit =0 , keep unchanged e = P2 and secret bit =1 , e’ = e -1

  14. PROPOSED SCHEME (10/10) Embedding phase 31 34 35 33 37 E’ Predicted image P Stego image Is = E’ + P

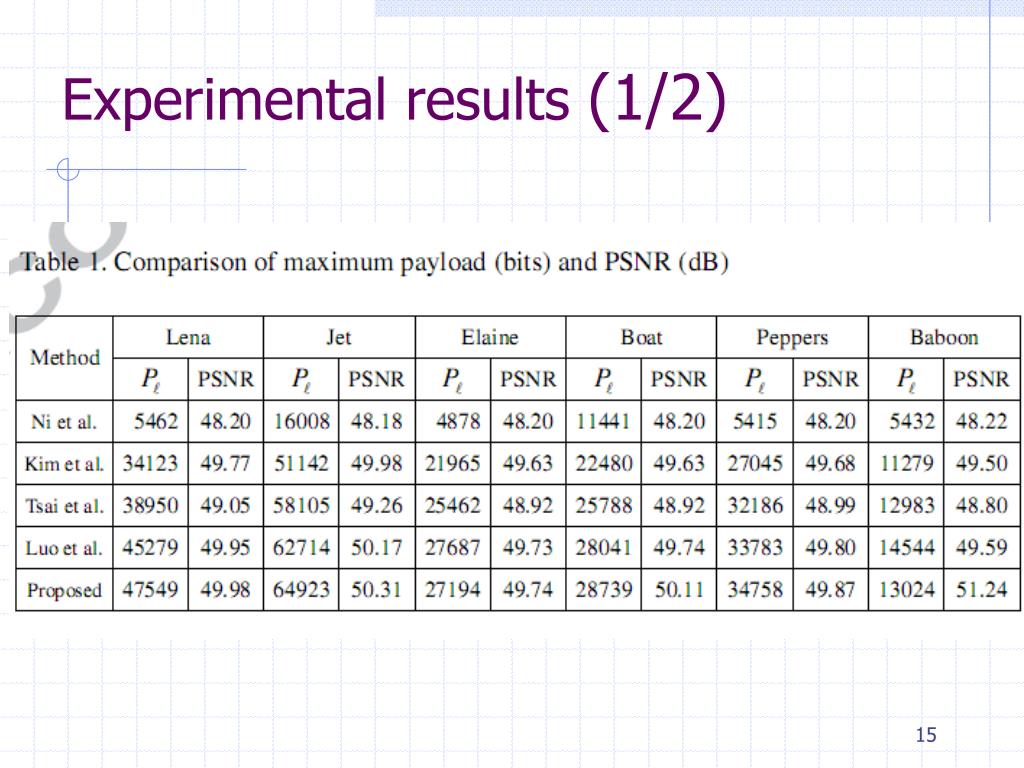

  15. Experimental results (1/2)

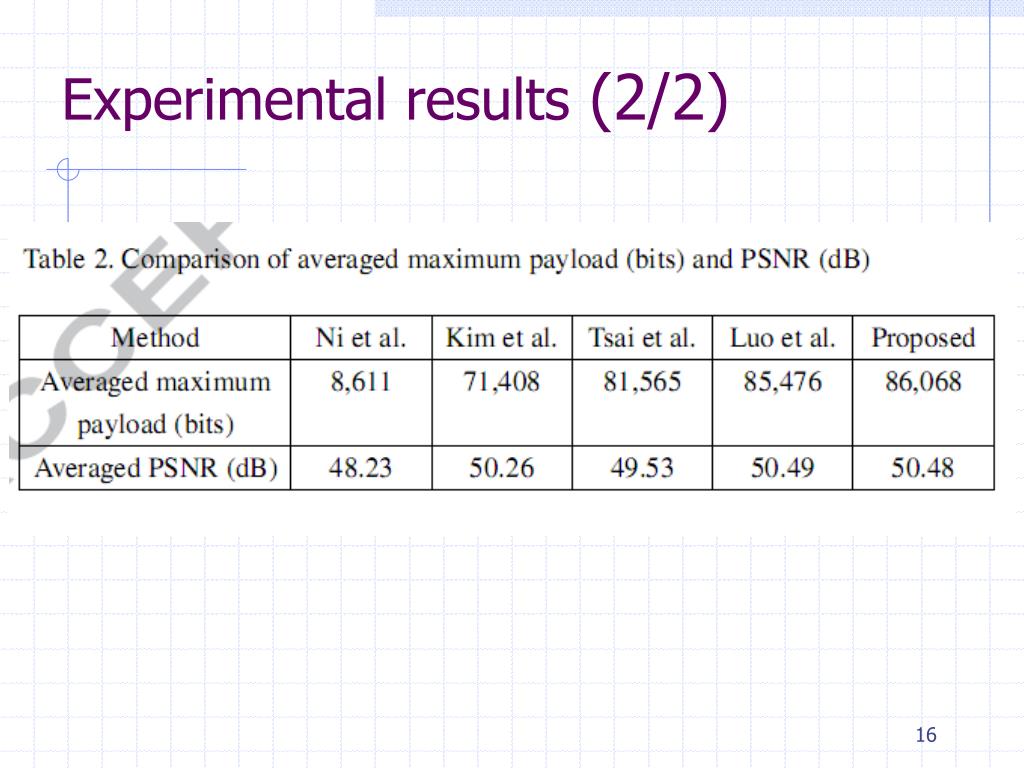

  16. Experimental results (2/2)

  17. Conclusions Better visual quality of stego image High embedding capacity
