  1. FIREHAWK ULTRA ELITE CLEANING • JANUARY 2012 • CLARK COUNTY FIRE DISTRICT • 6 Developed by Travis Dick Adapted by CCTD

  2. ITEMS YOU WILL NEED • SCBA FACEPIECE • 2 FIVE GALLON BUCKETS (RED&BLUE) • MSA CONFIDENCE PLUS • 2 BLUE MICROFIBER TOWELS

  3. 3

  4. CAUTION • DO NOT USE CLEANING SUBSTANCES THAT CAN ATTACK THE FACEPIECE. DO NOT USE ALCOHOL AS A GERMICIDE BECAUSE IT MAY DETERIORATE RUBBER PARTS. CLEANING AGENT RESIDUE MAY IRRITATE THE WEARER’S SKIN. RINSE THOROUGHLY TO REMOVE ALL TRACES OF CLEANING SOLUTION.

  5. MSA CONFIDENCE PLUS • MSA CONFIDENCE PLUS CLEANING SOLUTION CLEANS AND DISINFECTS IN ONE OPERATION, RETAINS GERMICIDAL EFFECTIVENESS IN HARD WATER TO INHIBIT BACTERIA GROWTH, AND WILL NOT DETERIORATE RUBBER, PLASTIC, GLASS, OR METAL PARTS

  6. INSTRUCTIONS • FILL BOTH BUCKETS WITH WARM WATER UP TO THE WHITE LINE • ADD 4 OZ OF MSA CONFIDENCE PLUS TO THE RED BUCKET • REMOVE HUD FROM FACEPIECE • REMOVE VOICE BOX FROM FACEPIECE • REMOVE NOSE CUP FROM FACEPIECE

  7. 7

  8. 8

  9. INSTRUCTIONS • IF THE FACEPIECE HAS LARGE DEBRIS, PRE-WASH FACEPIECE BY USING A WET MICROFIBER TOWEL

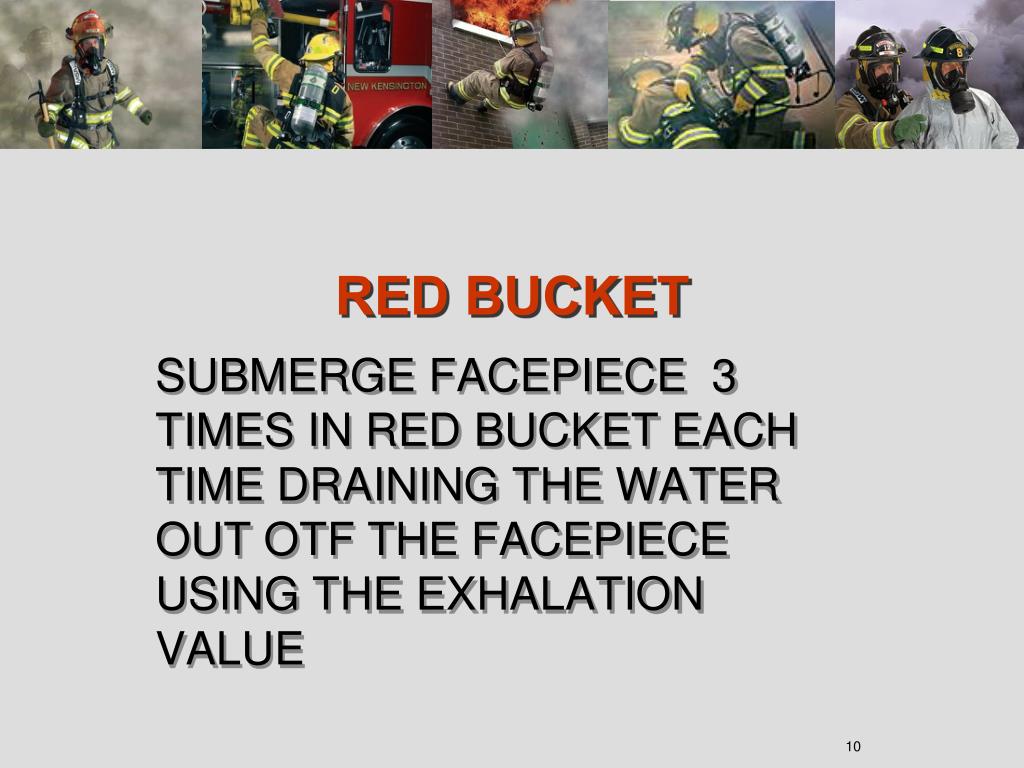

  10. RED BUCKET • SUBMERGE FACEPIECE 3 TIMES IN RED BUCKET EACH TIME DRAINING THE WATER OUT OTF THE FACEPIECE USING THE EXHALATION VALUE

  11. 11

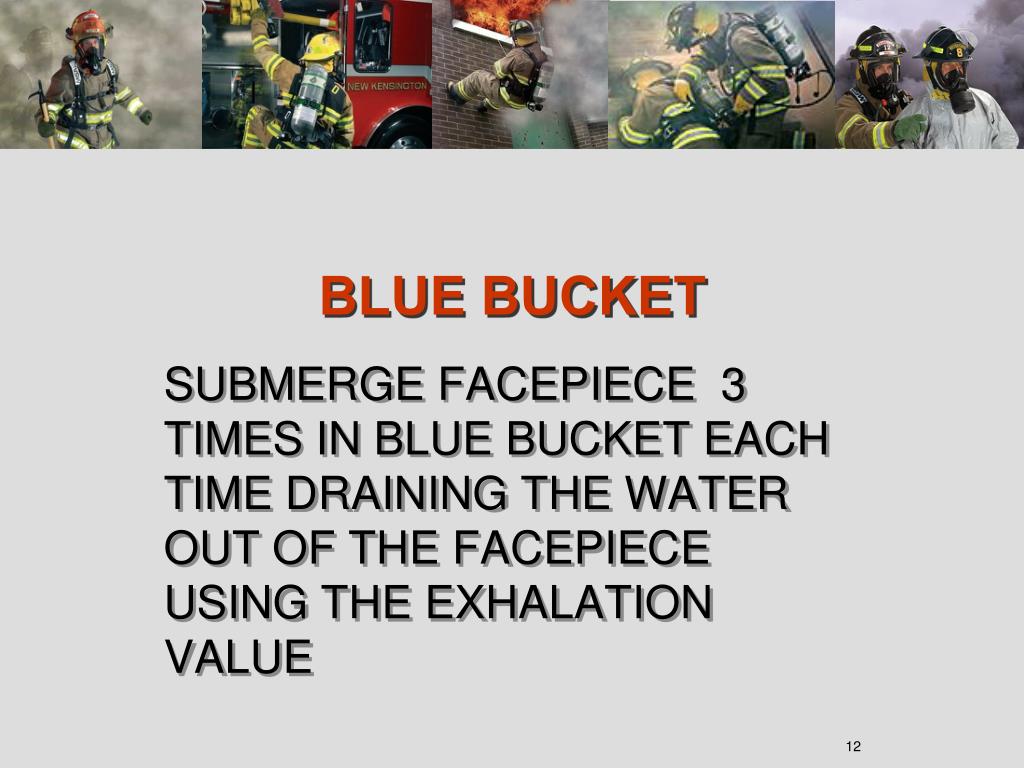

  12. BLUE BUCKET • SUBMERGE FACEPIECE 3 TIMES IN BLUE BUCKET EACH TIME DRAINING THE WATER OUT OF THE FACEPIECE USING THE EXHALATION VALUE

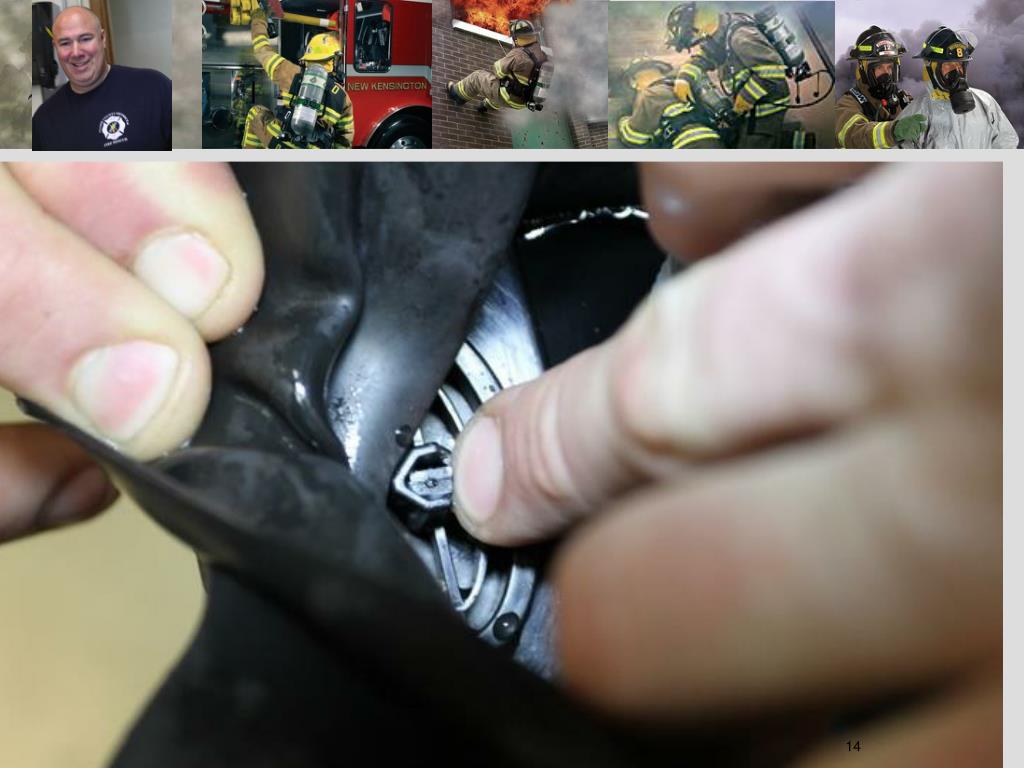

  13. 14

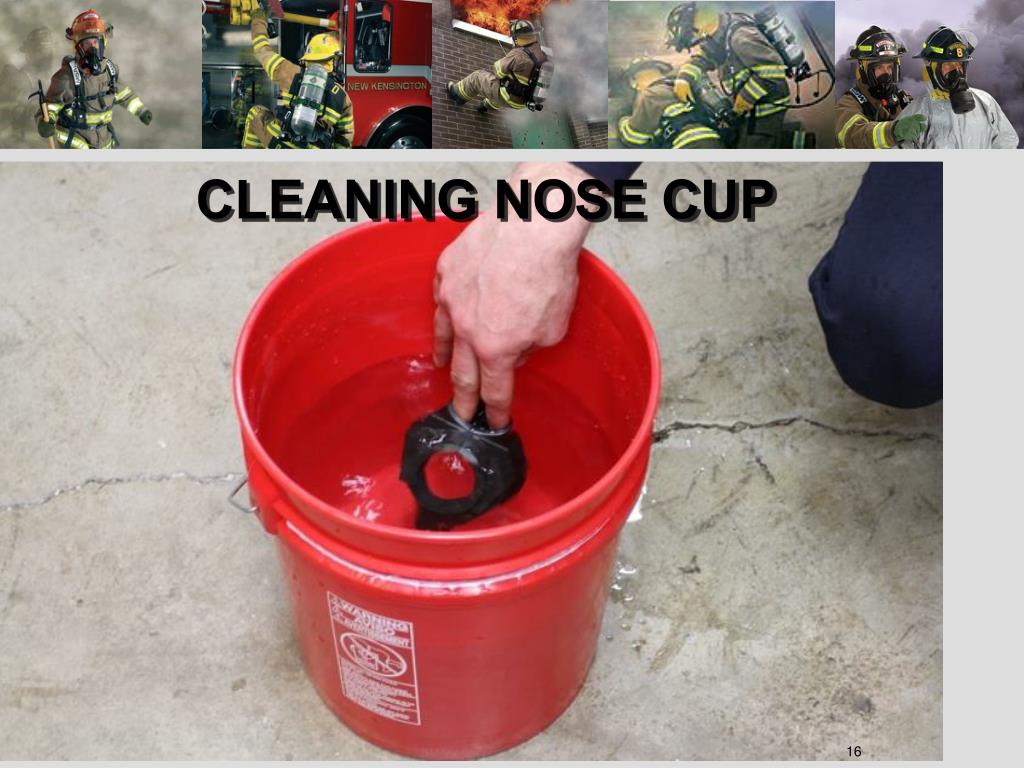

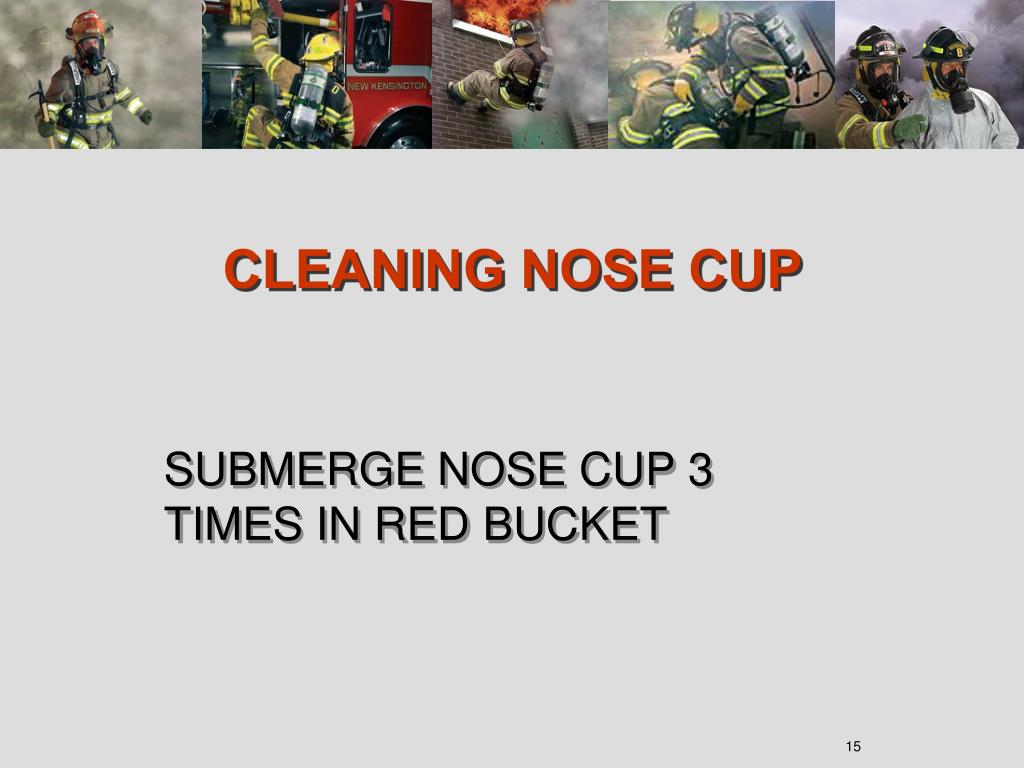

  14. CLEANING NOSE CUP • SUBMERGE NOSE CUP 3 TIMES IN RED BUCKET

  15. CLEANING NOSE CUP 16

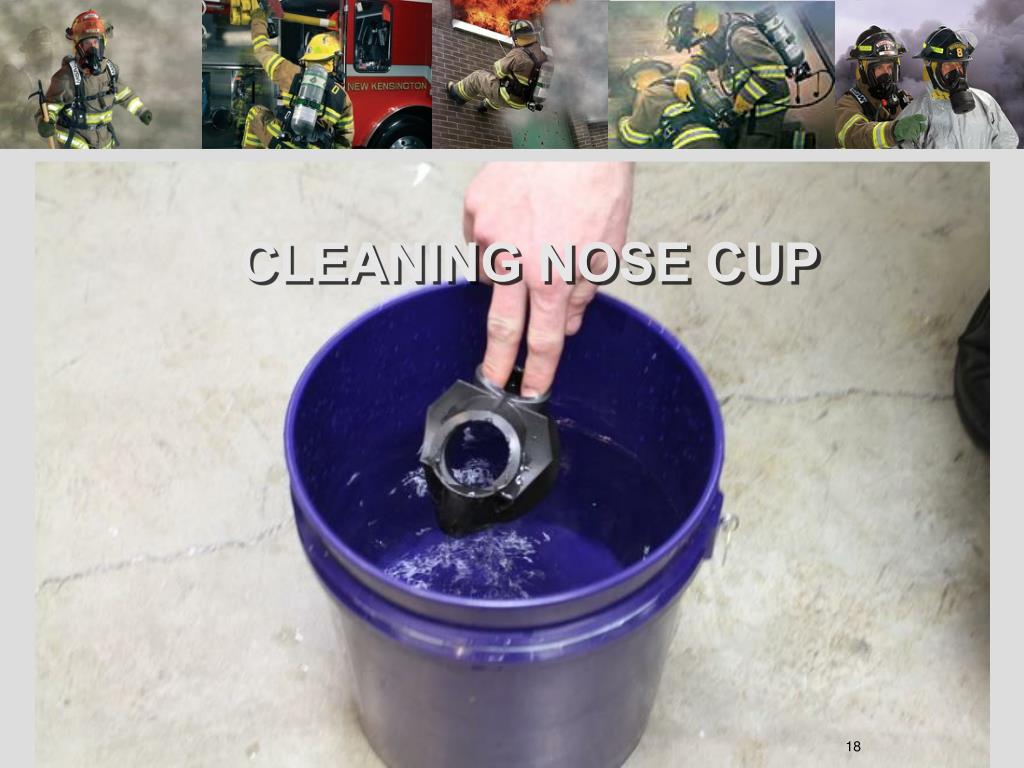

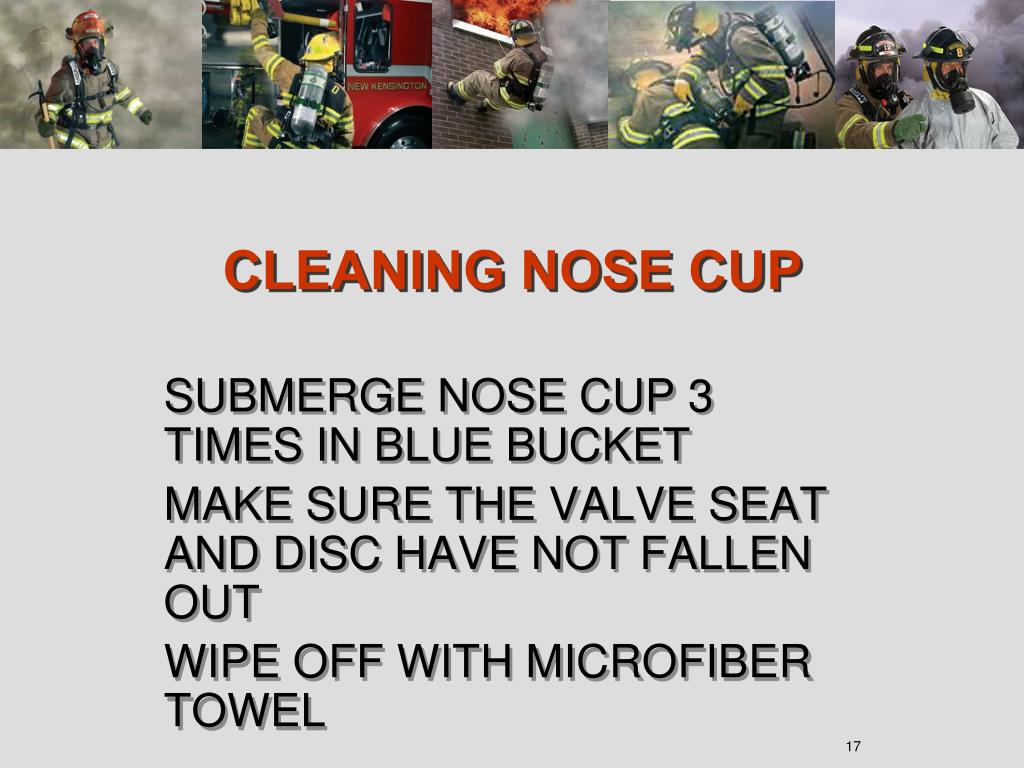

  16. CLEANING NOSE CUP • SUBMERGE NOSE CUP 3 TIMES IN BLUE BUCKET • MAKE SURE THE VALVE SEAT AND DISC HAVE NOT FALLEN OUT • WIPE OFF WITH MICROFIBER TOWEL

  17. CLEANING NOSE CUP 18

  18. CLEANING THE HUD • PLACE HUD OVER RUNNING WATER • DO NOT SUBMERGE IN WATER WIPE OFF WITH MICROFIBER TOWEL

  19. CLEANING THE HUD 20

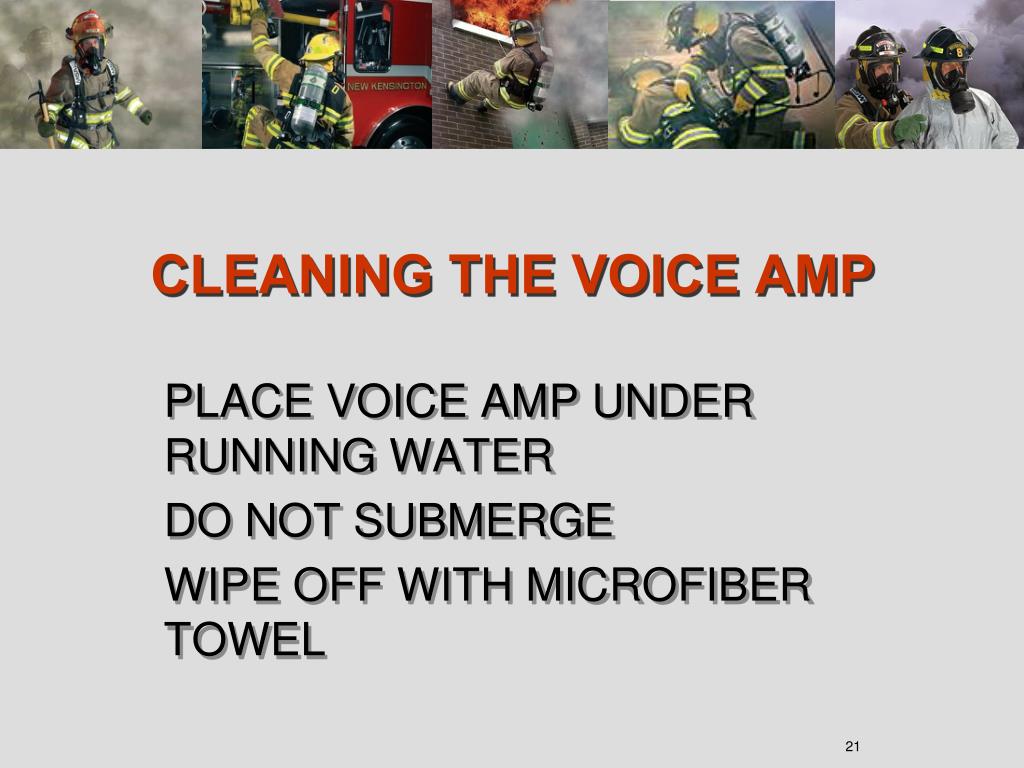

  20. CLEANING THE VOICE AMP • PLACE VOICE AMP UNDER RUNNING WATER • DO NOT SUBMERGE • WIPE OFF WITH MICROFIBER TOWEL

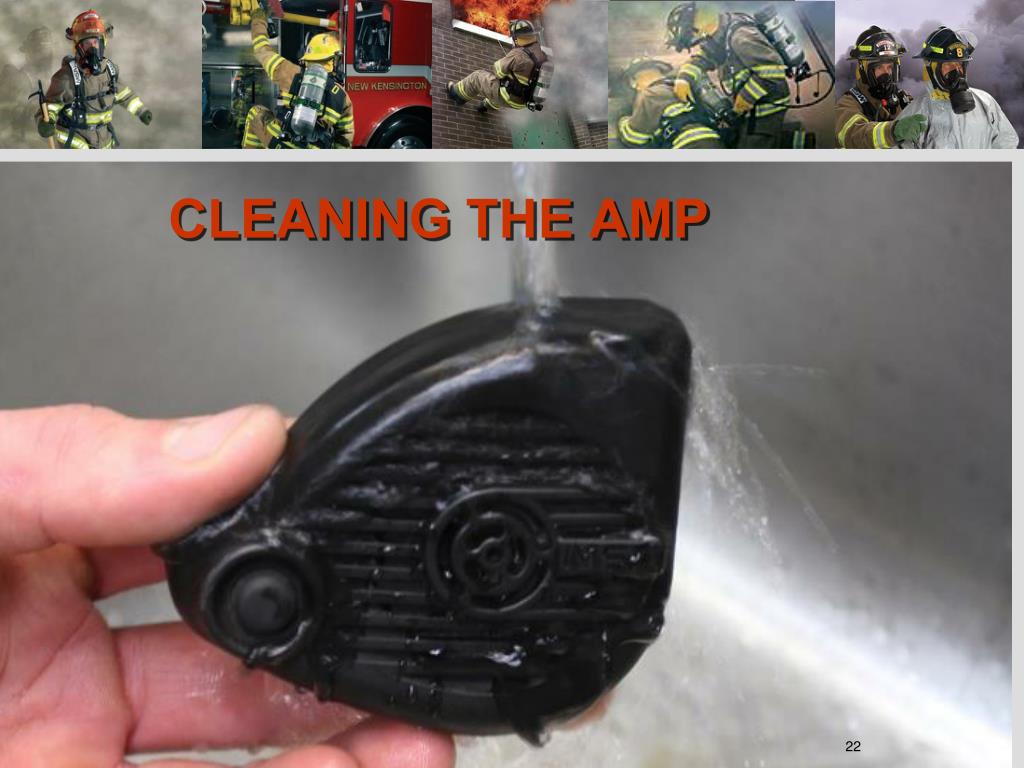

  21. CLEANING THE AMP 22

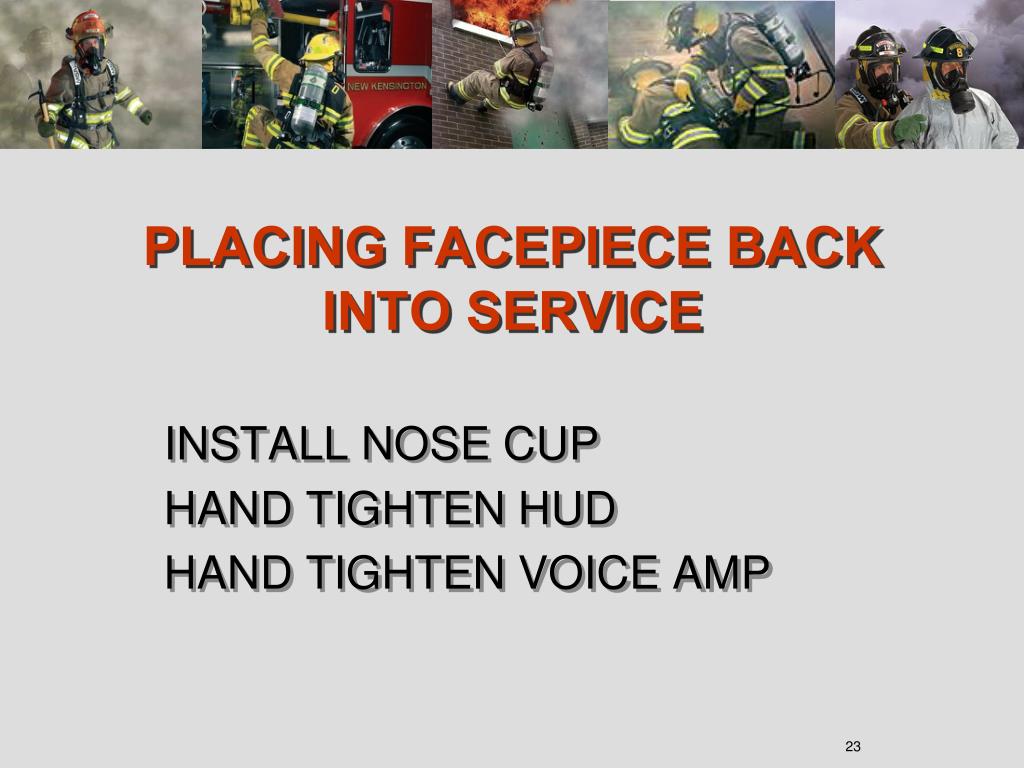

  22. PLACING FACEPIECE BACK INTO SERVICE • INSTALL NOSE CUP • HAND TIGHTEN HUD • HAND TIGHTEN VOICE AMP

  23. DRYING MASK • WIPE OFF EXCESS WATER • ALLOW THE FACEPIECE TO THOROUGHLY AIR DRY AWAY FROM DIRECT SUNLIGHT • DO NOT FORCE HEAT TO DRY FACEPIECE

  24. LIFE OF MSA CONFIDENCE PLUS • YOU CAN USE MSA CONFIDENCE PLUS MIXTURE TO CLEAN MORE THAN ONE FACEPIECE AT A TIME WHEN CLEANING SOLUTION LOOKS DIRTY DUMP OUT AND MIX A NEW BATCH
