  1. Datatrac Technologies and Solutions Electronic Engine Room LogAugust 2005

  2. Objective of this presentation This presentation shows how electronic data is captured to provide a digital alternative to recording Engine Logs on paper. There are three illustrations of reporting the data in a spreadsheet. There is no limit to the options for reporting – all comments will be considered.

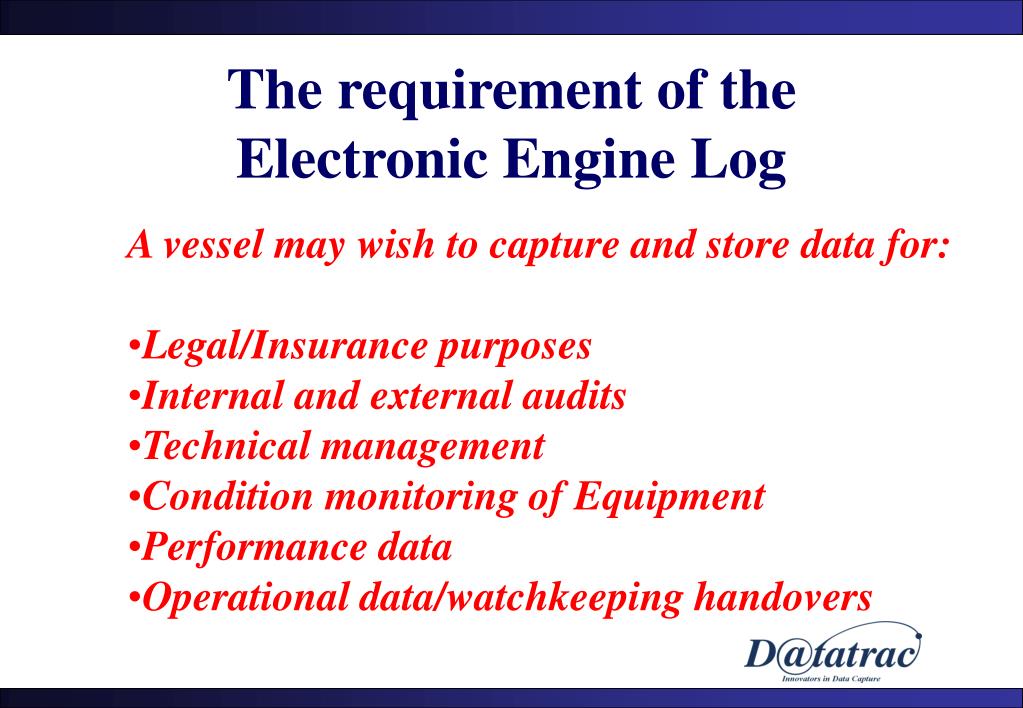

  3. The requirement of the Electronic Engine Log • A vessel may wish to capture and store data for: • Legal/Insurance purposes • Internal and external audits • Technical management • Condition monitoring of Equipment • Performance data • Operational data/watchkeeping handovers

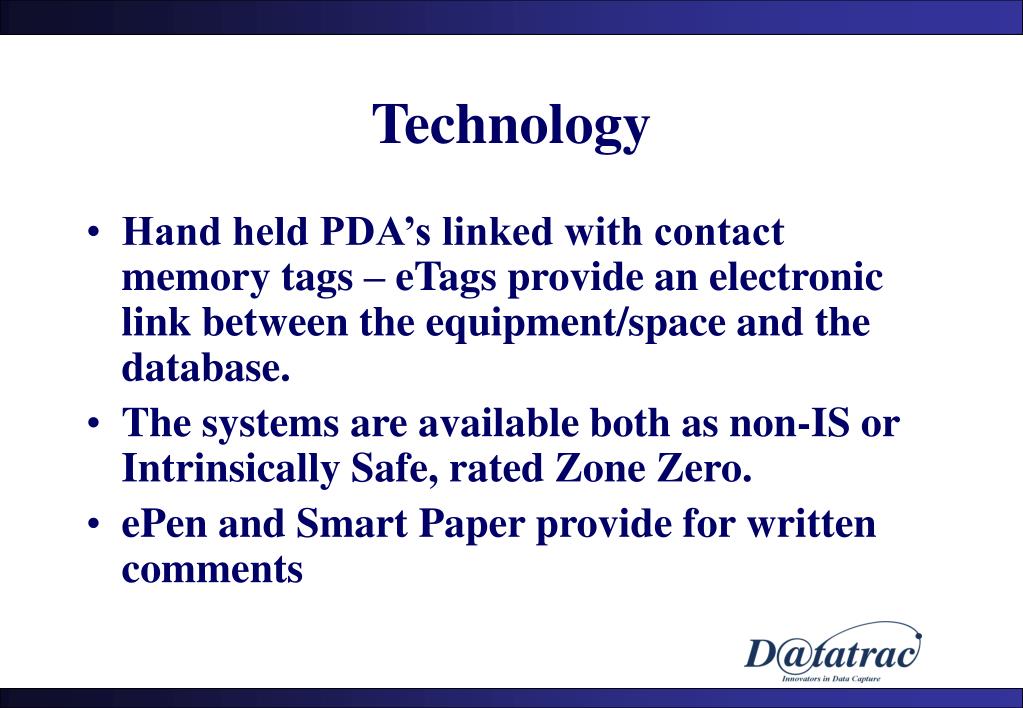

  4. Technology • Hand held PDA’s linked with contact memory tags – eTags provide an electronic link between the equipment/space and the database. • The systems are available both as non-IS or Intrinsically Safe, rated Zone Zero. • ePen and Smart Paper provide for written comments

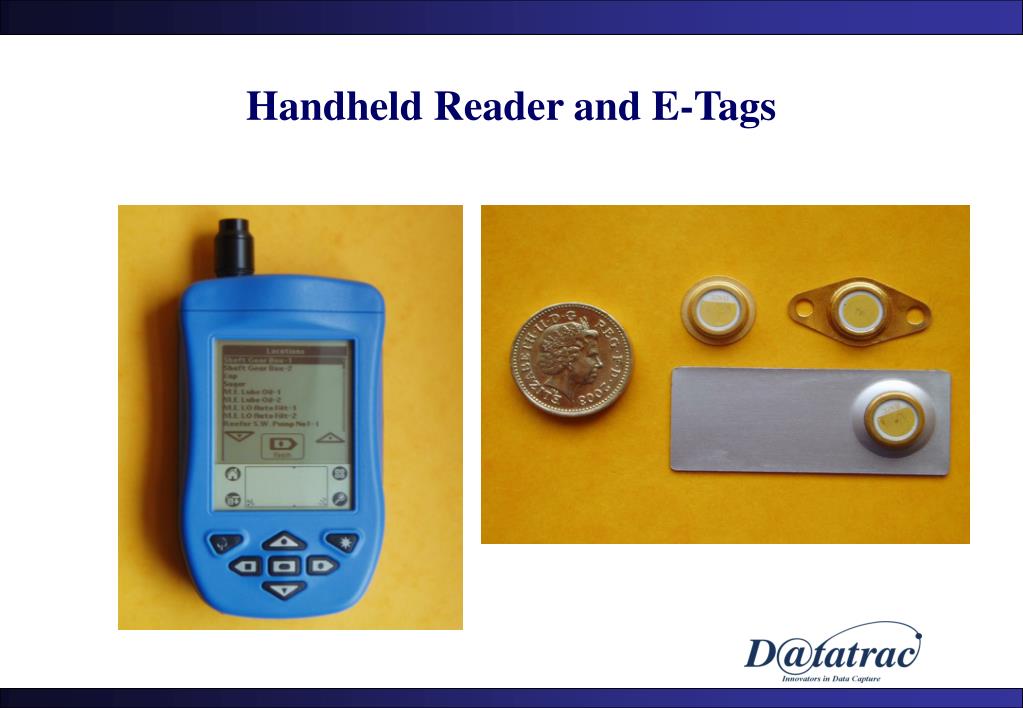

  5. Handheld Reader and E-Tags

  6. INTRINSICALLY SAFE e-TAG READER Certification Level SIRA – UK Standard Zone 0 (Hazardous characteristics present continuously or for longer than 1000 hours) (available from Q3 05)

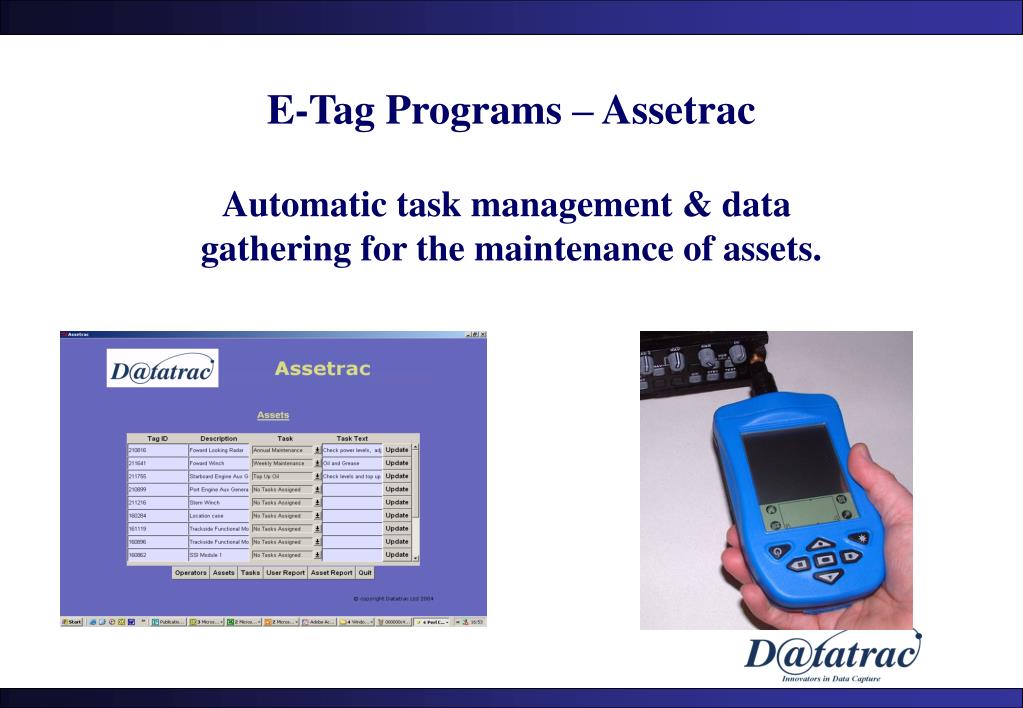

  7. E-Tag Programs – Assetrac Automatic task management & data gathering for the maintenance of assets.

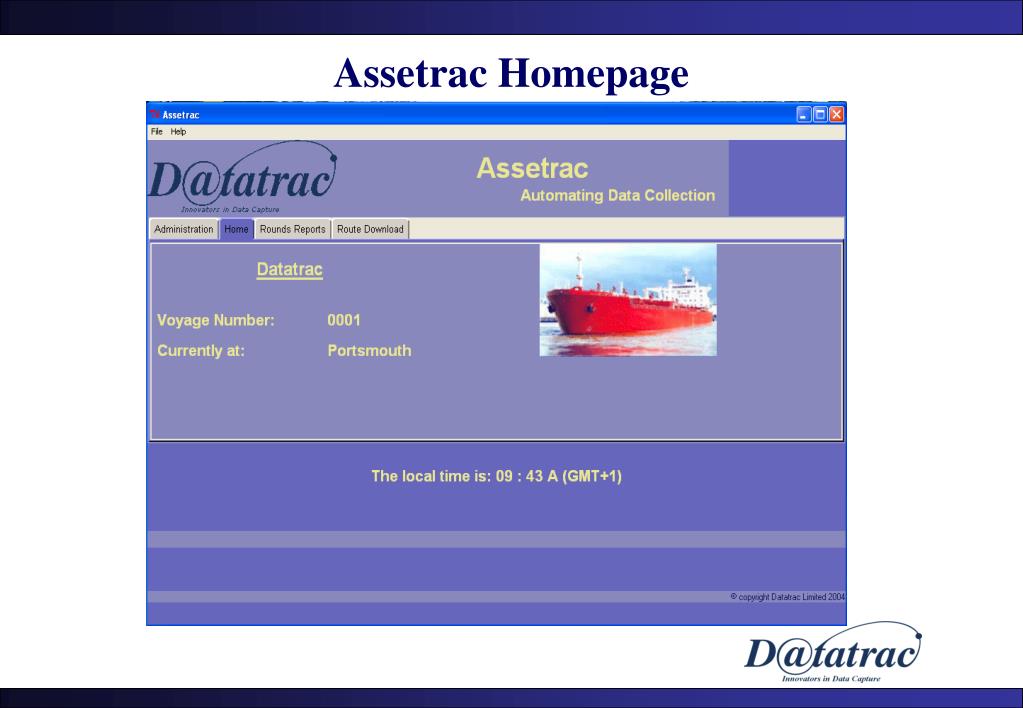

  8. Assetrac Homepage

  9. Assetrac Administrator Login

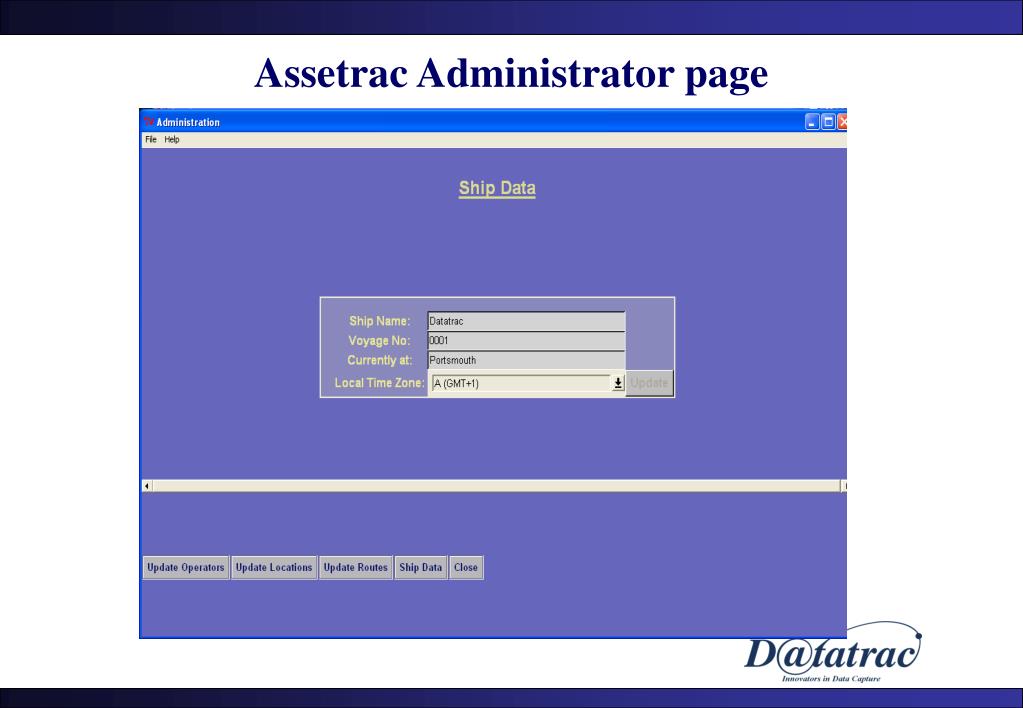

  10. Assetrac Administrator page

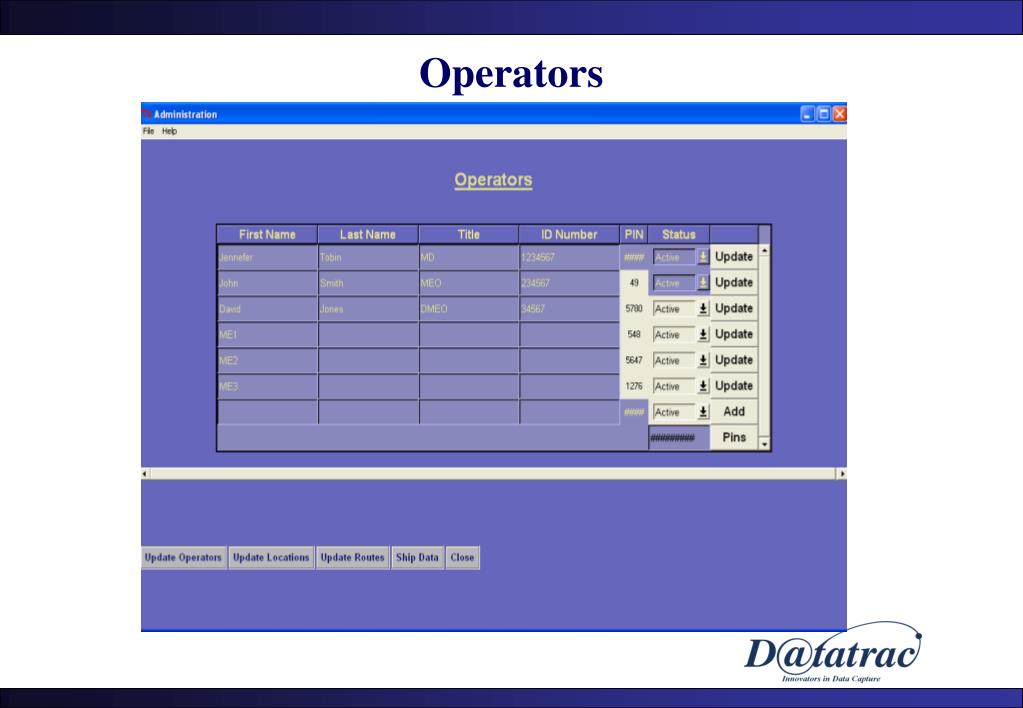

  11. Operators

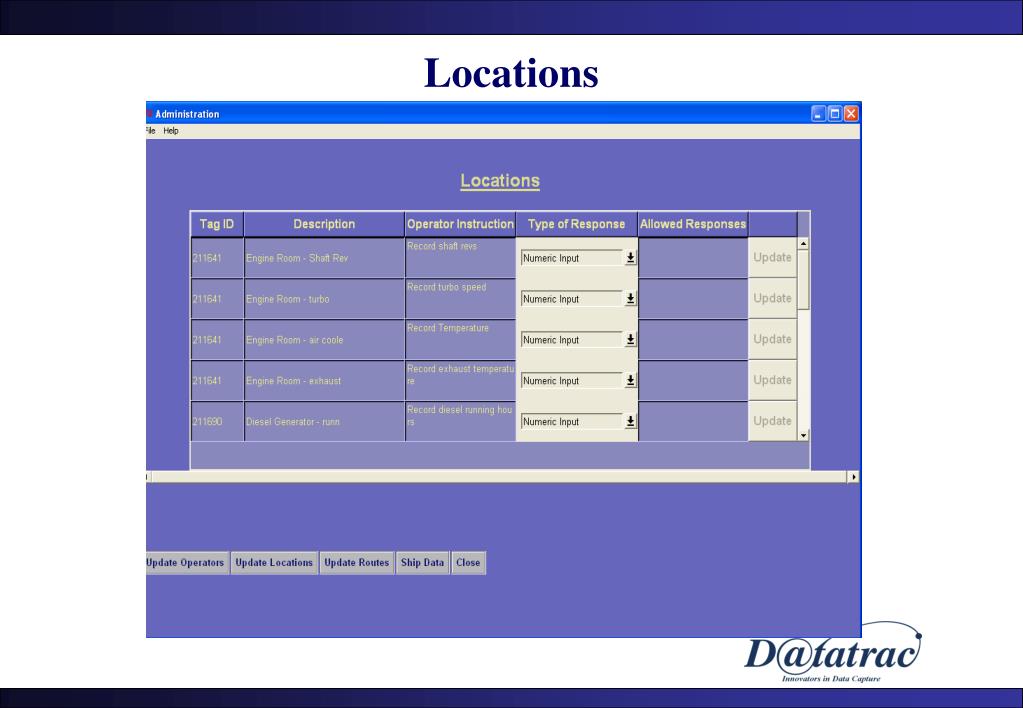

  12. Locations

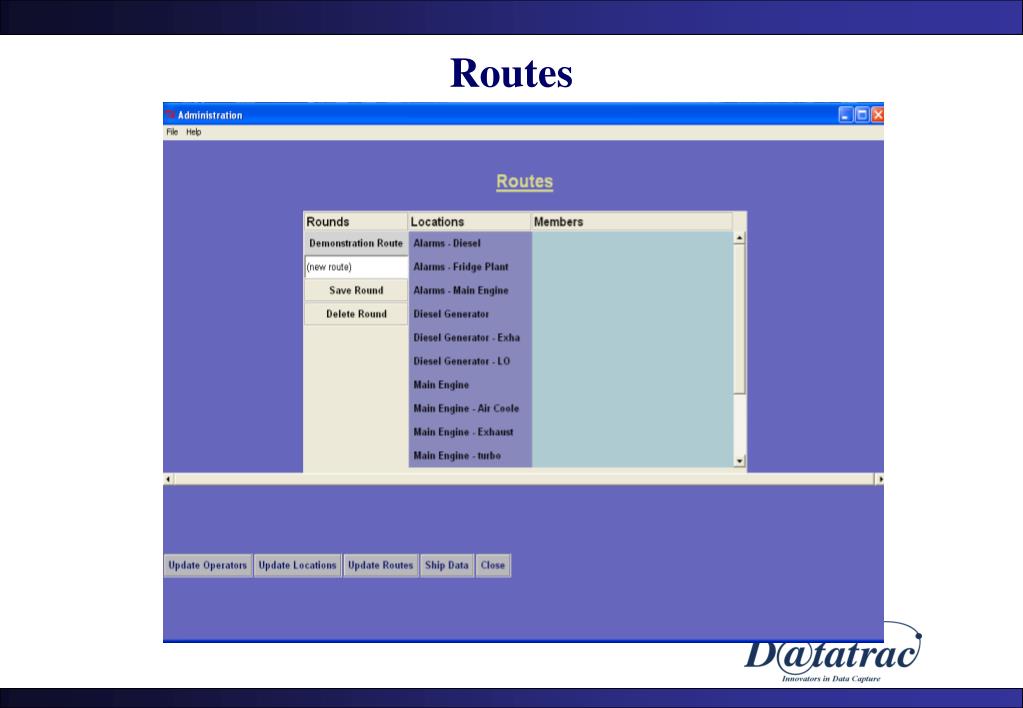

  13. Routes

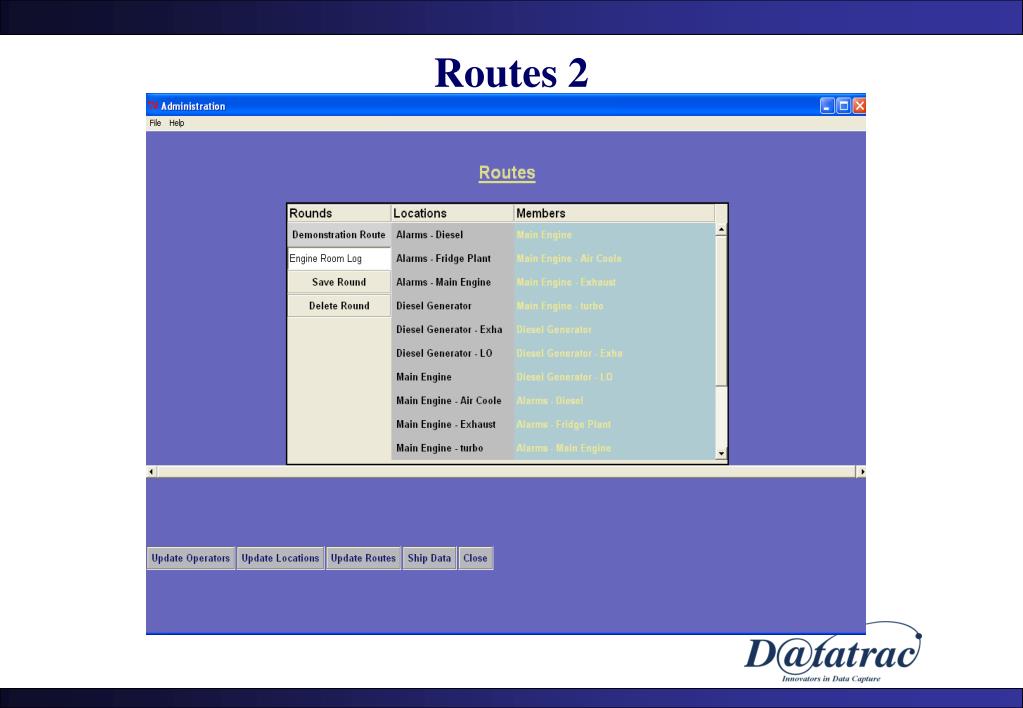

  14. Routes 2

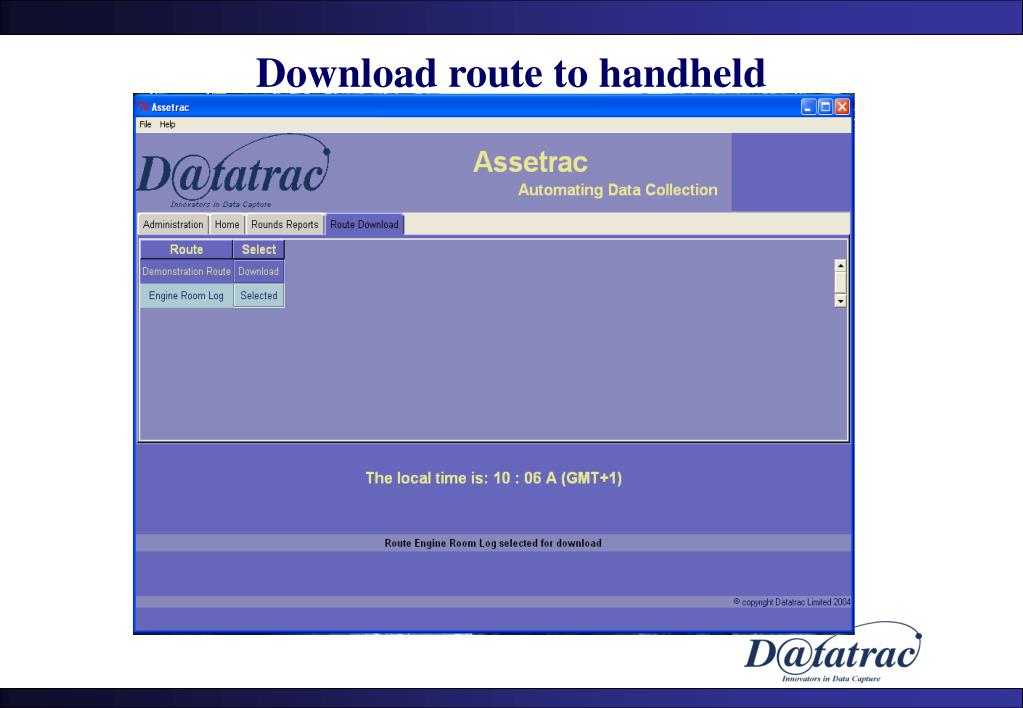

  15. Download route to handheld

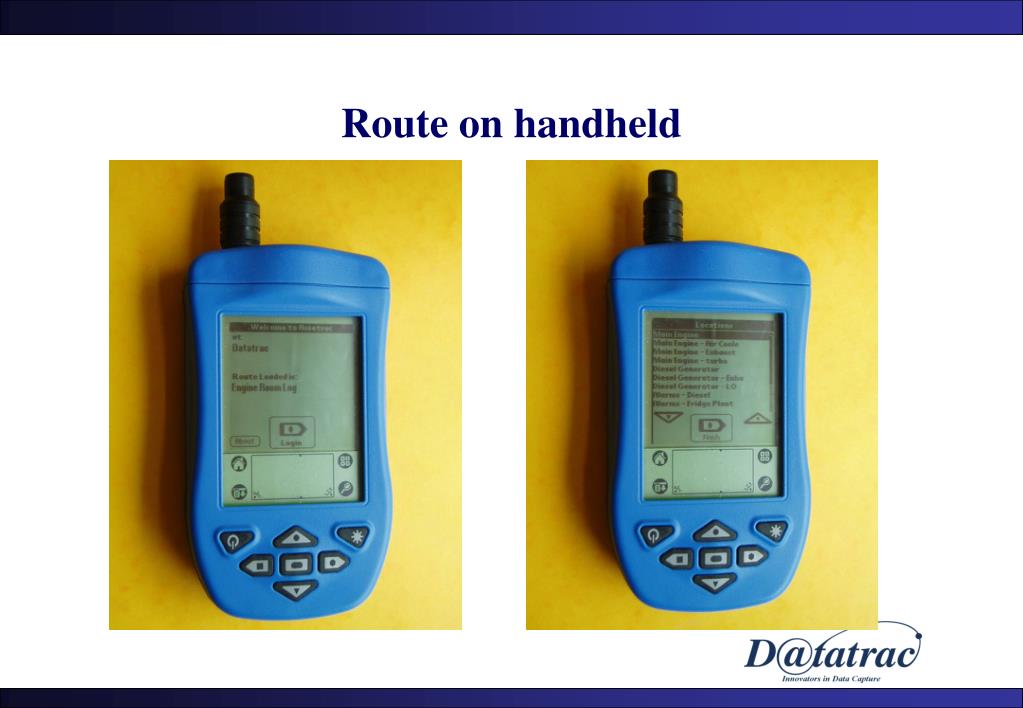

  16. Route on handheld

  17. Tags attached to machinery 1

  18. Tags attached to machinery 2

  19. Reading a tag

  20. Handheld prompts user for data

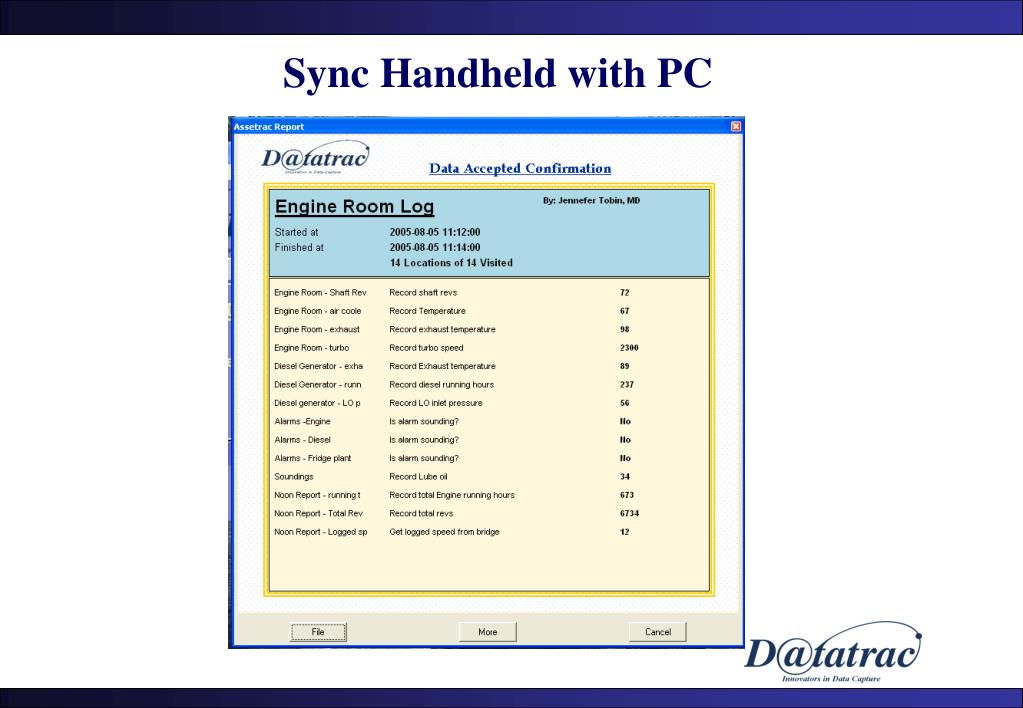

  21. Sync Handheld with PC

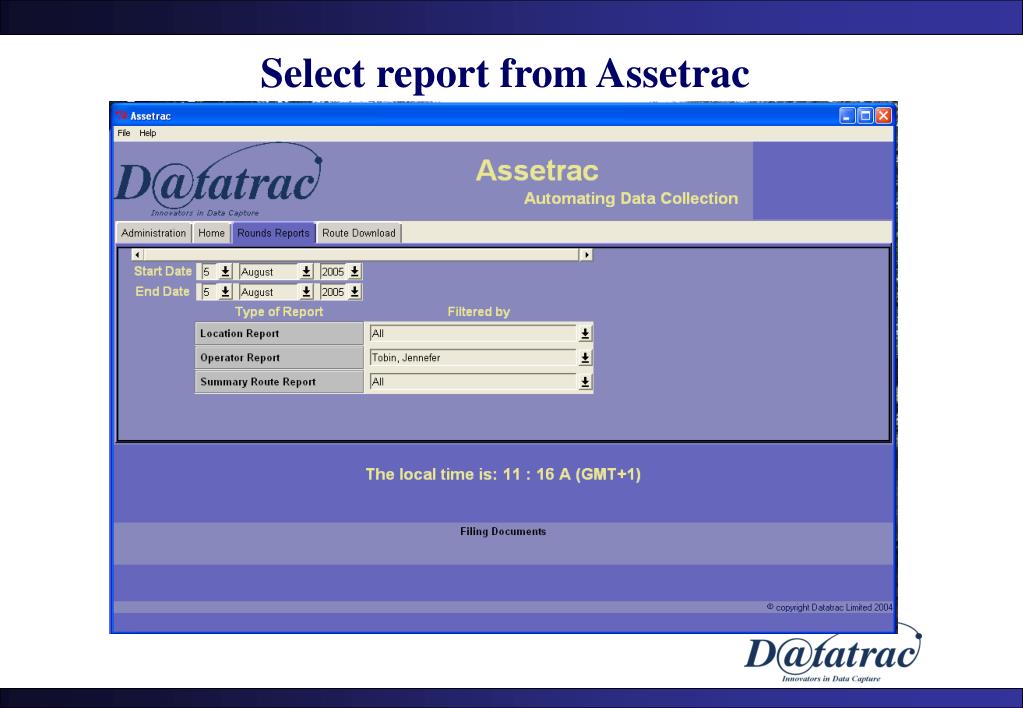

  22. Select report from Assetrac

  23. Report data displayed

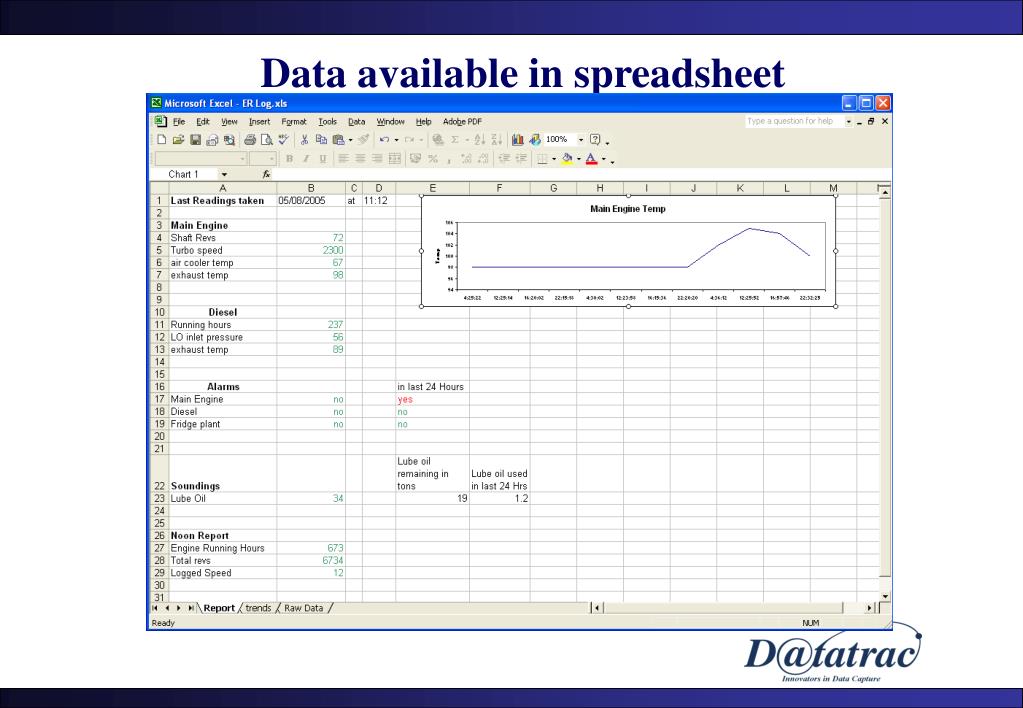

  24. Data available in spreadsheet

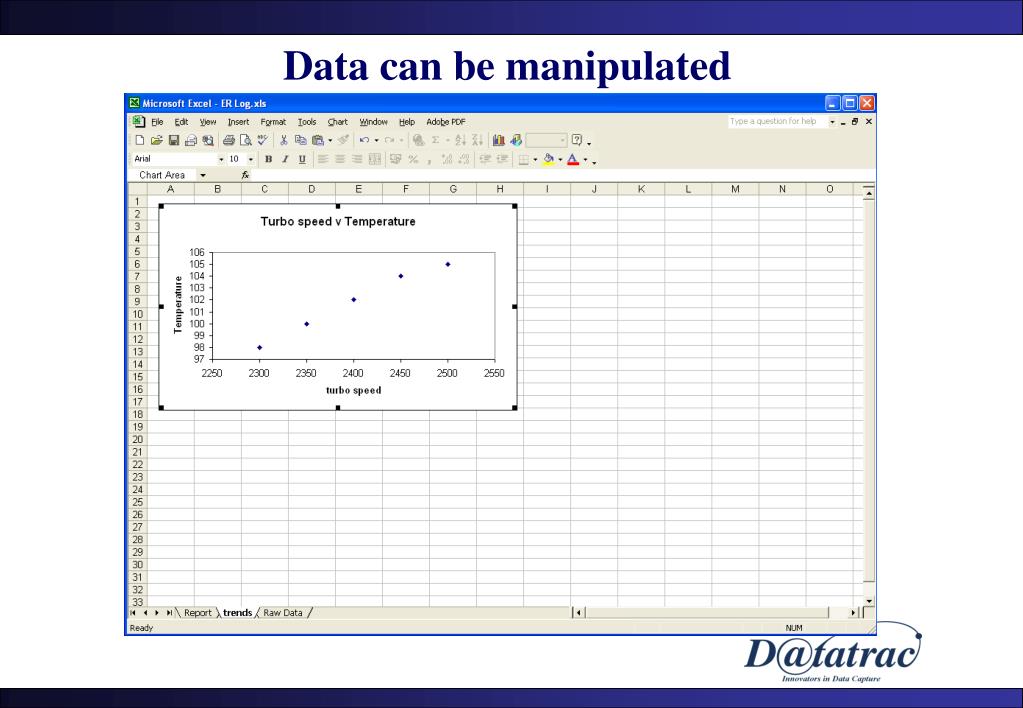

  25. Data can be manipulated

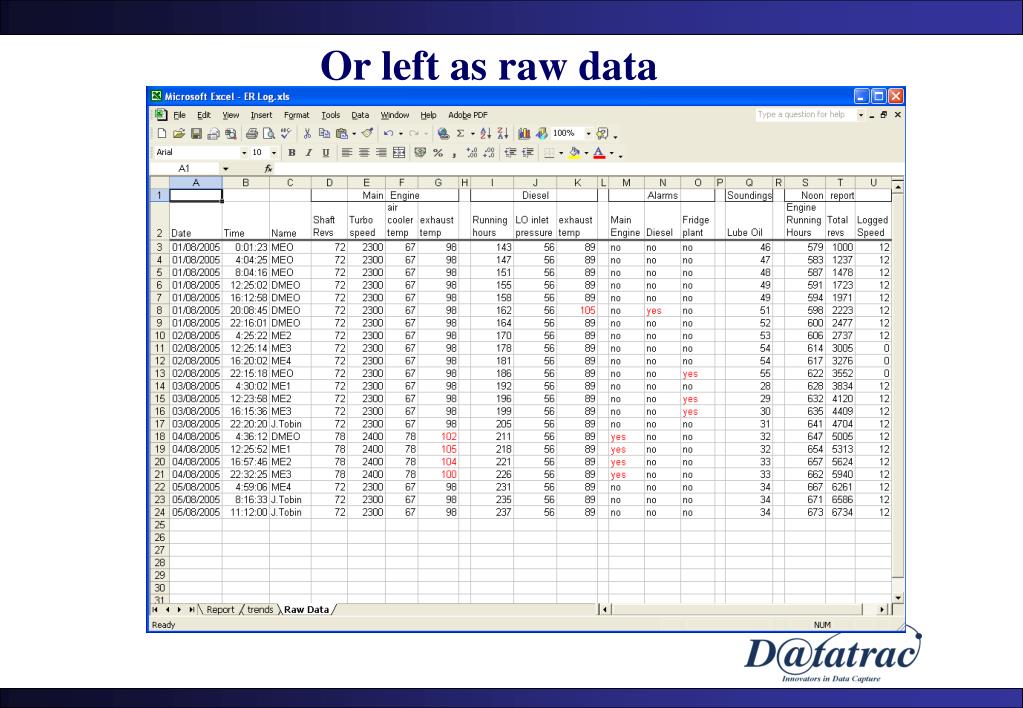

  26. Or left as raw data

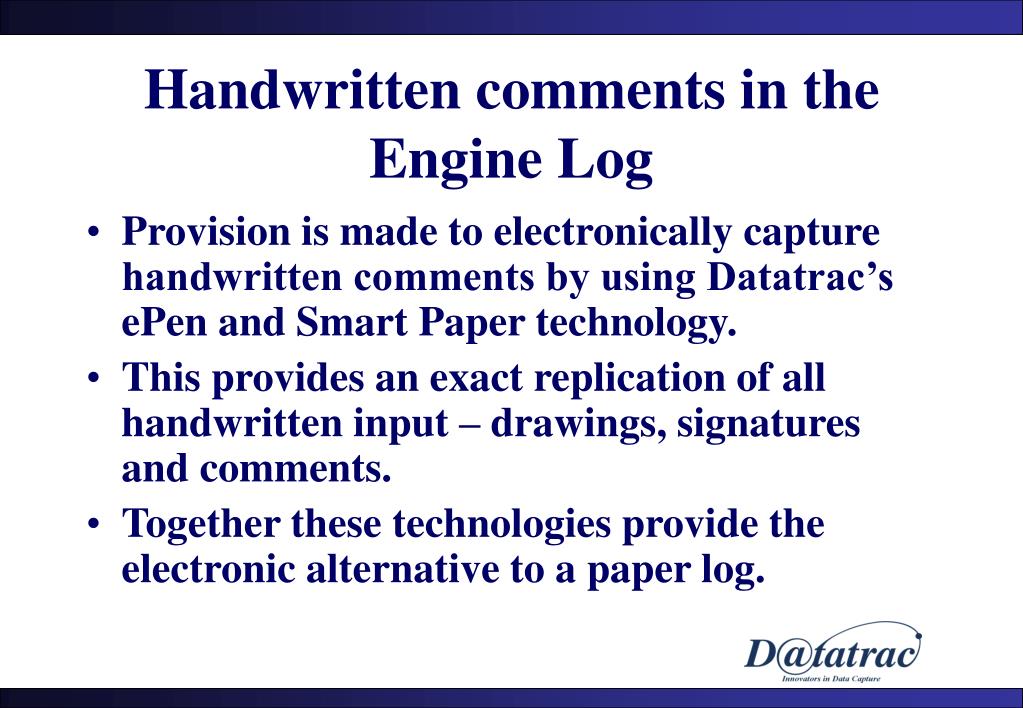

  27. Handwritten comments in the Engine Log • Provision is made to electronically capture handwritten comments by using Datatrac’s ePen and Smart Paper technology. • This provides an exact replication of all handwritten input – drawings, signatures and comments. • Together these technologies provide the electronic alternative to a paper log.

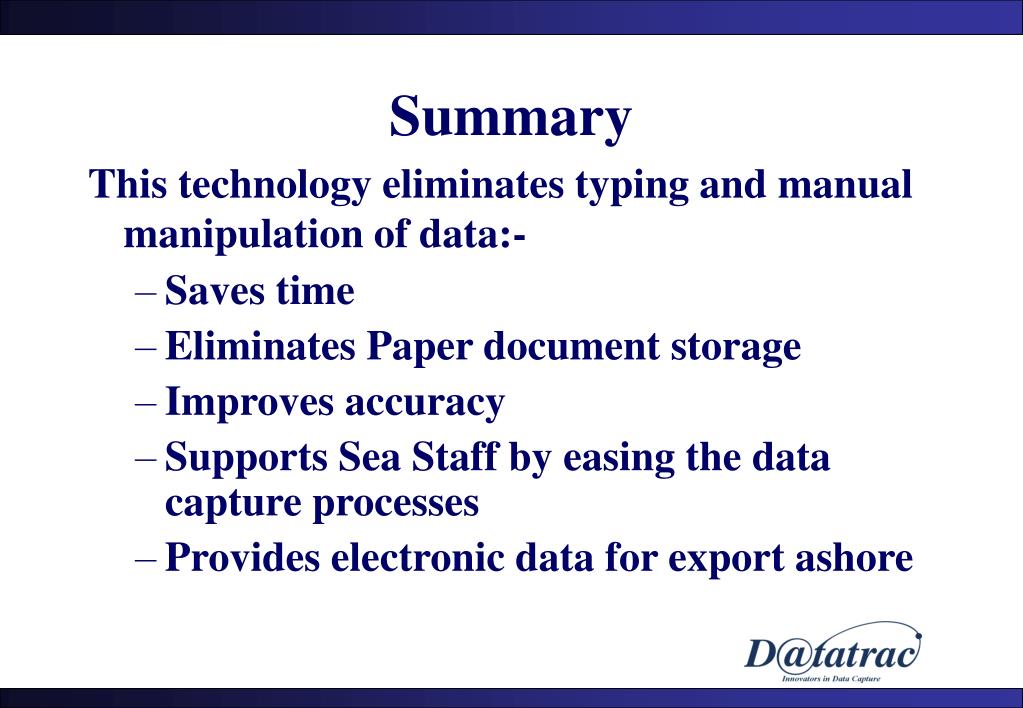

  28. Summary This technology eliminates typing and manual manipulation of data:- • Saves time • Eliminates Paper document storage • Improves accuracy • Supports Sea Staff by easing the data capture processes • Provides electronic data for export ashore

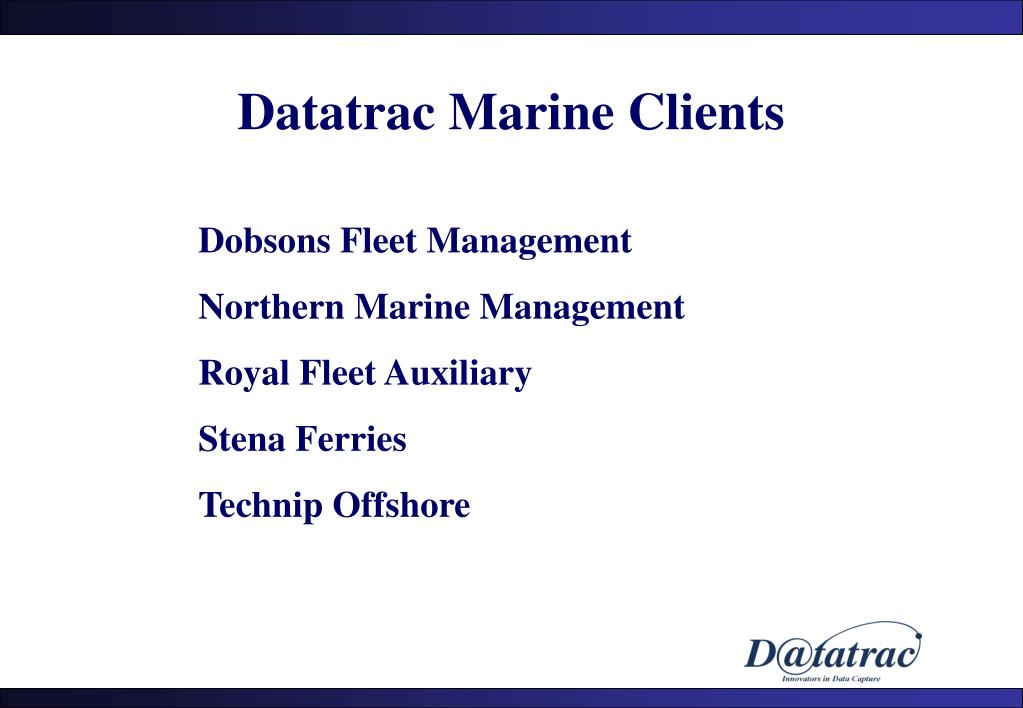

  29. Datatrac Marine Clients • Dobsons Fleet Management • Northern Marine Management • Royal Fleet Auxiliary • Stena Ferries • Technip Offshore
