  1. TCP/IP

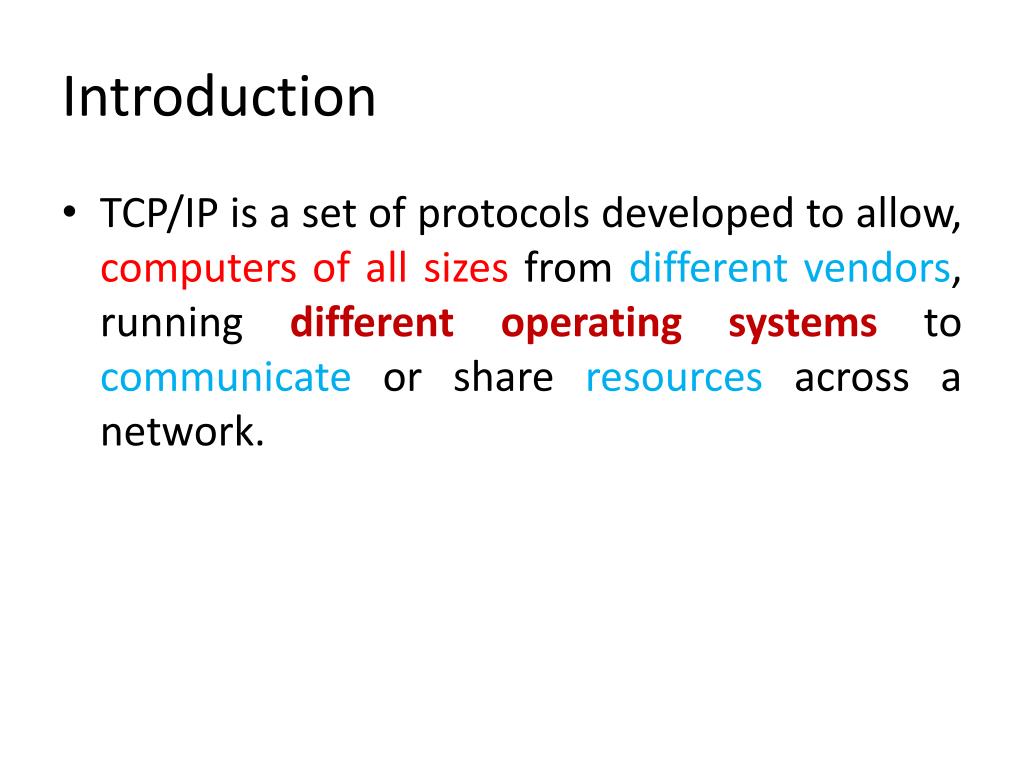

  2. Introduction • TCP/IP is a set of protocols developed to allow, computers of all sizes from different vendors, running different operating systems to communicate or share resources across a network.

  3. TCP/IP provides reliable end to end stream over unreliable network.

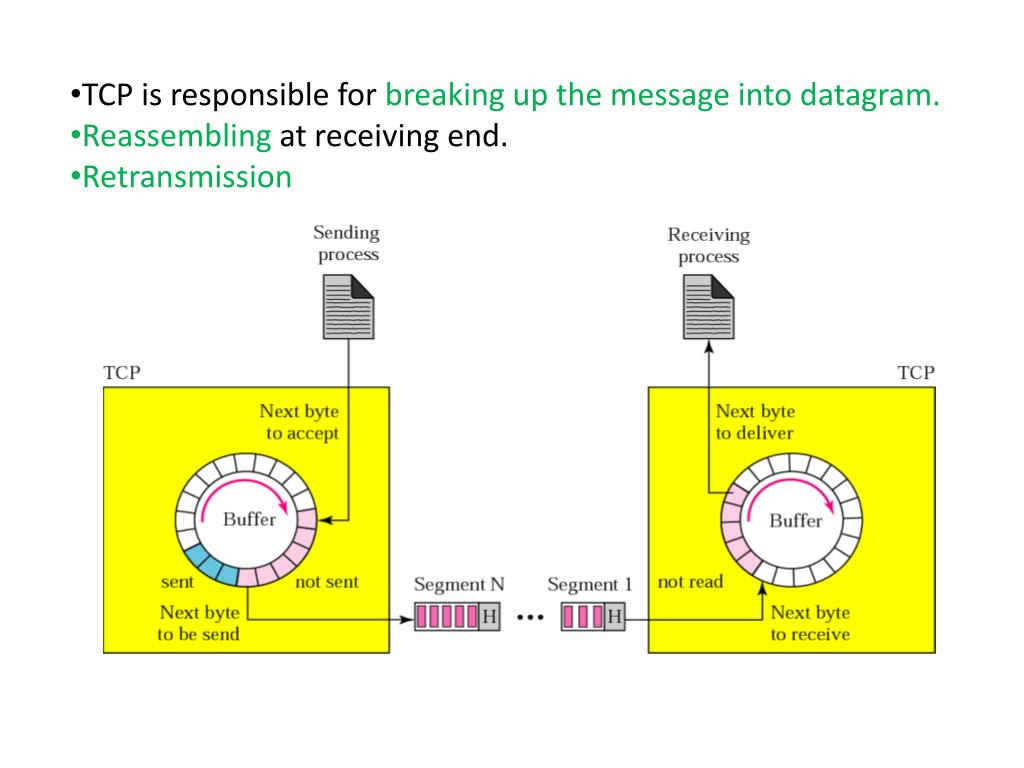

  4. TCP is responsible for breaking up the message into datagram. • Reassembling at receiving end. • Retransmission

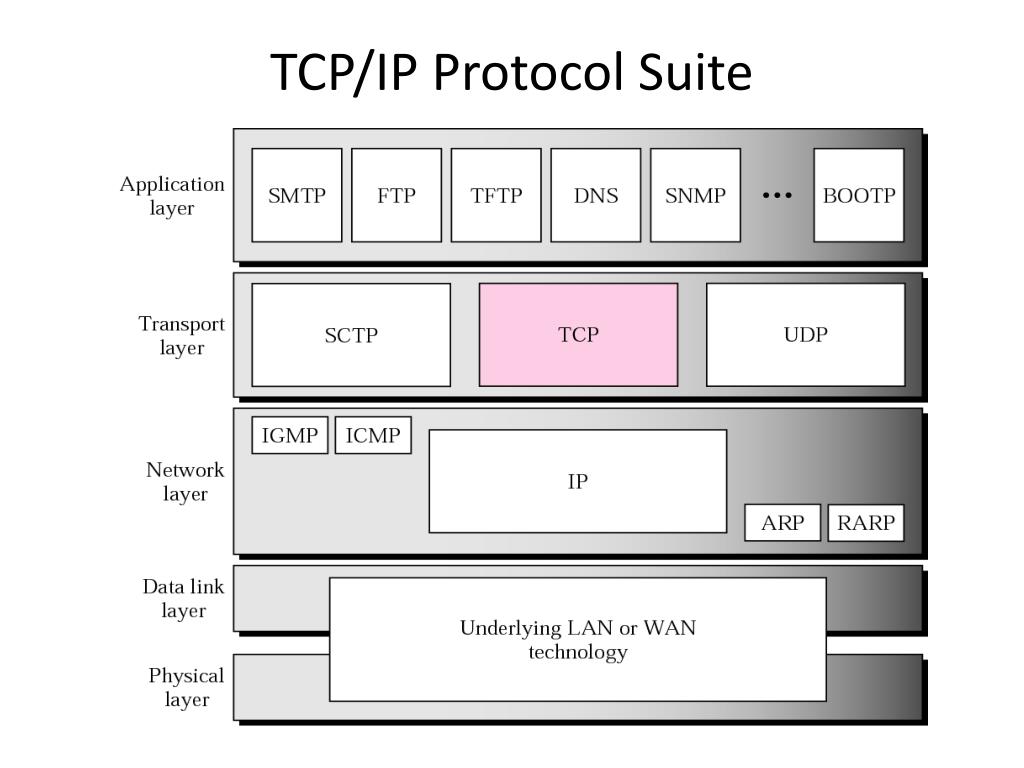

  5. TCP/IP Protocol Suite

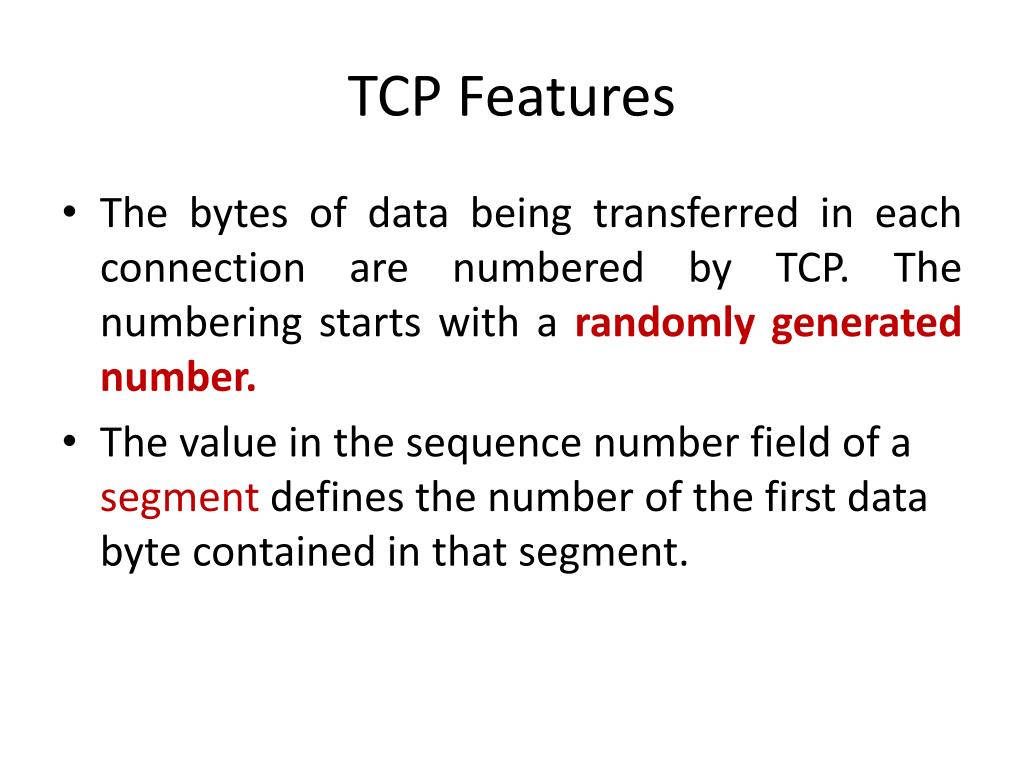

  6. TCP Features • The bytes of data being transferred in each connection are numbered by TCP. The numbering starts with a randomly generated number. • The value in the sequence number field of a segment defines the number of the first data byte contained in that segment.

  7. Features • The value of the acknowledgment field in a segment defines the number of the next byte a party expects to receive.

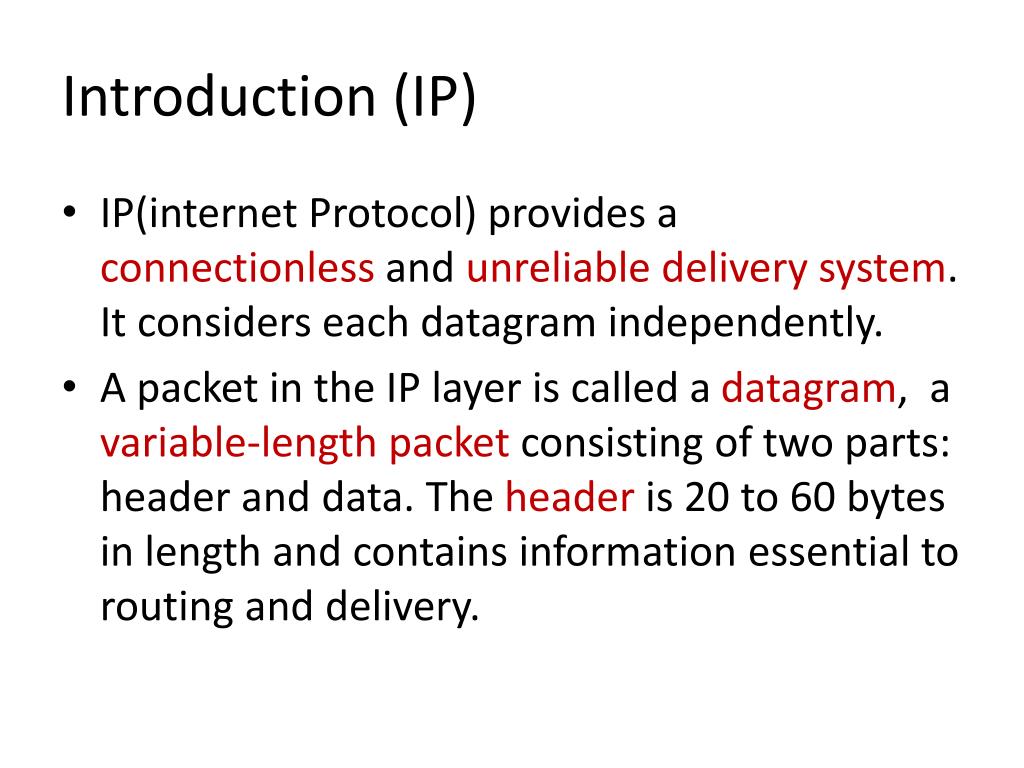

  8. Introduction (IP) • IP(internet Protocol) provides a connectionless and unreliable delivery system. It considers each datagram independently. • A packet in the IP layer is called a datagram, a variable-length packet consisting of two parts: header and data. The header is 20 to 60 bytes in length and contains information essential to routing and delivery.

  9. Introduction (IP) • Responsible for end to end transmission • Sends data in individual packets • Maximum size of packet is determined by the networks • Fragmented if too large • Unreliable • Packets might be lost, corrupted, duplicated, delivered out of order

  10. IP Datagram
