1 / 13

Graphic Communication

Graphic Communication. Dimensioning. Dimensioning. We dimension objects to show what size they are. This is vital when we pass our drawings onto a craftsperson to make the object. Dimensioning. Dimensions are drawn to British Standards.

maja
Download Presentation

Graphic Communication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Graphic Communication Dimensioning Designed by Barry Forbes

  2. Dimensioning • We dimension objects to show what size they are. • This is vital when we pass our drawings onto a craftsperson to make the object. Designed by Barry Forbes

  3. Dimensioning • Dimensions are drawn to British Standards. • This means that all dimensions are always drawn the same way. • Dimensions you show will always be measured in millimetres so you do not have to show units. Designed by Barry Forbes

  4. Dimensioning Horizontal dimensions are read from the bottom of the page. 50 Designed by Barry Forbes

  5. Dimensioning Vertical dimensions are read from the right-hand side of the page. 40 Designed by Barry Forbes

  6. Dimensioning 40 Vertical dimensions are read from the right-hand side of the page.dimension figures should never touch the outline of the object. 40

  7. Dimensioning Leader lines are used to bring the dimension away from the drawing. There should always be a gap left between the object and the leader line. 40

  8. Dimensioning The arrowheads used on the dimension line should be kept small and slim and the point of the arrowheads should touch the leader lines. 50 Designed by Barry Forbes

  9. Dimensioning Larger dimensions should be drawn further away from the object. 100 25 25 25 25 Smaller dimensions like these should be placed in line.

  10. Dimensioning When dimensions are taken from one leader line then this would be called a datum line 30 10

  11. Dimensioning The symbol Ø stands for diameter. Ø45 Circles should always be dimensioned to show their diameter. Designed by Barry Forbes

  12. Dimensioning The symbol R stands for radius. R20 Curves should always be dimensioned to show their radius.

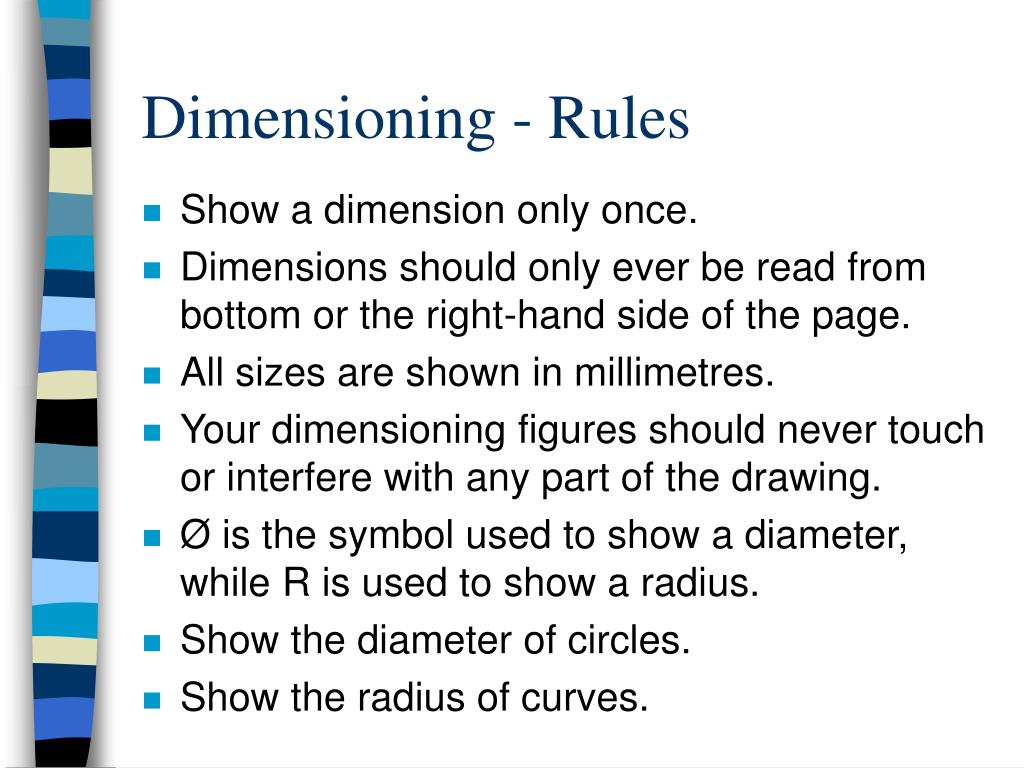

  13. Dimensioning - Rules • Show a dimension only once. • Dimensions should only ever be read from bottom or the right-hand side of the page. • All sizes are shown in millimetres. • Your dimensioning figures should never touch or interfere with any part of the drawing. • Ø is the symbol used to show a diameter, while R is used to show a radius. • Show the diameter of circles. • Show the radius of curves.

More Related
