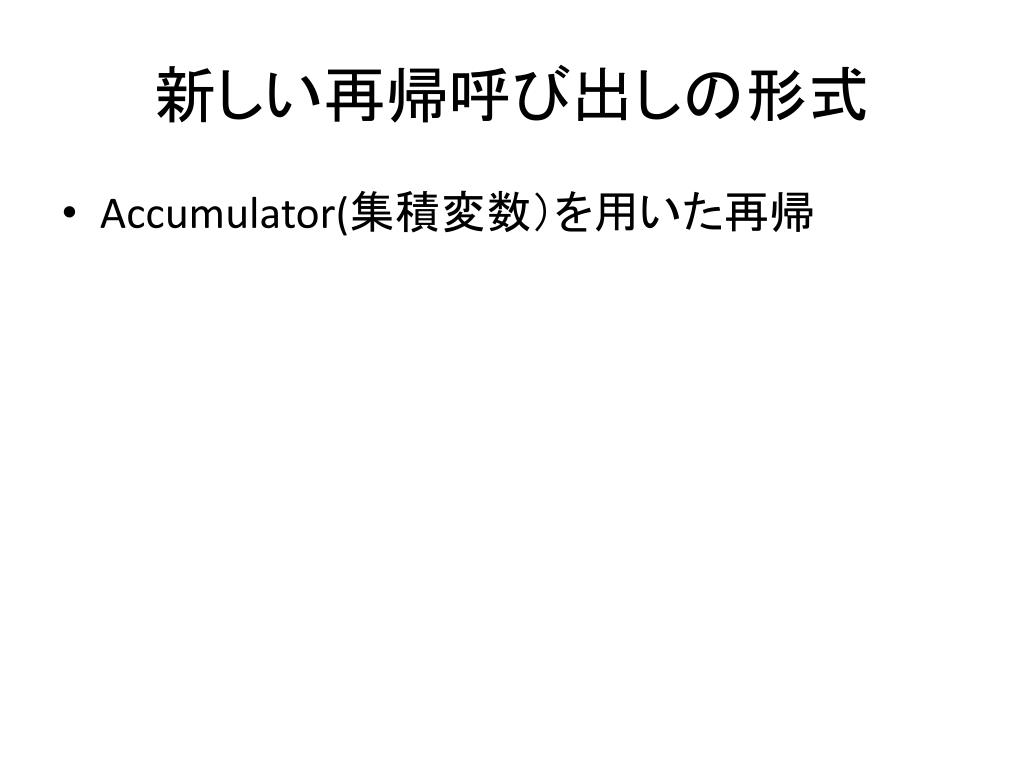

• Accumulator(集積変数）を用いた再帰

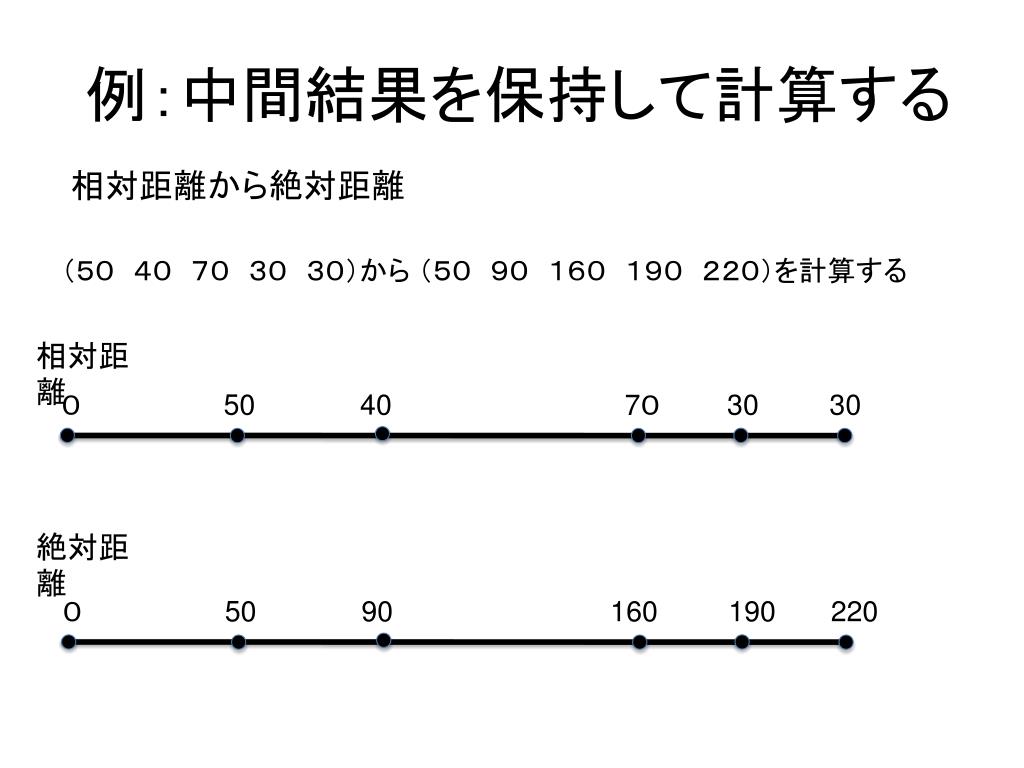

（５０　４０　７０　３０　３０）から （５０　９０　１６０　１９０　２２０）を計算する

50

40

7０

30

30

50

90

160

190

220

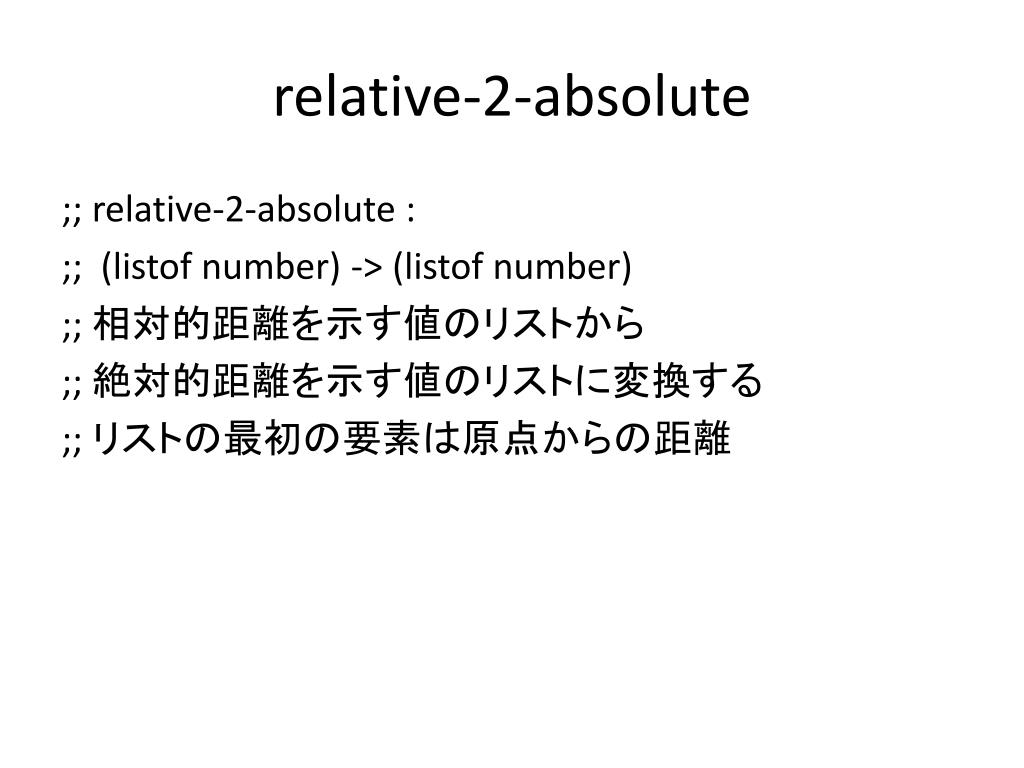

relative-2-absolute

;; relative-2-absolute :

;; (listof number) -> (listof number)

;; 相対的距離を示す値のリストから

;; 絶対的距離を示す値のリストに変換する

;; リストの最初の要素は原点からの距離

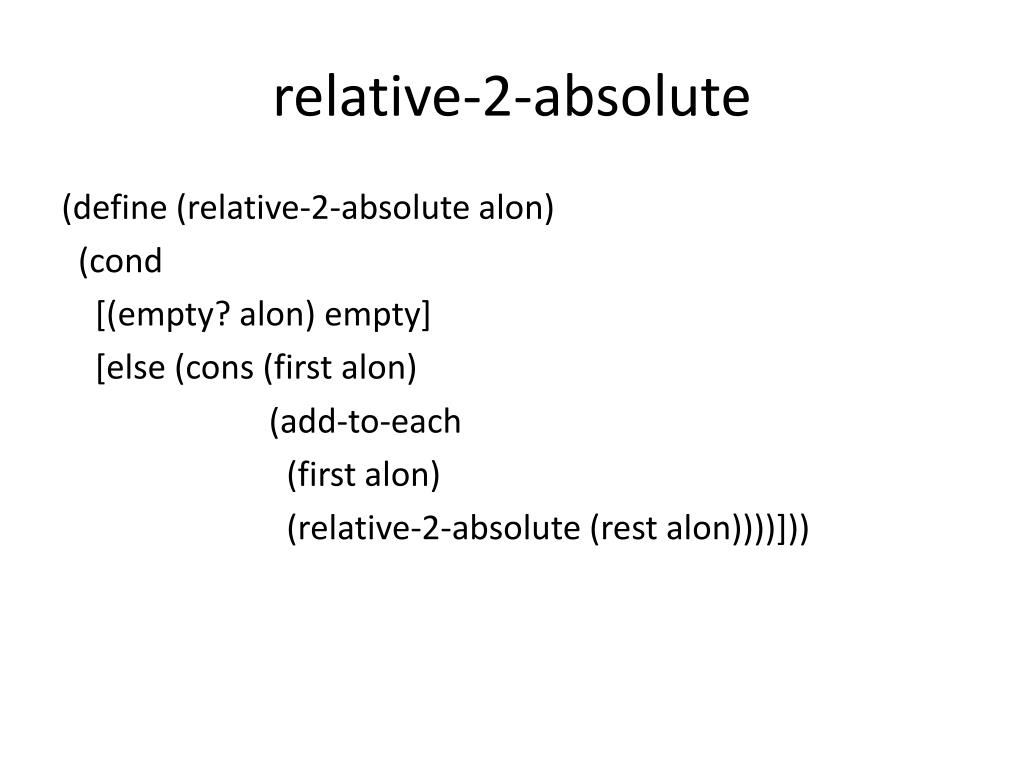

relative-2-absolute

(define (relative-2-absolute alon)

(cond

[(empty? alon) empty]

[else (cons (first alon)

(first alon)

(relative-2-absolute (rest alon))))]))

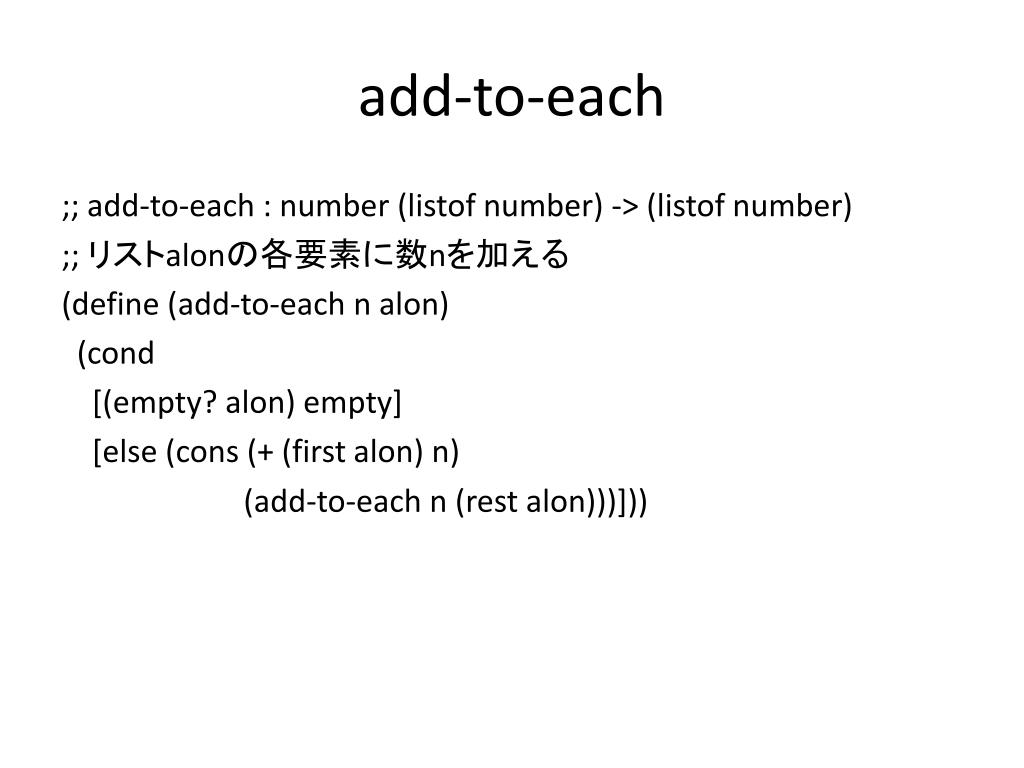

;; add-to-each : number (listof number) -> (listof number)

;; リストalonの各要素に数nを加える

(cond

[(empty? alon) empty]

[else (cons (+ (first alon) n)

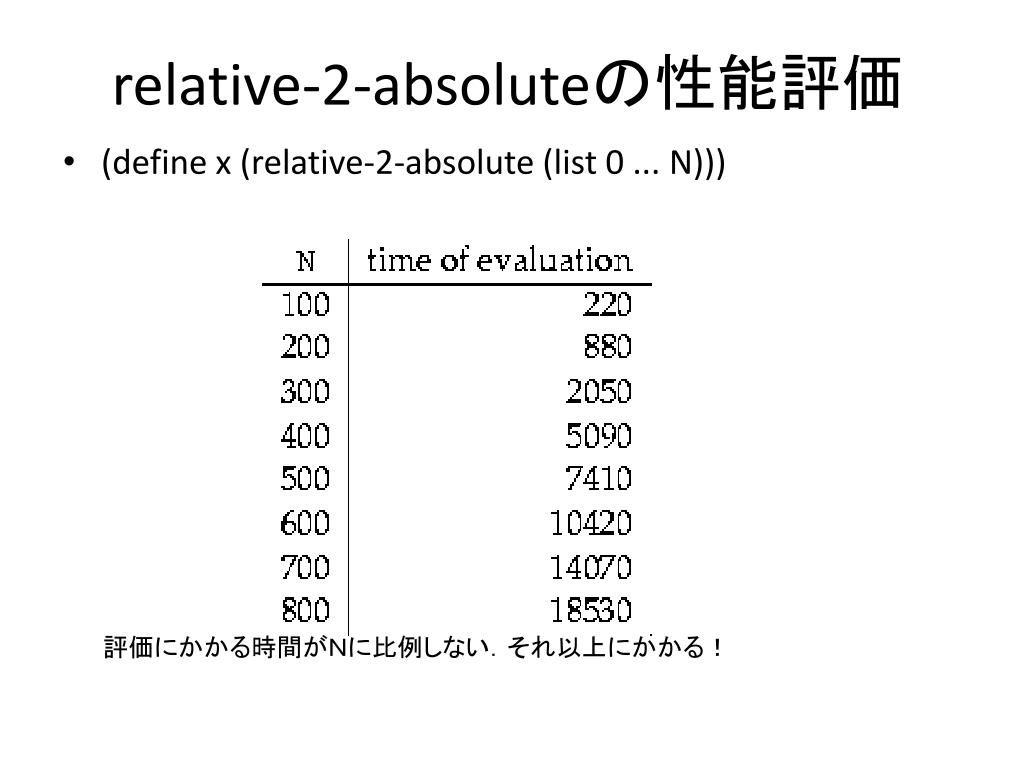

relative-2-absoluteの性能評価
• (define x (relative-2-absolute (list 0 ... N)))

• ３，５，２，１，６
• １，７
• ２，３，９
• ５，７，８，１４
• ３，８，１０，１１，１７
• Ｎの２乗に比例した計算(加算とcons)が必要

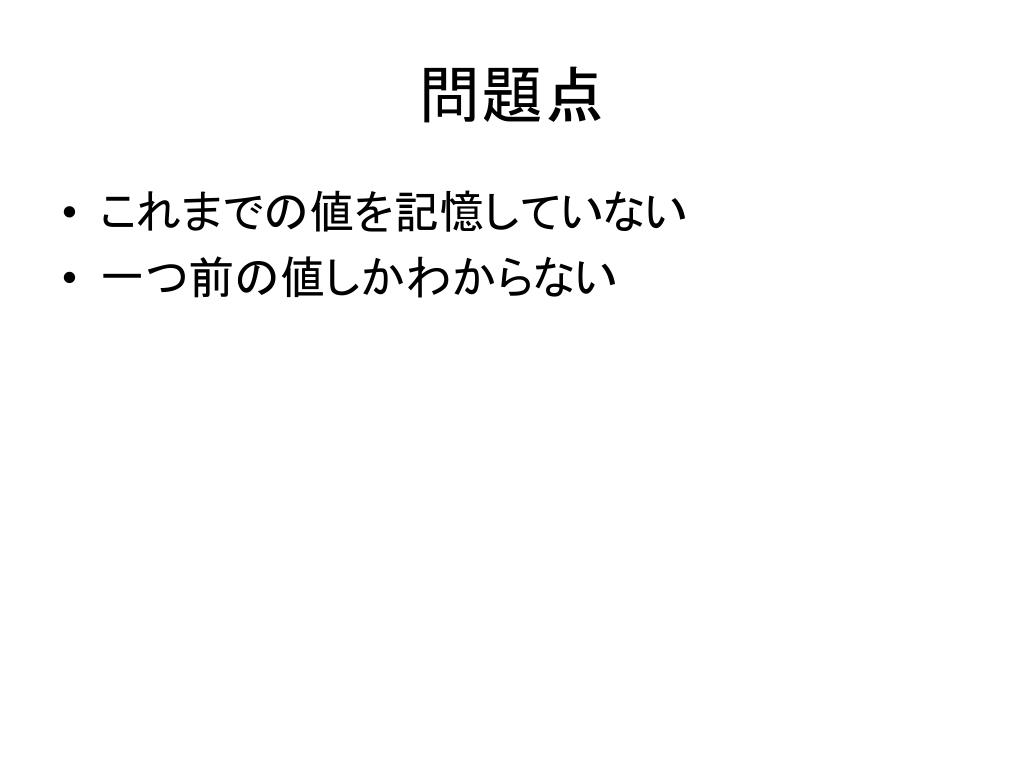

• これまでの値を記憶していない
• 一つ前の値しかわからない

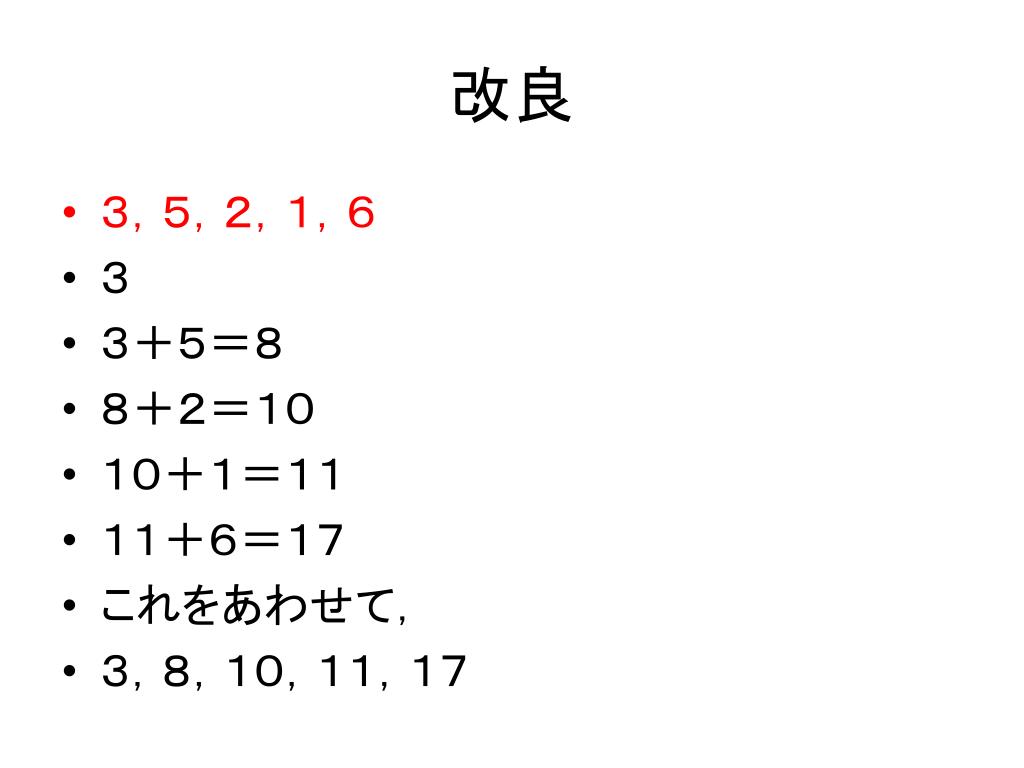

• ３，５，２，１，６
• ３＋５＝８
• ８＋２＝１０
• １０＋１＝１１
• １１＋６＝１７
• これをあわせて，
• ３，８，１０，１１，１７

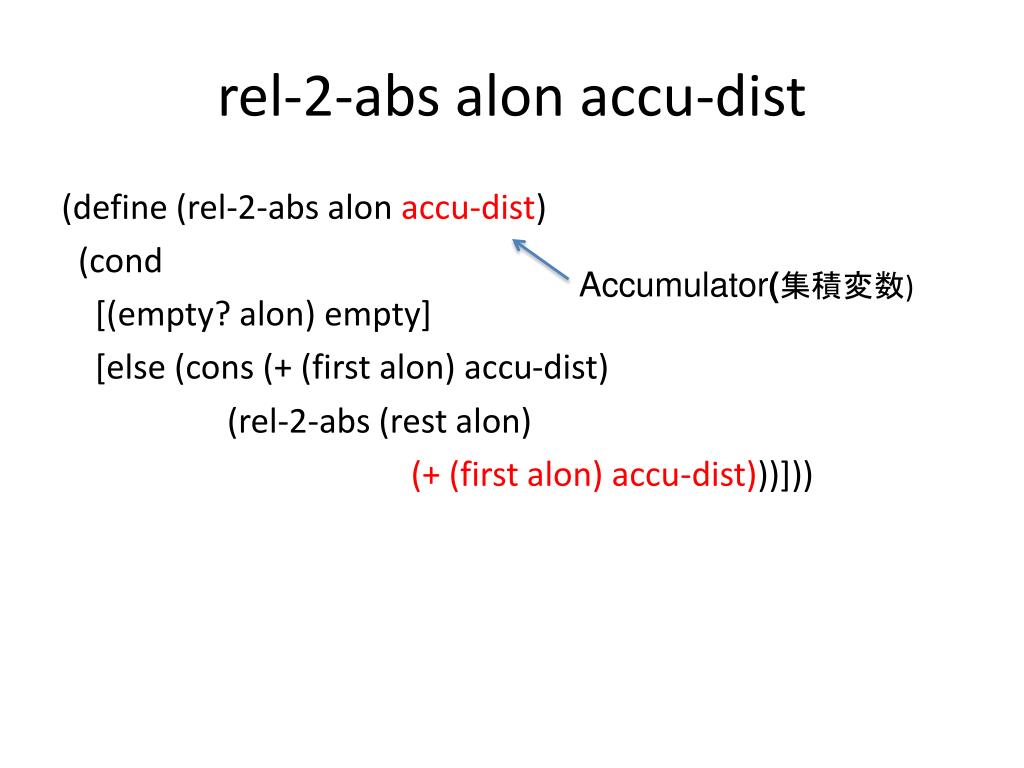

rel-2-abs alon accu-dist

(define (rel-2-abs alon accu-dist)

(cond

[(empty? alon) empty]

[else (cons (+ (first alon) accu-dist)

(rel-2-abs (rest alon)

(+ (first alon) accu-dist)))]))

Accumulator(集積変数)

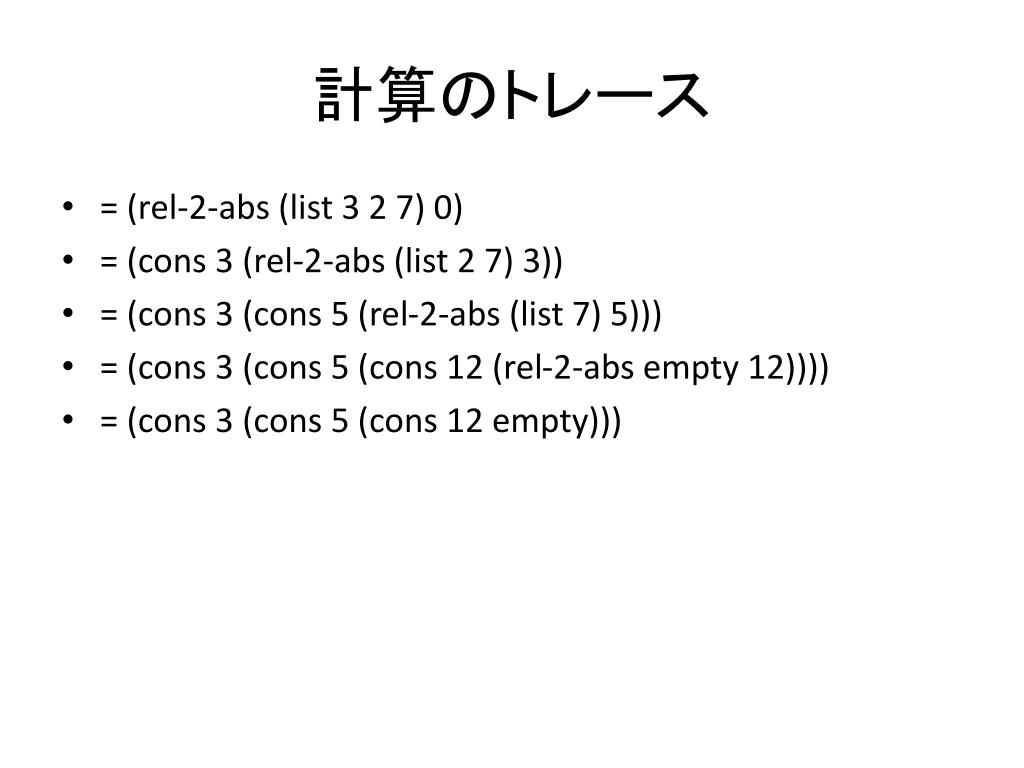

• = (rel-2-abs (list 3 2 7) 0)
• = (cons 3 (rel-2-abs (list 2 7) 3))
• = (cons 3 (cons 5 (rel-2-abs (list 7) 5)))
• = (cons 3 (cons 5 (cons 12 (rel-2-abs empty 12))))
• = (cons 3 (cons 5 (cons 12 empty)))

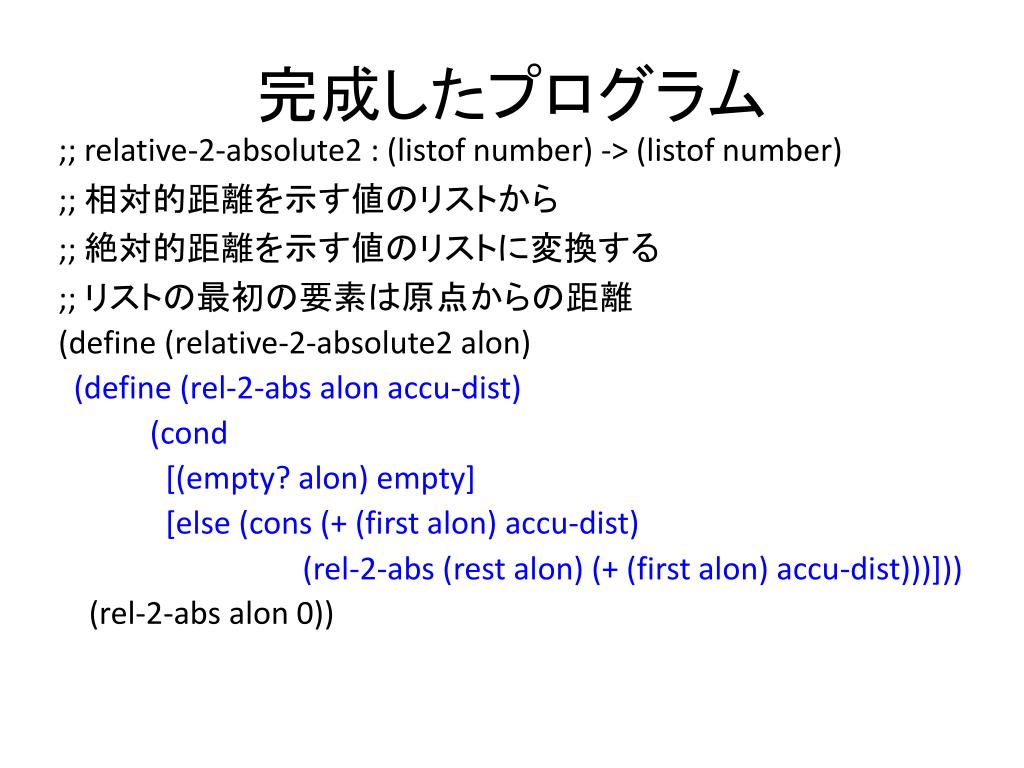

;; relative-2-absolute2 : (listof number) -> (listof number)

;; 相対的距離を示す値のリストから

;; 絶対的距離を示す値のリストに変換する

;; リストの最初の要素は原点からの距離

(define (relative-2-absolute2 alon)

(define (rel-2-abs alon accu-dist)

(cond

[(empty? alon) empty]

[else (cons (+ (first alon) accu-dist)

(rel-2-abs (rest alon) (+ (first alon) accu-dist)))]))

(rel-2-abs alon 0))

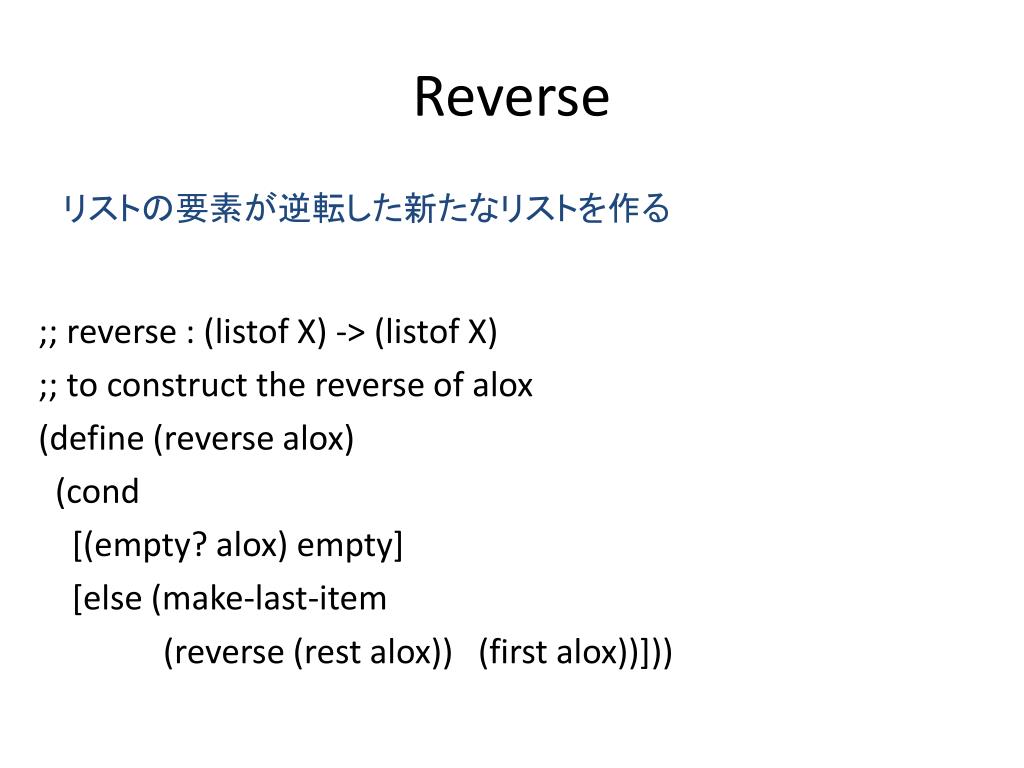

Reverse

;; reverse : (listof X) -> (listof X)

;; to construct the reverse of alox

(define (reverse alox)

(cond

[(empty? alox) empty]

[else (make-last-item

(reverse (rest alox))(first alox))]))

リストの要素が逆転した新たなリストを作る

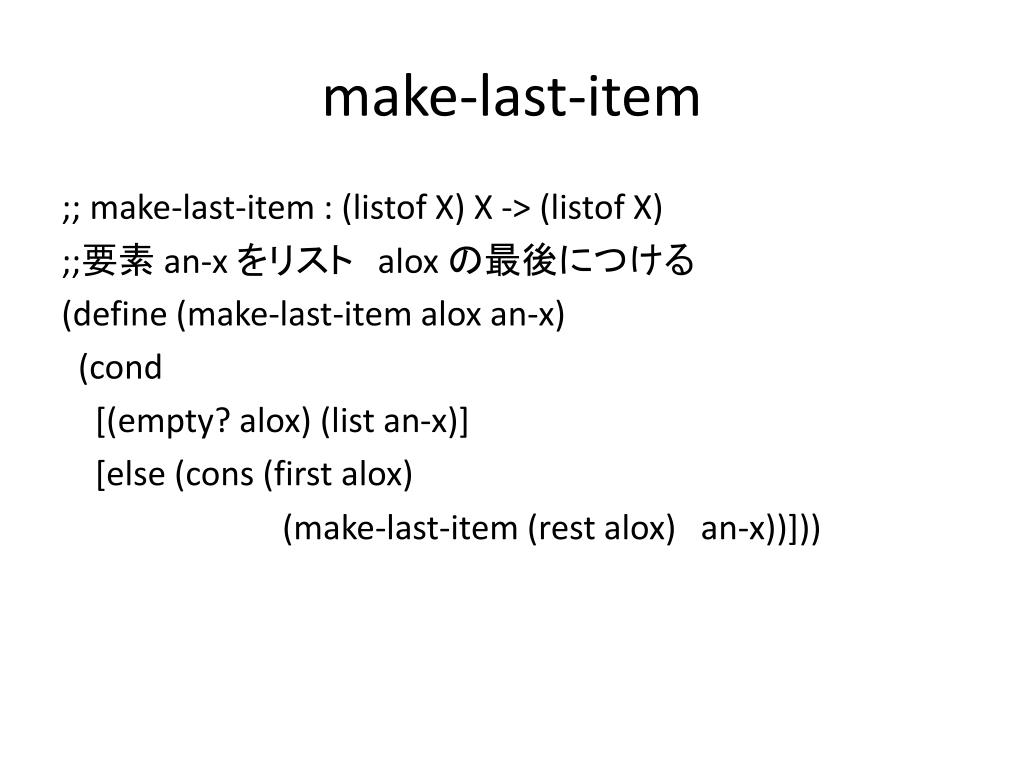

make-last-item

;; make-last-item : (listof X) X -> (listof X)

;;要素 an-x をリスト　alox の最後につける

(define (make-last-item alox an-x)

(cond

[(empty? alox) (list an-x)]

[else (cons (first alox)

(make-last-item (rest alox)an-x))]))

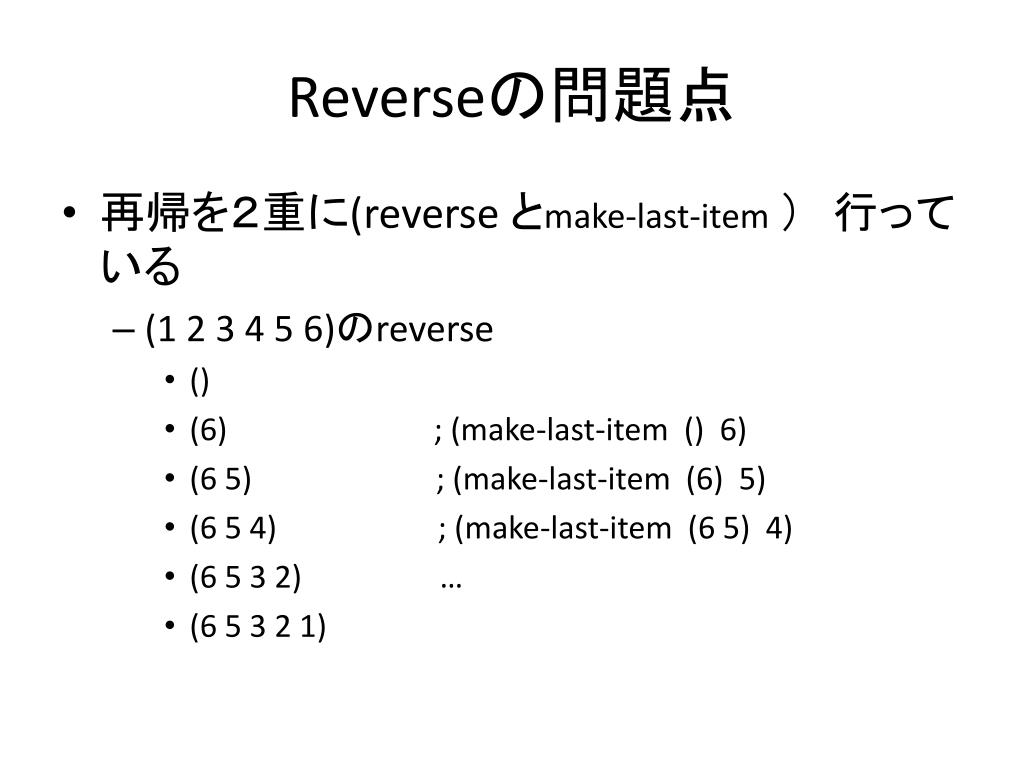

Reverseの問題点
• 再帰を２重に(reverse とmake-last-item）　行っている
• (1 2 3 4 5 6)のreverse
• ()
• (6) ; (make-last-item () 6)
• (6 5) ; (make-last-item (6) 5)
• (6 5 4) ; (make-last-item (6 5) 4)
• (6 5 3 2) …
• (6 5 3 2 1)

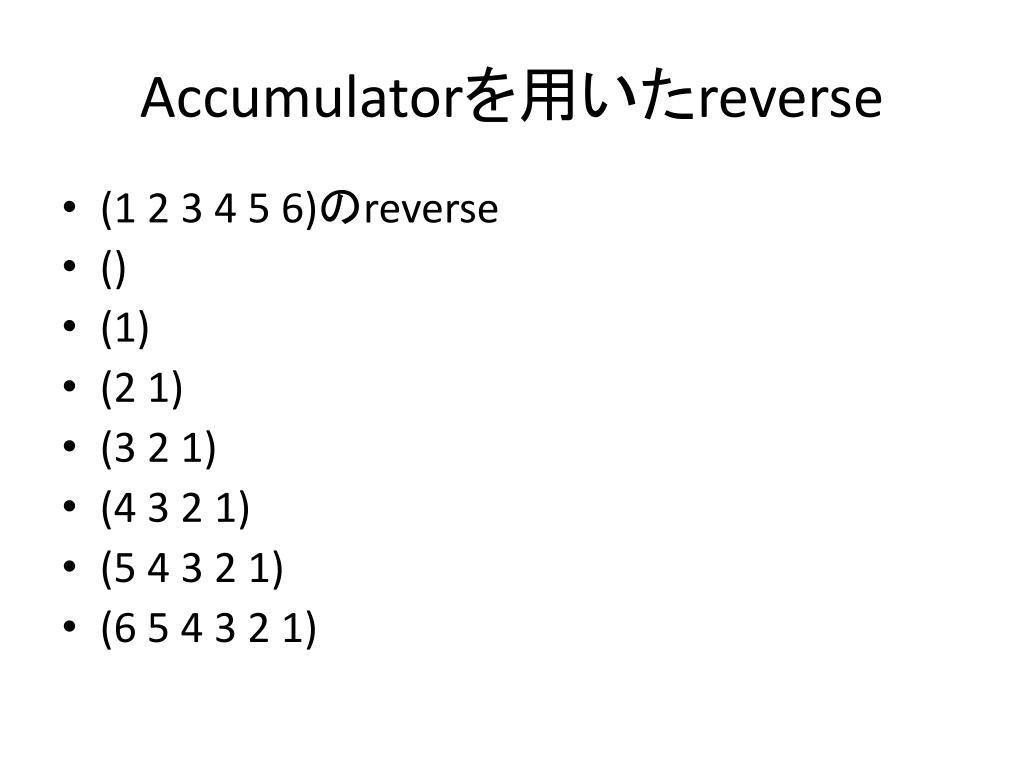

Accumulatorを用いたreverse
• (1 2 3 4 5 6)のreverse
• ()
• (1)
• (2 1)
• (3 2 1)
• (4 3 2 1)
• (5 4 3 2 1)
• (6 5 4 3 2 1)

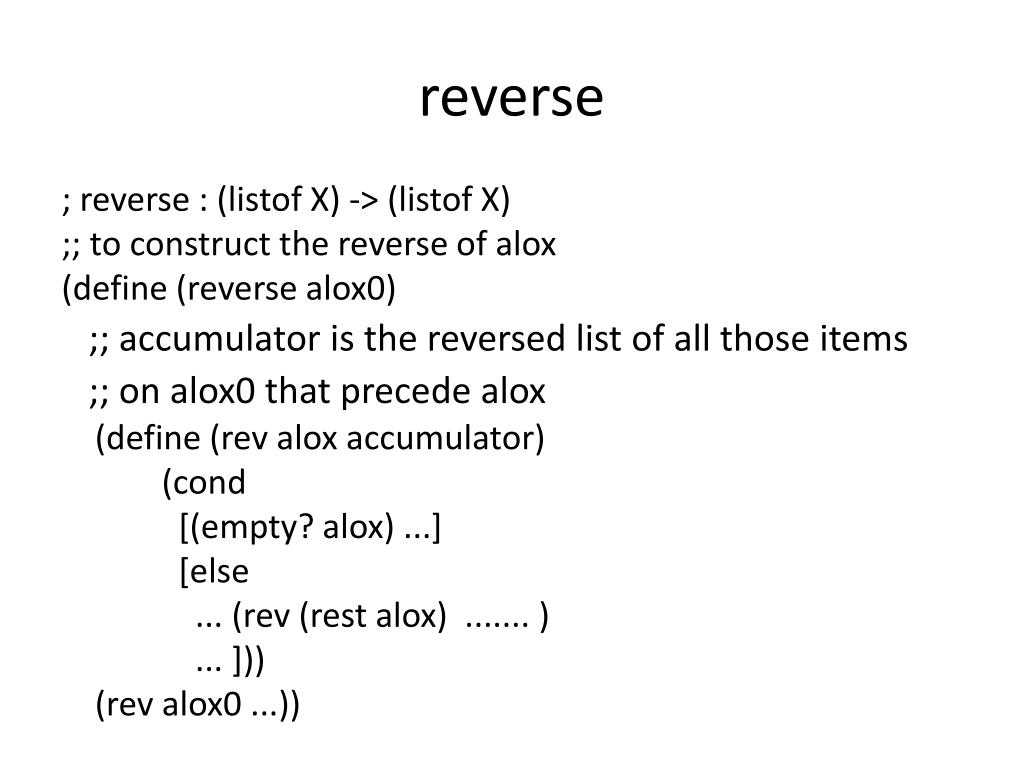

reverse

; reverse : (listof X) -> (listof X)

;; to construct the reverse of alox

(define (reverse alox0)

;; accumulator is the reversed list of all those items

;; on alox0 that precede alox

(define (rev alox accumulator)

(cond

[(empty? alox) ...]

[else

... (rev (rest alox) ....... )

... ]))

(rev alox0 ...))

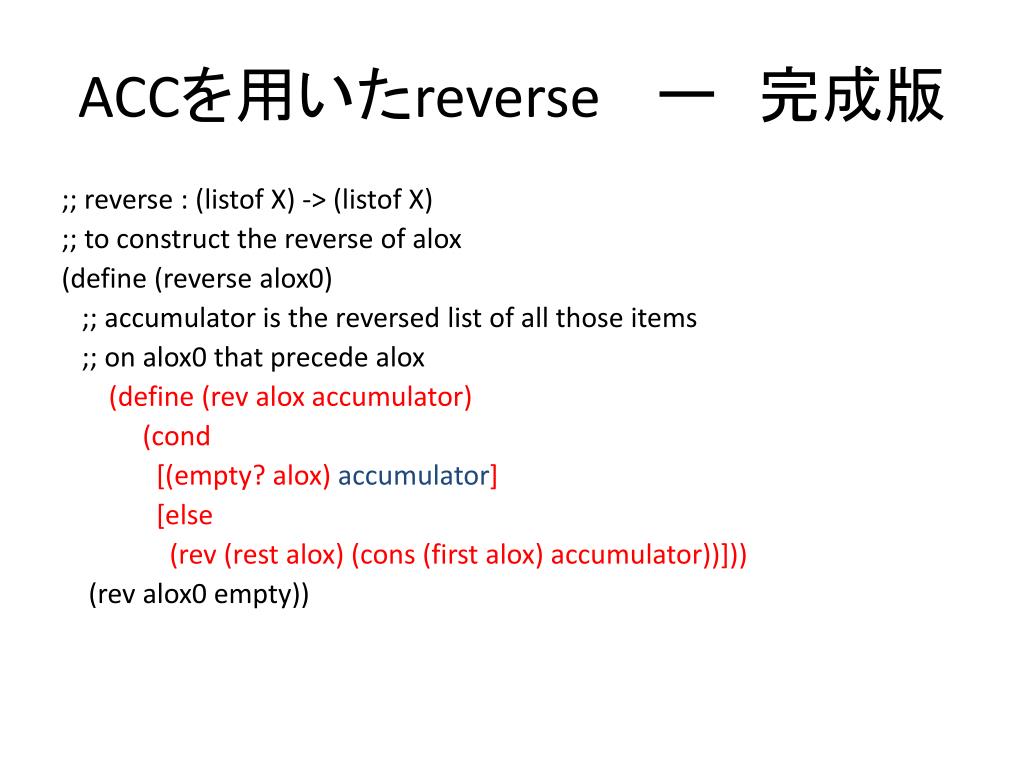

ACCを用いたreverse 　ー　完成版

;; reverse : (listof X) -> (listof X)

;; to construct the reverse of alox

(define (reverse alox0)

;; accumulator is the reversed list of all those items

;; on alox0 that precede alox

(define (rev alox accumulator)

(cond

[(empty? alox) accumulator]

[else

(rev (rest alox) (cons (first alox) accumulator))]))

(rev alox0 empty))

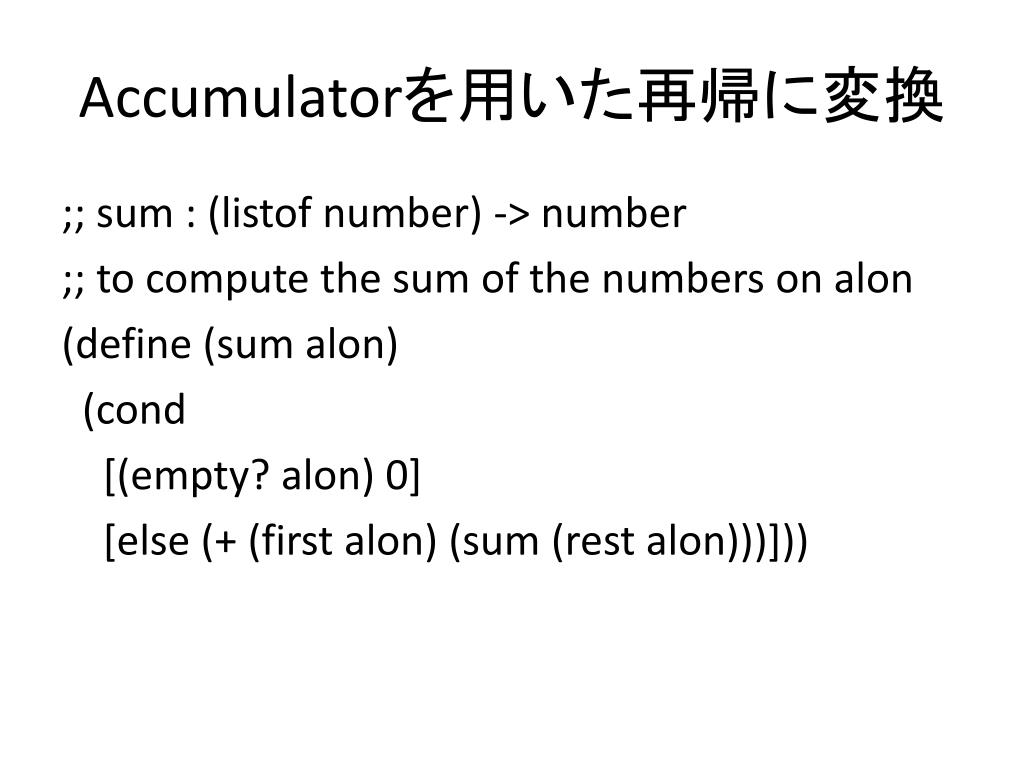

Accumulatorを用いた再帰に変換

;; sum : (listof number) -> number

;; to compute the sum of the numbers on alon

(define (sum alon)

(cond

[(empty? alon) 0]

[else (+ (first alon) (sum (rest alon)))]))

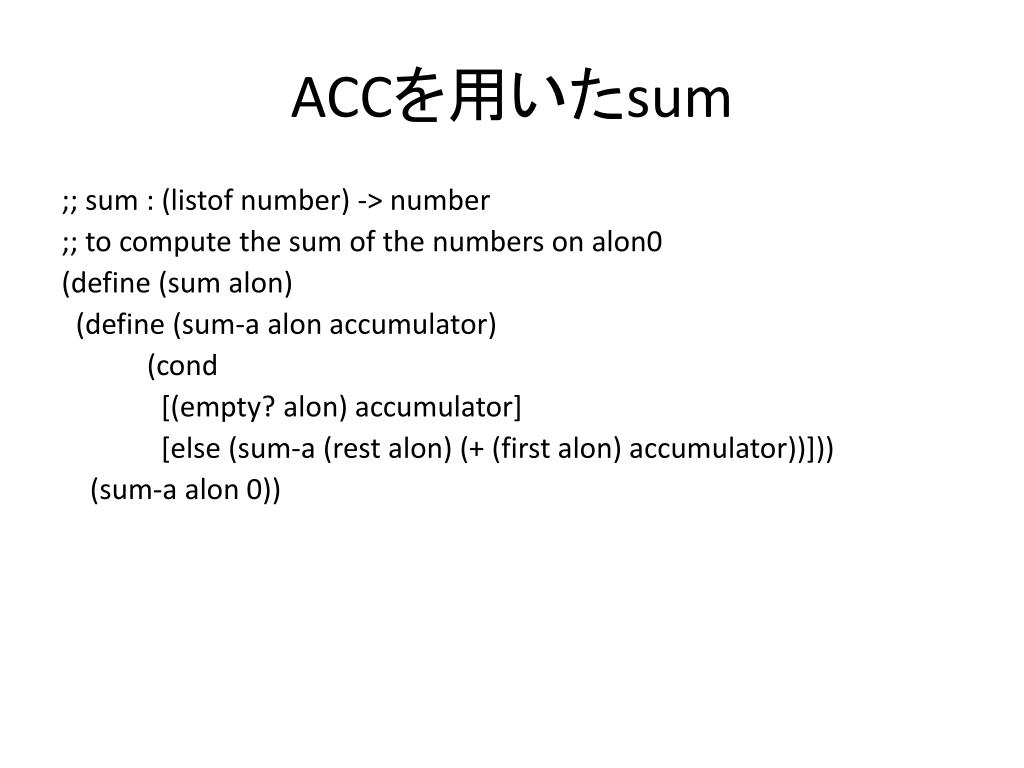

ACCを用いたsum

;; sum : (listof number) -> number

;; to compute the sum of the numbers on alon0

(define (sum alon)

(define (sum-a alon accumulator)

(cond

[(empty? alon) accumulator]

[else (sum-a (rest alon) (+ (first alon) accumulator))]))

(sum-a alon 0))

• (sum (list 10.23 4.50 5.27))
• = (+ 10.23 (sum (list 4.50 5.27)))
• = (+ 10.23 (+ 4.50 (sum (list 5.27))))
• = (+ 10.23 (+ 4.50 (+ 5.27 (sum empty))))
• = (+ 10.23 (+ 4.50 (+ 5.27 0)))
• = (+ 10.23 (+ 4.50 5.27))
• = (+ 10.23 9.77)
• = 20.0

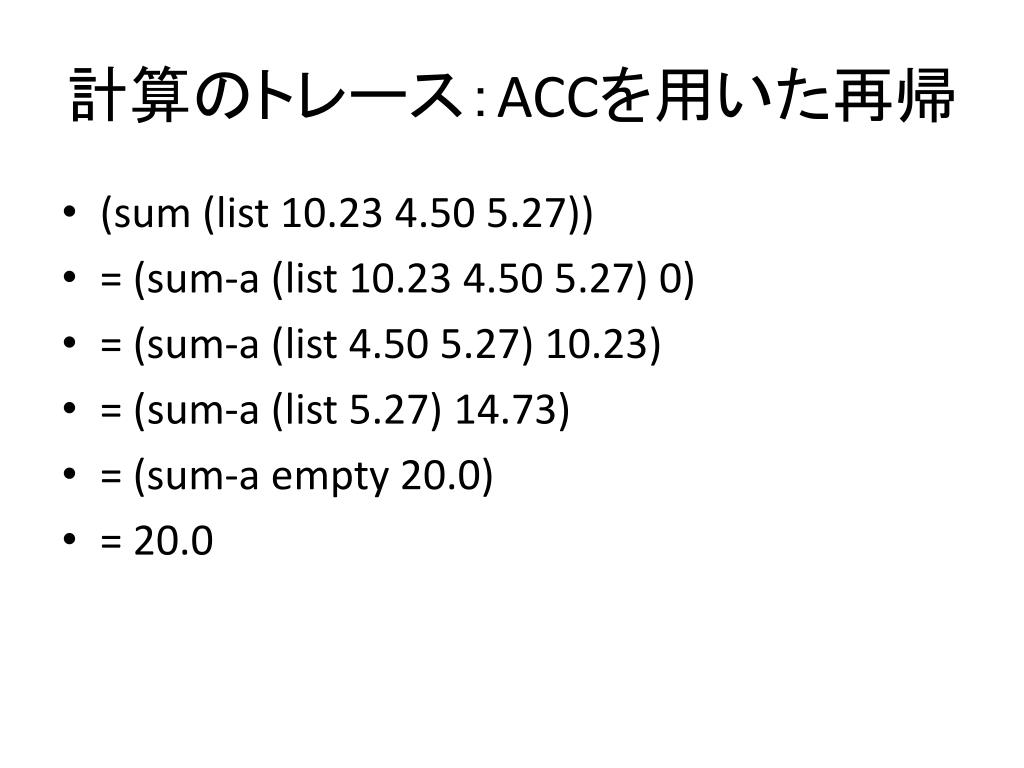

• (sum (list 10.23 4.50 5.27))
• = (sum-a (list 10.23 4.50 5.27) 0)
• = (sum-a (list 4.50 5.27) 10.23)
• = (sum-a (list 5.27) 14.73)
• = (sum-a empty 20.0)
• = 20.0

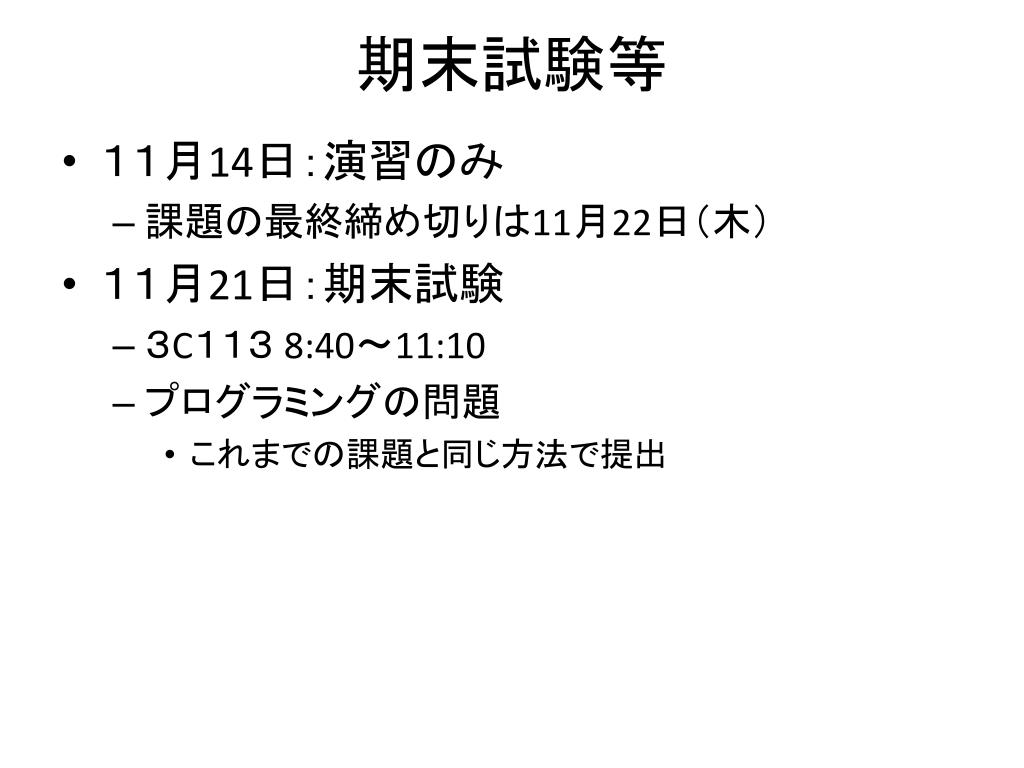

• １１月14日：演習のみ
• 課題の最終締め切りは11月22日（木）
• １１月21日：期末試験
• ３C１１３ 8:40〜11:10
• プログラミングの問題
• これまでの課題と同じ方法で提出

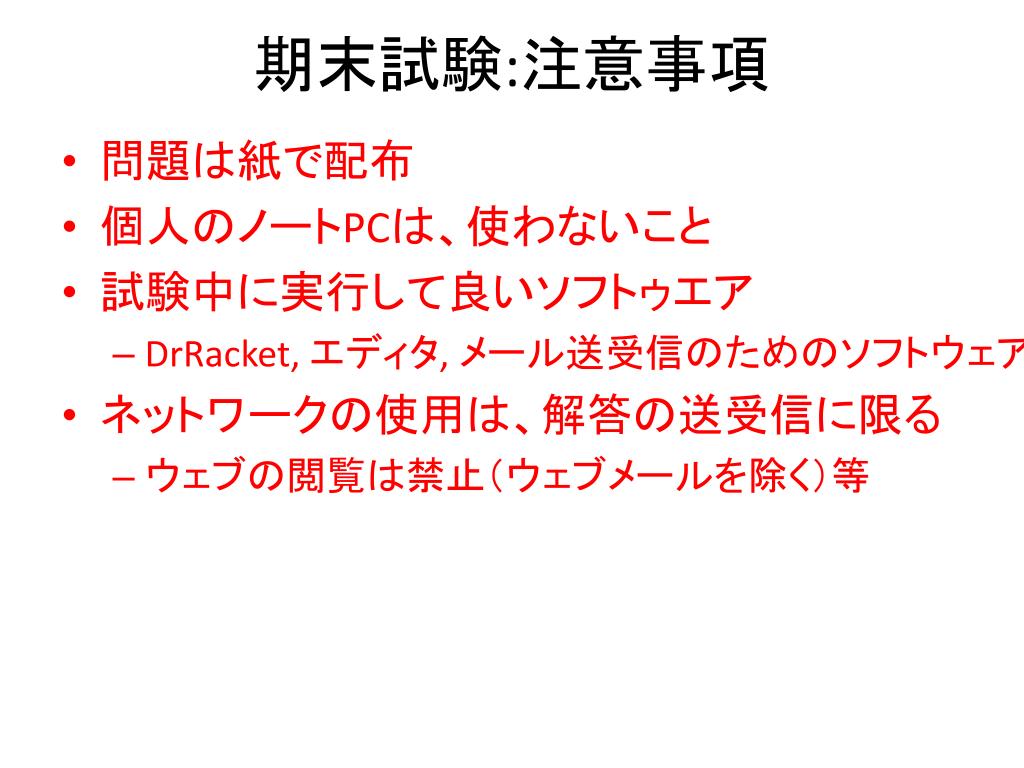

• 問題は紙で配布
• 個人のノートPCは、使わないこと
• 試験中に実行して良いソフトゥエア
• DrRacket, エディタ, メール送受信のためのソフトウェア
• ネットワークの使用は、解答の送受信に限る
• ウェブの閲覧は禁止（ウェブメールを除く）等
