computational vision

Computational Vision

Lecture 1: Overview + Biological Vision

Jeremy Wyatt

what you should be able to do
What you should be able to do
  • Make informed choices about which sort of algorithms to apply to solve specific problems.
  • Use standard vision libraries or software to construct working vision systems.
  • Apply algorithms to simplified problems by hand.
  • Discuss the advantages and drawbacks of different methods, explaining their working.

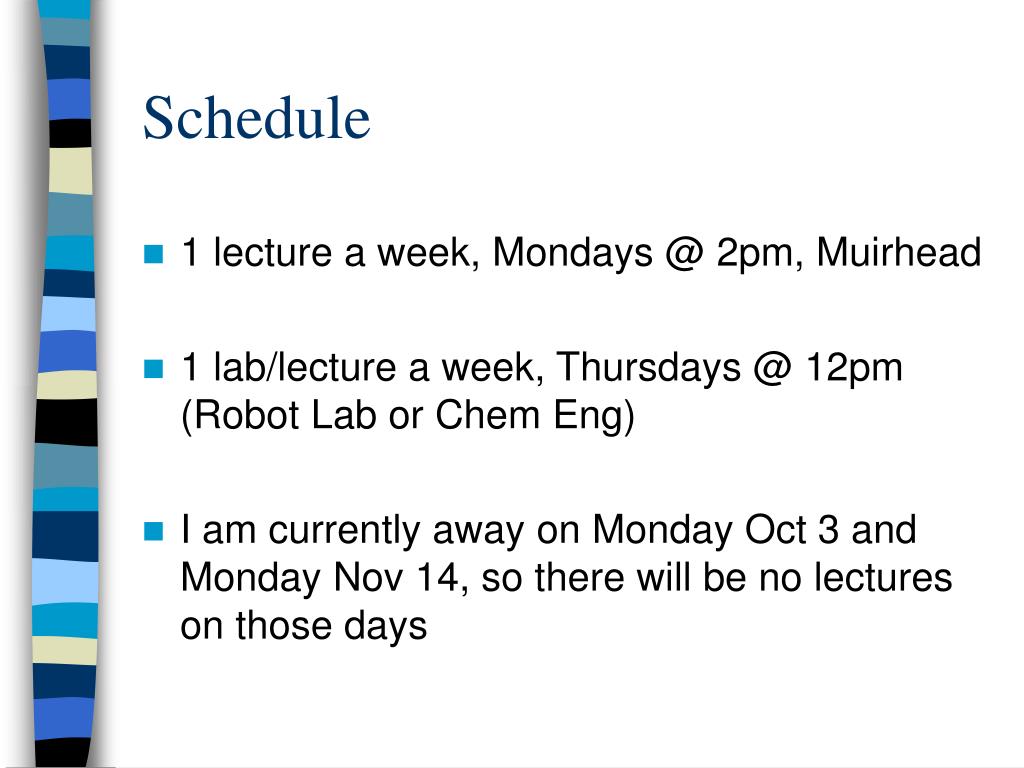

schedule
Schedule
  • 1 lecture a week, Mondays @ 2pm, Muirhead
  • 1 lab/lecture a week, Thursdays @ 12pm (Robot Lab or Chem Eng)
  • I am currently away on Monday Oct 3 and Monday Nov 14, so there will be no lectures on those days
syllabus
Lectures

Biological Vision

Edge detection

Hough transforms

Motion/Depth

Recognising objects

Recognising events

Recognising faces

Visual attention

Labs

Matlab tutorials

Edge detection

Hough transforms

Face recognition

Object recognition

Syllabus
assessment
Assessment
  • 70% 1.5 hour unseen exam in May/June
  • 30% 3 page experimental write-up of one of your labs (in pairs)

(due Dec 7 12 noon)

biological vision
Biological Vision
  • Light and image formation
  • Retinal Processing
  • Colour

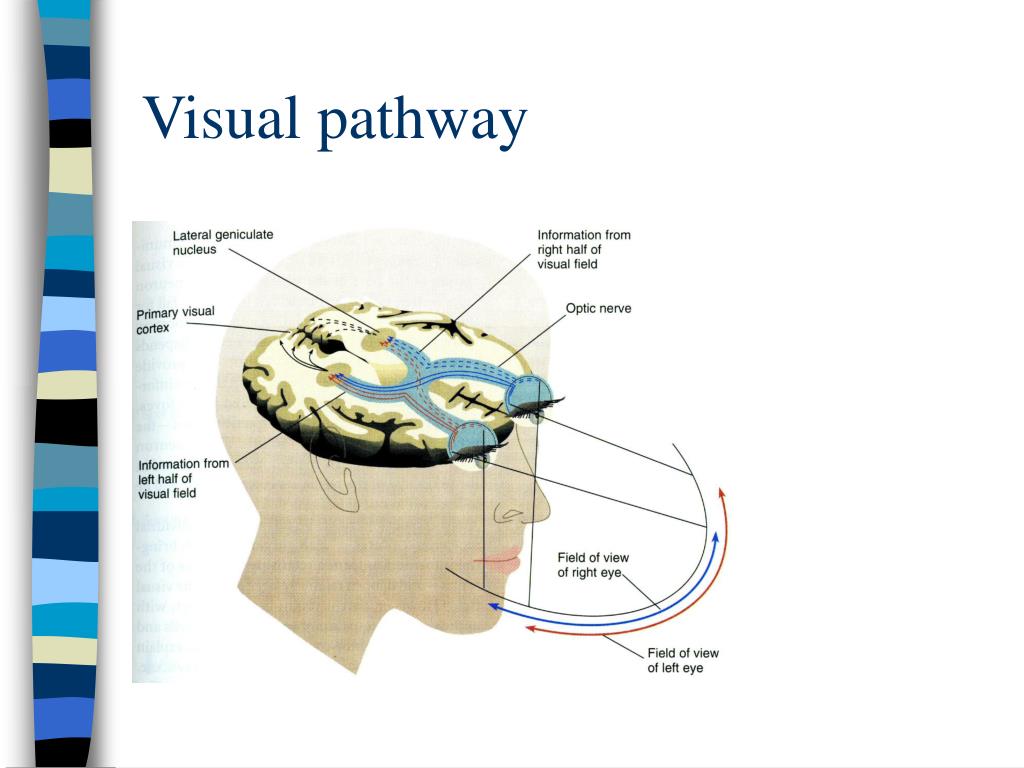

  • Visual Pathway
  • Striate Cortex

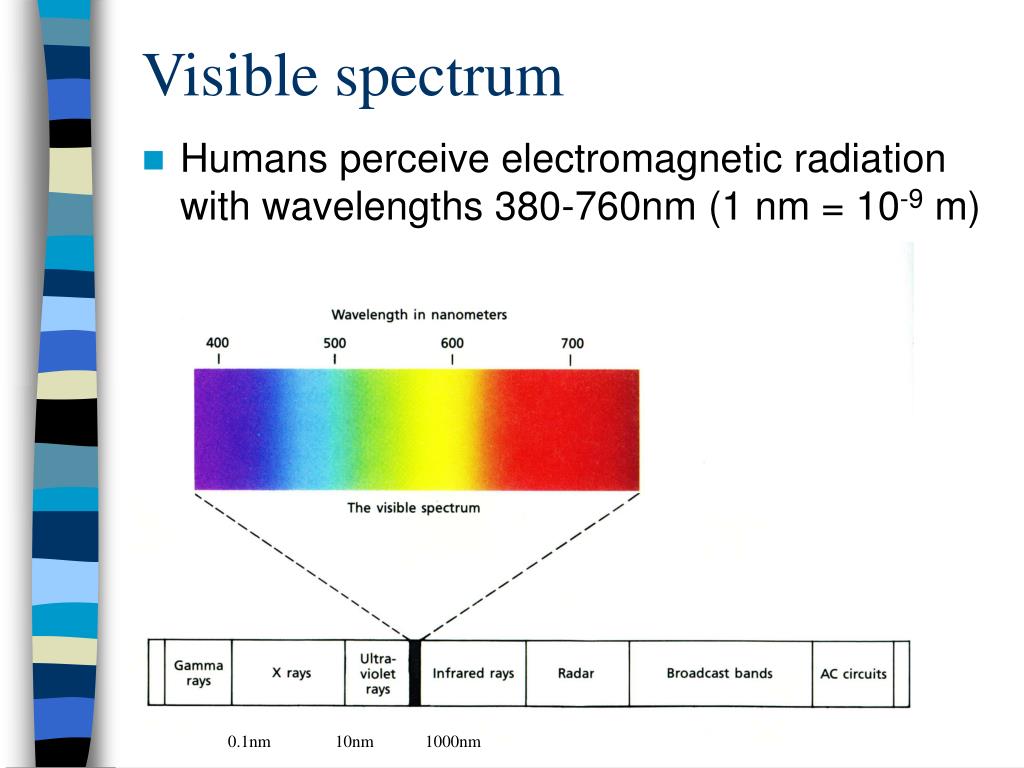

visible spectrum
Visible spectrum
  • Humans perceive electromagnetic radiation with wavelengths 380-760nm (1 nm = 10-9 m)

0.1nm 10nm 1000nm

image formation
Image Formation

Light rays

Lens

Image plane

  • f is the focal length (in metres)
  • is the power of the lens (in dioptres)
  • Human eye has power ~59 dioptres

f

image formation1
Image Formation
  • Most of the refractive power of the human eye comes from the air-cornea boundary(49 of 59 dioptres)
  • As an object moves closer the power of the lens must increase to accommodate
  • So if the object is infinitely far away
  • But if it is 1m away the lens must

change shape to produce a sharp image

u

v

image formation2
Image Formation
  • As an object moves in world how does it move across the image plane?
  • If the image plane is curved then as q gets larger this becomes a worse and worse approximation

h

v

q

i

u

retinal processing
Retinal Processing
  • 120m rods, 6m cones
retinal processing1
Retinal Processing
  • Amacrine and horizontal cells integrate receptor outputs
  • More rods connect to each ganglion cells: less acuity, but greater sensitivity
  • Ganglions have receptive fields
types of ganglion cell
Types of Ganglion cell

OFF Cell

ON Cell

  • Centre surround cells

Light

OFF area

ON area

ON area

OFF area

Time

Light spot

colour
Colour
  • Two theories/systems
  • Trichromatic (Young-Helmholtz)
  • Explains
    • How we discriminate wavelengths 2nm in difference
    • How we can match a mixture of wavelengths to a single colour
    • Some types of colour blindness
colour1
Colour
  • Trichromatic theory can’t explain colour blending

Bluey green

Orange

?

Greeny red?

?

Yellowy blue?

opponent colour theory
Opponent Colour Theory
  • Ganglion ON cells sensitive to outputs of cones

OFF

ON

opponent colour theory1
Opponent colour theory

Red on

Green off

Yellow on

Excitatory

Inhibitory

the striate cortex
The striate cortex
  • Composed of hyper-columns
  • Within each are columns of cells tuned to features of a particular orientation
summary
Summary
  • Image formation
  • Very early visual processing
  • Filling in and perceptual effects
  • Colour perception
  • Eye-cortex mapping
reading
Reading
  • Vicki Bruce, Visual Perception, pp1-60
  • Neil Carlson, Physiology of Behavior, pp142-157
