Doubly Linked List

Doubly Linked List. Ed. 2 and 3.: Chapter 4 Ed. 4: Chapter 3. This problem can be easily solved by using the double linked list. Difference from singly linked lists: - each node contains two links. - two extra nodes: header and trailer, which contain no elements. Class DLNode.

maine
Download Presentation

Doubly Linked List

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

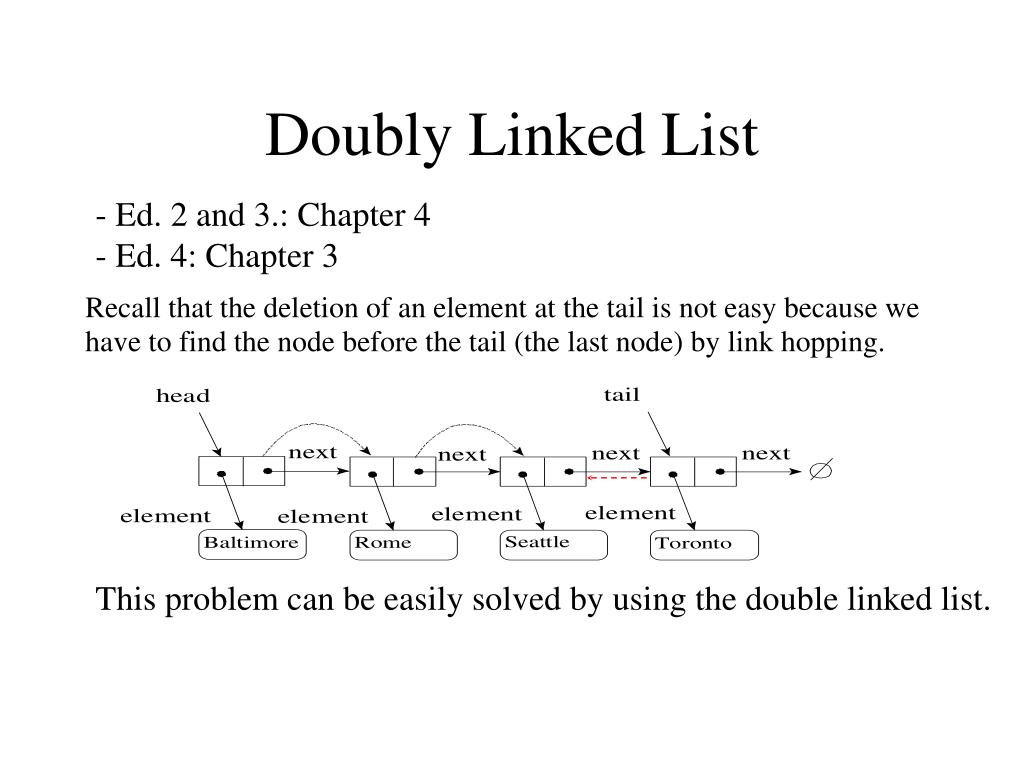

  1. Doubly Linked List • Ed. 2 and 3.: Chapter 4 • Ed. 4: Chapter 3 This problem can be easily solved by using the double linked list.

  2. Difference from singly linked lists: - each node contains two links. - two extra nodes: header and trailer, which contain no elements.

  3. Class DLNode

  4. Insertion of an Element at the Head

  5. Have a new node: header trailer Baltimore Rome Seattle Toronto DLNode x = new DLNode(); x.setElement(new String(“Toronto”)); (x.element  new String(“Toronto”))

  6. Update the links: trailer header Baltimore Rome Seattle Toronto x.setPrev(header); x.setNext(header.getNext()); (header.getNext()).setPrev(x); header.setNext(x); x.prev  header; x.next  header.next; header.next.prev  x; header.next  x;

  7. Deleting an Element at the Tail

  8. Update the links: trailer header Toronto Baltimore Rome Seattle ((trailer.getPrev()).getPrev).setNext(trailer); trailer.setPrev((trailer.getPrev()).getPrev()); trailer.prev.prev.next  trailer; trailer.prev  trailer.prev.prev;

  9. However, for inserting a node into the middle of a double linked list or deleting a node in the middle, link hopping is always needed.

  10. public class NodeList implements List { protected int numElts; // Number of elements in the list protected DNode header, trailer; // Special sentinels /** Constructor that creates an empty list; O(1) time */ public NodeList() { numElts = 0; header = new DNode(null, null, null); // create header trailer = new DNode(header, null, null); // create trailer header.setNext(trailer); // make header and trailer point to each other } /** Checks if position is valid for this list and converts it to * DNode if it is valid; O(1) time */ public DNode checkPosition(Position p) throws InvalidPositionException { if (p == null) throw new InvalidPositionException ("Null position passed to NodeList");

  11. if (p == header) throw new InvalidPositionException ("The header node is not a valid position"); if (p == trailer) throw new InvalidPositionException ("The trailer node is not a valid position"); try { DNode temp = (DNode)p; if ((temp.getPrev() == null) || (temp.getNext() == null)) throw new InvalidPositionException ("Position does not belong to a valid NodeList"); return temp; } catch (ClassCastException e) { throw new InvalidPositionException ("Position is of wrong type for this list"); } }

  12. /** Returns the number of elements in the list; O(1) time */ public int size() { return numElts; } /** Returns whether the list is empty; O(1) time */ public boolean isEmpty() { return (numElts == 0); } /** Returns the first position in the list; O(1) time */ public Position first() throws EmptyListException { if (isEmpty()) throw new EmptyListException("List is empty"); return header.getNext(); } public Position last() throws EmptyContainerException { if (isEmpty()) throw new EmptyContainerException("List is empty"); return trailer.getPrev(); }

  13. /** Returns the position before the given one; O(1) time */ public Position prev(Position p) throws InvalidPositionException, BoundaryViolationException { DNode v = checkPosition(p); DNode prev = v.getPrev(); if (prev == header) throw new BoundaryViolationException ("Cannot advance past the beginning of the list"); return prev; } /** Insert the given element before the given position, returning * the new position; O(1) time */ public Position insertBefore(Position p, Object element) throws InvalidPositionException { // DNode v = checkPosition(p); numElts++; DNode newNode = new DNode(v.getPrev(), v, element); v.getPrev().setNext(newNode); v.setPrev(newNode); return newNode; }

  14. public Position insertLast(Object element) {numElts++; DNode newNode = new DNode(trailer.getPrev(), trailer, element); // System.out.println(((ONode)newNode.element()).inorderNum()); trailer.getPrev().setNext(newNode); trailer.setPrev(newNode); //trailer.getPrev().setNext(newNode); return newNode; } public Position insertAfter(Position p, Object element) { DNode v = checkPosition(p); numElts++; DNode newNode = new DNode(v, v.getNext(), element); v.getNext().setPrev(newNode); v.setNext(newNode); return newNode;}

  15. /** Insert the given element at the beginning of the list, returning * the new position; O(1) time */ public Position insertFirst(Object element) { numElts++; DNode newNode = new DNode(header, header.getNext(), element); header.getNext().setPrev(newNode); header.setNext(newNode); return newNode; }

  16. /**Remove the given position from the list; O(1) time */ public Object remove(Position p) throws InvalidPositionException { DNode v = checkPosition(p); numElts--; DNode vPrev = v.getPrev(); DNode vNext = v.getNext(); vPrev.setNext(vNext); vNext.setPrev(vPrev); Object vElem = v.element(); // unlink the position from the list and make it invalid v.setNext(null); v.setPrev(null); return vElem; }

  17. /** Replace the element at the given position with the new element * and return the old element; O(1) time */ public Object replace(Position p, Object element) throws InvalidPositionException { DNode v = checkPosition(p); Object oldElt = v.element(); v.setElement(element); return oldElt; } public void swapElements(Position a, Position b) throws InvalidPositionException { //System.out.println("swapElement is executed!!!"); DNode pA = checkPosition(a); DNode pB = checkPosition(b); Object temp = pA.element(); pA.setElement(pB.element()); pB.setElement(temp); }

  18. public Position next(Position p) throws InvalidPositionException, BoundaryViolationException { DNode v = checkPosition(p); DNode next = v.getNext(); if (next == trailer) throw new BoundaryViolationException ("Cannot advance past the beginning of the list"); return next; } public Iterator positions() { return new PositionIterator(this); } public Iterator elements(){return new PositionIterator(this);} }

  19. Data Structure Exercises 6.1

  20. Double-Ended Queues

  21. The Deque Abstract Data Type

  22. public interface Deque { void insertFirst(Object e); void insertLast(Object e); Object removeFirst(); Object removeLast(); Object first(); Object last(); int size(); boolean isEmpty(); }

  23. Implementing a Deque with a Doubly Linked List

  24. Class MyDeque public class MyDeque implements Deque { DLNode header, trailer; int size; public MyDeque() { header = new DLNode(); trailer = new DLNode(); header.setNext( trailer ); trailer.setPrev( header ); size = 0; } header trailer

  25. public Object first() throws DequeEmptyException { if( isEmpty() ) throw new DequeEmptyException( "Deque is empty." ); return header.getNext().getElement(); } link hopping header Baltimore

  26. second header first Object o public void insertFirst( Object o ) { DLNode second = header.getNext(); DLNode first = new DLNode( o, header, second ); second.setPrev( first ); header.setNext( first ); size++; } first second header … … … Object o

  27. secondtolast trailer secondtolast last trailer … last Object o Object o public Object removeLast() { if( isEmpty() ) throw new DequeEmptyException( "Deque is empty." ); DLNode last = trailer.getPrev(); Object o = last.getElement(); DLNode secondtolast = last.getPrev(); trailer.setPrev( secondtolast ); secondtol ast.setNext( trailer ); size -- ; return o; } …

  28. public Object last() throws DequeEmptyException { if( isEmpty() ) throw new DequeEmptyException( "Deque is empty." ); return trailer.getPrev().getElement(); } public void insertLast( Object o ) { DLNode secondLast = trailer.getPrev(); DLNode last = new DLNode( o, secondLast, trailer ); secondLast.setNext( last ); trailer.setPrev( last ); size++; } public int size( ) {return size;} public boolean isEmpty( ) { return header.getNext() == trailer;} secondtolast trailer … last Object o

  29. public Object removeFirst() { if( isEmpty() ) throw new DequeEmptyException( "Deque is empty." ); DLNode first = header.getNext(); Object o = first.getElement(); DLNode second = first.getNext(); header.setNext( second ); second.setPrev( header ); size--; return o; } } public class GenerateDeque { public static void main(String args[]) { MyDeque D = new MyDeque(); int i; for (i = 0; i < 10; i++) { D.insertFirst(new Integer(i));} for (i = 0; i < 10; i++) System.out.print(((Integer) D.removeFirst()).intValue()); } } first second header …

  30. Implementing Stacks and Queues with Deques

  31. Class DequeStack

  32. Data Structure Exercises 6.2
