  1. HAB-SensingAutonomousRobotic Fish Jamie Jacobs, Stephen Garrett, Taha Tareen, Woodard Williams, Eric Jackson, Carl Coppola, Robert Morris, Allen Eyler

  2. Problem Statement • Robotic Fish • IPMC Propulsion • HAB Sensor • Obstacle Avoidance • IR Sensor • Whiskers • Directional Control • Tri-axis Accelerometer • Digital Compass • Speed • 1.5 cm/s minimum

  3. Design Parameters • Function • Quality • Environmental Conditions • Size • Weight • Energy Consumption • Reliability

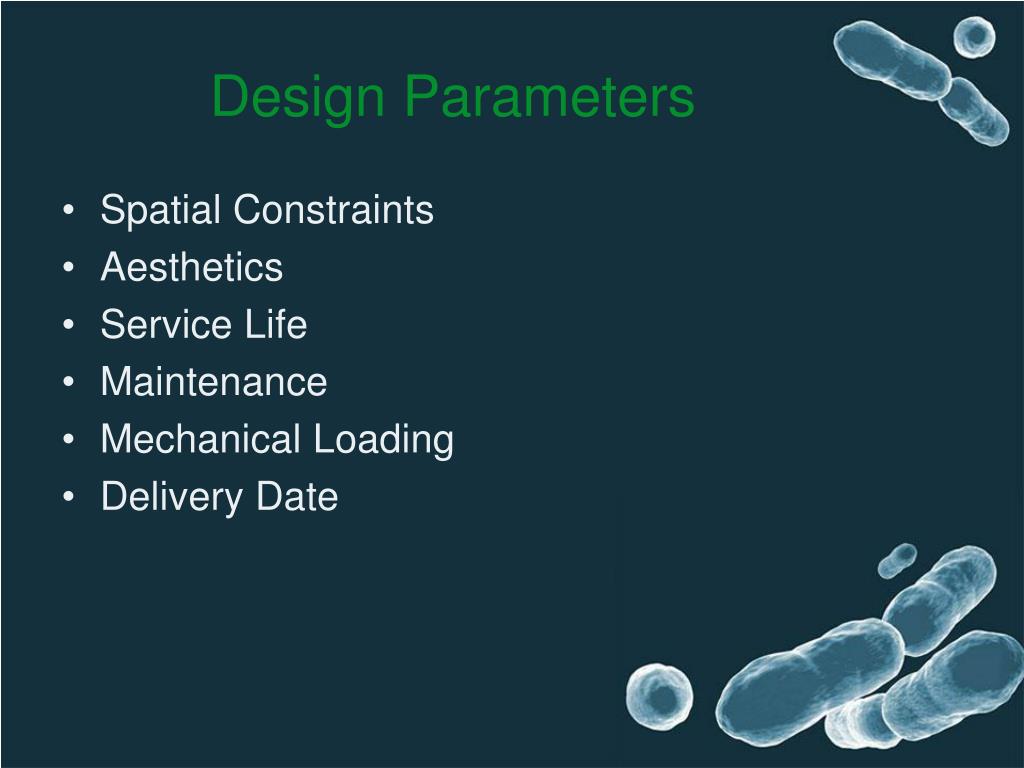

  4. Design Parameters • Spatial Constraints • Aesthetics • Service Life • Maintenance • Mechanical Loading • Delivery Date

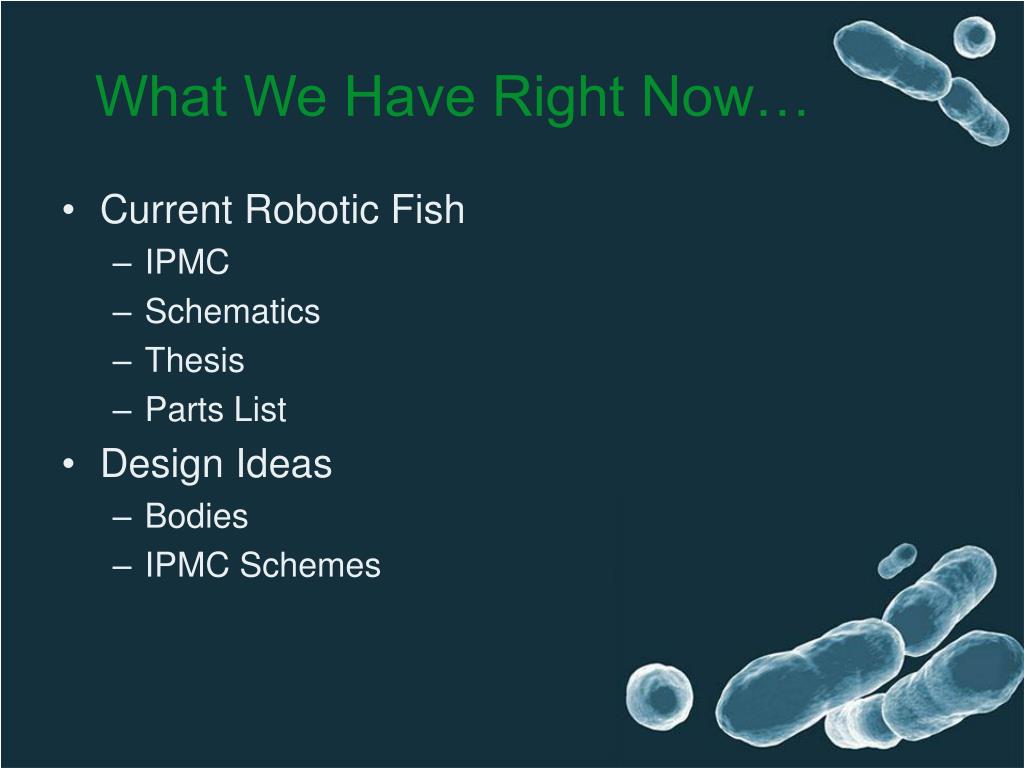

  5. What We Have Right Now… • Current Robotic Fish • IPMC • Schematics • Thesis • Parts List • Design Ideas • Bodies • IPMC Schemes

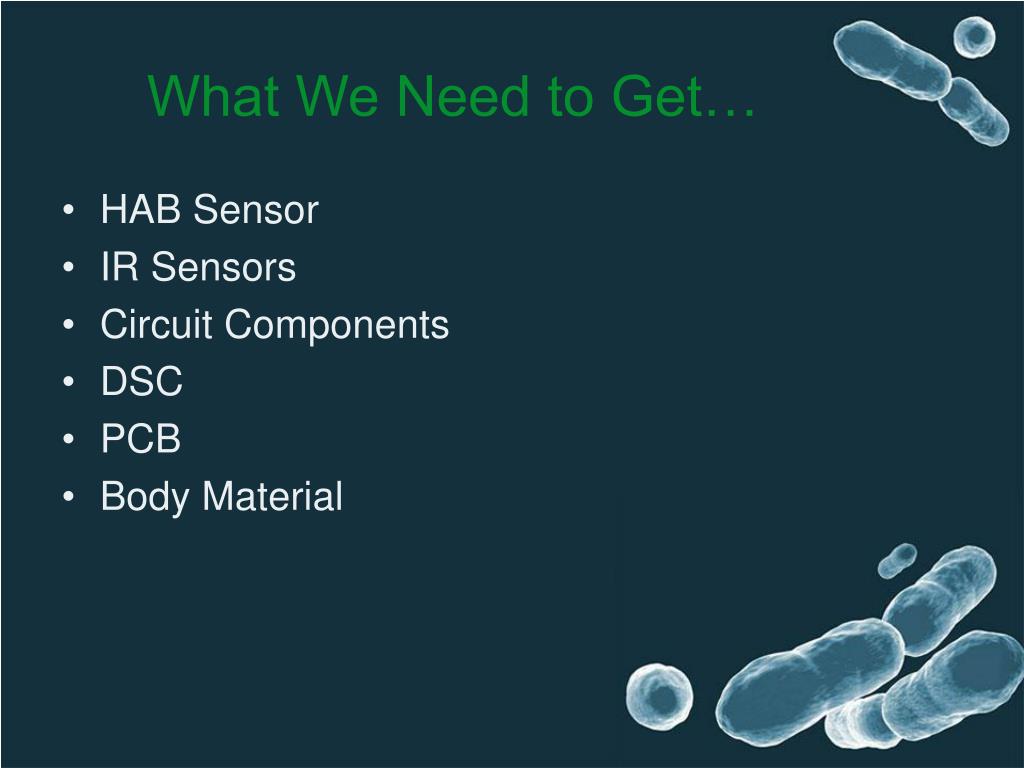

  6. What We Need to Get… • HAB Sensor • IR Sensors • Circuit Components • DSC • PCB • Body Material

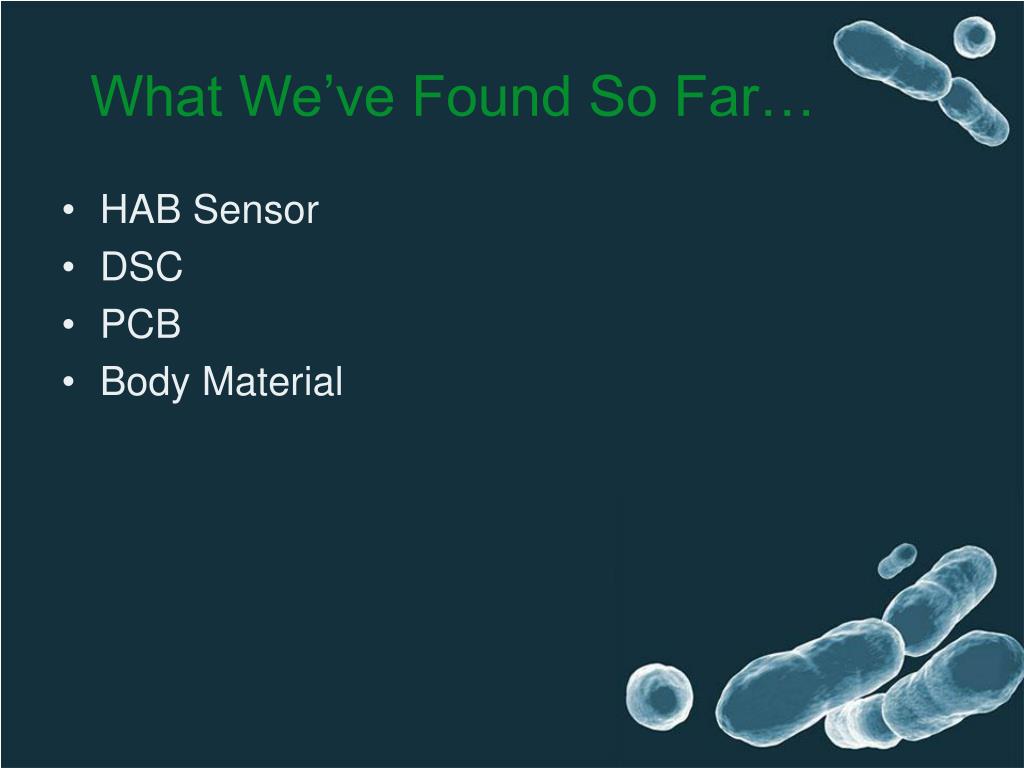

  7. What We’ve Found So Far… • HAB Sensor • DSC • PCB • Body Material

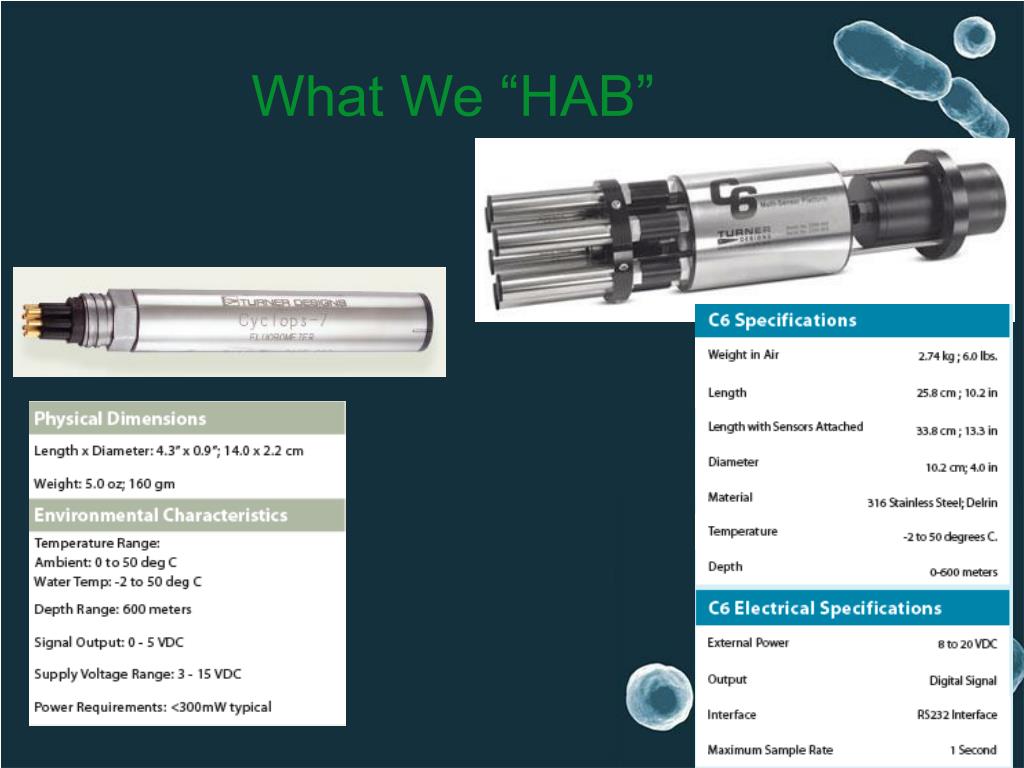

  8. What We “HAB”

  9. What We “HAB”

  10. What We “HAB”

  11. What We “HAB”

  12. What We Think Are Issues… • Heat Dissipation • Propulsion • Water-proofing • Hydrodynamics • GUI Development

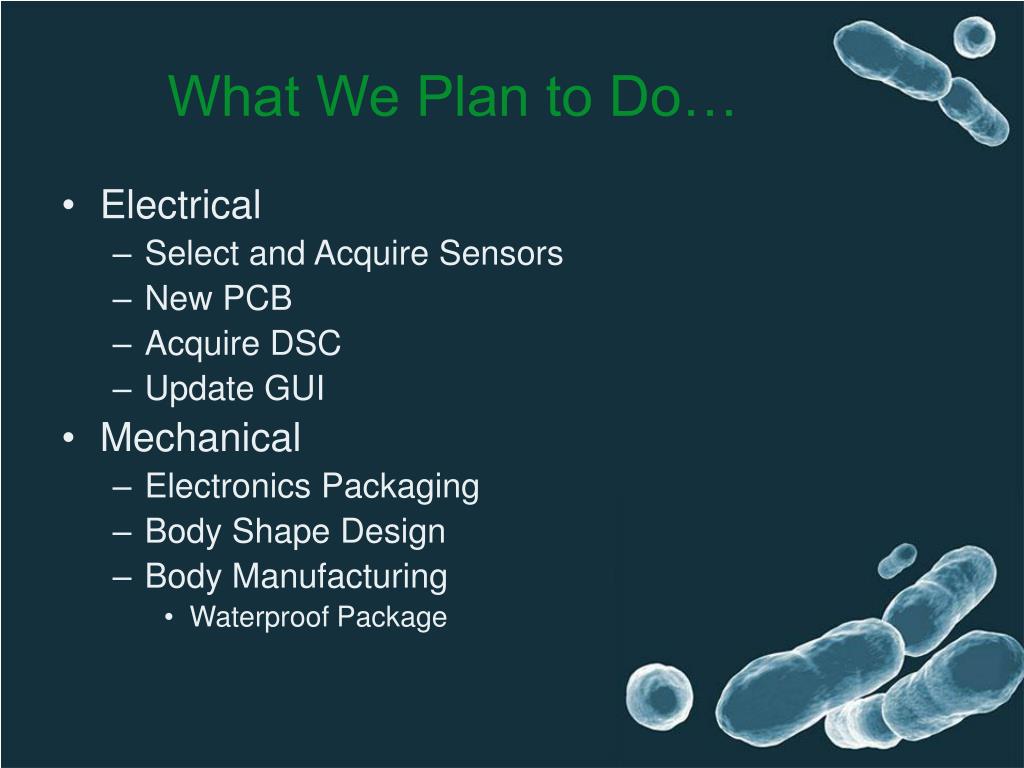

  13. What We Plan to Do… • Electrical • Select and Acquire Sensors • New PCB • Acquire DSC • Update GUI • Mechanical • Electronics Packaging • Body Shape Design • Body Manufacturing • Waterproof Package

  14. What We Plan to Do… • Testing • Sensor • Component • Circuit • Body • Aquatic • Component Fit and Operation • Debugging • Final

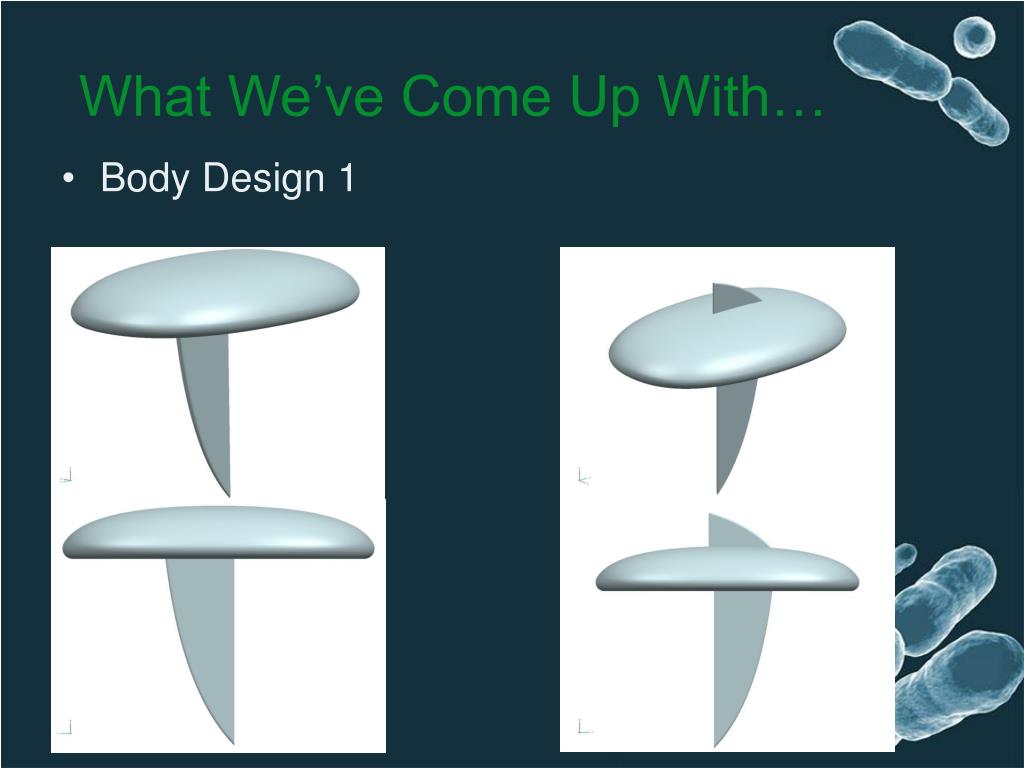

  15. What We’ve Come Up With… • Body Design 1

  16. What We’ve Come Up With… • Body Design 2

  17. What We’ve Come Up With… • Body Design 3

  18. What We’ve Come Up With… • Body Design 4
