p4 shutter review may 2005

P4 Shutter ReviewMay , 2005

P4 – ID Movable Beam Stop and Integral Shutters

Presented by K. Beyer and T. Lutes

acknowledgements
Acknowledgements
  • Thanks to the following people for contributing reference information
    • APS Staff
      • Mohan Ramanathan
      • Deming Shu
      • P.K. Job
p4 shutter features
P4 Shutter: Features
  • There are nine (9) P4 shutters at the APS as of May 2005.
  • All have the ability to stop Insertion Device (ID) White Beam, or let it pass downstream
  • When passing White beam through the shutter, Bremsstrahlung radiation is collimated by a tungsten stop with an aperture
p4 shutter locations
P4-20

1-ID-A

7-ID-A

12-ID-A

P4-15

15-ID-A

P4-30 (39)

4-ID-A

P4-40

4-ID-B

P4-50

32-ID-A

31-ID-C

24-ID-B

P4 Shutter Locations
p4 20 internal components
(1) Movable, glid-cop/copper, water cooled, white beam stop (also used in the P2 shutter)

Stopping power ~ 6,000 Watts

Incidence angle = 2.5°

(2) Movable monochromatic beam stops

Stopping power ~ 10 Watts

(1) Movable tungsten safety stop/collimator

Aperture = 18 mm (h) x 80 mm (w)

P4-20 Internal components
p4 20 shutter side view
P4-20 Shutter Side View

Mono-shutter Assemblies

Bremsstrahlung collimator

(18 mm x 80 mm)

Mono- beam

White beam

Position sensor port

(never implemented)

White Beam Stop

(Incidence angle = 2.5°)

Vacuum pump port

p4 20 shutter mode keys
P4-20 Shutter Mode Keys

Mono- Beam Stop lock and pin

Safety Stop lock and pin

White Beam Stop lock and pin

p4 20 white beam mode
P4-20 : White Beam Mode
  • Mono Shutter key secured in cylinder lock
  • White Beam Stop key secured in PSS panel
  • Safety Shutter key secured in PSS panel

White beam passes above the absorber and travels through the collimator.

Bremsstrahlung radiation is collimated via the 80 mm x 18 mm aperture.

p4 20 bremsstrahlung collimation
P4-20 : Bremsstrahlung Collimation
  • White beam and Bremsstrahlung impinge on the aperture
  • The small White beam spot passes completely through the aperture
  • Bremsstrahlung radiation is collimated (constrained) by the 18 mm x 80 mm opening
  • In White beam Mode, the shutter acts like a beam transport tube with a Bremsstrahlung collimator inside
p4 20 mono beam mode
P4-20 : Mono- Beam Mode
  • P4 Mono Shutter key secured in PSS panel
  • P4 White Beam Stop key secured in cylinder lock
  • P4 Safety Shutter key secured in cylinder lock

White beam is intercepted by the absorber and stops.

Bremsstrahlung radiation is stopped by the tungsten in the collimator block.

p4 shutter modifications
The P4 shutter evolved as a result of several factors:

Experience

Discussion with other beamlines who were using previous versions of the device

Complexity

Desire for the elimination of mode changes

Cost

Fabrication of certain pieces was expensive

Flexibility

Sometimes used as a Mono- shutter (with the desire for White beam use in the future)

P4 Shutter Modifications
p4 30 shutter side view
P4-30 : Shutter Side View

Bremsstrahlung collimator

(14 mm x 16 mm)

White Beam Stop

(Incidence angle = 3°)

p4 30 4 id a
P4-30 : 4-ID-A
  • No mode change
  • White beam absorber is redundant to FE Shutter (PS2)
  • Standard S3-30 collimator follows White beam absorber

In 4-ID-A there are 2 mirrors upstream of the P4-30 that need to be kept warm. This device is like having a second PS2.

p4 30 white beam absorber
P4-30 : White Beam Absorber

When the absorber is down (shutter closed), the White beam intercepts the walls (3° incident angle) and is stopped.

When the absorber is up (shutter open), the aperture aligns with the White beam and allows it to pass through.

Aperture = 5.5 mm x 5.5 mm

p4 39 white beam absorber
P4-39 : White Beam Absorber

The White beam absorber has been modified such that it can accept photons from two ID sources.

When the absorber is up (shutter open), the aperture aligns with the 2 White beams and allows them to pass through.

Aperture = 6 mm x 14 mm

p4 30 bremsstralung collimation
P4-30 : Bremsstralung Collimation
  • White beam and Bremsstrahlung impinge on the aperture
  • The small White beam spot passes completely through the aperture
  • Bremsstrahlung radiation is collimated (constrained) by the 14 mm x 16 mm aperture

This view of the S3-30 collimator is from the downstream end looking upstream

p4 40 4 id b
P4-40 : 4-ID-B
  • No mode change
  • Standard S3-30 collimator follows White beam absorber
  • Will stop White Beam, Pink Beam, and Mono- Beam

The White beam absorber is smaller than the in the P4-39. The power density decreases because the beam is divergent. The absorber does not need to be as large due to the distance from the ID source (~60 m).

p4 40 white beam absorber
P4-40 : White Beam Absorber

(Top View)

  • The thin surface is made of glid-cop. The larger block is copper. The two are explosively bonded together.
  • Incident angle = 8°
  • Cooling is directed down the center of the actuator.
p4 15 shutter side view
P4-15 Shutter Side View

Pink, Mono-shutter Assemblies

Bremsstrahlung collimator

(12mm x 16 mm White Beam)

(50mm x 16 mm Pink, Mono- Beam)

Mono- beam

White beam

White Beam Absorber

(Incidence angle = 4.5°)

p4 15 shutter mode keys
P4-15 Shutter Mode Keys

Safety Stop lock and pin

Pink, Mono- beam Stop locks and pins

White beam Absorber lock and pin

p4 15 white beam absorber
P4-15 : White Beam Absorber

When the White beam absorber is down (Mono- mode), the White beam intercepts the walls

(4.5° incident angle)

and is stopped.

p4 15 pink beam absorber
P4-15 : Pink Beam Absorber

When the Pink beam absorber is down (shutter closed), the Pink beam intercepts the walls

(16° incident angle)

and is stopped.

This absorber also acts as a Mono- stop.

p4 15 collimator block

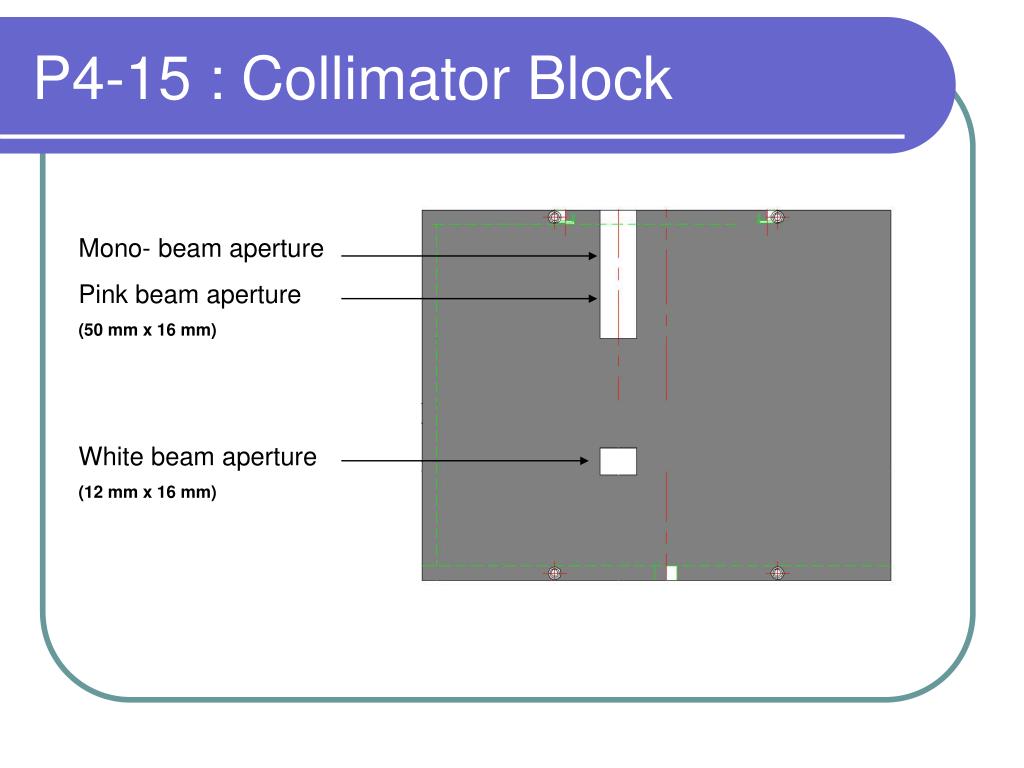

P4-15 : Collimator Block

Mono- beam aperture

Pink beam aperture

(50 mm x 16 mm)

White beam aperture

(12 mm x 16 mm)

p4 15 white beam mode
P4-15 : White Beam Mode

P4 shutter was redesigned by ChemMatCARS to reduce cost and to operate in White beam, Pink beam, and Mono- beam modes.

  • In White beam mode, the Pink/Mono- shutters are locked in the open position and the keys are captured in the PSS panel
  • The absorber is lowered and White beam travels above it
  • The Safety Stop is lowered to allow White beam to pass and Bremsstrahlung radiation is collimated by the 12 mm x 16 mm aperture.
p4 15 pink mono beam mode
P4-15 : Pink, Mono- Beam Mode
  • In Pink/Mono- beam mode, the White beam absorber is raised and locked in place to intercept the White beam
  • The Safety Stop is lowered to absorb Bremsstrahlung radiation AND its upper aperture allows the less intense beams to pass through.
p4 50 24 id b 31 id c 32 id a
P4-50 : 24-ID-B, 31-ID-C, 32-ID-A
  • Fixed White beam stop
  • Standard S3-30 collimator follows the White beam stop
  • Mode change occurs by moving the entire device upward
p4 50 shutter side view
P4-50 : Shutter Side View

S3-30 Collimator

Fixed White Beam Absorber

Aperture = 8 mm x 10 mm

p4 50 shutter mode keys
P4-50 : Shutter Mode Keys

Mono- stop lock and key(s)

Shutter table lock and key

p4 50 32 id a absorber
P4-50 : 32-ID-A Absorber

Absorber is fixed in place. It has no moving cylinder.

p4 50 administrative restrictions
P4-50 : Administrative Restrictions
  • The ability to change modes has been inhibited. Downstream stations are not verified for White Beam.
  • 24-ID-B & 31-ID-C have had their Mono- shutter locks completely removed
  • 32-ID-A has had its Mono- shutter keys placed under Configuration Control
