Presentation Transcript

  1. Extensions • When this module is complete, you will be able to: • Create an account from scratch. • Create extensions using .CSV files. • Navigate the web pages of the extension account. • Configure the settings of the extension account. • Installing a softphone.

  2. Creating Accounts Creating accounts using .CSV files

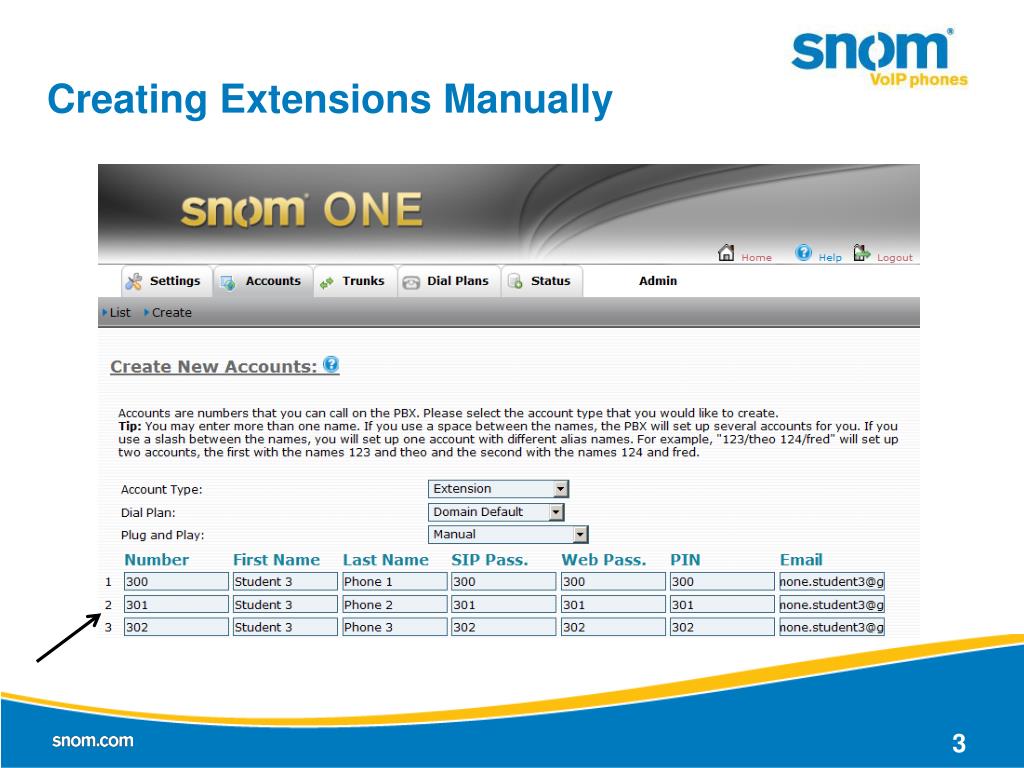

  3. Creating Extensions Manually

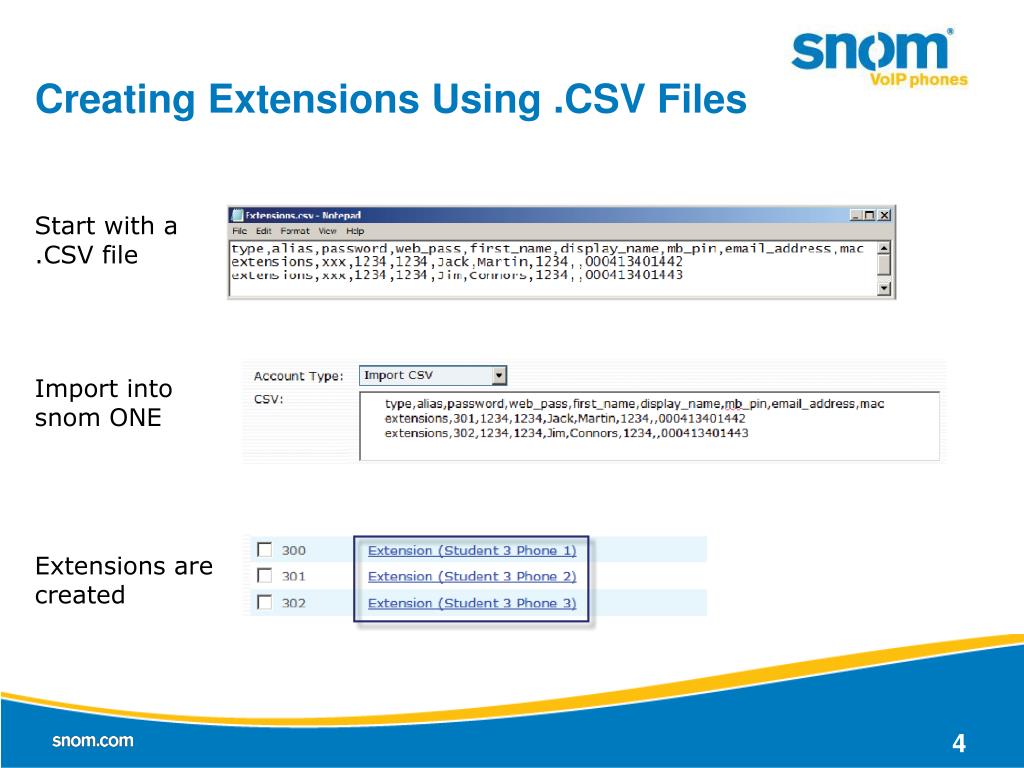

  4. Creating Extensions Using .CSV Files Start with a .CSV file Import into snom ONE Extensions are created

  5. Using the Extensions Page Registrations Domain Admin

  6. General Settings

  7. General Settings (Cont’d) Highlights: • Watch the presence • Monitor on the PAC • Specify where to park calls • What extensions to pickup • Block caller-ID • Enable call waiting • Phone address book preference • Include local extensions in the phone address book

  8. Redirection Settings Anonymous call treatment

  9. Mailbox Settings

  10. Email Settings

  11. Registration Settings

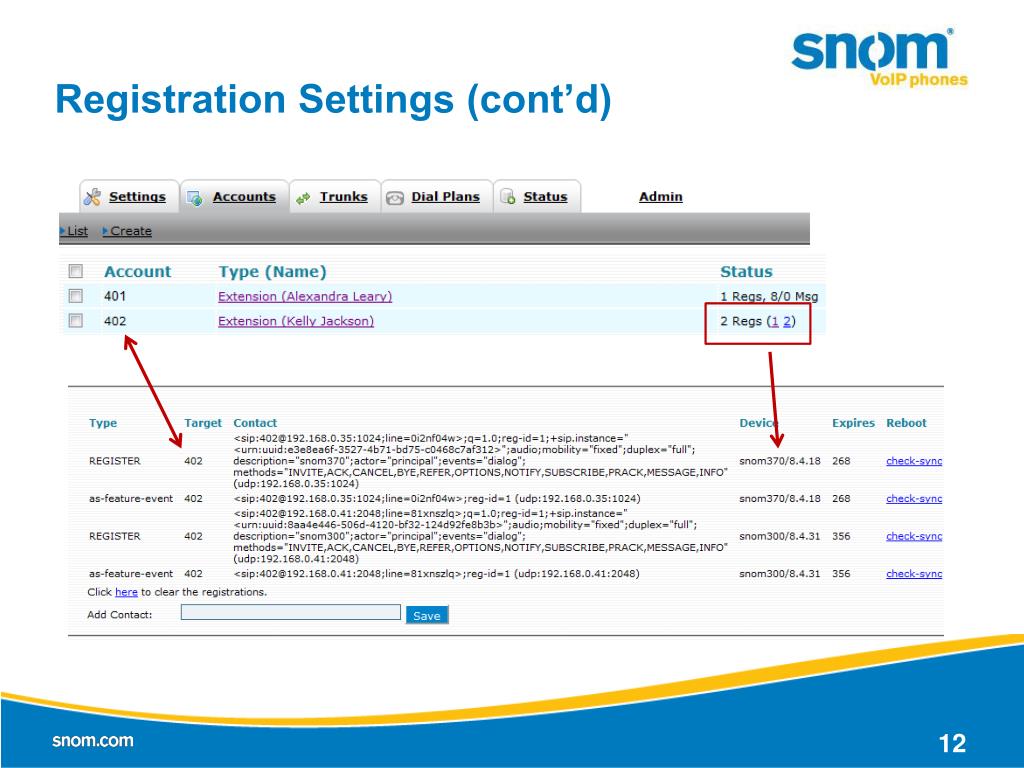

  12. Registration Settings (cont’d)

  13. Permission Settings

  14. Lab―Create Extensions UsingTwo Different Methods Exercise: Create one extension manually. Create two extensions using a .CSV file. See Exercises 29 and 30 in your lab book for complete exercise.

  15. Lab―Assign an Extension as Domain Admin See Exercise 31 in your lab book for complete exercise.

  16. Install the X-Lite Softphone http://www.counterpath.com/x-lite-4-for-windows-download.html Install the X-Lite softphone. Register an extension to the softphone. See Exercise 32 in your lab book for complete exercise.
