Presentation Transcript
neurologic disorders of the larynx and videostroboscopy

Neurologic Disorders of the Larynx and Videostroboscopy

Stephanie Cordes, MD

Anna Pou, MD

April 1998

  • scientific and technological advancements
  • improvements in diagnosis of voice disorders
  • better understanding of laryngeal function
  • laryngeal mechanism subject to highly complex, extensive neural control
  • mostly a neglected topic
anatomy of phonation
Anatomy of Phonation
  • functions as biological valve for phonation, respiration, and swallowing
  • lies between the 3rd and 6th cervical vertebra
  • arises from paired branchial arches III, IV, and VI
  • development begins during third week of embryonic growth
anatomy of phonation4
Anatomy of Phonation
  • unpaired cartilages :thyroid, cricoid, and epiglottis
  • paired cartilages :arytenoids, corniculates, and cuneiforms
  • intrinsic muscles :cricothyroids, posterior cricoarytenoids, lateral cricoarytenoids, transverse arytenoid, oblique arytenoids, and thyroarytenoids
  • extrinsic muscles :strap muscles
anatomy of phonation5
Anatomy of Phonation
  • innervation by vagus
  • superior laryngeal nerve :internal and external branches
  • recurrent laryngeal nerve :anterior and posterior branch
  • blood supply :superior and inferior laryngeal artery
  • vocal fold arrangement - mucosal wave
physiology of phonation
Physiology of Phonation
  • begins in cerebral cortex
  • precentral gyrus to motor nuclei then coordinated activity
  • phonatory cycle :
    • vocal folds approximated
    • infraglottic pressure builds up
    • pressure opens folds from bottom up
    • upper portion with strong elastic properties
parameters of voice
Parameters of Voice
  • quality, loudness, and pitch
  • quality :depends on symmetrical vibration at the midline of the glottis
  • loudness :influenced by subglottic pressure, glottic resistance, transglottic air flow, and amplitude of vibration
  • pitch :alterations in length, tension, and cross-section mass of folds
patient evaluation
Patient Evaluation
  • review of history and comprehensive exam
  • history to include -”I MADE A SPEECH”
    • Impressions of Dysphonia
    • Medical /Surgical History
    • Abusive Voice Patterns/Allergies
    • Dysphagia/Aspiration
    • Esophageal Reflux
patient evaluation9
Patient Evaluation
    • Auditory Acuity
    • Shortness of Breath/Stridor/Speech Difficulties
    • Patient’s Perceptions of Voice Difficulty
    • Emotional Status of Patient
    • ETOH Consumption and Tobacco Use
    • Clearing the Throat and Coughing
    • History of Voice Difficulty
patient examination
Patient Examination
  • ears - hearing acuity
  • conjunctiva - allergies, anemia, jaundice
  • nose - obstruction
  • oral cavity - dental patterns, xerostomia, enamel
  • neck - thyroid and muscle tension
  • cranial nerve - gag reflex, palatal deviation
  • laryngeal exam - IDL
  • allows routine, slow-motion evaluation
  • detect vibratory asymmetries, structural abnormalities, submucosal scars
  • illuminates different points on consecutive vocal folds
  • desynchronize light and frequency of vocal fold vibration
neurologic voice disorders
Neurologic Voice Disorders
  • Flaccid neural
  • Spastic neural
  • Ataxic neural
  • Hypokinetic neural
  • Hyperkinetic neural
  • Mixed neural
  • Vocal tremors
  • Spastic Dysphonia
flaccid neural disorders
Flaccid Neural Disorders
  • damage or disease to component of motor unit causing laryngeal muscle paralysis
  • type and extent depends on lesion site
    • bilateral complete - total weakness, aphonic
    • bilateral incomplete - partial, SOB, fatigue
    • bilateral recurrent - abductor paralysis, median
    • unilateral recurrent - hoarse, breathy voice
  • Myasthenia Gravis
myasthenia gravis
Myasthenia Gravis
  • autoimmune disease with reduced availability of Ach receptors
  • severe muscle deterioration
  • inhalatory stridor, breathy voice, hoarseness, flutter, and tremor
  • decreased loudness
  • restriction in pitch range
  • dysphagia, VPI, hypernasality
spastic neural disorders

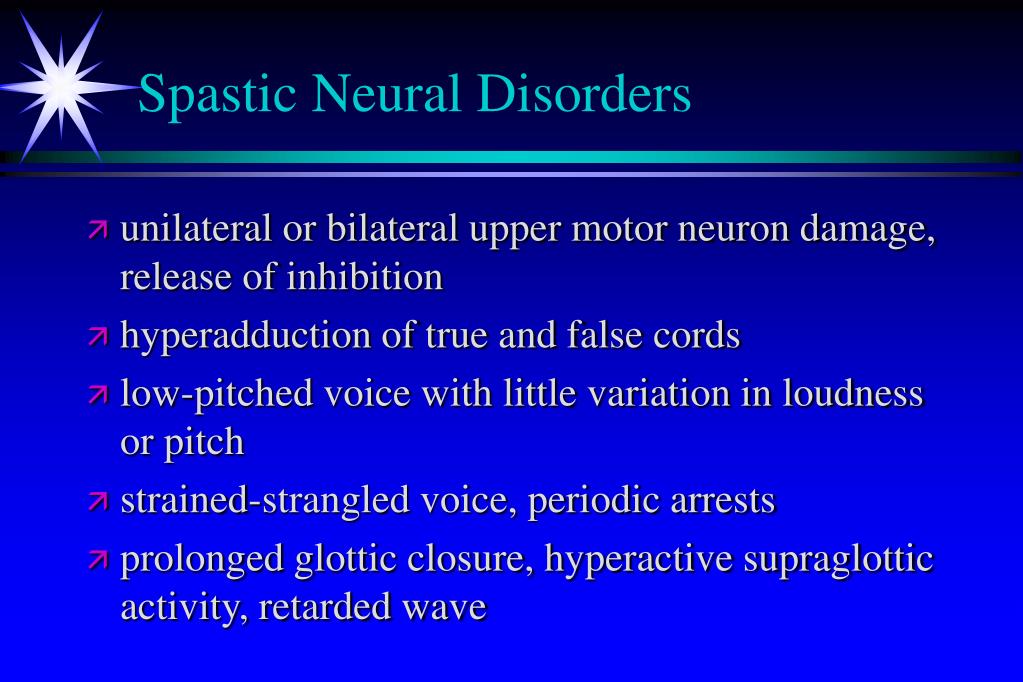

Spastic Neural Disorders
  • unilateral or bilateral upper motor neuron damage, release of inhibition
  • hyperadduction of true and false cords
  • low-pitched voice with little variation in loudness or pitch
  • strained-strangled voice, periodic arrests
  • prolonged glottic closure, hyperactive supraglottic activity, retarded wave
ataxic neural disorders
Ataxic Neural Disorders
  • follows cerebellar damage
  • typically struggle with uncontrolled loudness and pitch outbursts
  • mild to moderate tremors of laryngeal inlet during phonation
  • vocal folds without anatomic abnormalities
  • usually has accompanied dysarthria
  • Friedreich’s Ataxia
hypokinetic neural disorders
Hypokinetic Neural Disorders
  • related to Parkinson’s Disease
  • depletion of dopamine in substantia nigra
  • reduced loudness, monopitch, breathy, rough, hoarse, tremorous
  • widespread hypertonicity and rigidity
  • recruitment of ventricular folds not uncommon
hyperkinetic neural disorders

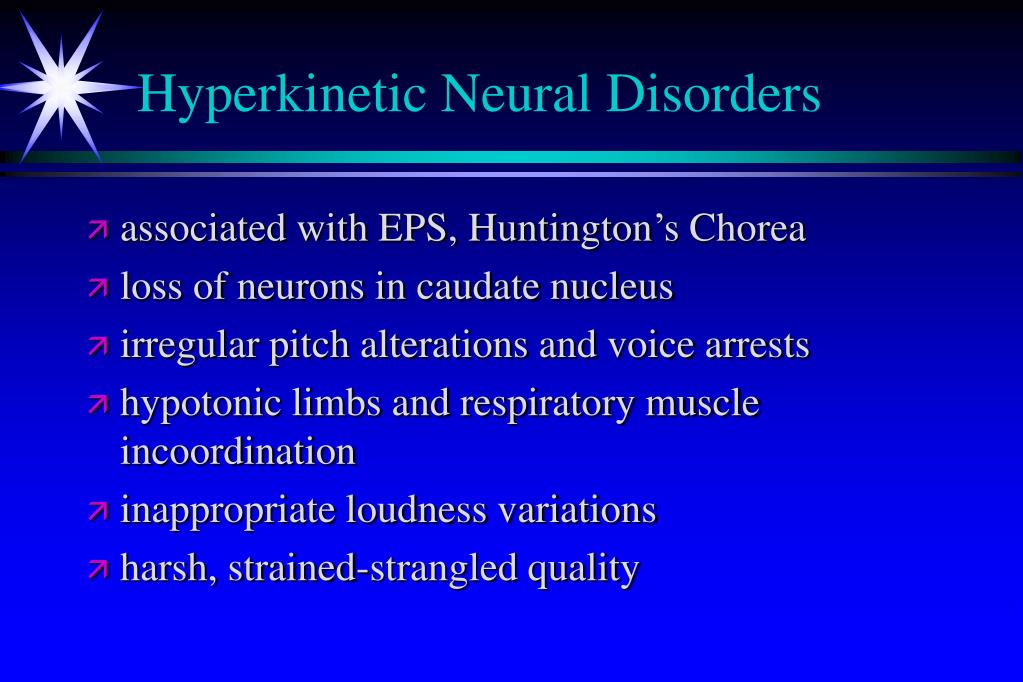

Hyperkinetic Neural Disorders
  • associated with EPS, Huntington’s Chorea
  • loss of neurons in caudate nucleus
  • irregular pitch alterations and voice arrests
  • hypotonic limbs and respiratory muscle incoordination
  • inappropriate loudness variations
  • harsh, strained-strangled quality
mixed neural disorders

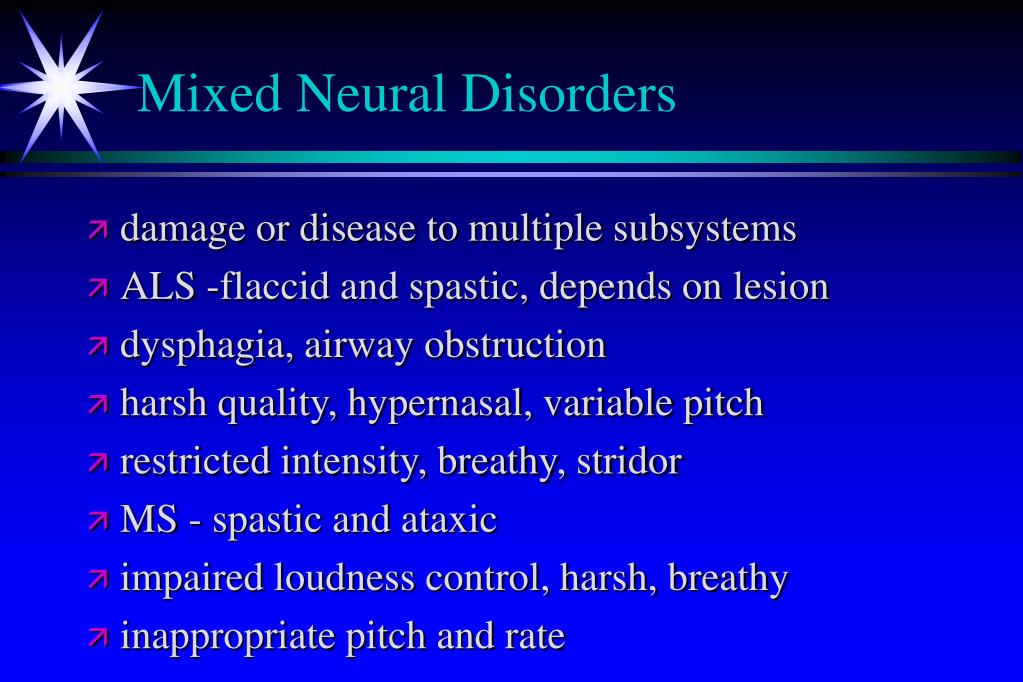

Mixed Neural Disorders
  • damage or disease to multiple subsystems
  • ALS -flaccid and spastic, depends on lesion
  • dysphagia, airway obstruction
  • harsh quality, hypernasal, variable pitch
  • restricted intensity, breathy, stridor
  • MS - spastic and ataxic
  • impaired loudness control, harsh, breathy
  • inappropriate pitch and rate
vocal tremors
Vocal Tremors
  • essential tremor most common disorder
  • head and hands involved, +/- voice
  • cause unknown
  • quavering or tremulous speech, most noticeable on vowel prolongation
  • pitch breaks and voice arrests
  • larynx moves at rest and during phonation
  • predominant involvement of TA muscles
spastic dysphonia
Spastic Dysphonia
  • unknown cause - psychogenic or neuromuscular
  • three forms - adductor, abductor, mixed
  • adductor most prevalent
  • strained-strangled quality, periodic arrests
  • limited pitch and volume control
  • prolonged vocal fold closure and reduced amplitude of vibration
  • surgical :NSGY or laryngeal surgery
  • medical :drugs that treat the motor symptoms
  • speech pathology :behavioral treatment
  • use of augmentative or alternative communication devices
case report
Case Report
  • 72 y/o male with 12 mo. h/o progressive dysphonia
  • signs and symptoms of Parkinson’s
  • referred by neurology for speech difficulties and occasional aspiration of thin liquids
case report24
Case Report
  • 38 y/o female with 6 mo h/o strained-strangled voice, worse over past two months
  • 20 pack year history of smoking
  • h/o heroine and cocaine addiction
  • intermittent arrests in phonation, lapsed into whispered speech patterns
case report25
Case Report
  • 55 y/o female with h/o CVA 18 mo ago that resulted in dysarthria w/o apraxia or aphasia
  • CT - hypodense lesion in internal capsule
  • MRI - infarct in right anterior corona radiatum
  • speech unintelligible
  • imprecision, hypernasal, strained-strangled
