exceptions and interrupts

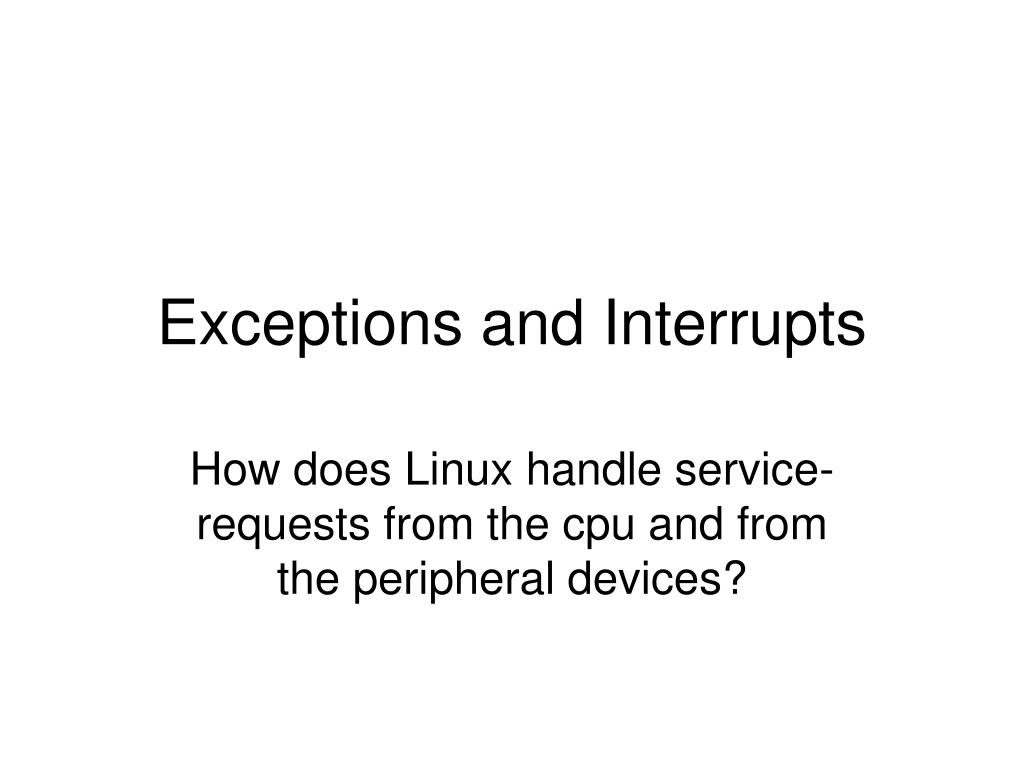

Exceptions and Interrupts

How does Linux handle service- requests from the cpu and from the peripheral devices?

the fetch execute cycle
The ‘fetch-execute’ cycle

Normal programming assumes this ‘cycle’:

  • 1) Fetch the next instruction from ram
  • 2) Interpret the instruction just fetched
  • 3) Execute this instruction as decoded
  • 4) Advance the cpu instruction-pointer
  • 5) Go back to step 1
but departures may occur

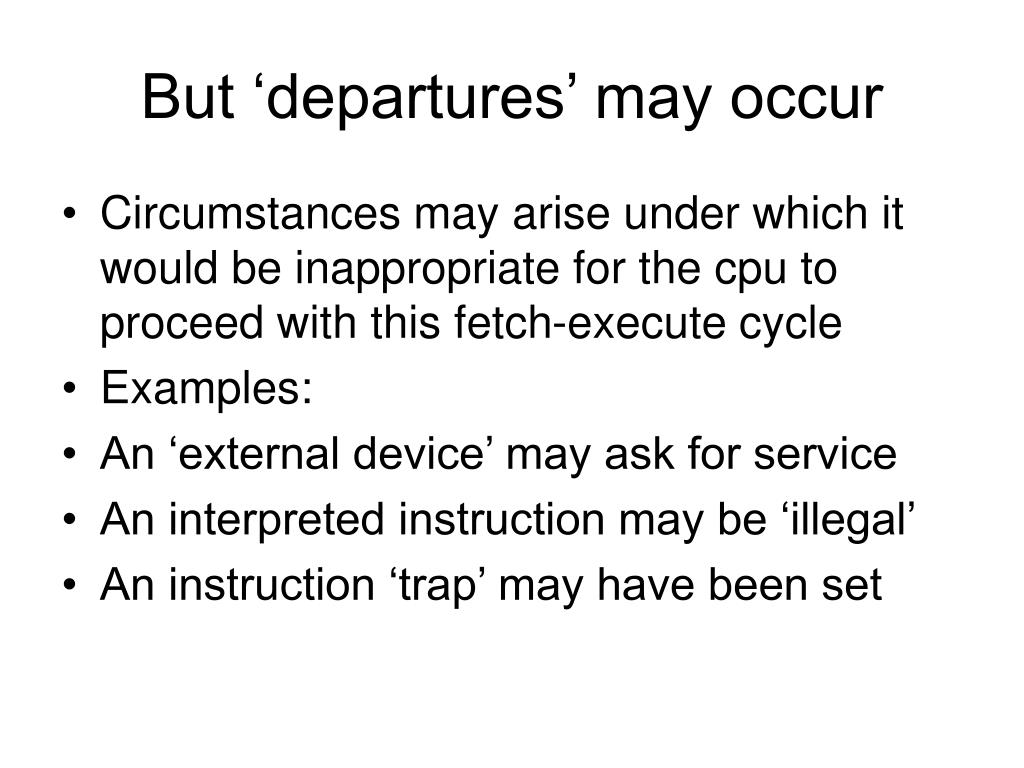

But ‘departures’ may occur
  • Circumstances may arise under which it would be inappropriate for the cpu to proceed with this fetch-execute cycle
  • Examples:
  • An ‘external device’ may ask for service
  • An interpreted instruction may be ‘illegal’
  • An instruction ‘trap’ may have been set
faults
Faults
  • If the cpu detects that an instruction it has

just decoded would be illegal to execute, it

cannot proceed with the fetch-execute cycle

  • This type of situation is known as a ‘fault’
  • It is detected BEFORE incrementing the IP
  • The cpu will react by: 1) saving some info on its stack, then 2) switching control to a special fault-handling routine
fault handling
Fault-Handling
  • The causes of ‘faults’ may often be fixed
  • A few examples:
  • 1) Writing to a ‘read-only’ segment
  • 2) Reading from a ‘not present’ segment
  • 3) Executing an out-of-bounds instruction
  • 4) Executing a ‘privileged’ instruction
  • If the problem can be remedied, the cpu can resume executing from where it left off
traps
Traps
  • The cpu may have been programmed to

automatically switch control to a ‘debugger’

Program after it has executed an instruction

  • This type of situation is known as a ‘trap’
  • It is activated AFTER incrementing the IP
  • It is accomplished by setting the TF flag
  • Just as with faults, the cpu will react:

save return-info, and jump to trap-handler

faults versus traps

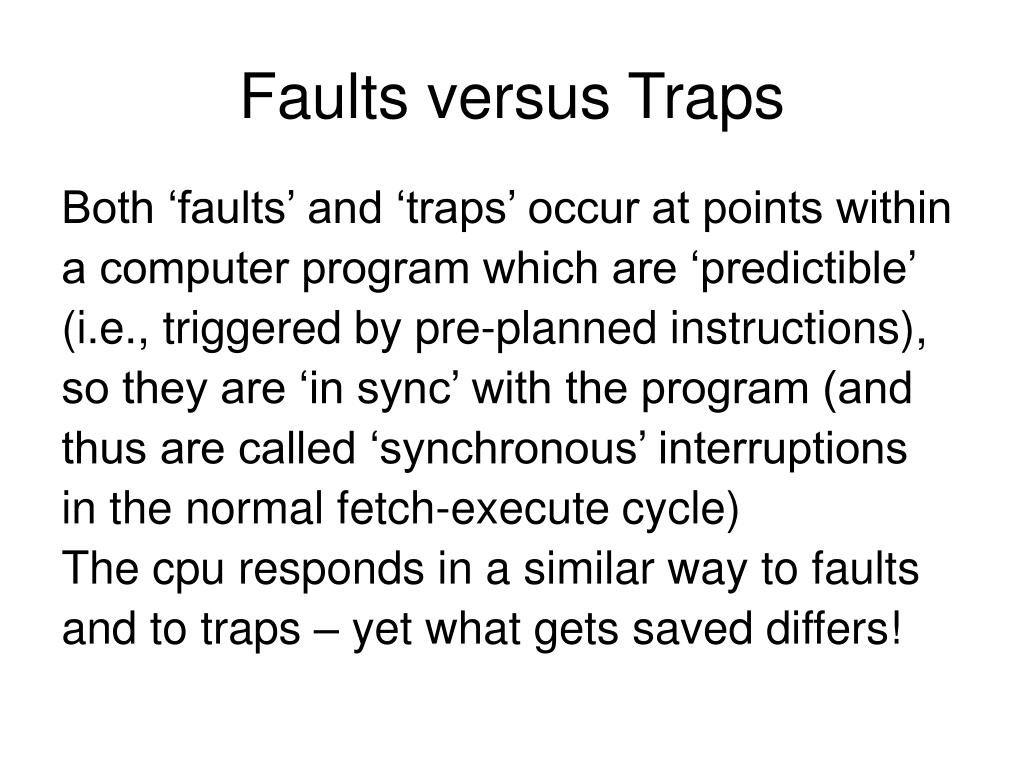

Faults versus Traps

Both ‘faults’ and ‘traps’ occur at points within

a computer program which are ‘predictible’

(i.e., triggered by pre-planned instructions),

so they are ‘in sync’ with the program (and

thus are called ‘synchronous’ interruptions

in the normal fetch-execute cycle)

The cpu responds in a similar way to faults

and to traps – yet what gets saved differs!

faults vs traps continued
Faults vs Traps (continued)
  • With a ‘fault’:

the saved address is for the instruction that was the cause of the fault – so that

instruction will get re-fetched after the cause of the problem has been fixed

  • With a ‘trap’:

the saved address is for the instruction

following the one which triggered the trap

synchronous vs asynchronous
Synchronous vs Asynchronous
  • Devices which are ‘external’ to the cpu may under go certain changes-of-state

that the system needs to take notice of

  • These changes occur independently of what the cpu is doing, and so cannot be

predicted from reading a program’s code

  • They are ‘asynchronous’ to the program,

and are known as ‘interrupts’

interrupt handling
Interrupt Handling
  • As with faults and traps, the cpu responds

to interrupt-requests by saving some info

on the stack and then jumping to a special

‘interrupt-handler’ routine designed to take

appropriate action for the particular device

which caused the interrupt to occur

the interrupt controller
The ‘Interrupt Controller’
  • Special hardware is responsible for telling

the cpu when an external device wants to

‘interrupt’ the current program

  • This hardware is the ‘Interrupt Controller’
  • It needs to let the cpu know which among

several devices is the one needing attention

  • It also needs to prioritize multiple requests
cascaded 8259 pics
Cascaded 8259 PICs

Master

PIC

IRQ0

Slave

PIC

IRQ8

IRQ1

IRQ9

CPU

IRQ2

IRQ10

INTR

IRQ3

IRQ11

IRQ4

IRQ12

INTA

IRQ5

IRQ13

IRQ6

IRQ14

IRQ7

IRQ15

PC Design (for single-processor systems)

two crucial data tables
Two Crucial Data Tables
  • The Global Descriptor Table (GDT)

defines memory segments, and

enforces their access-privileges

(by using ‘segment descriptors’)

  • The Interrupt Descriptor Table (IDT)

defines entry-points for the code-routines

which handle ‘interrupts’ and ‘exceptions’

how does cpu find gdt idt
How does CPU find GDT/IDT?
  • Two dedicated registers: GDTR and IDTR
  • Both have identical 48-bit format:

Segment Base Address

Segment Limit

47

16

15

0

Kernel must setup these registers during system startup (set-and-forget)

Privileged instructions: LGDT and LIDT used to set these register-values

Unprivileged instructions: SGDT and SIDT used for reading register-values

segment descriptor format
Segment-Descriptor Format

56

39

63

32

Base[31…24]

Limit

[19..16]

Access

attributes

Base[23…16]

Base[ 15 … 0 ]

Limit[ 15 ... 0 ]

31

16

15

0

Quadword (64-bits)

gate descriptor format
Gate-Descriptor Format

63

32

Entrypoint Offset[ 31…16 ]

Gate type

code

(Reserved)

Code-segment Selector

Entrypoint Offset[ 15…0 ]

0

31

Quadword (64-bits)

intel reserved id numbers
Intel-Reserved ID-Numbers
  • Of the 256 possible interrupt ID-numbers, Intel reserves the first 32 for ‘exceptions’
  • Operating systems such as Linux are free to use the remaing 224 available interrupt

ID-numbers for their own purposes (e.g.,

for service-requests from external devices,

or for other purposes such as system-calls

some intel defined exceptions

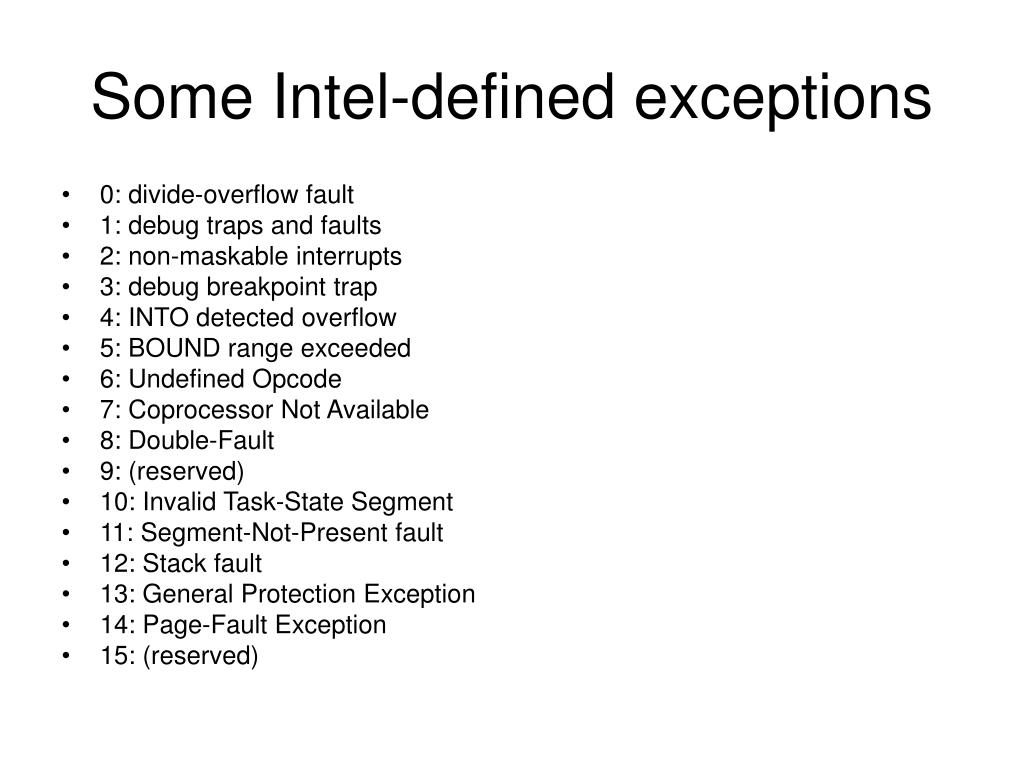

Some Intel-defined exceptions
  • 0: divide-overflow fault
  • 1: debug traps and faults
  • 2: non-maskable interrupts
  • 3: debug breakpoint trap
  • 4: INTO detected overflow
  • 5: BOUND range exceeded
  • 6: Undefined Opcode
  • 7: Coprocessor Not Available
  • 8: Double-Fault
  • 9: (reserved)
  • 10: Invalid Task-State Segment
  • 11: Segment-Not-Present fault
  • 12: Stack fault
  • 13: General Protection Exception
  • 14: Page-Fault Exception
  • 15: (reserved)
error codes
Error-Codes
  • A few of the Intel-defined exceptions also push a diagnostic ‘error-code’ onto the cpu stack (in addition to pushing the EFLAGS, CS and EIP register-values); the ‘handler’

must discard that error-code before it can

execute the ‘iret’ instruction to resume the

program that got interrupted (Exceptions

8 and 10 through 14 generate error-codes)

using our physmem driver
Using our ‘physmem’ driver

We can look at the kernel’s GDT/IDT tables

  • We can find them (using ‘sgdt’ and ‘sidt’)
  • We can ‘read’ them by using ‘physmem’

Demo program on course website:

showidt.cpp

It prints out the 256 IDT Gate-Descriptors

in class exercise
In-Class Exercise
  • Write a similar program (showgdt.cpp)
  • Two ‘big’ issues:

size of GDT isn’t known in advance

(whereas the IDT is of a known size)

labeling for GDT entries is by offset

(whereas the IDT entries use index)

  • There could be some ‘other’ issues as well
some questions
Some Questions
  • How many “non-null” descriptors in GDT?

(There’s always at least one that’s “null”)

  • What kinds of descriptors does Linux use?

Sizes? Access-rights? Code/Data? TSS?
