introduction to gr bner bases for geometric modeling

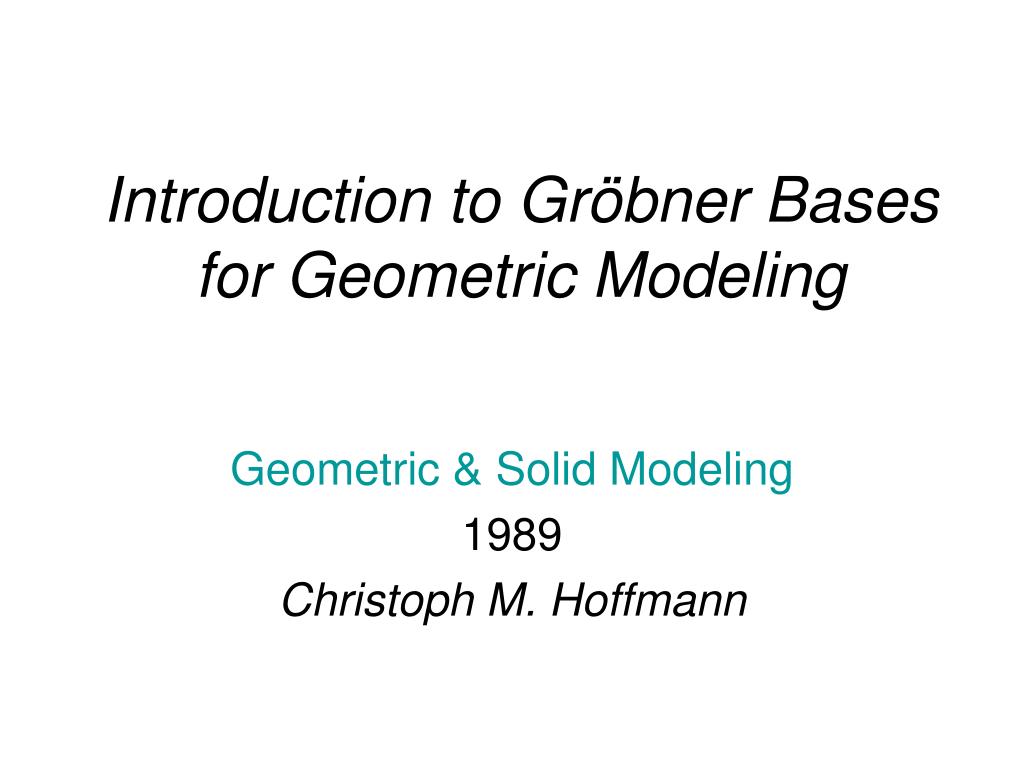

Introduction to Gröbner Bases for Geometric Modeling

Geometric & Solid Modeling

1989

Christoph M. Hoffmann

algebraic geometry
Algebraic Geometry
  • Branch of mathematics.
  • Express geometric facts in algebraic terms in order to interpret algebraic theorems geometrically.
  • Computations for geometric objects using symbolic manipulation.
    • Surface intersection, finding singularities, and more…
  • Historically, methods have been computationally intensive, so they have been used with discretion.

source: Hoffmann

slide3
Goal
  • Operate on geometric object(s) by solving systems of algebraic equations.
  • “Ideal”: (informal partial definition) Set of polynomials describing a geometric object symbolically.
    • Considering algebraic combinations of algebraic equations (without changing solution) can facilitate solution.
    • Ideal is the set of algebraic combinations (to be defined more rigorously later).
    • Gröbner basis of an ideal: special set of polynomials defining the ideal.
      • Many algorithmic problems can be solved easily with this basis.
      • One example (focus of our lecture): abstract ideal membership problem:
        • Is a given polynomial g in a given ideal I ?
        • Equivalently: can g be expressed as an algebraic combination of the fjfor some polynomials hj?
        • Answer this using Gröbner basis of the ideal.
        • Rough geometric interpretation: g can be expressed this way when surface g = 0 contains all points that are common intersection of surfaces fj = 0.

source: Hoffmann

overview
Overview
  • Algebraic Concepts
    • Fields, rings, polynomials
    • Field extension
    • Multivariate polynomials and ideals
    • Algebraic sets and varieties
  • Gröbner Bases
    • Lexicographic term ordering and leading terms
    • Rewriting and normal-form algorithms
    • Membership test for ideals
    • Buchberger’s theorem and construction of Gröbner bases
  • For discussion of geometric modeling applications of Gröbner bases, see Hoffmann’s book.
    • e.g. Solving simultaneous algebraic expressions to find:
      • surface intersections
      • singularities

source: Hoffmann

algebraic concepts fields rings and polynomials
Algebraic Concepts:Fields, Rings, and Polynomials
  • Consider single algebraic equation:
  • Values of xi’s are from a field.(Recall from earlier in semester.)
    • Elements can be added, subtracted, multiplied, divided*.
    • Ground fieldk is the choice of field .
  • Univariate polynomial over k is of form:
    • Coefficients are numbers in k.
    • k[x] = all univariate polynomials using x’s.
      • It is a ring (recall from earlier in semester): addition, subtraction, multiplication, but not necessarily division.
  • Can a given polynomial be factored?
    • Depends on ground field
      • e.g. x2+1 factors over complex numbers but not real numbers.
    • Reducible: polynomial can be factored over ground field.
    • Irreducible: polynomial cannot be factored over ground field.

* for non-0 elements

source: Hoffmann

algebraic concepts field extension
Algebraic Concepts:Field Extension
  • Field extension: enlarging a field by adjoining (adding) new element(s) to it.
    • Algebraic Extension:
      • Adjoin an element u that is a root of a polynomial (of degree m) in k[x].
        • Resulting elements in extended field k(u)are of form:
        • e.g. extending real numbers to complex numbers by adjoining i
          • i is root of x2+1, so m=2 and extended field elements are of form a + bi
        • e.g. extending rational numbers to algebraic numbers by adjoining roots of all univariate polynomials (with rational coefficients)
    • Transcendental Extension:
      • Adjoin an element (such as p) that is not the root of any polynomial in k[x].

source: Hoffmann

algebraic concepts multivariate polynomials
Algebraic Concepts:Multivariate Polynomials
  • Multivariate polynomial over k is of form:
    • Coefficients are numbers in k.
    • Exponents are nonnegative integers.
    • k[x1,…,xn] = all multivariate polynomials using x’s.
      • It is a ring: addition, subtraction, multiplication, but not necessarily division.
  • Can a given polynomial be factored?
    • Depends on ground field (as in univariate case)
    • Reducible: polynomial can be factored over ground field.
    • Irreducible: polynomial cannot be factored over ground field.
    • Absolutely Irreducible: polynomial cannot be factored over any ground field.
      • e.g.

source: Hoffmann

algebraic concepts ideals
Algebraic Concepts:Ideals
  • For ground field k, let:
    • kn be the n-dimensional affine space over k.
      • mathematical physicist John Baez: "An affine space is a vector space that's forgotten its origin”.
    • Points in kn are n-tuples (x1,…,xn), with xi’s having values in k.
    • f be an irreducible multivariate polynomial in k[x1,…,xn]
    • gbe a multivariate polynomial in k[x1,…,xn]
    • f = 0 be the hypersurface in kn defined by f
      • Since hypersurface gf = 0 includes f = 0, view f as intersection of all surfaces of form gf = 0
  • is an ideal*
    • g varies over k[x1,…,xn]
    • Consider the ideal as the description of the surface f.
    • Ideal is closed under addition and subtraction.
    • Product of an element of k[x1,…,xn]with a polynomial in the ideal is in the ideal.

source: Hoffmann and others

*Ideals are defined more generally in algebra.

algebraic concepts ideals continued
Algebraic Concepts:Ideals (continued)
  • Let F be a finite set of polynomials f1, f2,…, fr in k[x1,…,xn]
  • Algebraic combinations of the fi form an ideal generated by F (a generating set*):
    • generators: { f, g }
  • Goal: find generating sets, with special properties, that are useful for solving geometric problems.

* Not necessarily unique.

source: Hoffmann

algebraic concepts algebraic sets
Algebraic Concepts:Algebraic Sets
  • Let be the ideal generated by the finite set of polynomials F = { f1, f2,…, fr }.
  • Let p = (a1,…, an) be a point in kn such that g(p) = 0 for every g in I.
  • Set of all such points p is the algebraic setV(I) of I.
    • It is sufficient that fi(p) = 0 for every generator fi in F.
  • In 3D, the algebraic surface f = 0 is the algebraic set of the ideal .

source: Hoffmann

algebraic concepts algebraic sets cont
Algebraic Concepts:Algebraic Sets (cont.)
  • Intersection of two algebraic surfaces f, g in 3D is an algebraic space curve.
    • The curve is the algebraic set of the ideal.
  • But, not every algebraic space curve can be defined as the intersection of 2 surfaces.
  • Example where 3 are needed*: twisted cubic (in parametric form):
  • Can define twisted cubic using 3 surfaces: paraboloid with two cubic surfaces:
  • Motivation for considering ideals with generating sets containing > 2 polynomials.

*see Hoffman’s Section 7.2.6 for subtleties related to this statement.

source: Hoffmann

algebraic concepts algebraic sets and varieties cont
Algebraic Concepts:Algebraic Sets and Varieties (cont.)
  • Given generatorsF = { f1, f2,…, fr }, the algebraic set defined by F in kn has dimension n-r
    • If equations fi = 0 are algebraically independent.
    • Complication: some of ideal’s components may have different dimensions.

source: Hoffmann

algebraic concepts algebraic sets and varieties cont13
Algebraic Concepts:Algebraic Sets and Varieties (cont.)
  • Consider algebraic set V(I) for ideal I in kn.
  • V(I) is reducible when V(I) is union of > 2 point sets, each defined separately by an ideal.
    • Analogous to polynomial factorization:
      • Multivariate polynomial f that factors describes surface consisting of several components
        • Each component is an irreducible factor of f.
  • V(I) is irreducible implies V(I) is a variety.

source: Hoffmann

algebraic concepts algebraic sets and varieties cont14
Algebraic Concepts:Algebraic Sets and Varieties (cont.)
  • Example: Intersection curve of 2 cylinders:
  • Intersection lies in 2 planes:

and

  • Irreducible ellipse in plane is is algebraic set in ideal generated by { f1,g1 }.
  • Irreducible ellipse in plane is is algebraic set in ideal generated by { f1,g2 }.
  • Ideal is reducible.
    • Decomposes into and
  • Algebraic set
    • Varieties: V(I2) and V(I3)

source: Hoffmann

algebraic concepts algebraic sets and varieties cont15
Algebraic Concepts:Algebraic Sets and Varieties (cont.)
  • Example: Intersection curve of 2 cylinders:
    • Intersection curve is not reducible
      • These 2 component curves cannot be defined separately by polynomials.
      • Rationale: Bezout’s Theorem implies intersection curve has degree 4. Furthermore:
        • Union of 2 curves of degree m and n is a reducible curve of degree m + n.
        • If intersection curve were reducible, then consider degree combinations for component curves (total = 4):
          • 1 + 3: illegal since neither has degree 1.
          • 2 + 2: illegal since neither is planar.
          • Conclusion: intersection curve irreducible.
  • Bezout’s Theorem also implies that twisted cubic cannot be defined algebraically as intersection of 2 surfaces:
      • Twisted cubic has degree 3.
      • Bezout’s Theorem would imply it is intersection of plane and cubic surface.
      • But twisted cubic is not planar; hence contradiction.

Bezout’s Theorem*: 2 irreducible surfaces of degree m and n intersect in a curve of degree mn. *allowing complex coordinates, points at infinity

source: Hoffmann

gr bner bases formulating ideal membership problem
Gröbner Bases:Formulating Ideal Membership Problem
  • Can help to solve geometric modeling problems such as intersection of implicit surfaces (see Hoffmann Sections 7.4-7.8).
  • Here we only treat the ideal membership problem for illustrative purposes:
    • “Given a finite set of polynomials F = { f1, f2,…, fr }, and a polynomial g, decide whether g is in the ideal generated by F; that is, whether g can be written in the form where the hi are polynomials.”
  • Strategy: rewrite g until original question can be easily answered.

source: Hoffmann

gr bner bases lexicographic term ordering and leading terms
Gröbner Bases:Lexicographic Term Ordering and Leading Terms
  • Need to judge if “this polynomial is simpler than that one.”
  • Power Product:
  • Lexicographic ordering of power products:
    • x
    • If then for all power products w.
    • If u and v are not yet ordered by rules 1 and 2, then order them lexicographically as strings.

Example for n=2 on board...

source: Hoffmann

gr bner bases lexicographic term ordering and leading terms18
Gröbner Bases:Lexicographic Term Ordering and Leading Terms
  • Each term in a polynomial g is a coefficient combined with a power product.
    • Leading term lt(g) of g: term whose power product is largest with respect to ordering
      • lcf (g) =leading coefficient of lt(g)
      • lpp (g) =leading power product of lt(g)
  • Definition: Polynomial f is simpler than polynomial g if:

Example 7.1 on board...

source: Hoffmann

gr bner bases rewriting and normal form algorithms
Gröbner Bases:Rewriting and Normal-Form Algorithms
  • Given polynomial g and set of polynomials F = { f1, f2,…, fr }
    • Rewrite/simplify g using polynomials in F.
    • gis in normal formNF(g, F) if it cannot be reduced further. Note: normal form need not be unique.

source: Hoffmann

Example 7.2 on board...

gr bner bases rewriting and normal form algorithms20
Gröbner Bases:Rewriting and Normal-Form Algorithms
  • If normal form from rewriting algorithm is unique
    • then g is in ideal when NF(g, F) = 0.
  • This motivates search for generating sets that produce unique normal forms.

source: Hoffmann

gr bner bases a membership test for ideals
Gröbner Bases:A Membership Test for Ideals
  • Goal: Rewrite g to decide whether g is in the ideal generated by F.
    • Gröbner basisG of ideal
      • Set of polynomials generating F.
      • Rewriting algorithm using G produces unique normal forms.
    • Ideal membership algorithm usingG:

source: Hoffmann

Example 7.3 on board...

gr bner bases buchberger s theorem construction
Gröbner Bases:Buchberger’s Theorem & Construction
  • Algorithm will consist of 2 operations:
    • Consider a polynomial, and bring it into normal form with respect to some set of generators G.
    • From certain generator pairs, compute S-polynomials (see definition on next slide) and add their normal forms to the generator set.
  • G starts as input set F of polynomials
  • G is transformed into a Gröbner basis.
  • Some Implementation Issues:
    • Coefficient arithmetic must be exact.
      • Rational arithmetic can be used.
    • Size of generator set can be large.
      • Reduced Gröbner bases can be developed.

source: Hoffmann

gr bner bases buchberger s theorem construction continued
Gröbner Bases:Buchberger’s Theorem & Construction (continued)

Example 7.4 on board...

source: Hoffmann

gr bner bases buchberger s theorem construction continued24
Gröbner Bases:Buchberger’s Theorem & Construction (continued)

Buchberger’s Theorem:

foundation of algorithm

Gröbner basis construction algorithm

Example 7.5 on board...

source: Hoffmann
