Presentation Transcript
scenarios and requirements for business oriented multicast security

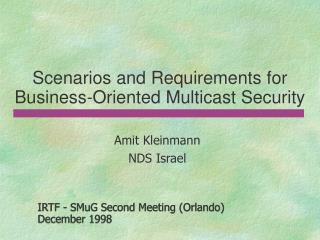

Scenarios and Requirements for Business-Oriented Multicast Security

Amit Kleinmann

NDS Israel

IRTF - SMuG Second Meeting (Orlando)

December 1998

motivation
Motivation
  • Solve the most common problems
  • Handle issues that are most attractive to businesses
anticipating future applications
Anticipating Future Applications
  • Multicast applications - practically don’t exist - chicken & egg problem
  • Why use multicast?
    • Save bandwidth
    • Save time
    • Save computational resources
  • When is multicast use justified?
    • Many users
    • High traffic volume
multicast applications
Multicast Applications

Application Many ParticipantsHigh traffic volume

  • Shared whiteboards 88
  • Not (yet) well defined applications ? ?
    • Distributed interactive games/simulation
    • Distance learning
    • Communicating with unknown/dynamic group
  • Multi-party audiovisual conferencing 84
  • Multimedia streaming/Pay Per View 44
  • Data distribution 44
    • Software distribution
    • Content (sports, weather, etc.)
    • Finance (stock tickers)
    • News/USENET
    • E-mail distribution
    • Push applications
  • Network synchronization 44
    • DNS, Routing updates
    • Advertising and locating servers
    • Data link switching (DLSw)
scenario requirements
Scenario Requirements

Two main scenarios:

  • File transfer
  • Data streaming

Application Many High traffic File Data

participantsvolumetransferstreaming

  • Multimedia streaming/Pay Per View 4 4 8 4
  • Data distribution 4 4 4 4
    • Software distribution
    • Content (sports, weather, etc.)
    • Finance (stock tickers)
    • News/USENET
    • E-mail distribution, push app.
  • Network synchronization 4 4 4 4
    • DNS, Routing updates
    • Advertising and locating servers
    • Data link switching (DLSw)
business models
Business Models
  • One to Many vs. Many(few) to Many(few)
  • Free vs. Monitored
    • Free Multicast:
      • Channels (Public, Previews)
      • Content (Shareware, Program Guides, Ads)
    • Monitored Multicast:
      • Subscription (Streaming Video, Audio, Data)
      • Packages (Software, Games, Audio/Video clips)
      • Volume (bits/packets sent and/or consumed)
      • Time (Feeds, Conferences, Lectures)
file transfer
File Transfer
  • Static (closed) group
  • Reliable
  • Business models:
    • Subscription
    • Packages
data streaming
Data Streaming
  • Most common
    • Multimedia streaming
    • Non-reliable
  • Business model
    • Subscription
    • Packages
    • Volume
    • Time
  • Dynamic (open) group
    • Monitoring group members’ behavior
  • Key management
    • SMuG decision: should be separated from the actual securing of the traffic.
    • Synchronization between keys and content
    • Real time => Symmetric keys for traffic
    • Key period
multicast conditional access contents users
Multicast Conditional Access => Contents + Users
  • Content management
    • C.A. attributes for content
    • Multicast content authenticated and encrypted
    • Users should be aware of content descriptions and schedule.
  • User/Client management
    • Users are known/registered
    • User has an authenticator
    • User has C.A. attributes
  • Hierarchy
multicast conditional access user client authentication encryption
Multicast Conditional Access: User/Client Authentication & Encryption
  • Each user authenticates to the Multicast server
  • Key exchange between user/server
  • Security entitlements
  • Content usage monitoring
trust in user client
Trust in User/Client
  • Software protection
    • Server
    • Client
      • Subject to attacks (e.g., viruses)
      • Can be replicated
  • Hardware tokens
    • Features:
      • Tamper-resistant
      • Cannot be replicated easily
    • Advantages:
      • Distributed solution
      • Portability
benefits of smart cards
Benefits of Smart Cards
  • Physical security (VLSI, OS, Memory)
  • Portable (identity, rights)
  • Secure storage (keys, certificates, entitlements)
  • Secure processing (crypto functions)
  • Non Repudiation (transactions, signatures)
