1. Essential Biodiesel Production Equipment Presented by : Magellanium Technologies biodiesel Plant & Glycerine Plant Manufacturer

2. Biodiesel, a low GHG emission fuel, is a key element in the energy transition. It is derived from UCO, vegetable oils, etc., with significant economic benefits. The process involves complex chemical steps and specialized equipment. Let us check the equipment required for producing biodiesel in mass.

3. List of Biodiesel Production Equipment Biodiesel production equipment facilitates transesterification, FAME purification, and glycerol separation. It is essential for converting feedstock into biodiesel. At MagTech, our equipment optimizes biodiesel production by matching capacity and industrial demands. Learn about each machine's role in the biodiesel process.

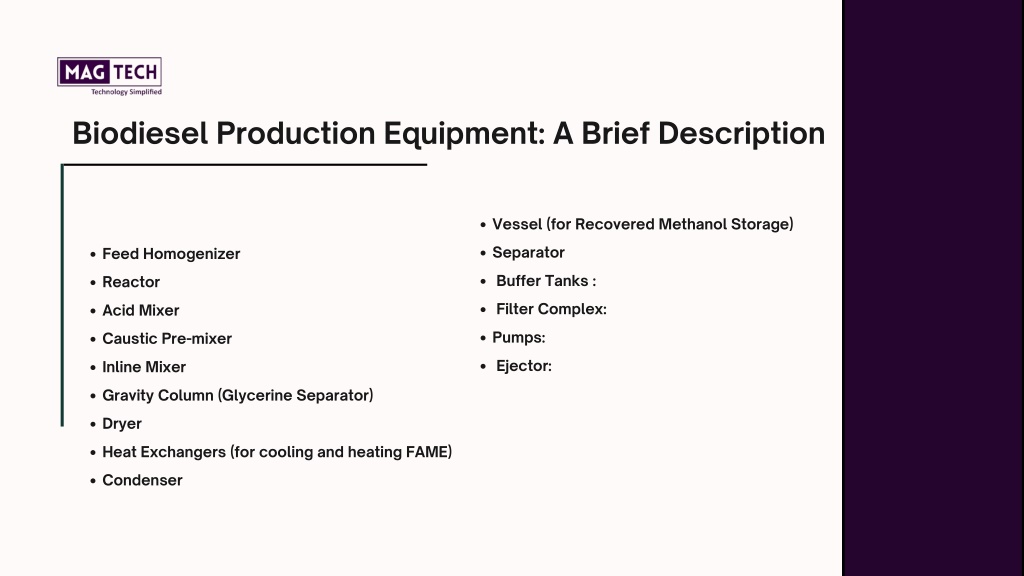

4. Biodiesel Production Equipment: A Brief Description Vessel (for Recovered Methanol Storage) Separator Feed Homogenizer Buffer Tanks : Reactor Filter Complex: Acid Mixer Pumps: Caustic Pre-mixer Ejector: Inline Mixer Gravity Column (Glycerine Separator) Dryer Heat Exchangers (for cooling and heating FAME) Condenser

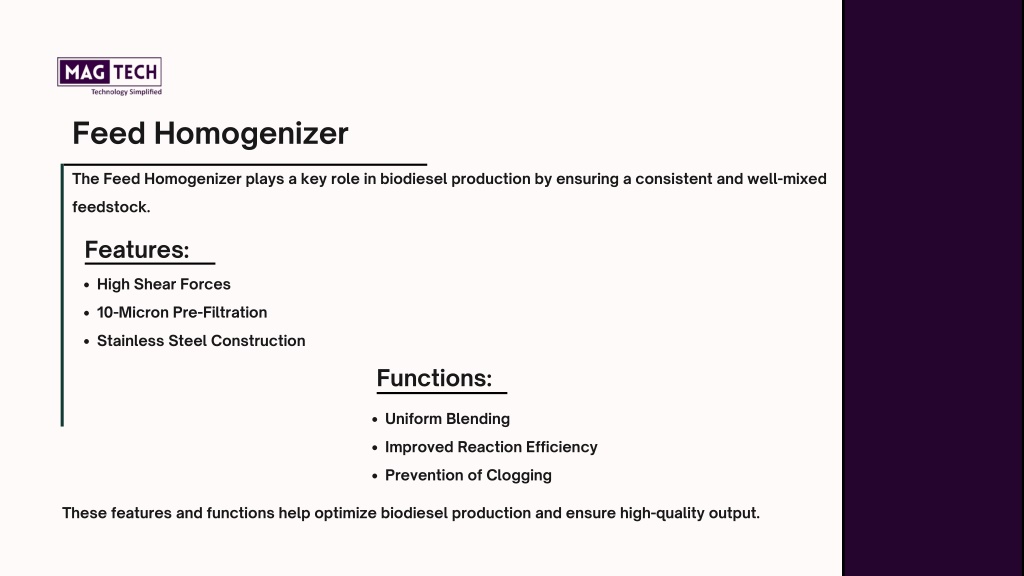

5. Feed Homogenizer The Feed Homogenizer plays a key role in biodiesel production by ensuring a consistent and well-mixed feedstock. Features: High Shear Forces 10-Micron Pre-Filtration Stainless Steel Construction Functions: Uniform Blending Improved Reaction Efficiency Prevention of Clogging These features and functions help optimize biodiesel production and ensure high-quality output.

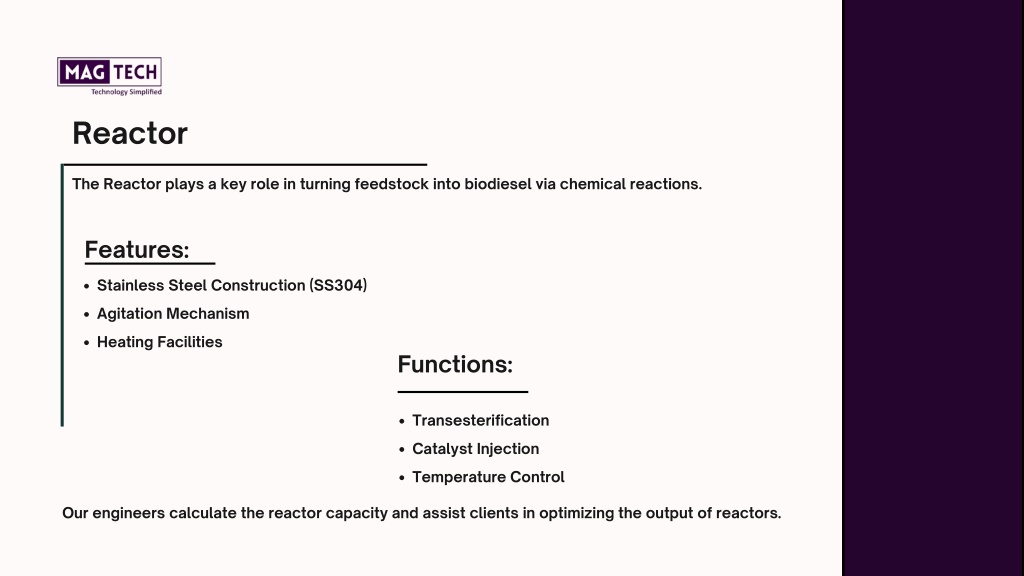

6. Reactor The Reactor plays a key role in turning feedstock into biodiesel via chemical reactions. Features: Stainless Steel Construction (SS304) Agitation Mechanism Heating Facilities Functions: Transesterification Catalyst Injection Temperature Control Our engineers calculate the reactor capacity and assist clients in optimizing the output of reactors.

7. Acid Mixer The Acid Mixer is crucial for controlling feedstock acidity in biodiesel production, reducing impurities, and enhancing product quality. Features: Stainless Steel Construction (SS304) High-Efficiency Mixing Precision Control Functions: Salt Splitting Homogenization Acid-Base Reaction Management Controlling the output of this crucial chemical reaction is done with proper calibration and choice of standard equipment.

8. Caustic Pre-mixer The Caustic Pre-mixer prepares catalyst and methanol for the transesterification process. Features: Stainless Steel Construction (SS304) Efficient Mixing Adjustable Mixing Speed Functions: Catalyst Preparation Methanol and Catalyst Mixing Improves Reaction Efficiency The catalysis of feedstock depends on this equipment. Caustic soda will produce the desired crude FAME in the next steps.

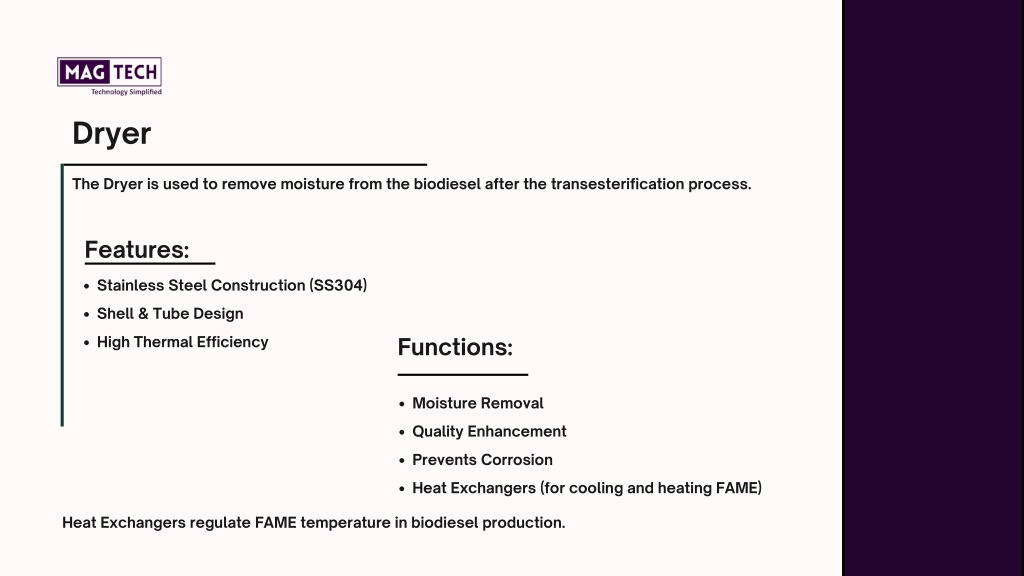

9. Dryer The Dryer is used to remove moisture from the biodiesel after the transesterification process. Features: Stainless Steel Construction (SS304) Shell & Tube Design High Thermal Efficiency Functions: Moisture Removal Quality Enhancement Prevents Corrosion Heat Exchangers (for cooling and heating FAME) Heat Exchangers regulate FAME temperature in biodiesel production.

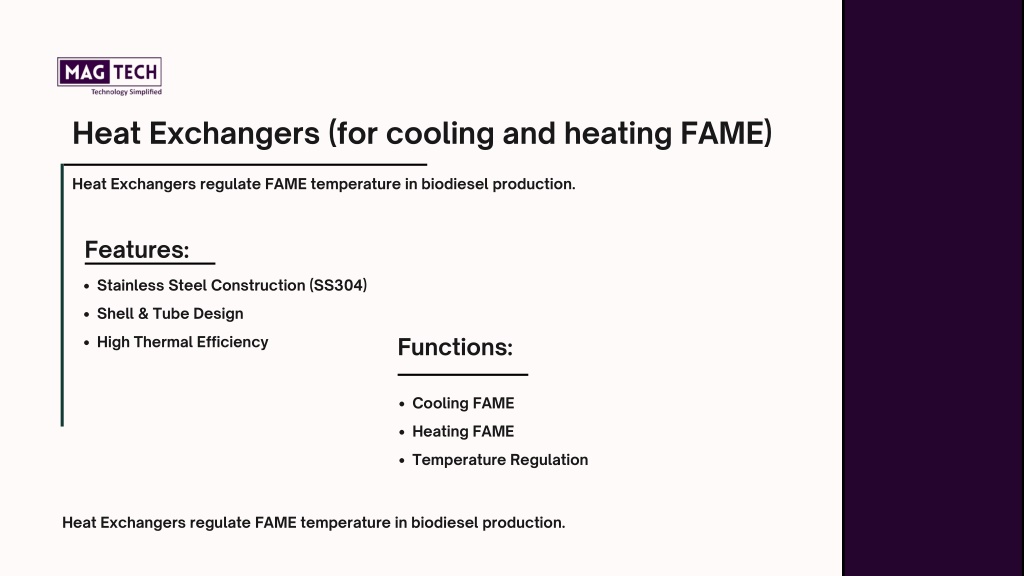

10. Heat Exchangers (for cooling and heating FAME) Heat Exchangers regulate FAME temperature in biodiesel production. Features: Stainless Steel Construction (SS304) Shell & Tube Design High Thermal Efficiency Functions: Cooling FAME Heating FAME Temperature Regulation Heat Exchangers regulate FAME temperature in biodiesel production.

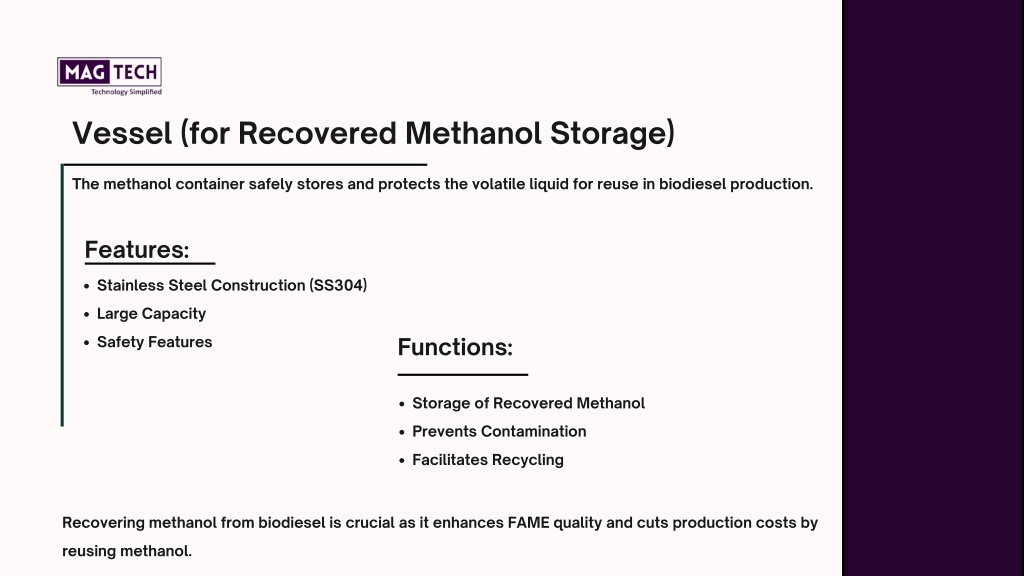

11. Vessel (for Recovered Methanol Storage) The methanol container safely stores and protects the volatile liquid for reuse in biodiesel production. Features: Stainless Steel Construction (SS304) Large Capacity Safety Features Functions: Storage of Recovered Methanol Prevents Contamination Facilitates Recycling Recovering methanol from biodiesel is crucial as it enhances FAME quality and cuts production costs by reusing methanol.

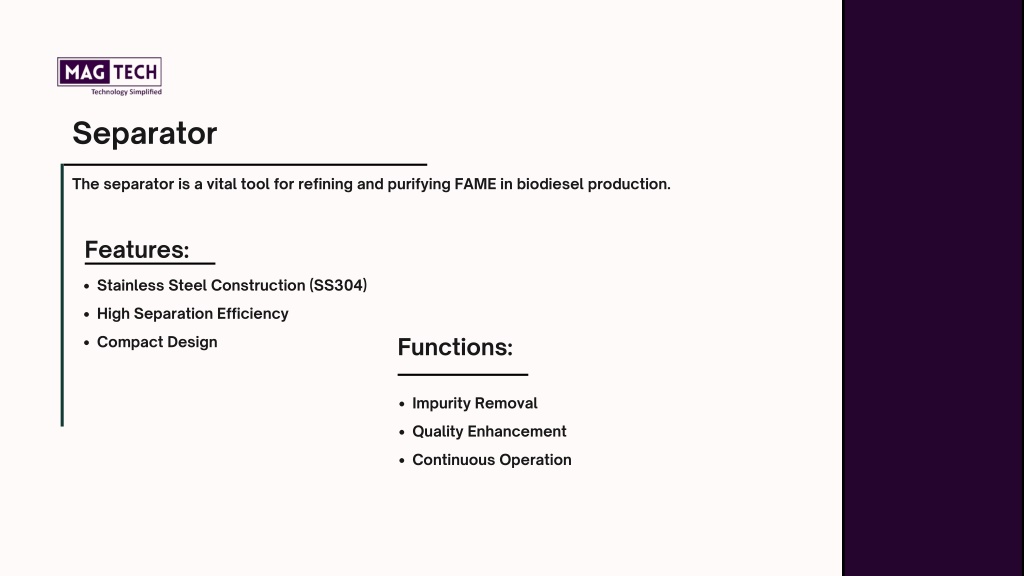

12. Separator The separator is a vital tool for refining and purifying FAME in biodiesel production. Features: Stainless Steel Construction (SS304) High Separation Efficiency Compact Design Functions: Impurity Removal Quality Enhancement Continuous Operation

13. Buffer Tanks Buffer Tanks aid biodiesel equipment by managing flow, heating, and storage for proper processing. Features: Stainless Steel Construction (SS304) Multiple Capacities Temperature Control Functions: Temporary Storage Mixing and Blending Flow Regulation

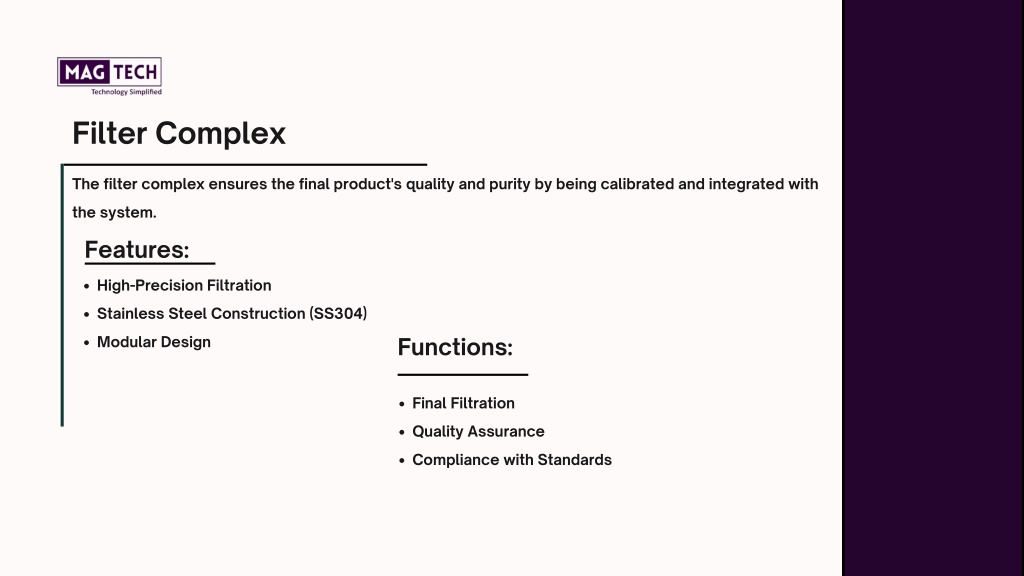

14. Filter Complex The filter complex ensures the final product's quality and purity by being calibrated and integrated with the system. Features: High-Precision Filtration Stainless Steel Construction (SS304) Modular Design Functions: Final Filtration Quality Assurance Compliance with Standards

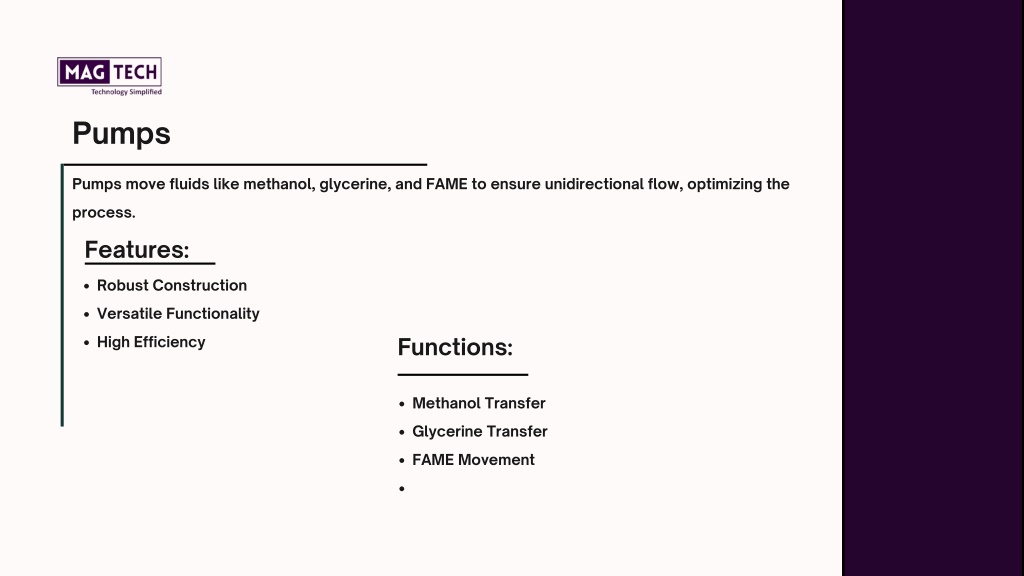

15. Pumps Pumps move fluids like methanol, glycerine, and FAME to ensure unidirectional flow, optimizing the process. Features: Robust Construction Versatile Functionality High Efficiency Functions: Methanol Transfer Glycerine Transfer FAME Movement

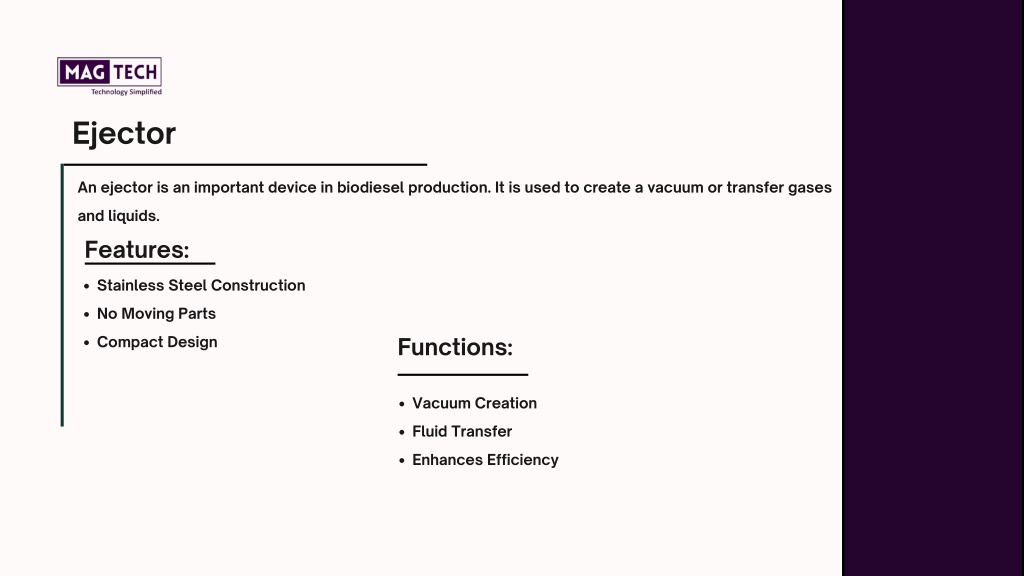

16. Ejector An ejector is an important device in biodiesel production. It is used to create a vacuum or transfer gases and liquids. Features: Stainless Steel Construction No Moving Parts Compact Design Functions: Vacuum Creation Fluid Transfer Enhances Efficiency

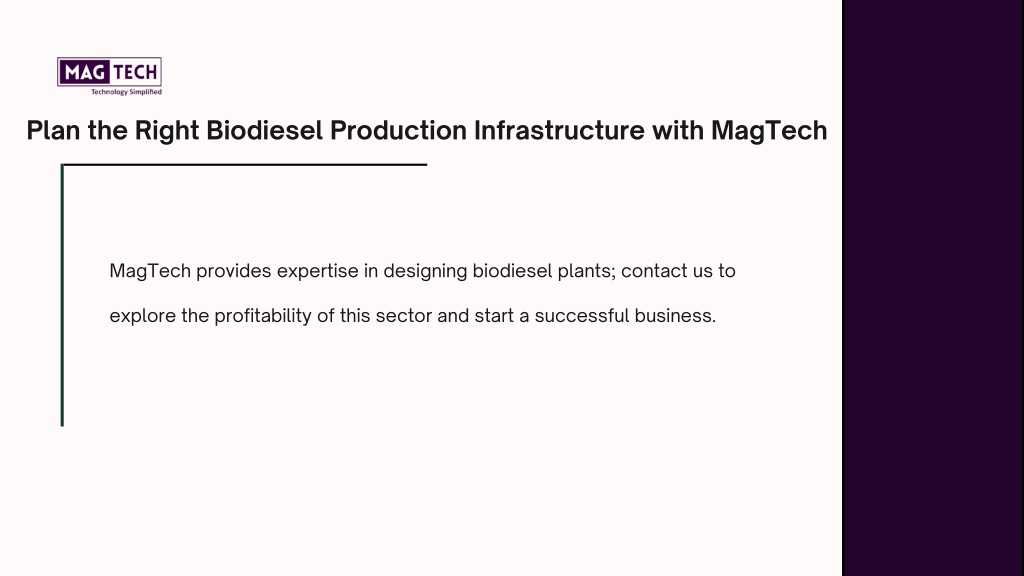

17. Plan the Right Biodiesel Production Infrastructure with MagTech MagTech provides expertise in designing biodiesel plants; contact us to explore the profitability of this sector and start a successful business.

18. Thank you Visit our website for details and information on every piece on every piece of equipment.
