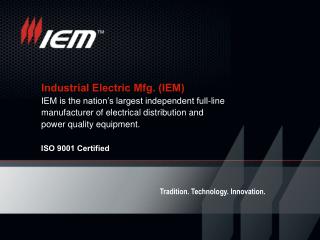

  1. Industrial Electric Mfg. (IEM)IEM is the nation’s largest independent full-line manufacturer of electrical distribution and power quality equipment. ISO 9001 Certified Tradition. Technology. Innovation.

  2. IEM began business in a barn on a family ranch in Fremont, CA. IEM grew along with Silicon Valley, moving to a 12,000 sq ft facility in 1957, expanding to 70,000 sq ft in 1980 and to 105,000 sq ft in 2003 with offices on the East Coast and Canada. IEM recently acquired Industrial Power Systems, Inc. (IPS) in Jacksonville, FL. Together they represent an unparalleled solution to the most challenging projects in the industry today. TRADITION.TECHNOLOGY. INNOVATION.

  3. TRADITION. TECHNOLOGY. INNOVATION. IEM has been solving power distribution challenges for HP, Apple, and dozens of prominent companies since they were start-ups. IEM developed a groundbreaking version of the medium voltage vacuum breaker in the 1980’s, pioneered the use of breakers on 21kV systems, and was the first to design a 3000A free standing breaker for utilities. LV Switchboard installation for AT&T – Hayward, CA 3

  4. TRADITION. TECHNOLOGY. INNOVATION. IEM pioneered the use of fully integrated CAD and manufacturing systems, beginning in 1979 with the first CAD/CAM system for electrical equipment metal fabrication.

  5. IEM Expands to New Facilities IEM Canada, Inc. As an extension of the parent company, IEM Canada specializes in the design and development of paralleling switchgear and controls while offering all of IEM’s proven products and services. IEM Canada is located in Langley, B.C. Industrial Power Systems, Inc. (IPS) For over 30 years, IPS has been an industry leader in providing custom electrical controls, switchgear and innovative new approaches to solutions for industrial and marine applications. IPS is located in Jacksonville, FL. 5

  6. IEM is ISO 9001:2008 Certified for its Quality Management System

  7. IEM Positioning

  8. IEM Delivers Customer Specific Solutions Abbott Laboratories American Online (AOL) Apple AT&T Chevron Corp. Cisco Cox Communications Digital Reality Trust Dupont Fabros Google Hewlett Packard Co. IBM Intel Corp. Kaiser Permanente Medical Center Lawrence Livermore National Lab Lockhead Missles and Space Co. McCarron Int’l Airport - Las Vegas Metro Atlanta Rapid Transit (MARTA) Microsoft NASA National Semiconductor Corp. Oakland International Airport Oracle Pacific Gas & Electric Co. Port of Oakland Qwest San Francisco International Airport Siemens Transportation Sprint Stanford University Sun Micro Systems United States Navy University of California, Berkeley Vantage Data Centers Verizon Yahoo!

  9. IEM’s Unique Parallel Manufacturing System IEM’s unique parallel manufacturing system allows complete flexibility and modification at any stage of the manufacturing process. This IEM Difference results in shorter manufacturing cycles, increased flexibility after start of production, and easy integration of special designs.

  10. IEM Product Scope Arc-Resistant Switchgear Panelboards Switchboards Low Voltage Switchgear Medium Voltage Switchgear Unit Substations Paralleling Switchgear Custom Assemblies Systems Monitoring 38kV Metal Clad Switchgear

  11. MV Metal-Clad Arc Resistant Switchgear • Rated Voltage: 5-15kV • Current: 600-2000A • Magnetically Actuated Vacuum Circuit Breaker • Full front accessibility • Smallest footprint on the market (96H” x 24W” x 60D”) • Monoblock capacity for 2 sets CT’s on line & load • Arc-Resistant Rated Type 2A and Type 2B • UL and cUL Listed, ANSI/IEEE Listed

  12. Distribution and Lighting Panelboards Flexibility to integrate a wide range of components including surge suppression equipment, custom metering, receptacles, and more Up to 84 circuits in one panel Vertically mounted main and sub-feed circuit breakers Single phase and three phase Complete line of UL Listed interiors with 200% rated neutrals for non-linear loads

  13. Switchboards Exceeding Industry Standards Devices can be individually (vertically) or group (panel/horizontally) mounted Custom sheet metal and bus flexibility for busway and transformer connections Rigid frame construction isolating bus and breaker assemblies from enclosure Options include automatic transfer switches, TVSS, distribution transformers, and PLC or relay based transfer schemes Voltage ranges 120V to 600V AC, 250V DC, Ampacity 400A to 12,000A

  14. Switchboards Exceeding Industry Standards Options include automatic transfer switches, TVSS, distribution transformers, and PLC or relay based transfer schemes Voltage ranges 120V to 600V Ampacity 400A to 6000A

  15. Low Voltage Switchgear Industry leading power circuit breakers Indoor, outdoor non walk-in and outdoor walk-in enclosures Extensive variety of durable color finishes, using state-of-the-art electrostatic powder coat paint process Power circuit breakers can be mounted in a fixed or draw-out configuration Voltage ranges 240V to 600V; Ampacity 800A to 5,000A

  16. MV Metal-Clad Switchgear (Circuit Breaker Assemblies) • Voltage 2400V to 27kV • Ampacity 1200A to 3000A • Available vacuum circuit breakers with optional choice of manufacturers • Multitude of relay and metering options • Rear access for load and incoming connections • Compartmentalized construction with breaker compartment for each device • Unit substation primaries • Indoor, outdoor non walk-in and outdoor walk-in enclosures

  17. MV Metal-Enclosed Switchgear(Fusible Load Interrupters) • Voltage 2400V to 27kV • Ampacity 600A to 3000A • Rear access for load and incoming connections • Compartmentalized construction • Unit substation primaries • Indoor, outdoor non walk-in and outdoor walk-in enclosures

  18. Paralleling Switchgear Integrates protection, metering, control and switching Allows maximum flexibility resulting in reduced energy costs, operational reliability, and uninterruptible maintenance Unlimited Design Options and Features Load priority control Generator priority control Customer operator interface screens Remote communications Utility paralleling

  19. Unit Substations Converts distribution voltages to utilization voltages in any configuration up to 27kV Maximum flexibility with wide range of components and ratings Indoor or outdoor assemblies/construction Primary disconnect switch or circuit breaker up to 27kV Configures to any transformer manufacturer available

  20. Custom Assemblies Custom Distribution Centers enable the integration of components or products tailored to address a variety of unique system needs Walk in enclosures Shore Power Switchgear Emergency Fused Coordination Panels Generator Tap Cable Top Boxes Integrated Switchboards

  21. Systems Monitoring – Telegauge Effectively monitor your facility with the most advanced, customizable trending and reporting system. Users are able to effectively monitor and control the health of their facility with customized tools to store and export data for reporting, alarming and trending. Speaks to all the major protocols (MODBUS, Profibus, DNP3), all over the major interfaces (RS-485, RS-422, Ethernet), gathering relevant data from key devices, and storing them in an on-site database.

  22. 38kV Medium Voltage Metal-Clad Switchgear Voltage: 38kV Ampacity: 1200A, 2000A Rated voltage withstand (BIL): 150, 170kV peak Breaker interrupter ratings: Up to 40kA Dimensions: 42” W x 122” D x 95” H Advanced vacuum circuit breaker Compartmentalized construction with breaker compartment for each device Rear access for load and incoming connections Indoor or Outdoor applications Testing/Industry Standards IEEE C37.20.2 CSA C22.2 No. 31-M89 EEMAC G8-3.2 ANSI IEEE C37.04, C37.06, C37.09

  23. All IEM Equipment Is Seismic Qualified IEM Low Voltage Switchgear, PIU Panels, and PIE Panels passed stringent earthquake survival testing by the Southwest Research Institute OSHPD Certified (Office of Statewide Health Planning and Development)

  24. Fully Rated Bus Superior Bussing • Fully rated based on density not temp rating • 1000A/in2 for copper • 750A/in2 for aluminum • In-house forming, bending and punching

  25. Superior Enclosures • Each designed for a specific application • Rigid and square enclosure, limits distortion • Dimension flexibility • Aluminum, stainless, galvanized steel • Custom powder coating paint finish

  26. Metal Finishing Process Extends Product Life State of the art powder coat finishing system 5-Stage washer improves salt spray resistance to 3000hrs; exceeds industry requirement System is self-contained with no discharge of waste water

  27. The IEM Difference • Proven track record, responsive, experienced staff • Flexible, comprehensive solutions • Leading-edge CAD software and tech support • Components sourced from best manufacturers • Testing that exceeds industry standards

  28. IEM Overview Video

  29. Vortex Power Systems Vortex Power Systems, Inc. designs and builds advanced electrically coupled rotary diesel UPS systems for critical applications where continuous and reliable power are requirements. VPS aims to provide the most reliable and efficient continuous power solution systems in the world. With facilities in the U.S. and UK, Vortex Power Systems is able to serve businesses worldwide with innovative solutions to meet their facilities needs.

  30. Vortex Power Systems • Designed to protect critical loads against electrical disturbances, including: • Total power failures (up to 10 seconds) • Transients • Voltage drops and surges • Slow voltage fluctuations (sags and swells) • Designed to improve the power quality by: • Compensating the power factor • Rebalancing the phase currents • Filtering harmonic currents generated by nonlinear loads. Vortex UPS Power System Module VX1000-1500 Electrically Coupled Rotary UPS Switchgear Low and Medium Voltage input and output Switchgear Diesel Generator Can be operated independent of the Rotary Block VX Control System Control System that operates and manages UPS, Switchgear, and Diesel Gen-Set. Easy integration into building management systems and real time control, monitoring, and reporting. Prototype - 1500 kW w/ switchgear, choke, & controls

  31. Vortex UPS Product Overview Vortex Diesel-UPS Rotary system is a unique ‘Integrated’ Uninterruptible Power Supply System.The Diesel Engine Generator, UPS and Switchgear components are all controlled by a central operating system.

  32. Vortex Power Systems

  33. Vortex Power Systems • The VX Advantage • High Efficiency Solution • Smaller Overall Footprint • Complete System Reliability • Simple Design • Low Total Cost of Ownership • Eco-Friendly • Data Center Solutions • Substantial savings in cabling between thecontainers and the building switchgear • Reduced installation costs • Improvement on overall efficiency • Less inductive heating of cables • Reduced cable/transition losses • Improve site flexibility • Little impact on ‘capital’ costs

  34. Vortex UPS Product Video
