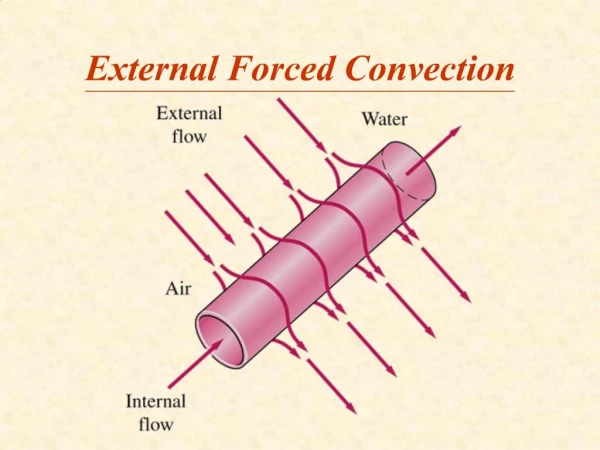

1. External Forced Convection
3. Viscosity of Fluid
Density of Fluid
Velocity
Shape and Orientation of Body
Drag Force = Friction Drag + Pressure Drag
5. Drag Force, FD
17. For cross flow over tube banks(In-line Arrangement, N > 16, and 0.7 < Pr < 500)
20. The Logarithmic Mean Temperature Difference ?Tln
21. Pressure drop, ?P between the inlet and the exit of tube bank
25. The Schematic of the Huskburner
26. Arrangement of the Tubes in Staggered Tube Banks
27. Flow Configuration in Cross-flow Heat ExchangerOne fluid mixed, on fluid unmixed
29. The Properties of Air T2 = 50?
r = 1.092 kg/m3
Cp = 1.007 kJ/kg?
k = 0.02735 W/m?
m = 1.963 10-5 kg/m sec
Pr = 0.7228
30. The Specifications of Tube Banks ST = 107 mm
SL = 95 mm
D = 77 mm
SD = (53.52 +952)1/2 = 109 mm
L = 1675 mm
NL = 11 2 = 22
NT = 16
N = NL NT = 176 2 = 352
A = NpDL = 71.3 2 = 142.6 m2
31. The Air Flow at First Stage of Heating F1 = 850 CMM
A1 = W L = 3.35 m2
V1 = 4.23 m/sec
32. F2 = 1,100 CMM
A2 = W L = 3.35 m2
V2 = 5.47 m/sec
33. The Heat Transfer at First Stage of Heating
34. The Heat Transfer at Second Stage of Heating
35. Pressure Drop
36. Optimum Thickness of Insulation
38. Reference Cengel, Yunus A.. 2003. Heat Transfer: A Practical Approach, 2nd Ed., McGraw-Hill Book Company.
